UC 18YML2 - Battery charger HiKOKI - Free user manual and instructions

Model	UC 18YML2
Brand	HiKOKI
Product type	Battery charger
Power supply	AC 100-240 V (via mains cable) or DC 12 V (via cigarette lighter)
Charge voltage	14.4 – 18 V
Weight	0.7 kg
Typical charging time (AC 20°C)	22 to 45 minutes depending on battery
Typical charging time (DC 12V 20°C)	60 to 120 minutes depending on battery
Compatible batteries	BSL1415, BSL1415X, BSL1430, BSL1815X, BSL1830
Status indicator	Red (standby, charging, finished, anomaly); Green (battery overheating, DC source fault)
Overheat protection	Green LED steady on; cooling by fan (except in DC mode)
Cooling fan	Yes (active in AC mode)
Charging temperature range	0°C to 50°C
Cigarette lighter adapter fuse	250 V, 6 A, DC
Maintenance	Clean with a soft, dry cloth or one dampened with soapy water; do not use solvents
Storage	Dry place, elevated, out of reach of children, temperature < 40°C
Repairs	Entrust only to a HiKOKI authorized repairer
Vehicle use	Vehicle with negative ground; secure the charger with the supplied strap

Frequently Asked Questions - UC 18YML2 HiKOKI

What type of battery can I charge with the HiKOKI UC 18YML2?

This charger is compatible with the following HiKOKI Li-ion batteries: BSL1415, BSL1415X, BSL1430, BSL1815X and BSL1830.

Can I use the charger on a car cigarette lighter socket?

Yes, the UC 18YML2 is a dual-power charger: it works on AC mains (100-240 V) and on 12 V DC via the supplied cigarette lighter adapter. Make sure the vehicle has a negative ground.

How long does it take to charge a battery?

The charging time depends on the battery and the source. On mains, allow 22 to 45 minutes; on cigarette lighter, 60 to 120 minutes at 20°C. Times may vary with ambient temperature.

What does the rapidly flashing red light mean?

A rapid flash (0.1 s on / 0.1 s off) indicates a battery or charger anomaly. Check the contacts and remove foreign objects. If the problem persists, contact an authorized repairer.

What should I do if the light stays green steady?

A steady green light means the battery is overheating and cannot be charged. Let it cool down until the light turns red (approximately 1 second interval) for charging to start automatically.

Can I leave the battery charging overnight?

Yes, the charger automatically switches to maintenance mode once the battery is full. However, to extend battery life, it is recommended to remove it as soon as charging is complete.

How do I clean the UC 18YML2 charger?

Unplug the charger and wipe it with a soft, dry cloth. For stubborn dirt, use a cloth slightly dampened with soapy water. Never use solvents (chlorine, gasoline, thinner).

What fuse should I use for the cigarette lighter adapter?

The fuse must be of type 250 V, 6 A, DC. Use only a fuse of the same rating to avoid any fire risk.

Can I charge a new battery immediately?

Yes, but a new battery may require 2 or 3 charge/discharge cycles to reach its full capacity. This is normal.

Where can I have my HiKOKI charger repaired?

Any repair must be carried out by a HiKOKI authorized repairer. Visit www.hikoki-powertools.fr or contact customer service at [phone].

USER MANUAL UC 18YML2 HiKOKI

Line drawing of a mechanical device casing with internal compartments and mounting holes (no text or symbols)

Read through carefully and understand these instructions before use.

	English Deutsch Français
1	Rechargeable battery(BSL1415, BSL1415X)	Akkumulator(BSL1415, BSL1415X)	Batterie rechargeable(BSL1415, BSL1415X)
2	Rechargeable battery(BSL1430)	Akkumulator(BSL1430)	Batterie rechargeable(BSL1430)
3	Rechargeable battery(BSL1815X)	Akkumulator(BSL1815X)	Batterie rechargeable(BSL1815X)
4	Rechargeable battery(BSL1830)	Akkumulator(BSL1830)	Batterie rechargeable(BSL1830)
5	Pilot lamp Ladungsstatuslampe Voyant d’état de chargement
6	Guide rail Führungsschiene Glissière
7	Cooling fan Ventilator Ventilateur de refroidissement
8	Caution plate Warnschild Plaque d’avertissement
9	Nameplate Typenschild Plaque signalétique
10	Line Leitung Ligne
11	Strap	Band	Courroie
12	Connecting socket	Anschlussbuchse	Prise de raccordement
13	Charger connecting plug	Anschlussbuchse des Ladegeräts	Prise du chargeur
14	Cigarette lighter connecting plug	Anschlussbuchse des Zigarettenanzünders	Prise de l’allume-cigare
15	Before insert	Vor Einführen	Avant insertion
16	After insert	Nach Einführen	Après insertion
	Italiano Nederlands Español
1	Batteria ricaricabile(BSL1415, BSL1415X)	Oplaadbare batterij(BSL1415, BSL1415X)	Batería recargable(BSL1415, BSL1415X)
2	Batteria ricaricabile(BSL1430)	Oplaadbare batterij(BSL1430)	Batería recargable(BSL1430)
3	Batteria ricaricabile(BSL1815X)	Oplaadbare batterij(BSL1815X)	Batería recargable(BSL1815X)
4	Batteria ricaricabile(BSL1830)	Oplaadbare batterij(BSL1830)	Batería recargable(BSL1830)
5	Spia pilota Controlelampje Lámpara	piloto
6	Guida Geleider Riel guía
7	Ventola di raffreddamento	Koelventilator	Ventilador de refrigeración
8	Etichetta delle precauzioni Waarschu	wingslabel Placa de precaución
9	Etichetta del nome Naamplaatje Placa	de características
10	Linea Lijn	Línea
11	Cinghietta	Riem	Cinta
12	Presa di collegamento	Aansluiting	Toma de conexión
13	Spina di collegamento del caricatore	Aansluitstekker oplader	Enchufe conector del cargador
14	Spina di collegamento dell'accendisigarette	Aansluitstekker sigarettenaansteker	Enchufe conector del mechero
15	Prima dell'inserimento	Voor plaatsen	Antes de la inserción
16	Dopo l'inserimento Na plaatsen	Tras la inserción

	Português Ελληνικά	Svenska
1	Bateria recarregável(BSL1415, BSL1415X)	Επαναρτιζόμενη μπαταρία(BSL1415, BSL1415X)	Uppladdningsbart batteri(BSL1415, BSL1415X)
2	Bateria recarregável(BSL1430)	Επαναρτιζόμενη μπαταρία(BSL1430)	Uppladdningsbart batteri(BSL1430)
3	Bateria recarregável(BSL1815X)	Επαναρτιζόμενη μπαταρία(BSL1815X)	Uppladdningsbart batteri(BSL1815X)
4	Bateria recarregável(BSL1830)	Επαναρτιζόμενη μπαταρία(BSL1830)	Uppladdningsbart batteri(BSL1830)
5	Luz-piloto	Λυχνία πιλότος	Indikeringslampa
6	Barra-guia	Οδηγός	Styrskena
7	Ventilador de arrefecimento	Ανεμιστήρας ψύξης	Kylfläkt
8	Placa de cautela	Πινακίδα κινδύνου	Varningsplåt
9	Placa de identificação	Πινακίδα χαρακτηριστικών	Namnplåt
10	Linha	Γραμμή	Ledning
11	Correia	Ιμάντας	Rem
12	Tomada de ligação	Υποδοχή σύνδεσης	Anslutningsuttag
13	Ficha de ligação do carregador	Βύσμα σύνδεσης φορτιστή	Laddarens anslutningskontakt
14	Ficha de ligação do isqueiro	Βύσμα σύνδεσης αναπτήρα	Cigarettändaranslutningskontakt
15	Antes da introdução	Πριν την εισαγωγή	Innan isättning
16	Após a introduçãoDansk Norsk Suomi	Μετά την εισαγωγή	Efter isättning
1	Genopladeligt batteri(BSL1415, BSL1415X)	Oppladbart batteri(BSL1415, BSL1415X)	Ladattava paristo(BSL1415, BSL1415X)
2	Genopladeligt batteri(BSL1430)	Oppladbart batteri(BSL1430)	Ladattava paristo(BSL1430)
3	Genopladeligt batteri(BSL1815X)	Oppladbart batteri(BSL1815X)	Ladattava paristo(BSL1815X)
4	Genopladeligt batteri(BSL1830)	Oppladbart batteri(BSL1830)	Ladattava paristo(BSL1830)
5	Pilotlampe Pilotlampe Merkkivalo
6	Styreskinne Innføringsspor Ohjauskisko
7	Blæser	Kjølevifte	Jäähdytystuuletin
8	Advarselsplade Varselplate Varoituslaatta
9	Mærkeplade Navneplate Nimilaata
10	Linje Linje Viiva
11	Rem Stropp Hihna
12	Indgangsstik	Stikkontakt	Liitäntäpistorasia
13	Opladerens tilslutningsstik	Ladeapparatets koplingsplugg	Laturiin liittävä pistoke
14	Cigartændertilslutningsstik	Sigarettlighter plugg	Savukkeensytyttimeen liittävä pistoke
15	Før isætning	Før du setter det inn	Ennen paikalleen sijoittamista
16	Efter isætning	Etter du har satt det inn	Paikalleen sijoittamisen jälkeen

	Symbols⚠ WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.	Symbole⚠ WARNUNGDie folgenden Symbole werden für diese Maschine verwendet. Achten Sie darauf, diese vor der Verwendung zu verstehen.	Symboles⚠ AVERTISSEMENTLes symboles suivants sont utilisés pour l’outil. Bien se familiariser avec leur signifi cation avant d’utiliser l’outil.	Simboli⚠ AVVERTENZADi seguito mostriamo i simboli usati per la macchina. Assicurarsi di comprenderne il signifi cato prima dell’uso.
	Read all safety warnings and all instructions.Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.	Lesen Sie sämtliche Sicherheitshinweise und Anweisungen durch.Wenn die Warnungen und Anweisungen nicht befolgt werden, kann es zu Stromschlag, Brand und/oder ernsthaften Verletzungen kommen.	Lire tous les avertissements de sécurité et toutes les instructions.Tout manquement à observer ces avertissements et instructions peut engendrer des chocs électriques, des incendies et/ou des blessures graves.	Leggere tutti gli avvertimenti di sicurezza e tutte le istruzioni.La mancata osservanza degli avvertimenti e delle istruzioni potrebbe essere causa di scosse elettriche, incendi e/o gravi lesioni.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.	Nur für EU-LänderWerfen Sie Elektrowerkzeuge nicht in den Hausmüll!Gemäss Europäischer Richtlinie 2012/19/EU über Elektro- und Elektronik-Altgeräte und Umsetzung in nationales Recht müssen verbrauchte Elektrowerkzeuge getrennt gesammelt und einer umweltgerechten Wiederververtung zugeführt werden.	Pour les pays européens uniquementNe pas jeter les appareils électriques dans les ordures ménagères!Conformément à la directive européenne 2012/19/UE relative aux déchets d’équipements électriques ou électroniques (DEEE), et à sa transposition dans la législation nationale, les appareils électriques doivent être collectés à part et être soumis à un recyclage respectueux de l’environnement.	Solo per Paesi UENon gettare le apparecchiature elettriche tra i rifi uti domestici.Secondo la Direttiva Europea 2012/19/UE sui rifi uti di apparecchiature elettriche ed elettroniche e la sua attuazione in conformità alle norme nazionali, le apparecchiature elettriche esauste devono essere raccolte separatamente, al fi ne di essere reimpiegate in modo eco-compatibile.
	Symbolen⚠ WAARSCHUWINGHieronder staan symbolen afgebeeld die van toepassing zijn op deze machine. U moet de betekenis hiervan begrijpen voor gebruik.	Símbolos⚠ ADVERTENCIAA continuación se muestran los símbolos usados para la máquina. Asegúrese de comprender su signifi cado antes del uso.	Símbolos⚠ AVISOA seguir aparecem os símbolos utilizados pela máquina. Assimile bem seus signifi cados antes do uso.	Σύμβολα⚠ ΠΡΟΣΟΧΗΤα παρακάτω δείχνουν τα σύμβολα που χρησιμοποιούνται στο μηχάνημα. Βεβαιωθείτε ότι κατανοείτε τη σημασίας τους πριν τη χρήση.
	Lees alle waarschuwingen en instructies aandachtig door.Nalating om de waarschuwingen en instructies op te volgen kan in een elektrische schok, brand en/of ernstig letsel resulteren.	Lea todas las instrucciones y advertencias de seguridad.Si no se siguen las advertencias e instrucciones, podría producirse una descarga eléctrica, un incendio y/o daños graves.	Leia todas as instruções e avisos de segurança.Se não seguir todas as instruções e os avisos, pode provocar um choque eléctrico, incêndio e/ou ferimentos graves.	Διαβάζετε όλες τις προειδοποιήσεις αφαλείας και όλες τις οδηγίες.Η μη τήρηση των προειδοποιήσεων και οδηγιών μπορεί να προκαλέσει ηλεκτροπληξία, πυρκαγιά και/ή σοβαρό τραυματισμό.
	Alleen voor EU-landen Geef elektrisch gereedschap niet met het huisvuil mee!Volgens de Europese richtlijn 2012/19/EU inzake oude elektrische en elektronische apparaten en de toepassing daarvan binnen de nationale wetgeving, dient gebruikt elektrisch gereedschap gescheiden te worden ingezameld en te worden afgevoerd naar een recycle bedrijf dat voldoet aan de geldende milieu-eisen.Symboler⚠️ VARNINGNedan visas de symbolersom används förmaskinen. Se till att duförstår vad de betyderinnan verktyget används.	Sólo para países de la Unión Europea¡No deseche los aparatos eléctricos junto con los residuos domésticos!De conformidad con la Directiva Europea 2012/19/UE sobre residuos de aparatos eléctricos y electrónicos y su aplicación de acuerdo con la legislación nacional, las herramientas eléctricas cuya vida útil haya llegado a su fi n se deberán recoger por separado y trasladar a una planta de reciclaje que cumpla con las exigencias ecológicas.Symboler⚠️ ADVARSELDet følgende visersymboler, som anvendesfor maskinen. Vær sikker på, at du forstårderes betydning, indendu begynder at brugemaskinen.	Apenas para países da UENão deite ferramentas eléctricas no lixo doméstico!De acordo com a directiva europeia 2012/19/UE sobre ferramentas eléctricas e electrónicas usadas e a transposição para as leis nacionais, as ferramentas eléctricas usadas devem ser recolhidas em separado e encaminhadas a uma instalação de reciclagem dos materiais ecológica.Symboler⚠️ ADVARSELFølgende symboler brukesfor maskinen. Sørg foraforstå betydningenav disse symbolene førmaskinen tas i bruk.	Μόνο για τις χώρες της ΕΕΜην πετάτε τα ηλεκτρικά εργαλεία στον κάδο οικιακών απορριμμάτων!Σύμφωνα με την ευρωπαϊκή οδηγία 2012/19/ΕΕ περί ηλεκτρικών και ηλεκτρονικών συσκευών και την ενσωμάτωσή της στο εθνικό δικαιο, τα ηλεκτρικά εργαλεία πρέπει να συλλέγονται εχωριστά και να επιστρέφονται για ανακύκλωση με τροπο φιλικό προς το περιβάλλον.Symbolit⚠️ VAROITUSSeuraavassa on näytettykoneessa käytetyt symbolit.Varmista, että ymmärrätniiden merkityksen ennenkuin aloitat koneen käytön.
	Läs allasäkerhetsvarningar ochalla instruktioner.Underlåtenhet attfölja varningarna ochinstruktionerna nedan kanresultera i elstötar, brandoch/eller allvarliga skador.	Læs allesikkerhedsadvarsler oginstruktioner.Det kan medføre elektriskstød, brand og/elleralvorlig personskade,hvis alle advarslerne oginstruktionerne nedenforikke overholdes.	Les alle advarslerogsikkerhetsinstruksjoner.Hvis du ikke følger alleadvarsler og instruksjonerkan bruk av utstyretresultere i elektrisk støt,brann og/eller alvorligpersonskade.	Lue kaikki turvallisuuttakoskevat varoitukset jakaikki ohjeet.Jos varoituksia ja ohjeitaei noudateta, on olemassasähköiskun, tulipalon ja/tiivakavan henkilövahingonvaara.
	Gäller endast EU-länderElektriska verktyg får intekastas i hushållssoporna!Enligt direktivet 2012/19/EU som avser äldreelektrisk och elektroniskutrustning och desstillämpning enligt nationelllagstiftning ska uttjäntaelektriska verktyg sorterasseparat och lämnas tillmiljövänlig återvinning.	Kun for EU-landeElværktøj må ikkebortskaff es somalmindeligt aff ald!I henhold til deteuropæiske direktiv2012/19/EU ombortskaff else af elektriskeog elektroniske produkterog gældende nationallovgivning skal brugtelværktøj indsamlesseparat og bortskaff espå en måde, der skånermiljøet mest muligt.	Kun for EU-landKast aldri elektroverktøy ihusholdningsavfallet!I henhold til EU-direktiv2012/19/EU om kasserteelektriske og elektroniskeprodukter og direktivetsiverksetting i nasjonalrett, må elektroverktøysom ikke lengerskal brukes, samlesseparat og returnerestil et miljøvennliggjenvinningsanlegg.	Koskee vain EU-maitaÄlä hävitä sähkötyökaluatavallisen kotitalousjätteenmukana!Vanhoja sähkö- jaelektroniikkalaitteitakoskevan EU-direktiivin2012/19/EU ja senmaakohtaisten sovellustenmukaisesti käytetytsähkötyökalut ontoimitettava ongelmajätteenkeräyspisteeseenja ohjattavaympäristöystävälliseenkierrätykseen.

GENERAL OPERATIONAL PRECAUTIONS

1. Keep work area clean. Cluttered areas and benches invite accidents.
2. Avoid dangerous environment. Don't expose power tools and charger to rain. Don't use power tools and charger in damp or wet locations. And keep work area well lit.
   Never use power tools and charger near fl ammable or explosive materials.
   Do not use tool and charger in presence of fl ammable liquids or gases.
3. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do with the appliance. All visitors show distance from work area.
4. Store idle tools and charger. When not in use, tools and charger should be stored in dry, high or locked-up place — out of reach or children. Store tools and charger in a place in which the temperature is less than 40^ C.
5. Don't abuse cord. Never carry charger by cord or yank it to disconnect from receptacle. Keep cord from heat, oil and sharp edges.
6. When the charger is not in use or when being maintained and inspected, disconnect the power cord of the charger from the receptacle.
7. To avoid danger, always use only the specified charger.
8. Use only genuine HiKOKI replacement parts.
9. Do not use power tools and charger for applications other than those specified in the Handling Instructions.
10. To avoid personal injury, use only the accessories or attachment recommended in these handling instructions or in the HiKOKI catalog.
11. If the supply cord is damaged, it must by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.
    Let only the authorized service center do the repairing. The Manufacture will not be responsible for any damages or injuries caused by repair by the unauthorized persons or by mishandling of the tool.
12. To ensure the designed operational integrity of power tools and charger, do not remove installed covers or screws.
13. Always use the charger at the voltage specified on the nameplate.
14. Always charge the battery before use.
15. Never use a battery other than that specified. Do not connect a usual dry cell, a rechargeable battery other than that specified or a car battery to the power tool.
16. Do not use a transformer containing a booster.
17. Do not charge the battery from an engine electric generator.
18. Always charge indoors. Because the charger and battery heat slightly during charging, charge the battery in a place not exposed to direct sunlight; where the humidity is low and the ventilation is good.
19. Use the exploded assembly drawing on this handling instructions only for authorized servicing.

PRECAUTIONS FOR CHARGER

1. Always charge the battery at an ambient temperature of 0–40°C. A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature greater than 40°C.
   The most suitable temperature for charging is that of 20–25°C.
2. Do not use the charger continuously. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.
3. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
4. Never disassemble the rechargeable battery or ot pdaarger.
   5d Never Is loop-t circuit the rechargeable battery.
   Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
5. Do not dispose of the battery in fire.
   If the battery is burnt, it may explode.
6. Using an exhausted battery will damage the charger.
7. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
8. Do not insert objects into the air ventilation slots of the charger.
   Inserting metal objects or fl ammable into the charger air ventilation slots will result in an electrical shock hazard or damage to the charger.

PRECAUTIONS WHEN USING THE BATTERYCHARGER WITH A DC 12V IN-CAR POWER SOURCE

be replaced 1. Use the batte

Do not use the battery charger other than with a DC 12V in-car power source. The battery charger is solely for use on minus-grounded vehicles. Make sure that the minus pole of the car battery is connected to the car body.

1. Keep your attention focused on driving the car. If you use the battery charger while driving, fasten the battery charger in place so that it does not move inadvertently and distract your attention from driving.

Do not place the battery charger or battery under the driver's seat, irrespective of whether it is char not, as it may get under the brake pedal or the cable may get wrapped around the driver's feet and cause an accident.

1. Do not manipulate the battery charger or battery while driving as this may cause an accident.

2. Do not leave the battery charger or battery within reach of children as this may result in an accident.

3. Be sure to use the cable provided. Using a different cable could result in a fire or accident due to overheating.

4. Do not place the battery charger on a blanket-type car seat cover or car mat during charging as this may result in a fire or accident due to overheating.

5. Do no expose the battery charger to direct sunlight during charging as this may result in a fire.

6. Do not leave the vehicle unattended during charging.

7. Do not charge the battery using an AC power source and DC 12V in-car power source together.

It causes charging failure and, more importantly, may result in a fire.

SPECIFICATION

CHARGER

Model UC18YML2
Power source AC DC12 V (in-Car)
Charging time Approx. 22 – 45 minutes Approx. 60 – 120 minutes
Charging voltage 14.4–18 V
Weight 0.7 kg

AC/DC Dual Power Charger included:

Charge battery from AC mains socket or 12V DC car cigarette lighter socket.

APPLICATION

For charging the HiKOKI BATTERY

BSL1415, BSL1415X, BSL1430, BSL1815X, BSL1830

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect to the power source

When charging the battery from an AC power source

○ Connect the charger's power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the pilot lamp will blink in red (At 1-second intervals).

CAUTION

Do not use the electrical cord if damaged. Have it repaired immediately.

When charging the battery from a DC 12V in-car power source

- Secure the battery charger in place in the car.

Use the strap supplied with the battery charger to fasten the battery charger in place and prevent it from moving inadvertently. (See Fig. 3)

CAUTION

Do not place the battery charger or battery under the driver's seat. Secure the battery charger in place to prevent it from moving inadvertently as this may lead to an accident.

Diagram of a vehicle interior with a cross symbol crossed out, no text or labels present

Line drawing of a mechanical component with no visible text or symbols

Fig. 3

○ Insert the cigarette lighter connecting plug into the cigarette lighter socket.

If the plug is loose and falls out of the cigarette lighter socket, repair the socket. As the socket may be faulty, you are recommended to contact your local car dealer. Continued use of the socket may result in an accident due to overheating.

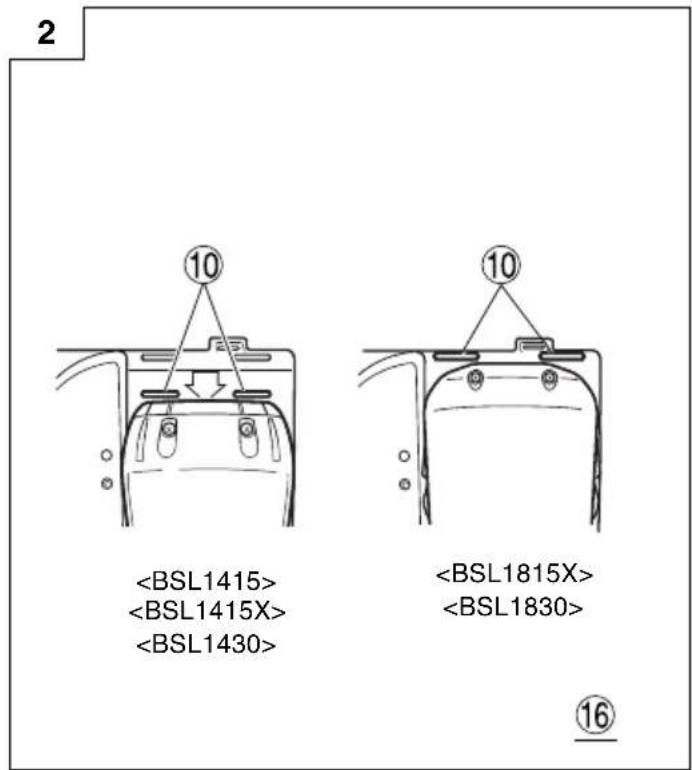

1. Insert the battery into the charger.

Firmly insert the battery into the charger until the line is visible, as shown in Fig. 1, 2.

1. Charging

When inserting a battery in the charger, the pilot lamp will light up continuously in red.

When the battery becomes fully recharged, the pilot lamp will blink in red (At 1-second intervals). (See Table 1)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp
The pilot lamp lights or blinks in red.	Before charging	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	While charging	Lights	Lights continuously
	Charging complete	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Charging impossible	Flickers	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger
The pilot lamp lights or blinks in green.	Overheat standby	Lights	Lights continuously	Battery overheated. Unable to charge. (Charging will commence when battery cools)
	Charging with in-car power source impossible	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)	Malfunction of the car battery

NOTE: When standby for cooling battery, UC18YML2 cools the overheated battery by cooling fan.

(However, the cooling fan does not function when charging the battery with a DC 12V in-car power source.)

(2) Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 2

Temperatures at which the battery can be recharged

0°C - 50°C

(3) Regarding recharging time

Table 3 shows the recharging time required according to the type of battery.

Table 3 Recharging time (approx. min.) at 20°C (AC power supply/DC 12V (in-car) power supply)

	Battery capacity (Ah)
Battery Voltage (V)	Li-ion BATTERY
	1.5 Ah 3.0 Ah
14.4 V	BSL1415 BSL1415X (4 cells)	22/60 min.	BSL1430 (8 cells)	45/120 min.
18 V	BSL1815X (5 cells)	22/60 min.	BSL1830 (10 cells)	45/120 min.

NOTE

The recharging time may vary according to the ambient temperature.

Especially, using a DC 12V in-car power source may require longer recharging time at high temperatures.

E.g., approx. 170-180 min (3.0 Ah) at 40°C

1. Disconnect the charger's power cord from the receptacle or cigarette lighter socket

2. Hold the charger firmly and pull out the battery NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

☐ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights up green. In such a case, first let the battery cool, then start charging.

When the pilot lamp flickers in red (at 0.2-seconds intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

○ Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC18YML2 is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

☐ Check the voltage of the in-car power source when the pilot lamp fl ickers in green (every 0.2 seconds) continuously.

If the voltage is 12V or lower, it indicates that the car battery has weakened and cannot be charged.

☐ If the pilot lamp does not blink in red (every second) even though the charger cord or cigarette lighter connecting plug is connected to the power, it indicates that the protection circuit of the charger may be activated.

Remove the cord or plug from the power and then connect it again after 30 seconds or so. If this does not cause the pilot lamp to blink in red (every second), please take the charger to the HiKOKI Authorized Service Center.

MAINTENANCE AND INSPECTION

1. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

1. Cleaning of the charger

When the charger is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

1. Store idle charger

When not in use, the charger should be stored in dry high or locked-up place — out of reach of children.

1. Fuse replacement of cigarette lighter connecting plug

CAUTION

For continued protection against risk of fire, replace only with same type and ratings of fuse in cigarette lighter connecting plug.

250V, 6A, DC

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Technical illustration showing a hand holding a car seatbelt with a cross symbol (no text or labels present)

Abb. 3

Technical line drawing showing mechanical assembly with a cross symbol (no text or labels)

Fig. 3

Tableau 1

Technical line drawing showing mechanical assembly with a cross symbol (no text or labels)

Fig. 3

E.g. circa 170-180 min (3,0 Ah) a 40°C

Technical line drawing showing mechanical assembly with no visible text or symbols

Afb. 3

Technical line drawing showing mechanical assembly with a cross mark and bracket (no text or symbols)

Fig. 3

Tabla 1

Technical line drawing showing mechanical assembly with a cross symbol (no text or labels)

Fig. 3

Ex., aprox. 170-180 mins (3,0 Ah) a 40°C

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Eik. 3

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Bild 3

Technical line drawing showing mechanical assembly with no visible text or symbols

Fig. 3

Illustration of a person crossed out of their head, no text or symbols present

Line drawing of a mechanical component with a bracket and base, no text or symbols present

Fig. 3

○ Sett sigarettligther pluggen inn i sigarettlighter kontakten.

VEDLIKEHOLD OG INSPEKSJON

Technical line drawing showing mechanical assembly with a cross symbol (no text or labels)

kuva 3

Line drawing of a quill pen in an inkwell (no text or symbols)

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.de

Hikoki Power Tools Netherlands B.V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.nl

Hikoki Power Tools (U.K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.uk

Hikoki Power Tools France S.A.S.

Hikoki Power Tools Belgium N.V./S.A.

Koningin Astridlaan 51, B-1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hikoki-powertools.be

Hikoki Power Tools Italia S.p.A

Via Piave 35, 36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.it

Hikoki Power Tools Ibérica, S.A.

C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa

(Barcelona), Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.es

Kjeller Vest 7, N-2007 Kjeller, Norway

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.no

Hikoki Power Tools Sweden AB

Rotebergsvagen 2B SE-192 78 Sollentuna, Sweden

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.se

Hikoki Power Tools Denmark A/S

Lillebaeltsvej 90, 6715 Esbjerg N, Denmark

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.dk

Hikoki Power Tools Finland Oy

Tupalankatu 9, 15680 Lahti, Finland

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.fi

English Português
EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that Charger, identified by type and specific identification code *1), is in conformity with all relevant requirements of the directives *2) and standards *3).Technical file at *4) – See below. The European Standard Manager at the representative office in Europe is authorized to compile the technical fi le.The declaration is applicable to the product affi xed CE marking.	DECLARAÇÃO DE CONFORMIDADE CEDeclaramos, sob nossa única e inteira responsabilidade, que Recarregador, identificado por tipo e código de identificação específico *1), está em conformidade com todos os requerimentos relevantes das diretivas *2) e normas *3). Ficheiro técnico em *4)-Consulte abaixo.O Gestor de Normas Europeias no escritório de representação na Europa está autorizado a compilar o fi cheiro técnico.A declaração aplica-se aos produtos com marca CE.
Deutsch Ελλήνικά
EG-KONFORMITÄTSERKLÄRUNGWir erklären in alleiniger Verantwortung, dass das durch den Typ und den spezifischen Identifizierungscode *1) identifizierte Ladegerät allen einschlägigen Bestimmungen der Richtlinien *2) und Normen *3) entspricht. Technische Unterlagen unter *4) – Siehe unten.Die Leitung der repräsentativen Behörde für europäische Normen und Richtlinien ist berechtigt, die technischen Unterlagen zusammenzustellen. Die Erklärung gilt für die an dem Produkt angebrachte CE-Kennzeichnung.	EK ΔΗΛΩΣΗ ΕΝΑΡΜΟΝΙΣΜΟΥΔηλώνουμε με αποκλειστική μας ευθύνη ότι ο Φορτιστής, ο οποίος προοδιορίζεται από τον τύπο και ειδικό αναγνωριστικό κωδικό *1), ειναι σύμφωνος με όλες τις σχετικές απαιτήσεις των Οδηγιών *2) και στα σχετικά πρότυπα *3). Τεχνικό Αρχείο στο *4) – Δείτε παρακάτω.Ο Διαχειριστής Ευρωπαϊκών Προτύπων στο γραφείο εκπροσώτησης στην Ευρώτη είναι εξουσιοδοτημένος για τη σύνταξη του τεχνικού φακέλου.Η δήλωση ισχύει μόνο για το προϊόν που είναι τοποθετημένη σήμανοη CE.
Français Sveńska
DECLARATION DE CONFORMITE CENous déclarons sous notre entière responsabilité que le chargeur, identifié par le type et le code d'identification spécifique *1) est en conformité avec toutes les exigences applicables des directives *2) et des normes *3). Dossier technique en *4) - Voir ci-dessous.Le Gestionnaire des normes européennes du bureau de représentation en Europe est autorisé à constituer le dossier technique.Cette déclaration s'applique aux produits désignés CE.	EG-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi förklarar på eget ansvar att detta laddningsaggregat, identifierat enligt typ och särskild identifikationskod *1), överensstämmer med alla relevanía krav i direktiven *2) och standarderna *3). Teknisk fil enligt *4) – Se nedan. Den europeiska standardansvariga på representationskontoret i Europa är auktoriserad att sammanställa den tekniska fi len.Denna försåkran gäller för produkten med tillhörande CE-märkning.
Italiano Dansk
DICHIARAZIONE DI CONFORMITÀ CEDichiariamo sotto la nostra esclusiva responsabilità che il caricatore, identificato dal tipo e dal codice identificativo specifico *1), è conforme a tutti i requisiti delle direttive *2) e degli standard *3). Documentazione tecnica presso *4) – Vedere sotto.Il gestore delle norme europee presso l'ufficio di rappresentanza in Europa è autorizzato a compilare il fascicolo tecnico.La dichiarazione è applicabile ai prodotti cui sono applicati i marchi CE.	EF-OVERENSSTEMMELSESERKLÆRINGVi erklærer os fuldstændige ansvarlige for, at opladeapparatet, identificeret ved type og specifik identifikationskode *1), er i overensstemmelse med alle relevante krav i direktiverne *2) og standarderne *3). Teknisk fil i *4) – Se nedenfor.Lederen af europæiske standarder på repräsentationskontoret i Europa er bemyndiget til at kompilere den tekniske fi I.Erklæringen gælder produktet, der er mærket med CE.
Nederlands Norsk
EC VERKLARING VAN CONFORMITEITWij verklaren onder onze eigen verantwoordelijkheid dat Oplader, geidentificeerd door het type en de specifieke identificatiecode*1), voldoet aan alle relevante bepalingen van de richtlijnen*2) en normen*3). Technische documentatie bij*4) – zie onder.De Europese Normen Manager bij de vertegenwoordiging in Europa is gemachtigd om het technisch dossier samen te stellen.Deze verklaring is van toepassing op producten voorzien van de CE-markeringen.	EF'S ERKLÆRING OM OVERENSSTEMMELSEVi erklærer på eget ansvar at ladeapparat, identifisert etter type og spesifikk identifikasjonskode *1), er i samsvar med alle relevante krav i direktiver *2) og standarder *3). Teknisk fil under *4) - Se nedenfor.Styreren for europeiske standarder ved representantkontoret i Europa er autorisiert til å kompilere den tekniske fi len.Erklæringen gjelder for CE-merket på produktet.
Español Suorhi
DECLARACIÓN DE CONFORMIDAD DE LA CEDeclaramos bajo nuestra única responsabilidad que el Cargador, identificado por tipo y por código de identificación específico *1), está en conformidad con todas las disposiciones correspondientes de las directivas *2) y de las normas *3). Documentación técnica en *4) – Ver a continuación.El Director de Normas Europeas en la oficina de representación en Europa está autorizado para elaborar el expediente técnico.La declaración se aplica al producto con marcas de la CE.	FY-IL MOITUS YHDENMUKAISUUDESTAVakuutamme yksinomaisella vastuullamme, että laturi, joka identifioidaan typin ja erityisen tunnistuskoodin *1) perusteella, on kaikkien direktivien *2) ja standardien *3) asiaankuuluvien vaatimusten mukainen. Tekninen tiedosto kohdassa *4) – katso alta.Eurooppalaisten standardien hallintaelin Euroopan edustustossa on valtuutettu kokoamaan teknisen tiedoston.Ilmoitus on sovellettavissa tuotteeseen kiinnitettyyn CE-merkintään.
*1) UC18YML2 C354090R*2) 2014/35/EU, 2014/30/EU, 2011/65/EU*3) EN60335-1:2012+A11:2014EN60335-2-29:2004+A2:2010EN55014-1:2006+A1:2009+A2:2011EN55014-2:1997+A1:2001+A2:2008EN61000-3-2:2014EN61000-3-3:2013
*4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead office in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan		31. 5. 2019Naoto YamashiroEuropean Standard Manager31. 5. 2019A NakagawaCorporate Officer
