USER MANUAL 7419 Cloer

Deckel = ART-741-SP02

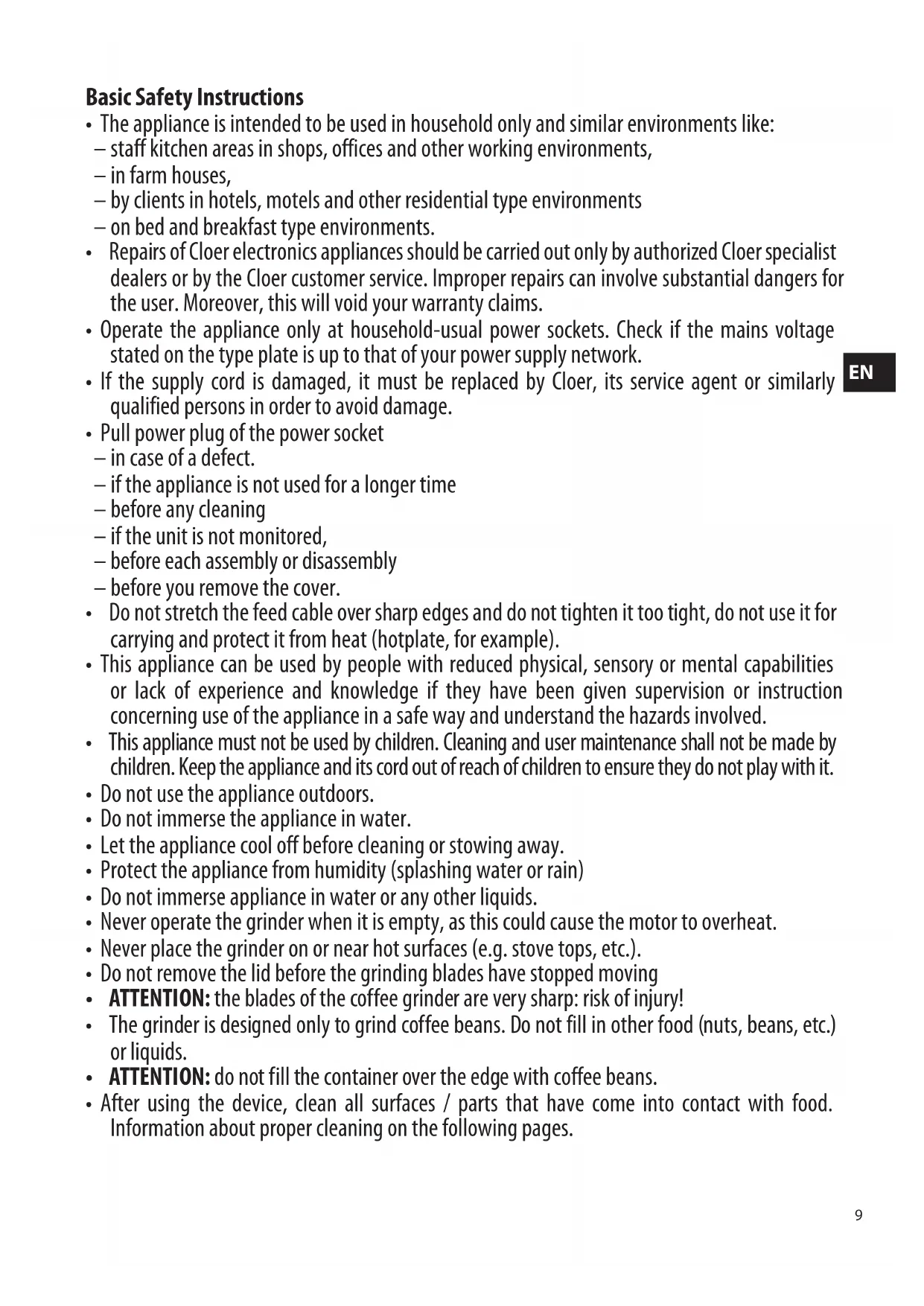

Basic Safety Instructions

• The appliance is intended to be used in household only and similar environments like:
• staff kitchen areas in shops, offices and other working environments,
  -in farm houses,
• by clients in hotels, motels and other residential type environments
  on bed and breakfast type environments.
• Repairs of Cloer electronics appliances should be carried out only by authorized Cloer specialist dealers or by the Cloer customer service. Improper repairs can involve substantial dangers for the user. Moreover, this will void your warranty claims.
• Operate the appliance only at household-usual power sockets. Check if the mains voltage stated on the type plate is up to that of your power supply network.
• If the supply cord is damaged, it must be replaced by Cloer, its service agent or similarly qualified persons in order to avoid damage.
• Pull power plug of the power socket

-- in case of a defect.
- if the appliance is not used for a longer time
before any cleaning
-if the unit is not monitored,
before each assembly or disassembly
before you remove the cover.

• Do not stretch the feed cable over sharp edges and do not tighten it too tight, do not use it for carrying and protect it from heat (hotplate, for example).
• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance must not be used by children. Cleaning and user maintenance shall not be made by children. Keep the appliance and its cord out of reach of children to ensure they do not play with it.
• Do not use the appliance outdoors.
• Do not immerse the appliance in water.
• Let the appliance cool off before cleaning or stowing away.
• Protect the appliance from humidity (splashing water or rain)
• Do not immerse appliance in water or any other liquids.
• Never operate the grinder when it is empty, as this could cause the motor to overheat.
• Never place the grinder on or near hot surfaces (e.g. stove tops, etc.).
• Do not remove the lid before the grinding blades have stopped moving
• ATTENTION: the blades of the coffee grinder are very sharp: risk of injury!
• The grinder is designed only to grind coffee beans. Do not fill in other food (nuts, beans, etc.) or liquids.
• ATTENTION: do not fill the container over the edge with coffee beans.
  After using the device, clean all surfaces / parts that have come into contact with food. Information about proper cleaning on the following pages.

EN

Technical Data

Typ	Volt	Hz	Watt
741	220-240 50/60	350

Before the first use

Read these operating instructions carefully before using the appliance for the first time

• Remove all packaging elements and stickers, but not the rating plate.
• Clean the appliance with a damp cloth
• Place the coffee grinder on a dry, flat, nonslip surface.

EN

CE Label / Safety instructions

The appliance meets the requirements of the applicable EC directives.

The appliance is designed for indoor domestic use only.

ATTENTION! Always unplug the appliance when not in use and before cleaning.

NOTE

The mill is designed for short-term high power milling with very high revolution speed. Stop operation after 60 seconds and give the motor a short time to cool down (approx. 5-10 seconds). After three runs of 60 seconds, a longer break (min. 2 minutes) should follow.

Operation

• Remove the bonnet, the lid and pour the grounds into one of the two stainless steel containers.
• The 2-bladed cutter is suitable for grinding_dry_foods and the 4-bladed knife for oily / moist foods.

Stainless steel container with 4-bladed cutter
Stainless steel container with 2-bladed cutter

• Do not fill ingredients into stainless steel container beyond the MAX mark.
• Very hard ingredients (e.g. seeds, ice cubes) and excessively moist foods such as apples, onions, etc. are not suitable.
• Replace the stainless steel container lid and make sure that the lid is properly seated.
• Note! The small cover must always be placed on the stainless steel container for operation so that the coupling is not damaged.
• Now place the stainless steel container back onto the Motor unit.
• Now place the cover on the top interlock and turn it anticlockwise until it clicks into place.
• Insert the plug into a socket.
• Manually press the desired grinding button on the device.
• Release the switch when the desired degree of coarseness has been reached. The degree of coarseness can be observed through the transparent cover.
• The upper grinding button grinds at low speed.
  The lower grinding button grinds at high speed.
• Pull the plug out of the socket.

NOTE

Many types of food are best shredded in short bursts. Additionally, interrupt operation regularly for a short time. During the pauses, you can check whether the desired grind has already been reached.

Do not remove the lid before the grinding blades have stopped moving. Danger of injury!

• Open the lid and turn the stainless steel container counterclockwise to remove it and take out the Regrind.

Some of our recommendations are listed below.

Quantities and processing time

Food	Level	Quantity	Container	Time
Coffee beans	1 5-80 g		2 bladad-cutter	10-30 s
Almonds 1	10-80 g		4 bladad-cutter	5-15 Impulses
Hazel-nuts	1 10-80 g		4 bladad-cutter	5-10 Impulses
Peanuts 1	10-80 g		4 bladad-cutter	4-8 Impulses
Walnuts 1	10-40 g		4 bladad-cutter	4-6 Impulses
Pine nuts 1	10-40 g		4 bladad-cutter	4-5 Impulses
Flaxseed 2	10-80 g		2 bladad-cutter	10-20 s

Wheat, Rye	2 10-80 g	2 bladad- cutter	20-40 s
Cinnamon sticks	2 5-25 g	2 bladad- cutter	30s
Chilli peppers	1 5-25 g	2 bladad- cutter	20-30 s
Sea salt 2 10-80 g		2 bladad- cutter	5-10 s
Pepper 2 10-80 g		2 bladad- cutter	5-20 s
Parsley 1 10-20 g		4 bladad- cutter	5-20 s
Sugar cubes	2 10-80 g	2 bladad- cutter	10-20 Impulses
Garlic 1 20-40 g		4 bladad- cutter	2 Impulses
Ginger 2 10-80g		4 bladad- cutter	2-5 s

• Please note that the ground product may become slightly sticky depending on the oil content of the nuts.
• You can also use the 4-wing stainless steel container for pesto, dressing or spice mixes.
• Smaller quantities of coffee beans and nuts can also be ground on level 2 (higher speed), while larger quantities stick together more easily and become hotter at higher speed. Therefore, we recommend using level 1.

Cleaning

• Unplug the appliance before any cleaning.
• Clean the coffee bean vessel after every use.
• Clean the outer surface and the vessel with a dump cloth and the lid with a dry cloth.

ATENTION: use it just on the outer surface! Do not use these cleaning agents in surfaces that come into contact with food (inner surface).

• Clean regularly the thread in the appliance and the lid. If this thread is dirty or covered by coffee the safety lock will not work and the appliance will not be able to function.
• Never rinse the vessel with water.
• Do not use abrasive cleaning agents, sprays or scou-ring sponges.
• The grinding blades are not dishwasher safe.
• Treat the appliance with special cleaning agents for stainless steel to eliminate small impurities (like fingerprints).

NOTE

Highly aromatic foods such as coffee can cause the container to take on this aroma / taste. This is normal and not a reason for complaint. We therefore recommend that you purchase an additional container - this can be obtained from our service department.

Spare Parts

Hood = ART-741-SP01
Lid = ART-741-SP02
Stainless steel container with 2-bladed cutter
= ART-741-SP03
Stainless steel container with 4-bladed cutter
= ART-741-SP04

Problem / cause / remedy

Problem cause	remedy
The device does not function	The device is not connected	Plug the plug into the socket
	The cover was not attached properly	The cover must be locked in an anti-clockwise direction
Ingredients are excessively coarse when ground	Application too short	Start the process again
	Excessive quantity	Use a smaller amount
	Wrong stainless steel container used	Use the other one
Product sticks to the edge of the container when ground	Speed too high	Use a lower speed setting
	Running time too long	Grinding in pulse mode

Environmentally friendly disposal

We use environmentally friendly packaging for the transport of our appliances. Please recycle cardboard/ paper and plastic packaging appropriately.

ATTENTION!

Electrical appliances should not be disposed of with the household trash.

Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recognised recycling facility. Consult the local authorities for information on recycling appliances.

EN

Warranty

Cloer electrical appliances are in conformity with the currently required EC-guidelines and safety regulations. If your Cloer electrical appliance has a defect or it does not work properly, contact your specialist dealer. Registered clients have at their disposal our technical customer service.

cloer service

Mail: [e-mail]

https://service.cloer.eu

Manufacturer warranty

Please register your appliances in the period of 6 months since the purchase in order to benefit from our manufacturer warranty. The published conditions of warranty in the moment of the registration are valid. You will find conditions of warranty and product registration here:

type voltage hz watt

741 220-240 50/60

350

https://cloer.eu/it/guarantee

https://cloer.eu/pt/guarantee
