7560 - Coffee grinder Cloer - Free user manual and instructions

Frequently Asked Questions - 7560 Cloer

USER MANUAL 7560 Cloer

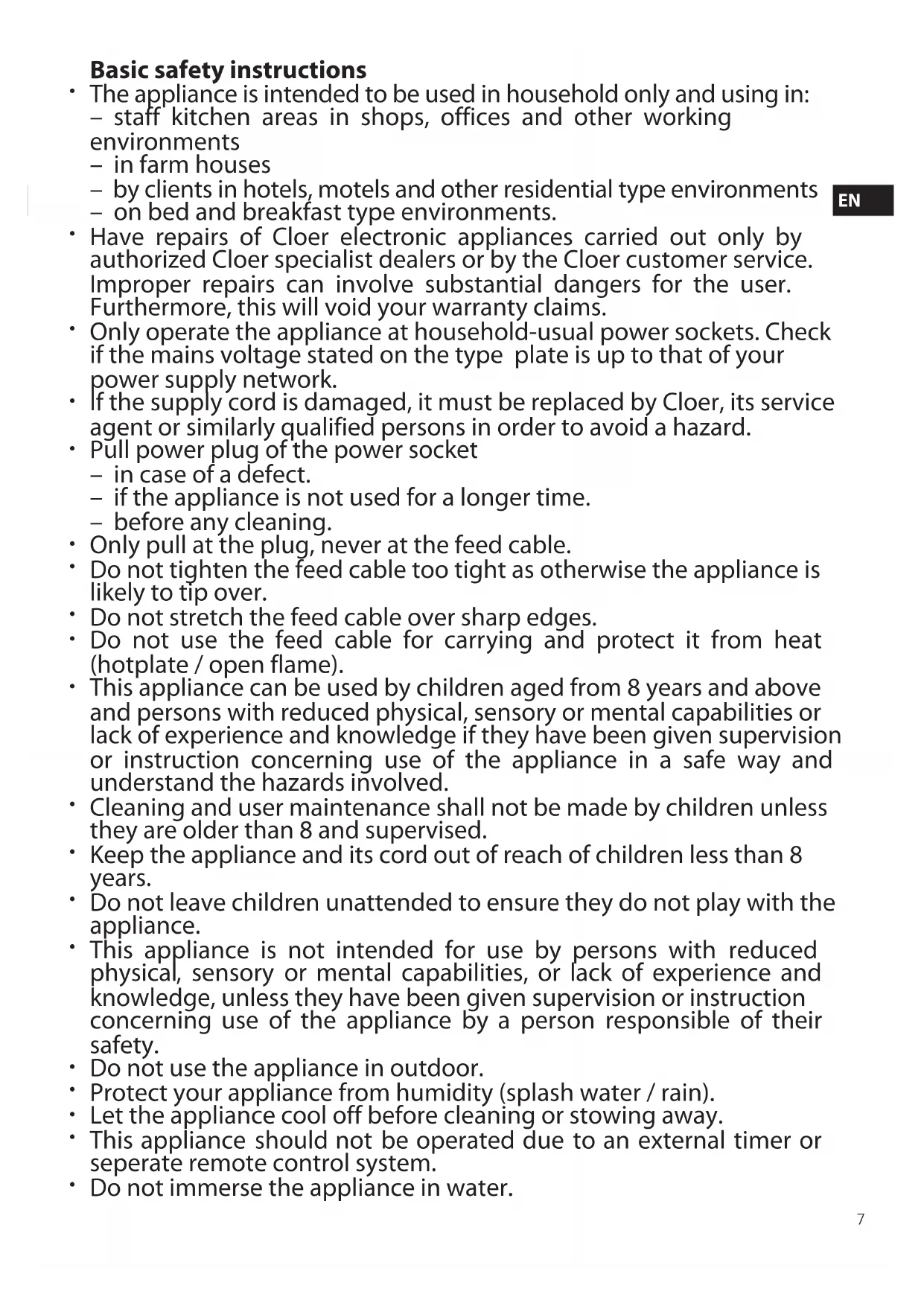

Basic safety instructions

• The appliance is intended to be used in household only and using in: - staff kitchen areas in shops, offices and other working environments

• in farm houses

• by clients in hotels, motels and other residential type environments

• on bed and breakfast type environments.

• Have repairs of Cloer electronic appliances carried out only by authorized Cloer specialist dealers or by the Cloer customer service. Improper repairs can involve substantial dangers for the user. Furthermore, this will void your warranty claims.

• Only operate the appliance at household-usual power sockets. Check if the mains voltage stated on the type plate is up to that of your power supply network.

• If the supply cord is damaged, it must be replaced by Cloer, its service agent or similarly qualified persons in order to avoid a hazard.

• Pull power plug of the power socket

• in case of a defect.

• if the appliance is not used for a longer time.

• before any cleaning.

• Only pull at the plug, never at the feed cable.

• Do not tighten the feed cable too tight as otherwise the appliance is likely to tip over.
• Do not stretch the feed cable over sharp edges.
• Do not use the feed cable for carrying and protect it from heat (hotplate / open flame).
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not leave children unattended to ensure they do not play with the appliance.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible of their safety.
• Do not use the appliance in outdoor.
• Protect your appliance from humidity (splash water / rain).
• Let the appliance cool off before cleaning or stowing away.
• This appliance should not be operated due to an external timer or separate remote control system.
• Do not immerse the appliance in water.

EN

Dear Customer,

Thank you for choosing the Cloer coffee grinder. From now on, you are able to enjoy coffee made of freshly ground coffee beans. We hope you enjoy your new coffee grinder.

Description (see page 2)

1 Cover
2 Grinding knife
3 Number-of-cups controller (with ON/OFF switch)
4 Coffee powder container with lid
5 Coffee bean container
6 Degree-of-grinding controller
7 Housing
8 Cable rewind

Setting up

• Remove all packaging parts and, if applicable, stickers, not the rating label.
• Place the coffee grinder on a dry, non-slip and even surface.

Before using the first time

• Please read this instruction manual attentively before using it for the first time.
• Clean the device and its accessories with a moist cloth. ATTENTION! Sharp edges!
• Let the parts dry fully before use.

Safety notices for operation

• The coffee grinder is exclusively intended to grind coffee beans. Do not fill any other foodstuffs (other beans, nuts etc.) into the device.
• Never operate the device without beans. Stop grinding if the bean container has become empty in the meantime by briefly pushing the cup number controller.
• The device must never be operated without the grinding knife.

The appliance meets the requirements of the applicable EC directives.

The appliance is intended for indoor use only.

• Never leave the device unsupervised in operation.
• Never fill the container with coffee beans over the rim.
• Never immerse the coffee grinder in water or other liquids!

ATTENTION! Always unplug apolace when not in use and before cleaning!

Instructions for assembly and use

• Install the grinding knife (2) in the coffee bean container (5):

The symbol on the handle of the grinding knife must point at the symbol, Lock open inside the device.
Now turn the grinding knife so that the symbol points at the symbol, Lock closed. Now the device is ready for operation.
- To remove the grinding knife, turn it in the opposite direction.

Important: While the coffee mill is in use, the grinding knife always must be installed correctly.

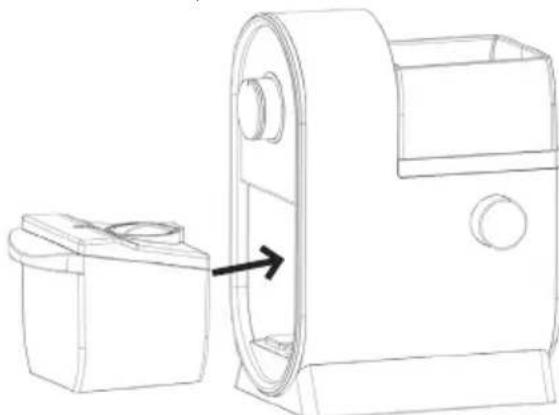

• Please insert the coffee meal container (4) correctly and always use the associated lid.
• In the housing, there is a safety switch that ensures that your coffee mill cannot be operated when the coffee meal container (4) was not inserted correctly.

Overheating protection

• Please observe that the device should not run for longer than 60 seconds and no more than 2x in sequence to avoid overheating. There should be at least 1 min between the two work steps.
• During automatic grinding, the maximum number of cups of the cup number controller corresponds to 60 seconds.
• If the device overheats anyway, the overheating protection will switch off the device automatically.
  The device does not work for a while and is not defective.
• In this case, pull the plug from the socket and let the device cool off for approx. 30 min.
• Then the device is ready for operation again.

Operation

Plug cord into a standard electrical outlet.
- Remove the cover (1) and fill the coffee beans into the coffee bean container (5).
- Re-attach the cover (1). The device must be used with a cover. Otherwise, it will not work.
- Set the grinding degree controller (6) to the desired grinding degree. You have the choice:
- Coarse = Set to the large dot at 12 o'clock - Medium = Setting "MEDIUM"
- Fine = Set to the small dot at 9 o'clock Interim stages are possible as well.
- Please observe that the grinding degrees controller (6) must not be adjusted during operation.
- Please observe that less powder will come out at a fine grinding degree than a coarse one at the same number of cups.

• Advice: If you put the grinding degree controller (6) to the triangle , you will receive roughly the same degree of grinding as for filter coffee from the supermarket.

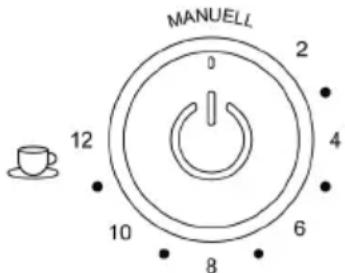

• Now set the cup number controller (3) to the desired number of cups. Please observe that deviations may occur depending on coffee beans and degree of grinding.

Now push the cup number controller (3) briefly to take the device into operation.
- The device switches off on its own once the corresponding amount of coffee has been ground.
- You may also manually stop the device by pushing the cup number controller (3) again briefly.
- Please observe that the coffee meal container (4) does not flow over. If necessary, stop the process manually.
- You can control the operating time yourself by setting the cup number controller (4) to "MANUELL" (= manual) and then keep it pushed.
- Grinding will continue while the controller is pushed.
- Remove the coffee meal container (4) after grinding, briefly tap the lid (for the coffee meal to fall down) and then lift it off to use the coffee meal.

• Clean the device after each use.

Cleaning

• Pull the power plug prior to cleaning the device.
• Never immerse the device in water or other liquids.
• Never put the device in the dishwasher.
• Remove cover (1), grinding knife (2) and coffee powder container (4), clean with soapy water, rinse it, and let dry.
• Wipe housing with moist cloth.
• We suggest to clean the coffee which stay on the appliance after use by use a soft brush.
• Do not use abrasive cleaning agents, cleaning sprays or scouring sponges.
• Regularly clean the opening through which the ground powder is transferred to the coffee meal container. The fine powder can clog the opening. Always pull the mains plug first.

Environmentally friendly disposal

We use only environmentally friendly packaging for the transport of our appliances. Please recycle cardboard / paper and plastic packaging appropriately.

CAUTION!

Electrical appliances should:

not be disposed of with

the household trash.

Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recognised recycling facility. Please consult the local authorities for information on recycling appliances.

Customer service

In the event that your Cloer appliance becomes defective, please contact your Cloer dealer or Cloer customer service department.

Cloer electrical appliances comply with current EC guidelines and safety regulations.

Conditions of warranty

Cloer grants you, the private end user, a limited manufacturer's warranty. Assuming careful handling and compliance with the operating instructions and safety notices, we will be obligated to replace the appliance at no cost, insofar as there are defects in material or workmanship. The repair will be effected by repairing or replacing defective components. Any parts replaced will become the property of Cloer. All further claims of any type, especially claims for indemnification, are not valid.

This warranty does not affect any rights of the customer with respect to the sale of goods in accordance with the applicable national laws.

The warranty period is 2 years starting from the date on which the product was first purchased by an end consumer. The warranty period will

not be extended or begin anew or in any other way be affected by the subsequent sale, repair or replacement of the product.

This warranty is passed on to you by your retail dealer. In order to assert a warranty claim, please contact your dealer directly.

If you have questions about your product, please contact the Cloer importer in your country. The address and telephone number can be found on our website at http://cloer.com or you can send an e-mail to

[e-mail]

As proof of warranty entitlement you must submit the original sales receipt with the date of sale and the dealer's address. Without the sales receipt, the repair will be carried out at your expense without asking.

The warranty does not cover damages resulting from

improper use,
natural wear and tear,
external influences (e.g. damage from transport, shocks, jolts, heat, acids, etc.),
insufficient decalcifying
- or unsuitable accessories.

The warranty will be void if the appliance

is used commercially,
- is opened or modified without authorisation
- or if unauthorised repairs are attempted.

Also, the warranty does not apply to consumable materials.

• electric kettle / coffee maker / tea maker

Chere cliente, cher client,

ATTENTION! Always unplug appliance when not in use and before cleaning!

Stamp and signature of dealer
