USER MANUAL BS 12 NiCd METABO

Nm (in-lbs) 16 (142)

Nm (in-lbs) 32 (283)

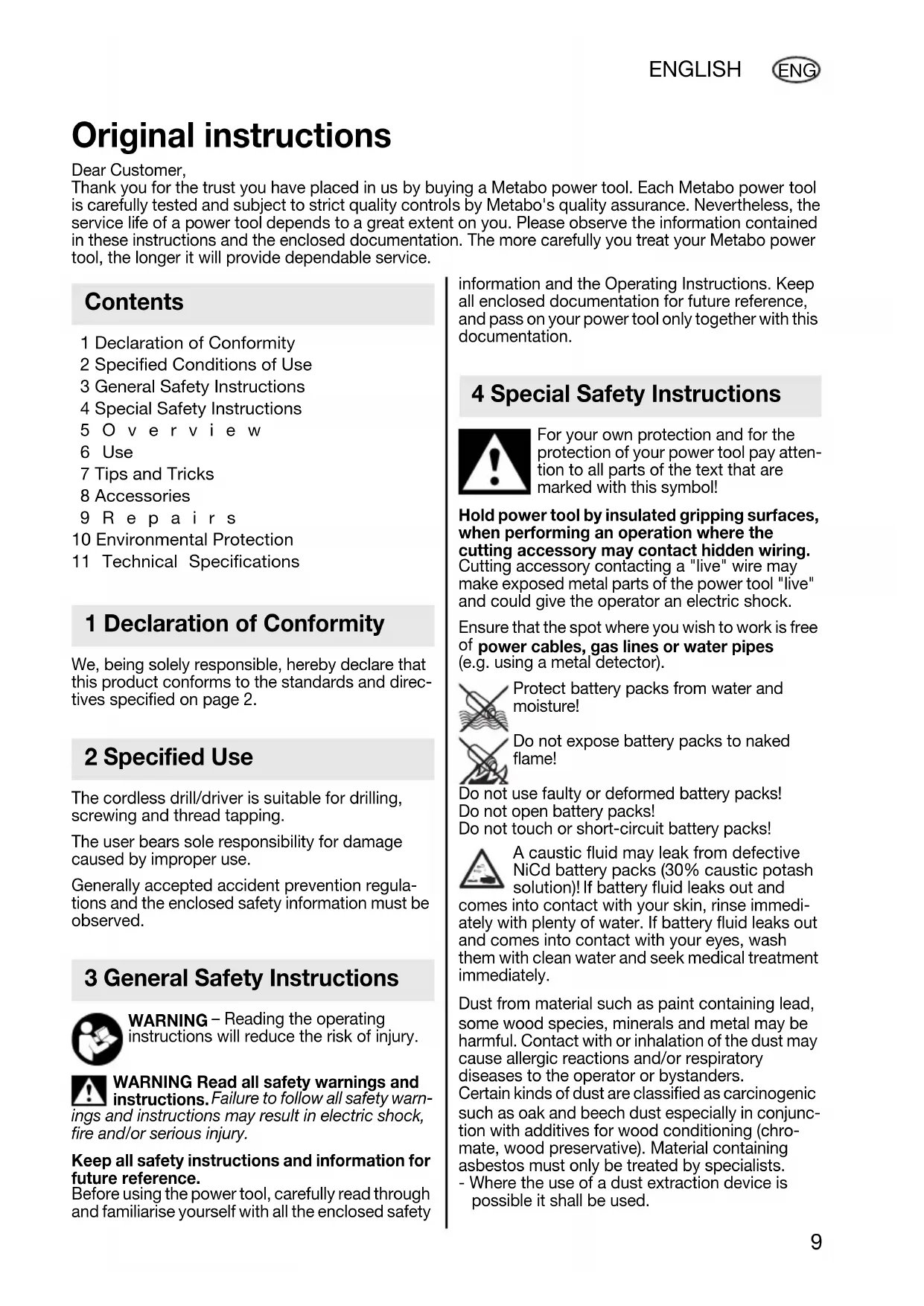

ENG 1 Declaration of Conformity 2 Specified Conditions of Use 3 General Safety Instructions 4 Special Safety Instructions 5Overview 6Use 7 Tips and Tricks 8 Accessories 9Repairs 10 Environmental Protection 11 Technical Specifications We, being solely responsible, hereby declare that this product conforms to the standards and direc- tives specified on page 2. The cordless drill/driver is suitable for drilling, screwing and thread tapping. The user bears sole responsibility for damage caused by improper use. Generally accepted accident prevention regula- tions and the enclosed safety information must be observed. WARNING – Reading the operating instructions will reduce the risk of injury. WARNING Read all safety warnings and instructions. Failure to follow all safety warn- ings and instructions may result in electric shock, fire and/or serious injury. Keep all safety instructions and information for future reference. Before using the power tool, carefully read through and familiarise yourself with all the enclosed safety information and the Operating Instructions. Keep all enclosed documentation for future reference, and pass on your power tool only together with this documentation. For your own protection and for the protection of your power tool pay atten- tion to all parts of the text that are marked with this symbol! Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Ensure that the spot where you wish to work is free

power cables, gas lines or water pipes (e.g. using a metal detector). Protect battery packs from water and moisture! Do not expose battery packs to naked flame! Do not use faulty or deformed battery packs! Do not open battery packs! Do not touch or short-circuit battery packs! A caustic fluid may leak from defective NiCd battery packs (30% caustic potash solution)! If battery fluid leaks out and comes into contact with your skin, rinse immedi- ately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical treatment immediately. Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders. Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunc- tion with additives for wood conditioning (chro- mate, wood preservative). Material containing asbestos must only be treated by specialists. - Where the use of a dust extraction device is possible it shall be used. Original instructions Dear Customer, Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo's quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation. The more carefully you treat your Metabo power tool, the longer it will provide dependable service. Contents 1 Declaration of Conformity 2 Specified Use 3 General Safety Instructions 4 Special Safety Instructions 17026985_1010 BS 12 NiCd.book Seite 9 Mittwoch, 13. Oktober 2010 8:31 0810 ENGLISH ENG - The work place must be well ventilated. - The use of a dust mask of filter class P2 is recommended. Follow national requirements for the materials you want to work with. Secure the workpiece against slipping, e.g. with the help of clamping devices. LED (7): Do not view LEDs directly through optical instruments, LED class 1M, classified as per DIN EN 60825-1: 2003, wavelength: 400-780 nm; 5 lm. See page 3 (please unfold).

elector barrel (torque, drilling)

witch (1st/2nd gear)

otation selector switch (rotation setting, transport lock) - both sides of the machine

attery pack release button

Battery pack 7 LED lights

Charge the battery pack before use. The battery pack reaches its full capacity only after being charged and discharged 5 times (charge cycles). The maximum number of charge cycles can only reached if an exhaustive discharge of the battery pack is avoided. If performance diminishes, recharge the battery pack.

6.2 Removing and inserting the battery

pack Removal: Press the battery pack release (5) button and pull the battery pack (6) forwards. Inserting: Slide in the battery pack (6) until it engages.

6.3 Setting the direction of rotation,

engaging the transporting safety device (switch-on lock) Set the rotation selector switch (4). See page 3 (please unfold). R = Clockwise setting L = Counter-clockwise setting 0 = Central position: transport lock setting (switch-on lock)

6.4 Selecting gear stage

Do not set the switch (3) unless the motor has stopped completely! Actuate the switch (3). 1st gear setting (low speed), very high torque 2nd gear setting (high speed)

6.5 Setting the torque limit

Turn the sleeve (2). 1... = Torque setting (for working with torque control) = Drill setting - no torque control (for max. torque)

6.6 On/Off switch, setting the speed

Switching on, speed: press the trigger (8). Press in the trigger to increase the rotational speed. Switching off: Release the trigger (8). Note: The noise that the machine makes when it switches off is due to the design (quick stop) and has no influence on the function or the service life of the machine.

For working on dimly lit areas. The LED lights (7) light up when the machine is switched on.

ENG Opening the chuck Turn sleeve (1) in the direction "AUF, RELEASE". Clamping the tool - Open the keyless chuck and insert the tool as far as possible. - Turn the sleeve (1) in the direction of "GRIP, ZU" until the tool is clamped securely. - With a soft tool shank, retightening may be required after a short period of operation. Unscrewing the chuck - Open the keyless chuck. - Slacken the screw (a) (note: left-handed thread!). - Unscrew the keyless chuck (1) using a spanner (b). Employ the same procedure when attaching the chuck, except in reverse order. Cleaning From time to time, hold the machine vertically with the chuck facing downwards and turn the sleeve fully in the direction "GRIP, ZU" and then turn fully in the direction "AUF, RELEASE". The dust collected falls from the keyless chuck. Drilling - Preferably in 2nd gear (high speed). - In the case of deep bores, pull the drill bit out of the bore from time to time in order to remove the drill dust or swarf. Screws - Preferably in 1st gear (low speed) and with torque control. Thread tapping - Lubricate the dies. - Select 1st gear (low speed). - Adjust torque control. Use only genuine Metabo accessories. If you need any accessories, check with your dealer. For dealers to select the correct accessory, they need to know the exact model designation of your power tool. See page 4. AChargers B Battery packs with different capacities. Use battery packs only with voltage suitable for your power tool. For a complete range of accessories, see www.metabo.com or the main catalogue. Repairs to electrical tools must be carried out by qualified electricians ONLY! Any Metabo power tool in need of repair can be sent to one of the addresses listed in the spare parts list. Please enclose a description of the fault with the power tool. Metabo's packaging can be 100% recycled. Scrap power tools and accessories contain large amounts of valuable resources and plastics that can be recycled. These instructions are printed on chlorine-free bleached paper. Battery packs must not be disposed of with regular waste. Return faulty or used battery packs to your Metabo dealer! Do not allow battery packs to come into contact with water! Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline 2002/ 96/EC on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling. Explanatory notes on the specifications on page 2. Changes due to technological progress reserved. U = Voltage of battery pack

Tips and Tricks 8 Accessories

= Soft screwing application (wood)

=Hard screwing application (metal)

= Adjustable torque Max. drill diameter:

2 max =in softwood m = Weight (with smallest battery pack) G=Spindle thread

max = Chuck clamping range Vibration total value (vector sum of three directions) determined in accordance with EN 60745:

h, D = Vibration emission value (drilling into metal)

h, S = Vibration emission level (screwing without impact)

h, ... = Uncertainty (vibration) The vibration level specified in these instructions has been measured using a procedure standard- ised in EN 60745 and can be used for comparing power tools with one another. It is also suitable for a provisional estimate of the vibratory load. The specified vibration level applies to the main applications of the power tool. However if the tool is used for different applications, with different acces- sories or poorly maintained, the vibration emission may differ. This can considerably increase the vibratory load over the entire working period. For an accurate estimate of the vibratory load, times in which the machine is switched off, or when it is running but not actually in use, should also be taken into consideration. This can considerably reduce the vibratory load over the entire working period. Define additional safety measures to protect the operator against the effect of vibrations, e.g.: main- tenance of power tools and tools, keeping hands warm, organisation of work sequences. Typical A-effective perceived sound levels: LpA = Sound pressure level

= Acoustic power level

= Uncertainty (noise level) During operation the noise level can exceed 80 dB(A). Wear ear protectors! Measured values determined in conformity with EN 60745. The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards). 17026985_1010 BS 12 NiCd.book Seite 12 Mittwoch, 13. Oktober 2010 8:31 08FRANÇAIS
