USER MANUAL DV36DC METABO

Designed for operating in USA & Canada only.When this product is used in areas other than the USA & Canada,we cannot guarantee the product quality and performance.

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!This manual contains important information about product safety. Please read and understand this manual before operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place. INSTRUCTIONS DE SECURITE ET MODE D’EMPLOI AVERTISSEMENT Une utilisation INCORRECTE OU DANGEREUSE de cet outil motorisé peut entraîner la mort ou de sérieuses blessures corporelles!Ce mode d’emploi contient d’importantes informations à propos de la sécurité de ce produit. Prière de lire et de comprendre ce mode d’emploi AVANT d’utiliser l’outil motorisé. Garder ce mode d’emploi à la disponibilité des autres utilisateurs et propriétaires avant qu’ils utilisent l’outil motorisé. Ce mode d’emploi doit être conservé dans un endroit sûr. INSTRUCCIONES DE SEGURIDAD Y MANUAL DE INSTRUCCIONES ADVERTENCIA ¡La utilización INAPROPIADA O PELIGROSA de esta herramienta eléctrica puede resultar en lesiones de gravedad o la muerte!Este manual contiene información importante sobre la seguridad del producto. Lea y comprenda este manual ANTES de utilizar la herramienta eléctrica. Guarde este manual para que puedan leerlo otras personas antes de utilizar la herramienta eléctrica. Este manual debe ser guardado en un lugar seguro. Model Modèle Modelo DS 18DC DV 18DC

• DV 36DC Cordless Driver DrillPerceuse-visseuse sans fi lTaladro atornillador inalámbricoCordless Hammer DrillPerceuse à percussion sans fi lTaladro de percusión inalámbricoDS18DCDV18DC / DV36DC 000BookDSDV18DCmetabo.indb1000BookDSDV18DCmetabo.indb1 2022/08/0315:44:362022/08/0315:44:36IMPORTANT SAFETY INFORMATION Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifi cally recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

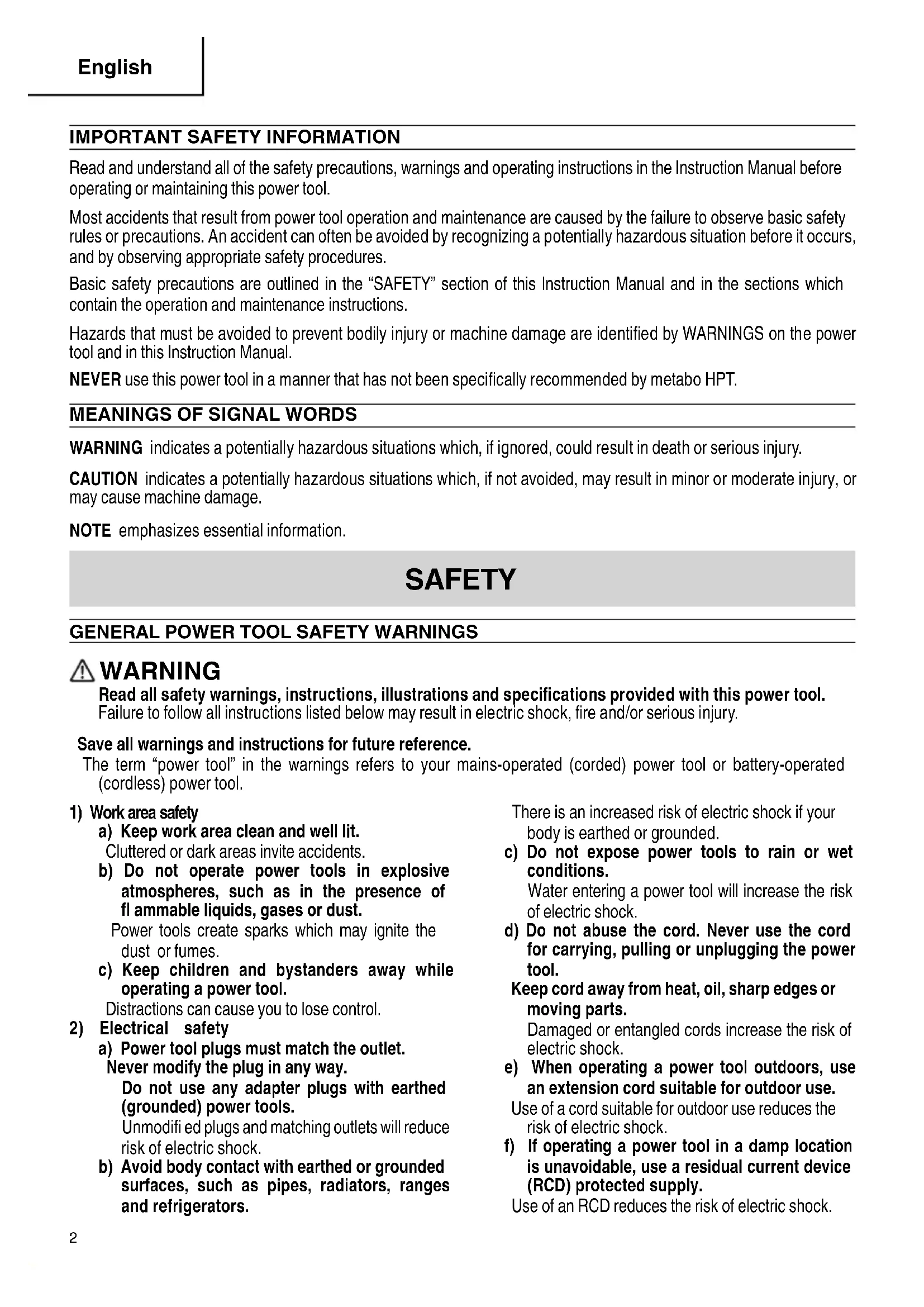

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

English 000BookDSDV18DCmetabo.indb2000BookDSDV18DCmetabo.indb2 2022/08/0315:44:362022/08/0315:44:363) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power toolʼs operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re.

English 000BookDSDV18DCmetabo.indb3000BookDSDV18DCmetabo.indb3 2022/08/0315:44:362022/08/0315:44:36Cutting accessory or fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Safety instructions when using long drill bits

5. Never operate at higher speed than the maximum

speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

6. Always start drilling at low speed and with the bit

tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

7. Apply pressure only in direct line with the bit and

do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

8. Make sure to securely hold the tool during

operation. Failure to do so can result in accidents or injuries. (Fig. 1) Fig. 1

9. Never place hands or other body parts near the drill

bit or chuck during operation. Hold the drill by its handle only.

10. Because the cordless tool operates by battery power,

be aware of the fact that it can begin to operate at any time.

11. When working at elevated locations, clear the area

of all other people and be aware of conditions below you.

12. Never touch moving parts.

Never place your hands, fi ngers or other body parts near the tool’s moving parts.

13. Never operate without all guards in place.

Never operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury. f) Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 265 °F may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specifi ed in the instructions. Charging improperly or at temperatures outside the specifi ed range may damage the battery and increase the risk of fi re.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. – WARNING – To reduce the risk of injury, user must read instruction manual.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Wear ear protectors with impact drilling.

Exposure to noise can cause hearing loss.

2. Use auxiliary handle(s).

Loss of control can cause personal injury.

3. Brace the tool properly before use.

This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury.

4. Hold the power tool by insulated gripping

surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring.

English 000BookDSDV18DCmetabo.indb4000BookDSDV18DCmetabo.indb4 2022/08/0315:44:372022/08/0315:44:3714. Use right tool. Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

15. Never use a power tool for applications other

than those specifi ed. Never use a power tool for applications other than those specifi ed in the instruction manual.

16. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. Never allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

17. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

18. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

19. Accessories must be securely mounted to the

tool. Prevent potential injuries to yourself or others. Accessories which have been mounted to the tool should be secure and tight.

20. Never use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

21. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

22. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

23. Always wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

24. Do not touch metal parts of the tool body, bits, drills, or

swarf immediately after use, as these will be hot.

25. Do not use the product if the tool or the battery

terminals (battery mount) are deformed. Installing the battery could cause a short circuit that could result in smoke emission or ignition.

26. Keep the tool’s terminals (battery mount) free of swarf

Prior to use, make sure that swarf and dust have not collected in the area of the terminals.

During use, try to avoid swarf or dust on the tool from falling on the battery.

When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust. Doing so could cause a short circuit that could result in smoke emission or ignition.

27. Always use the tool and battery at temperatures

between 23°F (-5°C) and 104°F (40°C).

WARNING Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating

instructions for battery charger Model UC18YSL3.

2. Before using battery charger, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge metabo HPT

rechargeable battery types BSL18 series and multi volt series. Other type of batteries may burst causing personal injury and damage.

4. Use of an attachment not recommended or sold by

the battery charger manufacturer may result in a risk of fi re, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cord,

pull by plug when disconnecting battery charger.

6. Make sure cord is located so that it will not be stepped

on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock. If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger: b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of battery charger as specifi ed in Table 1.

English 000BookDSDV18DCmetabo.indb5000BookDSDV18DCmetabo.indb5 2022/08/0315:44:372022/08/0315:44:37* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating–for example: 1,250 watts = 10 amperes 125 volts

8. Do not operate battery charger with damaged cord or

plug-replace them immediately.

9. Do not operate battery charger if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualifi ed serviceman.

10. Do not disassemble battery charger; take it to a

qualifi ed serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fi re.

11. To reduce risk of electric shock, unplug charger from

receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

BATTERY CHARGER You must charge the battery before you can use the power tool. Before using the model UC18YSL3 battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual. CAUTION USE ONLY metabo HPT BATTERIES. OTHER

MODELS OF BATTERIES MAY BURST AND

CAUSE INJURY! Follow these instructions to avoid the risk of injury:

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER incinerate the battery, even if it is damaged or

is completely worn out. The battery can explode in a fi re.

3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery charger’s

air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away

from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 32°F

(0°C) or above 104°F (40°C).

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the

battery or the battery charger.

9. NEVER use a booster transformer when charging.

10. NEVER use DC power to charge.

11. NEVER store the battery or battery charger in places

where the temperature may reach or exceed 104°F (40°C) such as inside metal box or car.

12. NEVER expose the battery or battery charger to rain

13. ALWAYS operate charger on standard household

electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

14. ALWAYS wait at least 15 minutes between charges to

avoid overheating the charger.

15. ALWAYS disconnect the power cord from its

receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function. Table 1

AC Input Rating Amperes* AWG Size of Cord Equal to or greater than but less than Length of Cord, Feet (Meter) 25 (7.5) 50 (15) 100 (30) 150 (45)

English 000BookDSDV18DCmetabo.indb6000BookDSDV18DCmetabo.indb6 2022/08/0315:44:372022/08/0315:44:371. When the battery power remaining runs out, the motor stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

During work make sure that swarf and dust do not fall on the battery.

Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed

4. Do not use the battery for a purpose other than those

5. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

6. Do not put or subject the battery to high temperatures

or high pressure such as into a microwave oven, dryer, or high pressure container.

7. Keep away from fi re immediately when leakage or foul

8. Do not use in a location where strong static electricity

9. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

10. Do not immerse the battery or allow any fl uids to fl ow

inside. Conductive liquid ingress, such as water, can cause damage resulting in fi re or explosion. Store your battery in a cool, dry place, away from combustible and fl ammable items. Corrosive gas atmospheres must be avoided. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fi re. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 4).

AND OWNERS OF THIS TOOL!

REGARDING LITHIUM-ION BATTERY

TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classifi cation of Dangerous Goods and will require special application procedures.

For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

English 000BookDSDV18DCmetabo.indb8000BookDSDV18DCmetabo.indb8 2022/08/0315:44:382022/08/0315:44:38FUNCTIONAL DESCRIPTION NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

1. Cordless Driver Drill / Cordless Hammer Drill

Housing Motor Gear case Clutch dial Keyless chuck Shift knob Side handle Push button Ventilation holes Trigger switch Battery Ventilation holes Hook Handle Name plate LED Light <DS18DC / DV18DC / DV36DC> Fig. 3

2. Battery 3. Battery Charger

Battery Ventilation holes Terminals Battery cover Latch Ventilation holes Body Cord Nameplate Charge indicator lamp Guide rail

1. Cordless Driver Drill / Cordless Hammer Drill

Model DS18DC DV18DC DV36DC Motor DC Brushless motor No-load speed Low 0–500 /min 0–550 /min High 0–2,000 /min 0–2,200 /min No-load impact rate Low 0–7,500 /min 0–8,250 /min High 0–30,000 /min 0–33,000 /min Capacity Drilling Brick *1 ————— 3/4 in. (20 mm) 7/8 in. (22 mm) Wood *1 (Soft Wood) 4 in. (102 mm) 4-5/8 in. (118 mm) Metal *1 (Mild Steel) 5/8 in. (16 mm) 3/4 in. (20 mm) Screw Driver Wood screw 7/16 in. × 4 in. (12 mm × 100 mm) 5/8 in. × 4 in. (16 mm × 100 mm) Small screw 1/4 in. (6 mm) Drill chuck capacity Maximum gripping diameter 1/2 in. (13 mm) Battery Model BSL36A18 Type Li-ion battery Voltage DC 36 V / 18 V Weight

6.2 lbs. (2.8 kg) (BSL36A18 and side handle attached)

*1 Brick: Depth 1-1/4 in. (30 mm) Wood: Thickness 1-1/2 in. (38 mm) Metal: Thickness 1/16 in. (1.6 mm) DV36DC only: Existing batteries (BSL3660/3626/3620, BSL18xx and BSL14xx series, etc.) cannot be used with this tool. Use multi volt type battery.

Model UC18YSL3 Input power source Single phase: AC 120 V 60 Hz Charging time (At a temperature of 68°F (20°C)) BSL36A18 : Approx. 32 min Charging voltage DC 14.4–18 V Charging current DC 8.0 A Weight 1.3 lbs. (0.6 kg) NOTE: The charging time may vary according to temperature and power source voltage.

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charger’s pilot lamp will blink in red. (At 1-second intervals) WARNING Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 7. Charge indicator lamp Guide rail Battery Fig. 7

When inserting a battery in the charger, the charge indicator lamp will blink in blue. When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 2) (1) Charge indicator lamp indication The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the battery charger or the battery. APPLICATIONS <DV18DC / DV36DC>

Use as a hammer drill Drilling of soft bricks and concrete blocks. <DS18DC / DV18DC / DV36DC>

Use as a drill Drilling of soft steel, wood, plastic and aluminum materials.

Use as a screwdriver Tightening and loosening of machine screws, wood screws and tapping screws.

REMOVAL AND INSTALLATION METHOD

How to install the battery. Align the battery with the groove in tool handle and slip it into place. Always insert it all the way until it locks in place with a little click, If not, it may accidentally fall out of the tool, causing injury to you or someone around you (Fig. 6).

How to remove the battery. Withdraw battery from the tool handle while pressing the latch (2 pcs) of the battery (Fig. 6). Battery Push Pull out Insert Handle Latch Fig. 6 CHARGING METHOD NOTE Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged. WARNING Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

English 000BookDSDV18DCmetabo.indb11000BookDSDV18DCmetabo.indb11 2022/08/0315:44:382022/08/0315:44:38(2) Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged. Table 3 Rechargeable batteries Temperatures at which the battery can be recharged BSL36A18 32°F–122°F (0°C–50°C) (3) Regarding recharging time (At 68°F (20°C)) Table 4 Charging time Charger Battery UC18YSL3 BSL36A18 Approx. 32 min NOTE The recharging time may vary according to the ambient temperature.

4. Disconnect battery charger from the receptacle.

CAUTION Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. NOTE Be sure to pull out the battery from the battery charger after use, and then keep it. Regarding electric discharge in case of new batteries, etc. As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the fi rst and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times. Table 2 Charger status Status of indicator lamp Indication meaning Before charging ON/OFF at 0.5 sec. intervals (RED) Plugged into power source *1 While charging Lights for 0.5 sec. at intervals of 1 sec. (BLUE) Charged at less than 50% Lights for 1 sec. at intervals of 0.5 sec. (BLUE) Charged at less than 80% Lights continuously (BLUE) Charged at more than 80% Charging complete Lights continuously (GREEN) (Continuous buzzer sound: about 6 sec.) Overheat standby ON/OFF at 0.3 sec. intervals (RED) Battery overheated. Unable to charge. *2 Charging impossible ON/OFF at 0.1 sec. intervals (PURPLE) (Intermittent buzzer sound; about 2 sec.) Malfunction in the battery or the charger *3 *1 If the red lamp continues to blink even after the charger has been attached, check to confi rm that the battery has been fully inserted. *2 Although charging will start once the battery has cooled down even when left in situ, the best practice is to remove the battery and allow it to cool down in a shaded, well-ventilated location before charging.

○ Fully insert the battery. ○ Check to confi rm that no foreign matter is stuck to the battery mount or terminals. <If charging takes a long time> ○ Charging will take longer at extremely low ambient temperatures. Charge the battery in a warm location (such as indoors). ○ Do not block the air vent. Otherwise the interior will overheat, reducing the charger’s performance. ○ If the cooling fan is not operating, contact a metabo HPT Authorized Service Center for repairs.

English 000BookDSDV18DCmetabo.indb12000BookDSDV18DCmetabo.indb12 2022/08/0315:44:392022/08/0315:44:39○ When the product is not being used, cover the USB port with the rubber cover. Buildup of dust etc. in the USB port can cause smoke emission or ignition. NOTE

The time required for charging will be longer when a USB device and battery are being simultaneously charged.

There may be an occasional pause during USB recharging.

When a USB device is not being charged, turn the USB power switch OFF and remove the USB device from the charger. Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents. (1) Select a charging method Depending on the charge method selected, either the battery is inserted into the charger or the power cord is plugged into an outlet.

Charging a USB device by battery (Fig. 8-a)

Charging a USB device from a electrical outlet (Fig. 8-b)

Charging a USB device and battery from a electrical outlet (Fig. 8-c) abc Fig. 8 (2) Turn the USB power switch ON (Fig. 9) When you turn the USB power switch ON, the USB power indicator lamp will light up. USB power switch USB power indicator lamp Rubber cover USB port USB cable Fig. 9 How to make the batteries perform longer (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter. (2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. CAUTION

When the battery charger has been continuosly used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the charge indicator lamp of UC18YSL3 charger lights for 0.3 seconds, does not light for 0.3 seconds (off for 0.3 seconds). In such a case, fi rst let the battery cool, then start charging.

When the charge indicator lamp fl ickers (at 0.2–second intervals), check for and take out any foreign objects in the charger’s battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

HOW TO RECHARGE USB DEVICE

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product. Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device. WARNING

Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition.

English 000BookDSDV18DCmetabo.indb13000BookDSDV18DCmetabo.indb13 2022/08/0315:44:392022/08/0315:44:39(3) Connect the USB cable. (Fig. 9) Pull back the rubber cover and fi rmly plug in a commercially available USB cable (appropriate to the device being charged) into the USB port.

When the power cord is not plugged into an outlet and the battery runs out of power, power output will stop and the USB power indicator lamp will shut off .

When the USB power indicator lamp goes out, change the battery or plug the power cord into an electrical outlet. (4) When charging is completed

The USB power indicator lamp will not go out when a USB device has been completely charged. To verify charge status, check the USB device.

Turn the USB power switch OFF and unplug the power cord from the electrical outlet. (Fig. 9)

Remove the battery from the charger and place the rubber cover over the USB port. <USB device charging stops midway>

Charging stops for approximately fi ve seconds to allow the power supply to be detected under the following conditions: if the battery charger power plug is plugged in while charging a USB device from the battery, or if a rechargeable battery is inserted while charging a USB device from the battery charger.

USB charging stops for fi ve seconds so that checking can be performed once the rechargeable battery has been fully charged.

If the rechargeable battery level is extremely low, charging the rechargeable battery takes priority, and USB charging is temporarily stopped. USB charging automatically resumes once the battery level has reached a preset level. BEFORE USE Check the work area to make sure that it is clear of debris and clutter. Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate. OPERATION WARNING Make sure to securely hold the tool during operation. Failure to do so can result in accidents or injuries.

1. Mounting and dismounting of the bit.

(1) Mounting the bit. Loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front) to open the clip on the keyless chuck. After inserting a driver bit, etc., into the keyless drill chuck, and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front). (See Fig. 10). Tighten Loosen Sleeve Fig. 10 NOTE If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened. (2) Dismounting the bit Loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front), and then take out the bit etc. (See Fig. 10) NOTE

If the sleeve is tightened in a state where the clip of the keyless chuck is opened to a maximum limit, a click noise may occur. This is the noise that occurs when the loosening of the keyless chuck is prevented and is not a malfunction.

When it is no longer possible to loosen the sleeve, use a vise or similar instrument to secure the bit. Set the clutch mode between 1 and 11 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

2. Installing/Removing the side handle. (Fig. 11)

WARNING When using the tool, make sure the side handle is attached and fi rmly secured. If not fi rmly secured, the tool may jerk out of position when overburdened, resulting in injury. (1) Turn the grip of the side handle to loosen it and push it in until it comes in contact with the clutch dial. (2) Adjust the side handle to the angle that allows the easiest use, then turn the side handle’s grip fi rmly to lock it place. Loosen Clutch dial Side handle Tighten Fig. 11

English 000BookDSDV18DCmetabo.indb14000BookDSDV18DCmetabo.indb14 2022/08/0315:44:392022/08/0315:44:393. Confi rm that the battery is mounted correctly.

4. Check the rotational direction.

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the push button. The L-side of the push button is pushed to turn the bit counterclockwise (See Fig. 12). (The and marks are provided on the body.) Push button Forward Reverse Fig. 12 CAUTION The push button can not be switched while the power tool is turning. To switch the push button, stop the power tool, then set the push button.

5. Change rotation speed.

Shift knob Low speed “1” Fig. 13 Shift knob High speed “2” Fig. 14 Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow (See Figs. 13 and 14). When the shift knob is set to “1”, the drill rotates at a low speed. When set to “2”, the drill rotates at a high speed. CAUTION

When changing the rotational speed with the shift knob, confi rm that the switch is off . Changing the speed while the motor is rotating will damage the gears.

When a large force is required for operation (operations indicated in the following chart) set the shift knob to “1”. If “2” is set and the unit is used, it may cause the motor to burn out or malfunction prematurely.

6. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown in Table 5. Table 5 Work Cap position Suggestions Drilling Brick (DV18DC / DV36DC) Use for drilling purpose. Wood Use for drilling purpose.Steel Aluminum Screw tightening Small screw 1 – 22 Use the bit and socket matching the screw diameter. Wood screw 1 – Use after drilling a pilot hole.

English 000BookDSDV18DCmetabo.indb15000BookDSDV18DCmetabo.indb15 2022/08/0315:44:402022/08/0315:44:407. Confi rm the clutch dial position. <DS18DC> (Fig. 15) The tightening torque of this unit can be adjusted according to the clutch dial position, at which the clutch dial is set. Clutch dial Triangle mark Strong Weak mark Fig. 15 (1) When using this unit as a screwdriver, line up the one of the numbers “1, 4, 7 ... 22” on the clutch dial, or the dot, with the triangle mark on the outer body. (2) When using this unit as a drill, line up the clutch dial drill mark “ ” with the triangle mark on the outer body. CAUTION

The clutch dial cannot be set between the numbers “1, 4, 7 ... 22” or the dot.

Do not use with the clutch dial set at the line between the number “22” and the drill mark

”. Doing so may cause damage (See Fig. 16). Line Triangle mark mark Fig. 16 <DV18DC / DV36DC> (Fig. 17) The three modes of screwdriver, drill and hammer drill can be switched by the position of the clutch dial in this unit. (1) When using this unit as a screwdriver, line up the one of the numbers “1, 4, 7 ... 22” on the clutch dial, or the dot, with the triangle mark on the outer body. (2) When using this unit as a drill, line up the clutch dial drill mark “ ” with the triangle mark on the outer body. (3) When using this unit as a hammer drill, align the clutch dial hammer mark “ ” with the triangle mark on the outer body. mark Triangle mark mark Clutch dial Weak Strong Fig. 17 CAUTION

The clutch dial cannot be set between the number “1, 4, 7 ... 22” or the dot.

Do not use with the clutch dial number at “22” and the line at the middle of the drill mark. Doing so may cause damage. (See Fig. 18) Line mark Triangle mark mark Fig. 18

English 000BookDSDV18DCmetabo.indb16000BookDSDV18DCmetabo.indb16 2022/08/0315:44:402022/08/0315:44:408. Rotation to Hammer changeover (DV18DC / DV36DC) The “Rotation (Rotation only)” and “Hammer (Hammer + Rotation)” can be switched by aligning the drill mark

” or the hammer mark “ ” with the triangle mark on the outer body.

To make holes in the metal, wood or plastic, switch to “Rotation (Rotation only)”.

To make holes in the bricks or concrete blocks, switch to “Hammer (Hammer + Rotation)”. CAUTION Do not use the Cordless hammer drill in the “Hammer” setting if the material can be bored by rotation only. Such action will not only reduce drill effi ciency, but may also damage the drill tip.

9. Tightening torque adjustment.

(1) Tightening torque Tightening torque should correspond in its intensity to the screw diameter. When too strong power is used, the screw head may be broken or be injured. Be sure to adjust the clutch dial position according to the screw diameter. Refer to Table 6 for the clutch dial position tightening torques. (2) Tightening torque indication (See Fig. 15, 17) The tightening torque diff ers depending on the type of screw and the material being tightened. The unit indicates the tightening torque with the numbers “1, 4, 7 ... 22” on the clutch dial, and a dot. The tightening torque at position “1” is the weakest and the torque is strongest at the highest number. (3) Adjusting the tightening torque (See Fig. 15, 17) Rotate the clutch dial and line up the numbers “1, 4, 7, ... 22” on the clutch dial, or the dot, with the triangle mark on the outer body. Adjust the clutch dial in the weak or the strong torque direction according to the torque you need. Table 6 Tightening torque Clutch dial position Tightening torque 1 Approximately 13 in.-lbs. (15 kg-cm) 4 Approximately 21 in.-lbs. (29 kg-cm) 7 Approximately 30 in.-lbs. (34 kg-cm) 10 Approximately 38 in.-lbs. (44 kg-cm) 13 Approximately 46 in.-lbs. (53 kg-cm) 16 Approximately 54 in.-lbs. (63 kg-cm) 19 Approximately 63 in.-lbs. (72 kg-cm) 22 Approximately 71 in.-lbs. (82 kg-cm)

10. Switch operation

When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops. When releasing the trigger of the switch, the brake will be applied for immediate stopping.

The rotational speed of the drill can be controlled by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more. CAUTION

The motor rotation may be locked to cease while the unit is used as drill. While operating the driver drill, take care not to lock the motor.

If the motor is locked, immediately turn the power off . If the motor is locked for a while, the motor or battery may be burnt.

11. For drilling into brick (DV18DC / DV36DC)

Excessive pressing force never increases drilling speed. It will not only damage the drill tip or reduce working effi ciency, but could also shorten the service life of drill bit. Operate the hammer drill within 10-20 kg pressing force while drilling into brick.

12. How to select rotational speed

The selection examples shown in Table 7 should be considered as general standard. As diff erent types of tightening screws and diff erent materials to be tightened are used in actual works proper adjustments are naturally necessary.

When using the driver drill/hammer drill with a machine screw at 2 (high speed), a screw may damage or a bit may loose due to the tightning torque is too strong. Use the driver drill/hammer drill at 1 (low speed) when using a machine screw. NOTE The use of the battery in a cold condition (below 0 degree Centigrade) can sometimes result in the weakened tightening torque and reduced amount of work. This, however, is a temporary phenomenon, and returns to normal when the battery warms up.

English 000BookDSDV18DCmetabo.indb17000BookDSDV18DCmetabo.indb17 2022/08/0315:44:412022/08/0315:44:4113. Remaining battery indicator You can check the battery’s remaining capacity by pressing the remaining battery indicator switch to light the indicator lamp. (Fig. 19, Table 8) The indicator will shut off approximately 3 seconds after the remaining battery indicator switch is pressed. It is best to use the remaining battery indicator as a guide since there are slight diff erences such as ambient temperature and the condition of the battery. Also, the remaining battery indicator may vary from those equipped to a tool or charger. Table 8 State of lamp Battery Remaining Power Lights ; The battery remaining power is over 75%. Lights ; The battery remaining power is 50%–75%. Lights ; The battery remaining power is 25%–50%. Lights ; The battery remaining power is less than 25%. Blinks ; The battery remaining power is nearly empty. Recharge the battery soonest possible Blinks ; Output suspended due to high temperature. Remove the battery from the tool and allow it to fully cool down. Blinks ; Output suspended due to failure or malfunction. The problem may be the battery so please contact your dealer. As the remaining battery indicator shows somewhat diff erently depending on ambient temperature and battery characteristics, read it as a reference. Display panel Remaining battery indicator lamp Remaining battery indicator switch Fig. 19 NOTE Do not give a strong shock to the display panel or break it. It may lead to a trouble.

14. How to use the LED light

While the switch is pulled, the LED light will automatically light up the tip portion of the tool. (Fig. 20) The LED light will automatically turn off 10 seconds after the switch is released. The LED light also functions as a warning signal that lights up during use. For details, see “17. LED light warning signals”. Table 7 Work Cap Position Rotating speed selection (Position of the shift knob) 1 (Low speed) 2 (High speed) Screw tightening Wood screw 1 – For 7/16 in. (12 mm) or smaller diameter screws. For 1/4 in. (6 mm) or smaller diameter screws. (DS18DC / DV18DC) (DV36DC) For 5/8 in. (16 mm) or smaller nominal diameter screws. For 5/16 in. (8 mm) or smaller nominal diameter screws. Drilling Wood For 4 in. (102 mm) or smaller diameters. For 1-1/2 in. (38 mm) or smaller diameters. (DS18DC / DV18DC) (DV36DC) For 4-5/8 in. (118 mm) or smaller diameters. For 2-1/8 in. (54 mm) or smaller diameters.

Do not expose directly your eye to the light by looking into the light. If your eye is continuously exposed to the light, your eye will be hurt.

Wipe off any dirt or grime attached to the lens of the LED light with a soft cloth, being careful not to scratch the lens. Scratches on the lens of the LED light can result in decreased brightness.

The hook is used to hang up the power tool to your waist belt while working. CAUTION

When using the hook, hang up the power tool fi rmly not to drop accidentally. If the power tool is dropped, it may lead to an accident.

When electing to carry the tool hooked to your hip belt, make sure to detach the tool bit and side handle. Failure to do so may result in unexpected injury.

Install securely the hook. Unless the hook is securely installed, it may cause an injury while using. (1) Mounting the hook Install securely the hook in the groove of power tool and tighten the screw to fi x the hook fi rmly. (Fig. 21) Hook Screw Groove Fig. 21 (2) Removing the hook Loosen the screw fi xing the hook with Philips screw driver. (Fig. 22) Screw Hook Groove Fig. 22

16. RFC (Reactive force control)

This product features RFC. This stops the motor automatically if the tool is jerking excessively. The LED light fl ashes to indicate that RFC has been activated. If this occurs, release your fi nger from the switch before restarting. (Fig. 23) NOTE

RFC may not always activate under certain working conditions or situations.

Take care to hold the tool fi rmly to prevent any jerking motion.

RFC may also activate if you change position suddenly while holding the tool. Fig. 23

English 000BookDSDV18DCmetabo.indb19000BookDSDV18DCmetabo.indb19 2022/08/0315:44:422022/08/0315:44:4217. LED light warning signals This product features functions that are designed to protect the tool itself as well as the battery. While the switch is pulled, if any of the safeguard functions activate during operation, the LED light will blink as described in Table 9. When any of the safeguard functions are triggered, immediately remove your fi nger from the switch and follow the instructions described under corrective action. Table 9 Safeguard Function LED Light Display Corrective Action Overburden Protection On 0.1 second/off

(rapid blinking) Blinks for approximately 3 seconds after the switch has been released. If the operating with the shift knob set on “2”, adjust to “1” and continue operation. Remove the cause of the overburdening. RFC On 0.15 second/off

3 times/Off 2 seconds Blinks for approximately 3 seconds after the switch has been released. Remove the problem causing the tool to jerk excessively. When operating the tool, fi rmly hold the tool to make sure it doesn't jerk. Temperature Protection On 0.5 second/ Off 0.5 second (slow blinking) Blinks while protection is in eff ect. Allow the tool and battery to thoroughly cool.

18. Using depth gauge (sold separately) (Fig. 24)

(1) Insert the depth gauge through the side handle’s mounting hole. (2) Adjust the length to the hole depth, then clamp in place using the M5 thumb screw. Side handle’s mounting hole M5 thumb screw Depth gauge Tighten Fig. 24 OPERATIONAL CAUTIONS Resting the unit after continuous work (1) The power tool is equipped with a temperature protection circuit to protect the motor. Continuous bolt-tightening work may cause the temperature of the unit to rise, activating the temperature protection circuit and automatically stopping operation. If this happens, allow the power tool to cool before resuming use. (2) After use for continuous tightening wood screw works, rest the unit for 15 minutes or so when replacing the battery. The temperature of the motor, switch, etc., will rise if the work is started again immediately after battery replacement, eventually resulting in burnout.

1. Checking the condition of the bit

The bits should be checked regularly. If worn or broken bits can slip or decrease the effi ciency of the motor and burn it out. Replace worn bits with new ones. CAUTION If you use a driver bit of which point is worn or broken, it will be dangerous since it slips. So replace it with a new one.

Loose screws are dangerous. Regularly inspect them and make sure they are tight. CAUTION Using this power tool with loosened, screws is extremely dangerous.

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

4. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals. On occasion check prior, during and after operation. CAUTION Remove any swarf or dust which may have collected on the terminals. Failure to do so may result in malfunction.

5. Disposal of the exhausted battery

WARNING Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal.

Store the power tool and battery in a place in which the temperature is less than 104°F (40°C) and out of reach of children. NOTE Storing lithium-ion batteries Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

7. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the metabo HPT cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts).

M5 thumb screw (Code No. 379343) NOTE Specifi cations are subject to change without any obligation on the part of the metabo HPT.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
