USER MANUAL GD40BCB GREENWORKS

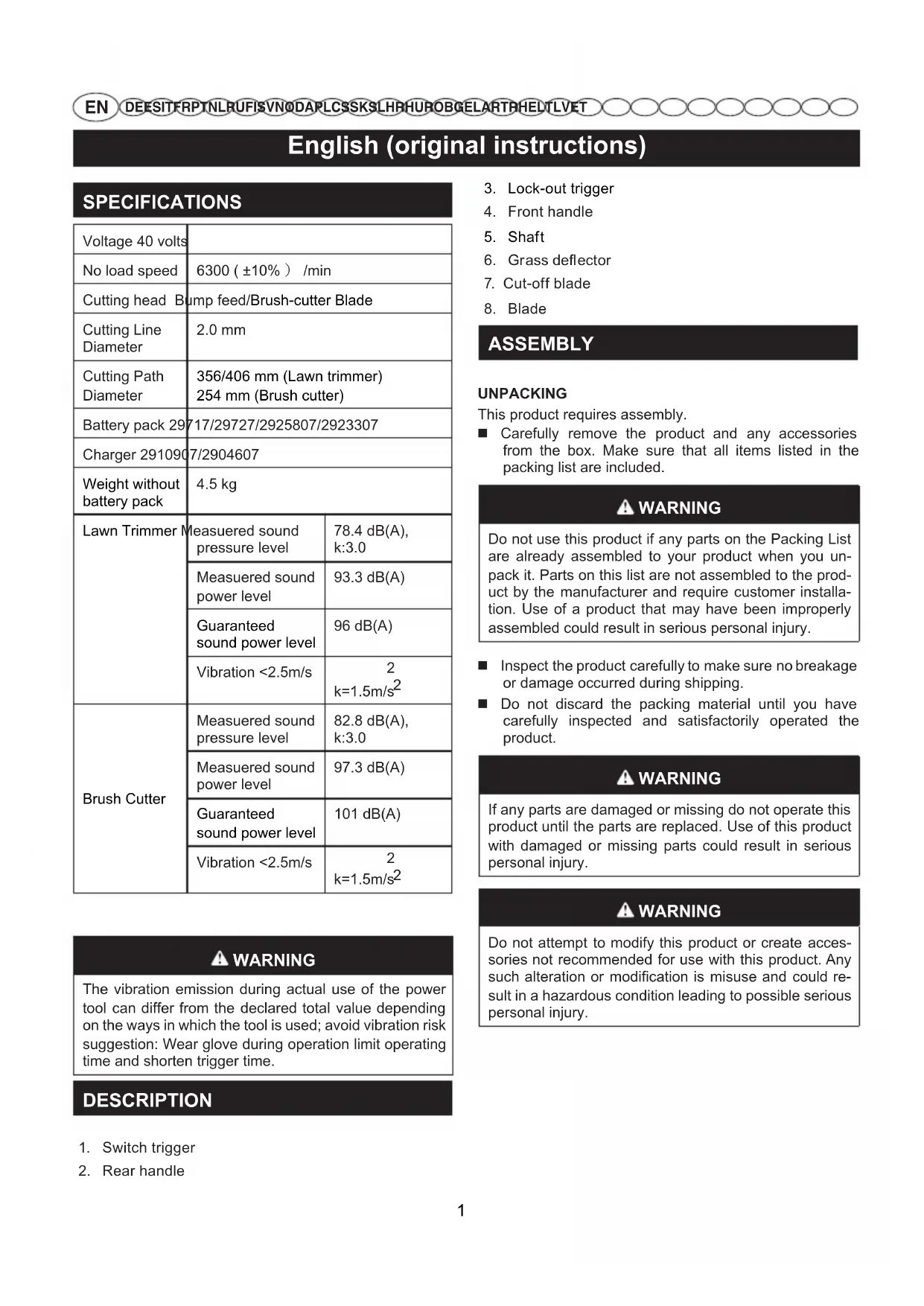

GD40BCBEnglish (original instructions)

Cutting Path Diameter 356/406 mm (Lawn trimmer) 254 mm (Brush cutter) Battery pack 29717/29727/2925807/2923307 Charger 2910907/2904607 Weight without battery pack

Lawn Trimmer Measuered sound pressure level

Brush Cutter Measuered sound pressure level

WARNING The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used; avoid vibration risk suggestion: Wear glove during operation limit operating time and shorten trigger time. DESCRIPTION

ASSEMBLY UNPACKING This product requires assembly. Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. WARNING Do not use this product if any parts on the Packing List are already assembled to your product when you un- pack it. Parts on this list are not assembled to the prod- uct by the manufacturer and require customer installa- tion. Use of a product that may have been improperly assembled could result in serious personal injury. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury. WARNING Do not attempt to modify this product or create acces- sories not recommended for use with this product. Any such alteration or modication is misuse and could re- sult in a hazardous condition leading to possible serious personal injury. 1English (original instructions)

DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET WARNING To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the product when assembling parts. ATTACHING GRASS DEFLECTOR See Figure 2. WARNING Avoid contact with the blade. Failure to avoid contact can result in serious personal injury. Invert the string trimmer to access the trimmer head. Using a Phillips head screwdriver, remove the preinstalled screws (a) from the trimmer head. Place the guard (b) on to the trimmer head and slide the guard onto the head by following the track on the head. Align the screw holes on the guard with the screw holes on the trimmer head. Insert the screws into the trimmer head, fastening the guard in place. Place the guard cap (c) on to the guard and slide the guard cap onto the guard. Align the screw holes on the guard cap with the screw holes on the guard. Insert the screws into the guard, fastening the the guard cap in place. WARNING Do not allow familiarity with products to make you care- less. Remember that a careless fraction of a second is sufcient to inict serious injury. WARNING Always wear eye protection. Failure to do so could result in objects being thrown into your eyes resulting in pos- sible serious injury. WARNING Do not use any attachments or accessories not recom- mended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. ATTACHING THE FRONT HANDLE See Figure 3. Unscrew the central knob 'A', remove the cap 'B' and the lower support 'C', being careful not to lose the spring in the support. Place the handle in the lower support. Hook the cap 'B' to the lower support 'C' and place the entire block in its housing on the transmission shaft. Set the handle bar in the most comfortable working position and lock it using knob 'A'. OPERATION Hold the power head with your right hand on the rear han- dle and your left hand on the front handle. Keep a rm grip with both hands while in operation. Power head should be held at a comfortable position with the rear handle about hip height. Always operate power head at full throttle. If de- bris becomes wrapped around the attachment, RELEASE THE SWITCH TRIGGER, and remove the debris. Use the harness when operation. TO INSTALL BATTERY PACK See Figure 4. Place the battery pack in the trimmer. Align raised ribs on battery pack with grooves in the trimmer’s battery port. Make sure the latch on bottom of the battery pack snaps in place and that battery pack is fully seated and secure in the trimmer before beginning operation. TO REMOVE BATTERY PACK See Figure 4. Release the switch trigger and lock-out trigger to stop the trimmer. Press the power button to turn off the trimmer. Press and hold the battery latch button at the bottom of the battery pack. Remove battery pack from the trimmer. STARTING/STOPPING THE TRIMMER See Figure 5. To start: Depress the lock-out button and squeeze the switch trigger. To stop: To stop the trimmer, just release the variable speed control trigger. 2English (original instructions)

DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET WARNING Noise. A degree of noise from the machine is not avoid- able. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn; Vibration. Always wear safety and anti-vibration glove. Excessive vibration may cause white nger disease or carpal tunnel syndrome. If you notice an unpleasant sensation or skin discoloration during use of the ma- chine on your hands once you stop working. Place an adequate work breaks. And continual and regular us- ers should monitor closely the condition of their hands ngers. WARNING Contact with the trimmer cutting head while operating can result in serious personal injury. CUTTING TIPS See Figure 6. Keep the trimmer tilted toward the area being cut; this is the best cutting area. The trimmer will cut better when moved from left to right across the area to be cut; it is less effective when moved from right to left. Use the tip of the cutting line to do the cutting; do not force cutting head into uncut grass. Wire and picket fences cause extra cutting line wear, even breakage. Stone and brick walls, curbs, and wood may wear cutting line rapidly. Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the cutting line. Attach metal knob to the rubber hole on the rear handle when in use, unlock the metal knob when not in use. ADVANCING CUTTING LINE See Figure 7. While the string trimmer is operating, the cutting line gets worn down and becomes shorter. This trimmer is equipped with bump feed line advancement, which advances additional line once the head is bumped on the ground while rotating. The cutting blade will cut the line to keep an accurate cutting swath. ADJUSTABLE CUTTING DIAMETER See Figure 8. The trimmer is currently set at a 14 in. cutting swath. To adjust to a cutting swath of 16 in. Remove the battery from the string trimmer. Remove both screws on the cut-off blade with a Phillips screwdriver (not included). Rotate the cut-off blade 180°. Replace both screws in the cut-off blade. Note: Set the cut-off blade to 14 in. for greater runtime. Set the cut-off blade to 16 in. for greater cutting area. Note: a smaller diameter cutting path will maximize run time and cutting speed, while a larger cutting path will help complete the trimming task quicker. LINE CUT-OFF BLADE See Figure 8. This trimmer is equipped with a line cut-off blade on the grass deector. For best cutting, advance line until it is trimmed to length by the line cut-off blade. Advance line whenever you hear the engine running faster than normal, or when trimming efciency diminishes. This will maintain best performance and keep line long enough to advance properly. WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING To avoid serious personal injury, always remove the bat- tery pack from the tool when cleaning or performing any maintenance. GENERAL MAINTENANCE Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING Do not at any time let brake uids, gasoline, petroleum- based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal in- jury. 3English (original instructions)

DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET Only the parts shown on the parts list are intended to be re- paired or replaced by the customer. All other parts should be replaced at an Authorised Service Centre. WARNING To avoid serious personal injury, always remove the bat- tery pack from the tool when cleaning or performing any maintenance. SPOOL REPLACEMENT See Figure 9. Use original manufacturer’s replacement cutting line for best performance. Remove the battery pack. Push in tabs on side of spool cover. Pull spool cover up to remove. Remove the old spool. To install the new spool, make sure the cutting line is captured in the slot on the new spool. Make sure the end of the cutting line is extended approximately 15cm beyond the slot. Install the new spool so that the cutting line and slot align with the eyelet in the cutting head. Thread the cutting line into the eyelet. Pull the cutting line extending from the cutting head so the cutting line releases from the slot in the spool. Reinstall the spool cover by depressing tabs into slots and pushing down until spool cover clicks into place. CUTTING LINE REPLACEMENT See Figures 10. Remove the battery pack. Remove the spool from the cutting head. NOTE: Remove any old cutting line remaining on the spool. Cut a piece of cutting line approximately 3m long. Bend the line at the midpoint and hook the loop into the slot in the center rim of the spool. Ensure line snaps into position in the slot. Wind the line evenly and firmly in a clockwise direction. Once completed, put the line in the slot so it does not unwind. Do not wind the line beyond the edge of the spool. ASSEMBLY THE BRUSH CUTTER See Figure 11.

Warning: Be careful of sharp edges and to wear gloves.

Remove the battery pack. Ensure the 'F’ is installed on the shaft of the trimmer. Insert a suitable screw driver through the two holes. Place the Brush-cutter Blade 'G' on top of the spacer 'F' ensuring it is centered. Place washer 'H on top of the Brush-cutter Blade 'G' Place cover 'I' over washer 'H' Using a 19mm or 3/4" wrench tighten the lock-nut 'J' Counter-clockwise to 44-58" N.M or 32-42 ft/lbs of torque. Spin the Brush-cutter Blade 'B' to ensure Brushcutter Blade is secured tightly.

Remove the battery pack from the trimmer before storing. Store it in a place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts. Store and charge your batteries in a cool area. Temperatures above or below normal room temperature will shorten battery pack life. Store the battery pack where the temperature is below 27˚C and away from moisture. All batteries gradually lose their charge. The higher the temperature, the quicker they lose their charge. If you store your unit for long periods of time without using it, recharge the batteries every month or two. This practice will prolong battery pack life. Secure the trimmer during transport to prevent damage or injury. Clean and maintenance before storage, use of guards on cutting attachments with metal blades. Use of cover for metal blades during transport and storage. ENVIRONMENTAL PROTECTION Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in which we live. Try not to cause any disturbance to the surrounding area. Scrupulously comply with local regulations for the disposal of packaging, deteriorated parts or any elements with a strong environmental impact; this waste must not be disposed of as normal waste, it must be separated and taken to specified waste disposal centres where the material will be recycled. Scrupulously comply with local regulations for the disposal of waste materials after mowing. At the time of decommissioning, do not pollute the environment with the machine, but hand it over to a disposal centre, in accordance with the local laws in force. 4English (original instructions)

DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTIONString will not advance when using the bump-feed head.String is welded to itself. Lubricate with silicone spray.Not enough string on spool. Install more string. Refer to string re-placement earlier in this manual.String is worn too short. Pull string while pressing line release button.String is tangled on spool. Remove string from spool and re-wind. Refer to string replacement ear-lier in this manual.Grass wraps around shaft housing and string head. Cutting tall grass at ground level Cut tall grass from the top down to prevent wrapping.Motor fails to start when switch trigger is depressed. Battery is not secure. To secure the battery pack, make sure the latch on bottom of the bat- tery pack snaps into place.Battery is not charged. Charge the battery pack according to the instructions included with your model. <6930 The maximum rotational frequency of the spindle.Noise value 5Deutsch (Übersetzung der originalen anleitungen)

AVERTISSEMENT The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used; avoid vibration risk suggestion: Wear glove during operation limit operating time and shorten trigger time. DESCRIPTION

PROBLÈME CAUSE POSSIBLE SOLUTION

All new Greenworks Tools machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Greenworks Tools are designed primarily to be used by DIY consumers. This warranty is non-transferable. LIMITATIONS This warranty applies only to defective parts/components and does not cover repairs due to:

1. Normal wear and tear.

2. Routine tune up or adjustment.

3. Damage caused by improper handling/abuse/misuse or neglect.

4. Overheating due to lack of maintenance.

5. Damage due to ttings/fasteners becoming loose/detached through

lack of maintenance.

6. Damage caused by cleaning with water.

7. Machines serviced or repaired by non-authorised Greenworks Tools

9. Damage caused by improper use of the machine.

10. Damage caused by improper winterisation (pressure washers)

11. Items considered as consumable parts are not normally covered by

the warranty, including but not limited to:

• Blade and blade assemblies

• Chucks and tool holders

12. Certain products may contain components such as engines,

transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer’s warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer’s warranty period.

13. Second hand goods are not covered under this warranty policy

14. The tting of spares, replacements or extra components which are

(DIY)Greenworks Tools

Greenworks Tools . (DIY)

EC DECLARATION OF CONFORMITY

Sweden Herewith we declare that the product Category...............40V battery lawn trimmer and brush cutter 2 in 1 Model...................................................................................2103907 Serial number...............................................See product rating label Year of Construction.....................................See product rating label ■ is in conformity with the relevant provisions of the Machinery Directive 2006/42/EC; EMC directive :2014/30/EU; Annex III of 2000/14/EC amended by 2005/88/EC And furthermore, we declare that the following (parts/clauses of) European harmonised standards have been used EN 60335-1, EN 50636-2-91,EN 62233; EN 55014-1; EN 55014-2, EN
