USER MANUAL CJ 18DSL HiKOKI

0000BookCJ18DSL.indb10000BookCJ18DSL.indb1 2019/07/2518:54:362019/07/2518:54:362 English c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

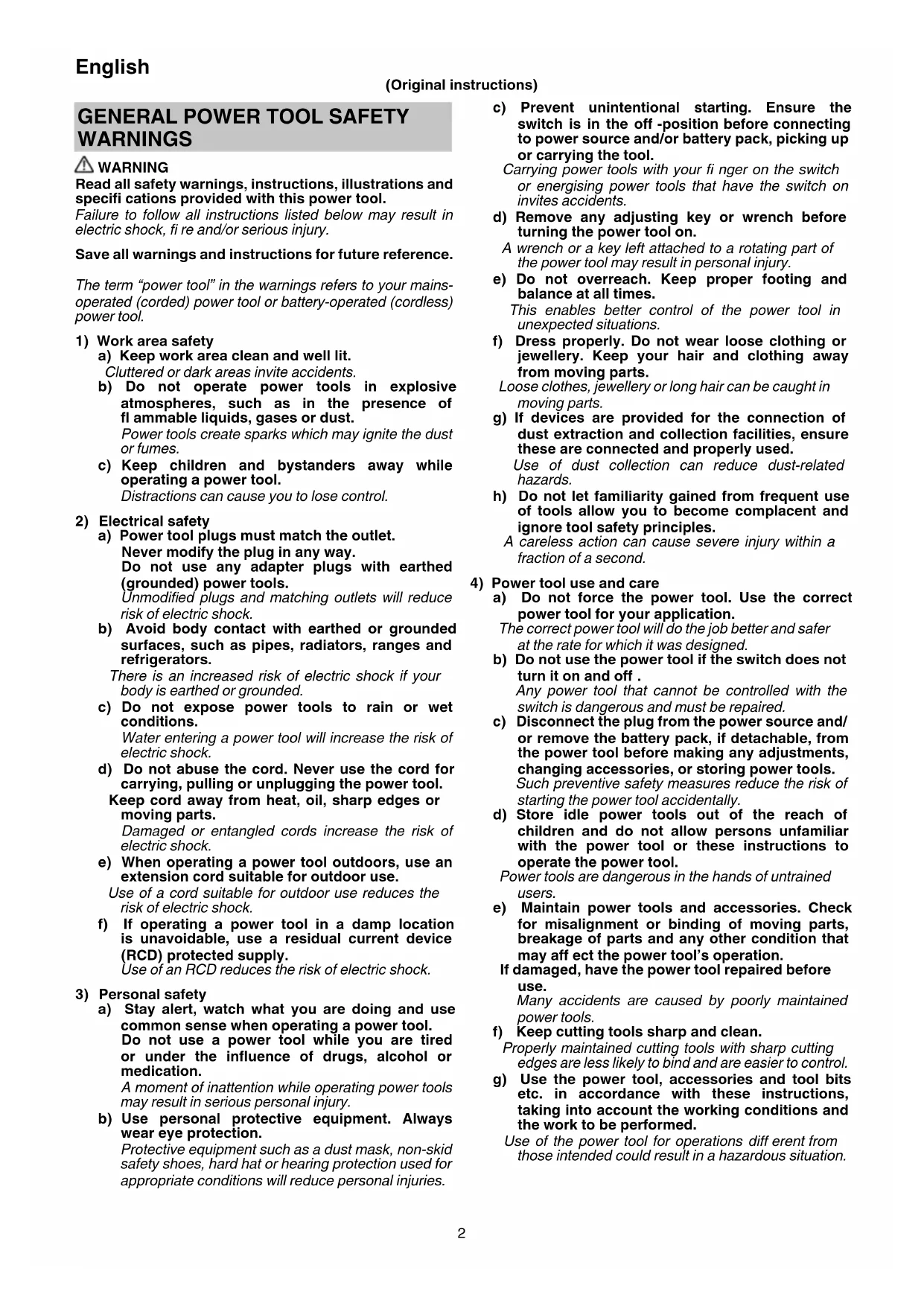

GENERAL POWER TOOL SAFETY

WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. (Original instructions) 0000BookCJ18DSL.indb20000BookCJ18DSL.indb2 2019/07/2518:54:362019/07/2518:54:363 English h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury. f) Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specifi ed in the instructions. Charging improperly or at temperatures outside the specifi ed range may damage the battery and increase the risk of fi re.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. PRECAUTION Keep children and infi rm persons away. When not in use, tools should be stored out of reach of children and infi rm persons.

1. Hold the power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2. Use clamps or another practical way to secure and

support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.

ADDITIONAL SAFETY WARNINGS

1. Always charge the battery at a temperature of 0 oC –

40 oC. A temperature of less than 0 oC will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40o C. The most suitable temperature for charging is that of 20 oC – 25 oC.

2. Do not use the charger continuously.

When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

3. Do not allow foreign matter to enter the hole for

connecting the rechargeable battery.

4. Never disassemble the rechargeable battery and

5. Never short-circuit the rechargeable battery.

Shortcircuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

6. Do not dispose of the battery in fi re. If the battery is burnt,

7. Do not insert object into the air ventilation slots of the

charger. Inserting metal objects or infl ammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

8. Bring the battery to the shop from which it was purchased

as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

9. If the machine is used continuously at low speed, an

extra load is applied to the motor which can result in motor seizure. Always operate the power tool so that the blade is not caught by the material during operation. Always adjust the blade speed to enable smooth cutting.

10. Secure the workpiece. A workpiece clamped with

clamping devices or in a vice is held more secure than by hand.

11. Preparing and checking the work environment. Make

sure that the work site meets all the conditions laid forth in the precautions.

12. Make sure that the battery is installed fi rmly. If it is at all

loose it could come off and cause an accident.

13. Dust produced in operation

The dust produced in normal operation may aff ect the operator’s health. Either of following way is recommended. a) Wear a dust mask b) Use external dust collection equipment When using the external dust collection equipment, connect the adapter with the hose from external dust collection equipment.

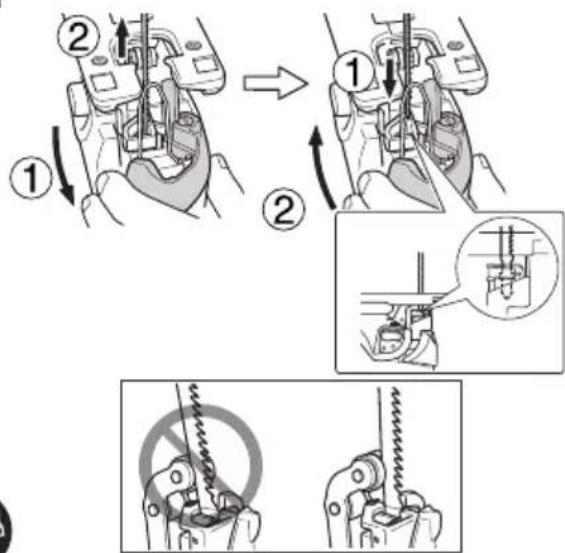

○ Be sure to switch power OFF and disconnect the battery from the body when changing blades. ○ Do not open the lever when plunger is moving. (Fig. 3) ○ Confi rm the protrusions of blade inserted to the blade holder surely. (Fig. 3) ○ Confi rm the blade located between the groove of roller. (Fig. 3)

15. Always make sure to push in the lock off button to the

locked position when not using. 16 Do not look directly into the light from the LED lamp. Continuous and direct exposure to the light from the LED lamp can injure your eyes.

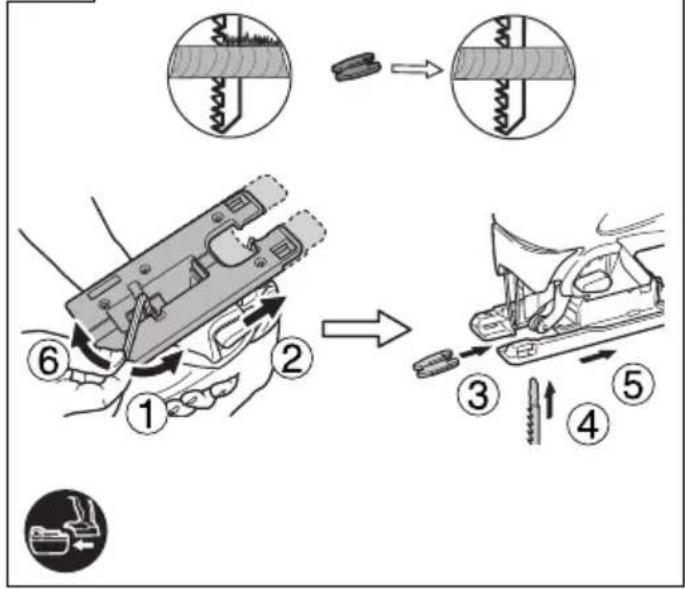

17. Using the splinter guard when cutting wood materials will

reduce splintering of cut surfaces. Insert the splinter guard in the space on the base, and push it completely. 0000BookCJ18DSL.indb30000BookCJ18DSL.indb3 2019/07/2518:54:362019/07/2518:54:364 English

○ Chip cover prevents chips from fl ying off and improves the effi ciency of dust collector. ○ There is a possibility that chip cover is frosted when cutting the metal.

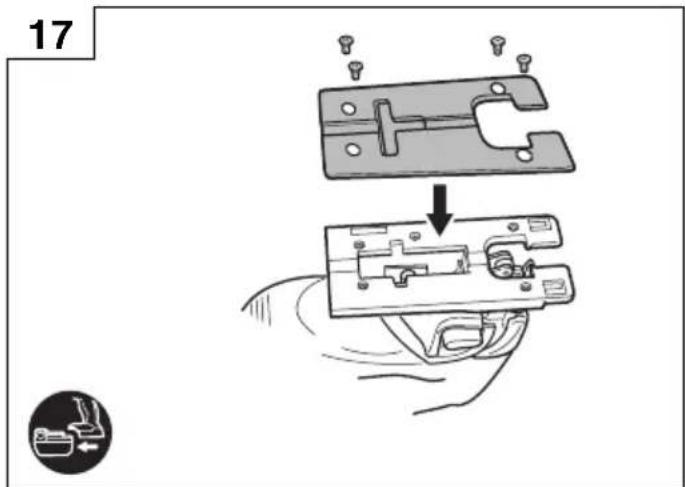

19. Use sub base (sold separately)

○ Using the sub base made from steel will reduce abrasion of aluminium base especially in cutting metals. Attach the sub base to the bottom surface of base by attached 4 screws. ○ Using the sub base made from plastic will reduce scratching of cut surface. Attach the sub base to the bottom surface of base by attached 4 screws.

20. In order to prevent blade dislodging, damage or

excessive wear on the plunger, please make sure to have surface of the base plate attached to the work piece while sawing. 21 At low speed do not cut a wood with a thickness of more than 10 mm or metal with a thickness of more than 1 mm.

22. To ensure accurate cutting when using the guide, always

set the orbital position to “0”.

23. When sawing a small circular arc, reduce the feeding

speed of the machine. If the machine is fed too fast, it could cause the blade to break.

24. Circular cutting must be done with the blade

approximately vertical to the bottom surface of the base.

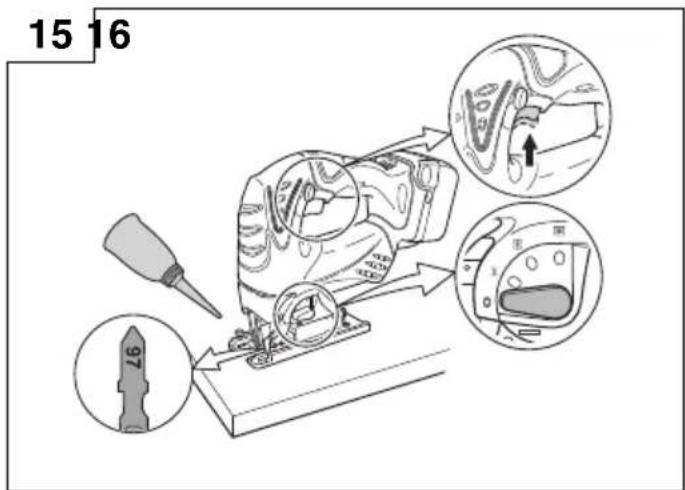

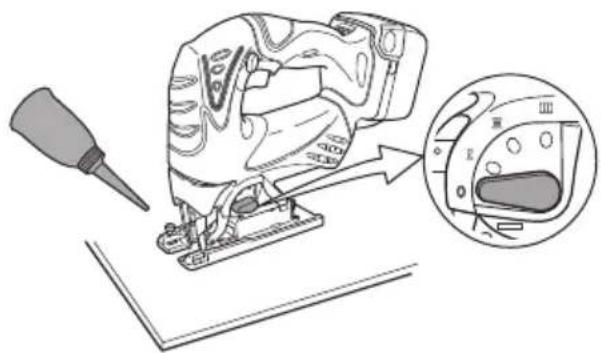

25. When cutting metallic materials, use an appropriate

cutting fl uid (spindle oil, soapy water, etc.) to prolong the bladeʼs service life.

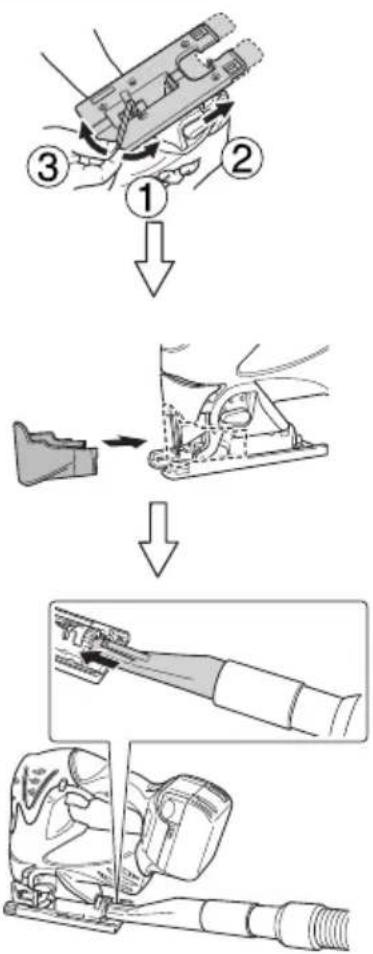

27. Connecting with cleaner (sold separately)

By connecting with cleaner through dust collector and adapter (sold separately), most of dust can be collected.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor

stops. In such a case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

battery. ○ During work make sure that swarf and dust do not fall on the battery. ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery. ○ Do not store an unused battery in a location exposed to swarf and dust. ○ Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car

cigarette lighter sockets.

6. Do not use the battery for a purpose other than those

7. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures or

high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul

10. Do not use in a location where strong static electricity

11. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

12. Do not immerse the battery or allow any fl uids to fl ow

inside. Conductive liquid ingress, such as water, can cause damage resulting in fi re or explosion. Store your battery in a cool, dry place, away from combustible and fl ammable items. Corrosive gas atmospheres must be avoided. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fi re. When storing the lithium ion battery, obey surely the rules of following contents. ○ Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case. ○ To prevent shorting from occurring, load the battery in the tool or insert securely the battery cover for storing until the ventilator is not seen. 0000BookCJ18DSL.indb40000BookCJ18DSL.indb4 2019/07/2518:54:362019/07/2518:54:365 English SYMBOLS WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. CJ18DSL: Cordless Jig Saw To reduce the risk of injury, user must read instruction manual. Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/ EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. V Rated voltage

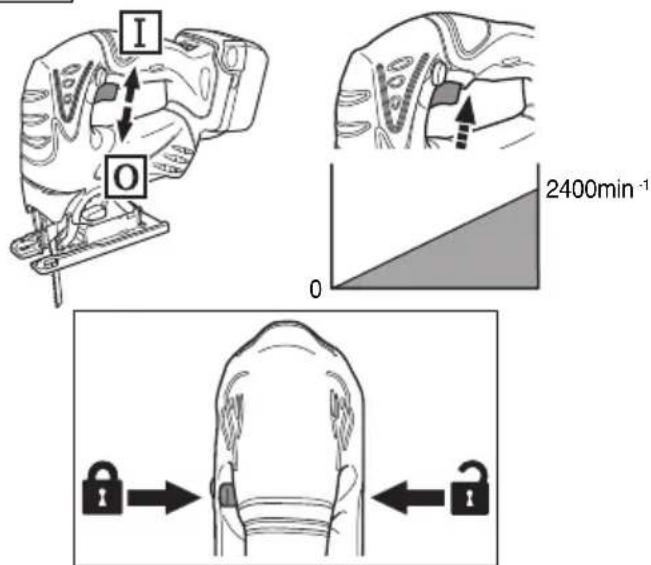

No-load speed Wood Metal Switching ON Switching OFF Disconnect the battery Swtich lock Switch unlock Battery capacity Remaining battery indicator switch The battery remaining power is nearly empty. Recharge the battery soonest possible The battery remaining power is a half. The battery remaining power is enough. Prohibited action STANDARD ACCESSORIES In addition to the main unit (1 unit), the package contains the accessories listed on page 180. Standard accessories are subject to change without notice. APPLICATIONS ○ Cutting various lumber and pocket cutting ○ Cutting mild steel plate, aluminum plate, and copper plate ○ Cutting synthetic resins, such as phenol resin and vinyl chloride ○ Cutting thin and soft construction materials ○ Cutting stainless steel plate (with No. 97 blade) SPECIFICATIONS Model CJ18DSL Voltage 18 V Max. cutting depth Wood 135 mm Mild steel 10 mm No-load speed 0 ― 2400 min

• According to EPTA-Procedure 01/2014. Depending on attached battery. The heaviest weight is measured with BSL36B18. NOTE Due to HiKOKI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice. CHARGING Before using the power tool, charge the battery as follows.

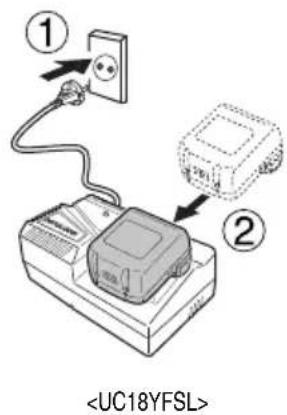

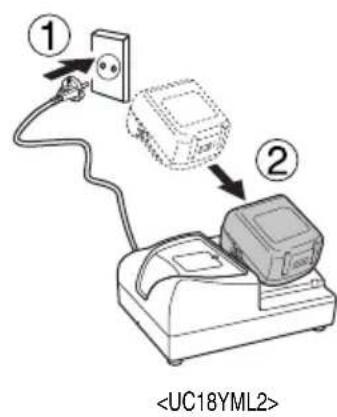

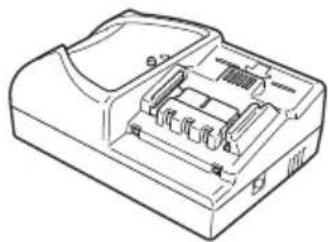

1. Connect to the power source. (Fig. 2)

When charging the battery from an AC power source ○ Connect the charger’s power cord to the receptacle. When connecting the plug of the charger to a receptacle, the pilot lamp will blink in red (At 1- second intervals). CAUTION Do not use the electrical cord if damaged. Have it repaired immediately. When charging the battery from a DC 12V in-car power source (UC18YML2) ○ Secure the battery charger in place in the car. Use the strap supplied with the battery charger to fasten the battery charger in place and prevent it from moving inadvertently. (See Fig. 18) CAUTION Do not place the battery charger or battery under the driver’s seat. Secure the battery charger in place to prevent it from moving inadvertently as this may lead to an accident. Fig. 18 ○ Insert the cigarette lighter connecting plug into the cigarette lighter socket. If the plug is loose and falls out of the cigarette lighter socket, repair the socket. As the socket may be faulty, you are recommended to contact your local car dealer. Continued use of the socket may result in an accident due to overheating.

2. Insert the battery into the charger. (Fig. 2)

Firmly insert the battery into the charger.

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red. When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals) (See Table 1) 0000BookCJ18DSL.indb50000BookCJ18DSL.indb5 2019/07/2518:54:372019/07/2518:54:376 English ● Pilot lamp indication The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery. Table 1 Indications of the pilot lamp The pilot lamp lights or blinks. Before charging Blinks (red) Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) While charging Lights (red) Lights continuously Charging complete Blinks (red) Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Charging impossible Flickers (red) Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) Malfunction in the battery or the charger Overheat standby Lights (green) (UC18YML2) Lights continuously Battery overheated. Unable to charge. (Charging will commence when battery cools) Blinks (red) (UC18YFSL) Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds) Charging with in- car power source impossible (UC18YML2) Blinks (green) Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Malfunction in the battery or the charger NOTE: When standby for cooling battery, UC18YML2 / UC18YFSL cools the overheated battery by cooling fan. (However, the cooling fan does not function when charging the battery with a DC 12V in-car power source.) ● Regarding the temperatures and charging time of the battery. The temperatures and charging time will become as shown in Table 2. Table 2 Charger Battery UC18YFSL UC18YML2 (AC/DC)*

Charging voltage V 14.4 V – 18 V Weight kg 0.5 0.7 Temperatures at which the battery can be recharged 0oC – 50oC Charging time for battery capacity, approx. (At 20oC)

20 / 50 22 / 60 30 / 80 35 / 100 45 / 120 60 / 160 75 / 200 Number of battery cells 4 – 10 *1 AC power supply / DC 12V (in-car) power supply NOTE The recharging time may vary according to the ambient temperature and power source voltage. <UC18YML2> Especially, using a DC 12V in-car power source may require longer recharging time at high temperatures. CAUTION When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

4. Disconnect the charger’s power cord from the

receptacle or cigarette lighter socket.

5. Hold the charger fi rmly and pull out the battery.

NOTE Be sure to pull out the battery from the charger after use, and then keep it. CAUTION ○ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights up green or lights for 1 second, does not light for 0.5 seconds (off for

0.5 seconds). In such a case, fi rst let the battery cool,

then start charging. 0000BookCJ18DSL.indb60000BookCJ18DSL.indb6 2019/07/2518:54:372019/07/2518:54:377 English ○ When the pilot lamp fl ickers in red (at 0.2-seconds intervals), check for and take out any foreign objects in the charger’s battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center. ○ Since the built-in micro computer takes about 3 seconds to confi rm that the battery being charged with charger is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged. ○ Check the voltage of the in-car power source when the pilot lamp fl ickers in green (every 0.2 seconds) continuously. (UC18YML2) If the voltage is 12V or lower, it indicates that the car battery has weakened and cannot be charged. ○ If the pilot lamp does not blink in red (every second) even though the charger cord or cigarette lighter connecting plug is connected to the power, it indicates that the protection circuit of the charger may be activated. Remove the cord or plug from the power and then connect it again after 30 seconds or so. If this does not cause the pilot lamp to blink in red (every second), please take the charger to the HiKOKI Authorized Service Center.

MOUNTING AND OPERATION

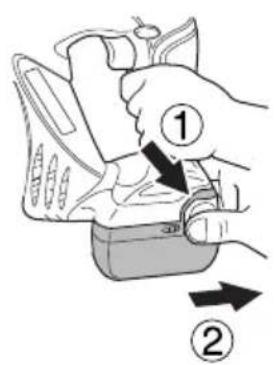

Action Figure Page Removing and inserting the battery 1

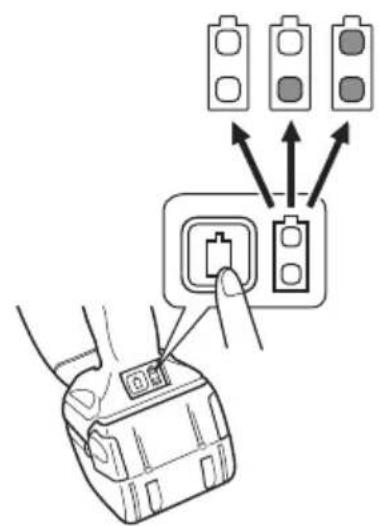

Remaining battery indicator 5

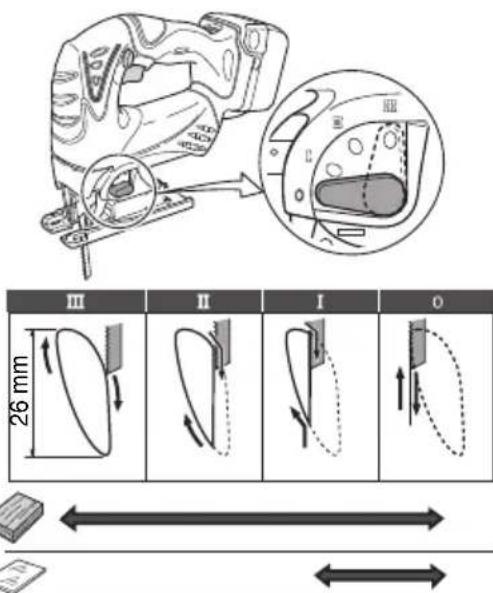

Adjusting the orbital operation 6

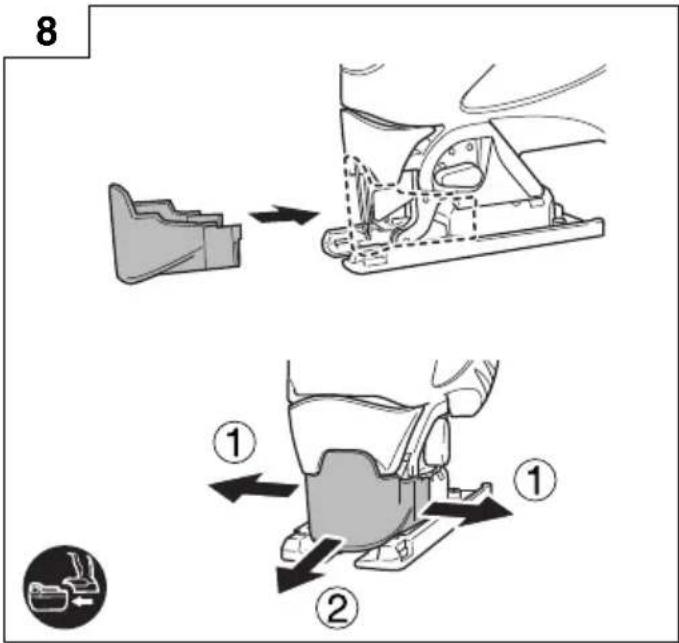

Mounting and dismounting the chip cover

Housing the hexagonal bar wrench

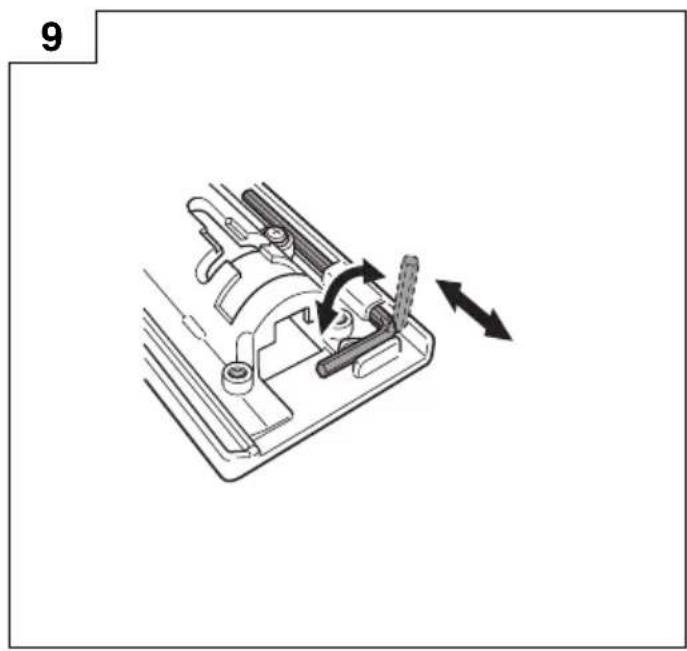

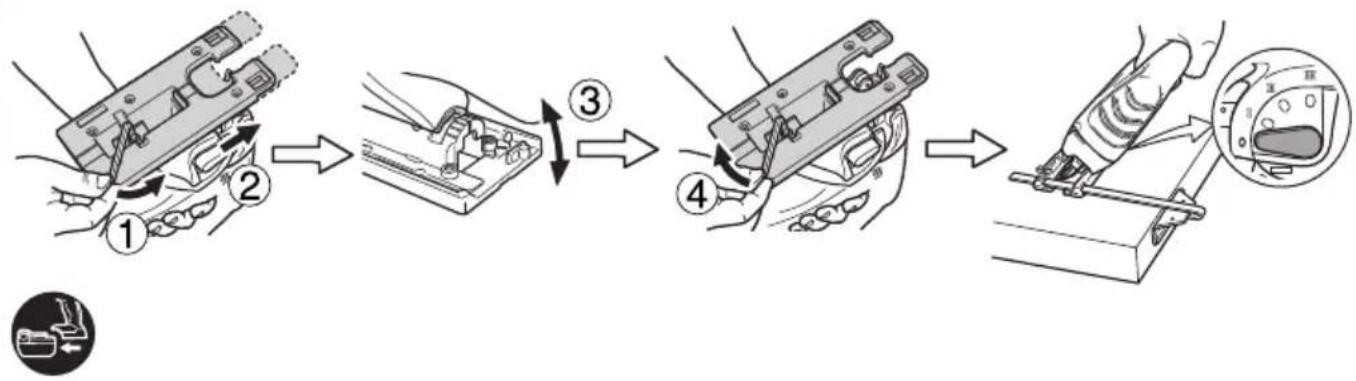

Mounting the guide (sold separately) and rectilinear cutting

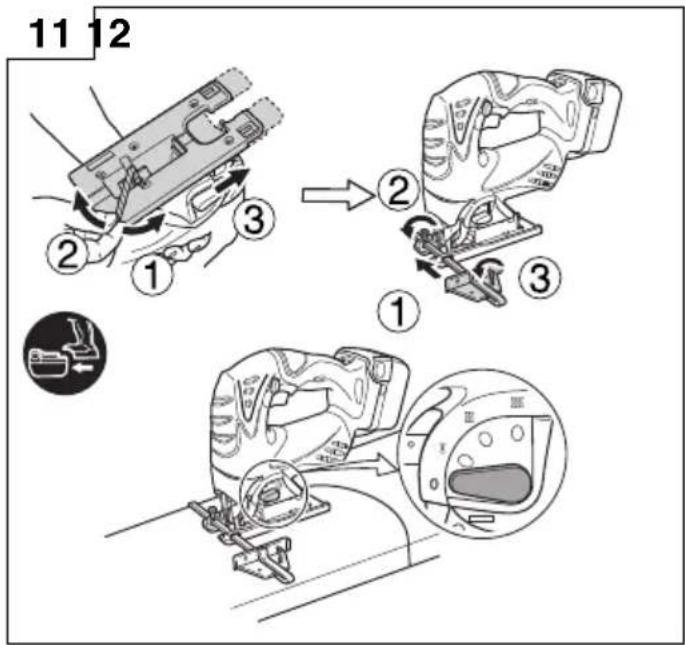

Mounting the guide (sold separately) and cutting a circle or a circular arc

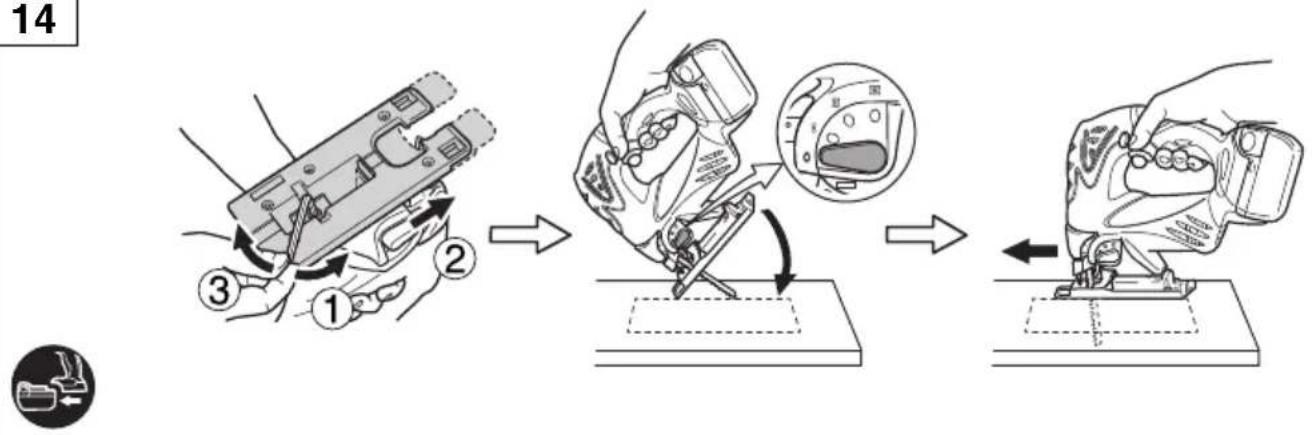

Concerning cutting of stainless steel plates

Connecting with cleaner 16

Selecting accessories ―

To ensure maximum operating effi ciency and results, it is very important to select the appropriate blade best suited to the type and thickness of the material to be cut. The blade number is engraved in the vicinity of the mounting portion of each blade. Select appropriate blades by referring to Table 3.

MAINTENANCE AND INSPECTION

CAUTION Pull out battery before doing any inspection or maintenance.

1. Inspecting the blade

Continued use of a dull or damaged blade will result in reduced cutting effi ciency and may cause overloading of the motor. Replace the blade with a new one as soon as excessive abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Cleaning on the outside

When the power tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

Store the power tool in a place in which the temperature is less than 40°C and out of reach of children. NOTE Storing lithium-ion batteries. Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the HiKOKI cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). GUARANTEE We guarantee HiKOKI power tools in accordance with statutory/country specifi c regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the power tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center. 0000BookCJ18DSL.indb70000BookCJ18DSL.indb7 2019/07/2518:54:372019/07/2518:54:378 English Information concerning airborne noise and vibration The measured values were determined according to EN62841 and declared in accordance with ISO 4871. Measured A-weighted sound power level: 95 dB (A). Measured A-weighted sound pressure level: 84 dB (A). Uncertainty K: 5 dB (A). Wear hearing protection. Vibration total values (triax vector sum) determined according to EN62841. Cutting boards: Vibration emission value a

Uncertainty K = 4.6 m/s

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. It may also be used in a preliminary assessment of exposure. WARNING ○ The vibration emission during actual use of the power tool can diff er from the declared total value depending in the ways in which the tool is used. ○ Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). NOTE Due to HiKOKI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice. Table 3 List of appropriate blades Material to be cut Blade Material quality No. 1 (Super long) No. 11 No. 12 No. 15 No. 16 No. 21 No. 22 No. 41 No. 97 Thickness of material (mm) Lumber General lumber Below 135

10 - 55 Below 20 10 - 55 5 - 40 10 - 65

Plywood 5 - 30 Below 10 5 - 30 3 - 20 Iron plate Mild steel plate 3 - 6 Below 3 2 - 5 Stainless steel plate

3 - 12 Below 3 Below 5

Aluminium sash Height up to 25 Height up to 25 Plastics Phenol resin, melamine, resin, etc.

5 - 20 Below 6 5 - 15 Below 6 5 - 15

Vinyl chloride, acryl resin, etc.

5 - 30 Below 10 5 - 20 Below 5 5 - 30 3 - 20 5 - 15

Foamed polyethylene, foamed styrol

10 - 55 3 - 25 5 - 25 3 - 25 10 - 55 3 - 40 5 - 25

Pulp Card board, corrugated paper

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that Cordless Jig Saw, identifi ed by type and specifi c identifi cation code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical fi le at *4) – See below. The European Standard Manager at the representative offi ce in Europe is authorized to compile the technical fi le. The declaration is applicable to the product affi xed CE marking.

A. Nakagawa Corporate Offi cer
