USER MANUAL MCM21B2 BOSCH

Illustration of a kitchen blender with a side panel and lid (no text or symbols)

MCM21..

MCM22..

BOSCH

de Gebrauchsanleitung
en Operating instructions
fr Notice d'utilisation
it Istruzioni per l'uso
nl Gebruiksaanwijzing
da Brugsanvisning
no Bruksanvisning
sv Bruksanvisning
fi Käyttöohje

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

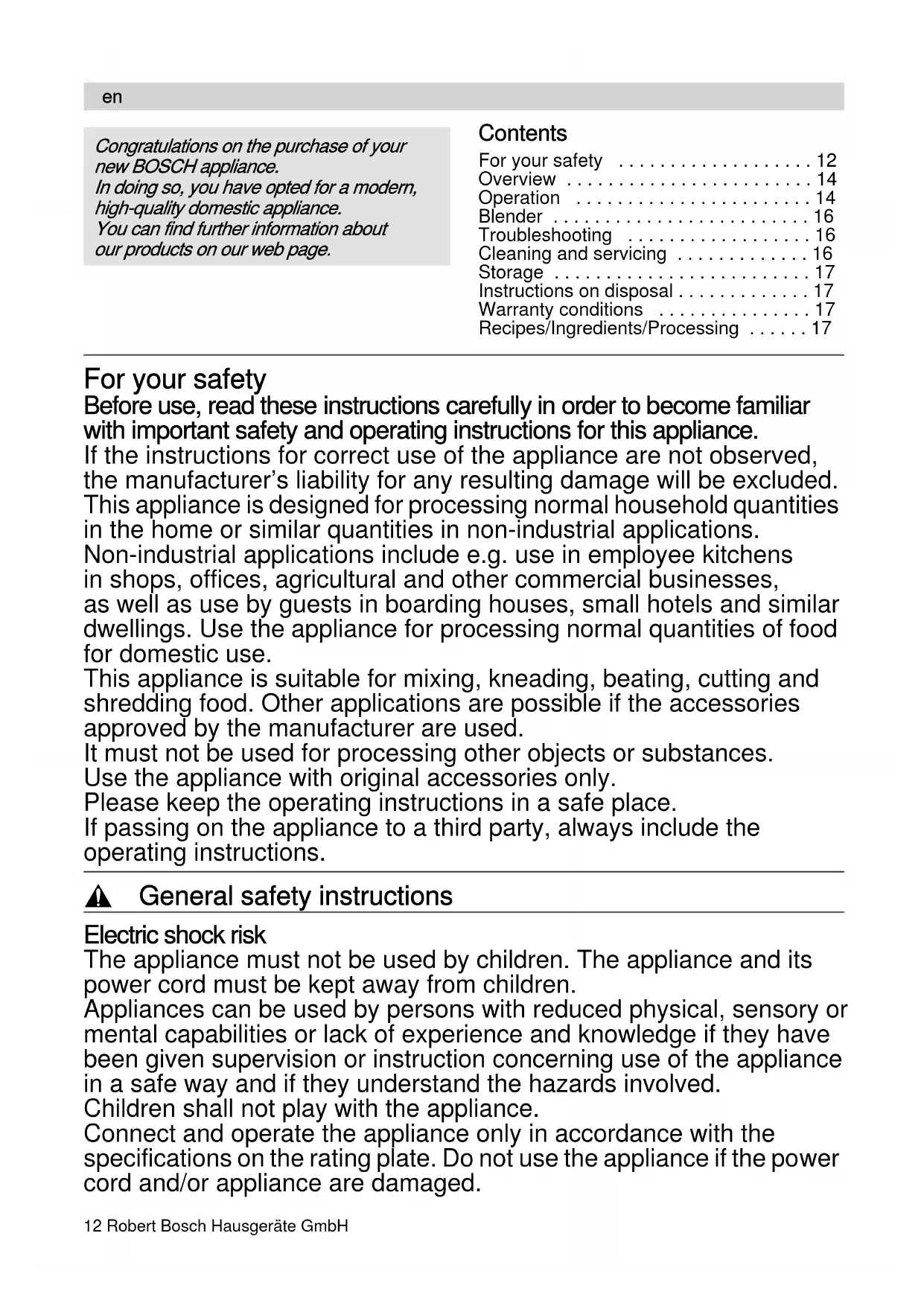

Congratulations on the purchase of your new BOSCH appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

For your safety ..... 12 Overview ..... 14 Operation ..... 14 Blender ..... 16 Troubleshooting ..... 16 Cleaning and servicing ..... 16 Storage ..... 17 Instructions on disposal ..... 17 Warranty conditions ..... 17 Recipes/Ingredients/Processing ..... 17

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use.

This appliance is suitable for mixing, kneading, beating, cutting and shredding food. Other applications are possible if the accessories approved by the manufacturer are used.

It must not be used for processing other objects or substances.

Use the appliance with original accessories only.

Please keep the operating instructions in a safe place.

If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children. The appliance and its power cord must be kept away from children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Electric shock risk

If the power is interrupted, the appliance remains switched on and restarts when the power is restored.

Change accessories and tools only when the appliance is at a standstill (rotary switch on 0/off) and the mains plug has been pulled out.

Never immerse the base unit in liquids or place under running water and do not clean in the dishwasher.

Before rectifying a fault, pull out the mains plug.

Risk of injury from the rotating tools!

When operating the appliance, never place fingers in the bowl (even when the appliance has been switched off, the drive continues rotating briefly).

Change tools only when the drive is at a standstill.

Do not operate the appliance without the drive cover (blender drive).

Risk of injury from sharp blades!

Grip the chopping blade by the plastic handle only (top end).

Grip the cutting discs by the plastic handle only.

Risk of injury from sharp blender blades/rotating drive!

NEVER put fingers in the attached blender.

Before operating the appliance, always attach the lid.

Attach/replace the blender only when the appliance is at a standstill.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.4 litres of hot liquid.

Explanation of the symbols on the appliance or accessory

Follow the instructions in the operating instructions.

Caution! Rotating blades.

Caution! Rotating tools.

Do not place fingers in the feed tube.

The operating instructions describe different models with different accessories.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

Overview

Please fold out the illustrated pages.

Base unit

1 Rotary switch

0 = Stop

M = Instantaneous switching (Maximum speed hold down the rotary switch)

Settings 1–2, Operating speed:

1 = low speed

2 = high speed.

2 Drive cover

Attach when blender is not in use.

3 Cord store

4 Ventilation slots

5 Suction feet

Attach the appliance to a smooth and clean surface.

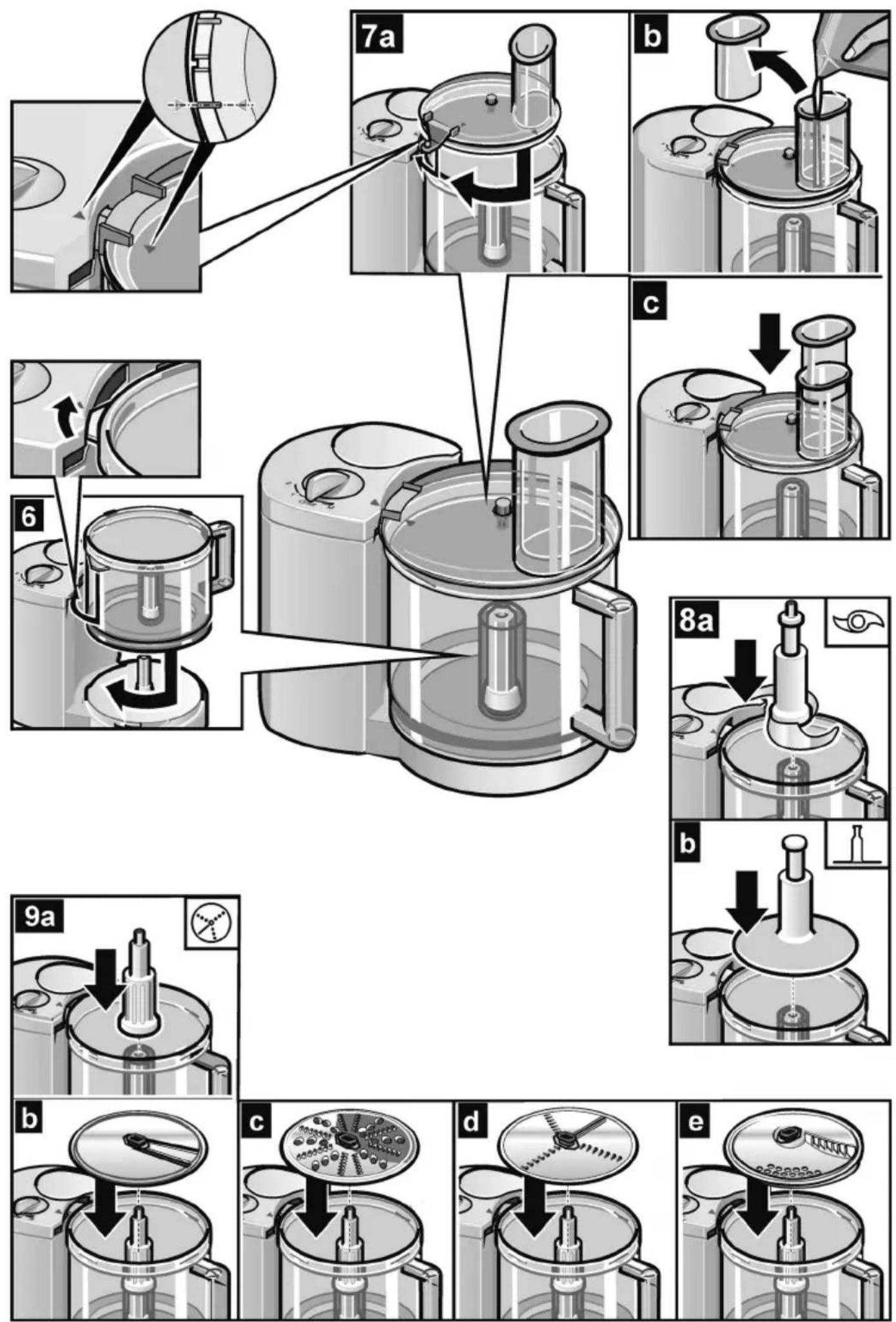

Bowl with accessories/tools

6 B o w l

Attach and rotate as far as possible in a clockwise direction (lug on bowl in slot on base unit).

7a Lid

Attach lid (arrow on the lid on the arrow on the handle) and rotate as far as possible in a clockwise direction (lid lug in slot on base unit, arrows on lid and housing match up).

b Feed tube

Remove the push block and add more ingredients.

c Push block (= measuring jug)

Push down food which is to be sliced or shredded.

8a Fly cutter

b Whipping (beating) disc

9a Disc holder

for holding the discs.

b Reversible slicing disc – thick/thin

c Reversible shredding disc – coarse/fine

Available from a specialist outlet if not included with the appliance.

d Slicing/Shredding disc

e Chipper disc

Blender

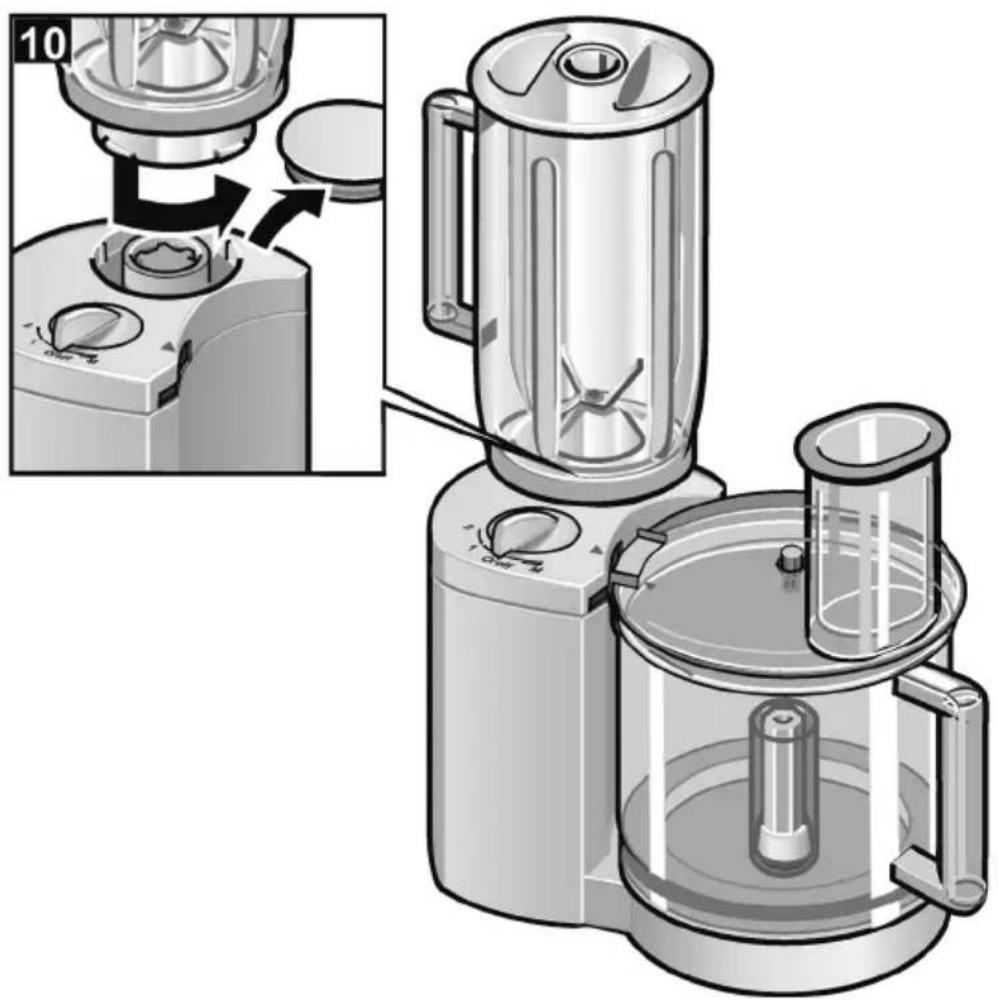

10 Blender jug

Attach and rotate as far as possible in an anti-clockwise direction.

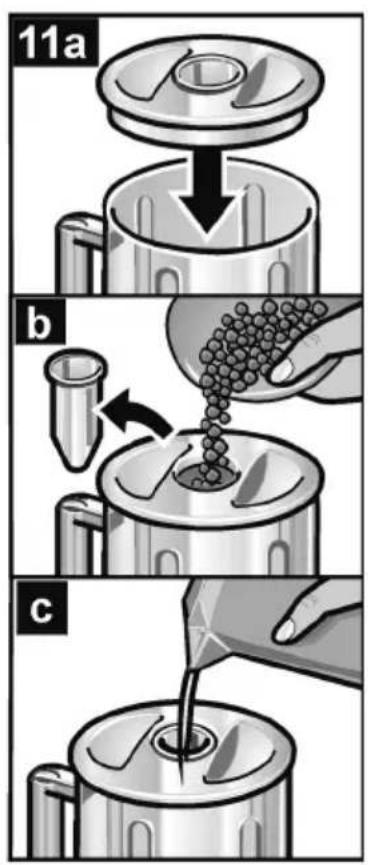

11a Lid

Attach and lock in position by rotating in an anti-clockwise direction.

b Feed tube

Remove the funnel and add more ingredients.

c Funnel

Add more liquid.

Operation

Before operating the appliance and accessories for the first time, clean thoroughly; see "Cleaning and servicing".

Preparation

- Place the base unit on a smooth, clean surface. Do not cover ventilation slots.

- Insert the plug.

Bowl with accessories/tools

Risk of injury from the rotating tools!

When operating the appliance, never place fingers in the bowl (even when the appliance has been switched off, the drive continues rotating briefly). Change tools only when the drive is at a standstill. Do not operate the appliance without the drive cover (blender drive).

• Attach bowl (6) and rotate as far as possible in a clockwise direction (lug on bowl in slot on base unit).
• Insert tool (8/9) as described in the appropriate section. For tool selection see "Recipes/Ingredients/Processing".
• Add ingredients as described in the appropriate section. For selection see "Recipes/Ingredients/Processing".
• Attach lid (7a) (arrow on the lid on the arrow on the handle) and rotate as far as possible in a clockwise direction (lid lug in slot on base unit). The arrows must match up exactly as illustrated in the diagram.
• Select the desired setting with the rotary switch; see “Recipes/Ingredients/Processing”.

Appliance cannot be switched on until bowl and lid have been attached and locked (both lugs in slot on base unit, arrows on lid and housing match up).

Fly cutter

for cutting, chopping, kneading.

Risk of injury from sharp blades!

Grip the chopping blade by the plastic handle only (top end).

• Insert the chopping blade (8a).
• Add ingredients.
• Attach the lid (7a) and pusher (7c).
• Select the desired setting with the rotary switch (1); see “Recipes/Ingredients/Processing”.
• To add more ingredients, set the rotary switch to0.
• Remove the push block (7c) and add ingredients through the refill opening (7b).

Note: The longer the processing time, the smaller the food is cut or chopped.

Chopping disc

for cream, egg white, milk shakes.

• Insert chopping disc (8b).
• Add ingredients.
• Attach the lid (7a) and pusher (7c).
• Select the desired setting with the rotary switch (1); see “Recipes/Ingredients/Processing”.
• To add more ingredients, select Setting 1 with the rotary switch.
• Remove the push block (7c) and add ingredients through the refill opening (6b).

Cutting discs

- Reversible slicing disc (9b) e.g. for slicing cucumbers, cabbage, beetroot, kohlrabi.

- Reversible shredding disc (9c) e.g. for shredding carrots, celery.

- Chips cutting disc (9d) for shredding and slicing

- Chipper disc (9e) when inserting, note the location of the disc (see diagram).

Risk of injury from sharp blades!

Grip the cutting discs by the plastic handle only.

Warning! Blades may become blunt

Do not use the cutting discs for hard cheese (Parmesan), nuts or horseradish.

• Insert the disc holder (9a).
• Insert cutting disc (9b/9c/9d). The desired slicing/shredding side face up.
• Attach the cover (7a).
• Select the desired setting with the rotary switch; see "Recipes/Ingredients/Processing".
• Add food which is to be sliced or shredded (7b) and push down with the push block (7c), exerting a little pressure.

Note: Most types of food are processed on Setting 1; only hard foods are processed on Setting 2.

After using the appliance

• Turn switch to 0.
• Rotate the lid as far as possible in an anti-clockwise direction and remove.
• Rotate the bowl as far as possible in an anti-clockwise direction and remove.
• Remove tool.

Blender

Risk of injury from sharp blender blades/rotating drive!

NEVER put fingers in the attached blender. Before operating the appliance, always attach the lid. Before removing/attaching the blender, wait until the appliance has come to a standstill.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.4 litres of hot liquid.

Warning!

Blender may be damaged.

Do not process frozen fruit or vegetables.

Do not operate the appliance at no-load.

Blending

Before operating the blender, attach the bowl (6) and lid (7a) and lock in position.

Take the tools out of the bowl!

• Attach the drive cover (2).
• Attach the blender jug (10) and rotate as far as possible in an anti-clockwise direction.
• Add ingredients; see "Recipes/Ingredients/Processing". Maximum capacity, liquid = 1 litres (frothing or hot liquids max. 0.4 litres). Optimum processing quantity of solid ingredients = 125 g.
• Attach the lid (11a) and lock into position by rotating in an anti-clockwise direction.
• Select the desired setting with the rotary switch; see “Recipes/Ingredients/Processing”.

After blending

• Turn switch to 0.
• Rotate the blender as far as possible in a clockwise direction and remove.
• Rotate the lid in a clockwise direction and remove.

Tip: It is recommended to clean the blender immediately after use see “Cleaning and servicing”.

Adding more ingredients

• Set the rotary switch to 0 (or as indicated in the recipe).
• Remove the lid (11a) and add the ingredients

or

- Remove the funnel from the lid and gradually add solid ingredients through the refill opening (11b).

or

- Pour liquid ingredients through the funnel (11c).

Troubleshooting

Fault

Appliance cannot be switched on.

Cause

Bowl or lid is not locked.

Remedial action

Attach and lock bowl/lid correctly.

Switch on appliance again.

Important information

If the fault cannot be eliminated, please contact customer service.

Cleaning and servicing

Risk of electric shock!

Never immerse the base unit in water or place under running water.

Warning!

Surfaces may be damaged.

Do not use abrasive cleaning agents.

Cleaning the base unit

• Pull out the mains plug.
• Wipe the base unit with a damp cloth. If required, use a little detergent.

Cleaning the bowl and accessories

Risk of injury from sharp blades!

Grip the chopping blades and cutting discs by the plastic handle only.

All parts are dishwasher-proof.

Do not wedge plastic parts in the dishwasher as they could warp.

Insert the chopping blades with the opening pointing downwards, ensuring that the blades do not damage any other parts.

Shredding carrots, red cabbage or similar vegetables will cover the plastic parts in a red film which can be removed with a few drops of cooking oil.

Cleaning the blender

Risk of injury from sharp blades!

Do not touch blender blades with bare hands. Clean them with a brush.

It is recommended to clean the blender immediately after use. To prevent food from sticking and the plastic parts from corroding (e.g. due to oils in spices).

The lid and funnel are dishwasher-proof. Do not clean the blender jug in the dishwasher, but under running water (do not soak in water).

Storage

• Attach the drive cover (blender drive) (Fig. 2).
• Attach the bowl and accessories (Fig. 6).
• Stow the cord (Fig. 3).

Instructions on disposal

This appliance has been identified in accordance with the European directive 2012/19/EC on Waste Electrical and Electronic Equipment – WEEE.

The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to alterations.

Recipes/Ingredients/Processing

Tool Setting Time Recipe			s/Ingredients/Processing
	1/2		Herbs (except chives)Quantity: 10 g to 50 gPut the herbs into the bowl (dry).
	M		Onions, garlicAmount: from 1 onion, quartered, up to 300 gfrom 1 clove of garlic up to 300 gProcess the onion/garlic until it has been chopped to the required size.
	2/M	Several2 scycles	Vegetables and potatoes, raw(for soups, sauces, stuffing)Quantity: 50 g to 300 gCut the vegetables into large pieces and put into the bowl.
	2		Hard cheese (e.g. Parmesan)Quantity: 10 g to 200 gDice the cheese and process until it has been chopped to the required size.
Tool Setting Time Recipes/Ingredients/Processing
	2		BreadcrumbsAmount: 1 to 4 dry bread rollsCut the bread roll into four and process until it has been chopped to the required size.
	2		Meat, liver(for mince, steak tartare, etc.)Quantity: 10 g to 500 gRemove bones, gristle and sinews. Dice the meat.Making sausage meat, stuffing and pâté:Put meat (beef, pork, veal, poultry, or even fish, etc.) together with other ingredients and spices into the bowl and mix into a dough.
	2 approx.1min		Yeast doughMax. 500 g flour25 g yeast or 1 packet of dried yeast175-200 ml lukewarm milk1 egg1 pinch of salt80 g sugar60 g fat (lukewarm)Graded rind of half a lemonIngredients should be at the same temperature.When the dough has a smooth appearance, place in a warm location.
	2 approx.1min		Cake mixture4 eggs250 g sugar1 packet of vanilla sugar250 g butter or margarine(room temperature)Max. 500 g flour1 packet of baking powder125 ml of milkMix dough until it is smooth and free of lumps.
	2 approx.1.5 min-2 min		Strawberry sorbet250 g frozen strawberries100 g icing sugar180 ml creamPut all ingredients in the bowl. Switch on immediately, otherwise the mixture will go lumpy. Mix until a creamy sorbet forms.
	1		Beaten egg whiteAmount: 2 to 6 egg whites
	1		Whipped creamQuantity: 200 g to 400 g
	2 approx.3 min		Low-calorie milk shake500 ml long-life milk (3.5 % fat)3-4 heaped tbs. milk shake powderFruit or vanilla flavourPlace the long-life milk in the freezer for 3-3.5 hours(do not use glass bottles).Beat to a firm foam in the bowl.Then add 3 to 4 tbs. milk shake powder and mix briefly.
	2/M		Nuts, almondsQuantity: max. 200 gRemove shells completely, otherwise the blender blade will be blunted.Process the onion/garlic until it has been chopped to the required size.
	2/M		Puréeing fruit or vegetables(Apple sauce, spinach, carrot and tomato purée; raw or cooked)Put ingredients and spices into the blender and purée.
	2		Vanilla banana milk2 bananas60 g vanilla ice-cream (approx. 2 heaped tbs.)2 packet of vanilla sugarapprox. 250 ml milkPut the peeled banana pieces, ice-cream and vanilla sugar into the blender.
	2		Chocolate-milk80 g-100 g chocolateapprox. 400 ml hot milkChop up the chocolate in the blender, add the hot milk and mix briefly.
	1 and 2		Mayonnaise1 egg1 tsp. mustard150-200 ml oil1 tbs. lemon juice or vinegar1 pinch of salt1 pinch of sugarIngredients should be at the same temperature.Mix all ingredients (except oil) for several seconds at setting 1.Switch blender to Setting 2, pour the oil slowly through the funnel and mix until the mayonnaise emulsifies.Eat the mayonnaise immediately, do not store.

for kutting, hakking, elting.

Recept/ingredienser/bearbetning

b V at k a i n t e r ä

9a Teränpidike

AE United Arab Emirates,

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

FR France

BSH Electroménager S.A.S.

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]

Fax: [phone]

www.bosch-home.co.uk

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

1. Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhāratārāt

BSH Customer Service Front Office

Shop No.4,Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road, Andheri East

Mumbai 400093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, لبنان

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

Bin Hamran Commercial Centr.

6th Floor 603B

Jeddah 21481

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/sa

SE Sverige, Sweden

www.bosch-home.com/tr

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

[e-mail]

Diagram illustrating the step-by-step installation of a mechanical device with labeled parts and directional arrows.

10

11a b c
