USER MANUAL VeggieLove MUZS68VL BOSCH

Blue electric plug inserted into a wall socket, with an arrow indicating the insertion point (no text or symbols present)

4

Diagram showing a mechanical device with a labeled circular symbol and an arrow pointing to it, likely indicating a process or operation.

Diagram of a blender with labeled parts and directional arrows indicating action

5

CLICK

CLICK

Illustration of a kitchen mixer with a blue bucket and directional arrow (no text or symbols)

6

CLICK

7

CLICK

8

a CLICK

9

Illustration of a kitchen mixer blending liquid into a bowl (no text or symbols)

10

① ② CLICK

The image is too blurry to recognize any text content.

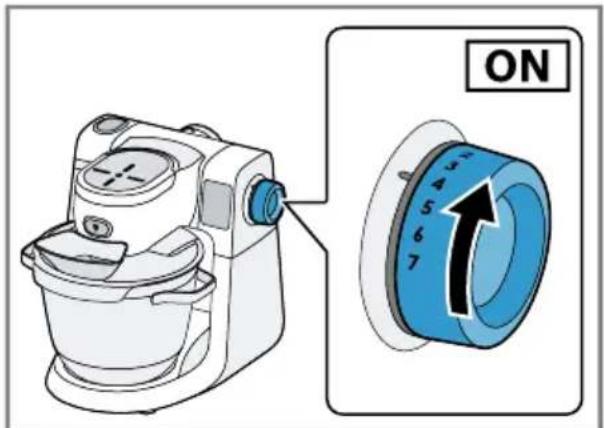

ON 3 4 5 6 7

12

Diagram showing a hand mixer device and its corresponding rotary dial with numbered segments

The image is too blurry to recognize any text content.

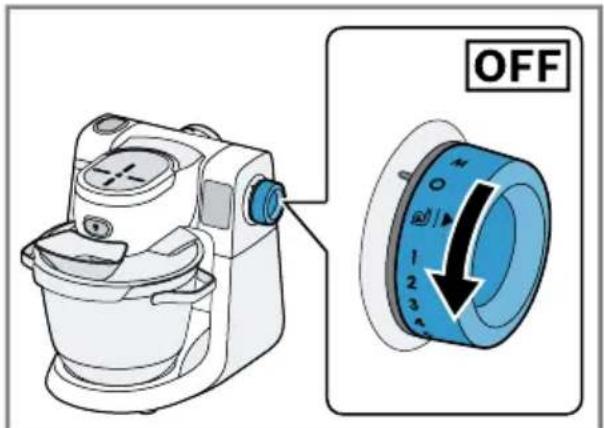

OFF 1 2 3 4

14

ON

The image is too blurry to recognize any text content.

OFF CLICK

16

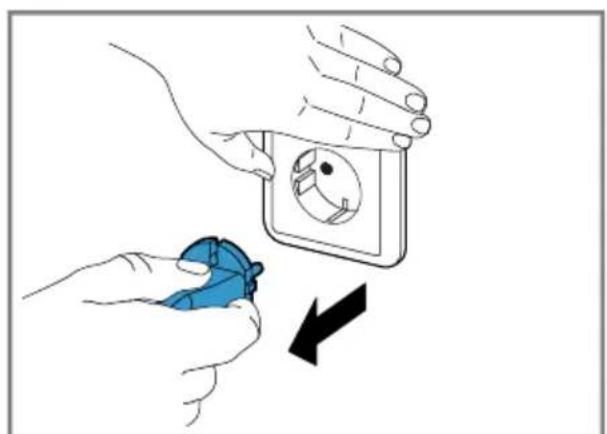

Illustration of hands installing a wall socket into a socket with a blue clip, showing a black arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Diagram showing a hand operating a kitchen mixer with labeled steps 1 and 2

CLICK

Diagram illustrating a kitchen mixer with labeled steps and a blue liquid droplet on the surface.

18

Illustration of a kitchen mixer with blue cover and black arrow indicating action (no text or symbols)

Illustration of a kitchen mixer with a blue bucket and directional arrow (no text or symbols)

Illustration of a kitchen mixer with a blue bucket and upward arrow (no text or symbols)

20

Illustration of a kitchen mixer with a blue lid and black arrow indicating action (no text or symbols)

Illustration of a kitchen mixer with a blue lid and upward arrow indicating motion (no text or symbols)

Illustration of a kitchen mixer with a blue lid and arrow indicating the component (no text or symbols present)

CLICK

22

Diagram showing a device with a blue circular component and directional arrows, possibly indicating a process or operation.

Diagram of a camera with an upward arrow and a blue circular component, no text or symbols present

Diagram of a mechanical device with a blue circular component and a downward arrow pointing to a central component (no text or symbols)

CLICK

24

	√	×	×	×	×
	√	√	√	√	√
	√	√	√	√	√
	√	√	√	√	√

26

				1.↓2.
	4-8°C		200-1500 ml◎ 300-1500 ml		7	1-6 min	√
			2-12 x ◎		7	4-6 min	√
			∑ 550-3200 g	↓	▶	30 s	√
					4	3-7 min
			∑ 350-2200 g	↓	▶	30 s	√
					3	1-3 min
			250-750 g	↓		30 s
					5	5-8 min
			350-1500 g	↓		30 s
					6	6-10 min
			350-1000 g	↓		30 s
					4	4-5 min

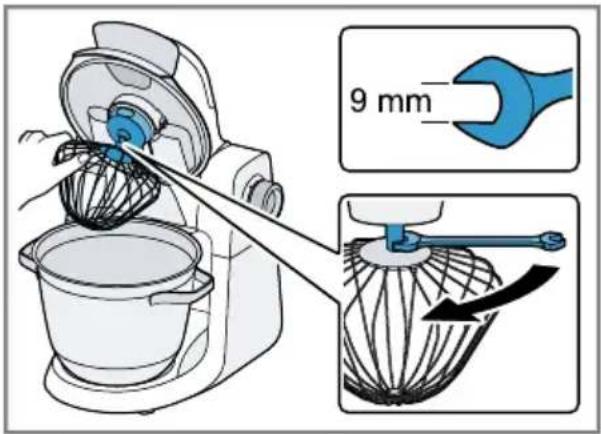

9 mm

28

Diagram illustrating a mechanical or fluid system with directional arrows and two labeled diagrams showing internal flow paths.

The image is too blurry to recognize any text content.

QR code image containing encoded data, no visible human-readable text

Inhaltsverzeichnis

1 Sicherheit 10

Further information and explanations are available online:

QR code image containing encoded data, no visible human-readable text

Table of contents

1 Safety.... 31

1.1 General information.... 31
1.2 Intended use.... 31
1.3 Restriction on user group...... 32
1.4 Safety instructions 32

2 Avoiding material damage...... 35
3 Environmental protection and saving energy.... 35
3.1 Disposing of packaging ..... 35
4 Unpacking and checking...... 35
4.1 Unpacking the appliance and parts 35
4.2 Contents of package...... 35
4.3 Setting up appliance 35

5 Familiarising yourself with your appliance.... 36

5.1 Appliance 36
5.2 Symbols.... 36
5.3 Rotary switch.... 36
5.4 Illuminated ring.... 36
5.5 Touch display 37
5.6 Swivel arm and drives...... 37
5.7 Tools.... 38
5.8 Safety systems 38

6 Before using for the first time .. 39

6.1 Cleaning the appliance and parts before using for the first time.... 39
6.2 Performing initial start-up ..... 39
7 Basic operation 39
7.1 Preparing the appliance...... 39
7.2 Processing ingredients with tools.... 39

7.3 Using instantaneous switching.... 40
7.4 Finishing processing 40
7.5 Using accessory drives...... 40

8 Basic settings.... 40

8.1 Changing the basic settings ... 41
8.2 Overview of basic settings ..... 41

9 Timer.... 41

9.1 Setting the processing time .... 41
10 Scales 41
10.1 Weighing ingredients...... 42
11 Automatic programmes...... 42

11.1 Using automatic pro- grammes 43

12 Cleaning and servicing...... 44

12.1 Cleaning products...... 44
12.2 Overview of cleaning...... 44

13 Special accessories...... 44

14 Application examples ...... 44
14.1 Sample recipe 44

15 Troubleshooting...... 46

15.1 Fine adjustment of beating whisk.... 49
16 Disposal...... 49

16.1 Disposing of old appliance ... 49

17 Customer Service.... 49

17.1 Product number (E-Nr.) and production number (FD)...... 50

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
  ■ Please note the additional instructions when using supplied or optionally available accessories.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ with genuine parts and accessories.
■ for mixing, kneading and beating food.
■ for additional applications described in the instructions for accessories that are optional or come with the appliance.
■ for normal processing quantities and for normal processing times for domestic use.
■ under supervision.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Disconnect the appliance from the power supply when:

■ are not using the appliance.
■ the appliance is unattended.
■ assembling the appliance.
■ taking the appliance apart.
■ cleaning the appliance.
■ approaching rotating parts.
■ change tools.
■ confronted with a fault.

1.3 Restriction on user group

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children.

The appliance must not be used by children. Keep children away from the appliance and power cable.

1.4 Safety instructions

Take note of the safety instructions.

⚠ WARNING – Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Call customer services. → Page 49

Incorrect installation is dangerous.

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

Incorrect repairs are dangerous.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

- If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
- Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.

WARNING – Risk of fire!

Intense heat may cause the appliance and other parts to catch fire.

▶ Never place the appliance on or near hot surfaces.

WARNING – Risk of injury!

Rotating drives, tools or accessory parts may cause injury.

• Keep hands, hair, clothing and utensils away from rotating parts.
  ▶ Only attach and remove tools and accessories once the drive has stopped and you have unplugged the appliance.
  Before changing tools or cleaning the appliance, switch off and disconnect it from the mains.
• Only use the tools when the bowl is inserted, the lid is fitted and the drive covers are in place.
  ▶ Never open the swivel arm during processing.
  Operating the appliance with damaged parts may result in injury.
• Parts which show cracks or other damage or do not fit correctly must be replaced with genuine spare parts.

WARNING – Risk of crushing!

Your hands and fingers could get caught.

- Do not reach into the bowl when lowering the swivel arm.

en Safety

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of harm to health!

Soiling on surfaces may be harmful to health.

▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.

2 Avoiding material damage

ATTENTION!

Improper use may cause material damage.

▶ Never use different drives at the same time.
▶ Never operate the appliance longer than necessary.
- Do not operate the appliance at no-load.
▶ Never use genuine parts and accessories for other appliances.
- Observe the maximum processing quantities.
- Do not use the bowl to store objects which do not belong to it. Vibrations may impair functioning of the appliance.
- Do not place the appliance on moving or vibrating surfaces.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

4 Unpacking and checking

Find out here what you need to note when unpacking the appliance.

4.1 Unpacking the appliance and parts

1. Take the appliance out of the packaging.
2. Take all other parts and the accompanying documents out of the packaging and place them to hand.
3. Remove any packaging material.
4. Remove any stickers or film.

4.2 Contents of package

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: The appliance comes with additional accessories depending on its features. See the instructions for the accessories to discover the further contents of the package.

→ Fig. 1

A	Main unit with mixing bowl
B	Lid with integrated filling shaft
C	Flexible stirrer
D	Whisk
E	Kneading hook
F	Accompanying documents

4.3 Setting up appliance

1. Place the appliance on a stable, level, clean and flat work surface.
2. Pull the power cable out to the required length.
3. To shorten the cable, push it into the cable storage compartment.

5 Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.

→ Fig. 2

1	Mixing bowl
2	Lid with integrated filling shaft
3	Ejector button for tools
4	Weighing area
5	Release button for swivel arm
6	Swivel arm
7	Rotary switch
8	Touch display
9	Protective cover for drive 2
10	Drive 2
11	Protective cover for drive 3
12	Drive 3
13	Main drive
14	Cord storage
15	Grips for transporting
16	Drain hole
17	Recesses for bowl

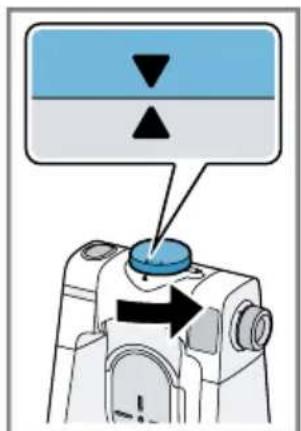

5.2 Symbols

You can find an overview of the symbols used on your appliance here.

Symbol Description
▼	Position marking on main drive

Symbol	Description
▲	Position marking on drive 3

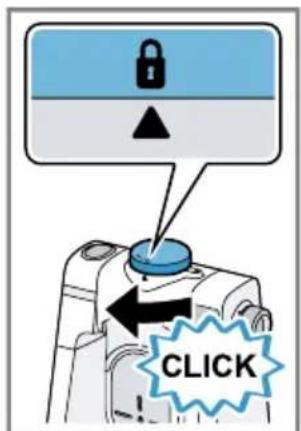

▼—	Fit the protective drive cover for drive 3 ▼and turn to secure 🔒

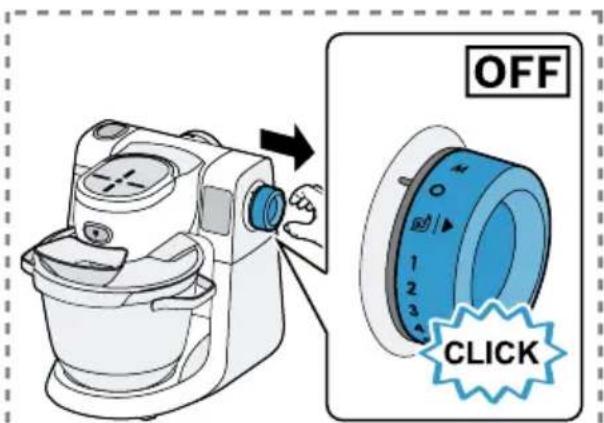

5.3 Rotary switch

The rotary switch is used to start and stop processing and select the speed.

Symbol Function

○ Stop processing.

■ Fold in ingredients at the lowest speed.■ Start automatic programme.

1 Process ingredients at low speed.

7 Process ingredients at maximum speed.

M Process ingredients briefly at maximum speed.→ "Using instantaneous switching", Page 40

5.4 Illuminated ring

The illuminated ring on the rotary switch informs you about the operating status of your appliance.

Display Status
The illuminated ring lights up and processing is underway.	The appliance is functioning perfectly.
The illuminated ring flashes and processing cannot start or continue.	■ A safety system has been activated.

Display Status

■ There is a fault with the appliance.

Tip: You can find further information here:

→ "Safety systems", Page 38
→ "Troubleshooting", Page 46

5.5 Touch display

The touch display functions both as a display and a control element. The touch display shows the options you can choose from and the settings configured for the current function.

Note: If the touch display is wet or soiled, this can restrict functioning.

Touch buttons

Depending on the mode, different touch buttons are shown in the bottom third of the display.

Touch button	Function
OK	Confirm selection
<	■ Back or cancel■ Scroll left
>	Scroll right
^	■ Increase values■ Scroll up
√	■ Reduce values■ Scroll down
💡	Set scales to 0 (tare)

Main menu

You can use the main menu to access the settings, functions and programmes.

To show the main menu and to leave the current display, press <until one of the menu items is displayed.

Menu item Application
Setting	→ "Basic settings", Page 40
Timer	→ "Timer", Page 41
Scale	→ "Scales", Page 41
Automatic	→ "Automatic programmes", Page 42
Blender	Display depending on activated accessories → "Basic settings", Page 40Example: additional programmes for the blender attachment or ice maker
Ice-cream maker
Accessory tips	Information on optimal use of the appliance, tools and accessories

5.6 Swivel arm and drives

Here you can find an overview of uses depending on the position of the swivel arm and drive.

If the release button is pressed, the swivel arm can be moved to the required position.

→ Fig. 3

A

Preparation:

■ Insert or remove bowl.
■ Attach or remove lid.
- Insert tool in main drive or remove.
■ Add greater quantities of ingredients to the bowl.

B	Main drive:Process ingredients with tools, e.g. with beating whisk. ⚙ Weighing area:Use scales.
C	Drive 2:Use accessories, e.g. Continuous feed shredder.
D	Drive 3:Use accessories, e.g. Blender attachment.
E	Main drive:Use accessories, e.g. Meat mincer.

Note: The swivel arm features the EasyArm Lift function. This function supports upwards movement of the swivel arm.

5.7 Tools

You can find out everything you need to know about the different tools here.

Tools are equipped with a protective cap to protect the drive from soiling. The ejector button on the swivel arm makes removing the tools easier.

Tool Use

	Kneading hook■ Knead dough, e.g. yeast dough, bread dough, pizza dough, pasta dough, pastry dough.■ Fold in food that is not to be cut, e.g. raisins or chocolate chips.
	Flexible stirrer■ Mix dough, e.g. short-crust pastry, cake mix, fruit flan.■ Fold ingredients into the dough, e.g. raisins, chocolate chips.

Tool Use

Whisk

■ Beat whipped egg whites and cream (at least 30% fat).
■ Mix light dough, e.g. sponge mixture.

5.8 Safety systems

You can find an overview of your appliance's safety systems here.

Start lock-out

Start lock-out prevents your appli- ance from being switched on acci- dentally.

The appliance can only be switched on and operated if one of the following conditions is satisfied.

■ The swivel arm is correctly engaged in a horizontal position.
■ The swivel arm is correctly engaged in a vertical position and the protective drive cover or any assembled accessory is secured correctly.

Restart lock-out

Restart lock-out prevents your appli- ance from automatically restarting processing after a power failure.

The appliance is switched on again after a power failure. Processing cannot start again until the rotary switch has been set to O.

Overload protection

The overload protection system prevents the motor and other components from being damaged through being overloaded.

6 Before using for the first time

Prepare the appliance for use.

6.1 Cleaning the appliance and parts before using for the first time

1. Clean all parts that come into contact with food before using for the first time.

→ "Cleaning and servicing", Page 44

1. Put the cleaned and dried parts out ready for use.

6.2 Performing initial start-up

When switching on the appliance for the first time or after resetting to the factory settings, the Welcome screen will appear.

√ The display shows the Bosch logo and then switches to language selection.
2. Press ∨ or ^to select the required language and confirm with OK.
3. Use or to select the required display units and confirm with OK
√ The appliance is ready to use.

7 Basic operation

7.1 Preparing the appliance

1. Insert mains plug.

→ Fig. 4

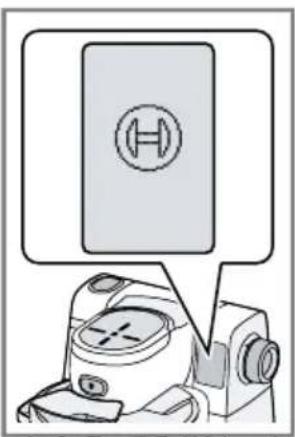

√ The display shows the Bosch logo.

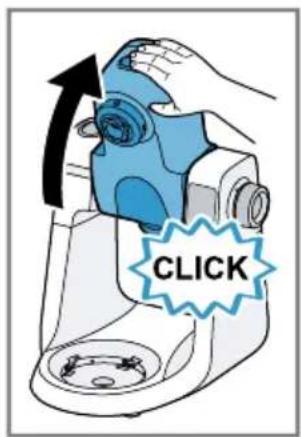

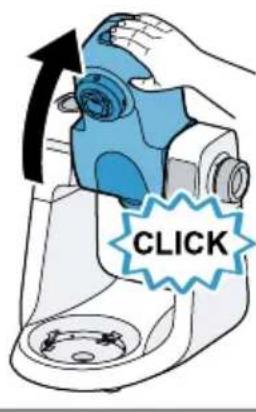

1. Press the release button and raise the swivel arm until it engages.

→ Fig. 5

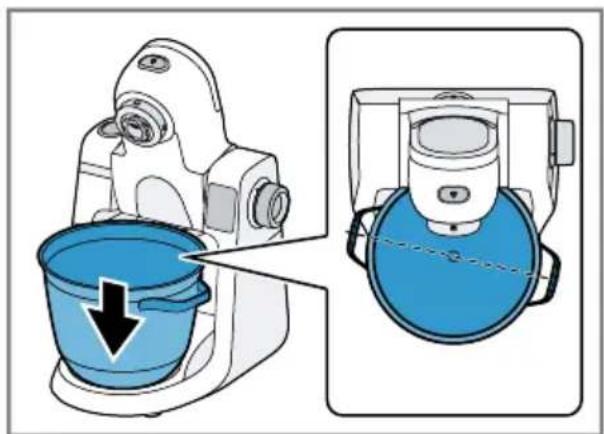

1. Place the bowl in the main unit.

→ Fig. 6

Use the recesses on the main unit.

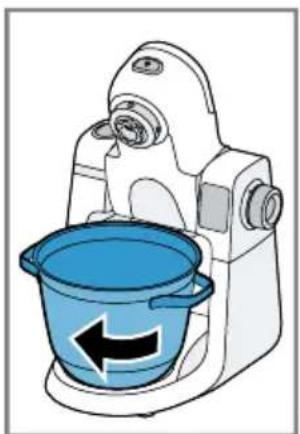

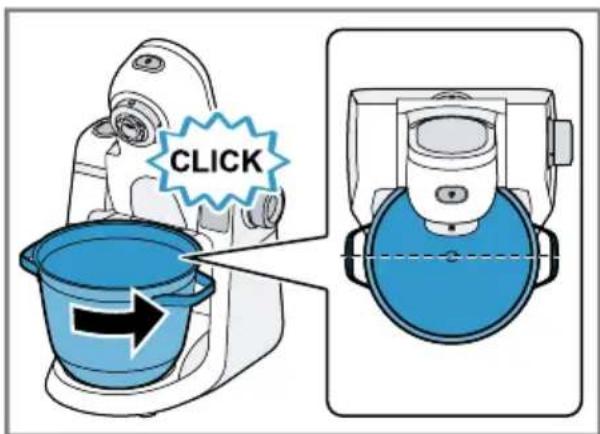

1. Turn the bowl anticlockwise until it engages.

→ Fig. 7

1. Fit the lid onto the main drive until it engages.

→ Fig. 8

The filling shaft must face towards the front.

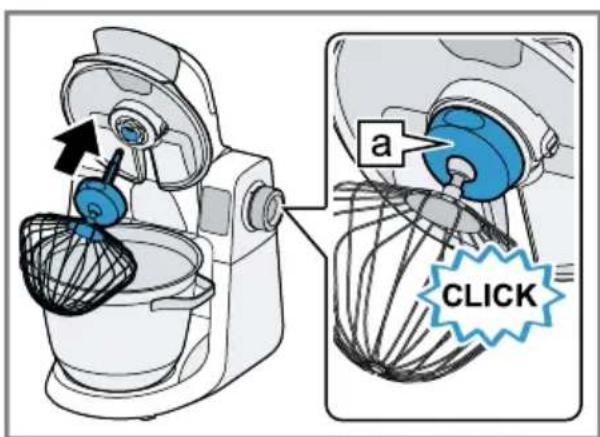

1. Press the tool into the main drive until it engages.

→ Fig. 9

The protective cap must cover the main drive completely.

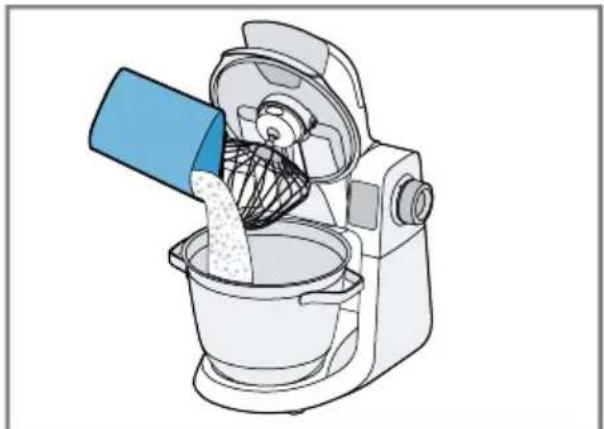

1. Add the ingredients to the bowl.

→ Fig. 10

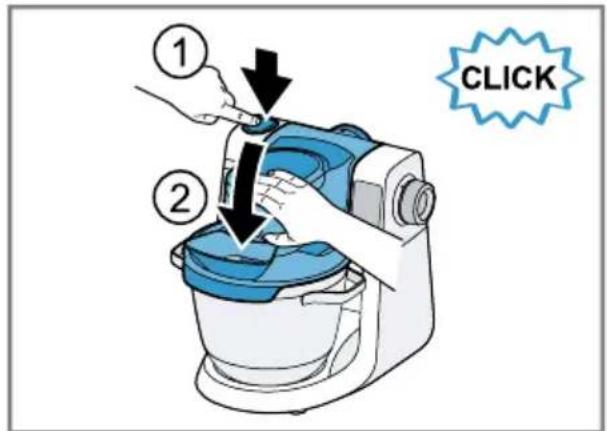

1. Press the release button and push the swivel arm down until it engages.

→ Fig. 11

7.2 Processing ingredients with tools

1. Set the rotary switch to the required speed.

→ Fig. 12

√ The display shows the speed set and the processing time.

√ If the speed is changed, the processing time will begin again at 0 seconds.

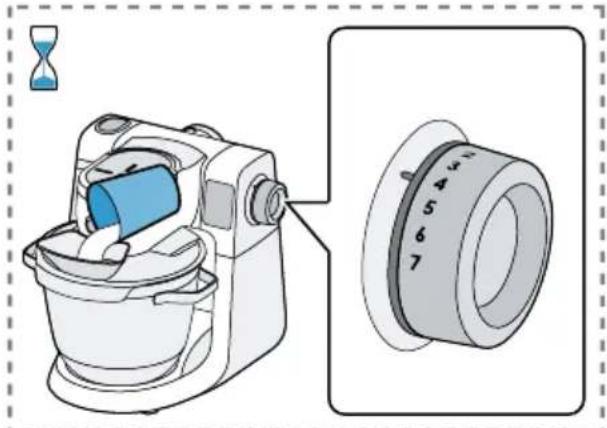

1. If wished, further ingredients can be added during processing using the filling shaft.

→ Fig. 13

To add greater quantities, switch off the appliance, open the swivel arm and transfer the ingredients to the bowl.

en Basic settings

1. Process the ingredients until you achieve the required result.

2. Set the rotary switch to O

→ Fig. 14

Wait until the appliance stops.

Tip: You can change the speed at any time during processing or interrupt processing.

7.3 Using instantaneous switching

1. Set the rotary switch to M and hold.

→ Fig. 15

√ The ingredients are processed at maximum speed.

1. Release the rotary switch.

→ Fig. 16

√ The rotary switch springs to.

√ Processing stops.

Tip: Instantaneous switching is especially suitable when using the glass blender attachment.

7.4 Finishing processing

1. Unplug the mains plug.

→ Fig. 17

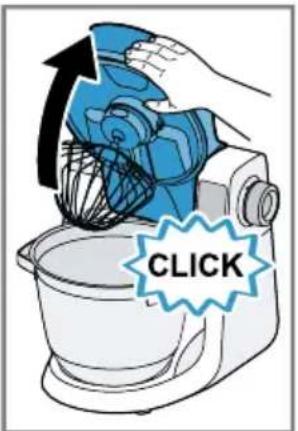

1. Press the release button and raise the swivel arm until it engages.

→ Fig. 18

1. If the swivel arm does not open easily or there is a lot of dough on the tool, proceed as follows:

- Open up the swivel arm a bit and use a spatula or wooden spoon to push the dough off the tool.

- Open the swivel arm right up, remove the dough still remaining on the tool and only then take the tool off.

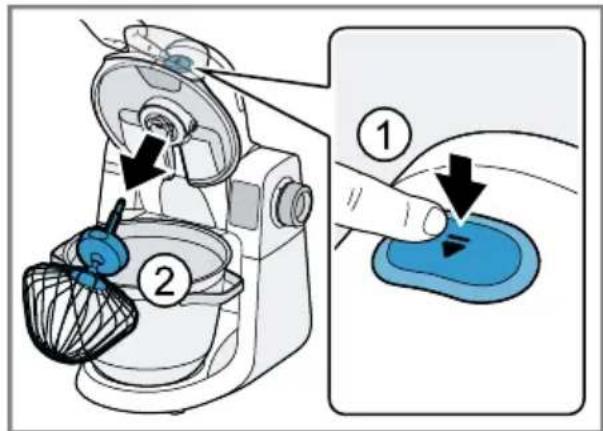

1. Press the ejector button to release the tool and remove.

→ Fig. 19

Only ever press the ejector button with the swivel arm open or the tool may get jammed in the bowl.

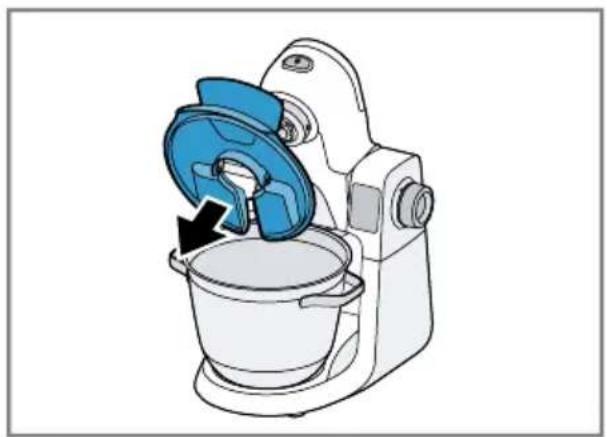

1. Take the cover off the main drive.

→ Fig. 20

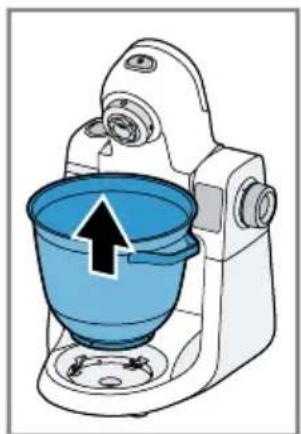

1. Turn the bowl clockwise and remove.

→ Fig. 21

Tip: Clean all parts immediately after use so that residues do not dry on.

7.5 Using accessory drives

Notes

■ Remove the cover to use accessories on drive 2 or 3.
■ Always close unused drives with the covers.
■ Please follow the instructions for the accessory.

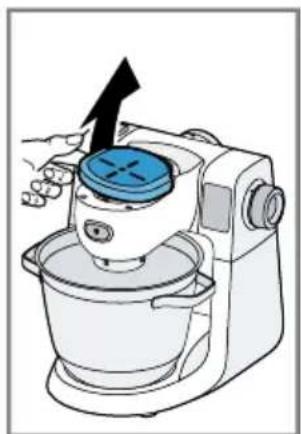

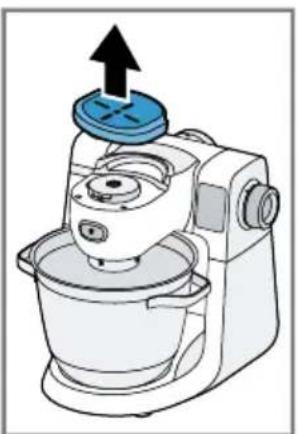

1. Lift the cover of drive 2 by the side opening and remove.

→ Fig. 22

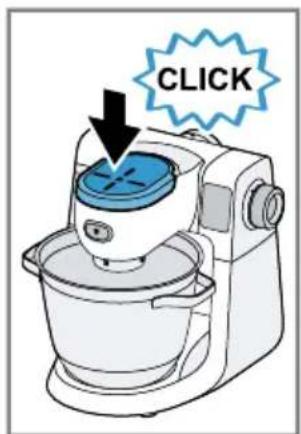

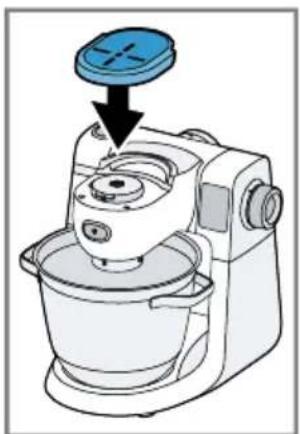

1. Fit the cover of drive 2 and press down firmly.

→ Fig. 23

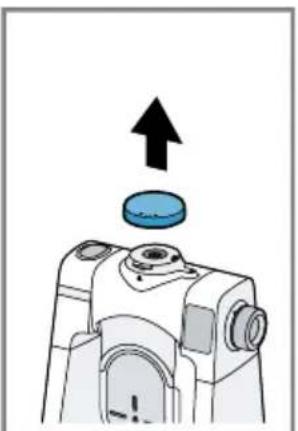

1. Turn the cover of drive 3 anticlockwise and remove.

→ Fig. 24

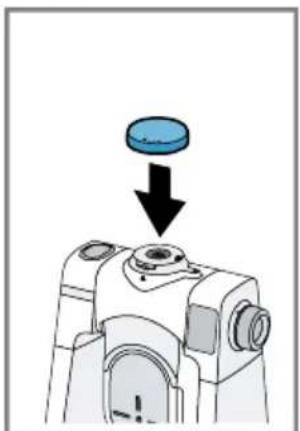

1. Fit the cover of drive 3 and secure by turning clockwise.

→ Fig. 25

8 Basic settings

You can configure the basic settings for your appliance to meet your needs.

8.1 Changing the basic set- tings

1. In the main menu use < or > to select "Setting" and confirm with OK.
2. Use or to select the required setting and confirm with OK
3. Use or to select further options or change settings and confirm with OK
4. To leave an option or setting and go back a level, press

8.2 Overview of basic settings

You can find an overview of the basic settings here.

Setting Description

Language Select the display language.

Accessory Activate or deactivate available accessory. The activated accessory appears in the main menu and additional automatic programmes are available.

Sound Set the volume of the audible signals and button tones.

Quick access Activate or deactivate automatic taring of the scales.

Unit Set the units for the scales.

Brightness Select the brightness of the display.

Idle mode Set the time after which the display switches off.

Setting Description
Standby time	Set the time after which the appliance switches to power saving mode.
Restore the factory set- tings	Reset appliance to the factory settings.
Appliance in- formation	Information about the appliance software.

9 Timer

You can use the timer to set the required processing time.

9.1 Setting the processing time

1. In the main menu use < or > to select "Timer" and confirm with OK
2. Use or to set the minutes and confirm with OK
3. Use or to set the seconds and confirm with OK
   √ The display shows "Select setting" and the processing time selected.
4. Set the rotary switch to the required speed.
   √ The display shows the speed selected and the remaining processing time.
   √ Once this time has elapsed, the appliance stops processing and the display shows "Set level" ○

10 Scales

Your appliance is equipped with built-in scales.

The main unit has 4 weight sensors in its feet.

The following factors can falsify the measuring result:

■ Feet not standing on the work surface properly
■ Work surface vibrating
■ Objects underneath the main unit
■ Ingredient quantities less than 5 g or 0.01 lb
■ Main unit slipped
■ Main unit touched

Tip: When "Quick access" is activated in the basic settings, the scales will start automatically. Whenever the appliance is plugged in, is woken from power saving mode or if processing ends, the scales will calibrate themselves and the display shows "0" and the preset unit.

10.1 Weighing ingredients

1. In the main menu use < or > to select "Scale" and confirm with OK

√ The scales will be calibrated.
√ The display shows "0" and the preset unit.
2. If wished, use ∨ to select another unit and confirm with QK
3. Add the ingredients to the bowl you inserted or a fitted accessory.
√ The display shows the filling quantity in the unit selected.
4. To set the scales back to "0" and weigh further ingredients separately, press ⚙ and wait for calibration.

Tip: When the swivel arm is engaged in a horizontal position, containers or packagings can be placed on the weighing area 📋 and weighed.

11 Automatic programmes

The automatic programmes help you to process food with the tools and to use accessories.

Sensors monitor processing of the ingredients and end it automatically once the preprogrammed consistency is reached.

For optimal results please note the following:

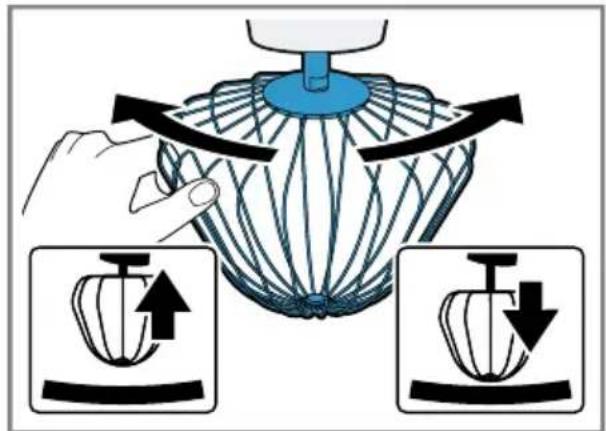

■ The beating whisk must touch the bowl lightly for the optimal mixing of ingredients and to ensure correct functioning of the automatic programmes.
→ "Correcting tool adjustment", Page 49
■ Before using the automatic programmes for the first time, operate your new appliance at no-load for at least 2 minutes or process food without an automatic programme.
■ Do not add any more food once an automatic programme has started.
■ Do not process ingredients that have already been processed once again with an automatic programme.
■ The age, temperature and constituents of the ingredients used will affect the time required and the result.
■ Only use fresh eggs. The automatic programme is not suitable for alternatives, e.g. aquafaba or protein powders.
■ It is only possible to make beaten egg white if the tool and bowl are clean and free of grease or residues from dishwasher detergent.
■ Only process cream that has been cooled to approx. 6 °C and has a fat content of 30-36%.

■ Cream that was previously frozen cannot be whipped.
■ For optimal results after selecting the programme "Whipped Cream" set the type of cream you are using. e.g. fresh cream, long-life cream, vegan cream or lactose-free cream.
■ Do not use bowls that are warm when whipping cream, e.g. directly out of the dishwasher.
■ Do not add sugar, flavourings or other additives for cream or beaten egg white until the automatic programme has ended.
■ Take note of the ingredients and quantities suggested.
■ The automatic programmes for dough will not function if it is too dry. Dough recipes need a sufficient quantity of liquid or moist ingredients.
■ The programme "Yeast dough and sourdough" interrupts kneading for approx. 15 minutes so the dough can prove. Another kneading process then starts automatically. Do not take the dough out until the end of the programme.
■ For the programmes "Cake mixture" and "Shortcrust pastry" heat the butter or margarine to room temperature and use in cubes 2 cm in size. Cold or frozen butter or margarine will not deliver the desired results. Leave shortcrust pastry to rest in the refrigerator before baking.
■ The programme "Cake mixture" is not suitable for very liquid consistencies, e.g. pancake batter.

Notes

■ If the processing result of the automatic programme does not meet your wishes, continue processing the ingredients manually until you get the desired result.
- Cream and egg white at setting 7
- Sponge cake mix at setting 4
- Other doughs/mixes at setting 3, e.g. yeast dough
■ If an accessory has been activated in the basic settings, it appears in the main menu and further automatic programmes are available.

11.1 Using automatic programmes

1. In the main menu use < or > to select "Automatic" or an activated accessory and confirm with OK
2. Use or to select the required automatic programme and confirm with OK

- Depending on the programme, select the ingredient quantity displayed or "Scale".

1. Add the ingredients and follow the instructions on the display.

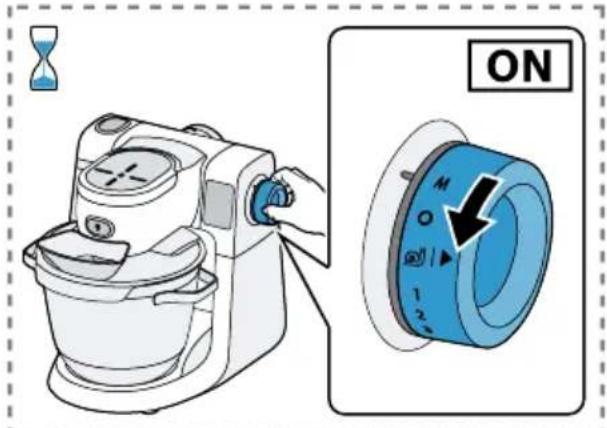

2. If the display shows "Set level" ▶, set the rotary switch to 📄

√ The display shows an animation and the automatic programme is running.
√ When the preprogrammed result has been achieved, the appliance stops processing and the display shows "Set level" 🔒

12 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

12.1 Cleaning products

Find out here which cleaning products are suitable for your appli-ance.

ATTENTION!

Using unsuitable cleaning agents or incorrect cleaning may damage the appliance.

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.
• Only clean the control panel and the display using a damp microfibre cloth.

12.2 Overview of cleaning

You can find an overview of how to best clean the appliance and the other parts here.

→ Fig. 26

Tip: When processing food such as carrots, plastic parts may become discoloured. Remove discolouration with a soft cloth and a few drops of cooking oil.

14.1 Sample recipe

You can find a sample recipe that has been specially developed for your appliance here.

Recipe Ingredients Processing

Heavy fruit cake

→Shortcrust pastry

■ 3 eggs

■ 135 g sugar

13 Special accessories

You can buy accessories from the after-sales service, from specialist retailers or online. Only use genuine accessories as these have been specifically designed for your appliance. Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance. → Page 50

You can find out which accessories are available for your appliance in our catalogue, in the online shop or from our after-sales service.

www.bosch-home.com

14 Application examples

Observe the comments and figures in the table.

→ Fig. 27

Notes

■ Add the liquid to the bowl first to ensure optimum mixing of the ingredients of yeasted doughs or sourdough with a high water content.
■ If you select the appropriate automatic programme ▶for the recipe, the appliance will set the right speed and monitor the processing time.
→ "Automatic programmes",
Page 42

■ Insert stirring whisk.

Recipe Ingredients Processing

■ 135 g margarine■ 255 g flour■ 10 g baking powder■ 150 g currants■ 150 g mixed dried fruitNote:Process max. 2 times the quantity at the same time.

■ Add all ingredients except the dried fruit.■ Process for 30 seconds at setting ▶■ Then process for 3-5 minutes at setting 4.■ Select setting ▶■ Add the dried fruit within the next 30-60 seconds.If you are using the automatic programme, don't add the dried fruit until the programme has finished and fold in at setting ▶.

15 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

The appliance is not working.	The mains plug of the power cord is not plugged in. ► Connect the appliance to the power supply.
	The circuit breaker in the fuse box has tripped. ► Check the circuit breaker in the fuse box.
	There has been a power cut. ► Check whether the lighting in your room or other appliances are working.
Appliance does not start processing.	Rotary switch is set incorrectly. ► Set the rotary switch to 0 before processing.
The swivel arm cannot be opened or closed because the tool is jammed in the bowl.	Drive is not in the parked position.1. Set the rotary switch to 02. When the swivel arm is open, remove the tool and close the swivel arm.3. Set the rotary switch briefly to 1 and then back to 0√ The drive remains on for a short time until the parked position is reached.
The beating whisk does not touch the bowl or the ingredients are not mixed properly.	The distance to the bowl is not set correctly. ► Correct the fine adjustment of the beating whisk. → "Fine adjustment of beating whisk", Page 49
Fault Cause and troubleshooting
An error code ap-pears on the display, e.g. "E102".	The electronics have detected a fault.1. Set the rotary switch to □ and pull out the mains plug.2. Re-insert the mains plug in the socket.3. If the fault persists, call Customer Service.→ "Customer Service", Page 49
"INSERT BOWL" ap-pears on the display.	Bowl is not inserted or not engaged correctly.► Insert the bowl and turn it anticlockwise as far as possible.
"CHECK SWIVEL ARM POSITION" appears on the display.	Swivel arm is not engaged properly or has become detached.1. Set the rotary switch to ○2. Move the swivel arm until it engages correctly.
"MOTOR STOPPED AUTOMATICALLY" ap-pears on the display.	Different causes are possible.1. Set the rotary switch to ○2. If the fault persists, call Customer Service.→ "Customer Service", Page 49
"PARK POSITION NOT REACHED: PLEASE SWITCH ON MOTOR SETTING 1 AND SWITCH OFF AGAIN." appears on the display.	Drive is not in the parked position.1. Set the rotary switch to ○2. When the swivel arm is open, remove the tool and close the swivel arm.3. Set the rotary switch briefly to 1 and then back to ○√ The drive remains on for a short time until the parked position is reached.
"CHECK COVER" ap-pears on the display.	No cover or accessory fitted to drive 2 or 3.1. Close drive 2 or 3 with its cover.2. Fit an accessory to drive 2 or 3 and check it is po-sitioned correctly.
"CHECK DISPLAY" ap-pears on the display.	Touch display is soiled or has been accidentally activ-ated.1. Clean the display with a damp microfibre cloth.2. Make sure that no objects touch the display acci-dentally.
"ALLOW APPLIANCE TO COOL DOWN" ap-pears on the display.	Motor is overheated.1. Set the rotary switch to ○2. If you are processing a large quantity of ingredi-ents, reduce the quantity to prevent overheating.3. If a tool or accessory is blocked, remove the block-age.4. Allow the appliance to cool down to deactivate the overload protection device.
"SCALE RESET" appears on the display.	Calibration of scales has failed.1. Set up the appliance on a flat, clean work surface free of vibrations.2. Check there are no objects under the appliance.3. Press to start calibration again, taking care not to touch the appliance during calibration.
"MAX. WEIGHT REACHED" appears on the display.	Quantity of ingredients above measuring range of scales.1. When using the scales, observe the maximum weight of 5000 g or 11.00 lb.2. Reduce the total weight to be weighed.
"MIN. WEIGHT REACHED" appears on the display.	Quantity of ingredients outside measuring range of scales.1. When using the scales, observe the minimum weight of 5 g or 0.01 lb.2. Increase the total weight to be weighed.
	Appliance is not set up correctly.1. Set up the appliance on a flat, clean work surface free of vibrations.2. Check there are no objects under the appliance.

15.1 Fine adjustment of beating whisk

Use the fine adjustment system to correct the distance between the bowl and the beating whisk.

Note: The beating whisk has been factory-set so that ingredients are mixed together perfectly.

Correcting tool adjustment

ATTENTION!

The appliance and tools can be damaged if a wrong tool setting is used.

▶ Never operate a tool that has not been set properly.

Requirements

■ The mains plug is not inserted.
■ The swivel arm is open.
■ The beating whisk is inserted.
■ The bowl has been inserted.

1. Hold the beating whisk at the bottom with one hand and release the lock nut clockwise using a spanner wrench.

$$ \rightarrow \text { Fig. } \boxed {2 8} $$

1. To change the setting, turn the tool in the desired direction.

$$ \rightarrow \text { Fig. } \boxed {2 9} $$

Observe the table:

Optimum setting

The tool is touching the bowl lightly.

Turn clockwise Lift tool

Turn anticlock- Lower tool wise

1. Press the release button and push the swivel arm down until it engages.
2. Check the setting.

3. Press the release button and raise the swivel arm until it engages.

4. Hold the beating whisk at the bottom with one hand and tighten the lock nut anticlockwise using a spanner wrench.

16 Disposal

16.1 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

17 Customer Service

Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 7 years from the date on which

your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

17.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

QR code image containing encoded data, no visible human-readable text

Table des matières

1 Sécurité.... 53

Sécurité anti-surcharge

QR code image containing encoded data, no visible human-readable text

Indice

1 Sicurezza 76

QR code image containing encoded data, no visible human-readable text

Inhoudsopgave

1 Veiligheid.... 99

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

⚠ WAARSCHUWING – Kans op verstikking!

7 De Bediening in essen- tie

QR code image containing encoded data, no visible human-readable text

Indholdsfortegnelse

ADVARSEL – Brandfare!

⚠️ ADVARSEL – Fare for klemning!

QR code image containing encoded data, no visible human-readable text

Innholdsfortegnelse

1 Sikkerhet.... 143

1.1 Generelle merknader.... 143

1.2 Korrekt bruk 143

9.1 Stille inn bearbeidingstid

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Sisällysluettelo
