USER MANUAL MUM4428 BOSCH

Illustration of a vacuum cleaner and a blender with cleaning tools (no text or symbols)

MUM44..

MUM46..

MUM48..

BOSCH

Illustration of an open book with a curved arrow indicating rotation (no text or symbols)

1 Päckchen Backpulver

^1/_8 I Milch

Congratulations on the purchase of your new BOSCH appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

For your safety	11
Overview	13
Operation	14
Cleaning and servicing	15
Troubleshooting	16
Application examples	16
Standard/optional accessories	17
Disposal	18
Warranty conditions	18

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Use the appliance for processing normal quantities of food for domestic use. Do not exceed permitted maximum quantities (see “Application examples”).

This appliance is suitable for mixing, kneading and beating food. It must not be used for processing other objects or substances. Other applications are possible if the accessories approved by the manufacturer are used.

Use the appliance with original accessories only. When using the accessories, follow the enclosed operating instructions.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

en

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock!

Do not insert mains plug until all preparations for working with the appliance are complete. Never immerse the base unit in liquid or hold under running water. Do not use a steam cleaner.

Do not adjust the swivel arm while the appliance is switched on.

Wait until the drive has come to a standstill.

Do not change tool/accessory until the drive is at a standstill – when the appliance is switched off, the drive continues running briefly.

Use only the rotary switch to switch the appliance on or off.

When the appliance is not in use, pull out the mains plug.

Before eliminating a fault, pull out the mains plug.

The appliance restarts following a power interruption.

Risk of injury from the rotating tools!

Keep hands clear of rotating parts. While the appliance is operating, keep fingers clear of the mixing bowl.

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly.

The appliance may only be operated when the unused drives have been safeguarded with the drive covers (4, 7).

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender!

Never assemble blender on the base unit. Do not remove/attach the blender until the drive is at a standstill!

Operate the assembled blender only and with the lid attached.

Do not touch blender blades with bare hands.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.5 litres of hot or frothing liquid.

Important!

Use only one tool or accessory at any one time.

The operating instructions describe several models, see also overview of models (Fig. Ⅱ). The appliance requires no maintenance.

Overview

Please fold out the illustrated pages.

Fig.

Base unit

1 Release button

2 Swivel arm

(see "Operating positions")

3 Rotary switch

0/off = Stop

© / P = Parking circuit

Hold rotary switch until the drive stops; tool is in the swivel position. If the drive does not move, the swivel position has already been reached.

Settings 1-4 = Operating speed

Setting 1 = Minimum speed - slow

Setting 4 = Maximum speed - fast

If the power is interrupted, the appliance remains switched on and restarts when the power is restored.

4 Drive cover

To remove the drive cover, rotate until the locking feature has been released.

5 Drive for

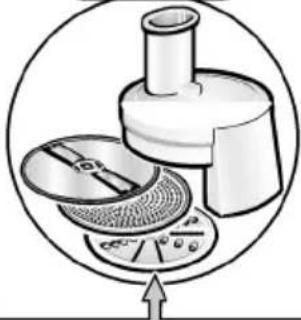

- continuous-feed shredder *

- citrus press *

- grain mill *

When not in use, attach the drive cover.

6 Drive for

- tools (stirrer, whisk, kneading hook)

- stirring tool of the ice-cream maker *

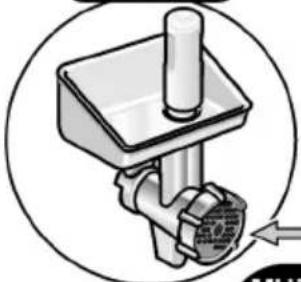

– folded down or up for mincer *

7 Blender drive cover

8 Drive for

- blender

- multi-blender

When not in use, attach the blender drive cover.

9 Cord store (Fig. B)

MUM 44..: Stow the cord

MUM 46../48.: Stow the cord in the cord store

Bowl with accessories

10 Mixing bowl

11 Lid

Tools

12 Stirrer

13 Whisk

14 Kneading hook with dough deflector

Blender

15 Base

A

16 Blade insert

17 Sealing ring

18 Blender jug

19 Lid

20 Funnel

* If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Operating positions

Attention!

Before operating the appliance, attach the tool/accessory to the correct drive and in the correct position and place in the operating position according to this table.

The swivel arm must be engaged in every operating position.

Setting the operating position Fig. ©

• Press the Release button and move the swivel arm.
• Move the swivel arm until it engages in the required position.

Posi-tion
1
2		[CZBT]
3	[0D6H]	[X008][X0TH]
4		[8ZZK]
5
6	[2470]	Insert/remove whisk, stirrer or kneading hook
7		[2K7T] Add large quantities of ingredients

Operation

Risk of injury!

Do not insert mains plug until all preparations for working with the appliance are complete.

Attention!

Do not operate the appliance without an accessory/tool in the operating position. Do not operate the appliance empty. Do not expose appliance or accessories to heat sources. Parts are not microwave-safe.

- Before operating the appliance and accessories for the first time, clean thoroughly; see “Cleaning and servicing”.

Preparation

• Place the base unit on a smooth, clean surface.
  ● Unwind/pull out the cord Fig. B).
• Insert the mains plug.

Stirrer, whisk and kneading hook Fig.

Stirrer (a)

for stirring dough, e.g. cake mixture

Whisk (b)

for whisking egg whites, cream and light dough, e.g. sponge mixture

for kneading heavy dough and mixing-in ingredients that ought not be cut (e.g. raisins and chocolate chips)

Risk of injury from the rotating tools!

While the appliance is operating, keep fingers clear of the mixing bowl.

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly.

The appliance may only be operated when the unused drives have been safeguarded with the drive covers.

- Set rotary switch to P and hold in place until the drive stops.

Note:

If the drive does not move, the swivel position has already been reached.

• Press the Release button and move the swivel arm to position 6.
• Insert the bowl. The base of the mixing bowl must be inserted into the recess of the base unit.
• Depending on the processing task, insert the stirrer, whisk or kneading hook until it locks into position. If using the kneading hook, rotate the dough deflector until the kneading hook can lock into position.
• Put the ingredients to be processed into the bowl.
• Press the Release button and move the swivel arm to position 1.
• Attach the cover.
• Set the rotary switch to the desired setting.

Adding more ingredients

• Switch off the appliance with the rotary switch.
• Set rotary switch toP and hold in place until the drive stops.
• Remove lid.
• Press the Release button and move the swivel arm to position 7.
• Add ingredients

or

- add more ingredients through the feed tube in the cover.

After using the appliance

• Switch off the appliance with the rotary switch.
• Set rotary switch to P and hold in place until the drive stops.
• Remove mains plug.
• Remove lid.
• Press the Release button and move the swivel arm to position 6.
  ● Take the tool out of the drive.
• Remove the bowl.
• Clean all parts, see “Cleaning and servicing”.

Blender

Fig.

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender! Do not remove/attach the blender until the drive is at a standstill!

Operate the assembled blender only and with the lid attached.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0.5 litres of hot or frothing liquid.

Warning!

Blender may be damaged.

Do not process deep-frozen ingredients (exceptice cubes). Do not operate when empty.

Warning!

Processing liquids in the glass blender: maximum setting 3. Add a max. 0.5 litres of hot or frothing liquid.

• Press the Release button and move the swivel arm to position 3.
• Remove the blender drive cover.
• Attach the blender jug (mark on the base of the blender jug on the mark on the base unit) and rotate as far as possible in an anti-clockwise direction (Fig. 1-4/5).
• Add ingredients.
  Maximum capacity of liquid for plastic blender = 1 litre, for glass blender = 0.75 litres, frothing or hot liquid maximum 0.5 litres Optimal processing capacity – solids = 50–100 g.
• Attach lid and press firmly.
  While working, always hold the lid firmly with one hand. However, do not place hand over the refill opening!
• Set the rotary switch to the desired setting.

Adding more ingredients Fig. 1-6

• Switch off the appliance with the rotary switch.
• Remove the cover and add ingredients
  or
• remove the funnel and gradually add solid ingredients through the feed tube
  or
• pour liquid through the funnel.

After using the appliFence

• Switch off the appliance with the rotary switch.
• Remove mains plug.
• Rotate the blender in a clockwise direction and remove.

Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

Attention!

Do NOT use abrasive cleaning agents. Surfaces may be damaged.

Cleaning the base unit

Risk of electric shock!

Never immerse the base unit in water or place under running water.

• Remove mains plug.
  ● Wipe the base unit with a damp cloth.
• If required, use a little detergent.
• Then dry the base unit.

Cleaning the bowl and accessories

All parts are dishwasher-safe.

Do not wedge plastic parts in the dishwasher as they could warp.

Cleaning the blender

Risk of injury from sharp blades!

Do not touch blender blades with bare hands. The blender can be disassembled for cleaning.

Warning!

Do NOT use abrasive cleaning agents.

Theblade insert is not dishwasher-safe.

Cleanthe blade insert under running water only.

Tip: After processing liquids, it is often sufficient to clean the blender without disassembling it. Pour a little water and washing-up liquid into the attached blender. Switch on the blender for several seconds (if the appliance features quick-action operation, select setting M).

Pour out the water and rinse out the blender with clear water.

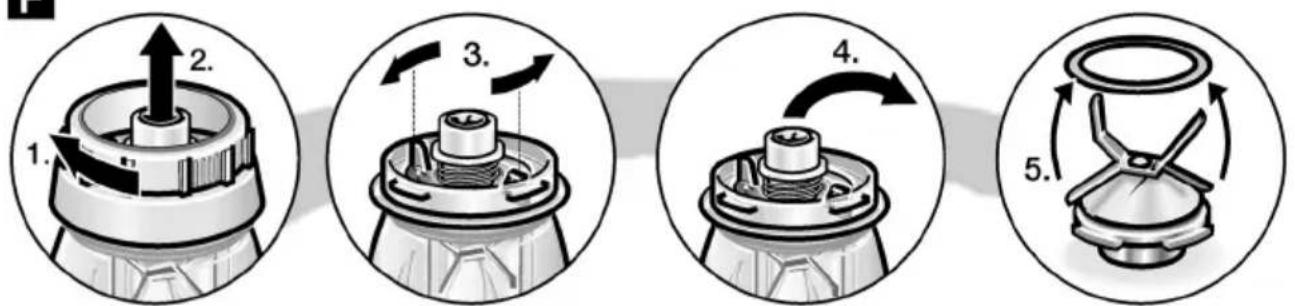

Taking the blender apart Fig. F

• Rotate the base of the blender jug in a clockwise direction and remove.
• Upon the flanks, rotate the blade insert in an anti-clockwise direction. The blade insert is released.
• Take blade insert out and remove sealing ring.

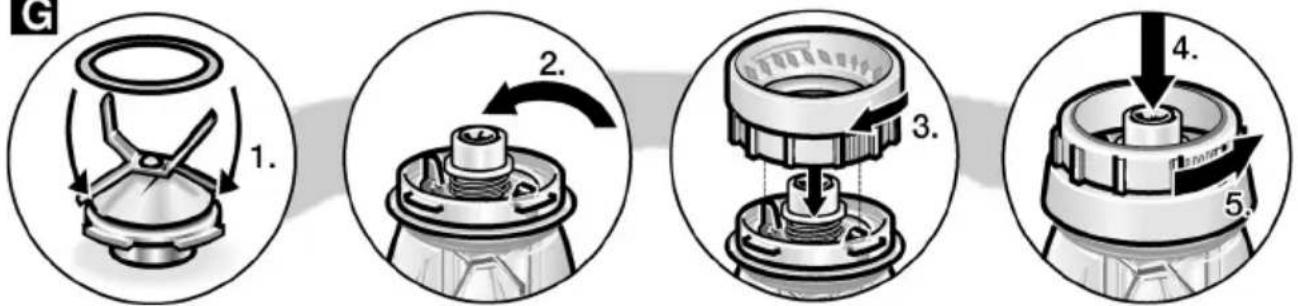

Putting the blender together Fig. ©

Risk of injury!

Never assemble blender on the base unit.

• Apply sealing ring on blade insert.
• Insert blade insert from below into blender jug.
  ● Tighten the blade insert with the aid of the blender jug base.
  ● Tighten the base of the blender jug in an anti-clockwise direction.

Troubleshooting

If the appliance malfunctions, please consult our customer service.

Application examples

Whipped cream

100 g–600 g

- Whip cream with the whisk for 1½ to 4 minutes at setting 4 (depending on the quantity and properties of the cream).

Egg white

1 to 8 egg whites

- Beat egg white with the whisk for 4 to 6 minutes at setting 4.

Sponge mixture

Basic recipe

2 eggs

2–3 tbs. hot water

100 g sugar

1 packet of vanilla sugar

70 g flour

70 g cornflour baking powder (if required)

- Beat the ingredients (except flour and cornflour) with the whisk for approx. 4–6 minutes at setting 4 until frothy.

- Rotate switch to setting 2 and spoon in the sifted flour and cornflour within approx. 12 to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

Basic recipe

3–4 eggs

200–250 g sugar

1 pinch of salt

1 packet of vanilla sugar or peel from 12 lemon

200–250 g butter (room temperature)

500 g flour

1 packet of baking powder

^1/_8 I milk

- Mix all ingredients with the stirrer for approx. 1/2 minute at setting 1, then for approx. 3–4 minutes at setting 3.

Maximum quantity: 1.5–2 x basic recipe

Short pastry

Basic recipe

125 g butter (room temperature)

100–125 g sugar

1 egg

1 pinch of salt

A little lemon peel or vanilla sugar

250 g flour

Baking powder if required

- Process all ingredients for approx. 12 minute at setting 1, then for approx. 2–3 minutes with the stirrer (setting 3) or kneading hook (setting 2).

Maximum quantity: 2 x basic recipe

Yeast dough

Basic recipe

500 g flour

1 egg

80 g fat (room temperature)

80 g sugar

200–250 ml lukewarm milk

25 g fresh yeast or 1 packet of dried yeast

Peel of 12 lemon

1 pinch of salt

- Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3–6 minutes at setting 2.

Maximum quantity: 1.5 x basic recipe

Mayonnaise

2 eggs

2 tsp. mustard

14 | oil

2 tbs. lemon juice or vinegar

1 pinch of salt

1 pinch of sugar

Ingredients must be at the same temperature.

• Process the ingredients (except the oil) in the blender for several seconds at setting 2.
• Switch the blender to setting 4 and slowly pour the oil through the funnel and mix until the mayonnaise emulsifies.

Standard/optional accessories

Other accessories enclosed with the packaging (see enclosed overview of models, Fig. Ⅱ) are described in the separate operating instructions. Enclosed accessories/optional accessories can also be purchased separately. The accessories for the MUM 45.. appliance are also suitable for the MUM 44../46../48.. appliances.

Fig. H

Plastic mixing bowl (MUZ4KR3)

Up to 1 kg of flour plus ingredients can be processed in the bowl.

Stainless steel stirring bowl (MUZ4ER2)

Up to 1 kg of flour plus ingredients can be processed in the bowl.

Plastic blender attachment (MUZ4MX2)

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

Glass blender attachment (MUZ4MX3)

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

Mini processor (MUZ4MM3)

For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

Continuous-feed shredder (MUZ4DS3)

For slicing cucumbers, cabbage, kohlrabi, radish; for shredding carrots, apples and celery, red cabbage, cheese and nuts; for grating hard cheese, chocolate and nuts.

Chipper disc (MUZ45PS1)

For the continuous-feed shredder MUZ4DS3. For slicing raw potatoes for chips.

Asiatic vegetables disc (MUZ45AG1)

For the continuous-feed shredder MUZ4DS3. Slices fruit and vegetables into fine strips for Asian vegetable dishes.

Grating disc coarse (MUZ45RS1)

For the continuous-feed shredder MUZ4DS3. For grating raw potatoes, e.g. for potato pancakes or dumplings.

Potato fritter disc (MUZ45KP1)

For the continuous-feed shredder MUZ4DS3. For grating raw potatoes for rostis and potato fritters, for cutting fruit and vegetables into thick slices.

Citrus press (MUZ4ZP1)

For squeezing oranges, lemons and grapefruits.

Mincer (MUZ4FW3)

For cutting fresh meat for steak tartare or meat loaf.

Perforated disc set (MUZ45LS1)

For the mincer MUZ4FW3. Fine disc (3 mm) for pasties and spreads, coarse disc (6 mm) for sausages and bacon.

Viennese whirl attachment (MUZ45SV1)

For the mincer MUZ4FW3. With metal template for 4 different pastry moulds.

Grater attachment (MUZ45RV1)

For the mincer MUZ4FW3. For grating nuts, almonds, chocolate and dried bread rolls.

Juicer attachment (MUZ45FV1)

For the mincer MUZ4FW3. For pressing soft fruit, (except raspberries), tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.

Accessories holder (MUZ4ZT1)

For the storage of accessories such as kneading hook, whisk, stirrer, slicing, shredding and grating disc.

Mill with conical grinder made of steel (MUZ4GM3)

For all grain types except maize, also oil seeds, dried mushrooms and herbs.

Ice-cream maker (MUZ4EB1)

For the preparation of up to 550 g of ice cream per cycle and container.

Disposal

This appliance has been identified in accordance with the European directive 2012/19/EG on Waste Electrical and Electronic Equipment – WEEE.

The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Patates hamuru diski (MUZ45KP1)

Tarcza do frytek (MUZ45PS1)

Dla rozdrabniacza MUZ4DS3.

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rr. Sami Frasheri

Pallati i Aviacionit te vjetar

Shkalla 1, Hyrja 2

Tirana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajewo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

BH Bahrain,

Khalaifat Est.

P.O.BOX 5111

Manama

Tel.: [phone]

mailto:[e-mail]

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

FR France

BSH Electroménager S.A.S.

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit

www.bosch-home.co.uk

or call

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]

Fax: [phone]

www.bosch-home.co.uk

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Customer Service Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road, Andheri East

Mumbai 400093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

Bin Hamran Commercial Centr.

6th Floor 603B

Jeddah 21481

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/sa

SE Sverige, Sweden

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

www.bosch-home.com/tr

TW Taiwan, 台湾

Achelis Taiwan Co. Ltd.

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

[e-mail]

F

1. 2. 3. 4. 5.

G

G 1. 2. 3. 4. 5.

H

Illustration of a handheld electronic device with a base and handle (no text or symbols)

MUZ4ZT1

Simple line drawing of a three-tiered rectangular shelf or holder (no text or symbols)

MUZ4KR3

Illustration of a mechanical component with a circular frame (no text or symbols)

MUZ4ER2

STAINLESS STEEL

MUZ4EB1

Illustration of a kitchen appliance with a spoon inside, enclosed in a circular frame (no text or symbols)

MUZ4ZP1

Technical line drawing of a mechanical component with concentric rings and central hub (no text or symbols)

MUZ4DS3

Illustration of a kitchen appliance with a side panel and fan, enclosed in a circular frame (no text or symbols)

MUZ4GM3

Simple 3D diagram of a pipe fitting with a cylindrical component and two connected blocks inside a circle (no text or symbols)

MUZ45RS1

MUZ45PS1

MUZ45AG1

MUZ45KP1

MUZ4MX2

Illustration of a blender with visible blades and handle, enclosed in a circular frame (no text or symbols)

MUZ4MX3

Line drawing of a blender with handle and spout, enclosed in a circular frame (no text or symbols)

MUZ4MM3

Illustration of a mechanical device with a cylindrical shaft and housing, enclosed in a circular frame (no text or symbols)

MUZ4FW3

Mechanical component diagram showing a lever and base assembly (no text or symbols)

MUZ45SV1

MUZ45FV1

MUZ45RV1

MUZ45LS1

MUM4405	√	√		√	√	√	√
MUM4406	√	√		√	√	√	√
MUM4407	√	√		√	√	√		√
MUM4409	√	√		√	√	√		√
MUM4426	√	√		√	√	√	√
MUM4427	√	√		√	√	√	√
MUM4428	√	√		√	√	√	√
MUM44R1	√	√		√	√	√		√
MUM4600	√		√	√	√	√	√
MUM4655EU	√		√	√	√	√	√
MUM4657	√		√	√	√	√		√
MUM46A1GB	√		√	√	√	√	√	√
MUM4825	√		√	√	√	√	√
MUM4830	√		√	√	√	√	√
MUM4832	√		√	√	√	√	√
MUM4835	√		√	√	√	√	√	√
MUM4855	√		√	√	√	√	√
MUM4856EU	√		√	√	√	√		√
MUM4875EU	√		√	√	√	√		√
MUM4880	√		√	√	√	√		√
MUM48A1	√		√	√	√	√		√
MUM48R1	√		√	√	√	√		√
MUM48W1	√		√	√	√	√		√
MUM48CR1	√		√	√	√	√		√
MUM48CR2	√		√	√	√	√		√
1-2
MUM4405
MUM4406
MUM4407
MUM4409
MUM4426
MUM4427
MUM4428
MUM44R1
MUM4600
MUM4655EU			√
MUM4657	√		√
MUM46A1GB	√		√
MUM4825			√
MUM4830	√		√
MUM4832			√
MUM4835			√			[CHYS]
MUM4855	√		√				√
MUM4856EU		√	√				√
MUM4875EU	√		√			[YABK]	√
MUM4880	√		√				√
MUM48A1			√
MUM48R1			√
MUM48W1			√
MUM48CR1	√		√	√		√
MUM48CR2	√		√			√	√
