USER MANUAL AquaMax Eco Classic 55000 OASE

Operating instructions

25, 32, 38 25, 32, 38

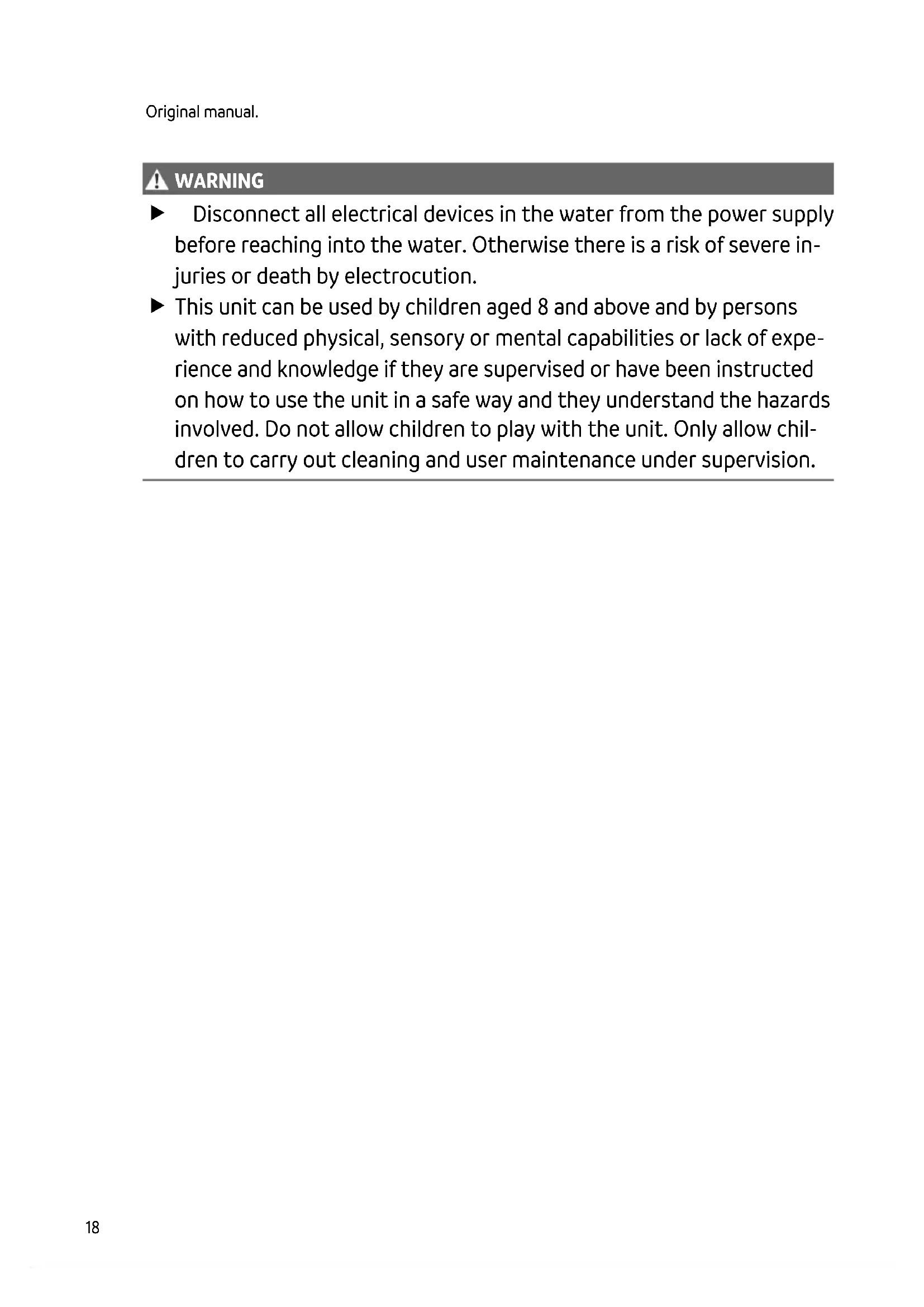

WARNING WARNING Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise there is a risk of severe in- juries or death by electrocution. This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of expe- rience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow chil- dren to carry out cleaning and user maintenance under supervision.EN

Safety information Electrical connection

• Special regulations apply for electrical installation in outdoor spaces. Only a qualified electri- cian may perform the electrical installation. – The qualified electrician has the necessary professional training, knowledge and experience to perform electrical installation in outdoor spaces. The electrician can detect potential dangers and knows how to adhere to regional and national standards, regulations and direc- tives. – For your own safety, please consult a qualified electrician.

• Only connect the unit if the electrical data of the unit and the power supply match.

• Only plug the unit into a correctly installed outlet.

• The device is to be supplied through a residual current device (RCD) having a rated residual op- erating current not exceeding 30 mA.

• Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).

• Protect open plugs and sockets from moisture. Safe operation

• Do not use the unit, if electrical lines or the housing are damaged.

• The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.

• The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Keep a distance of at least 0.2 m between the implant and the magnet.

• Do not carry or pull the unit by its power cable.

• Route lines in such a way that they are protected from damage and do not present a tripping hazard.

• Never carry out technical changes to the unit.

• Only carry out work on the unit that is described in this manual.

• Only use original spare parts and accessories.

• Should problems occur, please contact the authorised customer service or OASE.20 Intended use Only use the product described in this manual as follows:

• For pumping normal pond water for filter systems, waterfall systems and water course sys- tems.

• While adhering to the technical specifications. (→ Technical data)

• Adherence to the permissible water quality. (→ Permissible water quality) The following restrictions apply to the unit:

• Do not use in swimming ponds.

• Never use the unit with fluids other than water.

• Never run the unit without water.

• Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

• Do not connect to the domestic water supply.

• Do not use for commercial or industrial purposes.

• According to EMC (Electromagnetic Compatibility), this is a class A unit. The unit may cause malfunctions in living environments. It is the user's responsibility to take suitable counter- measures.EN

Connection of the supply line from a pond for dry installation.

• Dry installation requires the pump to be installed without a filter housing.

• Connection of the return line into the pond (e.g. via a water course).

Stepped hose adapter with ball joint for outlet.

Stepped hose adapter for inlet 2 (dry installation).

Hose clips for fastening hoses on the hose sleeves.

Power cable with power plug

Symbols on the unit The unit is dust-tight and water-tight down to 4 m. Possible danger for persons with pacemakers. Protect the unit from direct sunlight.

Do not dispose of the unit with normal household waste.

Read the operating instructions.22 Installation variants

• Variant (a): Submerged pump installation – The pump is positioned in the pond or basin. – Water flow via the filter cage.

• Variant (b): Dry pump installation – The pump is installed without the filter cage outside of the pond or basin but lower than the water level. – Water flow via a satellite filter or skimmer.EN

Installation and connection The pump can be installed submerged (in water) or dry (outside the water).

WARNING Severe injuries or death due to operation of this unit in a swimming pond. Defective electrical components will electrify the water with dangerous electrical voltage. Never operate the unit in a swimming pond. CAUTION Rotating components in the intake and pressure socket area. Risk of injury when reaching into the sockets. In particular, observe the following: A unit that has stopped due to overload can start up unex- pectedly! Do not reach into the opening of the intake socket or pressure socket while the power plug is plugged in. If the sockets are freely accessible during operation, e.g. if no hoses are connected, use a hand guard to secure the sockets. The hand guard is available as an accessory. Avoid exposing any unit components to direct sunlight for extended periods of time, as this can lead to damage. If necessary, use a protective cover.24 Submerged installation of the pump Connecting

• The larger the hose diameter, the smaller the friction losses in the lines and the better the flow rate.

• The hose diameter must not be limited unnecessarily by a hose sleeve. Shorten the hose sleeve based on the hose diameter, if necessary. AMX0003 Do not plug the power plug into the socket yet! Installation

• Place the pump horizontally on a stable surface.

• Ensure secure and stable positioning of the pump.

• For muddy or soiled water, we recommend installing the pump or intake-side components (skimmer, satellite filter, base outlet, etc.) above ground level. This decreases intake of parti- cles and increases the service life of the impeller unit.

• Only operate the pump when it is covered in at least 10 cm of water. Otherwise it may draw in air. AMX0082 The pull rope allows you to simply pull the pump from the water. − Fasten the pull rope on the bottom filter casing through the round openings and make a knot.EN

Install the unit at a dry place Dry installation requires the pump to be installed without a filter housing. Conversion

• Hoses or pipes can be connected to the inlet (IN) and outlet (OUT). – Connections for hoses are part of the scope of delivery. Instructions for their installation can be found below.

• Ensure that the intake-side hose (IN) does not have a smaller diameter than the pressure-side hose (OUT).

• The larger the hose diameter, the smaller the friction losses in the lines and the better the flow rate.

• The hose diameter must not be limited unnecessarily by a hose sleeve. Shorten the hose sleeve based on the hose diameter, if necessary.

• The pump can handle particles with a size of up to 8 mm. Larger particles will clog the pump. We recommend installing a filter or skimmer on the intake side.

Do not plug the power plug into the socket yet!26 Installation

• Place the pump horizontally on a stable surface.

• Ensure secure and stable positioning of the pump.

• Do not expose the pump to direct sunlight.

• Ensure that the installation site is sufficiently ventilated to prevent overheating of the pump. AMX0083EN

Commissioning/start-up NOTE The unit will be destroyed if it is operated with a dimmer. It contains sensitive electrical compo- nents. Do not connect the unit to a dimmable power supply. NOTE Never allow the pump to run dry. Otherwise the pump may be destroyed. Only operate the pump when it is submerged or flooded. Switching ON/OFF

• Switching on: Plug the power plug into the outlet. – The unit switches on immediately.

• Switching off: Pull the power plug from the outlet. Environmental Function Control (EFC) When started up and then every 20 ... 40 minutes the pump automatically performs a pre-pro- grammed self-test (Environmental Function Control (EFC)). The pump detects if it is running dry / clogged or submerged. The pump shuts down automatically after 60 to 120 seconds if it runs dry/is blocked. In the event of a malfunction, disconnect the power supply and “flood the pump” or remove the obstacle. Afterwards, the unit can be restarted.28 Maintenance and cleaning CAUTION Risk of injury due to unexpected start-up. Internal monitoring functions may switch off the unit and automatically reactivate it. Disconnect the power plug before carrying out any work on the unit. NOTE Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment. If possible, clean the unit with clear water and a soft brush or a sponge; remove stubborn dirt with the aid of the recommended cleaning agents. Dismantling the unit

• Pull the power plug and remove all connections.

• Dismantle the unit as shown in the figure. AMX0175

• Reassemble the unit in reverse order.

• During assembly check that – the pump is fastened in the holder. – the power cable is guided out through the groove on the housing and is not significantly kinked or pinched. Cleaning the device Clean the unit as required but at least twiceper year. − When cleaning the pump, pay particular attention to the impeller unit and the pump housing.

• Recommended cleaning agent for removing stubborn limescale deposits: – Pump cleaning agent PumpClean from OASE. – Vinegar- and chlorine-free household cleaning agent.

• After cleaning, thoroughly rinse all parts in clean water.EN

Replacing the impeller unit NOTE The impeller unit is guided in the motor block by a bearing. This bearing is a wear part and should be changed at the same time as the impeller unit. Changing the bearing requires specialist knowledge and tools. Have the bearing changed by the OASE specialist dealer or send the pump to OASE. NOTE The impeller unit contains strong magnets that attract magnetic particles (e.g. iron filings). Any remaining particles can cause irreparable damage to the impeller unit and motor block. Carefully remove any adhering particles from the impeller unit prior to installation.

• Dismantle the motor block as shown in the figure.

• Use a brush under clear water to clean the components.

• Check all components for damage. Replace damaged or worn components.

• Reassemble the motor block in reverse order. AMX017630 Storage/winter protection Shut down the unit at water temperatures below +4 °C or at the latest when freezing tempera- tures are expected.

• Thoroughly clean the unit.

• Check the unit for damage and replace damaged components.

• Store the pump immersed in water or filled with water in an environment protected against freezing. Do not immerse the power plug in water! Malfunction remedy Malfunction Cause Remedy Pump does not start No mains voltage Check the mains voltage. Supply lines kinked Route the supply lines without kinks Supply lines blocked.

Check/clean the supply lines

Impeller unit is blocked

Remove blockage, check impeller unit for ease of movement

Pump does not transport fluid

Insufficient delivered quantity

Filter housing clogged Clean strainer casings

Excessive loss in the supply lines

Reduce hose length to the necessary mini- mum, remove unnecessary connection parts, use larger hose diameters

Impeller unit is running slug- gishly

Check impeller unit for ease of mo vement Pump switches off after oper- ating briefly

Water heavily soiled Clean pump Impeller unit is blocked

Remove blockage, check impeller unit for ease of movement Pump has run dry

Check/clean supply lines, increase immer- sion depth (min. 10 cm under water sur- face) Water temperature too high Adhere to the maximum permissible water temperature. (→ Technical data)EN

Max. power consumption

25, 32, 38 25, 32, 38 25, 32, 38 25, 32, 38 Max. grain size of coarse dirt

Water temperature (sub- merged installation)

During operation and convection

During operation and forced cool- ing

Length of connection cable

Max. power consumption

25, 32, 38 25, 32, 38 25, 32, 38 Pressure side Thread

Water temperature (submerged installation)

During operation and convection

During operation and forced cool- ing

Length of connection cable

Fresh water, pond water pH value

<0.4 Overall dry residue

• Impeller unit Disposal NOTE Do not dispose of this unit with household waste. Dispose of the unit by using the return system provided for this purpose. Should you have questions, please contact your local disposal company. They will give you in- formation on how to correctly dispose of the unit. Render the unit unusable by cutting the cables.34 Traduction de la notice d'emploi d'origine.
