USER MANUAL SDL 2500 EVO Wolf Garten

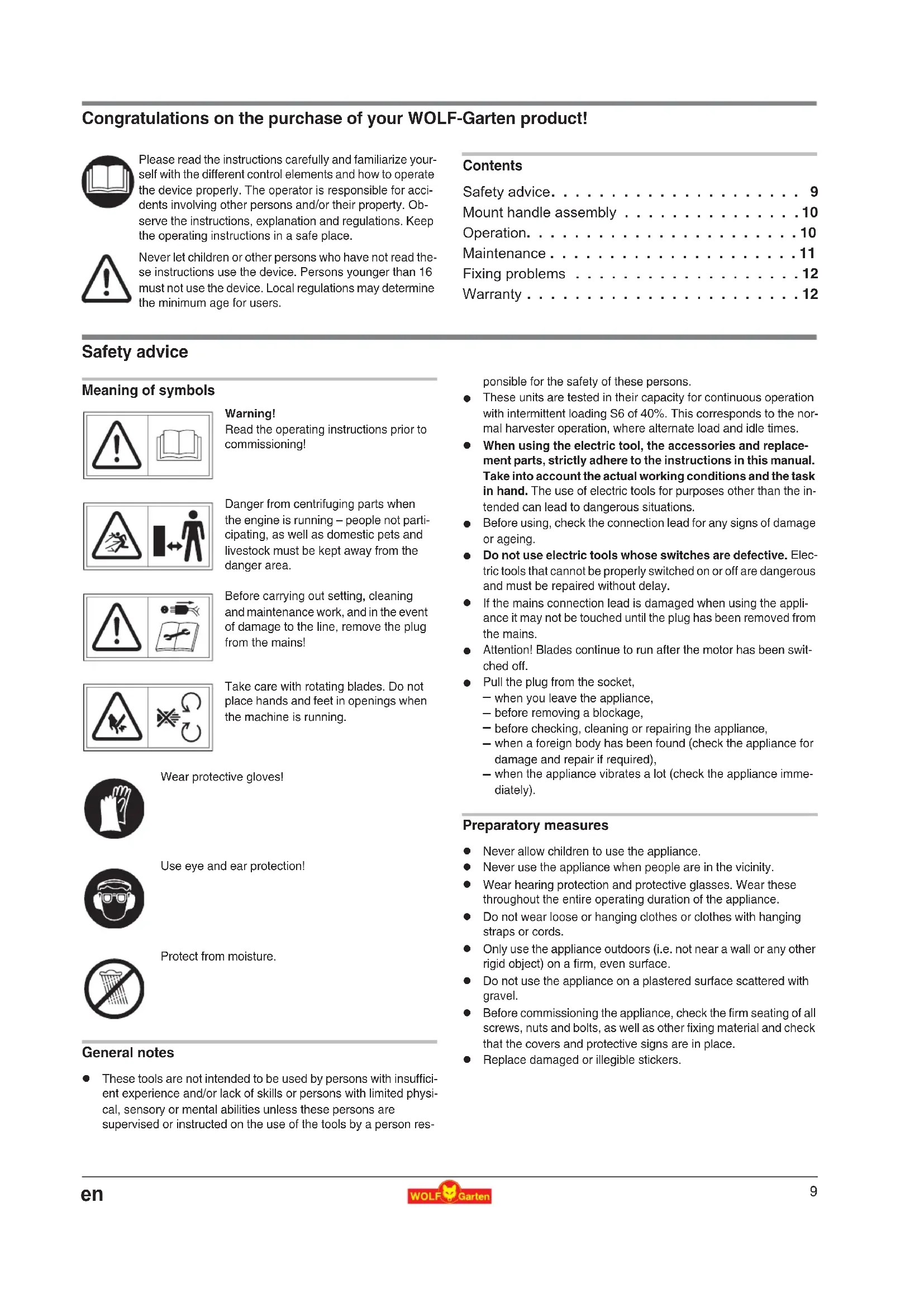

Congratulations on the purchase of your WOLF-Garten product!

Please read the instructions carefully and familiarize yourself with the different control elements and how to operate the device properly. The operator is responsible for accidents involving other persons and/or their property. Observe the instructions, explanation and regulations. Keep the operating instructions in a safe place.

Never let children or other persons who have not read these instructions use the device. Persons younger than 16 must not use the device. Local regulations may determine the minimum age for users.

Contents

Safety advice. 9

Mount handle assembly 10

Operation. 10

Maintenance. 11

Fixing problems 12

Warranty 12

Safety advice

Meaning of symbols

Warning!

Read the operating instructions prior to commissioning!

Danger from centrifuging parts when the engine is running - people not participating, as well as domestic pets and livestock must be kept away from the danger area.

Before carrying out setting, cleaning and maintenance work, and in the event of damage to the line, remove the plug from the mains!

Take care with rotating blades. Do not place hands and feet in openings when the machine is running.

Wear protective gloves!

Use eye and ear protection!

Protect from moisture.

General notes

These tools are not intended to be used by persons with insufficient experience and/or lack of skills or persons with limited physical, sensory or mental abilities unless these persons are supervised or instructed on the use of the tools by a person res

pensible for the safety of these persons.

These units are tested in their capacity for continuous operation with intermittent loading S6 of 40% . This corresponds to the normal harvester operation, where alternate load and idle times.
- When using the electric tool, the accessories and replacement parts, strictly adhere to the instructions in this manual. Take into account the actual working conditions and the task in hand. The use of electric tools for purposes other than the intended can lead to dangerous situations.
- Before using, check the connection lead for any signs of damage or ageing.
- Do not use electric tools whose switches are defective. Electric tools that cannot be properly switched on or off are dangerous and must be repaired without delay.
- If the mains connection lead is damaged when using the appliance it may not be touched until the plug has been removed from the mains.
- Attention! Blades continue to run after the motor has been switched off.
Pull the plug from the socket,
- when you leave the appliance,
before removing a blockage,
before checking, cleaning or repairing the appliance,
- when a foreign body has been found (check the appliance for damage and repair if required),
- when the appliance vibrates a lot (check the appliance immediately).

Preparatory measures

• Never allow children to use the appliance.
• Never use the appliance when people are in the vicinity.
• Wear hearing protection and protective glasses. Wear these throughout the entire operating duration of the appliance.
• Do not wear loose or hanging clothes or clothes with hanging straps or cords.
• Only use the appliance outdoors (i.e. not near a wall or any other rigid object) on a firm, even surface.
• Do not use the appliance on a plastered surface scattered with gravel.
• Before commissioning the appliance, check the firm seating of all screws, nuts and bolts, as well as other fixing material and check that the covers and protective signs are in place.
• Replace damaged or illegible stickers.

Cable

Attention! Electric shock through cable damage

When the cable is cut through or damaged, the safety fuse does not always trip.

• Do not touch cable before pulling out the power plug out of the socket.

• A damaged cable must be completely replaced. Repairing the cable with insulating tape is not permitted.

• Repairs to the cable should be performed only by an expert.

• Do not scrape against corners, spikes or sharp objects.
• Do not squeeze the cable between door jams or through windows.
• Switchgears must not be removed or bridged.
• Use only extension cable not lighter than rubber hose, type HO 7 RNF, minimum cross section 3 × 1.5 ~mm^2 , length: max. 25 m.
• Cables have to be protected against splashing water.
• Do not carry or suspend the tool by the power cable and do not pull the cable to disconnect the plug from the socket. Keep the cable away from heat sources, oil, sharp edges and moving tool parts. Damaged or entangled cables increase the risk of electric shock.

Handling

• Keep the working area tidy and ensure that it is properly illuminated. Working in cluttered or poorly lit areas can lead to accidents.
• Do not use the electric tool in explosive atmospheres containing flammable liquids, gases or dusts. Electric tools might generate sparks that can ignite dust or vapors.
• When working with the electric tool, ensure that your full attention is on the task in hand, do not let yourself be distracted and apply common sense. Do not use the electric tool when you are tired, or when you are under the influence of drugs alcohol or medication. Even brief moments of inattention can lead to serious injury.
• Ensure before starting the appliance that the feed hopper is empty.
• Keep your head and body away from the feed opening.

• Do not place hands, other parts of the body and clothes in the feed hopper, discharge channel or near moving parts.
  Always ensure that you are balanced and on firm footing.

• Do not stretch forward. Never place yourself higher than the appliance when feeding in material.

• When commissioning the appliance always stand outside the discharge area.
• When feeding in material ensure in particular that no metal, stones, bottles, cans or other foreign bodies are included.

• If foreign bodies should enter the cutting tool or should the appliance make unusual noises, switch the motor off immediately and allow the appliance to stop gradually. Remove the mains plug and carry out the following procedures:

• Check the appliance for damage

• Check that the parts are firmly seated and tighten if required

• Repair or replace any damaged parts (only use original WOLF-Garten spare parts).

• Do not allow processed material to accumulate within the discharge area. This could compromise correct discharge and lead to the kickback of material through the feed opening.

• If the appliance is blocked, switch the motor off and remove the mains plug before starting to clean.
• Ensure that the motor is free from waste and other accumulations to protect the motor from damage or overheating.
• Ensure that all covers and baffles are in place and in correct working order.
• Do not transport the appliance when the motor is running.
• Switch the motor off as soon as you leave the workstation and remove the mains plug.
• Do not tilt the appliance when the motor is running.

Maintenance and storage

• If the appliance is to be switched off for maintenance, storage or accessory replacement purposes, ensure that the energy source is switched off and that the mains plug is removed. Ensure that the moving parts are at a standstill. Allow the appliance to cool before maintenance, adjustment etc.
• When servicing the cutting tool, ensure that it can still always run on, even when the motor is switched off.

Disposal

Power tools do not belong in household garbage. Bring the device, accessories and packaging to an environmentally-friendly recycling location.

Mount handle assembly

See illustrations A B

Operation

Times of operation

• Please consult regional/local regulations.
• Inquire about the operating times at your local regulatory agency.

Connect to the socket (230 Volt, 50 Hz)

• Only connect the equipment to sockets which are shielded with a 16 Amp. fuse (inertial or LS switch type B).

Note: Residual current protection device

These safeguards provide protection against severe injuries resulting from touching damaged cables, insulation defects and in some cases cables that conduct electricity.

• We recommend that the equipment only be plugged into a power socket, which is protected by a residual current protection device (RCD) with a residual current of no more than 30mA .
• Retrofit kits are available for old installations. Consult an electrician.

Working with the garden chopper

Wear protective gloves and hearing protection!

• Adopt a working position at the side of or behind the appliance. Never stand in the area of the discharge opening.

• Never put your hands in the feed or discharge opening.
  Before switching on the appliance check whether there is any chaff in the hopper.
  If foreign bodies should enter the hopper or should the appliance make unusual noises or vibrations, switch the appliance off immediately and allow it to come to a standstill. Remove the mains plug and carry out the following:

• Check the appliance and tighten any loose parts.

• Replace damaged parts.
• Repairs to the appliance must be performed by an authorised service centre.

What can be chopped?

• Organic waste from the house and garden e.g. hedge and tree cuttings, dead flowers, kitchen scraps.

What cannot be chopped?

Glass, metal parts, plastics, plastic bags, stones, material waste, roots with earth, food, fish and meat waste

Switching on / off

Press the green button to switch on C (3)

Press the red button to switch off (4)

The machine has a circuit breaker to prevent switching back on unintentionally after a power cut.

Overload protection

An overloading of the appliance (e.g. culminating in the blocking of the blades) can lead to the standstill of the appliance after a few seconds. To protect the motor from damage the appliance is automatically disconnected from the mains by the overload protection.

• Before putting into operation again wait for at least one minute before immediately pressing the reset button (2) and then ON/OFF switch. If the motor does not start, clean the collection hopper (see Maintenance).

Toggle switch (1)

The toggle switch enables freeing trapped material.

Position (a)

The blade pulls in the crushed material.

Position (b)

The blade rotates backwards and frees any trapped material.

1. Toggle switch to position (b).
2. Press green button (3) and do not release.

The toggle switch can only be used when the appliance is switched off.

Special instructions for chopping

• Chop branches, twigs and wood shortly after cutting (this chopped material will become very hard once it has dried out, therefore the maximum diameter which can be processed is less).
• Remove the side shoots on severely ramified branches.

Maintenance

General

Remove the mains plug before any maintenance and cleaning work!

When servicing the cutting tool ensure that it can still always run on even when the motor is switched off. Wear protective gloves.

• Store the appliance in a dry location out of the reach of children.

General cleaning information

Remove the mains plug before any maintenance and cleaning work!

• Handle the appliance with care and clean it regularly to prolong its service life.
• Keep the ventilation slits clean and dust-free.
• Only use a warm and moist cloth to clean the appliance as well as a soft brush.
• Do not allow the appliance to get wet and do not spray with water.

Setting the cutting unit D

The cutting unit is factory set and must not be set during the first commissioning.

1. Switch on appliance.
2. Turn the adjustment knob clockwise until grinding noises are audible and fine aluminium chips fall from the discharge chute (worn points on the cutting plate are optimally balanced. The chopping material is then better cut through).

Empty the collection container E

Remove the mains plug before any maintenance and cleaning work!

The locking lever has the function of a safety switch and must be in Position E (2) while operating the product. If the locking lever should not be correctly snapped in, this and the switch must be cleaned in the product, if required.

1. Bring the locking mechanism to position 1.
2. Pull the collection container completely out of the frame.
3. Empty the container.
4. Slide the collection container onto the frame as far as it will go.
5. Bring the locking mechanism to position 2.

Fixing problems

Problem Possible cause Solution
Motor does not start.	Not connected to voltage supply	Check protection
	Faulty connection cable	Check the cable (electrical expert)
	\( \bullet \) Appliance overloaded (the motor is equipped with a circuit breaker and automatically switches off in the event of overloading).	The motor can be switched back on after a cooling down break (ca. 5 min.).
Motor hums but does not start	Cutting roller blocked	Change direction of rotation, proceed to switch off appliance and clean.
	Faulty capacitor	Give appliance to authorised WOLF-Garten customer service centre for repair.
Chopping material is not pulled in	Incorrect switch position	Adjust direction of rotation
	Chopping material trapped in the hopper	Change direction of rotation, proceed to switch off appliance and clean.
	Too soft or wet chopping material	Push with a branch and chop through
	Wear on the cutting roller	Set cutting unit
Chopping material is not cleanly cut through	Profile plate not set sufficiently	Set cutting unit

When in doubt, always seek out a WOLF Service location.
Attention: Put down the appliance and pull out the power plug before performing any checks or work on the blades.

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.
