USER MANUAL SDE 2500 Wolf Garten

Instruction manual 9

Mode d'emploi 14

Istruzioni d'uso 19

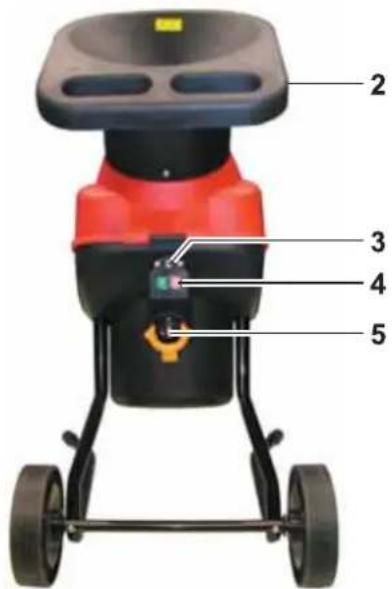

Top-down view of a red and black industrial machine with two legs and a small component labeled '1' (no text or symbols on the device itself)

2 3 4 5

Folded brown fabric bag with handle, labeled with number 6 (no text or symbols on bag itself)

D

Illustration of a hand using a pulley to lift a mechanical component, with no visible text or symbols.

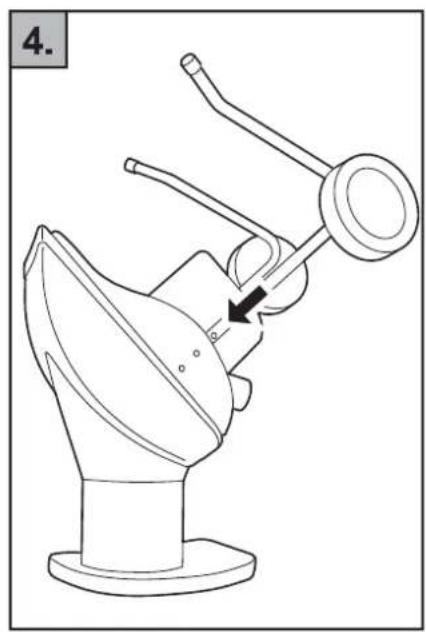

Technical line drawing of a mechanical device with lever and base mount (no text or symbols)

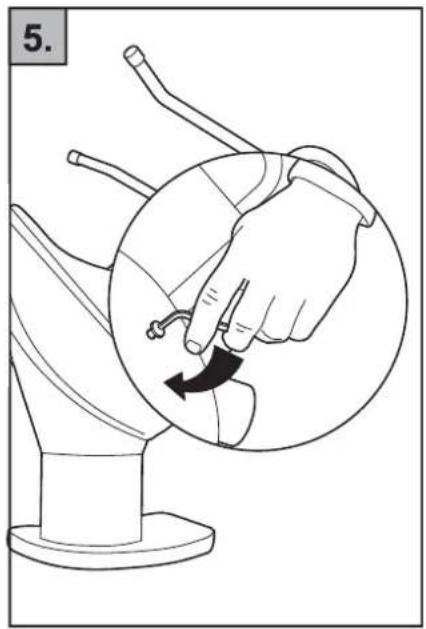

Line drawing of a hand holding a circular object with a black arrow indicating rotation (no text or symbols)

Line drawing of a person using a foot presser to lift a chair (no text or symbols)

Technical diagram showing a hand operating a mechanical device with labeled parts 1, 2, and a magnified inset view of the component.

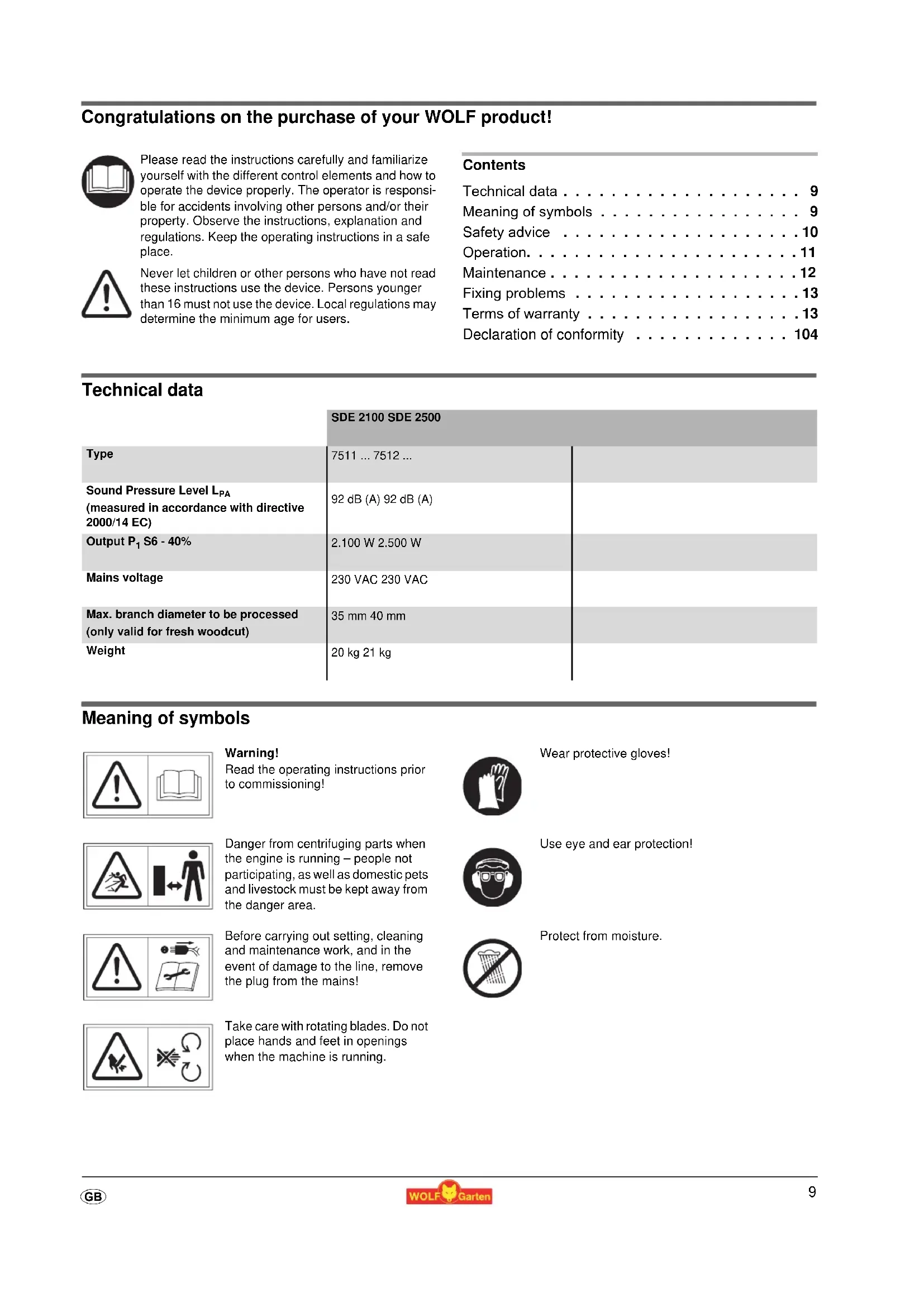

Congratulations on the purchase of your WOLF product!

Please read the instructions carefully and familiarize yourself with the different control elements and how to operate the device properly. The operator is responsible for accidents involving other persons and/or their property. Observe the instructions, explanation and regulations. Keep the operating instructions in a safe place.

Never let children or other persons who have not read these instructions use the device. Persons younger than 16 must not use the device. Local regulations may determine the minimum age for users.

Contents

Technical data 9

Meaning of symbols 9

Safety advice 10

Operation. 11

Maintenance....12

Fixing problems 13

Terms of warranty 13

Declaration of conformity 104

Technical data

	SDE 2100 SDE 2500
Type	7511 ... 7512 ...
Sound Pressure Level L_PA (measured in accordance with directive 2000/14 EC)	92 dB (A) 92 dB (A)
Output P_1 S6 - 40%	2.100 W 2.500 W
Mains voltage	230 VAC 230 VAC
Max. branch diameter to be processed(only valid for fresh woodcut)	35 mm 40 mm
Weight	20 kg 21 kg

Meaning of symbols

Warning!

Read the operating instructions prior to commissioning!

Wear protective gloves!

Danger from centrifuging parts when the engine is running – people not participating, as well as domestic pets and livestock must be kept away from the danger area.

Use eye and ear protection!

Before carrying out setting, cleaning and maintenance work, and in the event of damage to the line, remove the plug from the mains!

Protect from moisture.

Take care with rotating blades. Do not place hands and feet in openings when the machine is running.

Safety advice

General notes

• Before using, check the connection lead for any signs of damage or ageing.
• If the mains connection lead is damaged when using the appliance it may not be touched until the plug has been removed from the mains.
• Attention! Blades continue to run after the motor has been switched off.
• Pull the plug from the socket,
  — when you leave the appliance,
  — before removing a blockage,
  — before checking, cleaning or repairing the appliance,
• when a foreign body has been found (check the appliance for damage and repair if required),
• when the appliance vibrates a lot (check the appliance immediately).

Preparatory measures

● Never allow children to use the appliance.
● Never use the appliance when people are in the vicinity.
- Wear hearing protection and protective glasses. Wear these throughout the entire operating duration of the appliance.
- Do not wear loose or hanging clothes or clothes with hanging straps or cords.
- Only use the appliance outdoors (i.e. not near a wall or any other rigid object) on a firm, even surface.
- Do not use the appliance on a plastered surface scattered with gravel.
- Before commissioning the appliance, check the firm seating of all screws, nuts and bolts, as well as other fixing material and check that the covers and protective signs are in place.
- Replace damaged or illegible stickers.

Cable

Attention! Electric shock through cable damage

When the cable is cut through or damaged, the safety fuse does not always trip.

• Do not touch cable before pulling out the power plug out of the socket.
• A damaged cable must be completely replaced. Repairing the cable with insulating tape is not permitted.

● Repairs to the cable should be performed only by an expert.

- Do not scrape against corners, spikes or sharp objects.

- Do not squeeze the cable between door jams or through windows.

- Switchgears must not be removed or bridged.

- Use only extension cable not lighter than rubber hose, type HO 7 RNF, minimum cross section 3 x 1.5 mm ^2 , length: max. 25 m.

● Cables have to be protected against splashing water.

Handling

• Ensure before starting the appliance that the feed hopper is empty.
• Keep your head and body away from the feed opening.
• Do not place hands, other parts of the body and clothes in the feed hopper, discharge channel or near moving parts.

● Always ensure that you are balanced and on firm footing.
- Do not stretch forward. Never place yourself higher than the appliance when feeding in material.
- When commissioning the appliance always stand outside the discharge area.
- When feeding in material ensure in particular that no metal, stones, bottles, cans or other foreign bodies are included.
- If foreign bodies should enter the cutting tool or should the appliance make unusual noises, switch the motor off immediately and allow the appliance to stop gradually. Remove the mains plug and carry out the following procedures:
- Check the appliance for damage
— Check that the parts are firmly seated and tighten if required
- Repair or replace any damaged parts (only use original WOLF spare parts).
- Do not allow processed material to accumulate within the discharge area. This could compromise correct discharge and lead to the kickback of material through the feed opening.
- If the appliance is blocked, switch the motor off and remove the mains plug before starting to clean.
- Ensure that the motor is free from waste and other accumulations to protect the motor from damage or overheating.
- Ensure that all covers and baffles are in place and in correct working order.
- Do not transport the appliance when the motor is running.
- Switch the motor off as soon as you leave the workstation and remove the mains plug.
- Do not tilt the appliance when the motor is running.
- Do not allow processed material to accumulate within the discharge area. This could compromise correct discharge and lead to the kickback of material through the feed opening. - If the appliance is blocked, switch the motor off and remove the mains plug before starting to clean. - Ensure that the motor is free from waste and other accumulations to protect the motor from damage or overheating. - Ensure that all covers and baffles are in place and in correct working order. - Do not transport the appliance when the motor is running. - Switch the motor off as soon as you leave the workstation and remove the mains plug. - Do not tilt the appliance when the motor is running.

Maintenance and storage

- If the appliance is to be switched off for maintenance, storage or accessory replacement purposes, ensure that the energy source is switched off and that the mains plug is removed. Ensure that the moving parts are at a standstill. Allow the appliance to cool before maintenance, adjustment etc.

- When servicing the cutting tool, ensure that it can still always run on, even when the motor is switched off.

- If the appliance is to be switched off for maintenance, storage or accessory replacement purposes, ensure that the energy source is switched off and that the mains plug is removed. Ensure that the moving parts are at a standstill. Allow the appliance to cool before maintenance, adjustment etc. - When servicing the cutting tool, ensure that it can still always run on, even when the motor is switched off.

Disposal

Power tools do not belong in household garbage. Bring the device, accessories and packaging to an environmentally-friendly recycling location.

Operation

Times of operation

• Please consult regional/local regulations.
• Inquire about the operating times at your local regulatory agency.

Connect to the socket (230 Volt, 50 Hz)

- Only connect the equipment to sockets which are shielded with a 16 Amp. fuse (inertial or LS switch type B).

Note: Residual current protection device

These safeguards provide protection against severe injuries resulting from touching damaged cables, insulation defects and in some cases cables that conduct electricity.

• We recommend that the equipment only be plugged into a power socket, which is protected by a residual current protection device (RCD) with a residual current of no more than 30 mA.
• Retrofit kits are available for old installations. Consult an electrician.

Working with the garden chopper

Wear protective gloves and hearing protection!

• Adopt a working position at the side of or behind the appliance. Never stand in the area of the discharge opening.
  ● Never put your hands in the feed or discharge opening.
• Before switching on the appliance check whether there is any chaff in the hopper.
• If foreign bodies should enter the hopper or should the appliance make unusual noises or vibrations, switch the appliance off immediately and allow it to come to a standstill. Remove the mains plug and carry out the following:

- Check the appliance and tighten any loose parts.

- Replace damaged parts.

- Repairs to the appliance must be performed by an authorised service centre.

What can be chopped

- Organic waste from the house and garden e.g. hedge and tree cuttings, dead flowers, kitchen scraps.

What cannot be chopped?

● Glass, metal parts, plastics, plastic bags, stones, material waste, roots with earth, food, fish and meat waste

Switching on / off

• Press the green button to switch on B
• Press the red button to switch off C

The machine has a circuit breaker to prevent switching back on unintentionally after a power cut.

Overload protection

An overloading of the appliance (e.g. culminating in the blocking of the blades) can lead to the standstill of the appliance after a few seconds. To protect the motor from damage the appliance is automatically disconnected from the mains by the overload protection.

- Before putting into operation again wait for at least one minute before immediately pressing the reset button A and then ON/OFF switch. If the motor does not start, clean the collection hopper (see Maintenance).

Special instructions for chopping

• Chop branches, twigs and wood shortly after cutting (this chopped material will become very hard once it has dried out, therefore the maximum diameter which can be processed is less).
• Remove the side shoots on severely ramified branches.
• When processing garden or kitchen waste with a high water content with a tendency to stick, crush alternately with wooden chopping material to avoid blocking the appliance.
• Do not allow the chopping material in the area of the discharge opening to accumulate too high. This can lead to material which is already chopped blocking the discharge channel. This can cause a kickback of the material through the filling opening.
• Ensure that the maximum branch diameter for processing permitted for your appliance is observed.
  ● The blade unit pulls in the chopping material largely by itself.
• Do not overload or block the motor in the case of tough branches by frequently pulling back the branch.

Maintenance

General

Remove the mains plug before any maintenance and cleaning work!

When servicing the cutting tool ensure that it can still always run on even when the motor is switched off. Wear protective gloves.

- Store the appliance in a dry location out of the reach of children.

General cleaning information

Remove the mains plug before any maintenance and cleaning work!

• Handle the appliance with care and clean it regularly to prolong its service life.
• Keep the ventilation slits clean and dust-free.
• Only use a warm and moist cloth to clean the appliance as well as a soft brush.
• Do not allow the appliance to get wet and do not spray with water.

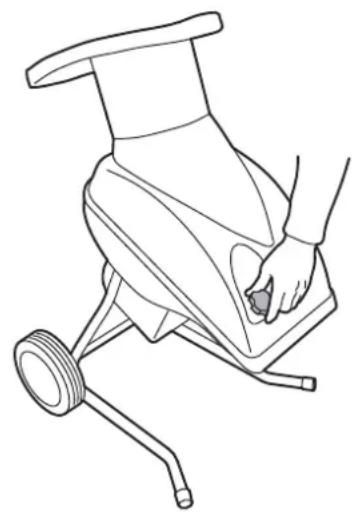

Cleaning the collection hopper

Remove the mains plug before any maintenance and cleaning work!

1. Unscrew the knob and fold the casing upwards to open . D
2. Clean the cutting and discharge area of all objects which could block the blades.
3. Close the casing again and tighten the knob . D
4. Press the reset button before activating the ON/OFF switch.

Line drawing of a hand operating a mechanical device with a wheel and lever (no text or symbols)

Safety locking device

• The chopper is equipped with a safety locking device at the lock between the casing and the motor casing.
• In the event that the casing does not close flush to the motor casing, the motor is stopped by the safety locking device.
• In such a case, proceed as follows:
  — Unscrew the knob and fold the casing upwards to open D
• Carefully clean the contact surfaces.
• Close the casing again and tighten the knob D

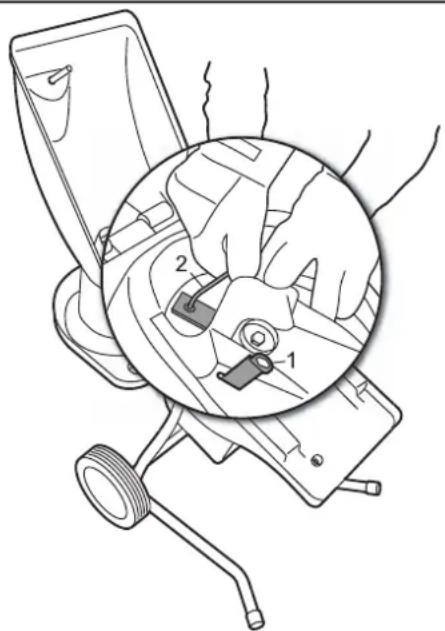

Changing blades D E

Remove the mains plug before any maintenance and cleaning work!

When servicing the cutting tool ensure that it can still always run on even when the motor is switched off. For safety reasons, always have the blades changed by an authorised service centre.

1. Unscrew the knob and fold the casing upwards to open . D
2. In order to change the blades insert the hexagon spanner E (1) in the slot on the retaining plate and through the cover.
3. Loosen the two screws with the Allen spanner E (2) and take out the worn blades.
4. Insert the new blades and tighten the screws.

Remove both the Allen and hexagon spanner after completing the change.

1. Close the casing again and tighten the knob . D

Diagram showing a hand holding a device with labeled parts, including numbered callouts 1 and 2.

Fixing problems

Problem Possible cause Solution
Motor does not start.	Not connected to voltage supplyFaulty connection cable	Check protectionCheck the cable (electrical expert)
Motor hums but does not start	Top of casing not closed properly (safety shutdown device is tripped)Blade unit blockedFaulty capacitor	Close top of casing properly and screw, remove dirt if required.Switch off appliance, remove mains plug and clean appliance on the insideGive appliance to authorised WOLF customer service centre for repair.
Motor does not start.	Extension cable too long or cross section too smallSocket too far from main connection and connecting lead cross section too small	Extension cable min. 1.5 mm^2 , max. 25 m long. In the case of longer cable cross section min. 2.5 mm^2 .
Reduced cutting output	Dull blade.	Changing blades

When in doubt, always seek out a WOLF Service location.
Attention: Put down the appliance and pull out the power plug before performing any checks or work on the blades.

Terms of warranty

Keep the warranty card or proof of purchase completed by the seller in a safe place.

WOLF-Garten provides a guarantee of 24 months from the time of purchase representing the particular state of technology and the intended purpose/application. The legal rights of the end consumer are not affected by the following warranty guidelines.

Requirements for the 24-month claim to warranty:

- Device intended exclusively for private use.

The warranty is reduced to 12 months if the device is used in commercial or rental ventures.

• Proper handling and observance of all indications in the operating instructions, which are part of our warranty terms and conditions.
• Observance of the prescribed maintenance intervals.
• No unauthorized alteration of the construction.

The warranty-related services are provided by our authorized customer service locations or at :

GB WOLFGarden Ltd.

Crown BusinessPark

Tredegar

Gwent, NP22 4EF

Tel. :++ 44 / 14 95 30 66 00

Fax :++ 44 / 14 95 30 33 44

E-mail: [e-mail]

• Installation of genuine WOLF replacement parts/accessories.
• Provision of completed warranty card and/or proof of purchase.

The warranty does not cover normal wear of the blades, blade attachment parts such as friction plates, V-/toothed belts, rotors/rings, air filters, spark plugs or spark plug connectors. Unauthorized repair automatically renders all claims to warranty null and void.

Flaws and defects caused by material or production flaws will be repaired exclusively by our contractual service locations (the seller has the right to remedy the problem) in your area or the manufacturer (if location is closer). Claims beyond the terms of warranty are excluded. No claim to the delivery of the replacement is valid. All transport damages are not to be reported to us but rather to the person/company responsible for transport. Any replacement claims are inapplicable, and the transport company is responsible instead.

Line drawing of a person using a manual presser machine (no text or symbols present)

Diagram showing a hand holding a device with labeled parts, including a magnified inset highlighting components numbered 1 and 2.

Line drawing of a person using a mechanical device with a handle and base, no text or symbols present

Line drawing of a person using a foot presser to lift a seatbelt, with no text or symbols present.

Veiligheidsvergrendeling

Technical diagram showing a hand operating a device with labeled parts, including numbered callouts for component identification.

Red and yellow lawn mower on grass in a forest setting (no visible text or symbols)

Worker using a red-handled metal clamp to lift a tree branch, surrounded by greenery (no text or symbols visible)

Fresh lettuce growing in soil with a red-handled tool (no visible text or symbols)

40000000 00000000 TYPE MUSTEN

Illustration of a red spray gun attached to a green hedgehog, no text or symbols present

Red and black hair shaver in a grassy field with green foliage (no text or symbols visible)

Person using a red pushlifter on a paved path in a garden (no visible text or symbols)

Close-up of hands using a red-handled tool to cut a plant stem, no visible text or symbols

Red and yellow lawn mower on grass, no visible text or symbols

Close-up of a pair of planteers with red and silver blades, resting on leafy ground near a tree (no text or symbols visible)
