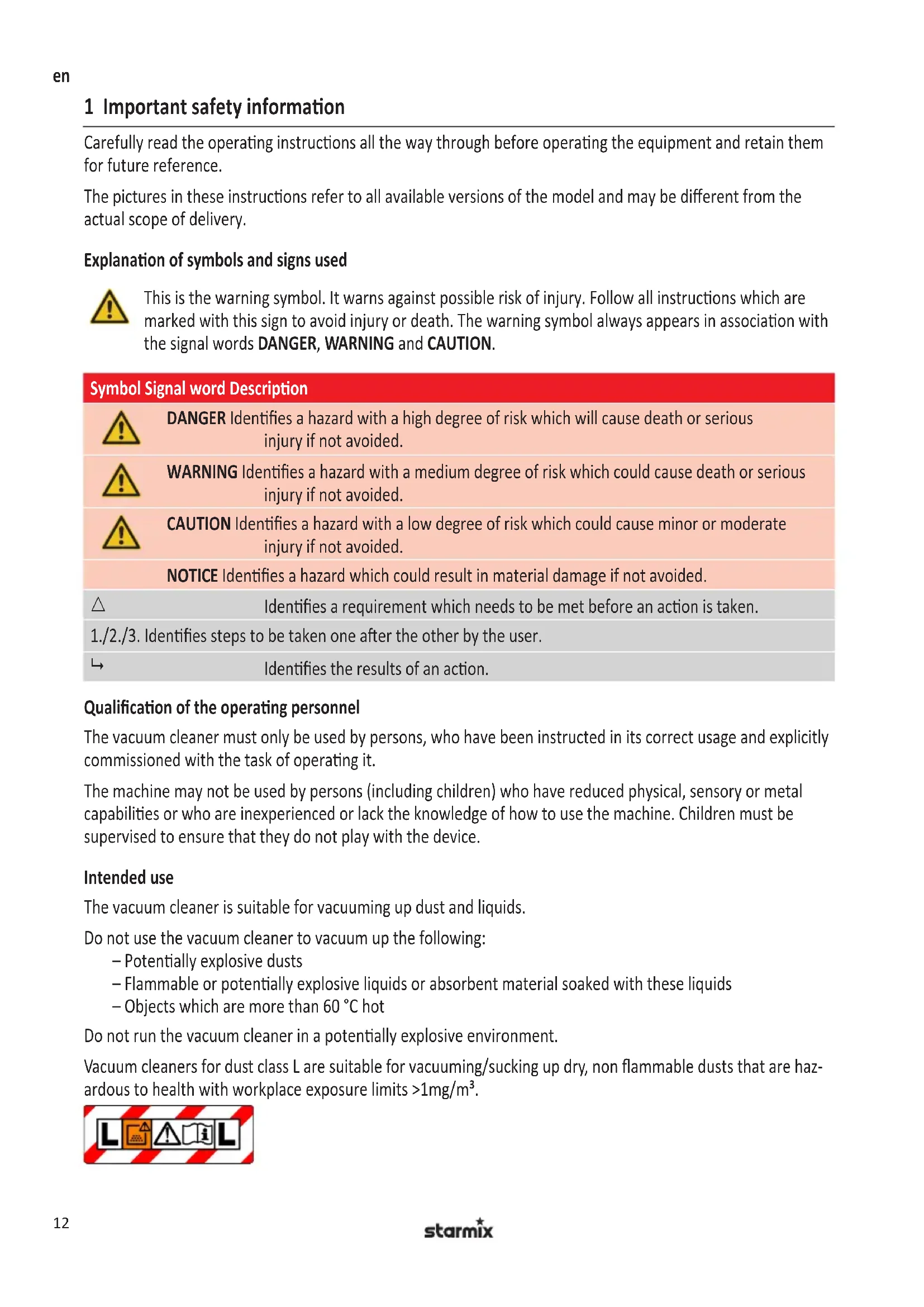

1 Important safety informaon Carefully read the operang instrucons all the way through before operang the equipment and retain them for future reference. The pictures in these instrucons refer to all available versions of the model and may be dierent from the actual scope of delivery. Explanaon of symbols and signs used This is the warning symbol. It warns against possible risk of injury. Follow all instrucons which are marked with this sign to avoid injury or death. The warning symbol always appears in associaon with the signal words DANGER, WARNING and CAUTION. Symbol Signal word Descripon DANGER Idenes a hazard with a high degree of risk which will cause death or serious injury if not avoided. WARNING Idenes a hazard with a medium degree of risk which could cause death or serious injury if not avoided. CAUTION Idenes a hazard with a low degree of risk which could cause minor or moderate injury if not avoided. NOTICE Idenes a hazard which could result in material damage if not avoided.

Idenes a requirement which needs to be met before an acon is taken. 1./2./3. Idenes steps to be taken one aer the other by the user.

Idenes the results of an acon. Qualicaon of the operang personnel The vacuum cleaner must only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operang it. The machine may not be used by persons (including children) who have reduced physical, sensory or metal capabilies or who are inexperienced or lack the knowledge of how to use the machine. Children must be supervised to ensure that they do not play with the device. Intended use The vacuum cleaner is suitable for vacuuming up dust and liquids. Do not use the vacuum cleaner to vacuum up the following: – Potenally explosive dusts – Flammable or potenally explosive liquids or absorbent material soaked with these liquids – Objects which are more than 60 °C hot Do not run the vacuum cleaner in a potenally explosive environment. Vacuum cleaners for dust class L are suitable for vacuuming/sucking up dry, non ammable dusts that are haz- ardous to health with workplace exposure limits >1mg/m³. 790749_112015_V03_GA_NSG.indb 12 28.01.2016 09:41:2513

Vacuum cleaners which are not idened as being suitable for dust class L are only suitable for vacuuming/ sucking up non-hazardous to health dusts. Only operate the vacuum cleaner under supervision. Do not climb onto or sit on the vacuum cleaner. This machine is intended for commercial use, for example, in hotels, schools, hospitals, factories, shops, oces and in the rental business. The manufacturer does not accept liability for damages caused by misappropriaon, inappropriate usage or incorrect repairs. Avoid danger from electric shocks The voltage on the rang plate must match the mains voltage. Only connect the vacuum cleaner to a suciently protected electric socket. Do not pull the mains connecon cable over sharp edges, do not bend it or clamp it. Only replace a damaged mains connecon cable with one meeng the specicaons in the Technical Data chapter. Do not use the vacuum cleaner including accessories in the following cases: – Mains connecon cable or extension cable is defecve or showing cracks. – There is visible damage to the vacuum cleaner, e.g.cracks in the housing. – If you suspect an invisible defect, e.g. aer a fall. In the following cases, switch the vacuum cleaner o and unplug it from the mains: – If any foam or liquid is discharged – In the event of a longer work interrupon and aer every use – Before carrying out any maintenance or retooling When unplugging, only pull on the mains plug and not on the mains connecon cable. Never touch the mains plug with wet hands. Do not open the vacuum cleaner outdoors in the rain or during a thunderstorm. Always keep the inside of the lid dry. Only use the brushes supplied with the vacuum cleaner or those specied in the operang instrucons. Using other brushes can compromise safety. Never allow electrical brushes to come into contact with the mains connecon cable. Avoid any danger during operaon Only for vacuum cleaners in dust class L: Make sure that the air exchange rate is high enough if the exhaust air is being fed back into the room (pay aenon to applicable naonal regulaons). Inform operang personnel about the following points before work starts: – Handling the vacuum cleaner – Dangers originang from the material to be sucked up – Safe disposal of the material sucked up Do not use the blowing funcon in closed rooms. Only work with a clean sucon hose. Do not sr up any dusts which are hazardous to health. Do not inhale dusts. When being used in food processing businesses: Immediately clean the vacuum cleaner aer use and disinfect it to avoid microbial contaminaon. Avoid any danger during maintenance and repair Only have repairs carried out by experts. Only use original accessories and spare parts. 790749_112015_V03_GA_NSG.indb 13 28.01.2016 09:41:2614

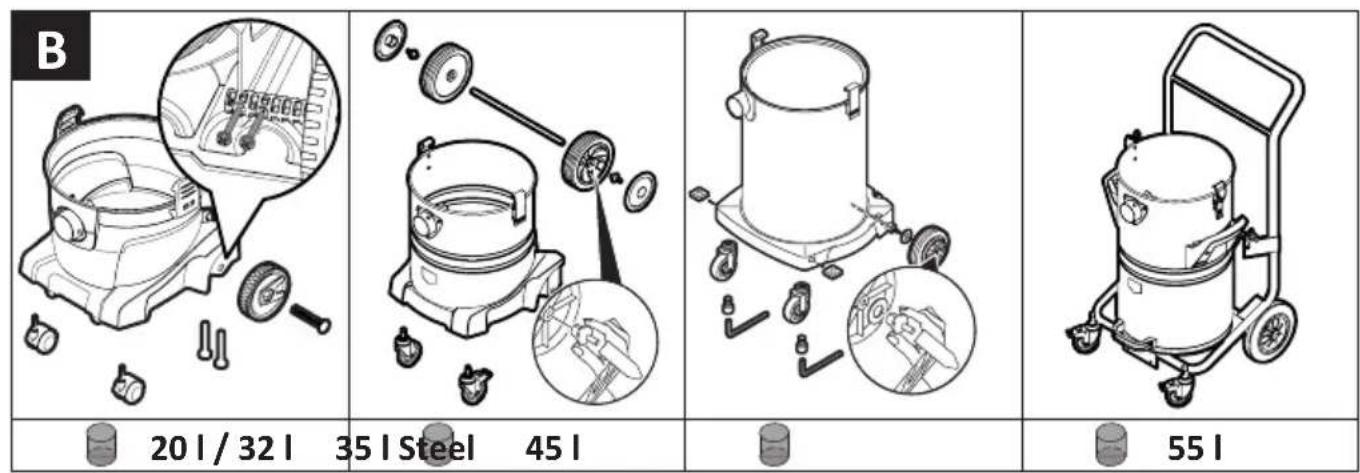

2 Before the rst start-up Assembly See Fig. B.

1. When unpacking, make sure everything is complete.

2. Immediately report any transport damage to the retailer.

3 Operaon Before every use, please note Make sure that the following condions are met: r Vacuum cleaner, mains cable, sucon hose and accessories are not damaged. r All lters have been inserted and are not damaged. Operang modes Operang mode (depending on equipment) Descripon Switch posion O Wall socket under voltage 0 On Wall socket under voltage, manual operaon

Minimum sucon power Vacuum cleaner operates at low power ECO Maximum sucon power Vacuum cleaner operates at maximum power MAX Standby mode for automac switch-on, innitely adjustable speed control ECO-MAX Vacuum cleaner is switched on and o by the electrical tool

Standby mode for automac switch-on, innitely adjustable speed control ECO-MAX, automac lter cleaning If the sucon power drops, the lter is cleaned in breaks between work (= switched o electrical tool) Automac lter cleaning (depending on the equipment variant) The vacuum cleaner is ed with an electromagnec lter cleaning system with which any aached dust is automacally shaken from the lter cartridge. Suck up dry materials Tools required Notes Main lter (lter cartridge) Vacuum cleaner, lter and accessories need to be dry. If frequently changing between wet and dry vacuuming, use a separate main lter. Filter bag for dust-free disposal of ne-grained material to be sucked up When vacuuming soot, cement, plaster, our or similar dusts: Insert a lter bag in the dirt container so that the dust does not sck and or cake. Accessories depending on the area of applicaon 790749_112015_V03_GA_NSG.indb 14 28.01.2016 09:41:2615

1. Set required operang mode on the switch.

9 Vacuum cleaner is ready for vacuuming.

2. To adjust the sucon power, select from the following opons (depending on equipment):

– Move switch to ECO posion – Set speed on the switch – Set auxiliary air slide on the handle tube Suck up liquids Volume of liquid Tools required Small volume of liquid Main lter (lter cartridge) Water nozzle Large volume of liquid Main lter (foam) Water nozzle

1. Remove lter bag from the dirt container before sucking up liquids.

2. Slightly open auxiliary air slide on the handle.

3. Move switch to posion I.

Before switching o the vacuum cleaner:

1. Remove sucon nozzle from the liquid.

9 Residual water in the sucon hose is sucked into the container and cannot leak out. If there is a sudden loss of sucon power and increased motor speed (changed motor noises), the oat valve has interrupted the sucon process: The container is full.

1. Switch vacuum cleaner o.

2. Empty dirt container and lter cartridge.

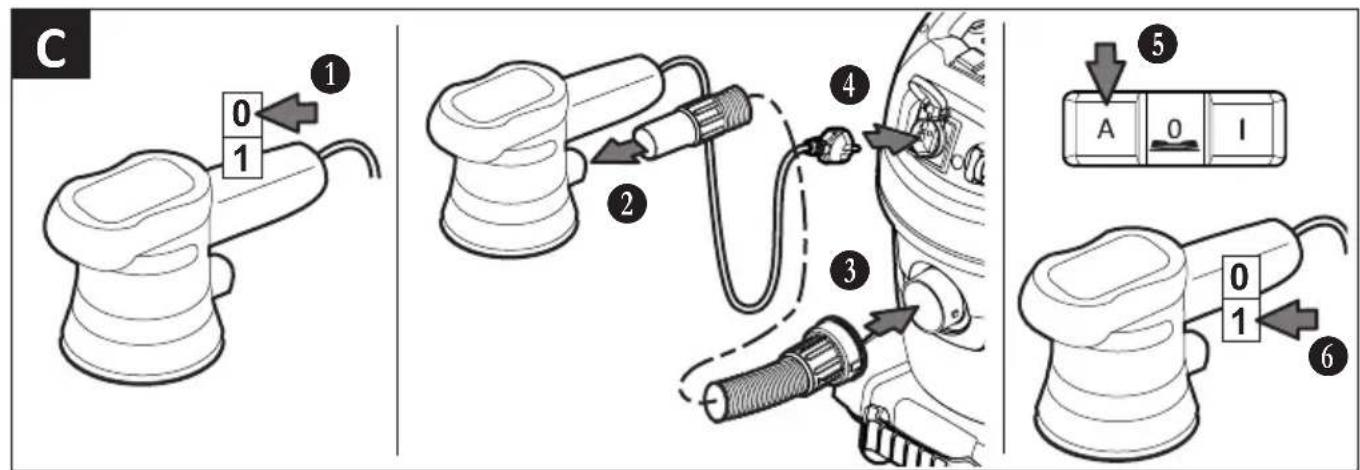

Connect an electrical tool See Fig. C. Use socket on vacuum cleaners with automac switch on/o (switch posion A) to connect electrical tools. The vacuum cleaner is switched on and o by the electrical tool. In switch posion 0, the socket can be used as an extension cable, e.g. for a light. Connecon value: Vacuum cleaner + electrical tool = max. 16 A (value depends on the country version, pay aenon to technical data). WARNING! The socket on the vacuum cleaner is always live. Risk of injury due to electrical tool automacally starng up.

1. Apply the brake with your foot.

9 The vacuum cleaner is prevented from rolling away. Smart Stop oers further funcons: – Handle to empty the dirt container – Ramp funcon to drive over obstacles 790749_112015_V03_GA_NSG.indb 15 28.01.2016 09:41:2616

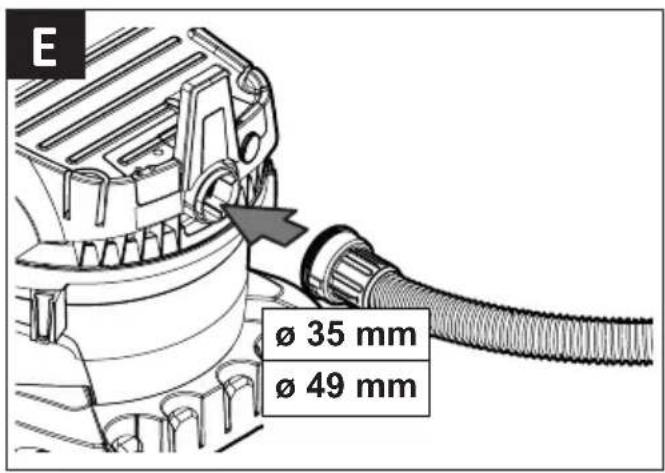

Blowing funcon See Fig. E. Only use the blowing funcon for cleaning, removing dust from and drying machines and appliances. Flow volume display See g. F. If the container is full or if there is a blockage in the sucon hose, the ow volume display lights up. Aer work See Fig. G.

1. Roll up mains connecon cable and sucon hose.

2. Store the accessories in the accessories holder.

Transport and storage

1. Before transport, close the locks on the upper part of the vacuum cleaner.

2. Pay aenon to the weight of the vacuum cleaner, parcularly if the dirt container is full.

3. Do not lt the vacuum cleaner if there is liquid in the dirt container.

4. Store the vacuum cleaner dry and indoors, protected from frost.

4 Troubleshoong and repair Fault Cause Remedy Sucon power drops Lid not properly closed Close lid Filter dirty Clean Filter bag full Change Container full Empty Motor protecon lter blocked Clean Nozzle, tube or hose blocked Clean Vacuum cleaner does not start Mains plug not in socket Plug in No mains voltage Check fuse Mains connecon cable defecve Have it replaced Water sensor/oater has switched

Empty container Switch in posion A Move switch to I Vacuum cleaner does not start when the electrical tool is switched on Electrical tool not plugged into socket on the vacuum cleaner Plug mains plug into socket on the vacuum cleaner Switch not in posion A Move switch to A Do not try anything else, contact customer services. 790749_112015_V03_GA_NSG.indb 16 28.01.2016 09:41:2617

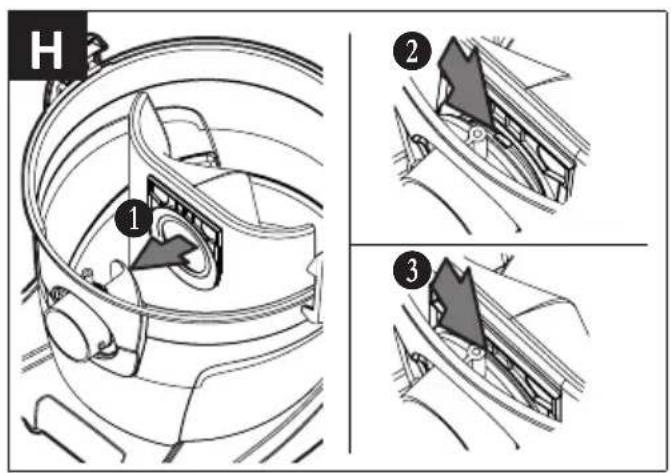

5 Maintenance See Fig. H-I-J-K. When maintaining and cleaning the vacuum cleaner, handle it in such a way that there is no danger for mainte- nance personnel and other people. Only for vacuum cleaners in dust class L For maintenance by the user, the vacuum cleaner must be – dismantled, – cleaned and – maintained, as far as possible without creang any danger to the maintenance personnel or other. Suitable precauonary measures include – Cleaning before dismantling, – Provide local ltered posive venlaon where the vacuum cleaner is to be dismantled, – Clean the maintenance area and – suitable personal protecon equipment. Have a technical inspecon carried out at least once a year by specialist personnel, e.g. checking for damage to the lter, air ghtness of the vacuum cleaner and that the control equipment is working properly. Contaminated items When carrying out maintenance or repair work, all contaminated items which have not been adequately cleaned must be disposed of. Such items must be disposed of in impermeable bags in accordance with the applicable regulaons concerning the disposal of such waste. Emptying the container Only permied for dust with workplace exposure limits >1mg/m³.

1. Switch the vacuum cleaner o, pull the mains plug out.

2. Open the latches.

3. Remove the cover and sucon hose from the container.

4. Empty the container by pouring out.

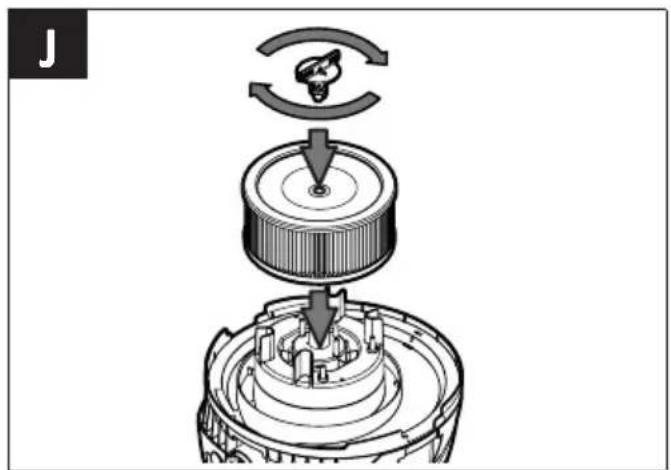

Replacing lter cartridge See Fig. J.

1. Switch the vacuum cleaner o, pull the mains plug out.

2. Open the latches.

3. Remove the cover from the container.

4. Loosen the locking screw.

5. Removing the lter cartridge.

6. Push new lter cartridge in a straight manner over the case, right up to the stop point.

7. Tighten the locking screw.

Dispose of lter cartridges, lter bags or disposal bags Dispose of the lter cartridge, lter bag or disposal bag in accordance with naonal regulaons. 790749_112015_V03_GA_NSG.indb 17 28.01.2016 09:41:2618

Cleaning Do not clean the vacuum cleaner with a high pressure cleaner. Only use a wet cloth and mild cleaning agents to clean it. Acids, acetone and solvents can etch parts of the vacuum cleaner. Clean the lter cartridge regularly, do not damage the ns while doing so. Only re-insert lter cartridges which you have cleaned using water when they are completely dry. Do not clean or dry lter cartridges using com- pressed air. 6 Disposal Old equipment contains valuable materials which are designed for re-processing. The vacuum cleaners must not be thrown away in the normal household waste, but should be disposed of at a suitable proper collecon system, e. g. via your communal disposal locaon. 7 Genuine accessories Descripon Order No. NSG uClean 14.. / LD 14.. / ADL 14.. Order No. NSG uClean ARDL 14.. Filter cartridge FPP 3600 415109 (540986) Filter cartridge FPPR 3600 413464 (529776) 8 Technical Data NSG uClean
