USER MANUAL LM 2147 CMDAE JONSERED

INSTRUCTION MANUAL (Original instruction)

IMPORTANT INFORMATION: Please read these instructions carefully and make sure you are not confused with the instructions in this text. Data in this section is for reference only.

understand them before using this unit. Retain these instructions for future reference. BETRIERSANWEISUNG (Ubersetzung der Originalanleitung).

ON Important Information: Please read these instructions carefully and make sure you

understand them before using this unit. Retain these instructions for future reference.

RO BAXKHbIE CBEDEHINB: BHMaTeIbHO IpOuHTaTb HnCTpyKmN XpoIoNX noHaTb, nepeD TeM

KAK NOB3OBATbC 6NOKOM. XpaHHTb HnCTpyKuIN dna daNBHeHmX KOHCyBtauHn.

KASUTUSJUHEND (Algse juhendi tolge)

TAHTIS INFORMATSICON: Lugee kasutujhend enne seadme kasutamistkindasti pohjalulti laji nino veyende, et plete konieit taseilr au saapund.

NAUDO JIMOSINSTRUKCIA (Laikytojas techning dokumentacija)

SVARBI INFORMACIJA: pries pradedantdirbtj renginiu, praosme atidzaiperskaityt siq instrukcija

ir isitikinti, kad viska supratote, Issauqokite ja tolimesniam naudoijmui.

Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

This manual has been prepared for use with different models of lawn mowers having different shapes and equipment.

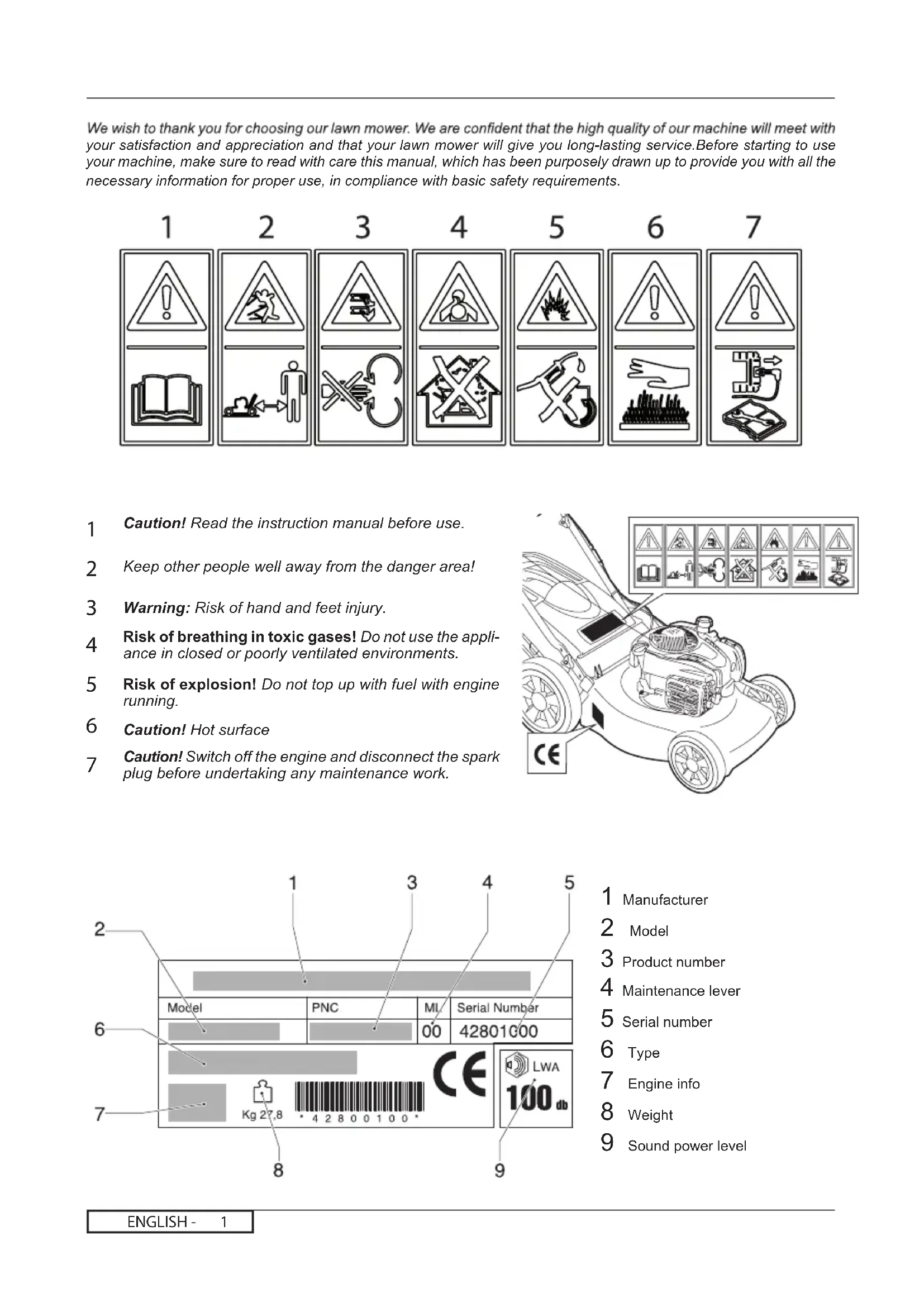

We wish to thank you for choosing our lawn mower. We are confident that the high quality of our machine will meet with your satisfaction and appreciation and that your lawn mower will give you long-lasting service. Before starting to use your machine, make sure to read with care this manual, which has been purposely drawn up to provide you with all the necessary information for proper use, in compliance with basic safety requirements.

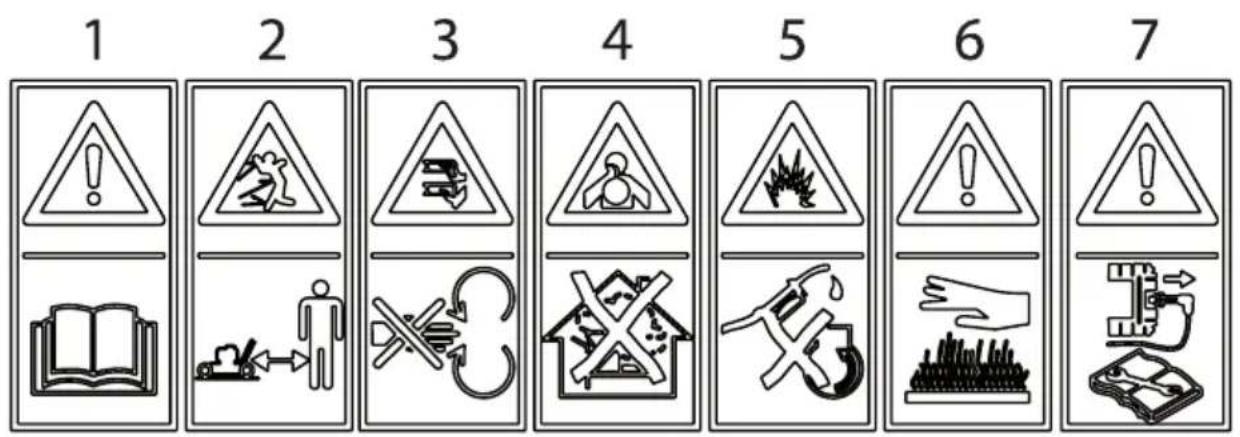

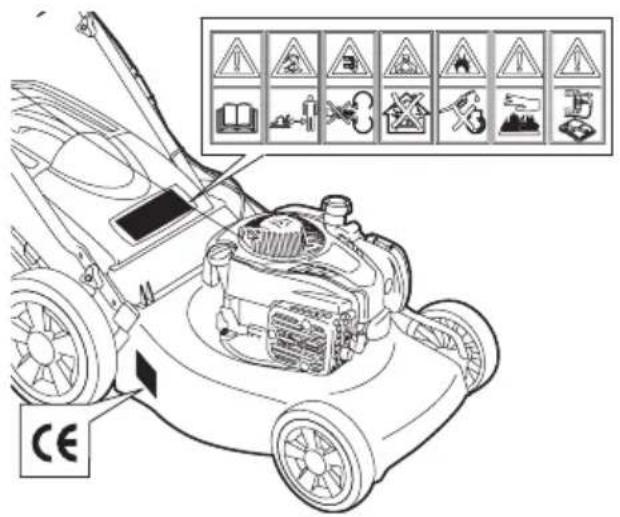

1 Caution! Read the instruction manual before use.
2 Keep other people well away from the danger area!
3 Warning: Risk of hand and feet injury.
4 Risk of breathing in toxic gases! Do not use the appliance in closed or poorly ventilated environments.
5 Risk of explosion! Do not top up with fuel with engine running.
6 Caution! Hot surface
7 Caution! Switch off the engine and disconnect the spark plug before undertaking any maintenance work.

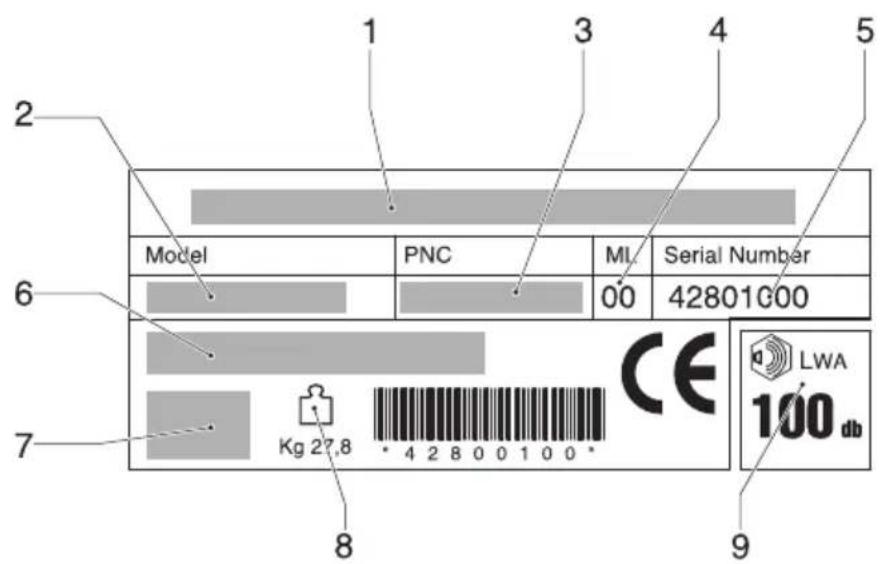

1 Manufacturer
2 Model
3 Product number
4 Maintenance lever
5 Serial number
6 Type
7 Engine info
Weight
9 Sound power level

SAFETY RULES

Safe Operation Practices for Pedestrian-Controlled Rotary Lawnmowers

IMPORTANT: This cutting machine is ca pa ble of amputat ng hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

I. Training

• Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
• Never allow children or people un familiar with the instructions to use the lawnmower. Local regulations may restrict the age of the operator.
• Never mow while people, especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

II. Preparation

• While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.
• Thoroughly inspect the area where the equipment is to be used and remove all objects which may be thrown by the machine.

• WARNING - Petrol is highly flammable.

• Store fuel in containers specifically de signed for this purpose.

• Refuel outdoors only and do not smoke while refueling.

• Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot.

• If petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapors have dissipated.
• Replace all fuel tanks and container caps securely.
• Replace faulty silencers.
• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to pre serve balance.
• On multibladed machines, take care as rotating one blade can cause other blades to rotate.

III. Operation

• Do not operate the engine in a confined space where dangerous carbon mon oxide fumes can collect.
• Mow only in daylight or in good artificial light.
• Avoid operating the equipment in wet grass, where feasible.
  Always be sure of your footing on slopes.
• Walk, never run.
  For wheeled rotary machines, mow across the face of slopes, never up and down.
  Exercise extreme caution when changing directions on slopes.
• Do not mow excessively steep slopes.

• Use extreme caution when reversing or pulling the lawnmower towards you.

• Stop the blade if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed.

• Never operate the lawnmower with defective guards, or without safety de vic es, for example defl ectors and/or grass catchers, in place.
• Do not change the engine governor settings or overspeed the engine. Operating the engine at excessive speed may increase the hazard of personal injury.
• Disengage all blade and drive clutches before starting the engine.
• Start the engine or switch on the motor carefully according to instructions and with feet well away from the blade.
• Do not tilt the lawnmower when starting the engine or switching on the motor, except if the lawnmower has to be tilted for starting. In this case, do not tilt more than absolutely nec es sary and lift only the part which is away from the op er a tor.
• Do not start the engine when standing in front of the discharge chute.
• Do not put hands or feet near or under rotating parts. Keep clear of the dis charge opening at all times.
• Never pick up or carry lawnmower while the engine is running.

• Stop the engine and disconnect the spark plug wire:

• before cleaning blockages or un clog ging chute;

• before checking, cleaning or working on the lawnmower;
• after striking a foreign object. Inspect the lawnmower for damage and make repairs before re starting and operating the lawnmower;

• if the lawnmower starts to vibrate abnormally (check immediately).

• Stop the engine:

• whenever you leave the lawnmower;

• before refuelling.

• Reduce the throttle setting during en gine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

• Go slow when using a trailing seat.

IV. Maintenance and Storage

• Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.
• Never store the equipment with petrol in the tank inside a building where fumes may reach an open flame or spark.
• Allow the engine to cool before storing in any enclosure.
• To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease.
• Check the grass catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• If the fuel tank has to be drained, this should be done outdoors.

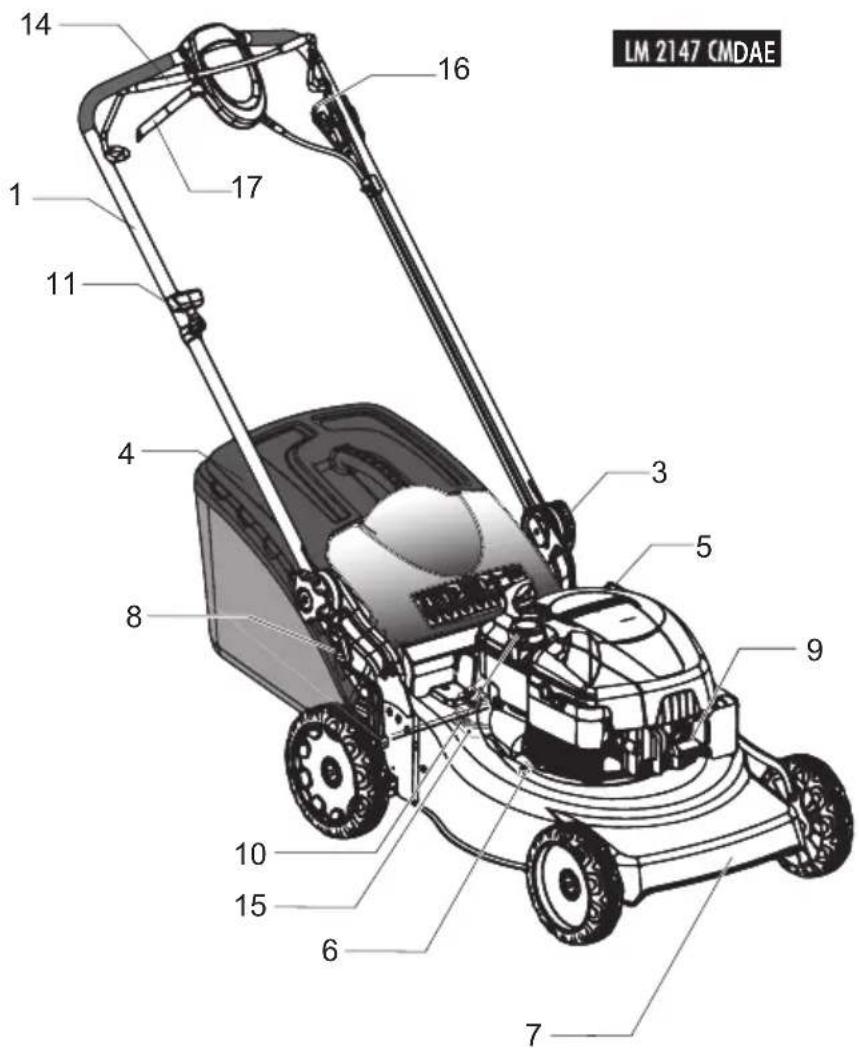

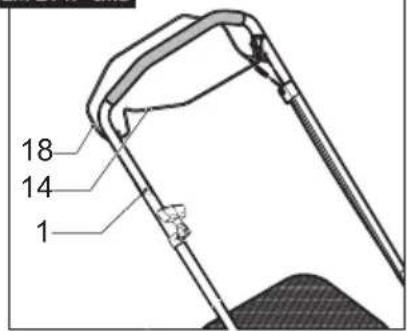

DESCRIPTION

1 Upper handles
2 Fuel-enrichment pump
3 Fastening knobs for upper handles
4 Grass catcher
5 Oil filler cap
6 Oil drain plug
7 Deck
8 Adjusting levers for cutting height
9 Spark plug
10 Fuel cap
11 Engine start-grip

12 Rear deflector
13 -
14 Engine stop lever
15 Reduction gear
16 Ignition key
17 Handle advance speed
18 Clutch lever

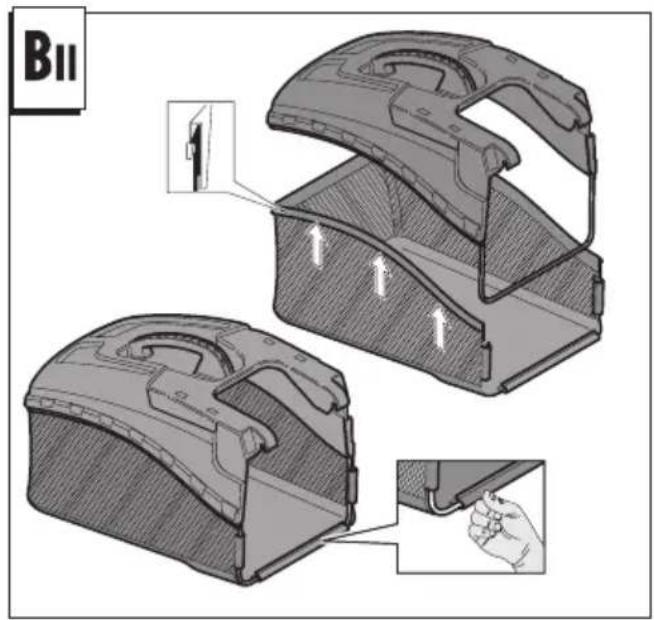

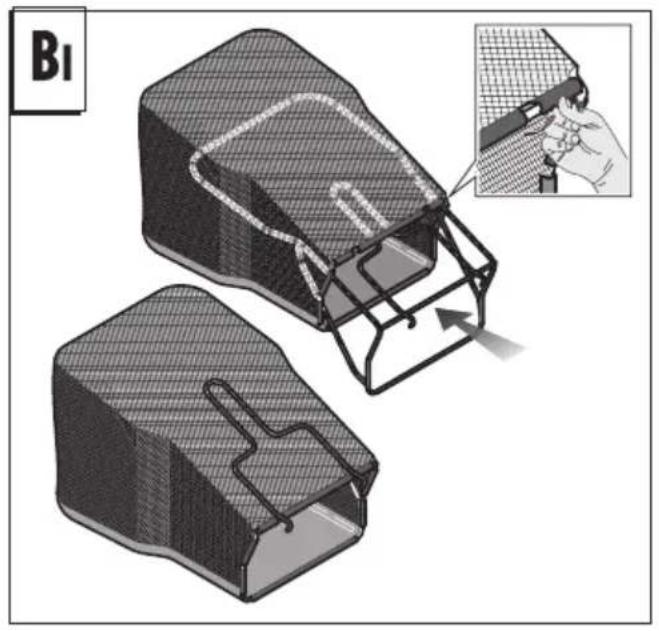

ASSEMBLY OF GRASS CATCHER

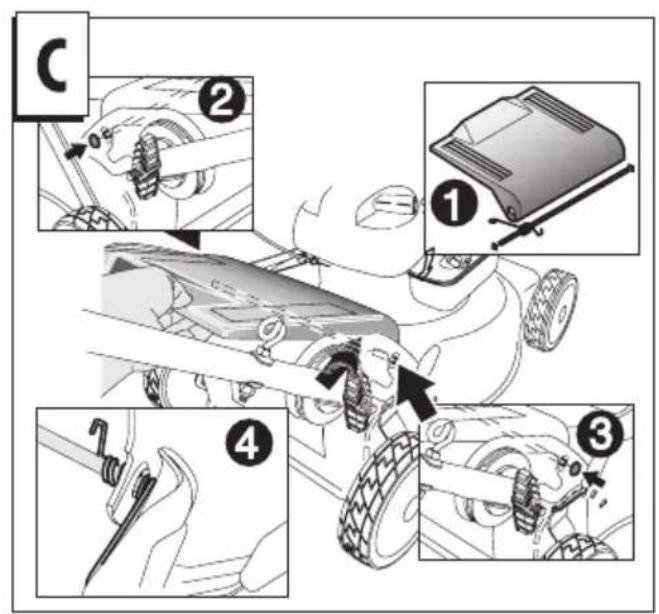

ASSEMBLY DEFLECTOR (if not already assembly)

ASSEMBLYHANDLES (lower)

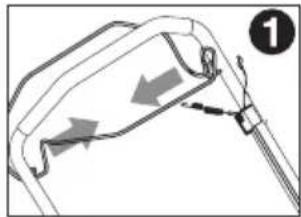

ASSEMBLYHANDLES (upper)

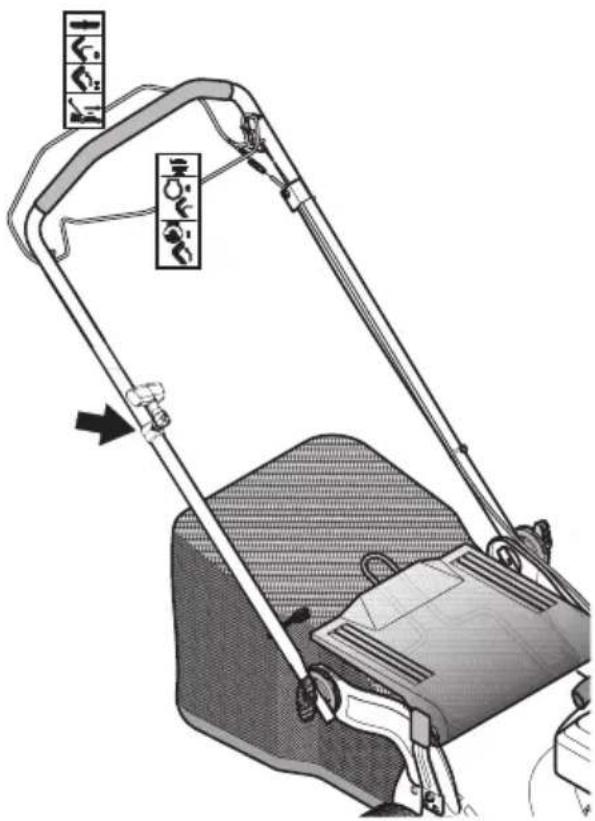

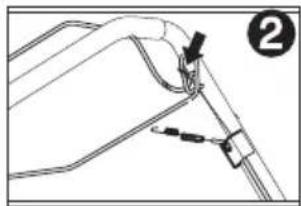

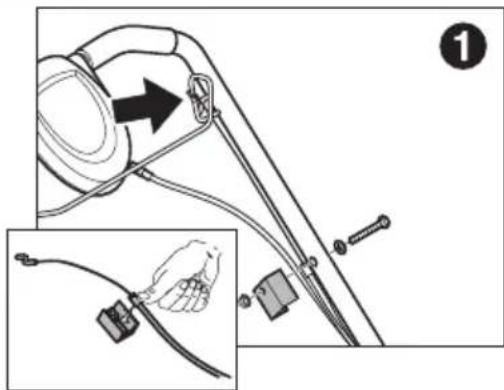

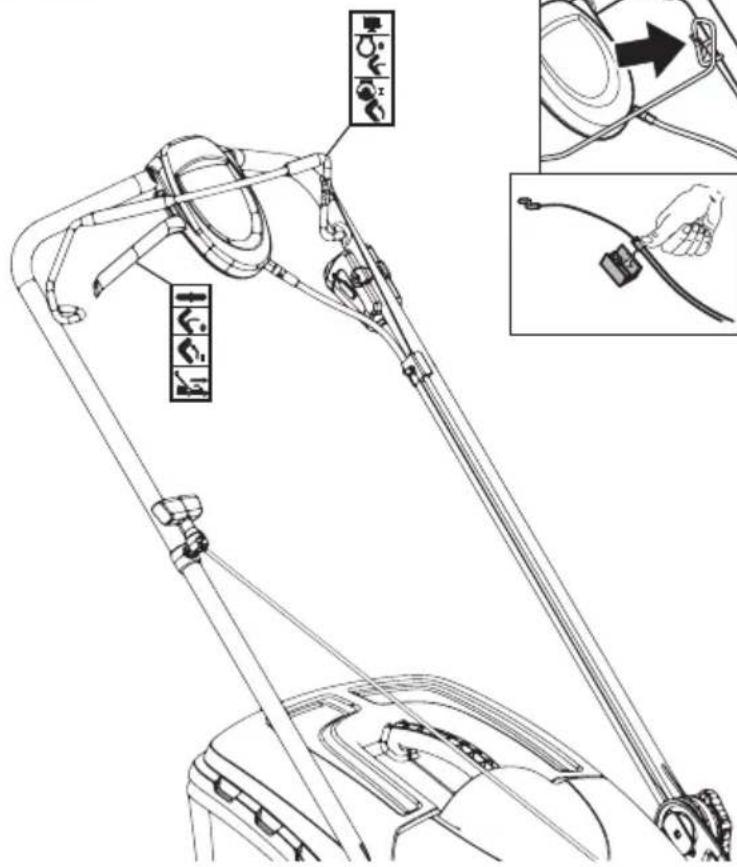

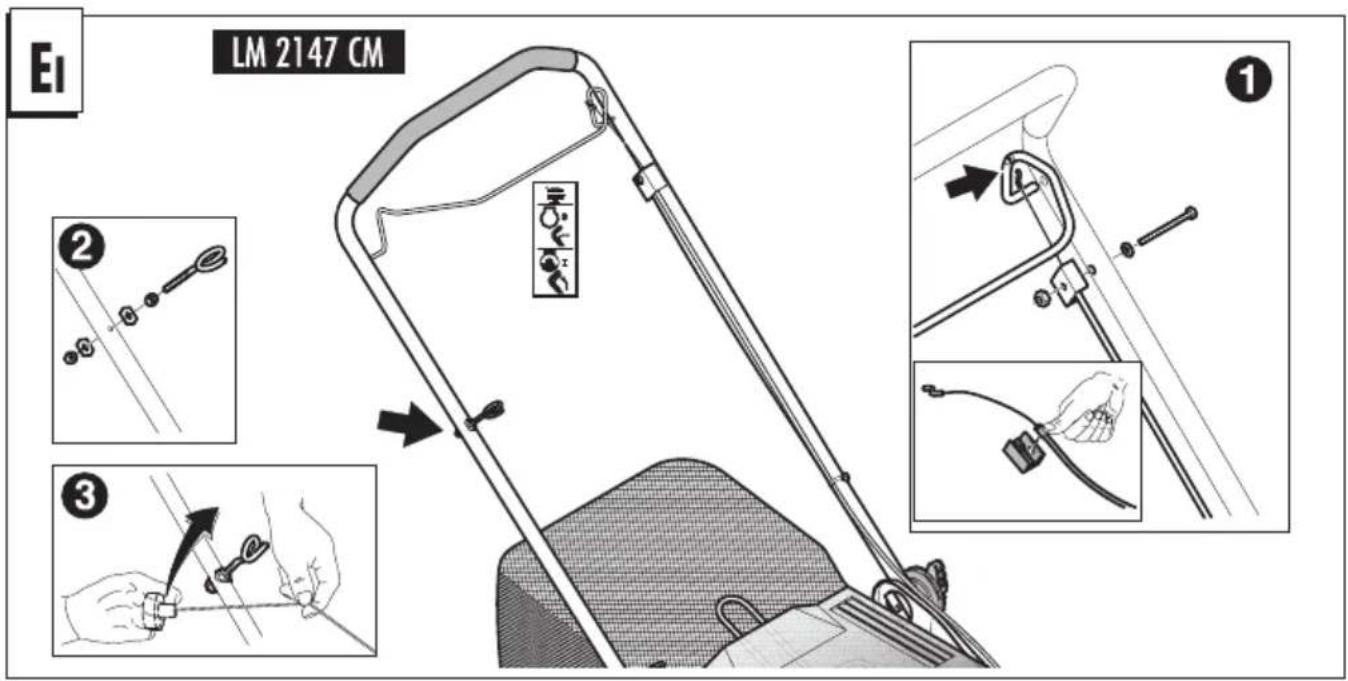

Use enclosed straps to secure cables to the handle, as shown in E1. Do not overstretch cables when mounting.

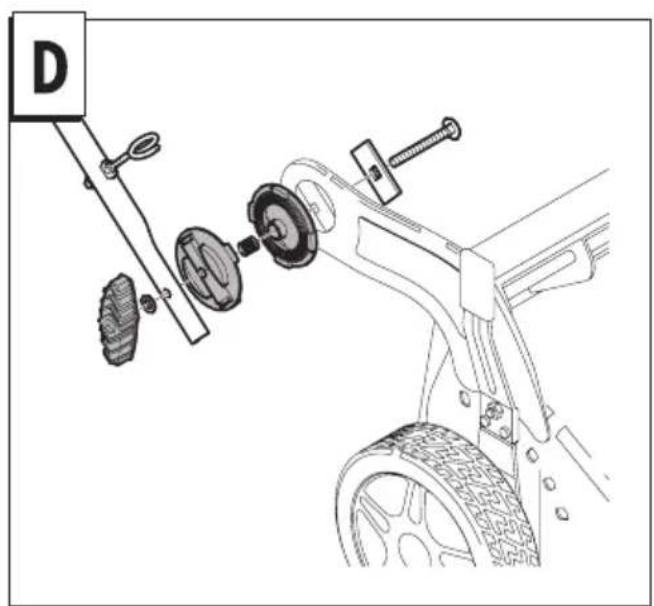

ADJUSTMENT OF HANDLES

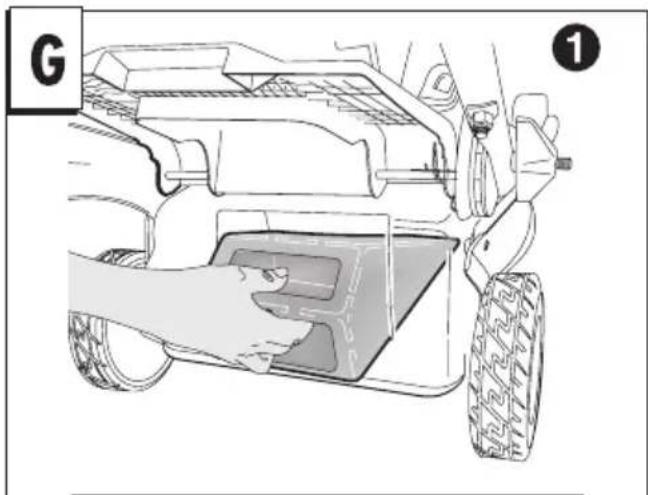

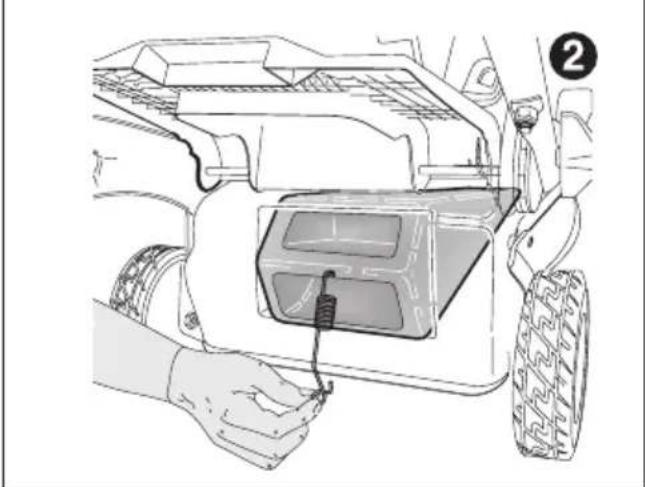

MULCHING CAP INSERTION (for the models where it is included only)

To cut the grass with the mulching system (no grass collection), lift the rear deflector panel and insert the cap by fixing it with the spring as shown in the figure.

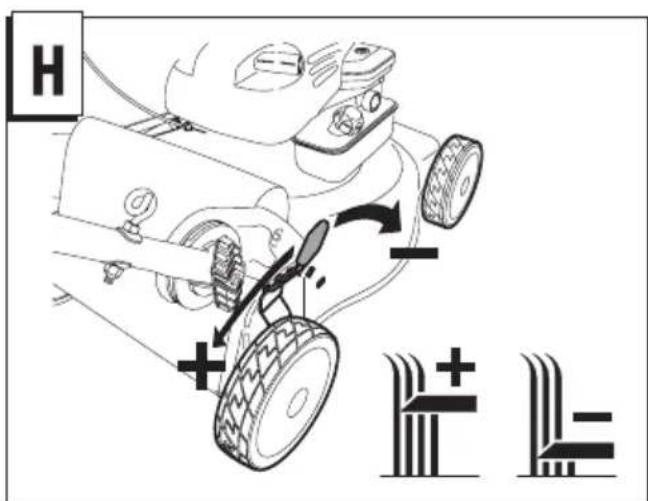

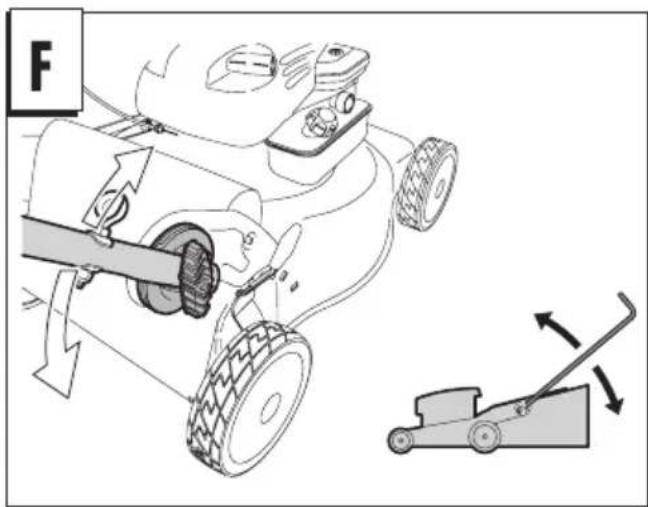

ADJUSTMENT OF CUTTING HEIGHT

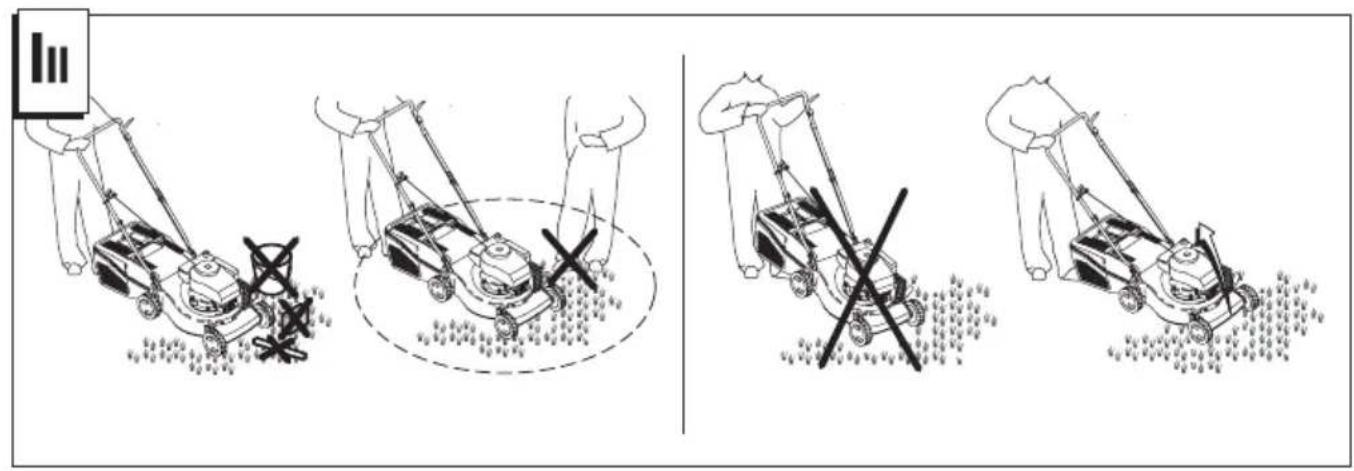

SAFETY PRECAUTIONS

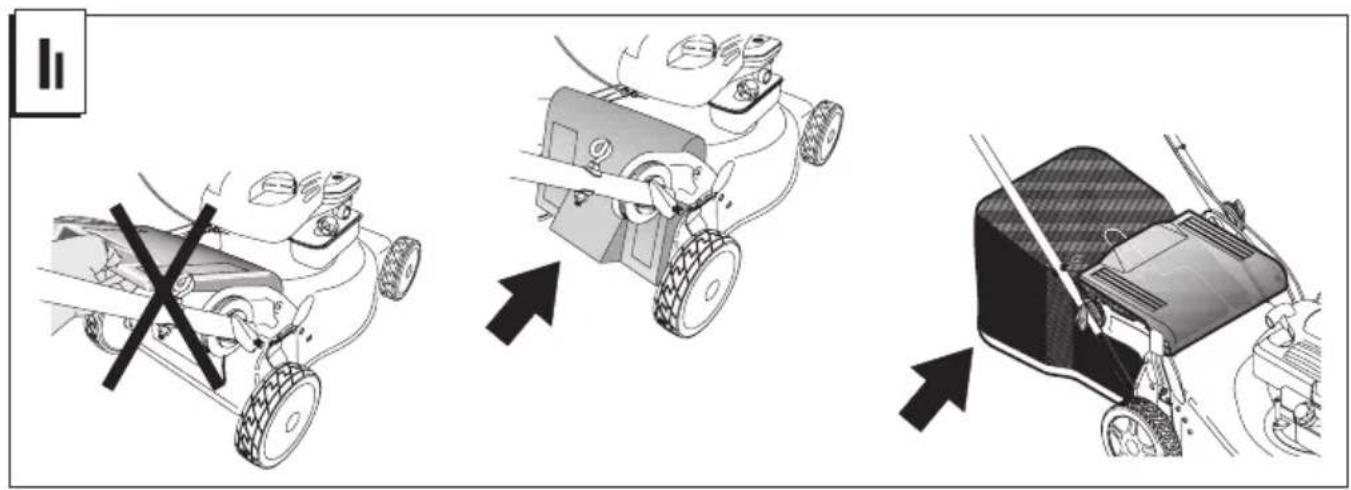

• Always operate with the deflector or grasscatcher in the correct position.
• Always stop the engine before removing the grasscatcher or adjusting the height of cut.
• Never place your hands or feet underneath the deck or into the grass discharge chute while the engine is running.

Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed.

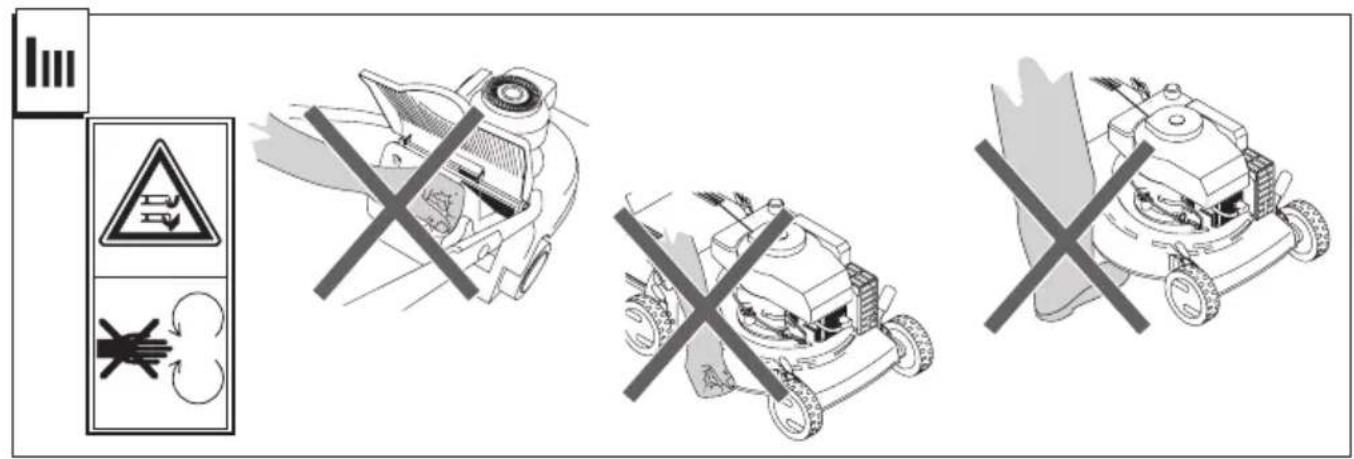

Never lift the rear of the mower while starting the engine or during normal operation.

Never place your hands or feet underneath the deck or into the rear discharge chute while the engine is running.

OPERATION

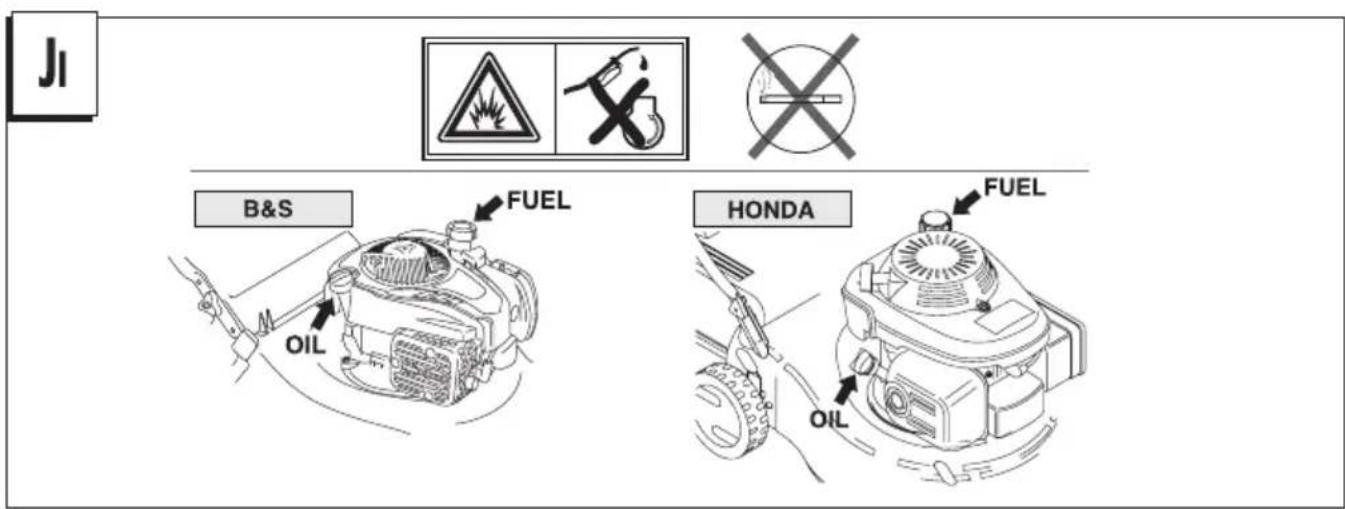

ENGINE ADJUSTMENTS (Fig.JI)

Refer to the engine manufacturer's maintenance manual.

TION:- Oil must be added to the

he before use.

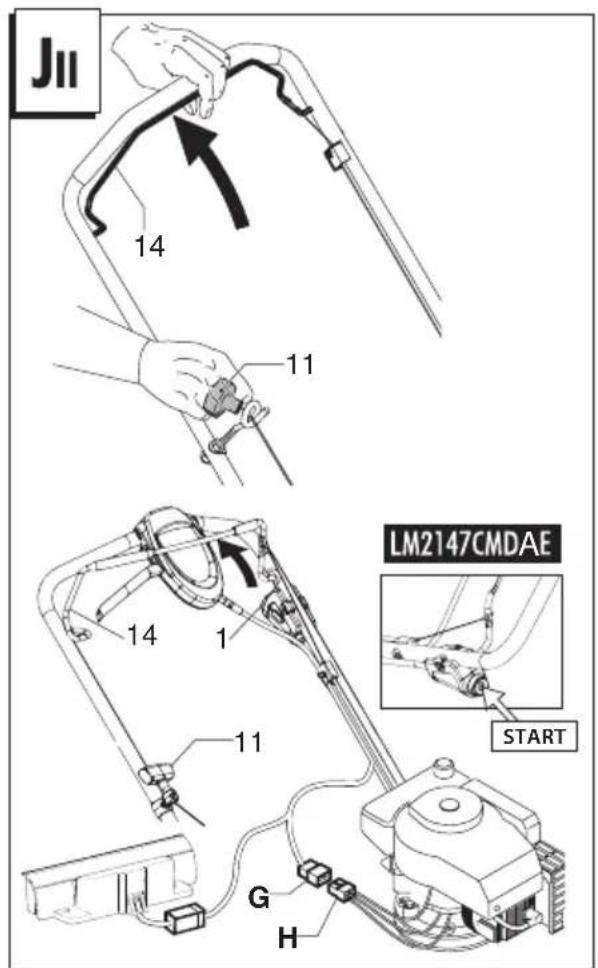

STARTING THE ENGINE (Fig.JI)

Once the machine has been set up properly, start the engine as follows:

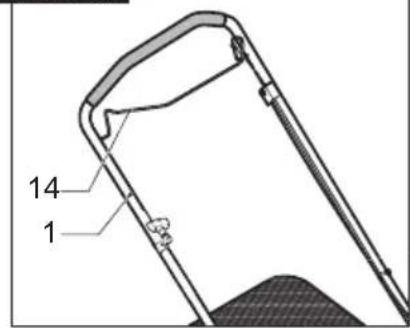

a)Operate the engine stop lever (14) to prepare the engine for start, keep lever pressed against handle while starting and using the machine (it operates the engine brake).
b) Engines with primer system: Press the fuel-enrichment pump (2) located on the carburettor 3 or 4 .semit

For further information and explanations, read carefully the user instruction manual of the engine.
c) Start engine.

MANUAL STARTING: (While holding the engine stop lever (14)).

Hold the engine start-grip (11) and pull the starter rope gently until you feel the resistance caused by compression. Return the starter rope slowly then pull the handle firmly towards you to it's full extent

ELECTRICALS TARTING: (While holding the engine stop lever (14)).

Insert the plug (G) in the socket (H) on the engine.

Turn the ignition key (16).

ION: The blade starts turning as soon as engine is started.

Keep the engine stop lever (14) depressed during machine operation. When the lever is released, the engine stops.

MOWING

To cut the grass, push the lawn mower manually or insert the automatic advance gear.

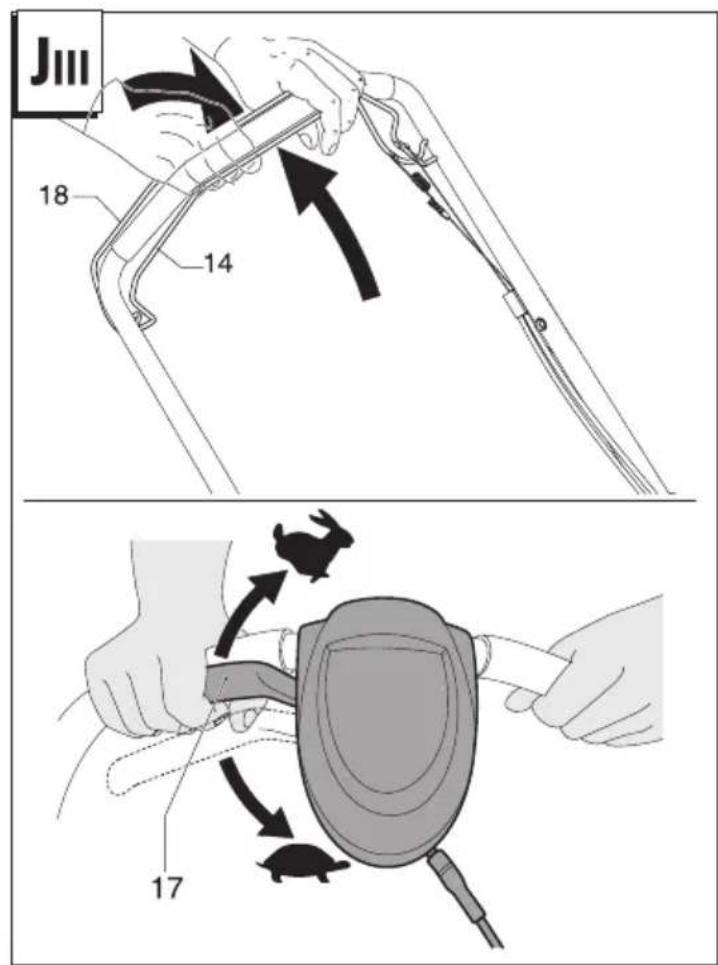

How to insert automatic advance (Fig. J III): Lift up the clutch handle (17 - 18) and keep it pressed in position.

CAUTION: Engage the gear only when the engine is running.

How to disengage advance: Release the clutch handle.

Before pulling the machine towards you, disengage the drive and push the machine forward approx 10cm

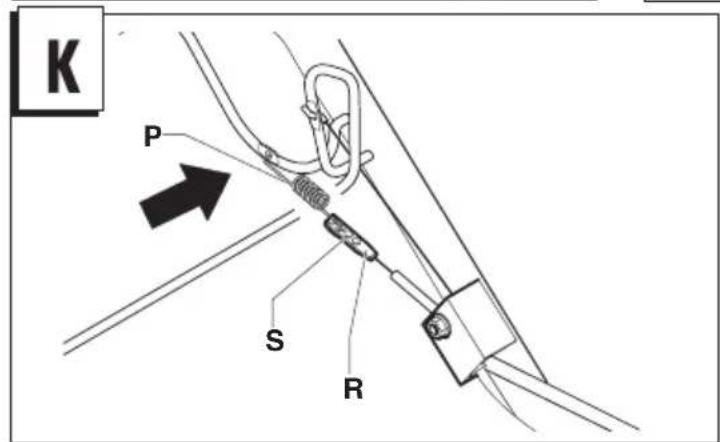

ADJUSTMENT OF CLUTCH CABLE (for self-propelled versions only)

Important: If, when you press the clutch lever, the automatic advance gear does not engage, the clutch cable should be adjusted by inserting the spring (P) in one of the subsequent holes in the plate (R) or in the hole "S".

MAINTENANCE

Caution! Switch off the motor and disconnect the spark plug before undertaking any maintenance work.

• For a four stroke engine, check the oil level and change the oil when dirty. For further explanation, see ENGINE INSTRUCTION BOOK.
• Frequently check the mower and ensure that all grass deposits are removed from beneath the deck.
• Never clean the mower by pouring water over it: this may seriously damage the electric start system.
  Take care, the exhaust muffler may be vaery hot.

• Frequently check the blade for damage.

• The lawn mower must be checked by a SERVICE DEALER.

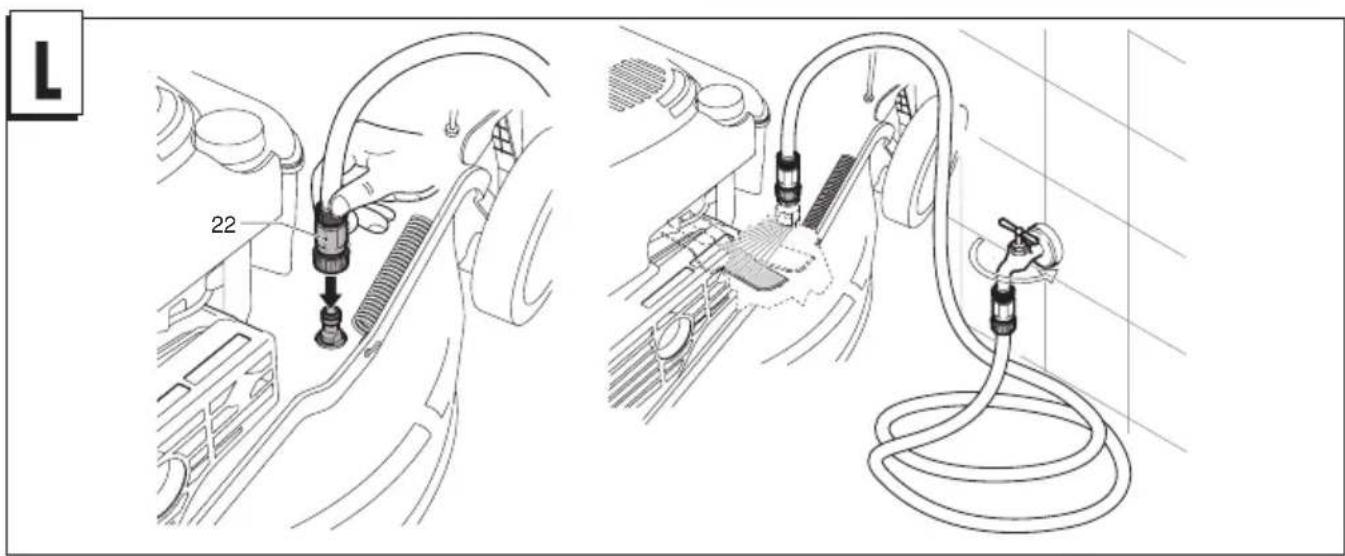

• Cleaning under the bodywork

With machine at a standstill and off.

• Attach fitting (22) on the deck to the water supply tap.
  Turn on the tap.
• start up the motor (blade in rotation), allowing it to warm up for a few minutes.
• at the end of cleaning switch off the motor, turn off the tap, detach the tube from the deck connection.

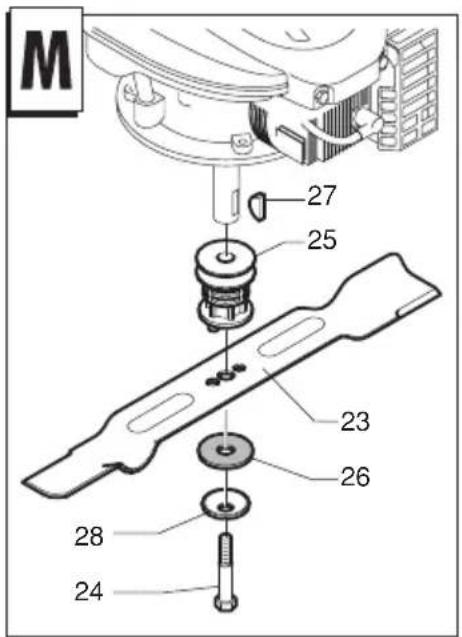

BLADE

To remove the blade (23) unscrew the screw (24).

• Check the conditions of the blade-support (25), the washer (26), the key (27) and the washer (28) and replace any parts which are damaged.

• When reassembling, make sure that the key (271) is correctly seated in the shaft and that the cutting edges face in the direction of the engine rotation. The blade screw (24) must be torqued to 5,34 Kgm (52,4 Nm).

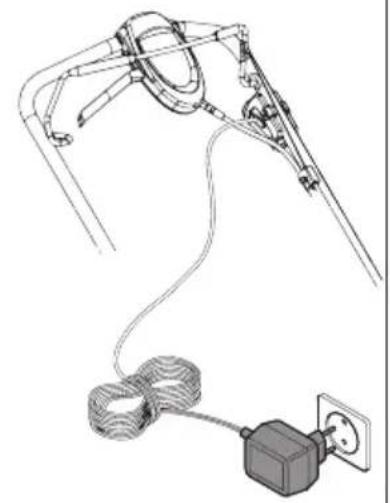

KIT ELECTRIC STARTING

Before starting the motor for the first time, you are advised to keep the battery on charge for 2 to 3 hours.

If the battery proves to be low during starting, charge it for 24 hours.

When starting, don't keep trying to start for more than 5 seconds.

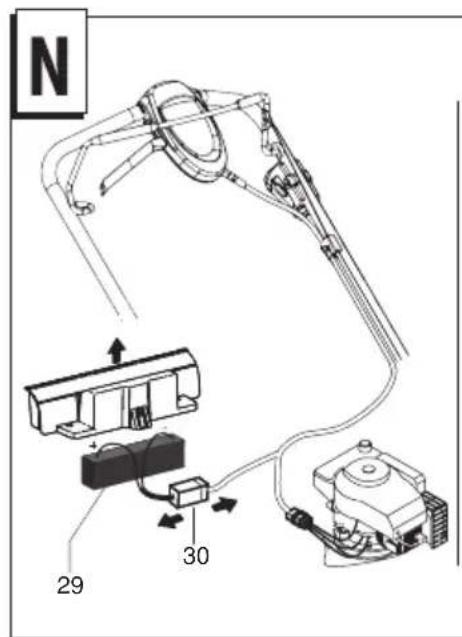

BATTERY MAINTENANCE

IMPORTANT

For correct battery maintenance (29), especially in preparation for a long period of inactivity, and for recharging, it is not necessary to remove it from its casing, but to simply proceed as follows:

1) Remove contact (30
2) Store the battery in a fresh and dry place.
3) Recharge the battery before use at room temperature for 24-36 hours.
4)Restore the contact (30) before use

BATTERY DISPOSAL

Those batteries marked with a "crossed out waste disposal bin" and bearing the chemical symbol Pb (battery containing lead) are not to be disposed in domestic waste bins.

The user is legally obliged to take the used batteries to special collection points or to return them to the retailer.

GUARANTEE AND GUARANTEE POLICY

If any part is found to be defective due to faulty manufacture within the guarantee period, Husqvarna AB, through its Authorised Service Repairers will effect the repair or replacement to the customer free of charge providing:
a) The fault is reported directly to the Authorised Repaier.
b) Proof of purchase is provided.
c) The fault is not caused by misuse, neglect or faulty adjustment by the user.
d) The failure has not occurred through fair wear and tear.
e) The machine has not been serviced or repaired, taken apart or tampered with by any person not authorised by Husqvarna AB.
f) The machine has not been used for hire.
g) The machine is owned by the original purchaser.
h) The machine has not been used commercially.
- This guarantee is additional to, and in no way diminishes the customers statutory rights.

Failures due to the following are not covered, therefore it is important that you read the instructions contained in this Operator's Manual and understand how to operate and maintain your machine:

Failures not covered by guarantee

• Replacing worn or damaged blades
• Failures as a result of not reporting an initial fault.
• Failures as a result of sudden impact.
• Failures as a result of not using the product in accordance with the instructions and recommendations contained in this Operator's Manual.
• Machines used for hire are not covered by this guarantee.
• The following items listed are considered as wearing parts and their life is dependent on regular maintenance and are, therefore not normally subject to a valid warranty claim: Blades, Electric Mains cable, Belt

CAUTION!

Husqvarna AB does not accept liability under the warranty for defects caused in whole or part, directly or indirectly by the fitting of replacement parts or additional parts that are not either manufactured or approved by Husqvarna AB, or by the machine having been modified in any way.

EC DECLARATION OF CONFORMITY

I, the undersigned Claes Losdal, Husqvarna AB, Drottninggatan, SE-561 82 Huskvarna, Sweden (keeper of technical documentation). Certify that the Lawnmower:-

Category . . .Petrol Wheeled Rotary

Make .Husqvarna AB

Conforms to the specifications of Directive 2000/14/EEC

Type.

Version. B

Width of cut. C

Guaranteed sound power level.

Measured sound power level.

Sound pressure livel at the ear (measurement uncertainty)) K = 1 dB( A) F

Vibration of the handle (measurement uncertainty) K = 1 m/s^2

(See the last page for references)

Type of Cutting Device . Rotary Blade

Identification of Series . See Product Rating Label

Conformity Assessment Procedure . ANNEX VI

MOD.LM2147CM,LM2147CMD,LM2147CMDAE

Notified Body.. .Nr. 0470 - NEMKO AS

Gaustadalleen 30 - PO Box 73 Blindern

0314 OSLO - Norway

MOD.LM2146CMD

Other Directives 2006/42/EC,93/68/EEC,2002/88/EC,2004/108/EC

& applicable standards normative EN836,EN ISO14982,EN1033,EN ISO 3744,EN ISO11201

Claes Losdal

Technical Manager

Husqvarna AB

Drottnggatan, SE-561 82 Huskvarna, Sweden

2013/08/30

MOD.LM2147C;LM2147CMD,LM2147CMDAE

Organisme notified.. .Nr.0470- NEMKO AS

Gaustadalleen 30 - PO Box 73 Blindern

0314 OSLO - Norway

MOD.LM2146CMD

Organisme notified.. .Nr. 0404 - SMP Svensk Maskinprovning AB

Fyrisborgsgatan 3

754 50 Uppsala - SWEDEN

Autres directives. 2006/42/EC, 93/68/EEC, 2002/88/EC, 2004/108/EC

et aux normes. EN836,EN ISO14982,EN1033,EN ISO 3744,EN ISO11201

Claes Losdal

Technical Manager

Husqvarna AB

WERKEN MET DE MAAIMACHINE

VOORBEREIDING VAN DE MOTOR (Fig.JI)

Uppmatt Ijudniva pa motor. E

Ljudtrycks niva (matosakerhet) K= 1 dB(A) F

Vibrationer i styre (matosakerhet) K = 1m / s^2 G

e com as normas EN836,EN ISO14982,EN1033,EN ISO 3744,EN ISO11201

Claes Losdal

Technical Manager

Husqvarna AB

ELEKTROMOS INDITÓ KIT

"AAeO8yie" 2006/42/EC,93/68/EEC,2002/88/EC,2004/108/EC

xuue ta qototua EN836,EN ISO14982,EN1033,EN ISO 3744,EN ISO11201

Claes Losdal

Texvikoc AIEuOuvtnc

Husqvarna AB

GWARANCJA I WARUNKI GWARANCJI

CBOPKA BEPXHIX PYKORTOK (BEPXHIX)

C nomoouBxOaIuX B KOMnKeT peHne 3akpeNte Ka6eH Na pyKoRtke, Ka noka3aHO Ha pncyHke E1. 3anpeaaetc ype3MePno paCTaRnBaTb Ka6eH np NkpeJIeHN.

PERYUNPOBKA PYKORA

YCTAHOBKA KOLNAKA MYIbHINPOBAHINBKKIOUeHO B COCTaB)

(Tonbko Jnla MoedeJe, rIe 3TO

ДясретаТравьспомоьюСистмБМЛьншюВань(6e3сбopaТравь)，ПОД humite 3aДHIOу NaHeIb OТражATEЯИ BCTaBTe KOLnak,ФИКСИРУЕгОСпOMоьюпчкIN，ΚΑК NOKаЗАHOHa PUCYHKe..

PEYJINPOBKA CPE3A

MEPbI 6E3OJACHOCTN

Bcerda kcnnyaTpyte arperat cytaHOBneHHbIM B npabunbHOM NOLOXKeHN OTpaKaTeMe NIN yNOBNTeMe TpaBbl.
Bcerda octaHaBnBaIte DnraTeIb, nepeD CHrTmE ynaBnBaTeIa TpaBbl nII peryNpuBOKo BBICOTbI cpe3AHJ.
HnKorda He noctablan Te Baun pykn nn Horn noan any6ky nn BHytpb IOTKa Bbyrpy3Kn TpaBbl, noka DnirateJIb pa6otaet

Ipepe nepemeeHHem, y6epnte noctopOHnne npedMeTb c Lykaikn, KOtOpblc Moryt pa36paocbBaTbca MaunHO. Bo Bpem KoWeHnBHNMaTeJbHo CneDNTe 3a NOCTOPOHmN npedMetamn, KOtOpblc Bbl MoIN yNcyTb N3 BVdy.

HnKOrda He noDHMaIte 3aHIOU qAcTb KocNIKn BO BpeM 3anycka DnIraTeN INB TeueHne HopMaJIbHOH pa6Otbl.

Hnkorga He noctabnTe Baun pykn nnn Horn noD onaIy6ky nn BHytpb IOTKa Bblpy3Kn TpaBbl, Noka Dniratnb pa6oTaet.

3KCNJYATAU

PEYNIPOBKNIBNATEJI (PcCyHOKJI)

O6paTnTecb K pyKOBoDcTBy no TexHnueckomy 06CnyKuBaHNIO n3rOTOBuTEna DBrTaTeN.

BHHMaHHe: Heo6xoJIMMo JOnITb MaCna B DnurTaTeJIb nepei nCNoJIb3OBAHnEM.

3anyck DnurataJI (PcyHOK JII)

Kak ToIbko MaunHa 6bHa HacTpoEHa npaBnIbHo, 3aNyCTNTe DnIraTeNb CneNyUoUm o6pa3Om:

a) Iopap6oTaTe pbyarom ocTaHOBKn DBurateJIa (14) nla NOIroTOBKN DURATeJI K 3anyCKy, ydepXNBaTePBuAR npNktaBM KpyKe npn 3anycke N 3KcNpyataun MaunHbI (OH ynpabJrER TOpMOzOM DURATeJIa).
b)Дигагелп сдетоннруюш счсемо:

3 nnn 4 pa3a haxmnte Ha Hacoc o6oraueHnra TOnnBa (2), pacnoIooKeHHb Ha Kap6oPaTope.

JaBHeWne CBeHnNIO6bAChEHnIPOHTTE BHMATEbHO BpyKOBOCTBE NOb3OBaTeTJ DnI DBrTaTeJ.

c)3anyctnteDnBraTeIb.
PYHON 3ANYCK: (Pn yepkaHnn pbyara ocTaHOBKn DnurataJIa (14)).
XydepKuBaIte cUeJIeHne DnurateTJI (11) n noTHNe UHyp CTapTepa MRAKO Do Tex NOp, NOKa BbI He NouyBCTByIte COnpOTnBLeHne, Bb3BaHHOe KOMnPecCneN. Bo3BpaTIte MeDNeHNO SHyP CTapTepa, 3aTeM NOTAHTE pyKoTky TBepdo Do NoJHOrO paCTJKeHn.

3JIeKTPUeCKN 3AUYCK: (Ipn ydepkaHn pbuara octaHOBKn DnRaTeTn (14)).

BCTaBbTe BUNKy (G) BrHe3do (H) HaDburataTe. NObepHnTe KInou 3axunraHn (16).

BhImaHHe:Je3BHe NaHHaET BpaueHHe, KaK TOnbKO 3aNyCKaeTcBnTaTeNb.

ДеркитepbUar octaHOBKn DBnraTeN（14）npnxTaBIM B TeueHne pa6Otbl MaunHbI. KOrda pbyar OTnyckaetc, DBnraTeJIb OCTaHaBnBaETcR.

KOLSEHNE

IЯ cpe3Kn TpaBbl, ToJIkaIe Ra3OHOKOcNkY BpyHyIO NIN BCTaBBTe 3y6uATyIO nepedauy ABTomAtuYeCKOro NODBoA. KaK BCTaBnTb ABTomAtuYeCKn NODBoD (PncyHok JII): POnHMInTepyKoRTky ynpabLeHnMyΦToJ CcERneHn(17-18) nUdepXnBaHTe ee npxKaToB D DAHHOM NOJoxKeHN.

BHHMaHHe: BBoDInTe cUeNneHne 3y6uAtOn nepeDaun ToIbKO, KOrda DnRatEnb pa6OtaE.

KaK OTOeHNHTb NO DBO; OcBO6oJTe pyky ynpaBneHn MyToI cUeJIeHn.

PpeKdEeHemNotaHyb arperat Ha ce6h,Heo6xoDmO OTKIOuHTb npBODnToKHyb arperat BnepeN pni6bn3ntelho Ha 10 cm.

PENIPOBKA KABELA MYOTbI CLJENJIEHNA

(TOJIbKOДЯ CAMOXODHbIX BapNaHTOB)

BaxHoe 3aMeaHne: Ecn, kOgda BbI HaxnMaTe pblar ynpabJeHMyfToi cUeJIeHnA, ABtOMaTueckoe cUeJIeHne IOnBOda He npocxOHT, Tpoc MyfTbI cUeJIeHnI OJXeH perynipoBaTbcra YcTaHOKoi npyKnHbI (P) B oJHO n3 PocNeDyUoX NtOBepCTn B IIaCTnHe (R) nII N B OTBePCTn (S).

TEXHNUECKOE OBCJYKINBAHNE

BHMaHHe! OTKIouHTe IbIraTeIb N OTcoEINHInTe Ka6eIb CBeuN 3aJxRanHnpeP npObeHnem pa6oT NO TexHnueCKOMy 06CnyKnBaHNIO

ДяЧетьрextakTHORO DBIRATeЯ, npOBepbTe yPOBeHb Macna n 3aMeHHTe MacNo, KOrda OHO rpr3Hoe.ДалБHeWne 6bJcHcHnCmOTpnte PyKOBoDCTBO NO DBIRATeIIO.
Kak MoXHo YaIe npoBepaTe Kocunky u o6ceuYbTe, UTo6bl BCE ocTaKu TpaBbl y6npaIncb n3-nOd onany6kn (pn6OpHoro 6noka).
Hnkorda He BbUHuaTe DBrTaTeIb, NOnBaa erO BODo CBepx: 3TO MOKeT PnBecTn K cepBe3HbIM NOBpeXdEHNAM CNCTembl 3JIeKTPnueCKOrO 3aNycka.
BybTe octopoxHbI, BbIXNONHa Tpy6a MoKet 6blb OueHb ropaen.
Kak Moxho yae npoepeyte ne3Bne Ha npedmet noBpekdeHn.

Ta3OHOKOCnKa DoJXHa npOBepaTbcr PpeDCTaBteneM cepBucho nCnyk6bl.
BbHuaTe npoctpaHCTBO NOKOHcTpkyKeNe. KOrda MaunHa B NOKOE NOTKJIQUHeHa:

-ПисоeINHnTe NaIpy6ok (22)Ha onaIy6ky K KpaHy nOaHu BOdbI. OTBepHNTe KpaH.
-3anyctnte Dniratelb (Je3Bne BO BpaueHn), daBaJ emy nporpeTcR HeCKoIbKO MNHyT.
-B KOHcE YNCTK NOTKIOUHTe DIBrataIb, 3aKpOInTe KpaH, OTcoEINHTe Tpy6y OT NOCDoeINHeHnK ONaIy6ke.

JIE3BNE

-IIIa CHaTHaJe3BnA (23),OTKpyTHe BnHT (24).
- PpOBepe coCToHHe IepKaTeJIe3Bn (25),

HpokJaIKN (26), HIOHKn (27) H IaIbI (28) H

3aMeHHTeJIIObIeJeTaJIN,KOTOpBIEIOBpeKJdeHbI.

• IIpnIOBtOPOHc6OpKe,y6eIITecb,HTo IINHOKa (27)

IpaBnIbHO caIHTcH Na BaJI N UTO peKyuNHe KpaI oBaPaeHb

B HapabHn BpaHn ABnraTeJn. BnT Jie3Bn (24)

JIOJIKeH 3aKpyuBaTbc8 cyHJHeM IO 5,34 Km (52,4 Hm).

KOMIIJEKT IJIЯ 3JIEKTPHUECKOTO 3AIIYCKA.

• IIpeep3aIyckOM IBHrataJI B IepBbI pa3, BaM peKOMeHJyETc HIOdepKaTb 6aTaPeio Ha 3apAikke B TeChHe 2-3 YacOB.

EcJH 6aTapeI IPOIOJIkaeT OITBaTb HN3Koe HaipjKeHHc B TceHHc 3aIycka, 3apJHTc C B TeCHHe 24 YacOB.

Ipn 3aynycke, He yIepKHBaiTe HaKaTbIM cTAP 6oJee 5 cekyH.

TexHHueckoe 6cbIyKHBHne aKKMyJITOpHOI 6aTapeH.

Hoc 3aMeHaHHc:

IⅡIpaBnIbHOrO TcXHHueckKOrO 06cIyJKBaHHA KkyMylrTopHo 6aTapen (29),OCo6eHNO Iprn IOITROBKe IJIINTEbHO INcPHoJa 6c3IeNCTBHe, H IJIINIEpe3ApJIKH, HEO6BaTeJIbHO BbIHMaTb ee N3 OTceKa, a IpocTo IpoJeJaIte CJIeDyHOIIee:

1) OToeJHHTe KOHTaKT (30).
2) CoxpanHnTc aKKyMJIaTOpHyIO 6aTapeIO B IPOXJaIaHOM H cyXOM MCTc.
3）IpeepaJIHTc 6aTapeIO IepeI HcIIb3OBAHHcM IIH KOMHaTHOH TcMIpeAtpyBe TceCHHe 24-36 YacOB.
4) BocTaHOBHTe KOHTaKT (30) IepcI HcIOJIb3OBAHHcM.

YTH3aHnAkkymyIaTOpHoi6aTapcn.

JaHHbIe 6aTapen MapKnpyIOTe HaJIINHcBIO
<3aMKHyTaa 6aHka Ha OTXoJbI yTHJIN3aIHHN> H
HccyUHc cHMBOJ Pb (6aTapc, coCpKaIIaIc BCHNC)
HC JOJIKNbI yTHJIN3HPOBaTbcR B KOHTcHcpax IJIa
6bITOBbIX OTXoIOB.

IIOJIb3OBaTeCJIb NO 3aKOHy 6oJ3aH INpcpeJaBaTb HcIIIOJIb3OBaHHbIe aKKMyJIITOpHbIe 6aTapeH Ha cIEINHaJIbHbIe C6OpHbIe IYHKTBI HIN BO3BpaIaTb IH TOProBiy.

ГAPAHТИУСЛOBИ ГAPAHТИ

B cIyuc IOLOMKN IIO60J YAcTH, B 3aBHCMOCTH OT HeKaueCTBeHHoO6pa6OTKN BO BpeM IepHOJa rapaHTHN, CHPMa HUsqvarna AB, IOCpeIcTBOM CBOHX pa3peIeHHbIX peMOHTbIX IIeHTpOB, 6yIDtB BBIIIOJIHHTb 6e3IIaTHo peMOHT HIN 3AMcHy, B cIyuc ccJIN:

a)IIIOJIOKMa 6bIa COOOHeHa IIpRAMo pa3peIeHHOMy peMOHTHOMy IeHTpy.
b)IIpeTcBAJIeTcK BHTaHUNIO NOKyKN.
c)IIOJIOKMa He 3aBnCt OHTHeIIpaBnIBbHOTo HcIOJIb3OBAHn, He6peXKHOCTN HIN HeIIpaBnIBbHbIX peYJInpOBOK, BbIOJIHeHbI IOJIb3OBATeJIeM.
d)IIOJOMKa He 3aBHCnT OTo 06bIuHOro H3HOca H3-3a HIOJIb3OBAHH.
c)Ha MaIHHHe He 6bJIb BbIOJIHHe bI OepaIIHH 0bcJyKhbIHH, pcMOHTa, OHa He 6bIIa IcMOHTpObaHa HIN HcKaKeHa IepcoHaiOM He pa3peueHHbIM hIpMoH Husqvarna AB.
f) MaHHHa He 6bJa cdaHa Hapokat TpbetHM JIniAm.
g)MaHnHa YBHeTc HMyIeCTBOM opHrHnHaJIbHoro NOKyIaTcJI.
h) MaHHHa He HcIOJIb3yETcra IJIa KOMMepueckoro yIOTpeBJIeHHa.
HactoIIaIraPaTHn -IOIOJIHHCTIcraJIbHbcIpaBaKINHeTa HcCOKpAHTHXBJIIO6OM CIOOC6OM.
IIoJOMKn, KOtOpbIe 3aBnCrt O T OHOH HIN 60JIbIiHe

HnKcIepueHcJIeHHbIX npHnH He NOKpbITbI rapaHTnH, IO3TOMy peKOMEHdyETc HHTaTB BHIMATEJBHO HHCTpyKUHN Ha PyKOBOICTBe IIOIOJIb3OBateJIIO H BIIIOJHE IOHNMaTHpa6OTy INpoIeDypBIO NO 06CnyKBAHHO MaHHbI.

IIOJOMKHe IOKpbITbI rapaHTHn.

-3aMeHa H3HOceHHbIX HIN IOBpeKJDeHHbIX HOKOB.
-IOJOMKN, KOtOpbIe 3aBHCrT OT OTCyTCTBn r COO6HnHaayJIbHOHIOJOMKN.
-ПОДМКИ,ΚΟΤΟΡБΕ 3aBnCγT O T HeOχN,dAHHOro yIapa.
-IOJOMK, KOTOpbIe 3aBHCAT OT Heco6JIIOHeIIH HnCTpyKuHH n peKOMeHuaHn yKa3aHHbIX Ha PyKaBOcTBe IIOJb3OBaTeJIHO.
- TapaHTHHe IIOKpbIbAeT MaIIHHb cHaHb HAnpOKaT.
-HnHexkyKa3aHHbIe YacTH cHHTaIOCTc paXoINbIX YAcTeH INx CPOK paOToBt 3aBHCNT OT HopMaJIbHOro O6CJyKHBaHHN, IIO3TOMy rapaHTHHe IOKpbBaet HOHN, IINTaTeJIbHbIE Ka6eHH, peMHH.

- OCTOPOXHO

BHytpn ycIObHn HAcTOIcH rapaHTn 0npMa Husqvarna AB HE BO3bMet Ha ce68 OTBETCTBEHHOCtB 3a IeEeKtB, KOtOpbIE BIOJIHe HIN YAcTHHIO, INPMO HJIN KOCBeHHO, 3ABHCtOT OT YIOITpc6JIChHn 3aIHaCTe HJIN IOIOJIHNTCJBHX AcTe Hc IIPOH3BCdHb HIN HC pa3pcIIChHb IeHPMoH Husqvarna AB HIN 3a Te IeEeKtB, KOtOpbIE 3aBNCrT OT H3MeHeHHN BBIIOJIHeHb B JIO6OM cIOco6e Ha MaIHHe.

EC DEKJIAPAUIN COOTBETCTBIA

IopnicaoHn Claes Losdal, Husqvarna AB, Drottninggatan, SE-561 82 Huskvarna, Swcden (XpaHntelb TexHuecko JOKymeHTann) 3aBnE, TTO raHOKOCy:

Kateropn.. BpaataeIbna, 6eH3nHO, c KonecAmN

Marca .Husqvarna AB

COOTBETCTByET HOpMaTnBaM DInpeKtNB 2000/14/CEE.

Tun

Bapnnt B

Unpa pe3a.. C

「rapaHTnpoBaHHbI 3BykoBoy ypoBeHb. D

I3MepeHHbI 3ByKOBoI ypoBeHb. E

YpOBeHb akyctnueckoro daBHeHnI (IorpewHocTB n3MepeHH)K=1dB(A)F

Bn6paun Ha pykoTke(norpeuHoctb n3MepeHnK=1 m/s²

TnHoxa .BpaatelbHy

IeHTnphiKaua cepu... CMOTpn EtNKeTky O DaHbIx O PpOdyKTe

PpoeDpya OueHKN COOTBECTBnA.. ANNEX VI

MOD.LM2147CM,LM2147CMD,LM2147CMDAE

Opran 3aBneHn.. Nr.0470-NEMKO AS

Gaustadalleen 30 - PO Box 73 Blindern

0314 OSLO - Norway

MOD.LM2146CMD

Druge directive 2006/42/EC, 93/68/EEC, 2002/88/EC, 2004/108/EC

in po standardih .EN836,EN ISO14982,EN1033,EN ISO 3744,EN ISO11201

Claes Losdal

Technical Manager

Husqvarna AB

A
LM2146 CD LM 2147 CMD

LM 2147 CM

LM 2147 CMDAE

LM2146CD

LM 2146 CMD

LM 2147 CMD

EII

EIII

LM2147CMDAE

ALM2146

B CMD CM, CMD

C 46 cm

D 95 dB (A)

E 94 dB (A)

F 80 dB (A)

G 5 m/s2

ALM2147

B

C 46 cm

D 96 dB (A)

E 96 dB (A)

F 82 dB (A)

G 5 m/s2

ALM2147

BCMDAE

C 46cm

D 96dB(A)

E 96dB(A)

F 82dB(A)

G 5m/s2
