WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Keep people and animals well away from the working area.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Dipstick/oil filler

Watch out for thrown objects and ricochets.

Warning: rotating cutter. Keep hands and feet clear.

Warning: rotating parts. Keep hands and feet clear.

This product is in accordance with applicable EC directives.

Noise emission to the environment according to the European Community's Directive. The machine's emission is specified in the Technical data chapter and on the label.

Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon monoxide, an odourless, poisonous and highly dangerous gas.

Risk of explosion

Hot surface.

The engine is delivered without oil.

Top up with oil before using the machine.

Refuelling. The engine will not operate with fuel that is sold as E85 (85% ethanol).

Explanation of warning levels

The warnings are graded in three levels.

WARNING!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

IMPORTANT!

IMPORTANT! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed.

CAUTION!

CAUTION! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.

PRESENTATION

Contents Dear Customer,

KEY TO SYMBOLS

Key to symbols 66

Explanation of warning levels 66

PRESENTATION

Contents 67

Dear Customer, 67

PRESENTATION

What is what on the lawn mower? 68

MACHINE'S SAFETY EQUIPMENT

General 69

ASSEMBLING AND ADJUSTMENTS

General 70

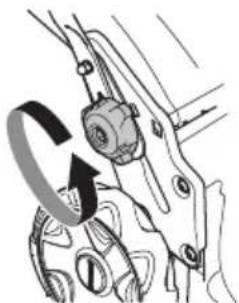

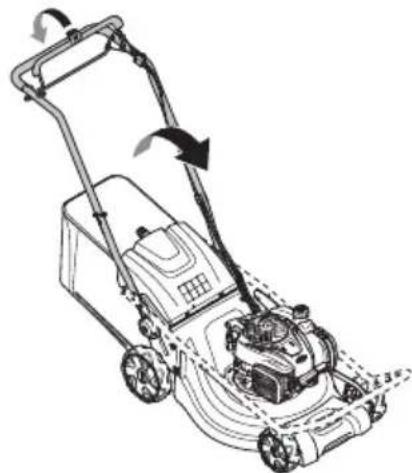

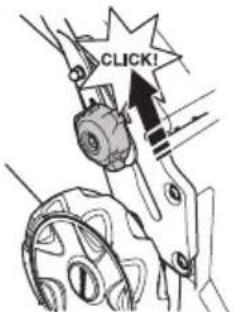

Handle 70

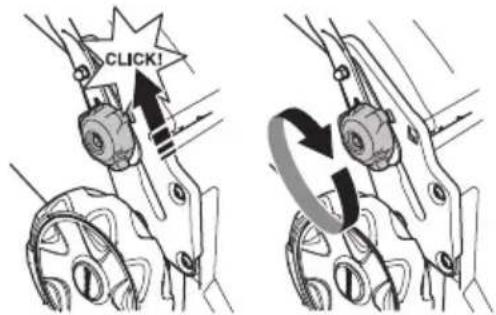

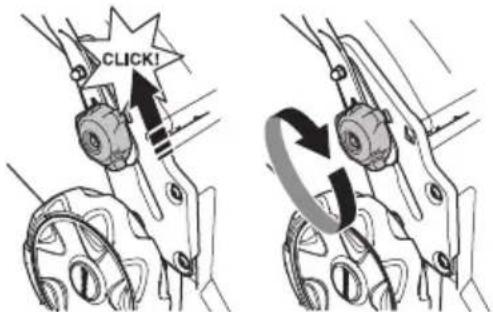

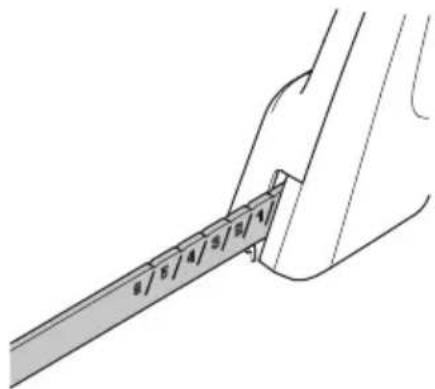

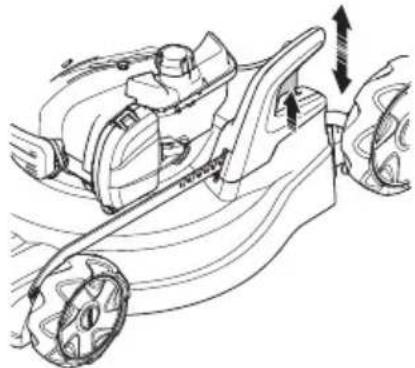

Cutting height 71

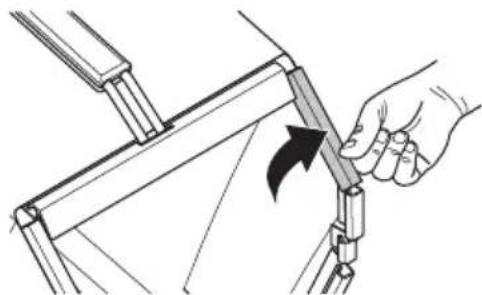

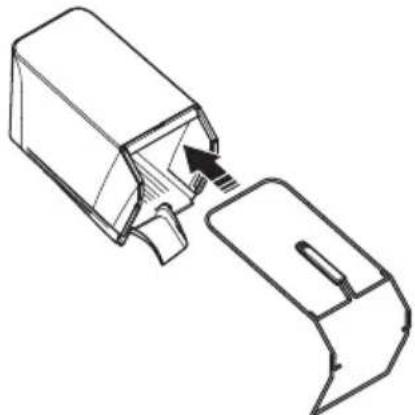

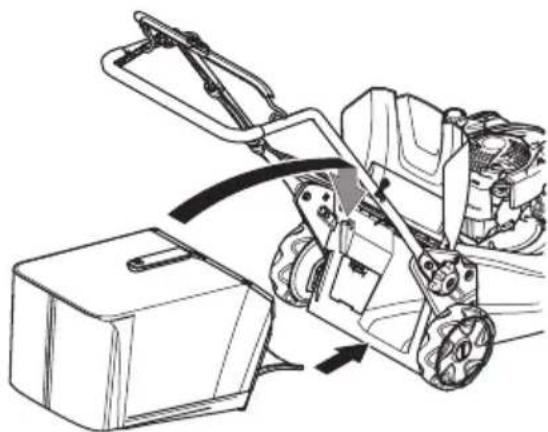

Catcher 71

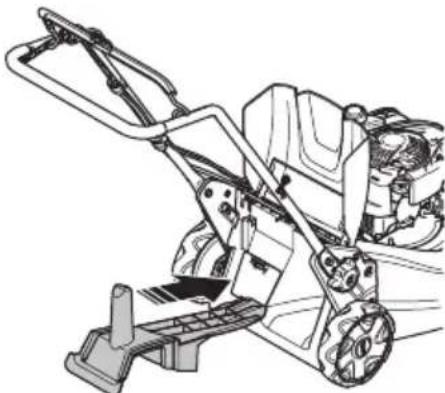

Mulcher insert 72

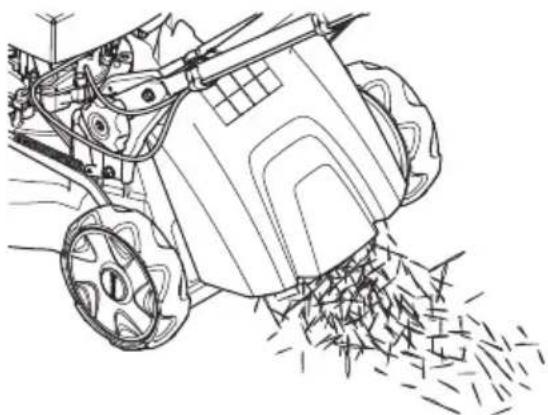

Rear discharging 72

FUEL HANDLING

General 73

Fuel 73

Fueling 73

Transport and storage 73

OPERATING

Personal protective equipment 74

General safety precautions 74

Basic working techniques 75

Transport and storage 75

Starting and stopping 76

MAINTENANCE

General 77

Maintenance schedule 77

General inspection 77

Spark plug 79

Adjusting the clutch wire 79

Air filter 79

Oil change 79

Fuel system 79

TECHNICAL DATA

Technical data 80

EC Declaration of Conformity 81

Congratulations on your choice to buy a Jonsered product! We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very long time to come. The purchase of one of our products gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the address of your nearest service workshop.

It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator's manual as a valuable document. By following its content (usage, service, maintenance, etc), the life span and the second-hand value of the machine can be extended. If you sell this machine, make sure that the operator's manual is passed on to the buyer.

Good luck on using your Jonsered machine!

Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

PRESENTATION

Technical diagram of a lawn mower with numbered parts and an inset view of the motor's side view.

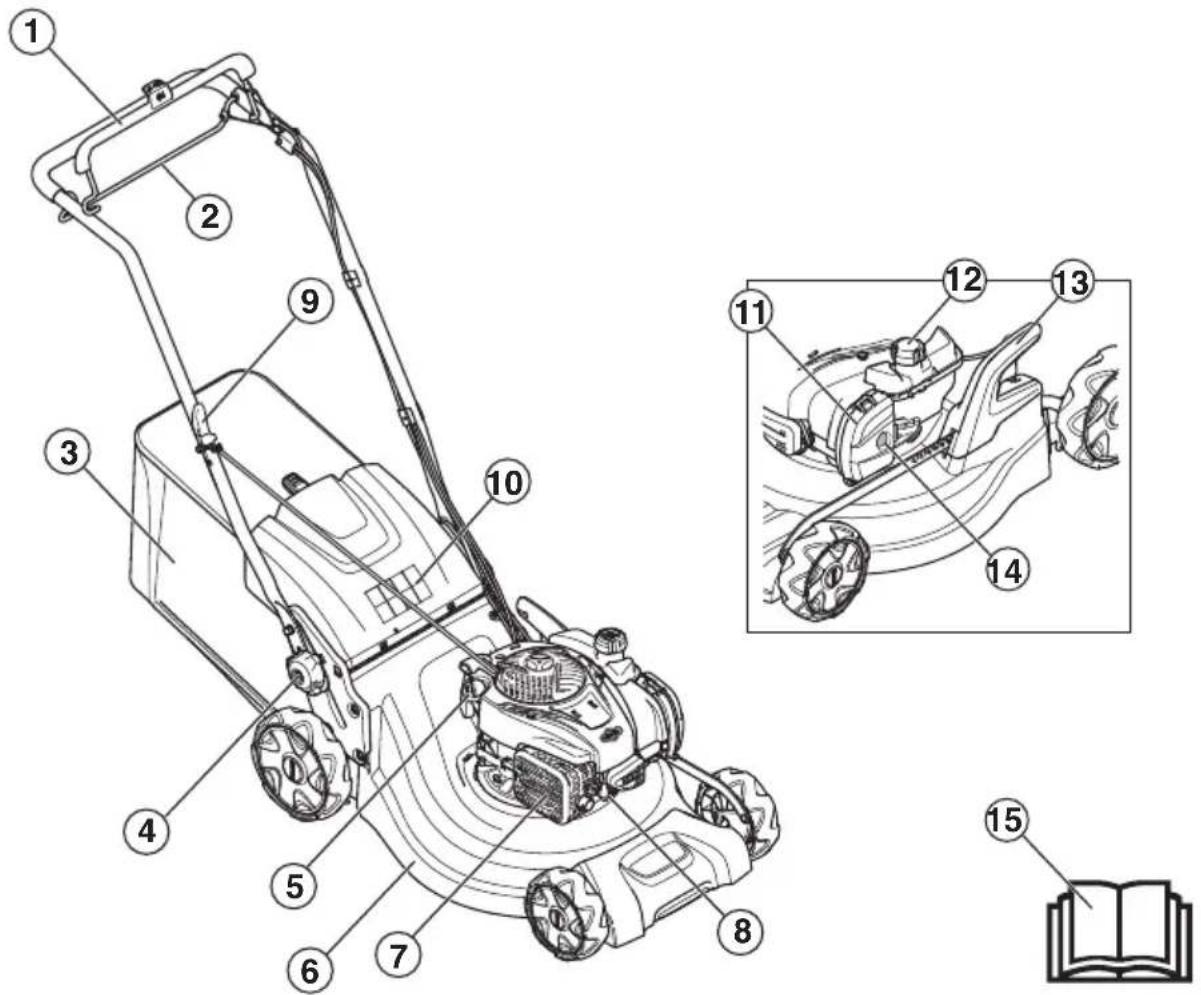

What is what on the lawn mower?

1 Engine brake handle
2 Propulsion bar (LM 2247CD, LM 2247CDP)
3 Catcher
4 Locking lever for handle height adjustment
5 Dipstick/oil filler
6 Cutting cover
7 Muffler
8 Spark plug

9 Starter handle
10 Back shield
11 Air filter
12 Refuelling
13 Cutting height control
14 Primer diaphragm (LM 2247C, LM 2247CD)
15 Operator's manual

General

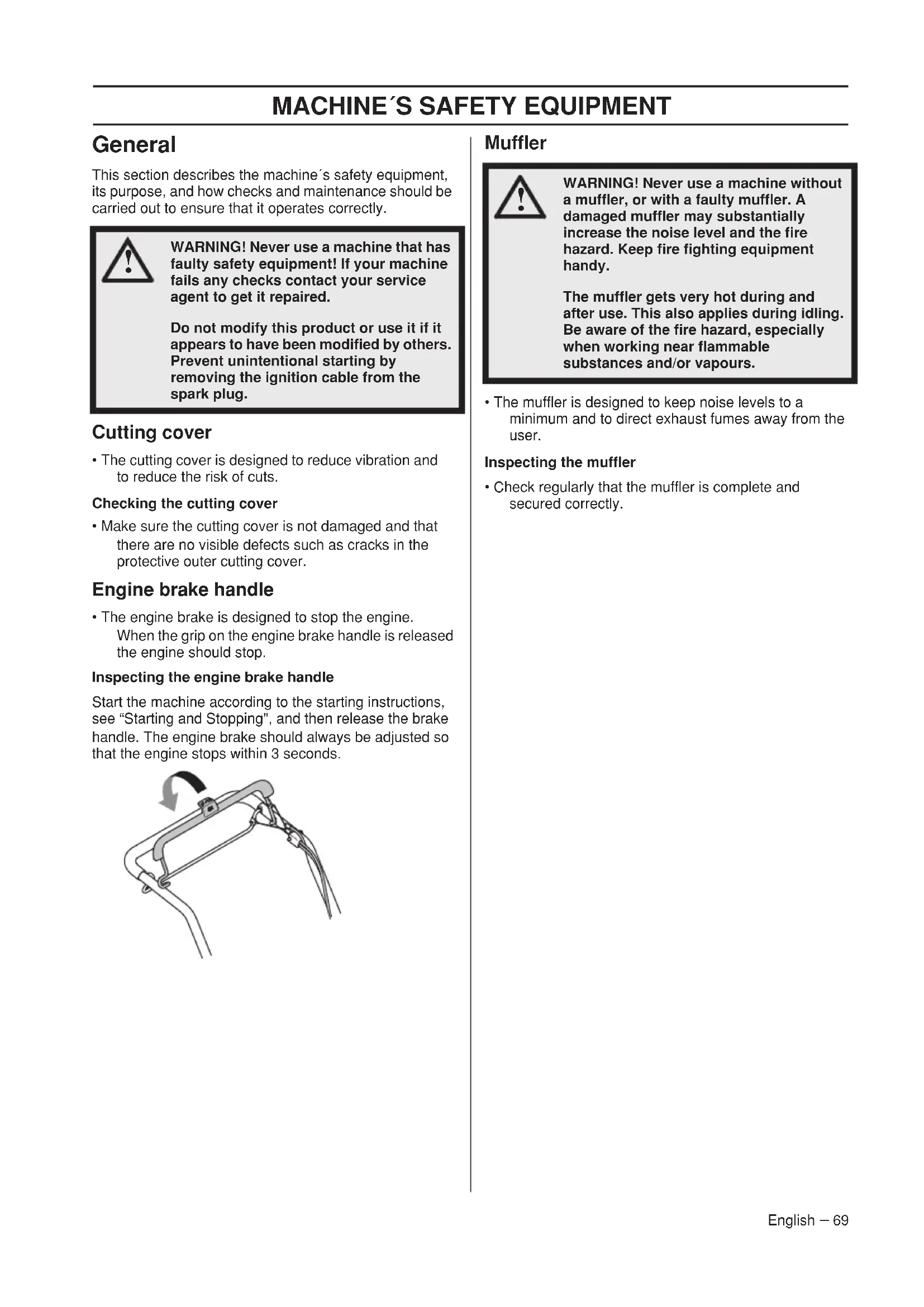

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

WARNING! Never use a machine that has faulty safety equipment! If your machine fails any checks contact your service agent to get it repaired.

Do not modify this product or use it if it appears to have been modified by others. Prevent unintentional starting by removing the ignition cable from the spark plug.

Cutting cover

- The cutting cover is designed to reduce vibration and to reduce the risk of cuts.

Checking the cutting cover

- Make sure the cutting cover is not damaged and that there are no visible defects such as cracks in the protective outer cutting cover.

Engine brake handle

- The engine brake is designed to stop the engine. When the grip on the engine brake handle is released the engine should stop.

Inspecting the engine brake handle

Start the machine according to the starting instructions, see "Starting and Stopping", and then release the brake handle. The engine brake should always be adjusted so that the engine stops within 3 seconds.

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Muffler

WARNING! Never use a machine without a muffler, or with a faulty muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.

The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

- The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

Inspecting the muffler

- Check regularly that the muffler is complete and secured correctly.

General

IMPORTANT! Prevent unintentional starting by removing the ignition cable from the spark plug.

Handle

Settings

Handle height

• Loosen the lower knobs.

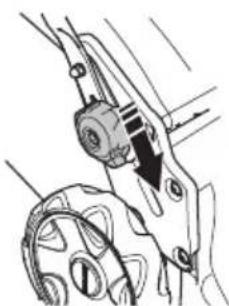

• Slide the knobs to the ends of the grooves on both sides of the machine.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamp and lever mechanism (no text or labels)

- Handle height can be set to 2 different positions,

- Adjust the height.

- Slide the knobs up towards the handle until they stop and a click is heard.

CLICK!

Mechanical assembly diagram showing a rotating component with rotational arrows (no text or symbols)

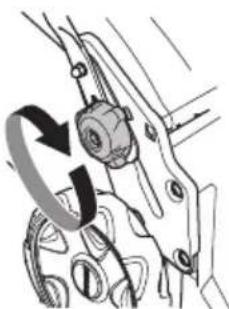

- Tighten the knobs properly.

Transport position

The handle assembly can be folded to minimize space needed for transport and storage.

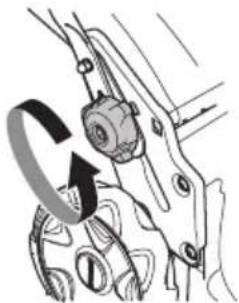

- Loosen the lower knobs.

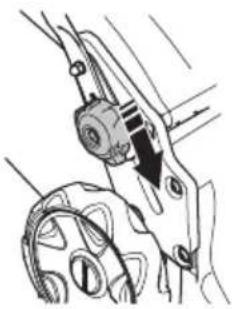

- Slide the knobs to the ends of the grooves on both sides of the machine.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a clamp or clamp device inserted into a housing (no text or symbols visible)

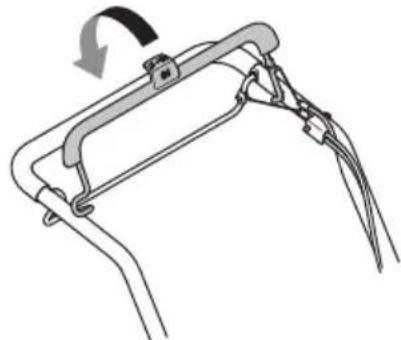

- Fold in the engine brake handle towards the handlebar.

Diagram of a mechanical lever mechanism with an arrow indicating rotational motion (no text or symbols present)

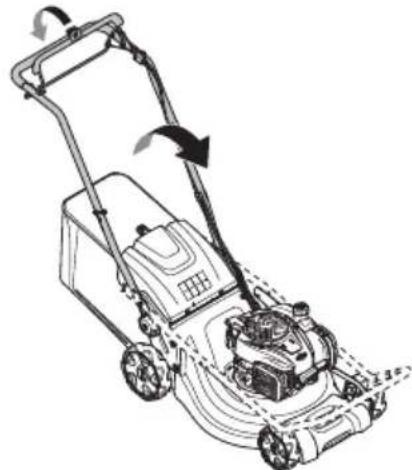

- Fold forward the handle.

Line drawing of a lawn mower with a mounted lawn and visible blades (no text or symbols)

Operating position

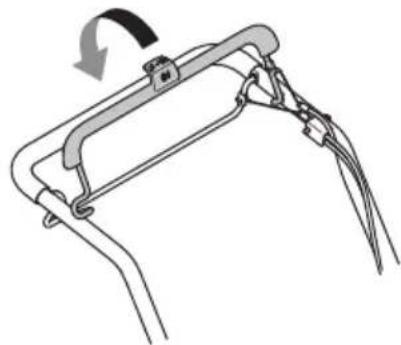

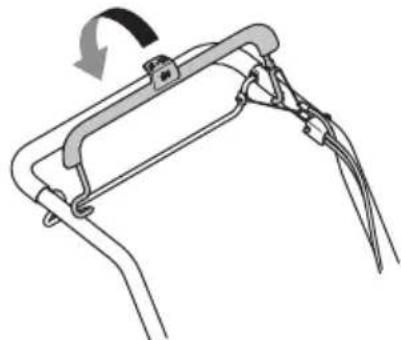

- Fold in the engine brake handle towards the handlebar.

Diagram of a mechanical device with a curved handle and cable, showing rotational motion (no text or symbols)

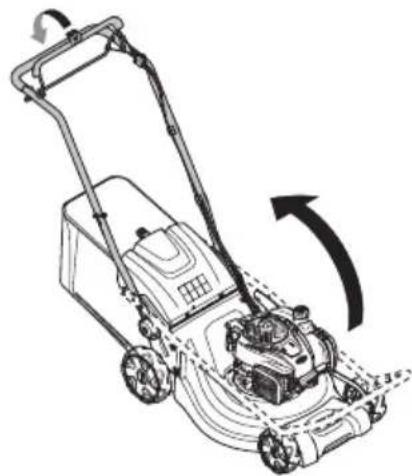

- Fold the handle to its upright position.

Line drawing of a lawn mower with a right-hand rule indicating clockwise motion (no text or symbols)

ASSEMBLING AND ADJUSTMENTS

- Slide the knobs up towards the handle until they stop and a click is heard.

CLICK!

- Screw on the handle with the knob.

Cutting height

NOTICE! Do not set the cutting height too low as there is a risk that the cutters might hit ground with unevenness.

The machine is equipped with central cutting height adjustment.

- Move the lever to the back for lower cutting height and to the front for higher cutting height.

Line drawing of a lawn mower with motion arrows indicating maneuver and wheel (no text or symbols)

- The cutting height can be adjusted to 6 different positions with the cutting height lever.

8/5/4/3/6/4

Catcher

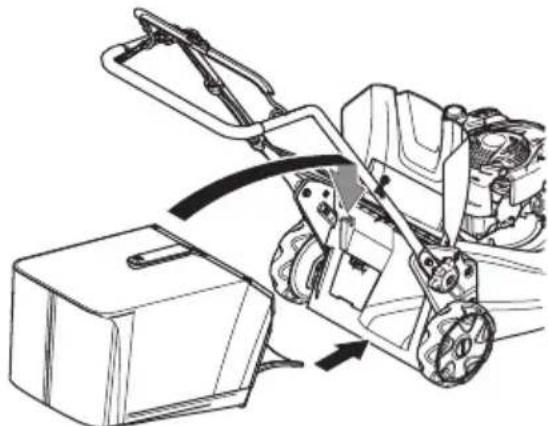

- The collector's handle situated on the frame must be placed over the collector bag.

Technical line drawing of a mechanical component with a clamped part inserted (no text or symbols)

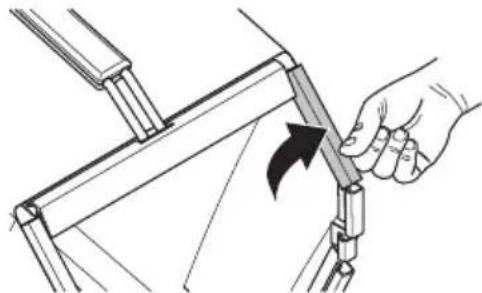

- Fasten the lower part of the frame in the groove underneath the collector.

- Secure the frame by using the quick-action clips.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

- Make sure the machine's discharge deck is clean and free from grass cuttings.

- Hook the collector onto the top edge of the chassis.

- Place the collector tongue in the machine's discharge deck.

Technical line drawing of a manual lawn mower with a base case and tool, showing mechanical components without any text or symbols.

- Fit the bagger bottom in the discharge hole.

Mulcher insert - Accessories

A mulching-kit is available as an accessory, to make the machines equipped with a catcher able to be used with mulching function. The kit contains of a mulch plug and a blade.

- Raise the discharge guard to mount / dismount the mulch plug.

Technical line drawing of a manual lawn mower (no text or symbols)

- Replace the blade with the supplied Combi blade. For more information, see "Cutting equipment".

Rear discharging

The machine can also be used without the mulcher insert and collector.

• Lift up the back shield and remove the catcher.
• Remove the mulch plug.
• Close the shield.

Line drawing of a combine harvester with dust spraying (no text or symbols)

General

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

Do not smoke and do not place any hot objects in the vicinity of fuel.

Fuel

NOTICE! The machine is equipped with a four-stroke engine. Make sure that there is always sufficient oil in the oil tank.

Petrol

• Use good quality unleaded or leaded petrol.
• The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 so-called knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.
• Use low-emission petrol, also known as alkylate petrol, if it is available.

Engine oil

NOTICE! Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine. See instructions in the section "Maintenance".

- The engine oil should be changed the first time after 5 hours running time. Refer to Technical Data for recommendations on which oil type to use. Never use oil intended for two-stroke engines.

Fueling

WARNING! Always stop the engine and let it cool for a few minutes before refuelling.

Use a petrol can at all times to avoid spillage.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Clean the area around the fuel cap.

Tighten the fuel cap carefully after refuelling. Negligence may lead to the start of a fire.

Move the machine at least 3 m from the refuelling point before starting it.

Never start the machine:

• If you have spilled fuel or engine oil on the machine. Wipe off the spill and allow the remaining fuel to evaporate.
• If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
• If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.
• When storing and transporting fuel always use approved containers intended for this purpose.

Long-term storage

- When storing the machine for long periods the fuel tank must be emptied. Contact your local petrol station to find out where to dispose of excess fuel.

OPERATING

Personal protective equipment

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment.

Always wear:

• Use ear muffs if the noise level exceeds 85 db.
• Sturdy, non-slip boots or shoes.
• Heavy, long pants. Do not wear shorts, sandals or go barefoot.
• Gloves must be worn when required, for example when fitting, inspecting or cleaning cutting attachments.

General safety precautions

This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

• Please read the operator's manual carefully and make sure you understand the instructions before using the machine.
• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.
• The machine must be kept clean. Signs and stickers must be fully legible.

Always use common sense

It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Never allow children or other persons not trained in the use of the machine to use or service it.

The machine should not be used by people with reduced physical or mental capacities or people who are unsuitable for health reasons to operate the machine, without supervision of a person responsible for their safety.

Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator's manual.

Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer.

Do not modify this product or use it if it appears to have been modified by others.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists.

Always use genuine accessories.

OPERATING

Work area safety

• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.
• Objects hitting against the cutting attachment could be thrown and cause damage to people and objects. Keep people and animals well away.
• Never use the machine in bad weather, for instance in fog, in rain, damp or in wet locations, strong winds, intense cold, risk of lightning, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Observe your surroundings to ensure that nothing can affect your control of the machine.
• Beware of roots, stones, twigs, pits, ditches etc. Tall grass can hide obstacles.
• Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes. The lawn mower should not be used on inclines greater than 15 degrees.
• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
• Be careful when you are approaching hidden corners and objects that could block your view.

Work safety

• A lawn mower is only designed to mow lawns. All other use is forbidden.
• Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.
• Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.
• Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent axle gives imbalance and heavy vibration, which results in a great risk of the cutter becoming loose.
• The brake handle must never be permanently anchored in handle when the machine is running.
• Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.
  • Always place yourself behind the machine. Allow all the wheels to remain on the ground and keep both hands on the handle when mowing. Keep your hands and feet away from the rotating blades.
• Do not tilt the machine when the engine is running.
• Pay particular attention when pulling the machine towards you during work.

• Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.

• Do not mow the lawn while walking backwards.

• The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.
• Never run with the machine when it is running. You should always walk with the lawn mower.
• Shut down the engine before changing the cutting height. Never make adjustments with the engine running.
• Never leave the machine unsupervised with the motor running. Turn off the motor. Ensure the cutting attachment has stopped rotating.
• If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage.

Basic working techniques

• Always cut with a sharp blade for optimal results. A dull blade gives an uneven cut and the grass becomes yellow on the surface of the cut.
• Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.
• Cut in different directions each time in order to avoid stripes in the lawn.

Transport and storage

• Secure the equipment during transportation in order to avoid transport damage and accidents.
• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.
• Store the machine and its equipment in a dry and frost proof place.
• For transport and storage of fuel, see the section "Fuel handling".

OPERATING

Starting and stopping

Before starting

WARNING! Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.

• Keep people and animals well away from the working area.
• Perform daily maintenance. See instructions in the section "Maintenance".
• Ensure the ignition lead sits correctly on the spark plug.

Starting

Manual Start (LM 2247C, LM 2247CD)

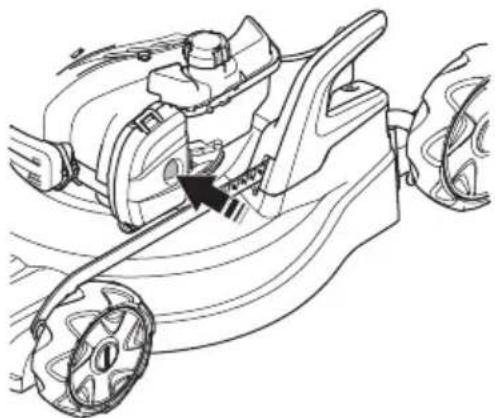

Models LM 2247C, LM 2247CD have manual choke (primer diaphragm). If the lawn mower is being started for the first time press on the fuel pump five times. After that you should press on the fuel pump three times when starting a cold engine.

Line drawing of a lawn mower mechanism with no text or symbols

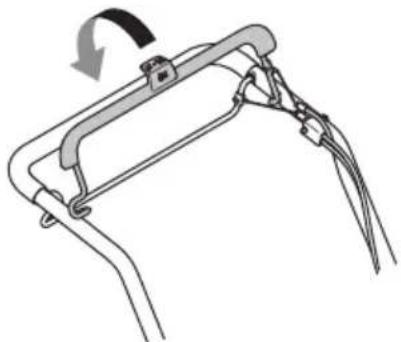

- The engine brake handle must be held against the handlebar when the engine is started.

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

• Position yourself behind the machine.
• Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the

starter pawls grip). Pull with force to start the engine. Never twist the starter cord around your hand.

Drive (LM 2247CD, LM 2247CDP)

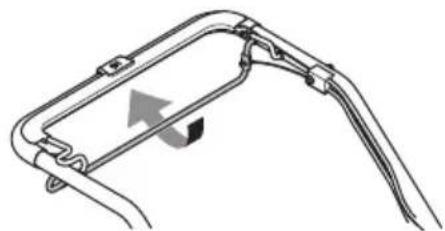

- Push the propulsion bar in towards the handle in order to start the drive.

Diagram of a mechanical component with a curved bracket and attached wires, showing no text or symbols.

- Before pulling the machine towards you, disengage the drive and push the machine forward approx. 10 cm.

Stopping

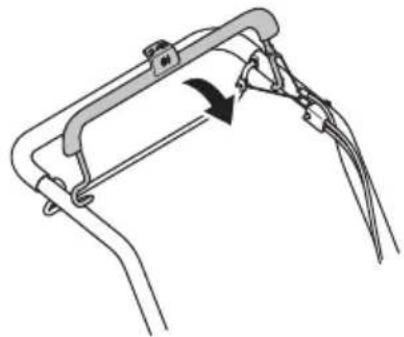

- Stop the engine by releasing the engine brake handle.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

MAINTENANCE

General

WARNING! The user must only carry out the maintenance and service work described in this Operator's Manual. More extensive work must be carried out by a service workshop.

Switch off the engine before carrying out any checks or maintenance. Prevent unintentional starting by removing the ignition cable from the spark plug.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.

CAUTION! When the machine is tilted, make sure the air filter always is placed in the highest position.

• Always use genuine accessories.

Maintenance schedule

In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on daily use of the machine, and may differ depending on the rate of usage.

Before starting	Weekly maintenance	Monthly maintenance
General inspection	Spark plug Air filter
External cleaning	Muffler* Fuel system
Oil level
Cutting equipment
Cutting cover*
Inspecting and adjusting the drive belt
Engine brake handle*

*See instructions in the section "Machine's safety equipment".

Please see the engine Operator's Manual for more information.

General inspection

- Check that nuts and screws are tight.

External cleaning

• Brush leaves, grass and the like off of the lawn mower.
• Do not use a high pressure washer to clean the machine.
• Never flush water directly on the engine.
• Clean the air intake on the starter. Check the starter and starter cord.
• When cleaning under the cutting deck, turn the machine with the spark plug upwards. Empty the fuel tank.

Oil level

IMPORTANT! Allow the machine to cool. Hot oil can cause severe burn injuries.

The lawn mower should stand on flat ground when you check the oil level. Check the oil level with the dipstick on the oil filler cap.

• Remove the oil cap and wipe the dipstick clean.
• Put the dipstick back in.
• If the oil level is low, fill using engine oil up to the upper level on the dipstick.

MAINTENANCE

Cutting equipment

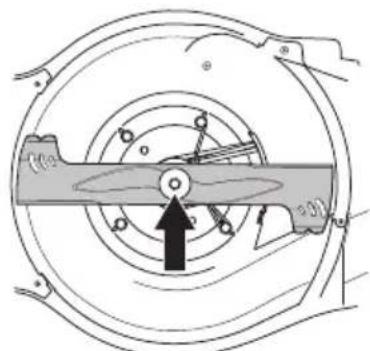

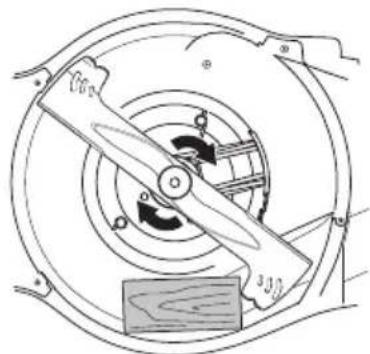

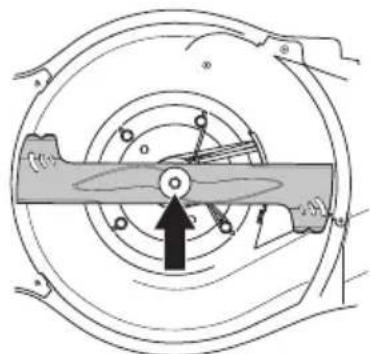

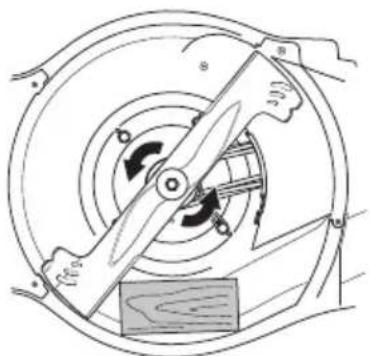

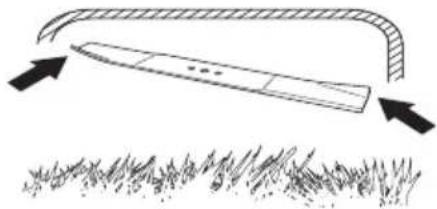

• Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.
  • Always ensure the cutter is well ground and balanced correctly.

CAUTION! The blades should be balanced after sharpening. Balancing, replacing or sharpening the blades should be conducted by a service workshop.

Damaged blades should be replaced when hitting obstacles that result in a breakdown. Let the service centre assess whether the blade can be sharpened or must be replaced.

Replacing the blades

WARNING! Always wear heavy-duty gloves when servicing and maintaining the cutting equipment. The cutters are very sharp and cuts can occur very easily.

Dismantling

WARNING! Prevent unintentional starting by removing the ignition cable from the spark plug.

- Lock the blade with a wooden block. Loosen the blade bolt and remove the blade bolt, the washers and the blade. Remove the blade bolt by turn the bolt counterclockwise.

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

- Remove the old blade. Make sure the blade bracket is free of damage. Also check that the cutter bolt is undamaged and that the engine shaft is not bent.

Assembly

- The blade must be mounted with the angled ends pointing up towards the cover.

Diagram showing a tool interacting with grass under an arch (no text or symbols)

- Place the cutter with the friction washer against the cutter bracket. Make sure the cutter centres correctly on the shaft.

Mechanical diagram showing a rotating wheel with a central hub and directional arrows (no text or symbols)

- Lock the blade with a wooden block. Fit the washer and tighten the bolt correctly by turning clockwise. The bolt should be tightened with a torque of 70 Nm.

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

• Pull the blade around by hand and make sure it rotates freely.
  • Test run the machine.

IMPORTANT!

Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Contact an authorised service workshop.

Always use genuine parts. For more information, see the "Technical data" section.

MAINTENANCE

Spark plug

NOTICE! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

- If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking other steps.

- If the spark plug is dirty, clean it and check that the electrode gap is 0.7 mm. Replace if necessary.

Adjusting the clutch wire

If the drive feels slow, it may be due to a slipping belt and the clutch cable will then have to be adjusted.

Finely adjust the wire using the adjuster screw.

Technical diagram showing a mechanical clamp or bracket assembly with an inset close-up of the component (no text or symbols present)

- To tension the wire and increase speed, screw the adjustment screw counterclockwise.

Make sure the wires are not tensioned too tight. If the lawn mower starts to drive without the clutch lever is beeing operated, extend the wire.

- To extend the wire and reduce speed, screw the adjustment screw clockwise.

If the drive still feels slow, the belt will have to be replaced. Contact an authorised service workshop.

Air filter

• Remove the air filter cover and take out the filter.
• An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.
• When reassembling, make sure that the filter completely seals against the filter holder.

Clean the paper filter (LM 2247CDP)

- Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter.

Cleaning the foam plastic filter (LM 2247C, LM 2247CD)

- Remove the foam plastic filter. Wash the filter well in tepid soapy water. After cleaning, rinse the filter well in clean water. Squeeze out and allow the filter to dry. NOTE! High pressure compressed air can damage the foam. After cleaning the filter should be oiled using engine oil. Wipe away excess oil by pressing a clean cloth against the filter.

Oil change

• Empty the fuel tank.
- Unscrew the oil filler cap.
- Place a suitable vessel to collect the oil in.
- Drain the oil by tipping the engine so that the oil runs out through the filler pipe. When the machine is tilted, make sure the air filter always is placed in the highest position. Ask where you can dispose of surplus engine oil at your local petrol station.
- Fill with new engine oil of a good quality. See instructions in the section "Technical data".
- Please see the engine Operator's Manual for more information.

Fuel system

• Check that the fuel cap and its seal are not damaged.
• Check the fuel hose. Replace if necessary.

TECHNICAL DATA

Technical data

	LM 2247C LM 2247	CD LM 2247CDP
Engine
Engine manufacturer Briggs & Stratton Briggs & Stratton displacement, cm^3	125 125 140
Speed, rpm 2900 2900 2900
Nominal engine output, kW (see note 1) 1,8@2900 1,8@2900 2,1@2900
Ignition system
Spark plug Champion XC92YC Champion XC92YC Champion XC92YC
Electrode gap, mm 0,5 0,5	0,5
Fuel and lubrication system
Fuel tank capacity, litre	0,8	0,8	0,8
*Engine oil	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30
Weight
Machine with empty tanks, kg	27	29	30
Noise emissions (see note 2)
Sound power level, measured dB (A)	95,7	95,7	94,4
Sound power level, guaranteed L_WA dB (A) 96	96	96
Sound levels (see note 3)
Sound pressure level at the operators ear, dB(A)	84,8	84,8	84,1
Vibration levels, a_hveq (see note 4)
Handle, m/s^2	3,4	3,4	3,4
Cutting system
Cutting height, mm 20-75 20-75	20-75
Cutting width, cm	47	47	47
Cutter	Collect	Collect	Collect
Article number	5882755-10	5882755-10	5882755-10
Bagger capacity, litre 55 55	55

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
Note 3: Noise pressure level according to ISO 5395. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB(A).
Note 4: Vibration level according to ISO 5395. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s^2 .
*Use engine oil of quality SF, SG, SH, SJ or higher. See the viscosity chart in the engine manufacturer's manual and select the best viscosity based on the expected outside temperature.

EC Declaration of Conformity

(Applies to Europe only)

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel.: [phone], hereby declares that the lawn mower Jonsered LM 2247C, LM 2247CD, LM 2247CDP, starting with serial number 15XXXXXX and onwards, complies with the requirements of the COUNCIL'S DIRECTIVE:

• of May 17, 2006 "relating to machinery" 2006/42/EC.
• of February 26, 2014 "relating to electromagnetic compatibility" 2014/30/EU.
• of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

For information relating to noise emissions, see the Technical data chapter.

The following standards have been applied: ISO 5395, ISO 14982

Notified body: 0404, SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, has issued reports regarding the assessment of conformity according to annex VI of the COUNCIL'S DIRECTIVE of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

Huskvarna 25 November 2015

$$ \Delta \operatorname {d u} $$

Claes Losdal, Development Manager/Garden Products

(Authorized representative for Husqvarna AB and responsible for technical documentation.)

SYMBOLERKLÄRUNG

Symbolerklärung

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Schalldämpfer

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamp and gear mechanism (no text or labels)

Mechanical assembly diagram showing a rotating component with rotational arrows (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamp or spring mechanism with no visible text or symbols

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a mounted pump and visible blades (no text or symbols)

Betriebsposition

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Line drawing of a lawn mower with a grassy roof and directional arrow indicating rotational motion (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a mechanical component with a curved base and a triangular cutout (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a base unit and tool, showing mechanical components without any text or symbols.

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a mechanical harvesting machine with visible blades and dust (no text or symbols)

Allgemeines

Line drawing of a car's steering wheel assembly with a black arrow indicating the pivot point (no text or symbols present)

Line drawing of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Diagram of a mechanical bracket with a curved handle and attached cable, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Allgemeines

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with a central hub and directional arrows (no text or symbols)

Technical diagram of a mechanical device with rotating components and directional arrows (no text or labels)

Mechanical assembly diagram showing a bracket with attached cable and a close-up of a cable being inserted (no text or symbols)

Technical diagram of a lawn mower with numbered parts and an inset view of the motor's side view.

Wat is wat op de grasmaaier?

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Geluiddemper

Mechanical assembly diagrams showing two configurations of a mechanical component with rotational motion arrows (no text or labels)

Mechanical assembly diagrams showing two configurations of a gear or cam mechanism with no visible text or symbols

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a mounted lawn and visible blades (no text or symbols)

Gebruiksstand

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

- Klap de handgreep omhoog.

Line drawing of a lawn mower with a grassy roof and mechanical components, showing rotational motion (no text or symbols)

MONTAGE EN AFSTELLINGEN

Line drawing of a car's steering wheel and dashboard with motion arrows indicating speed (no text or symbols)

Technical line drawing of a mechanical component with a curved base and a rectangular housing (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a box and gear assembly (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a combine harvester with dust spread, showing wheel and gear assembly (no text or symbols)

Algemeen

Line drawing of a lawn mower with a hand operating the blade (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Diagram of a mechanical component with a curved bracket and attached wires, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Algemeen

Technical line drawing of a mechanical device with circular components and a wooden base (no text or symbols)

Diagram showing a curved structure above grass, with arrows indicating direction (no text or symbols)

Mechanical diagram showing a rotating wheel with gear and a central hub, no text or symbols present

Technical diagram of a mechanical device with rotating blades and a wooden base (no text or symbols)

Mechanical assembly diagram showing a bracket with attached cable and a close-up of a cable being inserted (no text or symbols present)

Attention: projections et ricochets.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Silencieux

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a clamping tool interacting with a motor (no text or symbols visible)

Mechanical assembly diagram showing a rotating component with rotational arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamp or spring mechanism with no visible text or symbols

Diagram of a mechanical device with a curved handle and lever mechanism, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a mounted lawn and visible blades (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a right-hand rule indicating clockwise motion (no text or symbols)

MONTAGE ET RÉGLAGES

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a curved base and a triangular cutout (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a manual lawn mower with a base unit and tool, showing mechanical components without any text or symbols.

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a tractor with visible blades and wheel rim, no text or symbols present

Généralités

Line drawing of a lawn mower mechanism with no text or symbols

Diagram of a mechanical device with a curved handle and attached cable, showing rotational motion (no text or symbols)

Diagram of a mechanical bracket with a curved handle and attached cable, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Généralités

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a tool interacting with grass under an arch (no text or symbols)

Mechanical diagram showing a rotating wheel with gear and shaft, no text or symbols present

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a lever mechanism and cable connection (no text or symbols)

Technical diagram of a lawn mower with numbered parts and an inset view of the motor's side view.

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Silenciador

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical assembly diagram showing two views of a mechanical component with no visible text or symbols

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Line drawing of a lawn mower with a grassy roof and directional arrow indicating rotational motion (no text or symbols)

MONTAJE Y AJUSTES

Line drawing of a motor stroller with wheels and directional arrows indicating motion (no text or symbols)

8/4/3/6/4

Recogedor

Technical line drawing of a mechanical component with a curved base and a separate curved housing (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a base case and gear mechanism (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a combine harvester with dust spread, showing wheel and gear assembly (no text or symbols)

Generalidades

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

• Colóquese detrás de la máquina.

Diagram of a mechanical component with a curved bracket and attached wires (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Generalidades

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a tool interacting with grass under an arch (no text or symbols)

Mechanical diagram showing a rotating wheel with gear and a central hub, no text or symbols present

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a lever mechanism and a close-up of a cable joint (no text or symbols)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Marmitta

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamping device interacting with a motor (no text or symbols visible)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating component with motion arrows (no text or symbols)

Mechanical assembly diagram showing a clamp or spring mechanism with no visible text or symbols

Diagram of a mechanical device with a curved handle and attached cable, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a grassy roof and mechanical components (no text or symbols)

Diagram of a mechanical device with a handle and lever mechanism, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a grassy roof and mechanical components, showing rotational motion (no text or symbols)

Line drawing of a motor stroller with wheels and directional arrows indicating motion (no text or symbols)

0/5/4/3/6/4

Collettore

Technical line drawing of a mechanical component with a close-up view showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a base case and tool, showing mechanical components and motion direction (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a combine harvester with dust spraying (no text or symbols)

Generalità

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with a curved bracket and attached rod (no text or symbols)

Line drawing of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Generalità

Technical line drawing of a mechanical device with circular components and a wooden base (no text or symbols)

Diagram showing a tool interacting with grass under an arch (no text or symbols)

Mechanical diagram of a mechanical assembly with concentric circles and a central shaft (no text or symbols)

Technical diagram of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a lever mechanism and a close-up of a cable joint (no text or symbols)

Diagram of a mechanical device with a curved handle and lever mechanism, showing rotational motion (no text or symbols)

Tlumič výfuku

Mechanical assembly diagrams showing two configurations of a gear or clamp mechanism (no text or labels)

Mechanical assembly diagrams showing two configurations of a mechanical component with rotational motion arrows (no text or labels)

• Přiklopte rukojeť brzdy motoru k rukojeti.

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a mounted lawn and visible blades (no text or symbols)

Pracovní poloha

• Přiklopte rukojeť brzdy motoru k rukojeti.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a grassy roof and mechanical components, showing rotational motion (no text or symbols)

KOMPLETACE A SEŘÍZENÍ

Line drawing of a motor stroller with wheels and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a cutaway view showing internal structure (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a manual lawn mower with a box and gear assembly (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a tractor with a combine harvester and dust pile, showing mechanical components and motion (no text or symbols)

Všeobecně

Line drawing of a lawn mower with a handle and wheels, showing no text or symbols

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

- Postavte se za stroj.

Diagram of a mechanical component with a curved bracket and attached wires, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Všeobecně

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with a central hub and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly with an inset showing a cable being inserted (no text or symbols present)

Claes Losdal, Development Manager/Garden Products

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Tłumik

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamping tool interacting with a motor (no text or labels visible)

Mechanical assembly diagram showing a rotating component with rotational arrows (no text or labels)

- Dokreć pokrętła.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamp or clamp mechanism with no visible text or symbols

Line drawing of a mechanical device with a handle and clasp, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a lawn mower with a grassy roof and water filter (no text or symbols)

Położenie pracy

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a lawn mower with a mounted power tool and directional arrow indicating rotational motion (no text or symbols)

MONTAŻ I REGULACJE

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

0/5/4/3/6/4

Kolektor

Technical line drawing of a mechanical component with a curved base and a rectangular housing, showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a manual lawn mower with a base case and tool, showing mechanical components and motion direction (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a tractor with visible blades and wheel, showing mechanical components and dust distribution (no text or symbols)

Uwagi ogólne

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical component with a curved bracket and attached wires (no text or symbols)

Diagram of a mechanical clamp or bracket with an arrow indicating rotation (no text or symbols present)

Uwagi ogólne

Technical line drawing of a mechanical component with rotating parts and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with gear and a central hub, no text or symbols present

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a lever mechanism and cable connection (no text or symbols)

Technical diagram of a lawn mower with numbered parts and an inset view of the motor's side view.

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Kipufogódob

Mechanical assembly diagrams showing two configurations of a clamp or clamp mechanism (no text or labels)

Mechanical assembly diagrams showing gear and chain components with motion arrows (no text or labels)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a mounted pump and visible blades (no text or symbols)

Használati helyzet

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Line drawing of a lawn mower with a mounted power tool and directional arrow indicating rotation (no text or symbols)

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

0/5/4/3/6/4

Technical line drawing of a mechanical component with a cutaway view showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a box and gear mechanism (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a tractor with visible wheel, wheels, and mechanical components (no text or symbols)

Line drawing of a lawn mower mechanism with no text or symbols

Diagram of a mechanical component with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical bracket with a curved handle and arrow indicating direction (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and attached weights (no text or symbols)

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with gear and shaft, no text or symbols present

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a bracket and cable connection, with an inset close-up of the cable being twisted (no text or symbols)

SIGURNOSNA OPREMA STROJA

Općenito 213

MONTIRANJE I PODEŠAVANJA

Općenito 214

Ručka 214

Visina rezanja 215

Sakupljač 215

SIGURNOSNA OPREMA STROJA

Općenito

Diagram of a mechanical lever mechanism with a curved handle and tassel, showing rotational motion (no text or symbols)

Prigušivač

Mechanical assembly diagrams showing two configurations of a gear or clamp mechanism (no text or labels)

- Visina ručke može se postaviti na dva položaja.

- Podesite visinu.

Mechanical assembly diagrams showing two configurations of a mechanical component with rotational motion arrows (no text or labels)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a mounted lawn and visible blades (no text or symbols)

Radni položaj

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

- Ispravite ručku.

Line drawing of a lawn mower with a grassy roof and mechanical components, showing rotational motion (no text or symbols)

MONTIRANJE I PODEŠAVANJA

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

- Možete podesiti reznu visinu na 6 različitih položaja zahvaljujući poluzi za reznu visinu.

6/5/4/3/5/4

Sakupljač

- Ručka spremnika koja se nalazi na okviru treba biti postavljena preko vreće spremnika.

Technical line drawing of a mechanical component with a curved base and a separate cutaway view (no text or symbols)

- Pričvrstite donji dio okvira u utoru ispod sakupljača.

- Okvir pričvrstite pomoću brzih kopči.

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

- Pazite da je ploča za odbacivanje trave stroja čista i da na njoj nema ostataka trave.

- Spojite spremnik na gornji kraj kućišta.

- Postavite jezičac spremnika u ploču za odbacivanje trave stroja.

Technical line drawing of a manual lawn mower with a base case and tool, showing mechanical components without any text or symbols.

Technical line drawing of a manual lawn mower (no text or symbols)

- Nož zamijenite Combi nožem koji ste dobili. Više informacija potražite u Cutting equipment" (Rezna oprema).

Stražnje pražnjenje

Stroj možete upotrijebiti i bez umetka za usitnjavanje i spremnika.

• Podignite stražnji štitnik i uklonite mehanizam za hvatanje.
• Uklonite priključak za malčiranje.
  • Zatvorite štitnik.

Line drawing of a mechanical vehicle with gears and blades, showing motion and grain distribution (no text or symbols)

Općenito

UPOZORENJE! Pokretanje motora u zatvorenom ili loše provjetrenom prostoru može prouzročiti smrt zbog gušenja ili trovanja ugljičnim monoksidom.

Gorivo i pare goriva su visoko zapaljivi te mogu izazvati ozbiljne ozlijede u slučaju inhalacije ili kontakta s kožom. Iz tog razloga pažljivo rukujete gorivom i budite sigurni da postoji odgovarajuća ventilacija.

Line drawing of a lawn mower mechanism with no text or symbols

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

• Stanite ispred stroja.
- Primate startnu ručicu, polako povucite startno uže desnom rukom dok ne osjetite malo otpora (zahvatač uhvati kotur startera). Snažno povucite za pokretanje motora. Nikad ne omotavajte startno uže oko šake.

Pogon (LM 2247CD, LM 2247CDP)

Diagram of a mechanical bracket with an arrow indicating direction (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and attached wires (no text or symbols)

ODRŽAVANJE

Općenito

!

UPOZORENJE! Korisnik održavanje i servisiranje treba vršiti na način opisan u ovim uputama. Svaki obimniji rad treba obaviti u servisnom centru.

Technical diagram of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

- Stavite nož s podložnom pločicom na nosač noža. Nož treba pravilno centrirati na osovini.

Mechanical diagram showing a rotating wheel with a central blade and directional arrows (no text or labels)

- Blokirajte nož drvenim blokom. Postavite podlošku i zategnite vijek na ispravan način okretanjem u smjeru kazaljke na satu. Vijak je potrebno zategnuti na zatezni moment od 70 Nm.

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Technical diagram showing a mechanical clamp or connector being inserted into a cable, with an inset close-up highlighting the component (no text or symbols present)

- Kako biste napeli sajlu i povećali brzinu, vijak za podešavanje okrenite u smjeru suprotnom od kazaljke na satu.

Nemojte previše zatezati sajle. Ako se kosilica počne kretati bez upotrebe ručice spojke, produljite sajlu.

- Kako biste produljili sajlu i smanjili brzinu, vijak za podešavanje okrenite u smjeru kazaljke na satu.

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Summuti

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a gear and linkage mechanism (no text or labels)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamp and gear mechanism (no text or labels)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a mounted pump and visible blades (no text or symbols)

Tööasend

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a grassy roof and mechanical components, showing rotational motion (no text or symbols)

KOKKUPANEK JA REGULEERIMINE

Line drawing of a grass lawnmower vehicle with motion arrows indicating speed (no text or symbols)

0/5/4/3/5/4

Koguja

Technical line drawing of a mechanical component with a cutaway view showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a box and gear assembly (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a tractor with visible blades and wheel, showing mechanical components and grain spilling (no text or symbols)

KÜTUSE KÄSITSEMINE

Üldised näpunäited

!

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols present)

Diagram of a mechanical component with a curved bracket and attached wires (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and attached weights (no text or symbols)

Üldised näpunäited

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with a central blade and directional arrows (no text or labels)

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Technical diagram showing a mechanical clamp or connector being inserted into a cable, with an inset close-up highlighting the component (no text or symbols present)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Duslintuvas

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamping tool interacting with a motor (no text or symbols visible)

Mechanical assembly diagram showing a rotating component with rotational arrows (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a clamp or tool inserted into a housing (no text or symbols visible)

• Variklio stabdžio svirtj palenkite link rankenos.

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Line drawing of a lawn mower with a mounted pump and visible blades (no text or symbols)

Darbiné padètis

- Variklio stabdžio svirtj palenkite link rankenos.

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Line drawing of a lawn mower with a grassy roof and directional arrow indicating rotational motion (no text or symbols)

Line drawing of a grass lawnmower vehicle with motion arrows indicating speed (no text or symbols)

Technical line drawing of a mechanical component with a cutaway view showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical tool or machine with a base and housing, showing no text or symbols.

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a tractor with visible wheel blades and dust particles, no text or symbols present

Bendra informacija

Line drawing of a lawn mower mechanism with no text or symbols

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Diagram of a mechanical bracket with a curved handle and attached cable, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and attached clamped parts (no text or symbols)

TECHNINÉ PRIEŽIŪRA

Bendra informacija

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with a central blade and directional arrows (no text or labels)

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a mechanical clamp or bracket assembly with an inset close-up of a cable being inserted (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the motor's side view.

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Trokšna slāpētājs

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a gear and pulley mechanism (no text or labels)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

• Cieši pievelciet fiksatorus.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamp or spring mechanism with no visible text or symbols

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a mounted lawn and visible blades (no text or symbols)

Darba pozicija

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

- Uzlokiet rokturi uz augšu.

Line drawing of a lawn mower with a grassy roof and mechanical components, showing rotational motion (no text or symbols)

MONTĀŽA UN UZSTĀDĪŠANA

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating maneuver (no text or symbols)

0/5/4/3/5/4

Savācējs

Technical line drawing of a mechanical component with a cutaway view showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a box and gear assembly (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a tractor with a combine harvester in operation, showing mechanical components and dusting (no text or symbols)

Vispārēji

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Line drawing of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Diagram of a mechanical bracket with a curved handle and attached cable, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and attached weights (no text or symbols)

Vispārēji

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with a central hub and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a bracket and cable with an inset view of a cable being twisted (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and rotating arrow (no text or symbols)

Dušilec

Mechanical assembly diagrams showing two configurations of a mechanical component with no visible text or symbols

Mechanical assembly diagrams showing gear and chain components with motion arrows (no text or labels)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

- Ročico preklopite naprej.

Line drawing of a lawn mower with a mounted pump and visible blades (no text or symbols)

Diagram of a mechanical device with a curved handle and lever mechanism, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a grassy roof and directional arrow indicating rotational motion (no text or symbols)

MONTAŽA IN REGULIRANJE

- Vijačne gumbe potisnite proti ročici do konca, dokler se ne zasliši klik.

CLICK!

Line drawing of a grass lawnmower vehicle with motion arrows indicating speed (no text or symbols)

Technical line drawing of a mechanical component with a cutaway view showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

- Prepričajte se, da je izmetna enota stroja čista in brez odrezkov trave.

• Zbiralnik vpnite v zgornji del podvozja.

- Zbiralnik jezička vstavite v izmetno enoto stroja.

Technical line drawing of a manual lawn mower with a box and gear mechanism (no text or symbols)

- Namestite dno košare v luknjo za odlaganje.

Vstavljanje mulčerja - Priključki

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a tractor with visible blades and wheel, showing mechanical components and dust distribution (no text or symbols)

Splošno

Line drawing of a lawn mower mechanism with no text or symbols

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

• Postavite se za stroj.
• Primate zaganjalno ročico, počasi povlecite vrvico z desno roko, dokler ne začutite odpora (zaganjač začne prijemati). Močno povlecite, da zaženete motor. Vžigalne vryvice nikoli ne navijajte okoli zapestja.

Pogon (LM 2247CD, LM 2247CDP)

Diagram of a mechanical bracket with a curved handle and attached cable, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and directional arrow (no text or symbols)

VZDRŽEVANJE

Splošno

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

- Odstranite staro rezilo. Zagotovite, da zavora rezila ni poškodovana. Preverite tudi, ali je vijak rezila nepoškodovan in ali motorna gred ni upognjena.

Montaža

- Rezilo mora biti nameščeno tako, da so nagnjene strani rezila obrnjene navzgor, proti pokrovu.

Diagram showing a tool interacting with grass under an arch (no text or symbols)

- Rezilo vstavite tako, da bo podložka trenja nasproti zavore rezila. Rezilo mora biti pravilno usredinjeno na gredi.

Mechanical diagram showing a rotating wheel with a central blade and directional arrows (no text or symbols)

- Rezilo blokirajte z leseno klado. Namestite podložko in pravilno zategnite vijak z obračanjem v smeri vrtenja urinih kazalcev. Vijak je treba zategniti z zateznim momentom 70 Nm.

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

• Z roko obrnite rezilo in preverite, ali se prosto vrti.
• Preizkusno zaženite stroj.

POMEMBNO!

Technical illustration of a mechanical clamp or connector with an inset showing a cable being inserted (no text or symbols present)

Diagram of a mechanical lever mechanism with no text or symbols

Tlmič výfuku

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a clamping tool interacting with a motor (no text or symbols visible)

• Výšku rukováti možno nastavit do 2 polôh.

• Nastavte výšku.

Mechanical assembly diagram showing a rotating component with rotational arrows (no text or symbols)

• Gombíky dôkladne utiahnite.

Transportná poloha

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a clamp or tool inserted into a housing (no text or symbols visible)

- Podržte rukováť brzdy motora pri rukováti.

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Line drawing of a lawn mower with a mounted pump and visible blades (no text or symbols)

Poloha pri obsluhe.

- Podržte rukováť brzdy motora pri rukováti.

Diagram of a mechanical device with a curved handle and lever mechanism, showing rotational motion (no text or symbols)

• Vyklopte rukovät do vzpriamenej polohy.

Line drawing of a lawn mower with a grassy roof and directional arrow indicating rotational motion (no text or symbols)

MONTÁŽ A NASTAVENIA

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

0/5/4/3/6/4

Zberač

Technical line drawing of a mechanical component with a curved base and a rectangular housing, showing a cutaway view (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a moving cart and base (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a mechanical device with gears and dust particles, no text or symbols present

Všeobecné

Line drawing of a lawn mower with a handle and wheels, showing no text or symbols

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Diagram of a mechanical bracket with a curved handle and attached cable, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Všeobecné

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing to grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with a central blade and directional arrows (no text or labels)

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Technical diagram showing a mechanical clamp or connector being inserted into a cable, with an inset close-up highlighting the component (no text or symbols present)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Ауспух

Mechanical assembly diagram showing two steps of a hand turning a gear (no text or labels)

Mechanical assembly diagrams showing two views of a mechanical component with no visible text or symbols

Diagram of a mechanical device with a curved handle and attached cable, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a grassy roof and mechanical components (no text or symbols)

Работно положение

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a grassy roof and mechanical components, showing rotational motion (no text or symbols)

МОНТИРАНЕ И НАСТРОЙВАНЕ

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a cutaway view showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a manual lawn mower with a base case and gear mechanism (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a mechanical device with gears and blades, showing mechanical components and motion (no text or symbols)

Основни принципи

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Diagram of a mechanical lever mechanism with an arrow indicating rotational motion (no text or symbols present)

Diagram of a mechanical component with a curved bracket and attached rod (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and attached clamped parts (no text or symbols)

Основни принципи

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Mechanical diagram showing a rotating wheel with a central hub and directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a bracket and cable assembly with an inset detail (no text or symbols)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Глушитель

Mechanical assembly diagram showing two steps of a tool or component with no visible text or symbols

Mechanical assembly diagrams showing two configurations of a tool or component with rotational motion arrows (no text or labels)

Diagram of a mechanical device with a handle and lever mechanism, no text or symbols present

- Сложите рукоятку.

Line drawing of a lawn mower with a grassy roof and mechanical components, showing no text or symbols.

Рабочее положение

Diagram of a mechanical device with a curved handle and lever mechanism, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a rotating handle and motion arrow (no text or symbols)

СБОРКА И НАСТРОЙКИ

Line drawing of a motor stroller with motion arrows indicating speed (no text or symbols)

Technical line drawing of a mechanical component with a curved base and a separate cutaway view (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a manual lawn mower with a base case and gear mechanism (no text or symbols)

Technical line drawing of a manual lawn mower with wheels and handle (no text or symbols)

Line drawing of a tractor with visible wheelbars and mechanical components, showing grain spilling (no text or symbols)

Общие сведения

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols present)

Diagram of a mechanical component with a curved bracket and attached cable, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Общие сведения

Technical line drawing of a mechanical device with circular components and directional arrows (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Technical diagram of a mechanical assembly with concentric circles and a central shaft (no text or labels)

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a bracket with attached cable and a close-up of a cable being twisted (no text or symbols present)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Глушник

Mechanical assembly diagrams showing two views of a mechanical component with no visible text or symbols

Mechanical assembly diagrams showing two configurations of a gear or cam mechanism (no text or labels)

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a side-mounted tool and directional arrows indicating motion (no text or symbols)

Робоче положення

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Line drawing of a lawn mower with a right-handled angle indicator (no text or symbols)

Line drawing of a car's steering wheel and steering wheel with motion arrows indicating speed (no text or symbols)

Technical line drawing of a mechanical component with a curved base and a rectangular housing (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual lawn mower with a tool box and gear mechanism (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a combine harvester with dust spread, showing mechanical components and motion (no text or symbols)

Загальне

Line drawing of a lawn mower with a black arrow indicating the blade (no text or symbols present)

Diagram of a mechanical lever mechanism with a curved handle and rotating arrow (no text or symbols)

Diagram of a mechanical component with a curved bracket and attached wires, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Загальне

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a curved structure above grass, with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with concentric rings and directional arrows, no readable text or symbols present.

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a bracket with attached cable and a close-up of a cable being inserted (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Σιγαστήρας

Mechanical assembly diagrams showing two views of a mechanical component with no visible text or symbols

Mechanical assembly diagrams showing two configurations of a mechanical component with rotational motion arrows (no text or labels)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a lawn mower with a mounted power tool and directional arrows indicating motion (no text or symbols)

Θέση λειτουργίας

Diagram of a mechanical lever mechanism with a curved handle and lever, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a grassy roof and directional arrow indicating rotational motion (no text or symbols)

Line drawing of a car with motion arrows indicating speed or flow (no text or symbols)

1/5/4/3/5/4

Στήριγμα

Technical line drawing of a mechanical component with an arrow indicating a feature (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a manual lawn mower with a box and gear assembly (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a mechanical device with gears and blades, showing motion and assembly (no text or symbols)

Γενικά

Line drawing of a lawn mower with motion lines indicating speed and wheel (no text or symbols)

Diagram of a mechanical lever mechanism with a curved handle and attached lever (no text or symbols)

Diagram of a mechanical component with a curved bracket and attached rod (no text or symbols)

Line drawing of a mechanical lever mechanism with a curved handle and lever, showing motion direction (no text or symbols)

Γενικά

Technical line drawing of a mechanical component with rotating parts and a wooden base (no text or symbols)

Diagram showing a curved structure with arrows pointing downward and grass at the base (no text or symbols)

Mechanical diagram showing a rotating wheel with labeled components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a bracket with attached cable and a close-up of a cable being twisted (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the motor's side view.

Diagram of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Susturucu

Mechanical assembly diagrams showing two configurations of a gear or clamp mechanism (no text or labels)

Mechanical assembly diagrams showing two configurations of a mechanical component with rotational motion arrows (no text or labels)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Line drawing of a lawn mower with a mounted pump and visible blades (no text or symbols)

Kullanım Konumu

Diagram of a mechanical device with a curved handle and lever mechanism, showing rotational motion (no text or symbols)

Line drawing of a lawn mower with a grassy roof and directional arrow indicating rotational motion (no text or symbols)

MONTAJ VE AYAR

Line drawing of a grass lawnmower vehicle with motion arrows indicating speed (no text or symbols)

Technical line drawing of a mechanical component with a cutaway view showing internal structure (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a manual tiller machine with a moving cart and base (no text or symbols)

Technical line drawing of a manual lawn mower (no text or symbols)

Line drawing of a mechanical device with a pile of harvested grains, no text or symbols present

Genel

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Diagram of a mechanical lever mechanism with a curved arrow indicating rotational motion (no text or symbols present)

Diagram of a mechanical component with a curved bracket and attached wires, showing no text or symbols.

Diagram of a mechanical lever mechanism with a curved handle and attached clamped parts (no text or symbols)

Genel

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Diagram showing a blade under an arch over grass, with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction or force

Technical line drawing of a mechanical device with rotating components and a wooden base (no text or symbols)

Mechanical assembly diagram showing a bracket with cable and a close-up of a mechanical component (no text or symbols)
