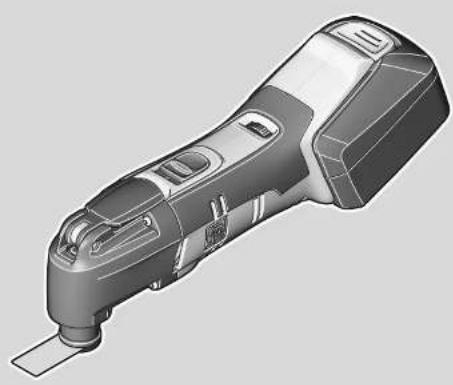

USER MANUAL MultiMaster AFMM14 Fein

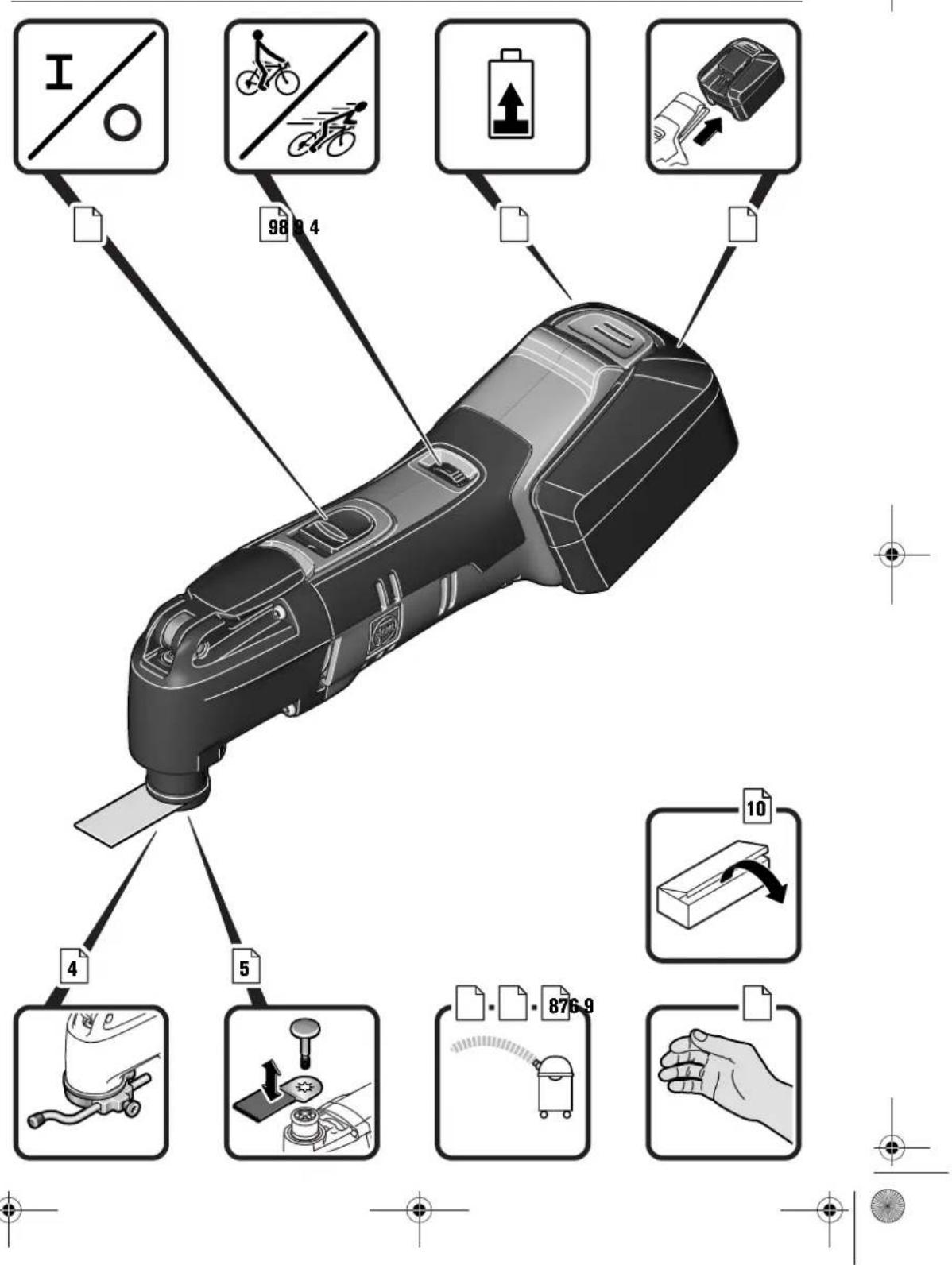

OBJ_BUCH-0000000025-001.book Page 2 Friday, February 25, 2011 9:30 AM3

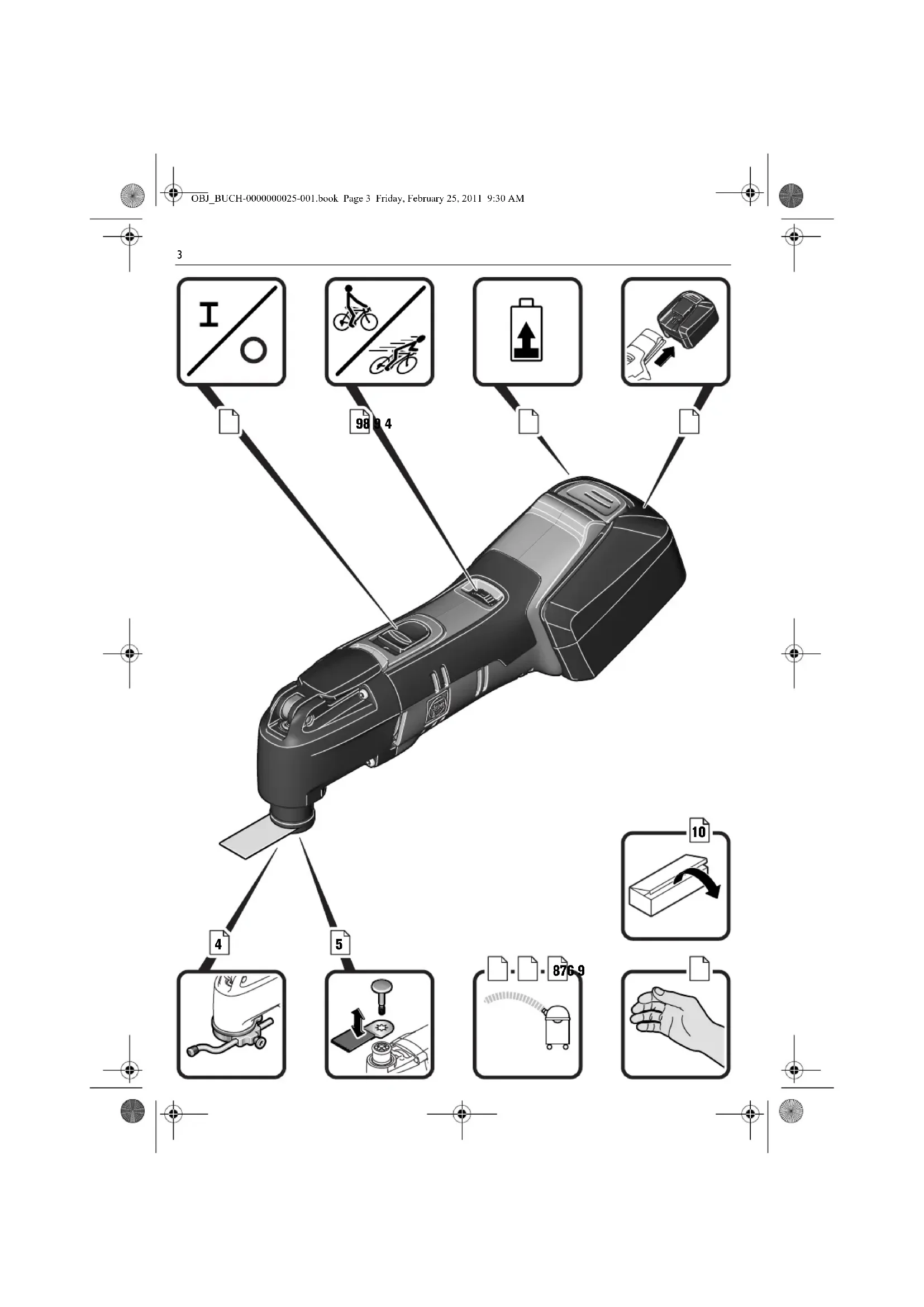

OBJ_BUCH-0000000025-001.book Page 3 Friday, February 25, 2011 9:30 AM4

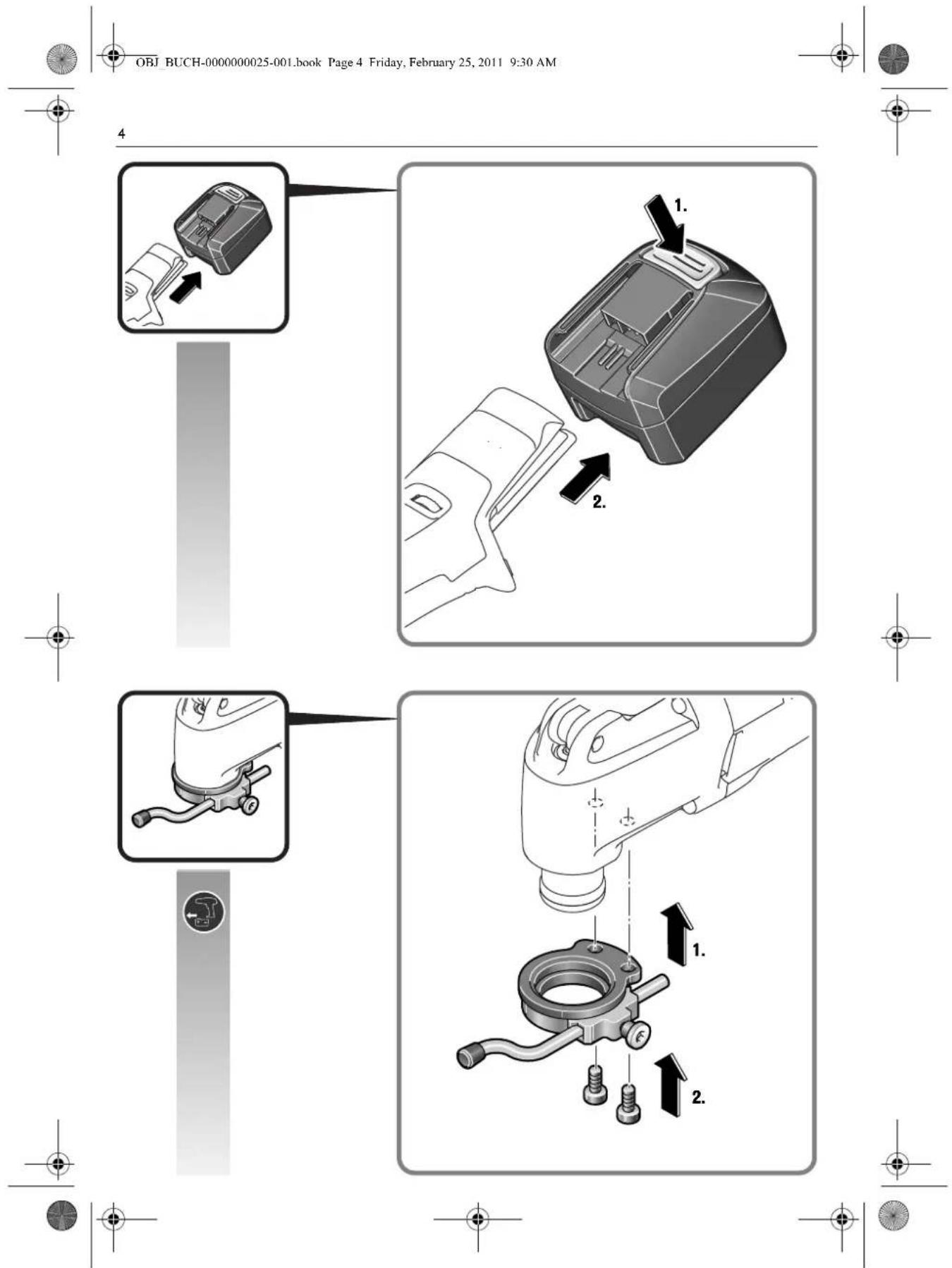

OBJ_BUCH-0000000025-001.book Page 4 Friday, February 25, 2011 9:30 AM5

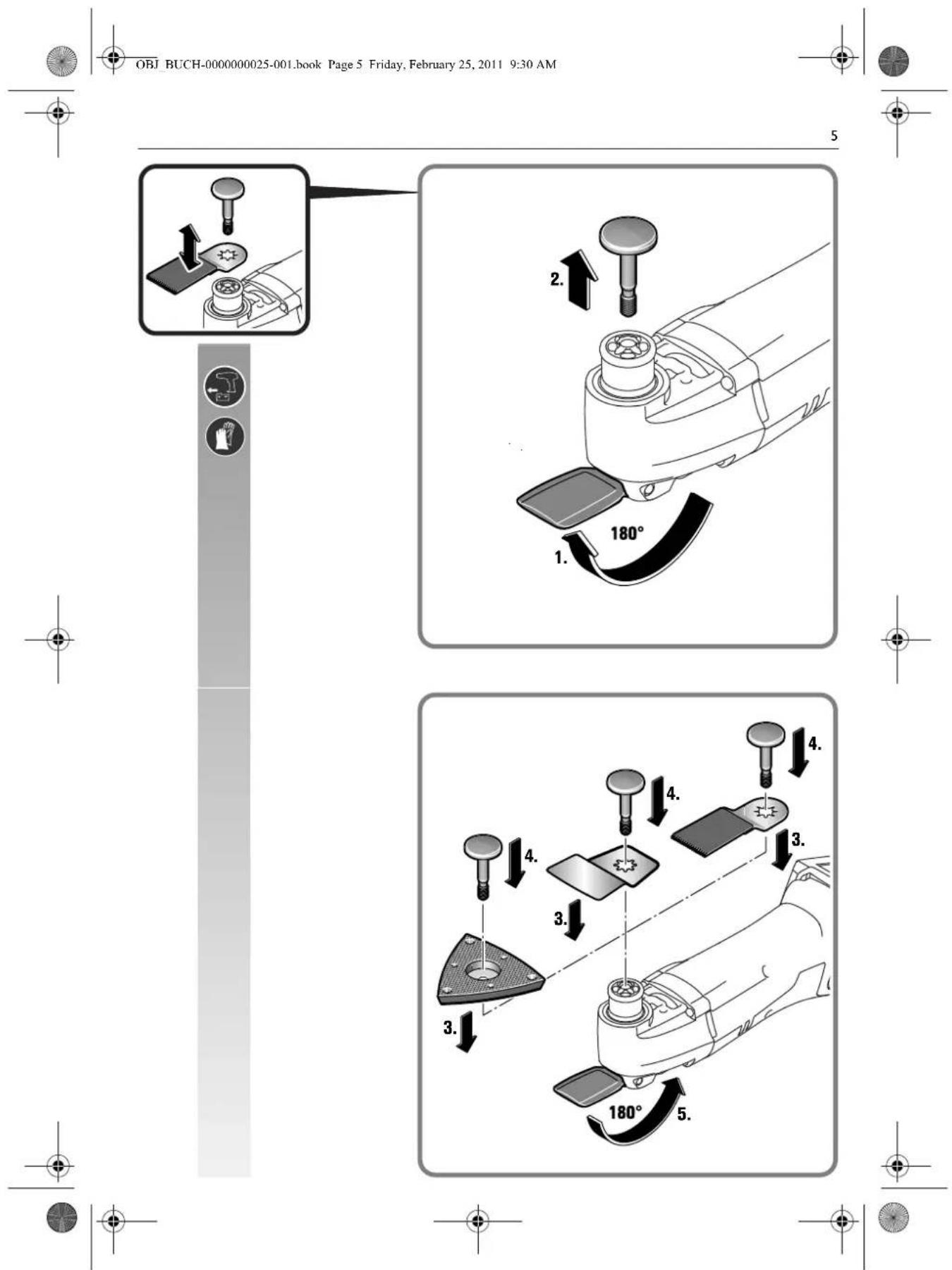

OBJ_BUCH-0000000025-001.book Page 5 Friday, February 25, 2011 9:30 AM6

OBJ_BUCH-0000000025-001.book Page 6 Friday, February 25, 2011 9:30 AM7

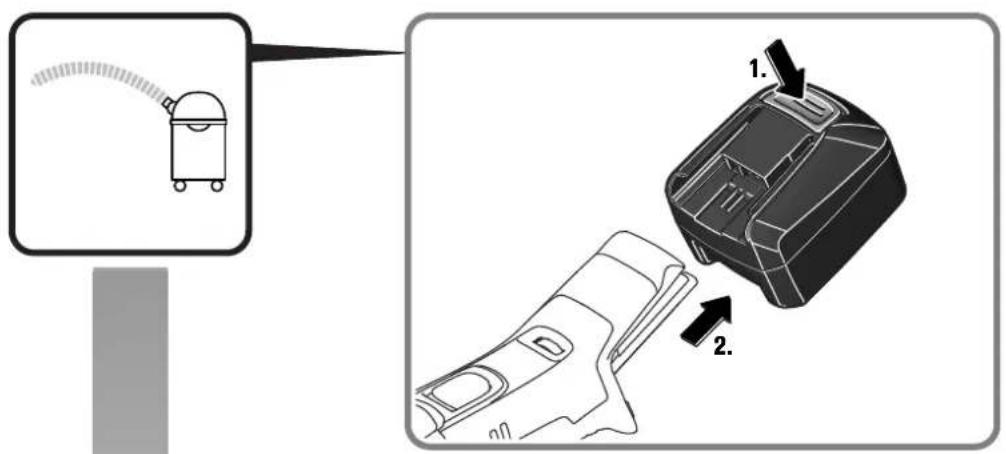

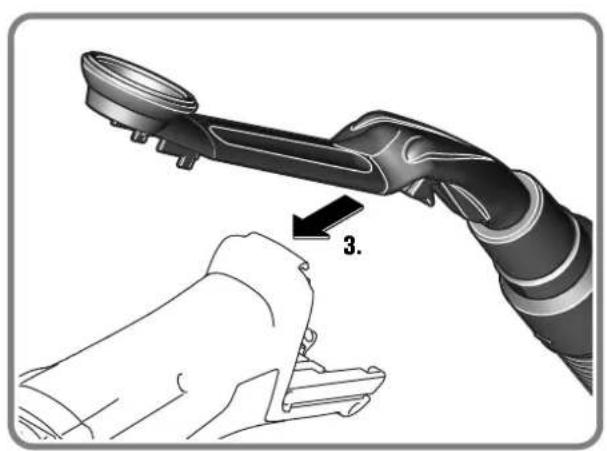

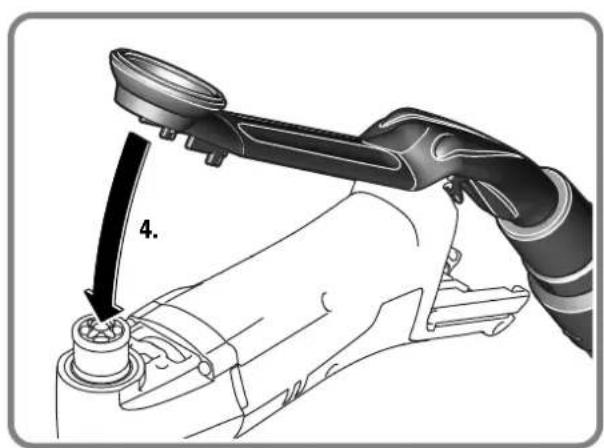

OBJ_BUCH-0000000025-001.book Page 7 Friday, February 25, 2011 9:30 AM8

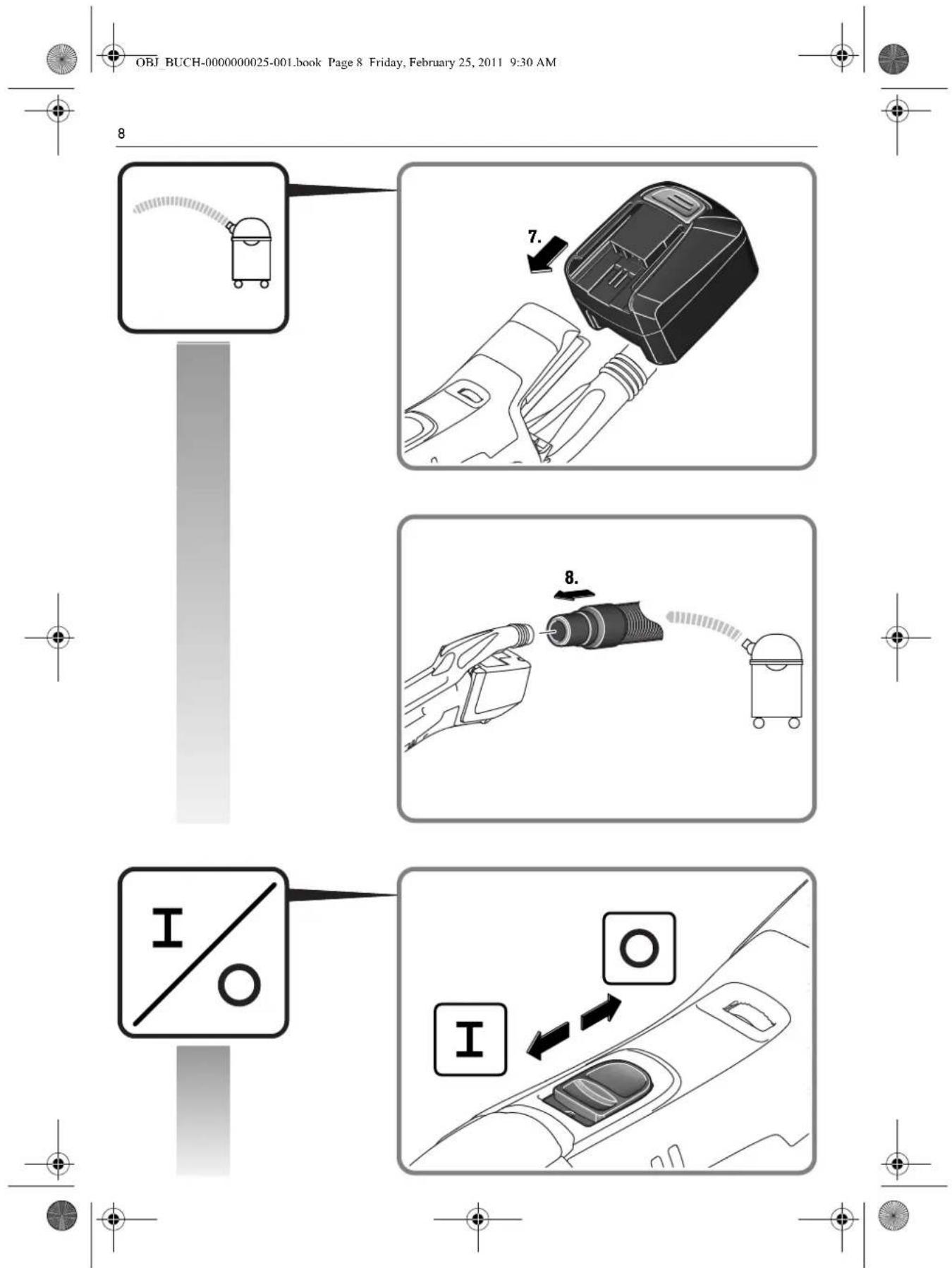

OBJ_BUCH-0000000025-001.book Page 8 Friday, February 25, 2011 9:30 AM9

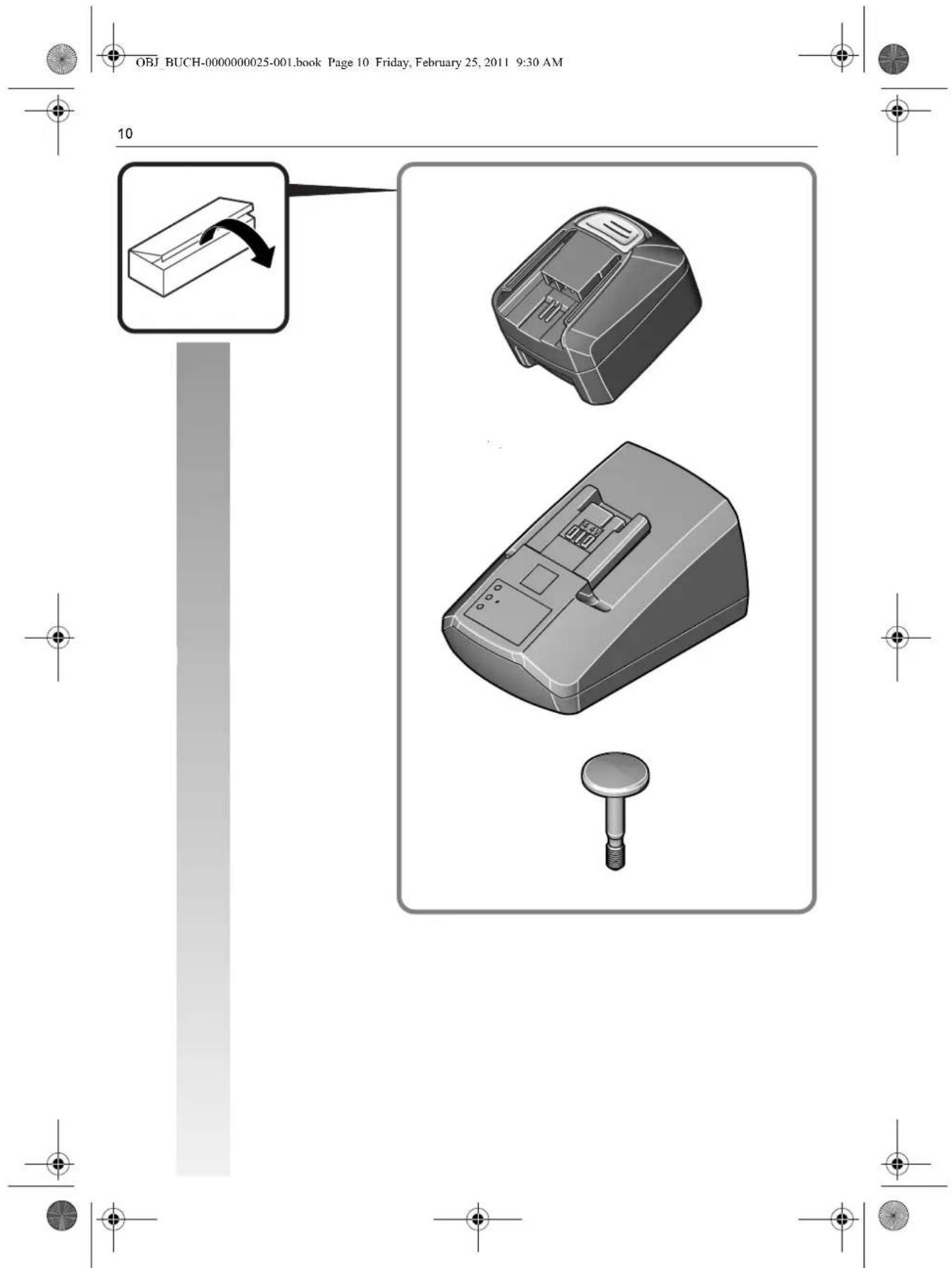

100 % 75 % 50 % 25 % 0 % OBJ_BUCH-0000000025-001.book Page 9 Friday, February 25, 2011 9:30 AM10 OBJ_BUCH-0000000025-001.book Page 10 Friday, February 25, 2011 9:30 AM11

Original Instructions for Cordless MULTIMASTER. Symbols, abbreviations and terms used. Symbol, character Explanation Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. Do not touch the saw blade. Danger of sharp application tools moving back and forth. Warning against sharp edges of application tools, such as the cutting edges of the cutter blades. Observe the instructions in the text or graphic opposite! Before commencing this working step, remove the battery from the power tool. Other- wise there may be danger of injury caused by unintentional starting of the power tool. Use eye protection during operation. Use ear protection during operation. Use a dust mask during operation. Use protective gloves during operation. Gripping surface Do not charge damaged batteries. Keep the battery away from fire. Protect the battery against heat, e. g., against continuous intense sunlight. Observe the information in the adjacent text! Confirms the conformity of the power tool with the directives of the European Commu- nity. This sign indicates a possible dangerous situation that could cause severe or fatal injury. Recycling symbol: designates recyclable materials Worn out power tools and other electrotechnical and electrical products should be sorted separately for environment-friendly recycling. Battery type Low oscillation rate High oscillation rate WARNING Character Unit of measure, international Unit of measure, national Explanation U VVRated voltage

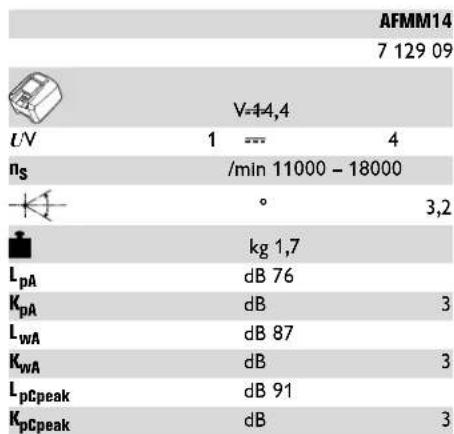

/min /min Rated oscillation rate ° ° Oscillation angle OBJ_BUCH-0000000025-001.book Page 15 Friday, February 25, 2011 9:30 AM16

For your safety. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Do not use this power tool before you have thor- oughly read and completely understood this Instruction Manual and the enclosed “General Safety Instructions” (document number 3 41 30 054 06 1). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold. Please also observe the relevant national industrial safety regulations. Intended use of the power tool: for sanding small surfaces, corners and edges, for sawing thin parts of steel sheet, wood and plastic, for scraping, polishing, rasping, cutting and separating without water in weather-protected environments, using the application tools and accessories recommended by FEIN. Special safety instructions. Hold the power tool by the insulated gripping surfaces when performing operations where the application tool could contact hidden wires. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and shock the operator. Use clamps or another practical way to secure and sup- port the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control. Grasp the power tool in such a safe manner that your body never comes into contact with the application tool, especially while working with application tools such as saw blades or other blades pointed toward the grasping range. Touching sharp tips or cutting edges can lead to injuries. Wear personal protective equipment. Depending on appli- cation, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your opera- tion. Prolonged exposure to high intensity noise may cause hearing loss. Do not direct the power tool against yourself, other per- sons or animals. Danger of injury from sharp or hot application tools. Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended. Clean the ventilation openings on the power tool at regu- lar intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accu- mulation of metallic dust can cause an electrical hazard. Use and handling of the battery (battery pack) To avoid hazardous situations such as burns, fire, explo- sion, skin injuries, and other injuries when handling the battery, observe the following instructions: Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns. When battery fluid from a damaged battery has come into contact with objects close by, check the respective com- ponents, clean them or replace them as required. Keep the battery away from heat and fire. Do not store the battery in direct sunlight. Do not remove the battery from its original packaging until it is going to be used. Before any work on the machine itself, remove the bat- tery from the power tool. If the power tool accidentally starts, there is danger of injury. Remove the battery only when the power tool is switched off. Keep the battery away from children. Keep the battery clean and protect it against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth. kg kg Weight according to EPTA-Procedure 01/2003

dB dB Sound pressure level

pCpeak dB dB Peak sound pressure level K... Uncertainty a m/s

Basic and derived units of measure from the inter- national system of units SI. Character Unit of measure, international Unit of measure, national Explanation WARNING OBJ_BUCH-0000000025-001.book Page 16 Friday, February 25, 2011 9:30 AM17

Use only intact original FEIN batteries that are intended for your power tool. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion. Follow the safety warnings in the operating instructions of the battery charger. Handling hazardous dusts For work procedures with this power tool where mate- rial is removed, dusts develop that can be hazardous to one’s health. Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coat- ings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-contain- ing materials to specialists. Wood and light-metal dust, hot mixtures of sanding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer’s working instructions, as well as the rele- vant regulations in your country for the materials being worked. Hand/arm vibrations The vibration emission level given in this information sheet has been measured in accordance with a standard- ised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the opera- tor from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Emission values for vibration Operating instructions. Do not use accessories not specifically intended and rec- ommended for this power tool by FEIN. The use of non- original FEIN accessories can lead to overheating of the power tool and destroy it. Guide the power tool toward the work piece only when switched on. The application tool can be offset in 45° steps and fas- tened in the most favourable working position. Changing the tool (see page 5). Firmly press in the fastening element to the stop. Then lock the clamping lever. Protect your hand and fingers against bruising them when locking the clamping lever. The clamping lever snaps back vigorously by means of spring force. Handling the battery. Operate and charge the battery only within the battery operating-temperature range of 0 °C – 45 °C (32 °F – 113 °F). At the beginning of the charging procedure, the battery temperature must be within the battery operat- ing-temperature range. The real percentage of the battery charge condition is only indicated when the power tool motor is stopped. The electronics automatically switch off the motor prior to the battery being deep discharged. Vibration a Classification of FEIN application tools according to vibration class Weighted acceleration* VC0 < 2.5 m/s

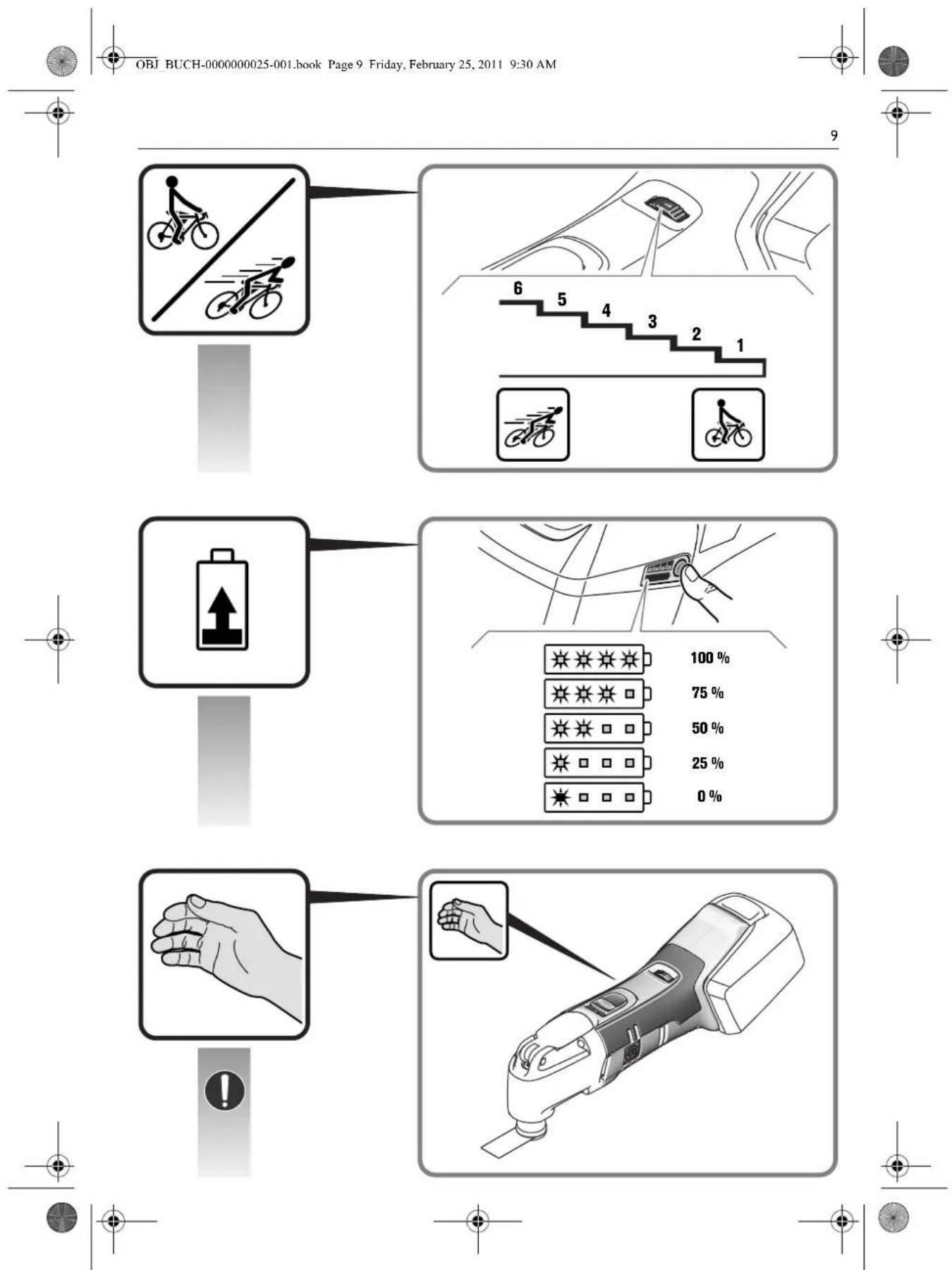

• These values are based on a work cycle consisting of no-load and full-load operation of the same duration. For information on the vibration class assigned to the application tool, please see the enclosed data sheet 3 41 30 335 06 0. LED indicator Meaning Activity 1 – 4 green LED Percentage of charge condi- tion Operation Continuous red light Battery is almost empty Charge battery Red flashing light Battery is not ready for oper- ation Bring the battery into the battery operating- temperature range, then charge OBJ_BUCH-0000000025-001.book Page 17 Friday, February 25, 2011 9:30 AM18

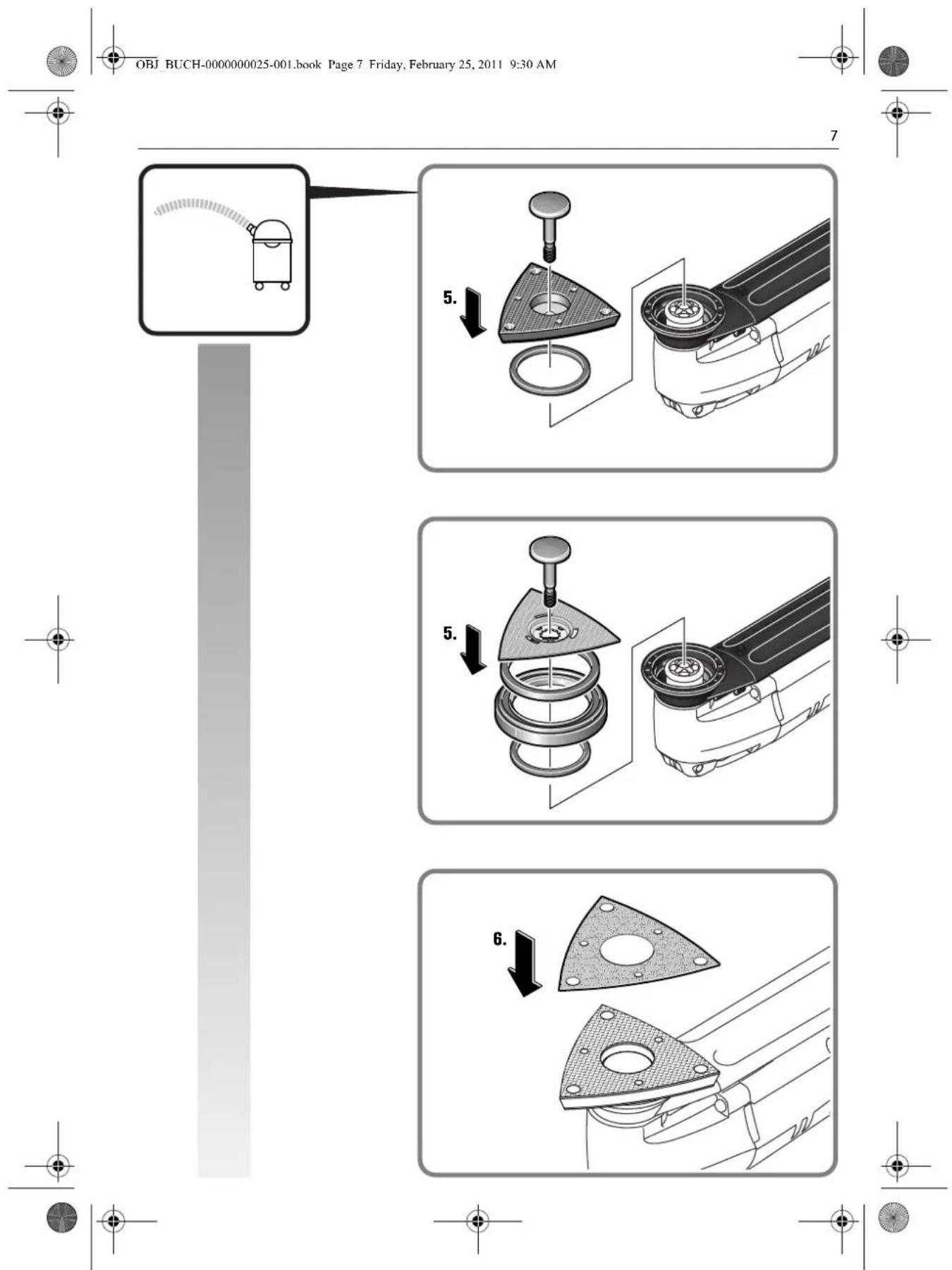

Notes on sanding. Press the power tool with the sanding sheet briefly and firmly against a flat surface and briefly switch the power tool on. This provides for good adhesion and prevents premature wear. When only one tip or corner of the sanding sheet is worn, it can be removed again and reattached turned by 120°. Work with the entire surface of the sanding plate, not only with the tip. Select a high oscillating frequency. Sand with continuous motion applying moderate pressure. Applying overly pressure does not increase the rate of removal, it only wears off the sanding sheet faster. Notes on sawing. Select a high oscillating frequency. Round saw blades can be released and clamped offset again, to allow for uni- form wearing off. Notes on scraping. Select a moderate to high oscillating frequency. Repair and customer service. When working metal under extreme operat- ing conditions, it is possible for conductive dust to settle in the interior of the power tool. Blow out the interior of the power tool via the ventila- tion slots frequently with dry and oil-free compressed air. For storage of the power tool, remove the application tool, shut the clamping lever, and then press in the fasten- ing element. If required, you can change the following parts yourself: Fastening element, application tools Warranty and liability. The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer’s warranty declaration. The delivery scope of your power tool may include only a part of the accessories described or shown in this instruction manual. Declaration of conformity. FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual. Technical documents at: C. & E. FEIN GmbH, EGZ, D-73529 Schwäbisch Gmünd Environmental protection, disposal. Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged. For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting. OBJ_BUCH-0000000025-001.book Page 18 Friday, February 25, 2011 9:30 AM19

/min /min Vitesse nominale ° ° Angle d’oscillation OBJ_BUCH-0000000025-001.book Page 19 Friday, February 25, 2011 9:30 AM20

/min /min Gemeten trillingsgetal ° ° Trillingshoek OBJ_BUCH-0000000025-001.book Page 27 Friday, February 25, 2011 9:30 AM28

OBJ_BUCH-0000000025-001.book Page 41 Friday, February 25, 2011 9:30 AM42

OBJ_BUCH-0000000025-001.book Page 96 Friday, February 25, 2011 9:30 AM97

OBJ_BUCH-0000000025-001.book Page 98 Friday, February 25, 2011 9:30 AM99

OBJ_BUCH-0000000025-001.book Page 108 Friday, February 25, 2011 9:30 AM109

OBJ_BUCH-0000000025-001.book Page 119 Friday, February 25, 2011 9:30 AM120

OBJ_BUCH-0000000025-001.book Page 121 Friday, February 25, 2011 9:30 AM122 zh (CM)

OBJ_BUCH-0000000025-001.book Page 123 Friday, February 25, 2011 9:30 AM124 zh (CM)

OBJ_BUCH-0000000025-001.book Page 125 Friday, February 25, 2011 9:30 AM126 zh (CK)

OBJ_BUCH-0000000025-001.book Page 127 Friday, February 25, 2011 9:30 AM128 zh (CK)

OBJ_BUCH-0000000025-001.book Page 129 Friday, February 25, 2011 9:30 AM130

OBJ_BUCH-0000000025-001.book Page 131 Friday, February 25, 2011 9:30 AM132

OBJ_BUCH-0000000025-001.book Page 134 Friday, February 25, 2011 9:30 AM135

OBJ_BUCH-0000000025-001.book Page 136 Friday, February 25, 2011 9:30 AM137

OBJ_BUCH-0000000025-001.book Page 138 Friday, February 25, 2011 9:30 AM139

OBJ_BUCH-0000000025-001.book Page 140 Friday, February 25, 2011 9:30 AM141

OBJ_BUCH-0000000025-001.book Page 141 Friday, February 25, 2011 9:30 AM142

OBJ_BUCH-0000000025-001.book Page 142 Friday, February 25, 2011 9:30 AM143

OBJ_BUCH-0000000025-001.book Page 143 Friday, February 25, 2011 9:30 AM144

OBJ_BUCH-0000000025-001.book Page 144 Friday, February 25, 2011 9:30 AM145

OBJ_BUCH-0000000025-001.book Page 145 Friday, February 25, 2011 9:30 AM146
