USER MANUAL Campus 350 RT Wolf Garten

Campus 350 RT Campus 250 RT

Original operating instructions 11

Campus 350 RT - Campus 250 RT

D

1 Release button
2 On-/Off-switch
3 Upper grip with cable holder
4 Middle grip
5 Locking the telescopic grip
6 Setting the hand wheel grip height
7 Cord cutter
8 Cord spool
9 Tilt switch

F

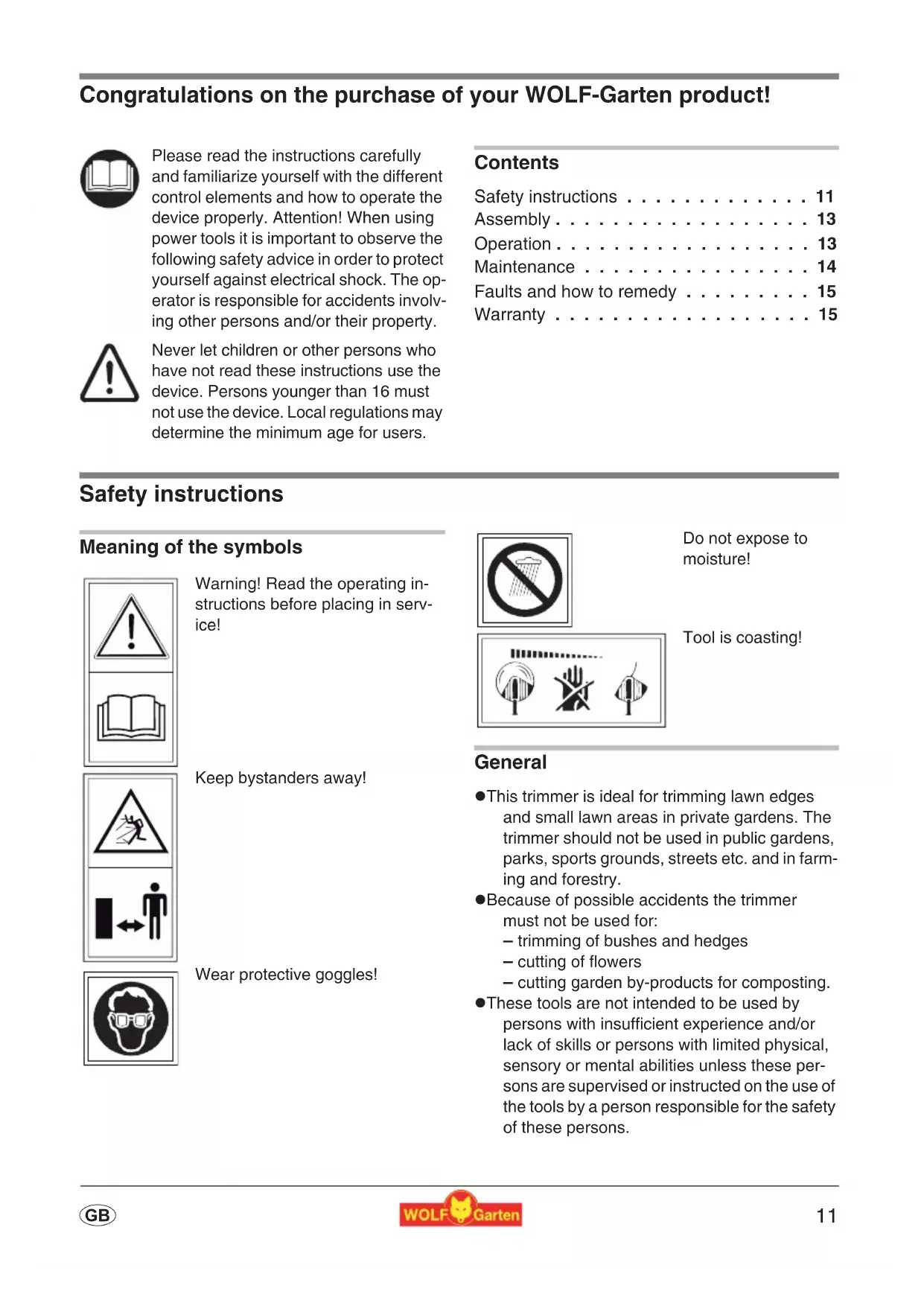

Congratulations on the purchase of your WOLF-Garten product!

Please read the instructions carefully and familiarize yourself with the different control elements and how to operate the device properly. Attention! When using power tools it is important to observe the following safety advice in order to protect yourself against electrical shock. The operator is responsible for accidents involving other persons and/or their property.

Never let children or other persons who have not read these instructions use the device. Persons younger than 16 must not use the device. Local regulations may determine the minimum age for users.

Contents

Safety instructions 11

Assembly. 13

Operation 13

Maintenance 14

Faults and how to remedy 15

Warranty 15

Safety instructions

Meaning of the symbols

Warning! Read the operating instructions before placing in service!

Keep bystanders away!

Wear protective goggles!

Do not expose to moisture!

Tool is coasting!

General

This trimmer is ideal for trimming lawn edges and small lawn areas in private gardens. The trimmer should not be used in public gardens, parks, sports grounds, streets etc. and in farming and forestry.

Because of possible accidents the trimmer must not be used for:

• trimming of bushes and hedges
  cutting of flowers
• cutting garden by-products for composting.

These tools are not intended to be used by persons with insufficient experience and/or lack of skills or persons with limited physical, sensory or mental abilities unless these persons are supervised or instructed on the use of the tools by a person responsible for the safety of these persons.

• Young adults below the age of 16 may not use the tools.
  Make sure that no persons (in particular children) or pets are in the vicinity of the working area. You are responsible for damages.
• Never operate the unit in the presence of individuals (particularly children) or animals.
• Only operate the unit in daylight hours or if adequate artificial lightning is available.
• Use trimmer when the weather is dry and do not leave it outside when it rains.
• Use a residual current device (RCD) rated for a residual current not greater than 30mA .
• Never install metal cutting elements.

Before operating

• Before starting the trimmer, clear all string, wire etc. away from the area to be cut. Whilst cutting look out for foreign objects.
• All cable must be inspected regularly for signs of damage or ageing. Use only in perfect condition!
• Tool must not be used when the safety device or the covering is damaged.
• For safety reasons only original WOLF-Garten spare-parts or parts appointed by the manufacturer shall be used. Please note the installation instructions!
  Before adjusting or cleaning the tool and before checking for a caught or damaged connecting cable, switch off the tool and disconnect the mains plug.
  Before starting the unit, and after any impacts, examine the unit for signs of wear or damage. Have any detected damage repaired immediately.

Cable

• Use only extension cables with a minimum cross-section of 3 × 1.5 ~mm^2 and a length of max. 25 ~m :

• When using rubber-sheathed cables, they must be of typeHO7RN-F or heavier.

• When using PVC-sheathed cables, they must be of type HO5 VV-F or heavier (cables of this type are not suitable for continuous outdoor use - e.g. underground installation for the connection of an outdoor socket or pond pump, or outdoor storage).

• They must be waterproof mobile devices that are used outdoors must be connected via a residual current circuit breaker.

• Use a leakage-protective system (RCD) with a leakage current of no more than 30mA .
• Attach connection cable to traction relief. Make sure that in does not rub against edges, pointed or sharp objects. Do not squeeze cable through door or window gaps.
• Switching devices must not be removed or bridged (e.g. tying of switching lever to guide spar).

Working

Always keep hands and feet well clear of the cutting mechanism, particularly when starting the unit.
- Avoid injury from each of the components which serve to cut the line length. After pulling out a new length of line, always hold the unit in its normal operating position before starting it.
- When starting the trimmer hold its base parallel to the lawn area in order to avoid accidents.
- Keep your hands away from the moving cord.
Wear eye protection!
Always wear appropriate working clothes and sound footwear when using the trimmer.
Before carrying the trimmer to the next lawn area to be cut, switch it off.
- Be careful when you go backwards. You may stumble!
- Keep the cable away from the cutting tool.
- Should the powercord be damaged during use, immediately disconnect it from the mains. Do not touch the cable until it has been disconnected from the mains.
- Never leave the trimmer without supervision. Store it in a safe place.
- The switches installed shall not be removed or bridged over, e. g. by binding the switch to the handle.

After operating

After using the unit, disconnected the power cord from the wall outlet and inspect the unit for damage.
- When switching off the trimmer: Attention: the cutting tool does not stop immediately!
- Always wait for the cutting tool is stop.
Before examining or cleaning the tool or before removing the safety device or the cord spool, switch off and disconnect the trimmer from the mains. Only use original WOLF-Garten cord spools and note the installation instructions!

• The cutting knife should not be cleaned under running water or under high-pressure.
• Faults shall only be repaired by appointed service centres or by the manufacturer.
  Make sure all air holes are free of dirt.
• Do not store the unit within reach of children.

Disposal

Do not dispose of electrical equipment in domestic waste. Recycle equipment, accessories and packaging in an environment-friendly manner.

Assembly

Attach the protective cover

1. Place the protective cover on the lawn trimmer A.
2. Attach the protective cover with the fastener screws B .

i Before starting the trimmer, remove the cut protector on the thread measurer C

Assembly of the lawn trimmer

i Note: The lawn trimmer can be used for free cutting land edge cutting (fomore information, see the Chapter "Working Position" Page 14).
- Plug the upper portion of the lawn trimmer into the lower portion. The connection snaps audiably D E.

Disassembly of the lawn trimmer

In order to be able to change the working position, one can loosen the upper and lower sections of the lawn trimmer.

Campus 250 RT: Press both locks of the upper section together F1) and pull both sections apart F2).
Campus 350 RT: Press the locks for the telescoping section in the direction of the arrows G ) and pull both sections apart G (2).

Operation

Operating times

• Please check noise abatement regulations prevailing in your country.

Set the grip height (Campus 350 RT)

1. Loosen the hand wheel (H).
2. Pull the telescoping section until the ideal grip height is achieved (2).
3. Turn the hand wheel (5).

Insert power cable into cable holder

The power cable holder in the guide grip prevents accidental disconnection of the extension cable

K.

Connecting to the mains (230 Volts, A.C., 50 Hz)

The mower operates from any normal household mains supply, provided with a 16 Amps. fuse.

Note: Residual current protection device

These protection devices safeguard while touching damaged wires, from insulation flaws and in certain cases, also while damaging live wires.

We recommend that the equipment only be plugged into a power socket, which is protected by a residual current protection device (RCD) with a residual current of not more than 30mA .
- Retrofit kits are available for old installations. Consult an electrician.

Working Position

Free cutting

1. Hold the trimmer at the upper and middle grip
2. Swing the trimmer in a half circle in front of the body (without touching the ground).

Note

The optimum working angle for free cutting is about 30 degrees M

Edge cutting

The edge cutting function allows for precise trimming along the lawn's edge.

1. Hold the trimmer at the upper and middle grip N .
2. Move the trimmer along the lawn's edge (without touching the ground).

Starting

Switching on

1. Press and hold the unlocking button (R) - only for the Campus 350 RT.
2. Press the on/off switch (2).P
3. Release the unlocking button (1)los - only for the Campus 350 RT.

Switching off

Be careful! Rotating cord

The trimmer is continuing to run!

• Release the on/off switch orO(2). P

Trimming tips

Cut longer grass slowly, and in steps.

Line readjustment Q

• Tip the running trimmer on solid ground, e.g. a sidewalk (pressure of about 3kg or 6 pounds). About 1.5cm of cutting cord will emerge.

Maintenance

General instructions

Be careful! Rotating cord

The trimmer is continuing to run!

Before any work on the trimmer, disconnect the trimmer from the mains!

Cleaning

Clean the ventilation slits before or after every trimming, and remove any grass remnants from the underside of the trimmer.

Never clean the tool with a water jet.

Storage

• Store the secateurs in a dry location and outside the reach of children.

Replacing the cord spool

Be careful! Rotating cord

The trimmer is continuing to run!

Before any work on the trimmer, disconnect the trimmer from the mains!

1. Press both locking tabs of spool cover simultaneously and remove R S

2. Remove cord spool

1. Clean, if necessary

2. Insert cord spool into housing . U

In order to prevent accidental unwinding, do not remove the cord ends of the new cord spool from the slits before inserting the spool .V

1. Place the spool cover on the cord spool holder so that the two locking tabs lock into place .W

Before switching on: Hold trimmer parallel to the ground; otherwise, there is danger of injury.

Faults and how to remedy

Problem Cause Remedy
Tilt switch is not working.	·Spool is empty. ·Fit new spool GT-RT (6070 096).
	·The cutting cord is ripped out and pulled back into the cord box. ·The cutting cord has wrapped around the spool.
	·Line is torn and stuck inside spool.
	·Remove spool, check tightness of winding and replace spool in the usual way.

When in doubt, always consult a WOLF-Garten service workshop.

Before every inspection, cleaning or before working on the trimmer, stop the spool and disconnect the trimmer from the mains.

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.
