GTE 830 - GTE 840 - GTE 845 - Blue Power GTE 850

de

1 Middle grip
2 Telescoping handle
3 Edge adjustment
4 Cord cutter
5 Plant hoop guard (Blue Power GTE 850)
6 On-/Off-switch
7 Upper grip with cable holder
8 Blue Power Button (Blue Power GTE 850)
9 Handle angle adjustment
10 Chassis (GTE 845, Blue Power GTE 850)
11 Cord spool
12 Tilt switch

fr

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Three abstract black-and-white icons: tree, hand, and eye, arranged horizontally (no text or symbols)

Safety warning sign showing a person slipping inside a triangle and a human figure with bidirectional arrow indicating contact.

Safety warning diagram showing a person using a tool to mark 360° angle and no visible text or symbols

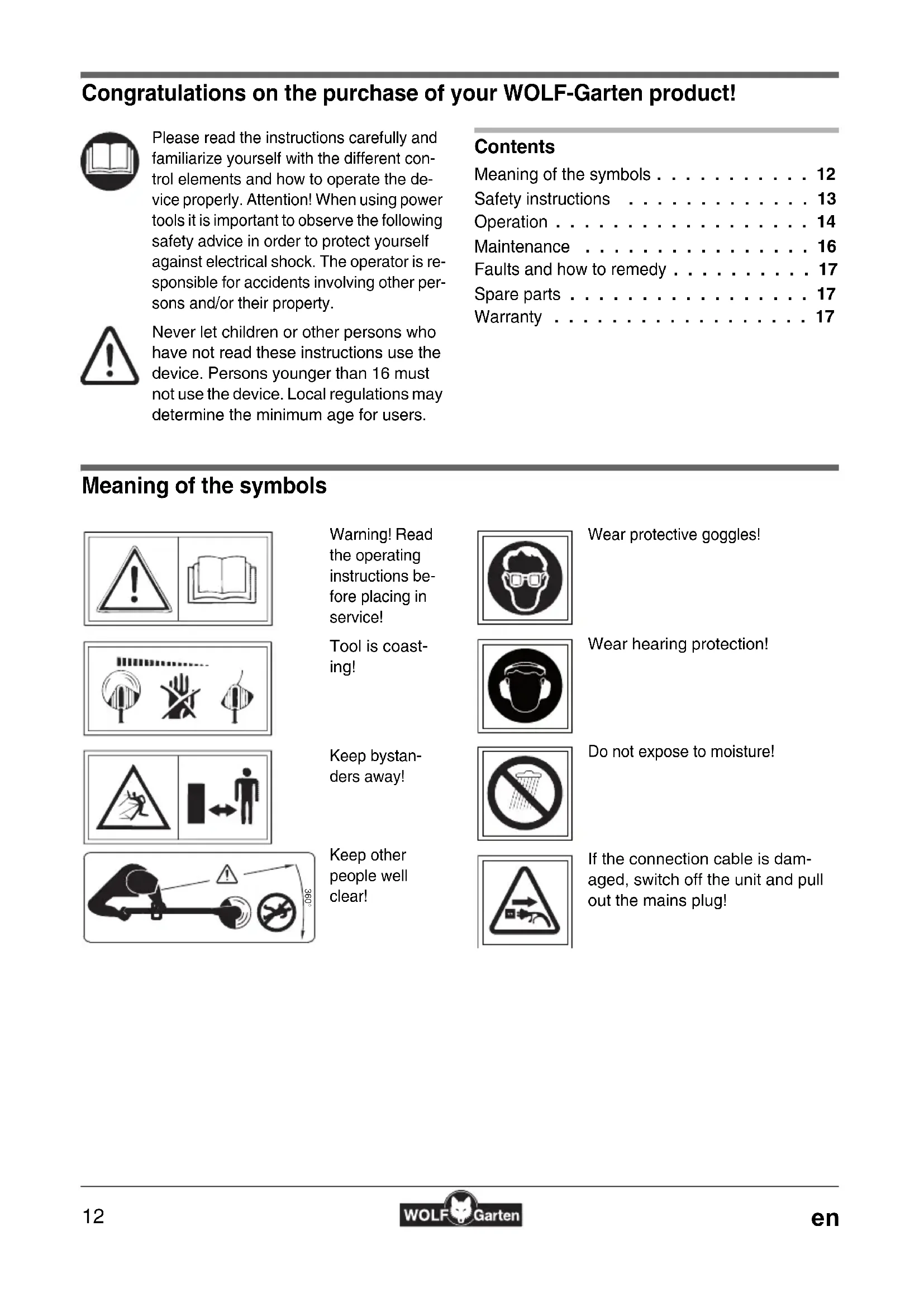

Congratulations on the purchase of your WOLF-Garten product!

Please read the instructions carefully and familiarize yourself with the different control elements and how to operate the device properly. Attention! When using power tools it is important to observe the following safety advice in order to protect yourself against electrical shock. The operator is responsible for accidents involving other persons and/or their property.

Never let children or other persons who have not read these instructions use the device. Persons younger than 16 must not use the device. Local regulations may determine the minimum age for users.

Contents

Meaning of the symbols ..... 12

Safety instructions 13

Operation 14

Maintenance 16

Faults and how to remedy ..... 17

Spare parts 17

Warranty 17

Meaning of the symbols

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Warning! Read the operating instructions before placing in service!

Three abstract black-and-white icons: tree with vertical bars, hand with cross, and eye-like shape (no text or symbols)

Tool is coast- ing!

Safety warning sign showing a person slipping inside a triangular hazard symbol and a human figure with bidirectional arrow indicating contact.

Keep bystanders away!

Safety warning diagram showing a person using a tool with warning symbols and a 960mm height dimension

Keep other people well clear!

Wear protective goggles!

Wear hearing protection!

Do not expose to moisture!

If the connection cable is damaged, switch off the unit and pull out the mains plug!

Safety instructions

General

• This trimmer is ideal for trimming lawn edges and small lawn areas in private gardens. The trimmer should not be used in public gardens, parks, sports grounds, streets etc. and in farming and forestry.
• Because of possible accidents the trimmer must not be used for:

– trimming of bushes and hedges

– cutting of flowers

– cutting garden by-products for composting

• These tools are not intended to be used by persons with insufficient experience and/or lack of skills or persons with limited physical, sensory or mental abilities unless these per-sons are supervised or instructed on the use of the tools by a person responsible for the safety of these persons.
• Young adults below the age of 16 may not use the tools.
• Make sure that no persons (in particular children) or pets are in the vicinity of the working area. You are responsible for damages!
• Never operate the unit in the presence of individuals (particularly children) or animals.
• Only operate the unit in daylight hours or if adequate artificial lightning is available.
• Use trimmer when the weather is dry and do not leave it outside when it rains.
• Use a residual current device (RCD) rated for a residual current not greater than 30 mA.
• Never install metal cutting elements.

Before operating

• Before starting the trimmer, clear all string, wire etc. away from the area to be cut. Whilst cutting look out for foreign objects.
• All cable must be inspected regularly for signs of damage or ageing. Use only in perfect condition!
• Tool must not be used when the safety device or the covering is damaged.
• For safety reasons only original WOLF-Garten spare-parts or parts appointed by the manufacturer shall be used. Please note the installation instructions!
• Before adjusting or cleaning the tool and before checking for a caught or damaged connecting cable, switch off the tool and disconnect the mains plug.

- Before starting the unit, and after any impacts, examine the unit for signs of wear or damage. Have any detected damage repaired immediately.

Cable

- Use only extension cables with a minimum cross-section of 3 × 1.5 ~mm^2 and a length of max. 25 ~m :

• When using rubber-sheathed cables, they must be of typeHO7RN-F or heavier.

• When using PVC-sheathed cables, they must be of type HO5 VV-F or heavier (cables of this type are not suitable for continuous outdoor use - e.g. underground installation for the connection of an outdoor socket or pond pump, or outdoor storage).

• They must be waterproofmobile devices that are used outdoors must be connected via a residual current circuit breaker.

• Use a leakage-protective system (RCD) with a leakage current of no more than 30 mA.
• Attach connection cable to traction relief. Make sure that in does not rub against edges, pointed or sharp objects. Do not squeeze cable through door or window gaps.
• Switching devices must not be removed or bridged (e.g. tying of switching lever to guide spar).

Working

• Always keep hands and feet well clear of the cutting mechanism, particularly when starting the unit.
• Risk of being injured by the device which is used to cut the line to length. After pulling out a new line, always hold the machine in its normal operating position before switching it on.
• When starting the trimmer hold its base parallel to the lawn area in order to avoid accidents.
• Keep your hands away from the moving cord.
• Wear eye and hearing protection!
  • Always wear appropriate working clothes and sound footwear when using the trimmer.
• Before carrying the trimmer to the next lawn area to be cut, switch it off.
• Be careful when you go backwards. You may stumble!

• Keep the cable away from the cutting tool.

• Should the powercord be damaged during use, immediately disconnect it from the mains. Do not touch the cable until it has been disconnected from the mains.

• Never leave the trimmer without supervision. Store it in a safe place.
• The switches installed shall not be removed or bridged over, e. g. by binding the switch to the handle.
• Do not allow the cord spool to strike the ground or edges of working area. If the cord spool receives a hard knock, this will cause a strong vibration on the handle. If this occurs, the trimmer should be checked by a qualified service centre.

After operating

• After using the unit, disconnected the power cord from the wall outlet and inspect the unit for damage.

• When switching off the trimmer: Attention: the cutting tool does not stop immediately!

• Always wait for the cutting tool is stop.

• Before servicing or cleaning the unit, removing the guards or replacing the line cassette, switch off the motor and cutter and pull out the mains plug. Only use original WOLF-Garten cord spools and note the installation instructions!
• The cutting knife should not be cleaned under running water or under high-pressure.
• Faults shall only be repaired by appointed service centres or by the manufacturer.
• Make sure all air holes are free of dirt.
• Do not store the unit within reach of children.

Disposal

Do not dispose of electrical equipment in domestic waste. Recycle equipment, accessories and packaging in an environment-friendly manner.

Operation

Operating times

- Please check noise abatement regulations prevailing in your country.

Working angle

GTE 840 - GTE 845 - Blue Power GTE 850 A

The trimmer has 4-adjustable working angles. This allows you to easily reach hard to reach areas in your garden C.

1. Press the lock button ③
2. Adjust to the desired working angle a b c d The handle noticeably snaps into place.

Free-cutting D

1. Hold the device at the upper and middle grips.
2. Swing the device in semicircles in front of the body (without touching the ground).

Notes

• The optimal working angle for cutting is 30^ .
• Cut high grass slowly, step by step.

Edge trimming

The edge trimming function allows you to trim your grass precisely all around the edge of your lawn E.

GTE 840 - GTE 845 - Blue Power GTE 850 A

1. Press the lock button ①
2. Rotate the cutting head by 90^ (the cutting head will audibly click into place).
3. Press the lock button ③
4. Adjust the working angle d the handle will audible click into place).

GTE 830 B

1. Press the locking button ①
2. Turn the cutting head by 180^ until it clicks into place ②.

Wheels

GTE 845 - Blue Power GTE 850

Use the wheels provided to achieve a clean cut at a uniform height F. Wheels are particularly useful when edging.

- Assembly or height adjustment according to diagrams G H J.

Adjusting the length of the bar K

GTE 840 - GTE 845 - Blue Power GTE 850

1. Loosen the threaded sleeve ①
2. Pull the telescopic handle out until the shaft is the length you require ②
3. Tighten up threaded sleeve ③

Adjusting the mid-grip L

1. Loosen the clamp on the loop handle ①
2. Push the loop handle to the height you require ②
3. Tighten up the clamp ③

Motor guard/guide rail and plant protector

Blue Power GTE 850 M

The motor guard protects the motor from damage caused by impacts or blows. At the same time the guard acts as a guide rail to facilitate operation. 1 The plant protector protects shrubs, trees and bedding plants.

- Pull the plant guard out of the cutting head and reattach it as shown ②

The plant protector must remain inserted at the rear for edging tasks ③

Threading the cable through the strain relief mechanism N

The cable strain relief mechanism in the guide handle prevents the extension lead from becoming disconnected accidentally.

- Please fasten the extension lead as shown into the cable strain reliever.

Connect to the socket (230 Volt, 50 Hz)

- Connect the device only to sockets that are protected with a 10-16 Amp. fuse (or LS switch type B)

Note: Residual current protection device

These safeguards provide protection against severe injuries resulting from touching damaged cables, insulation defects and in some cases cables that conduct electricity.

• We recommend that the equipment only be plugged into a power socket, which is protected by a residual current protection device (RCD) with a residual current of no more than 30 mA.
• Retrofit kits are available for old installations. Consult an electrician

Switching on and off O

Caution! Spinning strands

Tool continues spinning after switching off!

Switching on the device

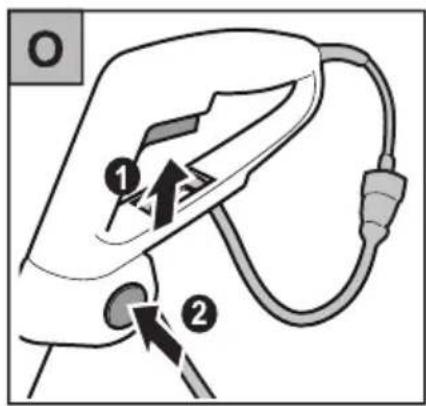

- Press and hold down the on/off switch 1

Switching off the device

- Release the on/off switch.

Blue Power Button O

Blue Power GTE 850

The Blue Power Button allows you to work in an energy-saving, environmentally friendly and with lower noise levels at a reduced rotary speed.

• Press the Blue Power Buttons while the motor is running in order to reduce its rotary speed ②
• Press the Blue Power Buttons again while the motor is running in order to bring its rotary speed back up again ②.

Thread adjustment

GTE 840 - GTE 845 - Blue Power GTE 850

• If the cutting cord becomes too short due to normal wear, simply switch off the trimmer. The cord will then automati-cally adjust to the correct length.
• Whenever the trimmer is switched off and then on again, the cord automatically lengthens 6-8 mm. If the trimmer is fre-quently switched on and off for no reason, this will increase wear of the cord.

GTE 830 P

- Briefly tilt the running machine on a firm base, e. g. paving slab (approx. 3 kg pressure). Approx. 2,5 cm cutting thread are the automatically paid out.

Maintenance

Cleaning

Attention! Rotating string!

Tool is still running!

• Always disconnect from the power supply before performing any work on the trimmer!

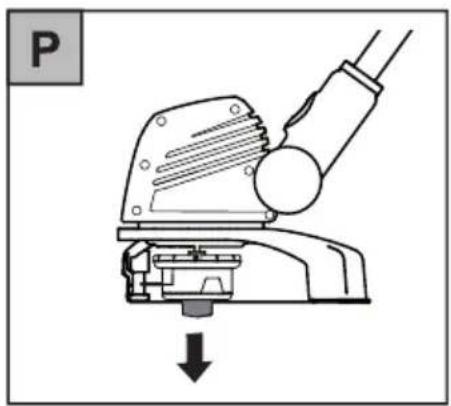

- You can prolong the life of your trimmer by removing grass from the ventilation slots and the bottom of the trimmer before or after each use.

Replacing the cord spool

Attention! Rotating string!

Tool is still running!

• Always disconnect from the power supply before performing any work on the trimmer!

Before switching on: Hold trimmer parallel to the ground; otherwise, there is danger of injury.

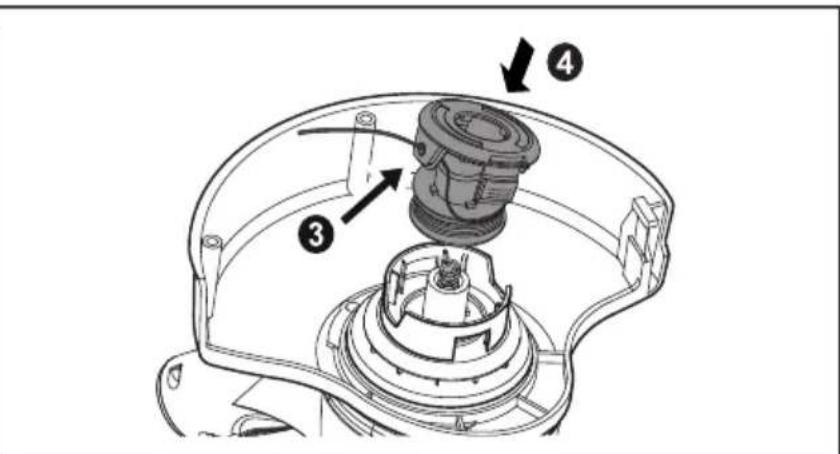

GTE 840 - GTE 845 - Blue Power GTE 850 Q

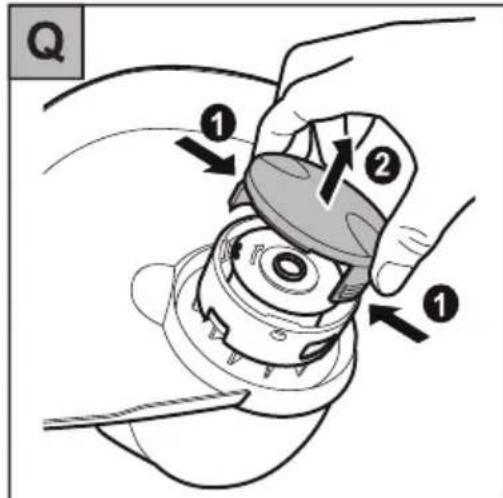

1. Press both locking tabs of spool cover simultaneously and remove ① . ②
2. Remove cord spool.
3. Clean, if necessary.

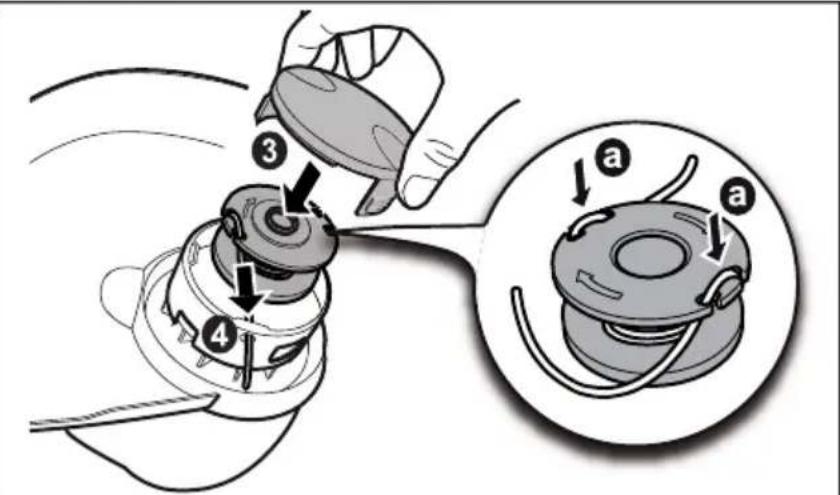

4. Insert cord spool into housing ③
5. Thread the end of the wire through the eye of the wire box 4

To avoid inadvertent unwinding, do not take wire on the new spool out through the support holes before inserting a

1. Place the spool cover on the cord spool holder so that the two locking tabs lock into place.

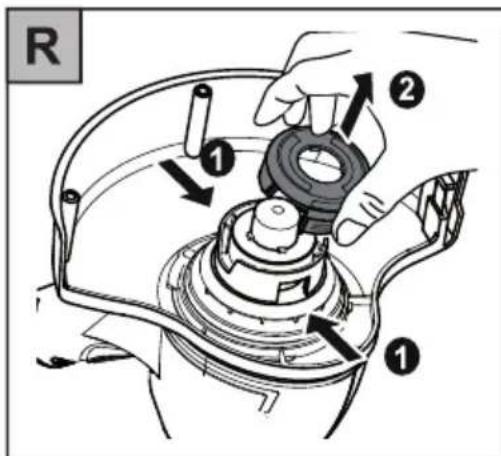

GTE 830 R

1. Forcefully press both catches together on the spool cover and remove . ②
2. Remove line spool.
3. Remove any soiling.
4. Feed the end of the line from the new line spool through the line eyelet in the housing cover and insert the spool cassette into the housing cover ③

Ensure that the line spool is inserted as illustrated.

1. Attach spool cover to the line spool holder, ensuring that both catches click into position 4

When the lawn trimmer is switched on, the line is cut to working length. Switch on unit in operating position only.

Faults and how to remedy

Problem Possible	cause Remedy
	• Spool is empty. • Fit new spool.
Cord adjustment does not work	• Line is torn and stuck inside spool.	• Remove spool, check tightness of winding and replace spool in the usual way.
	• Line is „welded“ to itself or to spool through heat build-up.	• Remove welded line section, check tightness of winding and replace spool in the usual way.
	• No electrical power	• Check power connection and engage a qualified electrical professional to repair if necessary.
	• Cable damaged: Attention! Electric shock through cable damageWhen the cable is cut through or damaged, the safety fuse doesn’t always trip.Do not touch cable, before pulling out the power plug from the socket.	• Damaged cable has to be completely replaced. Patching cable with insulating tape is forbidden.

When in doubt, always consult a WOLF-Garten service workshop.

Always disconnect from the power supply before performing any work on the trimmer!

Spare parts

Ordering Number Designation of the item Description of the item
7136095 GT-F5 Cord spool (GTE 830)
49ATS0--650	GT-F10	Cord spool (GTE 840, GTE 845, Blue Power GTE 850)

Supplied by your dealer

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Three abstract black-and-white icons: tree, hand with cross, and eye (no text or symbols)

Safety warning sign showing a broken safety symbol and a person with bidirectional arrow indicating interaction or collision.

Messa in opera....27

Manutenzione 29

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Three abstract black-and-white icons: tree, hand with cross, and eye (no text or symbols)

Safety warning sign showing a person slipping inside a triangular hazard symbol and a human figure with bidirectional arrow indicating interaction.

Safety warning diagram showing a person using a tool with warning symbol and safety symbols, including a 360mm distance measurement.

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Three abstract black-and-white icons: tree, hand with cross, and eye (no text or symbols)

Safety warning sign showing a person slipping inside a triangular hazard symbol and a rightward arrow indicating displacement.

Safety warning diagram showing hazard and 360-degree angle symbol for a person using a tool

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Three abstract black-and-white icons: tree, hand, and eye (no text or symbols)

Safety warning sign showing a person slipping inside a triangular hazard symbol and a human figure with bidirectional arrow indicating collision or interaction.

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Abstract black-and-white graphic with four stylized icons: tree, hand, and eye (no text or symbols)

Työkalu ei käy!

Safety warning sign showing a broken safety symbol and a person silhouette with bidirectional arrow

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Abstract black-and-white graphic with three stylized icons: a tree, a hand holding a cross, and an eye-like shape (no text or symbols)

Safety warning sign showing a broken safety symbol and a person with bidirectional arrow indicating interaction or collision.

Merk: Jordfeilbryter

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Four abstract symbols: tree, hand, and eye, arranged horizontally (no text or labels)

Safety warning sign showing a person slipping inside a triangular hazard symbol and a human figure with bidirectional arrow indicating interaction.

Safety warning diagram showing hazard and safety symbol with 300mm distance measurement

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Three abstract black-and-white icons: tree with vertical stripes, hand with crossed lines, and eye-like shape (no text or symbols)

Safety warning sign showing a person slipping inside a triangular hazard symbol and a rightward sign with bidirectional arrow.

Nevystavujte dešti!

Safety warning diagram showing hazard and safety symbol with 300% mark

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Three abstract black-and-white icons: tree, hand with cross, and eye (no text or symbols)

Safety warning sign showing a person slipping inside a triangular hazard symbol and a human figure with bidirectional arrow indicating interaction.

Safety warning diagram showing hazard and safety symbols with a 360-degree angle indicator

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Abstract black-and-white graphic with three stylized human figures and abstract shapes (no text or symbols)

Safety warning sign showing a hazard symbol and a human figure with bidirectional arrow indicating collision or displacement.

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Upozorenje! Prije puštanja u pogon pročitati upute za upotrebu!

Four black-and-white icons representing trees, a hand gesture, and a stylized eye (no text or symbols)

Safety warning sign showing a person slipping inside a triangular hazard symbol and a rightward arrow indicating displacement.

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Four black-and-white icons representing abstract or symbolic elements: tree, bar chart, hand gesture, and eye (no text or labels)

Nástroj dobie- ha!

Safety warning sign showing a broken safety symbol and a person with bidirectional arrow indicating interaction or collision.

Iné osoby držte bokom mimo nebezpečia!

Safety warning diagram showing hazard and 360° angle indicator for a mechanical device

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Opozorilo! Pred zagonom naprave obvezno preberite navodilo za uporabo!

Orodje rabi čas, da se izteče!

Abstract black-and-white graphic with three symbolic icons: tree, hand, and eye (no text or symbols)

Safety warning sign showing a triangular hazard symbol and a person silhouette with bidirectional arrow

Ne dovolite drugim osebam v bližino!

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Blank gray image with no visible content, text, or symbols

Safety warning sign showing a broken safety symbol and a person with bidirectional arrow indicating collision or interaction.

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Внимание!

Four abstract symbols: tree, hand, and eye, arranged horizontally (no text or labels)

Safety warning sign showing a person slipping inside a triangular hazard symbol and a rightward arrow indicating displacement.

Safety warning diagram showing a person using a tool to avoid accidents, with 360° angle and warning symbol

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Atentie!

Three abstract black-and-white icons: tree, hand, and eye (no text or symbols)

Safety warning sign showing a hazard symbol and a person silhouette with bidirectional arrow

Safety warning diagram showing a person using a tool with warning symbol and 360° angle indicator

Warning sign and open book icon side by side, indicating incorrect or invalid conditions

Dikkat!

Makineyi

çalıştırmadan

önce kullanım

kilavuzunu

okuyunuz!

Abstract black-and-white icons representing trees, a hand gesture, and an eye (no text or symbols)

Cihaz kapatil-

dıktan sonra

hareketine de-

vam etmekte-

dir!

Safety warning sign showing a hazard symbol and a human figure with bidirectional arrow indicating crossing

Başkalarını

tehlikeli

bölgeden uzak

tutunuz!

Safety warning diagram showing hazard and 360° angle with incorrect detection

Diğer kişileri

uzak tutun!

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Three abstract black-and-white icons: tree, hand with cross, and eye (no text or symbols)

Safety warning sign showing a broken safety symbol and a human figure with bidirectional arrow indicating interaction or collision.

Safety warning diagram showing hazard and safety symbol with 300% mark

Προσοχή!

Red plastic push truck with white snow on gravel, no visible text or symbols

Man operating a red lawn mower in a grassy field with trees in the background (no visible text or symbols)

A metal harvester in a garden setting with fresh lettuce and soil, no visible text or symbols.

Red spray gun holding a green hedgehog, no visible text or symbols

Red and white manual lawn tool operating on grass, surrounded by greenery (no text or symbols visible)

Woman cleaning a red lawn mower in a garden, no visible text or symbols

Hand spraying water from a red WOLE Garten Turbo Rasetegrün spray bottle against a green grass background (no text or symbols on the spray itself)

Red and black lawn mower on a grassy field with trees in the background (no visible text or symbols)

Close-up of a metal cutting tool on a tree branch against a clear blue sky (no text or symbols visible)
