USER MANUAL KMW 202 Koenic

READ CAREFULLY AND KEEP FOR FU-

• Forsafetyreasons,thisclassIapplianceis provided with a plug with earth connection. Alwaysconnectthisappliancetoamains socket outlet with a protective earthing con- nection.

• Thisapplianceisnotintendedforusebyper- sons(includingchildren)withreducedphysi- cal,sensoryormentalcapabilities,orlack ofexperienceandknowledge,unlessthey have been given supervision or instruction concerninguseoftheappliancebyaperson responsiblefortheirsafety.Childrenshould be supervised to ensure that they do not play with the appliance.

• WARNING:Ifthedoorordoorsealsaredam- aged,theovenmustnotbeoperateduntilit has been repaired by a competent person.

• WARNING:Itishazardousforanyoneother than a competent person to carry out any service or repair operation that involves the removalofacover,whichgivesprotection against exposure to microwave energy.

• WARNING:Liquidsandotherfoodsmustnot be heated in sealed containers since they are liable to explode.

• WARNING:Onlyallowchildrentousetheoven without supervision when adequate instruc- tions have been given so that they are able tousetheoveninasafewayandunderstand thehazardsofimproperuse.

• Theapplianceisintendedtobeusedfree- standing. Do not block any oven vents. The informationonadequatespace(top/back/ sides)forsucientaircirculationcanbe foundintheusermanual.Donotinstallin cabinets.

• Onlyuseutensilssuitableforuseinmicro- wave ovens. Do not use containers or cutlery madefromorcontainingmetal,aluminumfoil, leadcrystalglassware,temperature-sensitive plastics,wood,metalclipsorwireties.Donot use bowls with milled rims or plastic pots with thelidonlypartiallyremoved.Riskofre!

• Whenheatingfoodinplasticorpapercon- tainers,keepaneyeontheovenduetothe riskofignition.

• Ifsmokeisobserved,switchoorunplugthe appliance and keep the door closed in order to stifle any flames.

• Microwaveheatingofbeveragescanresult indelayederuptiveboiling;thereforecare must be taken when handling the container. Dangerofburns!

• Thecontentsoffeedingbottlesandbaby foodjarsshallbestirredorshakenandthe temperaturecheckedbeforeconsumptionin order to avoid burns. Loosen the screw top andteatbeforeheating.

• Eggsintheirshellandwholehard-boiled eggs should not be heated in microwave ovenssincetheymayexplode,evenafter microwave heating has ended. Eggs may only be cooked in their shell in a specially designed egg-boilingdeviceavailablefromspecialist shops.

• Donotuseasteam-cleaningapplianceto clean this appliance. Steam could reach the electrical components and cause a short circuit.

• Theovenshouldbecleanedregularlyandany fooddepositsremoved(seeusermanual).

• Failuretomaintaintheoveninacleancondi- tioncouldleadtodeteriorationofthesurface thatcouldadverselyaectthelifeofthe appliance and possibly result in a hazardous situation.

• Tocheckfoodtemperature,rstinterrupt thecookingprocess.Onlyuseathermometer specicallyapprovedforfooduse.Neveruse athermometercontainingmercuryorliquid, asthesearenotsuitableforusewithvery high temperatures and can break very easily.

• WARNING:Microwaveenergy–Donotre- move cover.

replacedbythemanufactureroritsservice agent or similarly qualified persons in order to avoid hazard.

• Theapplianceshouldnotbeoperatedby meansofanexternaltimerorseparate remote-control system.

• Donotconnecttheappliancetothemains supply by an extension cord or multi-socket unit.Dangerofoverheating.

• Donotusetheapplianceifthedoorhinges areloose,andifholesorcracksarevisiblein theenclosure,thedoorortheoveninterior.

• Neveropenthecasingoftheappliance. Tampering with electrical connections or component and mechanical parts is highly dangerousandcancauseoperationalfaults or electric shock.

• Theapplianceisintendedtobeusedin household and similar applications such as stakitchenareasinshops,ocesand otherworkingenvironments,farmhouses,by clientsinhotels,motelsandotherresidential typeenvironments,andbedandbreakfast type environments.

• Theapplianceisnotsuitableforoutdooruse.

• Theapplianceisonlycompletelyisolated fromthemainssupplywhenitisswitchedo and the plug removed.

• WARNING:Iftheapplianceisequippedwith combimode,whentheapplianceisoperated inthecombinationmode,childrenshouldonly use the oven under adult supervision due to the temperatures generated.

• Neverusetheappliancetostoreordryitems that could ignite easily. Moisture evaporates. Riskofre!

• Theapplianceisnotsuitableforcleaningor disinfectingitems.Itemscangetextremely hot,andthereisadangerofburningwhen theitemisremovedfromtheappliance.

• Donotheatuptinsinthemicrowaveoven. Pressurecanbuildupandtheymayexplode, resulting in injury or damage.

• Iftheapplianceisequippedwitharack andgourmetplate,donotusetherackand gourmet plate at the same time. That would damagethegourmetplate.Alwaysplacethe gourmet plate directly on the turntable.

• Donotusethisappliancetoreheatfood inheat-retainingbagsintendedfornormal ovens,suchasroastingbags.Suchheat- retainingbagsusuallycontainathinlayerof aluminumfoilthatreectsmicrowaves.This reectedenergycould,inturn,causethe outer paper covering to become so hot that it ignites.

• Donotusetheappliancefordeepfrying food.Donotleaveitunattendedwhencook- ingwithoilsandfatsasthesecanbeare hazardifallowedtooverheat.

• Wearovengloveswhentakingdishesinand outoftheappliance,orwhenhandlingdishes orfoodintheappliance.Riskofburning!

• Neverplacethehotglasstray(oranyother hotcookingcontainers)onacoldsurface, such as a tiled or granite worktop. The glass trayorcontainercouldcrackorshatter,and theworktopsurfacecouldgetdamaged.

• Useasuitableheat-resistantmatorpotrest.

• Donotusetheappliancetoheatuptheroom. Duetothehightemperaturesradiated,ob- jectsleftneartheappliancecouldcatchre.

• Whenusingkitchenappliancesconnectedto socketsneartheappliance,ensurethatthe supply cord cannot get trapped in a hot oven door. The hot oven door could melt the cord insulation and be dangerous.26

Ovenwindow Door sealing Door cavity Ovenvents Display Touch panel Feet Metal rack Glass tray Turntable roller English Congratulations ThanksforyourpurchaseofaKOENICproduct. Pleasereadthismanualcarefullyandkeepit forfuturereference. Caution

• Donotattempttooperatethisoven with the door open since open door operationcanresultinharmfulexposure to microwave energy. It is important nottodefeatortamperwiththesafety interlocks.

• Donotplaceanyobjectbetweenthe ovenfrontfaceandthedoororallow soil or cleaner residue to accumulate on sealingsurfaces.

• Donotoperatetheovenifitisdamaged. It is particularly important that the oven door closes properly and that there is no damage to the -door(bent), -hingesandlatches(brokenorloose), -doorsealinganditssurfaces.

• Theovenshouldnotbeadjustedor repaired by anyone except properly qualified service personnel.27

• Makesurethatallpackagingmaterials includingtapeareremovedfromthe door,cavity,touchpanelandaccessories.

• Donotplacetheovenwhereheat,mois- tureorhighhumidityaregenerated,or near combustible materials.

• Donotoperatetheovenwithoutturn- tablerollerontheshaftandglasstray proper position.

• Makesurethatthesupplycordisundam- aged and does not run under the oven or overanyhotorsharpsurface.

• Themainsplugmustbereadilyaccessi- ble so that it can be easily disconnected in an emergency. This appliance must be grounded. It is equipped with a plug with earth connec- tion,whichmustbepluggedintoaprop- erly installed and grounded wall outlet. It is recommended that a separate circuit servingonlytheovenbeprovided.High voltage is dangerous and may result in fire orotheraccidents,causingpropertydam- age or injuries.

Warning: Improperuseofthegrounding

plugcanresultinariskofelectricshock. Place the microwave onaat,stable surface. Allowsucient airow:20cmabove theoven,10cmat back and 5cm at both sides. Do not cover or block any vents on the unit. Donotremovefeet. Beforeuse,plugin the unit.Analert beep sounds. Unplug whennotusingfora long time.28 Display and touch panel MENU ACTION DISPLAY Cookingduration, powerlevel,program indicators and present time are displayed optionally. TIME +/TIME – To enter clock settings,cooking duration,etc. POWER To set cooking power level. GRILL To select grill cooking programs. MICRO+GRILL To select a pre-set Micro+Grill cooking program. MENU To select a pre-set microwave cooking program. WEIGHT ADJ. Forselectingfood weight or servings. CLOCK/PRESET To enter clock set- tings or to program a later cooking time. START/ QUICK START To start cooking programs or to start oven immediately at fullpower. STOP/CANCEL Tostopoperation, cancel settings or re- settheovenbefore entering settings. CHILD LOCK To set the CHILD LOCK: Touch and hold STOP/CANCELfor 3seconds,abeepwillsoundandlock indicator will turn on. To cancel the CHILD LOCK: Touch and hold STOP/CANCELfor 3 seconds until lock indicator goes o.29

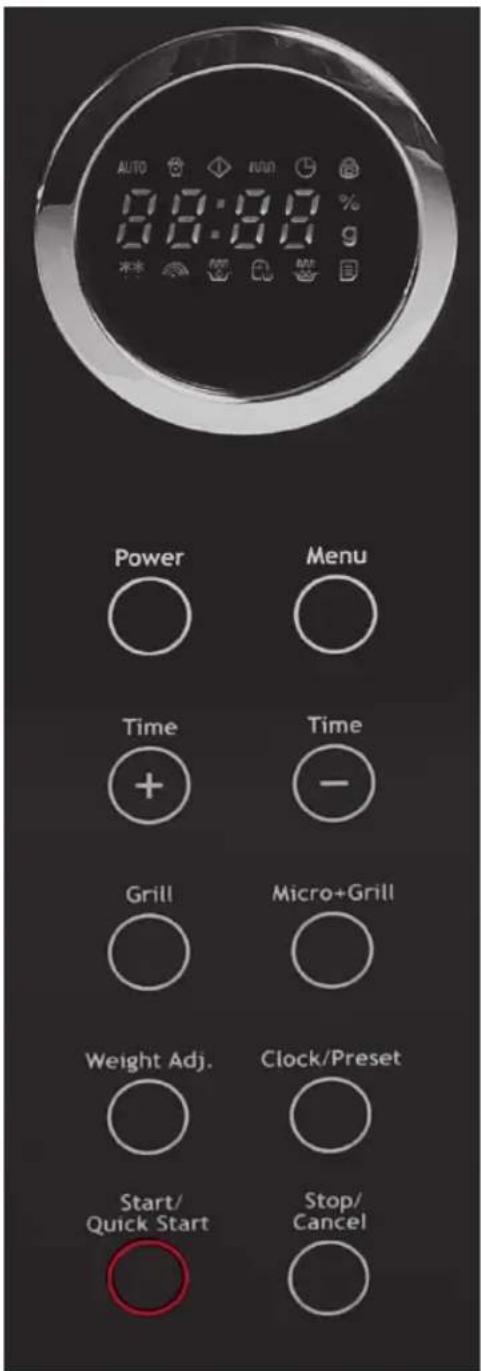

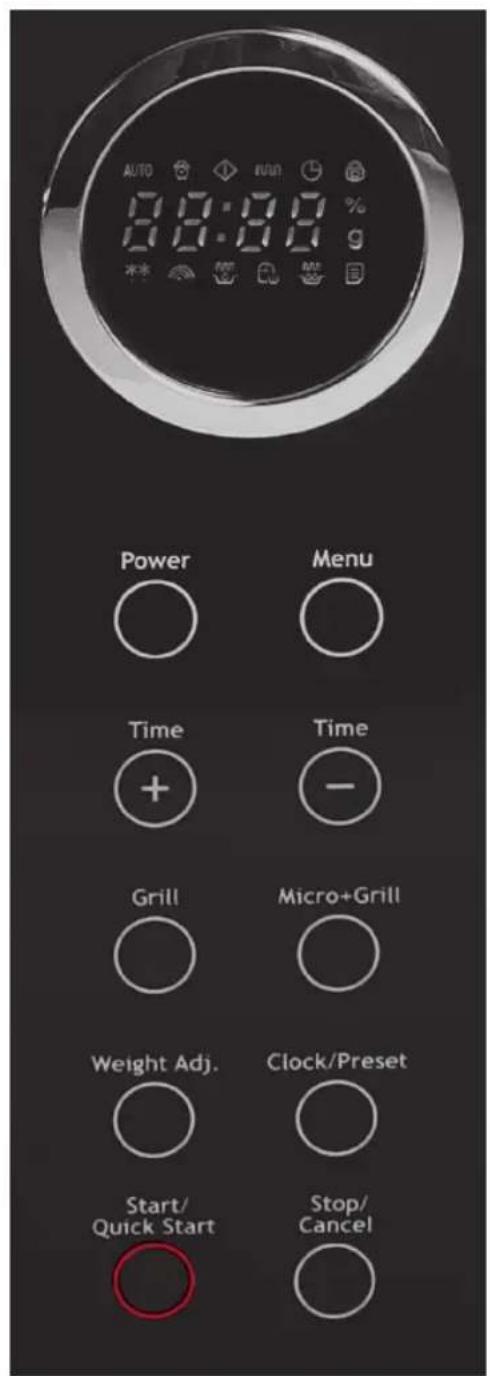

Clock setting Microwave cooking Touch CLOCK/ PRESET to confirm. The clock works in 12-hour cycle. Touch TIME+/TIME– repeatedly to enter hour. Duringstandby, touch CLOCK/ PRESET once. Touch CLOCK/ PRESET;touch TIME+/TIME– repeatedly to enter minutes. Touch TIME+/TIME– repeatedly to enter cooking duration. Touch START/ QUICK START. Longest cooking du- ration is 95 minutes. Touch POWER repeatedly to select desired power level. Power level Mode 10 0 % High 80 % Medium high 60 % Medium 40 % Medium low 20 % Low(Defrost) 0 % Zero QUICK START Touch START/QUICK START;theoven will start immediately using 100 % micro- wave power. Touch repeatedly to prolong cooking(max.10minutes). Aftertimehaselapsed,3beepswillsound and End is displayed.30

Touch TIME+/TIME– repeatedly to enter cooking duration. Touch TIME+/TIME– repeatedly to enter cooking duration. Touch GRILL once. Touch START/ QUICK START. Longest cooking du- ration is 95 minutes. Touch START/ QUICK START. Longest cooking du- ration is 95 minutes. Combination 1: 30%timeformicrowavecooking,70%time forgrillcooking.Usefulforsh,augratin,etc. Touch MICRO+GRILL once. Micro+Grill (M+G) Thisfeatureallowscombinedgrillandmicro- wave cooking on two dierent settings. Grill cooking Grillcookingisparticularlyusefulforthinslices ofmeat,steaks,chops,kebabs,sausagesor piecesofchicken.Itisalsosuitableforhot sandwiches and au gratin dishes. Combination 2: 55%timeformicrowavecooking,45%time forgrillcooking.Usefulforcooking,pudding, omelets,bakedpotatoesandpoultry.

1. Touch MICRO+GRILLtwice(CO-2).

2. Touch TIME+/TIME– to enter cooking time.

3. Touch START/QUICK START.

The longest cooking duration is 95 minutes. STOP/CANCEL Duringoperation,pressSTOP/CANCEL once or open the door to discontinue cooking. Press START/QUICK START toresume.Duringoperation,pressSTOP/ CANCEL twice to stop cooking. It is recommended not to open the door butratherusethebuttonsforstop function. Press STOP/CANCEL to cancel current inputs.31

Touch TIME+/TIME– repeatedly to set hour. Touch CLOCK/ PRESET again. Touch TIME+/TIME– repeatedly to set minute. Touch CLOCK/ PRESET. Set a cooking mode and dura- tion, but do not start operation. Touch CLOCK/ PRESET once. Preset cooking time Putfoodintheovenandprogramtheovento start up at a later time. Note Afterprogramming,pressCLOCK/PRE- SET to check pre-set time. To clear preset function,pressSTOP/CANCEL when pre- set time is displayed. Onceprogrammed,noothercookingmode canbeoperated.QuickStart,Autodefrost and Menu cooking cannot be preset.

Touch WEIGHT ADJ. repeatedly to select foodweight. Placethefrozen foodintheoven. Touch MENU repeat- edlyuntilAUTO10is displayed. Auto defrost Usetodefrostfrozenmeat,poultryand seafoodbyweight.Thedefrostingduration and power level are automatically set once the foodweight(100g-1800g)isprogrammed. Touch START/ QUICK START. The system will pause after2/3ofcooking forusertoturnfood over.Toresume, touch START/ QUICK START. Multistage cooking Program up to 3 cooking sequences in any order.Forexample:

1. Touch STOP/CANCEL to reset the system.

2. Set microwave cooking program and

3. Set grill cooking program and duration.

4. Set micro+grill cooking program and

duration. QuickStart,AutodefrostandMenucooking cannotbesetformultistagecooking.32 Menu cooking Select cooking programs with pre-set power levelandduration.Enterfoodweightorserv- ing accordingly.

1. Touch MENU repeatedly to select the mode.

2. Touch WEIGHT ADJ. repeatedly to select

foodweightornumberofservings.

• Microwavecannotpenetratemetal,sometal utensils or dishes with metallic trim should not be used.

• Donotuserecycledpaperproducts,asthey maycontainsmallmetalfragmentswhich maycausesparksand/orre.

• Useroundorovaldishesratherthansquare or oblong ones.

• Narrowstripsofaluminumfoilmaybeused topreventovercookingofexposedareas. Butbecarefulnottousetoomuchandto leaveadistanceof2.54cmbetweenfoiland cavity. Note Cookingresultsdependonfactorssuchas voltageuctuation,shapeandsizeoffood andevenhowwellthefoodisplacedin theoven.Iftheresultisnotsatisfactory, adjust the cooking duration accordingly. Whenoperatinginmode07,08or09,the ovenwillbeepandpauseafter2/3of cooking to remind the user to turn over foodforuniformcooking.Closedoorafter- wards and touch START/QUICK START to resume.33

• Turnotheovenandremovethemains plugfromthewallsocketbeforecleaning.

• Keepovencavityclean.Whenfoodsplattersor spilledliquidsadheretoovenwalls,wipewitha dampcloth.Milddetergentmaybeusedifthe ovengetsverydirty.Avoidtheuseofspraysand otherharshcleanersastheymaystain,streakor dullthedoorsurface.

• Failuretomaintaintheoveninacleancondition couldleadtodeteriorationofthesurface,which couldadverselyaectthelifeoftheapplianceand possibly result in a hazardous situation.

• Theoutsidesurfacesshouldbecleanedwitha damp cloth. Water should not be allowed to enter the oven vents.

• Wipethedoorandwindowonbothsides,thedoor sealsandadjacentpartsfrequentlywithadamp cloth to remove any spills or spatters. Do not use abrasive cleaners.

• Donotallowthecontrolpaneltobecomewet. Cleanwithasoft,dampcloth.Whencleaningthe controlpanel,leaveovendooropentoprevent ovenfromaccidentally turning on.

• Ifsteamaccumulatesinsideoraroundtheoutside oftheovendoor,wipewithasoftcloth.Thismay occur when the microwave oven is operated under high humidity condition. This is normal.

• Itisoccasionallynecessarytoremovetheglass trayforcleaning.Washthetrayinwarmsudsy water or in a dishwasher.

• Therollerringandovenoorshouldbecleaned regularly to avoid excessive noise. Simply wipe the bottomsurfaceoftheovenwithmilddetergent. The roller ring may be washed in mild sudsy water ordishwasher.Whenremovingtherollerringfrom cavityoorforcleaning,besuretoreplaceinthe proper position.

• Removeodorsfromyourovenbycombininga cupofwaterwiththejuiceandskinofonelemon inadeepmicrowave-safebowl;microwavefor5 minutes. Wipe cavity thoroughly and dry with a softcloth.
