Product type	Microwave oven with grill
Brand	Koenic
Model	KMWG 2320 DB
Dimensions (H x W x D)	281 x 483 x 396 mm
Net weight	approx 13.7 kg
Capacity	23 liters
Turntable diameter	270 mm
Power supply	230 - 240 V, 50 Hz
Input power	1400 W (microwave), 1000 W (grill)
Output power	900 W
Microwave frequency	2450 MHz
Main functions	Microwave cooking, grill, combination, defrost, automatic programs (A1-A8), multi-stage cooking
Number of power levels	10 (from 10% to 100%)
Timer	from 10 seconds to 95 minutes
Automatic program types	Potatoes, beverages, popcorn, reheating, spaghetti, pizza, chicken, cake
Clock function	Yes, 12 or 24 h display
Child lock	Automatic after 1 minute in standby, deactivated by opening/closing the door
Installation type	Freestanding (not built-in)
Supplied accessories	Turntable glass plate, wire rack, turntable rollers, instruction manual, warranty card
Interior materials	Stainless steel or enamel (not exactly specified)
Recommended cleaning	Damp cloth, glass plate dishwasher safe, avoid steam cleaners and harsh detergents
Important safety instructions	Do not use if door is damaged, do not heat sealed containers, clean regularly, do not use near water
Electromagnetic compatibility class	Group 2, Class B (EN 55011)
Warranty	See included warranty card

Frequently Asked Questions - KMWG 2320 DB Koenic

What is the power of the Koenic KMWG 2320 DB microwave oven?

The output power is 900 W for microwave mode. The input power is 1400 W.

Can I use metal containers in this microwave?

No, metal containers and utensils must not be used in microwave mode. They are only compatible with grill or combination mode.

How to set the clock on the KMWG 2320 DB?

In standby, press the CLOCK button. Choose 12h or 24h format by pressing CLOCK again. Turn the dial to set the hours, press CLOCK, then set the minutes. Finally, press the Start button to confirm.

How to use the defrost function?

Press the Defrost button. The display shows 100 g. Press repeatedly to select the food weight (from 100 to 1800 g). Then press Start to begin defrosting.

What to do if the oven does not start?

Check that the door is properly closed. Make sure the appliance is plugged in and the power supply is working. If the problem persists, refer to the troubleshooting section of the manual.

How to clean the microwave oven?

Clean the interior, door and seals regularly with a damp cloth. The glass plate can be washed with warm soapy water or in the dishwasher. Do not use a steam cleaner or abrasive products.

What are the available automatic programs?

Programs A1 to A8 include: potatoes, beverages, popcorn, reheating, spaghetti, pizza, chicken and cake. Select the program and weight for automatic cooking.

How to lock the keys for child safety?

The key lock activates automatically after 1 minute of inactivity in standby or during cooking with the door closed. To deactivate, open and close the door.

Can I cook hard-boiled eggs in the microwave?

No, eggs in their shell and hard-boiled eggs can explode, even after cooking. Never heat them in the microwave.

What is the required clearance above the oven?

Leave a clearance of at least 20 cm above the oven for proper air circulation. Also respect 10 cm at the rear and 5 cm on the sides.

USER MANUAL KMWG 2320 DB Koenic

Microwave with Grill

www.1632008

N/A 252608

m = 311

Exterior view of a modern kitchen microwave oven (no visible text or symbols)

Deutsch 14

Eng 12-34

10-64-5-15

(不成立)

(1) 127.60

B: 油出47.25

(1) 本说明仅供参考。

La p70 65

derlands 81-91

P_2+10^2=10^-1

Station 10.14

Sensoll 124

a1 = a2 - 1

B_GRAW7W73_7076_158_

BUTDAY 6:17 PM

Labeled diagram of a microwave oven showing interior components and a fire pit structure

1.01 102 130 1.01 0.80 100 1.01 9862 130 1.01 1560 130

Sicherheitshinweise

- Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use. Caution! Hot surface!

- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning use of the product in a safe way and understand the hazards involved.

• Children shall not play with the product.

- Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.

- Keep this product and its power cord out of reach of children under the age of 8 years.

- Warning! If the door or door seals are damaged, the product must not be operated until it has been repaired by an authorised service agent.

- Warning! It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- Warning! Liquids and other foods must not be heated in sealed containers since they are liable to explode.

- Only use utensils suitable for use in microwave ovens. Do not use containers or cutlery made from or containing metal, aluminium foil, lead crystal glassware, temperature-sensitive plastics, wood, metal clips or wire ties.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

English

Safety instructions

• If smoke is emitted switch off or unplug the product and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The oven has to be cleaned regularly and any food deposits must be removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The microwave oven is only allowed to be used as a free-standing device. The device is not suitable for mounting in furniture such as cupboards and is therefore not allowed to be used in built-in furniture.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a possible hazard.
• The microwave oven is intended for warming food and drinks. The drying of food or clothes and the warming of heating pads (incl. kernel filled pillows), slippers, sponges, damp cleaning cloths and similar objects can lead to injuries, inflammation or fire.

Safety instructions

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning! This product is not intended to be operated by means of an external timer or separate remote-control system.
• Warning! Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
• Leave space for sufficient airflow: 20 cm above the oven.
• Clean the product and all other accessories after each use.

• Follow the instructions in the chapter Cleaning and care.

• Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Keep this manual for future reference and pass it on with the product.
• Pay particular attention to the warnings on the product and in this manual.
• Use the product only for its intended purpose. Improper use may lead to hazards.

• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.

• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.

• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.

English

Safety instructions

• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only unplugging from the power socket can separate the product completely from the mains.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• If the power cord or the casing of the product are damaged or if the product has been dropped, the product may not be used before it is examined by an authorised service agent.
• Use this product in dry indoor areas only and never outdoors.
• Place the product on a flat, sturdy and slip-resistant surface.

• Protect this product from extreme heat and cold as well as from direct sunlight and dust.

• In order to reduce the risk of fire and electric shock, do not expose the product to fire (fireplace, grill, candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs and so on).

• Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
• This product is not intended for commercial use.
• In conformity with the standard EN 55011, this product is classified as a group 2 class B product.
• Group 2: The product intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.
• Class B: The product is suitable to be used in domestic establishments.

Congratulations!

Thank you for your purchase of this KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This appliance is designed for defrosting, reheating and cooking food. Any other use may cause damage to the product or injuries. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and its accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE).

Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this product as unsorted municipal waste.

Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Microwave
1 x Glass turntable incl. turntable rolls
1 x Rack
1 x User manual
1 x Warranty card

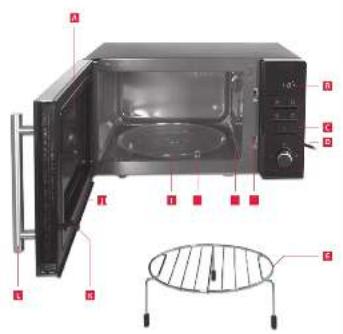

Controls and components

A Window
B Display
c Control panel
D Power cord with plug
€ Grill grate
F Door security lock
G Cooking chamber
H Turntable roller
Glass turntable
Door seal
K Door safety switch
L Door handle

Technical data

Rated voltage: 230 - 240 V\~, 50 Hz

Rated input power: 1400 W

(microwave);

1000 W (grill);

Microwave output power: 900 W

Microwave frequency : 2450 MHz

Dimensions, approx : H 281 x W 483 x

D 396 mm

Turntable diameter: : 270 mm

Cooking chamber capacity : 23 Liter

Net weight: approx. 13.7 kg

English

Before first use

Fig. 1 Place the device on a flat and stable surface.

Fig. 2 Leave space for sufficient airflow: minimum installation height: 85 cm above the oven: 20 cm at the back: 10 cm on both sides: 5 cm

Attention!

Do not cover the device and block any openings on the device. Do not remove the feet.

Note:

Do not operate the microwave without the turntable roll and properly positioned glass turntable.

Fig. 3 Connect the appliance to a suitable wall outlet. Unplug when not using for a long time.

Notes:

• Remove all packaging materials, including tape, from the door, cavity, switches, and accessories.
• Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.
  • Make sure that the supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
• The power plug must be readily accessible so that it can be easily disconnected in an emergency.

The list below is a general guide to help you select suitable utensils:

Cookware	Micro-wave	Grill	Combi
Heat-resistant glass	√	√	√
Non-heat-resistant glass	×	×	×
Heat-resistant ceramics	√	√	√
Microwave-safe plastic dishes	√	×	×
Kitchen paper	√	×	×
Metal tray	×	√	×
Metal rack	×	√	×
Aluminium foil and containers	×	√	×
Glasses with metal edge	×	√	×

√ = Materials you can use in a microwave oven
✗ = Materials to be avoided in a microwave oven

Display and Control panel

Display: Cooking time, power, indicators and clock time are displayed.

Control panel

Symbol/button	Function
	Microwave power button:adjustable from 100 to 0% in 10% steps
	Grill microwave combination button:GrL: Grill only (100%)Co-1: Grill microwave combination, 30% microwave; 55% grill; 15% idlingCo-2: Grill microwave combination, 40% microwave; 45% grill; 15% idling
	Defrost button: Weight adjustable from 100 to 1800 g in 100 g steps
	Clock button
	Pause /cancel button
	Program selection: Programs A1 to A8
	Start
	Adjust time from 0:10 seconds to 95:00 minutes

Set the time

Fig. 4 When the microwave is connected to the mains, the screen displays 1:01 and a beep sounds.

1 While in standby, press the button and 12 H will appear on the screen.
2 Press clock button again to choose between 12 hour and 24 hour (12 H / 24 H).
3 Turn the dial to set the hour.
4 Press clock button again. The minutes are shown.
5 Turn the dial to set the minutes.

6 Press the ☐ button to confirm the entry and exit the setting.

Note:

If you do not press the button within 30 seconds after step 5, the appliance automatically returns to the previous setting.

Microwave cooking

Note:

Always unpack packed foodstuffs. Make sure, no packaging material remains inside the cavity during usage

Fig. 5 1 Press the microwave power button once, 100 % is shown in display.
2 Press the microwave power button to select the microwave power from 100% to 00% in 10% steps. 100% corresponds to the max. microwave power, 100%, 10% corresponds to 10% microwave power.
3 Now turn the dial to set the cooking time. The minimum cooking time is 10 seconds, the maximum cooking time is 95 minutes.
4 Press the start knob to confirm the selection and start the cooking process.

The adjustable time intervals are as below:

Time range in minutes Intervals
0-5 10 seconds
5-10 30 seconds
10-30 1 minute
30-95 5 minutes

Microwave quick start

In standby mode, turn the dial to the right to select the cooking time. Now press start knob to start the microwave at 100% power.

English

Grill function

① Press the grill microwave combi button once so that GrL is shown in display.
② Turn the dial to the right or left to set the cooking time. The maximum cooking time is 95 minutes.
3 Press the start knob to start the cooking process.

Combination function

1 Press the grill microwave combi button 2 or 3 times so that the display shows Co-1 (combi mode 1) or Co-2 (combi mode 2).
② Set the cooking time using the dial. The maximum cooking time is 95 minutes.
3 Press the start knob to start the cooking process.

Please see the following table:

Display	Power level
Co-1	30% microwave; 55% grill; 15% idling
Co-2	40% microwave; 45% grill; 15% idling

Defrosting

• Press the defrost button. The display shows 100 g.
• Push the defrost button multiple times to set your desired weight between 100 to 1800 g.
• Press start knob to start the defrost program.

Multi-stage cooking

Note:

You can preset up to 3 cooking stages. At the end of the first cooking stage, the second cooking stage starts automatically.

The automatic programs and the defrost mode cannot be set as a cooking stage.

Example: You want to cook food for 5 minutes with 80% microwave power and then grill for 10 minutes.

① Press the microwave power button 3 times so that 80% appears in the display.
② Turn the dial to set 5 minutes.
3 Now press the grill microwave combi button once so that GrL appears in the display.
4 Turn the dial to set 10 minutes.
5 Press the start button to start the cooking process.

Automatic cooking programs

① In standby mode, turn the dial to the left to enter this menu and select a cooking program from A1 to A8.
2 Press the start knob to confirm.
3 Turn the dial to select the weight or amount. The unit for grams (g) and the selected value are shown in display.
4 Press the start knob to start the cooking process.

Please note the following table:

Program Weight	in g / amount (pcs.) Display	Time (min.)	Power
A1 Potatoes	1 (approx. 230) 1 5:00			Microwave 100%
	2 (approx. 460) 2 8:00
	3 (approx. 690) 3 12:00
A2 Beverages	1 (200 ml) 1 1:30			Microwave 100%
	2 (2 x 200 ml) 2 2:40
	3 (3 x 200 ml) 3 3:50
A3 Popcorn	99 99 g 3:10			Microwave 100%
A4 Reheat	200 200 1:30			Microwave 100%
	300 300 2:00
	400 400 2:30
	500 500 3:00
	600 600 3:30
	700 700 4:00
	800 800 4:30
A5 Spaghetti	100 (with 0.8 l cold water) 100	20:00		Microwave 80%
	200 (with 1.6 l cold water) 200	25:00
	300 (with 2.4 l cold water) 300	30:00
A6 Pizza	150 150 0:50			Microwave 100%
	300 300 1:20
	450 450 1:50
A7 Chicken	800 800 30:00			Combi mode Co-2
	1000	1000	33:00
	1200	1200	36:00
	1400	1400	39:00
A8 Cake	475 475 5:00			Microwave 100%

Note:

Cover all foodstuffs during the preparation to avoid soiling the microwave. Remove and spillages, especially oil and fat, right after their appearance.

English

Key lock

If the door is closed, during cooking or in standby mode, the key lock is activated automatically after one minute. To deactivate the key lock, open and close the door.

Cleaning and care

Warning

The cleaning of the microwave is an important part of the safe handling of the appliance and prevents health risks.

Note:

• Before cleaning: Turn off the microwave and unplug the power cord.
• The appliance must be cleaned at regular intervals and leftovers must be removed. Failure to periodically clean the device may degrade the surface and greatly reduce its life. Incidentally, this could lead to limited safety and functionality of the device.
• If the door seal does not close properly due to accumulated food residues, microwave radiation can escape and harm your health.
• Clean the appliance after each use to prevent mold, vermin, and leakage of microwave radiation.
• Do not use a steam jet to clean the device! The steam is under pressure and it may condense on the electrical components inside the unit causing short circuits.

- Do not use coarse, abrasive cleaners or sharp metal scrapers as these may scratch the surface and cause the glass to jump.

Fig. 6

• Clean the housing with a slightly damp cloth. Make sure that no water penetrates into the device.
• Use a damp cloth for regular cleaning and carefully clean the door seal, the cooking chamber and all adjacent components. Remove food residues or spills with a damp cloth.
• The control panel and its controls must not get wet. Clean them only with a soft, damp cloth. When cleaning the control panel, leave the door open to prevent an accidental start.
• If steam is condensing or dripping inside the microwave or on the cabinet, wipe it off with a soft cloth. Condensation can occur when moist air hits a cold surface. At very high temperatures, oil and grease can evaporate and deposit as a greasy film after cooling.

Fig. 7

• The glass plate can be removed for cleaning. Clean the plate in warm soapy water or in a dishwasher.
• The turntable roller and the cooking chamber floor should be cleaned regularly to prevent excessive noise. Use a mild detergent to wipe the surface and let it dry. If the turntable roller has been removed for cleaning, be sure to reinstall it properly before using it again. To remove dirt, periodically clean the door, window and gasket with a damp cloth.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer.

Problem Possible causes Solution
Product does not work	Interrupted power supply.	Check the power supply.
Cooking cannot be started • Door is not closed • Close the door correctly
Unusual noises during usage	Roller or cavity soiled • Thoroughly clean the microwave
Unusual smells during usage	Spillages / Residues inside the cavity or on the heating elements	Cover foodstuffs during preparationThoroughly clean the microwave

24
