Product type	Microwave oven with grill function
Brand	Koenic
Model	KMWG 2322-42 DW
Capacity	23 liters
Dimensions (W x H x D)	469 x 280 x 377 mm
Net weight	Approximately 12.5 kg
Rated voltage	230 V ~ 50 Hz
Rated input power (microwave)	1450 W
Rated input power (grill)	1000 W
Microwave output power	900 W
Microwave frequency	2450 MHz
Turntable diameter	288 mm
Functions	Microwave, Grill, Combi, Defrost by weight or time, 8 automatic programs, Timer, Child lock
Microwave power levels	5 levels: P100, P80, P50, P30, P10
Automatic programs	Reheat, Meat, Vegetables, Pasta, Potatoes, Fish, Drinks, Popcorn
Installation type	Freestanding appliance (not built-in)
Allowed utensil materials	Heat-resistant glass, ceramic, microwave-safe plastic, paper towels; metal and aluminum are prohibited in microwave mode
Cleaning and maintenance	Clean the cavity, door seal, glass tray, and rotating support regularly; use a damp cloth and mild detergent; do not use steam cleaners or metal scrapers
Safety	Child lock, automatic stop when door is opened, overheat protection, detailed safety instructions in the manual
Package contents	1 microwave, 1 glass tray, 1 rotating support, 1 cooking rack, 1 user manual, 1 warranty card

Frequently Asked Questions - KMWG 2322-42 DW Koenic

How to set the clock on the Koenic KMWG 2322-42 DW microwave?

In standby, press Clock. Turn the dial to set the hours, press Clock again for minutes, turn the dial for minutes, then press Clock to confirm.

How to activate the child lock?

In standby, press and hold STOP/Cancel for 3 seconds. A beep sounds and the lock icon appears. To deactivate, repeat the same operation.

Can I use metal containers in this microwave?

No, in microwave mode, metal, aluminum, or containers with metal rims are prohibited. In grill or combi mode, metal is allowed. Refer to the utensil table in the manual.

How to clean the microwave after use?

Unplug the appliance. Clean the cavity, door seal, and accessories with a damp cloth and mild detergent. The glass tray is dishwasher safe. Do not use steam cleaners or metal scrapers.

What is the maximum microwave power?

The maximum output power is 900 W, corresponding to P100. The other levels are P80 (720 W), P50 (450 W), P30 (270 W), and P10 (90 W).

How to defrost food?

Press Defrost once for defrost by weight (dEF1): set weight from 100 to 2000 g. Press twice for defrost by time (dEF2): set time from 5 seconds to 95 minutes. Start with START/+30s.

Are there automatic programs?

Yes, 8 programs: A-1 Reheat, A-2 Meat, A-3 Vegetables, A-4 Pasta, A-5 Potatoes, A-6 Fish, A-7 Drinks, A-8 Popcorn. Select with the Auto Menu button and set the weight or quantity.

How to cook in microwave + grill combi mode?

Press Grill/Combi 2 or 3 times to select C-1 (55% microwave, 45% grill) or C-2 (36% microwave, 64% grill). Confirm with START/+30s, set the time and start.

What to do if the appliance does not start?

Check that the appliance is plugged in and the door is properly closed. If the problem persists, refer to the Troubleshooting section in the manual or contact customer service.

Can I install this microwave in a built-in cabinet?

No, this microwave is intended only for freestanding use. It should not be installed in a cabinet or built-in furniture.

USER MANUAL KMWG 2322-42 DW Koenic

Microwave with Grill

Exterior view of a modern white microwave oven (no visible text or symbols)

Deutsch 3-14	—
Ting 50-75	—
Hindel 6-15	—
Pangale 37-47	—
Pangar 40-50	—
Barrie 20-60	—
Nederlands 70-80	—
Peters 91-92	—
Portugal 93-108	—
Törges 104-114	—

Labeled diagram of a microwave oven with numbered parts pointing to the interior panel

Cropped image showing a grid of control panel buttons with Chinese labels and numeric readings, likely from a technical or industrial software interface.

Sicherheitshinweise

- Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use. Caution! Hot surface!

- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning use of the product in a safe way and understand the hazards involved.

• Children shall not play with the product.

- Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.

- Keep this product and its power cord out of reach of children under the age of 8 years.

- Warning! If the door or door seals are damaged, the product must not be operated until it has been repaired by an authorised service agent.

- Warning! It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- Warning! Liquids and other foods must not be heated in sealed containers since they are liable to explode.

- Only use utensils suitable for use in microwave ovens. Do not use containers or cutlery made from or containing metal, aluminium foil, lead crystal glassware, temperature-sensitive plastics, wood, metal clips or wire ties.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

English

Safety instructions

• If smoke is emitted switch off or unplug the product and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The oven has to be cleaned regularly and any food deposits must be removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The microwave oven is only allowed to be used as a free-standing device. The device is not suitable for mounting in furniture such as cupboards and is therefore not allowed to be used in built-in furniture.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a possible hazard.
• The microwave oven is intended for warming food and drinks. The drying of food or clothes and the warming of heating pads (incl. kernel filled pillows), slippers, sponges, damp cleaning cloths and similar objects can lead to injuries, inflammation or fire.

Safety instructions

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning! This product is not intended to be operated by means of an external timer or separate remote-control system.
• Warning! Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
• Leave space for sufficient airflow: 30 cm above the oven.
• Clean the product and all other accessories after each use.

• Follow the instructions in the chapter Cleaning and care.

• Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Keep this manual for future reference and pass it on with the product.
• Pay particular attention to the warnings on the product and in this manual.
• Use the product only for its intended purpose. Improper use may lead to hazards.

• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.

• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.

• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.

English

Safety instructions

• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only unplugging from the power socket can separate the product completely from the mains.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• If the power cord or the casing of the product are damaged or if the product has been dropped, the product may not be used before it is examined by an authorised service agent.
• Use this product in dry indoor areas only and never outdoors.
• Place the product on a flat, sturdy and slip-resistant surface.

• Protect this product from extreme heat and cold as well as from direct sunlight and dust.

• In order to reduce the risk of fire and electric shock, do not expose the product to fire (fireplace, grill, candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs and so on).

• Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
• This product is not intended for commercial use.
• In conformity with the standard EN 55011, this product is classified as a group 2 class B product.
• Group 2: The product intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.
• Class B: The product is suitable to be used in domestic establishments.
• Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it's suspected to be defect.

Congratulations!

Thank you for your purchase of this KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This appliance is designed for defrosting, reheating and cooking food. Any other use may cause damage to the product or injuries. Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and its accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Content

1 x Microwave
1 x Glass turntable incl. turntable rolls
1 x Rack
1 x User manual
1 x Warranty card

Controls and components

A Window
B Display
c Control panel
D Power cord with plug
E Grill grate
F Door security lock
G Cooking chamber
H Turntable roller
Glass turntable
J Door seal
K Door safety switch
L Door handle

Technical data

Rated voltage: 230 V\~, 50 Hz

Rated input power: 1450 W

(microwave);

1000 W (grill);

Microwave output power: 900 W

Microwave frequency : 2450 MHz

Dimensions, approx.: 280 x 469 x 377 mm

Turntable diameter: : 288 mm

Cooking chamber capacity: 23 Liter

Net weight: approx. 12.5 kg

English

Before first use

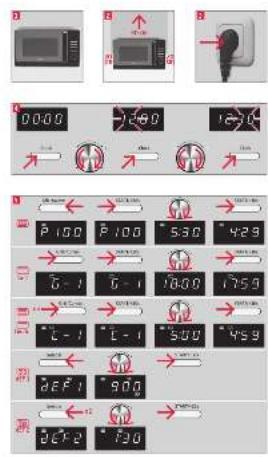

Fig. 1 Place the device on a flat and stable surface.

Fig. 2 Leave space for sufficient airflow: Minimum installation height: 85 cm above the oven: 30 cm on both sides: 20 cm at the back: 0 cm

Attention!

Do not cover the device and block any openings on the device. Do not remove the feet.

Note:

Do not operate the microwave without the turntable roll and properly positioned glass turntable.

Fig. 3 Connect the appliance to a suitable wall outlet. Unplug when not using for a long time.

Notes:

• Remove all packaging materials, including tape, from the door, cavity, switches, and accessories.
• Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.
  • Make sure that the supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
• The power plug must be readily accessible so that it can be easily disconnected in an emergency.

The list below is a general guide to help you select suitable utensils:

Cookware	Micro-wave	Grill	Combi
Heat-resistant glass	√	√	√
Non-heat-resistant glass	×	×	×
Heat-resistant ceramics	√	√	√
Microwave-safe plastic dishes	√	×	×
Kitchen paper	√	×	×
Metal tray	×	√	×
Metal rack	×	√	×
Aluminium foil and containers	×	√	×
Glasses with metal edge	×	√	×

√ = Materials you can use in a microwave oven
✗ = Materials to be avoided in a microwave oven

Scan me for recipes

Display and Control panel

Display: Cooking time, power, indicators and clock time are displayed.

Control panel

Symbol/button	Function
Microwave	Microwave power button:adjustable from P100 to P 10
Grill/Combi.	Grill microwave combination button:G-1: Grill only (100%)C-1: Grill microwave combination, 55% microwave; 45% grillC-2: Grill microwave combination, 36% microwave; 64% grill
Defrost	Defrost button: Weight adjustable from 100 to 2000 g in 100 g steps
Clock	Clock button
STOP/Cancel	Pause /cancel button
Auto Menu	Program selection: Programs A-1 to A-8
START/+30s	Start
Timer	Adjust time from 0:05 seconds to 95:00 minutes

Set the time

Fig. 4 When the microwave is connected to the mains, the screen displays 0:00 and a beep sounds.

1 While in standby, press the Clock button and 00:00 will appear on the screen.
② Turn the dial to set the hour.
3 Press clock button again. The minutes are shown.
4 Turn the dial to set the minutes.
5 Press the Clock button to confirm the entry and exit the setting.

Note:

If you do not press the Clock button within 60 seconds after step 5, the appliance automatically returns to the previous setting.

Microwave cooking

Note:

Always unpack packed foodstuffs. Make sure, no packaging material remains inside the cavity during usage

Fig. 5 ① Press the Microwave button once, P100 is shown in display.

2 Press the Microwave button to select the Microwave power from P100 to P 80, P 50, P 30 and P 10. P100 corresponds to the max. microwave power 100%, P 10 corresponds to 10% microwave power. Press the start button START/+30s to confirm.

3 Now turn the dial to set the cooking time. The minimum cooking time is 5 seconds, the maximum cooking time is 95 minutes.

4 Press the start button START/+30s to confirm the selection and start the cooking process.

The adjustable time intervals are as below:

Time range in minutes	Intervals
0-1 5 seconds
1-5 10 seconds
5-10 30 seconds
10-30 1 minute
30-95 5 minutes

Microwave quick start

In standby mode, turn the dial to the left to select the cooking time. Now press start button START/+30s to start the microwave at 100% power.

Alternatively, you can also press the start button START/+30s in standby mode as often as necessary. Each time you press the button again, the cooking time increases by 30 seconds and up to 95 minutes.

English

Grill function

1 Press the Grill/Combi button once so that G-1 is shown in display.
2 Press start button START/+30s to confirm.
3 Turn the dial to the right or left to set the cooking time. The maximum cooking time is 95 minutes.
4 Press the start button START/+30s to start the cooking process.

Note:

When half of the preset time has elapsed, two beeps will sound.

Combination function

① Press the Grill/Combi button 2 or 3 times so that the display shows C-1 (combi mode 1) or C-2 (combi mode 2).
② Press start button START/+30s to confirm.
3 Set the cooking time using the dial. The maximum cooking time is 95 minutes.
4 Press the start button START/+30s to start the cooking process.

Please see the following table:

Display	Power level
C-1 55	% microwave; 45% grill
C-2 36	% microwave; 64% grill

Defrost by weight

1 Press the Defrost button once so that the display shows dEF1.
② Set the weight of the food from 100 to 2000 g using the dial.
3 Press START/+30s button to start defrosting.
4 When defrosting is complete, the signal will beep five times.

Defrost by time

1 Press the Defrost button twice so that the display shows dEF2.
2 Set the required defrosting time from 0:05 to 95:00 mm:ss using the dial.
3 Press START/+30s button to start defrosting.
4 When defrosting is complete, the signal will beep five times.

Multi-stage cooking

Note:

You can preset up to 2 cooking stages. At the end of the first cooking stage, the second cooking stage starts automatically.

The automatic programs cannot be set as a cooking stage.

Example: You want to cook food for 5 minutes with 80% microwave power and then grill for 10 minutes.

1 Press the microwave power button 2 times so that P 80 appears in the display.
2 Press start button START/+30s to confirm.
③ Turn the dial to set 5 minutes.
4 Now press the grill microwave combi button once so that G-1 appears in the display.
5 Press start button START/+30s to confirm.
6 Turn the dial to set 10 minutes.
7 Press the start button START/+30s to start the cooking process.

Automatic cooking programs

In standby mode, press Auto Menu button as often as necessary to enter this menu and select a cooking program from A-1 to A-8.
2 Press the start button START/+30s to confirm.
3 Turn the dial to select the weight or amount. The selected value is shown in display.
4 Press the start button START/+30s to start the cooking process.

Please note the following table:

Program Weight [g]/ pieces [pcs.] Display
A-1Auto Reheat	200 g 200
	400 g 400
A-2Meat	250 g 250
	350 g 350
	450 g 450
A-3Vegetable	200 g 200
	300 g 300
	400 g 400
A-4Pasta	50 g (450 ml cold water) 50
	100 g (800 ml cold water) 100
A-5Potato	1 pcs. (approx. 230 g) 1
	2 pcs. 2
	3 pcs. 3
A-6Fish	250 g 250
	350 g 350
	450 g 450
A-7Beverages	1 pcs. (120 ml) 1
	2 pcs. (240 ml) 2
	3 pcs. (360 ml) 3
A-8Popcorn	50 g 50
	100 g 100

Note:

Cover all foodstuffs during the preparation to avoid soiling the microwave. Remove and spillages, especially oil and fat, right after their appearance.

English

Child lock

With this function you can prevent children from accidentally switching on the oven.

To enable child lock:

In standby mode, press and hold the STOP/

Cancel button for three seconds. A long beep will sound and the lock icon will appear.

To deactivate, press and hold the STOP/Cancel button again for three seconds. A long beep sounds.

Query function

• If the clock has been set, the current time will be displayed for three seconds if you press Clock during operation.
• In microwave mode, press Microwave to query the power level. For grill and combination cooking, press Grill/Combi to query the power level.

Kitchen Timer

① In standby mode, press the Timer button and 00:00 is displayed.
② Turn the dial to set the kitchen timer. The maximum time is 95 minutes.
3 Press the start button START/+30s to confirm the setting.
4 When the time elapsed, a beep will sound five times and the time is displayed again.

Cleaning and care

Warning

The cleaning of the microwave is an important part of the safe handling of the appliance and prevents health risks.

Note:

• Before cleaning: Turn off the microwave and unplug the power cord.
• The appliance must be cleaned at regular intervals and leftovers must be removed. Failure to periodically clean the device may degrade the surface and greatly reduce its life. Incidentally, this could lead to limited safety and functionality of the device.
• If the door seal does not close properly due to accumulated food residues, microwave radiation can escape and harm your health.
• Clean the appliance after each use to prevent mold, vermin, and leakage of microwave radiation.
• Do not use a steam jet to clean the device! The steam is under pressure and it may condense on the electrical components inside the unit causing short circuits.
• Do not use coarse, abrasive cleaners or sharp metal scrapers as these may scratch the surface and cause the glass to jump.

English

Fig. 6

• Clean the housing with a slightly damp cloth. Make sure that no water penetrates into the device.
• Use a damp cloth for regular cleaning and carefully clean the door seal, the cooking chamber and all adjacent components. Remove food residues or spills with a damp cloth.
• The control panel and its controls must not get wet. Clean them only with a soft, damp cloth. When cleaning the control panel, leave the door open to prevent an accidental start.
• If steam is condensing or dripping inside the microwave or on the cabinet, wipe it off with a soft cloth. Condensation can occur when moist air hits a cold surface. At very high temperatures, oil and grease can evaporate and deposit as a greasy film after cooling.

Fig. 7

• The glass plate can be removed for cleaning. Clean the plate in warm soapy water or in a dishwasher.
• The turntable roller and the cooking chamber floor should be cleaned regularly to prevent excessive noise. Use a mild detergent to wipe the surface and let it dry. If the turntable roller has been removed for cleaning, be sure to reinstall it properly before using it again. To remove dirt, periodically clean the door, window and gasket with a damp cloth.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer.

Problem Possible causes Solution
Product does not work	• Interrupted power supply.	• Check the power supply.
Cooking cannot be started • Door is not closed • Close the door correctly
Unusual noises during usage • Roller or cavity soiled • Thoroughly clean the microwave
Unusual smells during usage • Spillages / Residues inside the cavity or on the heating elements		• Cover foodstuffs during preparation• Thoroughly clean the microwave

Español
