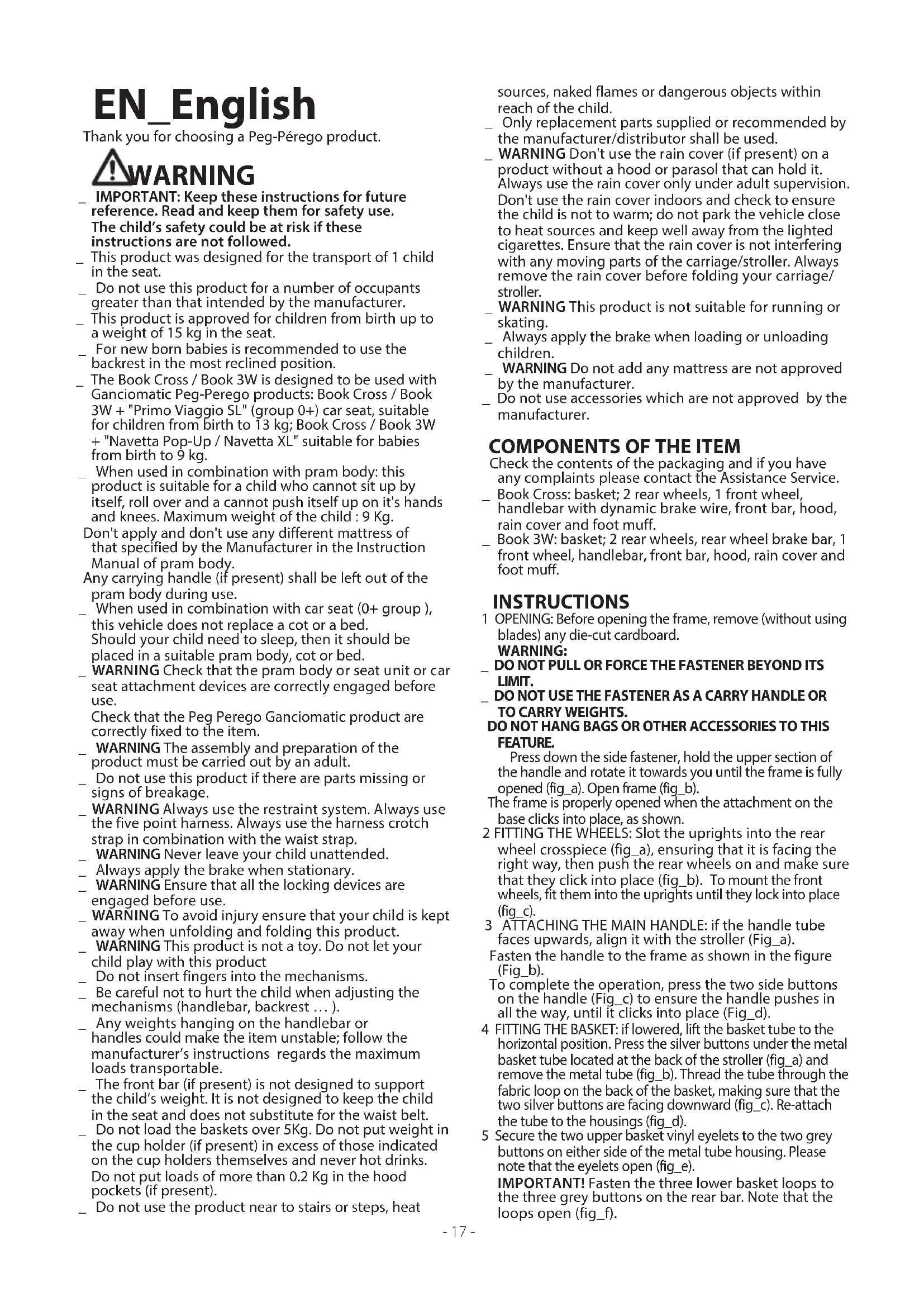

Se fortuitamente parti del modello vengono perse o danneggiate, usare solo pezzi di ricambio originali Peg Pérego. Per eventuali riparazioni, sostituzioni, informazioni sui prodotti, vendita di ricambi originali e accessori, contatta il Servizio Assistenza Peg Pérego indicando, qualora fosse presente, il numero seriale del prodotto. tel. 0039/039/60.88.213 numero verde: 800/147.414 (contattabile da rete fissa) fax 0039/039/33.09.992 e-mail assistenza@pegperego.it sito internet www.pegperego.com - 16 -EN_English Thank you for choosing a Peg-Pérego product. WARNING _ IMPORTANT: Keep these instructions for future reference. Read and keep them for safety use. The child’s safety could be at risk if these instructions are not followed. _ This product was designed for the transport of 1 child in the seat. _ Do not use this product for a number of occupants greater than that intended by the manufacturer. _ This product is approved for children from birth up to a weight of 15 kg in the seat. _ For new born babies is recommended to use the backrest in the most reclined position. _ The Book Cross / Book 3W is designed to be used with Ganciomatic Peg-Perego products: Book Cross / Book 3W + "Primo Viaggio SL" (group 0+) car seat, suitable for children from birth to 13 kg; Book Cross / Book 3W + "Navetta Pop-Up / Navetta XL" suitable for babies from birth to 9 kg. _ When used in combination with pram body: this product is suitable for a child who cannot sit up by itself, roll over and a cannot push itself up on it's hands and knees. Maximum weight of the child : 9 Kg. Don't apply and don't use any different mattress of that specified by the Manufacturer in the Instruction Manual of pram body. Any carrying handle (if present) shall be left out of the pram body during use. _ When used in combination with car seat (0+ group ), this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed. _ WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use. Check that the Peg Perego Ganciomatic product are correctly fixed to the item. _ WARNING The assembly and preparation of the product must be carried out by an adult. _ Do not use this product if there are parts missing or signs of breakage. _ WARNING Always use the restraint system. Always use the five point harness. Always use the harness crotch strap in combination with the waist strap. _ WARNING Never leave your child unattended. _ Always apply the brake when stationary. _ WARNING Ensure that all the locking devices are engaged before use. _ WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product. _ WARNING This product is not a toy. Do not let your child play with this product _ Do not insert fingers into the mechanisms. _ Be careful not to hurt the child when adjusting the mechanisms (handlebar, backrest … ). _ Any weights hanging on the handlebar or handles could make the item unstable; follow the manufacturer’s instructions regards the maximum loads transportable. _ The front bar (if present) is not designed to support the child’s weight. It is not designed to keep the child in the seat and does not substitute for the waist belt. _ Do not load the baskets over 5Kg. Do not put weight in the cup holder (if present) in excess of those indicated on the cup holders themselves and never hot drinks. Do not put loads of more than 0.2 Kg in the hood pockets (if present). _ Do not use the product near to stairs or steps, heat sources, naked flames or dangerous objects within reach of the child. _ Only replacement parts supplied or recommended by the manufacturer/distributor shall be used. _ WARNING Don't use the rain cover (if present) on a product without a hood or parasol that can hold it. Always use the rain cover only under adult supervision. Don't use the rain cover indoors and check to ensure the child is not to warm; do not park the vehicle close to heat sources and keep well away from the lighted cigarettes. Ensure that the rain cover is not interfering with any moving parts of the carriage/stroller. Always remove the rain cover before folding your carriage/ stroller. _ WARNING This product is not suitable for running or skating. _ Always apply the brake when loading or unloading children. _ WARNING Do not add any mattress are not approved by the manufacturer. _ Do not use accessories which are not approved by the manufacturer.

COMPONENTS OF THE ITEM

Check the contents of the packaging and if you have any complaints please contact the Assistance Service. _ Book Cross: basket; 2 rear wheels, 1 front wheel, handlebar with dynamic brake wire, front bar, hood, rain cover and foot muff. _ Book 3W: basket; 2 rear wheels, rear wheel brake bar, 1 front wheel, handlebar, front bar, hood, rain cover and foot muff. INSTRUCTIONS 1 OPENING: Before opening the frame, remove (without using blades) any die-cut cardboard.

_ DO NOT PULL OR FORCE THE FASTENER BEYOND ITS LIMIT. _ DO NOT USE THE FASTENER AS A CARRY HANDLE OR TO CARRY WEIGHTS. DO NOT HANG BAGS OR OTHER ACCESSORIES TO THIS FEATURE. Press down the side fastener, hold the upper section of the handle and rotate it towards you until the frame is fully opened (fig_a). Open frame (fig_b). The frame is properly opened when the attachment on the base clicks into place, as shown. 2 FITTING THE WHEELS: Slot the uprights into the rear wheel crosspiece (fig_a), ensuring that it is facing the right way, then push the rear wheels on and make sure that they click into place (fig_b). To mount the front wheels, fit them into the uprights until they lock into place (fig_c). 3 ATTACHING THE MAIN HANDLE: if the handle tube faces upwards, align it with the stroller (Fig_a). Fasten the handle to the frame as shown in the figure (Fig_b). To complete the operation, press the two side buttons on the handle (Fig_c) to ensure the handle pushes in all the way, until it clicks into place (Fig_d). 4 FITTING THE BASKET: if lowered, lift the basket tube to the horizontal position. Press the silver buttons under the metal basket tube located at the back of the stroller (fig_a) and remove the metal tube (fig_b). Thread the tube through the fabric loop on the back of the basket, making sure that the two silver buttons are facing downward (fig_c). Re-attach the tube to the housings (fig_d). 5 Secure the two upper basket vinyl eyelets to the two grey buttons on either side of the metal tube housing. Please note that the eyelets open (fig_e). IMPORTANT! Fasten the three lower basket loops to the three grey buttons on the rear bar. Note that the loops open (fig_f). - 17 -WARNING! If this operation is not completed properly, the basket will not support any weight. Fasten the front basket flaps to the grey buttons on the frame (fig_g) and then secure the basket centrally to the footrest using the Velcro strap (fig_h). 6 HOOD: Fasten the hood at the back using the Velcro strip (fig_a), insert the hood attachments into their slots (fig_b), secure with the external rubber band to the buttons on the inside of the handlebar (fig_c), and finally button the hood laterally to the frame (fig_d). 7 FIXED OR SWIVEL FRONT WHEELS: to fix the front wheels, rotate the lever counter clockwise to the locked padlock (fig_a); to release the wheels, turn the lever clockwise to the unlocked padlock (fig_b). On difficult terrain, we recommend using fixed wheels. 8 BOOK CROSS BRAKE: To engage the brake, pull the handle on the handlebar towards you (arrow_a) and block the red lever (fig_b); to release the brake, release the lever (arrow_c). Always engage the brake when stationary. To adjust the brake making it more rigid, loosen the regulator (fig_d) located on the handlebar by screwing it outwards. To loosen and soften the brake, do the opposite. 9 BOOK 3W BRAKE: Press the lever down to apply the brake on the chassis and lift it to release the brake. 10 ADJUSTABLE HANDLEBAR: To adjust the height of the handlebar, press both of the side buttons at the same time (fig_a) and swing it into the desired position (fig_b), then release the buttons. 11 FOOTREST: before adjusting the foot rest, ensure its cover is accurately fitted; if it isn’t, fit it accordingly. To lower the footrest push the two levers downwards and then push the footrest downwards (fig_a); to raise the footrest lift it upwards (fig_b). 12 FRONT BAR: To pull the front bar out by one position, press the button as shown and pull outwards (fig_a). To remove the front bar, pull it out to the second position and remove (fig_b). Open-close front bar: pull out on one side and rotate. 13 HOOD: The hood comes with a loop for hanging your child's favorite toy (fig_a) and a see-through window for observing your child (fig_b), which can be lifted and fastened. You can detach the Velcro, roll up the back of the hood and fasten it at the top with the rubber band to allow greater ventilation during use with the backrest down (fig_c). The hood may be pulled forward into several positions (fig_d). 14 ADJUSTING THE BACKREST: to lower the backrest, press the clip and the backrest will move down to the desired position. To raise the backrest, press the clip and lift the backrest to the desired height. 15 FOOT MUFF: To secure the foot muff to the stroller, button the rubber band to the side bar (fig_a) and button the top part of the foot muff to the inside button (fig_b). 16 FIVE POINT SAFETY HARNESS: To fasten it, push the two waist strap buckles (with the shoulder straps attached – arrow_a) into the leg divider until they click into place (arrow_b). To unfasten it, press the round button in the centre of the buckle (arrow_c) and pull the waist straps out (arrow_d). 17 To tighten the waist strap, pull on both sides in the direction of the arrow (arrow_a). To loosen it, move it in the opposite direction. 18 Before adjusting the height of the safety harness remove the shoulder pads (fig_a). To adjust the height, slip the belts through the eyelet in the fabric (fig_b) and position them in the most suitable eyelet. 19 FOLDING UP: To fold up the stroller, you must ensure the front wheel swivels and the hood are closed, when fastened. Place the handle as shown in the figure (fig_a). Pull the inside handle on the base (fig_b) and lift it (fig_c); the handle will drop forward until the frame is closed. 20 To close correctly, check the side hook is inserted (fig_a). If not automatically locked, compress the chassis slightly. When folded, the stroller will free standing (fig_b). 21 For greater compactness, it is possible to remove the wheels. To remove the rear wheels: pull the pivot outwards and remove the wheel as shown in the figure (fig_a). To remove the front wheels: press the tab as shown, and remove the wheel (fig_b). TRANSPORT: the stroller can be carried comfortably locking the front wheels and grasping the main handle (fig_c). 22 REMOVABLE ITEMS: to remove the hood, take the elastic off from the buttons on the inside of the handlebar (fig_a), detach the press studs the sides of the chassis (fig_b), detach the Velcro strip from the backrest (fig_c) and remove the attachments of the hood from their positions on the chassis (fig_d). 23 To remove the seat fabric, press in the holes on the inside of the chassis (fig_a); remove, from the side of the seat, the rigid flap of the chassis fabric ((fig_b), unfasten the elastic of the net from the side buttons inside the handlebar (fig_c) and unfasten the elastics from the buttons inside the chassis (fig_d). 24 From the front, remove the lining from the foot platform (fig_a), remove the leg divider strap from under the seat (fig_b), unbutton the seat fabric (fig_c), unscrew the waist belt on the side (fig_d) and remove the seat fabric from the backrest (fig_e). GANCIOMATIC SYSTEM The Ganciomatic System is the quick, practical system that allows you to fasten the Navetta Pop-Up / Navetta XL and the Primo Viaggio SL car seat (sold separately) onto the stroller using the Ganciomatic hooks. 25 GANCIOMATIC HOOKS ON THE STROLLER: to lift the stroller's Ganciomatic hooks, pull back the fabric at the corners of the seat. Pull the frame's side levers outwards (fig_a) and turn the Ganciomatic hooks upwards. _ To lower the hooks, proceed in the opposite order. Primo Viaggio SL can be mounted on the stroller version of Book Cross / Book 3W with the backrest attached, or on the Booklet Naked version (i.e. chassis version). Navetta Pop-Up / Navetta XL can only be mounted on the Naked version (i.e. the chassis version). To transform Book Cross / Book 3W into Booklet Naked, chassis version, you must: 26 Remove the hood and the seat fabric from the stroller (up to point C in figure 24); press the buttons under the seat fabric at the base of the backrest (fig_a) on both sides. Remove the backrest by lifting it upwards (fig_b). _ To transform the chassis back into the stroller version, repeat the operations listed above in the opposite order. 27 When the stroller is in the Naked version, pull the frame's side levers outwards (fig_a), rotate the Ganciomatic hooks upwards, and then rotate the small levers inwards (fig_b). GANCIOMATIC FASTENING 28 Book Cross / Book 3W + Primo Viaggio SL To mount the car seat on the stroller or chassis, you must: _ Engage the stroller's brake; _ Lift the stroller's Ganciomatic hooks; _ Pull the front bar out to the second position (fig_a). _ Fully lower the backrest, if in place. _ Place the car seat, facing mom, on the Ganciomatic - 18 -hooks and push it down until it clicks into place. _ Once the seat is mounted, lift the backrest - if in place - to the maximum height (fig_c). _ See the instruction manual to release the car seat from the stroller. 29 Book Cross / Book 3W + Navetta Pop-Up / Navetta XL To mount the Navetta Pop-Up / Navetta XL on the chassis, you must: _ Lock the stroller brakes; _ Lift the Ganciomatic hooks; _ Remove the front bar, if in place; _ Position the Navetta Pop-Up / Navetta XL, mum-facing, on the Ganciomatic hooks and push it downwards, pressing on the sides, until you hear the click. _ To release Navetta Pop-Up / Navetta XL from the stroller please read the instructions book. SERIAL NUMBERS 30 Information about the production date can be found on the Book Cross / Book 3W . _ The product name, production date and serial number of the chassis. This information is required for any complaints. ACCESSORIES 31 BABY CUSHION: For Peg Perego high chairs and strollers. Winter side of quilted jersey fabric, summer side of 100% cotton (fig_a). MOSQUITO NET: may be fastened to the hood (fig_b). 32 BAG: a large bag with a mat to change the baby on (fig_a). CUP HOLDER: may be fastened to the mushroom button on the frame (fig_b). BOOK BOARD: Rear footrest plus two handlebar extensions (fig_c).

CLEANING AND MAINTENANCE

PRODUCT MAINTENANCE: protect from the weather: water, rain, or snow; prolonged and continuous exposure to bright sunlight may give rise to colour changes of various different materials; store this product in a dry place. CLEANING THE SEAT: periodically clean all plastic parts with a damp cloth. Do not use solvent or similar cleaning products; keep all metal parts dry to prevent rusting; keep moving parts clean (adjustment mechanisms, locking mechanisms, wheels, ...) and free of dust and sand and, if necessary, lubricate with light machine oil. CLEANING THE RAIN CANOPY: wash with a sponge and soapy water; do not use detergents. CLEANING FABRIC PARTS: brush fabric parts to remove dust and wash by hand at a maximum temperature of 30°C; do not wring; do not use chlorine bleach, do not iron; do not dry clean; do not apply solvent-based stain removers and do not dry in a tumble dryer. PEG-PÉREGO S.p.A. Peg-Pérego S.p.A. is an ISO 9001 certified company. This certification is a guarantee for customers and consumers of the transparency and trustworthiness of the company's procedures and working methods. Peg Pérego can make changes at any time to the models described in this publication for technical or commercial reasons. Peg Pérego is at the disposal of its customers and consumers to ensure that all their demands and queries are fully satisfied. It is a key part of our policy to ensure we are always aware of our customers' views and requirements. We would therefore be very grateful if, after using a Peg Pérego product, you take the time to fill in our CUSTOMER SATISFACTION QUESTIONNAIRE, making a note of any comments or suggestions you might have. You can find the questionnaire on the Peg Pérego website: www.pegperego.com
