USER MANUAL Bassinet Z4 PEG PEREGO

EN Instructions for use

Top-down schematic of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Diagram of a handbag with a handle and internal compartments, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing a device with three vertical-mounted sensors and a separate view of its front panel (no text or symbols present)

Diagram showing a garment sleeve being adjusted for size, with an inset close-up highlighting the seam detail (no text or symbols present)

Diagram showing a mechanical device with a downward arrow and control panel, no text or symbols present

Top-down schematic of a rectangular device with circular holes and an arrow pointing to a gray rectangle (no text or symbols)

Z4 Bassinet

Thank you for choosing a Peg-Pérego product.

WARNING

READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

• THE Z4 BASSINET MAY BE USED ALONE OR WITH THE FOLLOWING PEGPEREGO FRAMES: Z4 CHASSIS, HOME STAND.
  • DO NOT USE THIS BASSINET IF YOU CANNOT EXACTLY FOLLOW THE ACCOMPANYING INSTRUCTIONS.
  • DO NOT USE THIS BASSINET FOR A CHILD WHO CAN ROLL OVER OR WHO HAS REACHED THE MANUFACTURER'S RECOMMENDED WEIGHT LIMIT.
  • THIS PRODUCT IS DESIGNED FOR CHILDREN FROM BIRTH UP TO A WEIGHT OF 20 LBS (9 KG).
• FALL HAZARD: DO NOT USE THIS BASSINET WHEN THE INFANTS BEGINS TO PUSH UP ON HANDS OR KNEES OR HAS REACHED 20 LBS.

.SUFFOCA TION HAZARD: INFANTS HAVE SUFFOCA TED IN GAPS BETWEEN EXTRA PADDING AND SIDE OF THE BASSINET/ CRADLE OR ON SOFT BEDDING. USE ONLY

THE PAD PROVIDED BY MANUFACTURER. NEVER ADD A PILLOW, COMFORTER, OR ANOTHER MATTRESS FOR PADDING.

• NEVER LEAVE THE CHILD UNATTENDED.
• TO REDUCE THE RISK OF SIDS, PLACE THE INFANTS ON HIS BACK TO SLEEP.
- USE OF STAND: THIS PRODUCT IS DESIGNED TO BE USED IN CONJUNCTION WITH A STAND. ALWAYS USE ONLY PEGPEREGO SPECIFIC STAND.
• FALL HAZARD: ALWAYS CHECK THAT THE BASSINET IS SECURELY LOCKED ON THE BASE/ STAND BY PULLING UPWARDS ON THE

BASSINET BED.

• DO NOT USE NEAR HEAT SOURCES, OPEN FLAMES OR DANGEROUS OBJECTS THAT ARE WITHIN REACH OF THE CHILD.
• ONLY USE THE PRODUCT ON SURFACES THAT ARE HARD, HORIZONTAL AND DRY.
• DO NOT LEAVE OTHER CHILDREN PLAYING UNATTENDED NEAR THE CARRIAGE.
- BEFORE PLACING THE CHILD IN THE BASSINET, MAKE SURE THAT EVERY PART IS PROPERLY AND SECURELY IN PLACE.
• ASSEMBLY AND PREPARATION OF THE ITEM MUST BE CARRIED OUT BY ADULTS.
• DO NOT USE THE PRODUCT IF THERE ARE MISSING OR BROKEN PARTS.
- BEFORE USE MAKE SURE THAT ALL OF THE ATTACHMENT MECHANISMS ARE CONNECTED PROPERLY.
• DO NOT INSERT FINGERS INTO THE MECHANISMS.
- IT COULD BE DANGEROUS TO USE ACCESSORIES WHICH ARE NOT APPROVED BY THE MANUFACTURER.
- DO NOT USE THE BASSINET WITHOUT ITS FABRIC COVERING, WHICH CANNOT BE REPLACED WITH ONE NOT APPROVED BY THE MANUFACTURER.

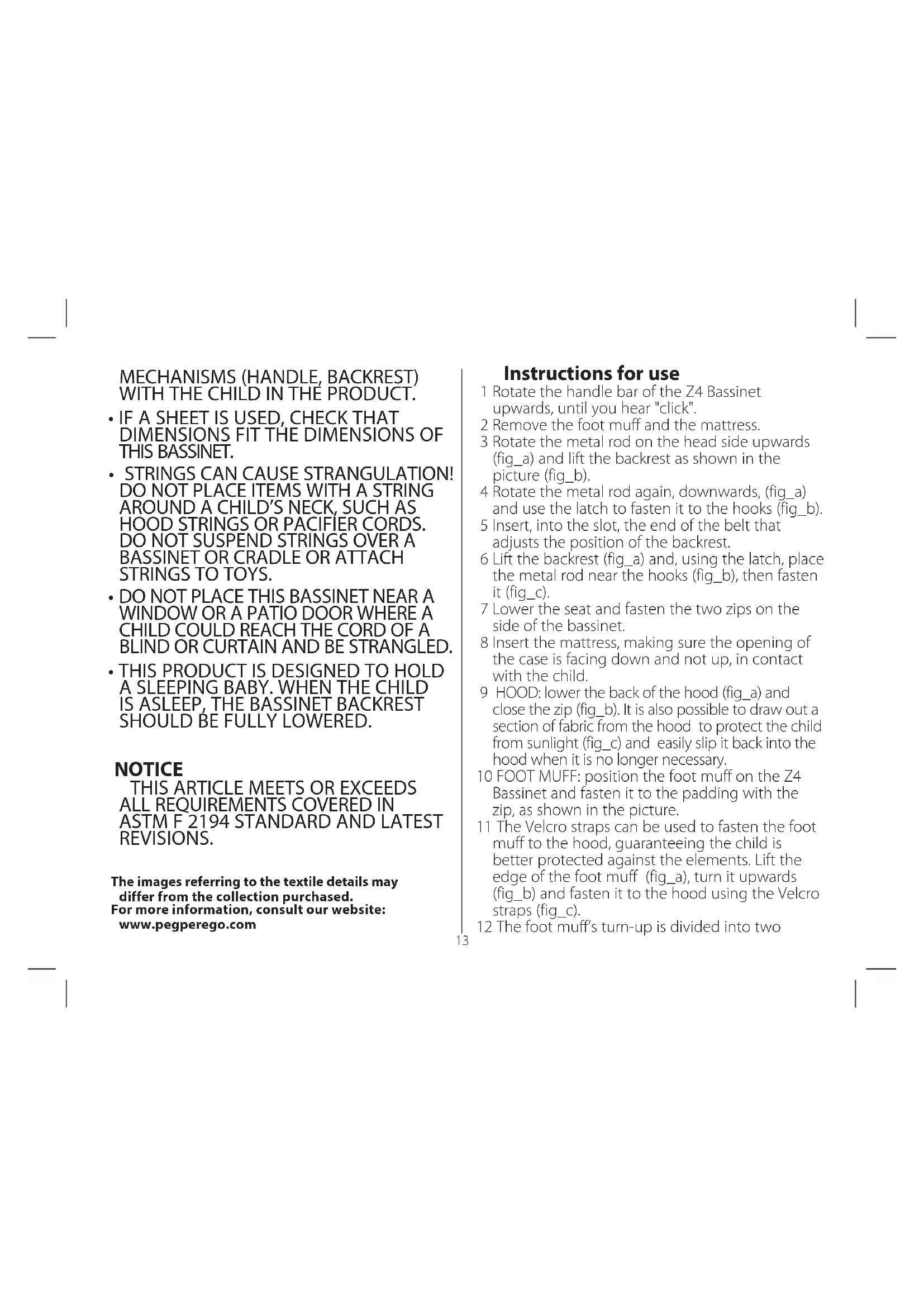

• TAKE CARE WHEN ADJUSTING THE

MECHANISMS (HANDLE, BACKREST) WITH THE CHILD IN THE PRODUCT.

• IF A SHEET IS USED, CHECK THAT DIMENSIONS FIT THE DIMENSIONS OF THIS BASSINET.
• STRINGS CAN CAUSE STRANGULATION! DO NOT PLACE ITEMS WITH A STRING AROUND A CHILD'S NECK, SUCH AS HOOD STRINGS OR PACIFIER CORDS. DO NOT SUSPEND STRINGS OVER A BASSINET OR CRADLE OR ATTACH STRINGS TO TOYS.
  • DO NOT PLACE THIS BASSINET NEAR A WINDOW OR A PATIO DOOR WHERE A CHILD COULD REACH THE CORD OF A BLIND OR CURTAIN AND BE STRANGLED.
• THIS PRODUCT IS DESIGNED TO HOLD A SLEEPING BABY. WHEN THE CHILD IS ASLEEP, THE BASSINET BACKREST SHOULD BE FULLY LOWERED.

NOTICE

THIS ARTICLE MEETS OR EXCEEDS ALL REQUIREMENTS COVERED IN ASTM F 2194 STANDARD AND LATEST REVISIONS.

The images referring to the textile details may differ from the collection purchased.

For more information, consult our website: www.pegperego.com

Instructions for use

1 Rotate the handle bar of the Z4 Bassinet upwards, until you hear "click".
2 Remove the foot muff and the mattress.

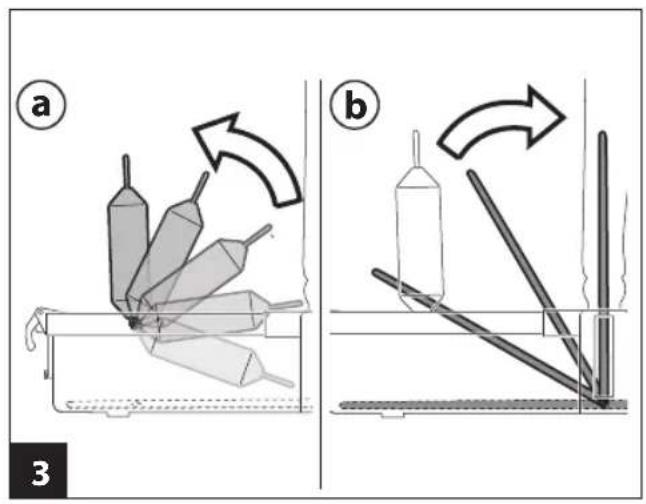

3 Rotate the metal rod on the head side upwards (fig_a) and lift the backrest as shown in the picture (fig_b).

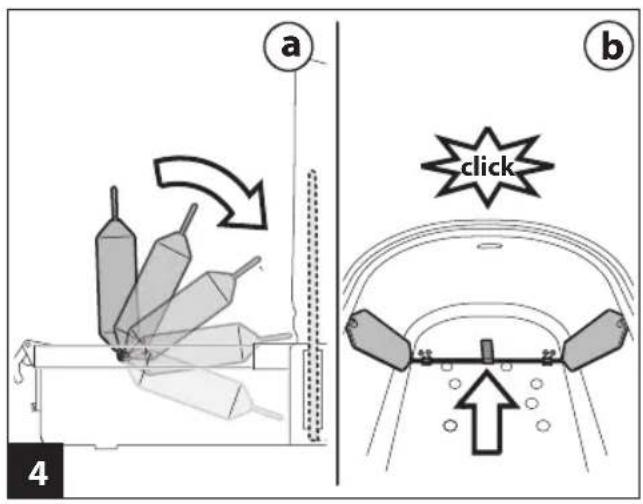

4 Rotate the metal rod again, downwards, (fig_a) and use the latch to fasten it to the hooks (fig_b).

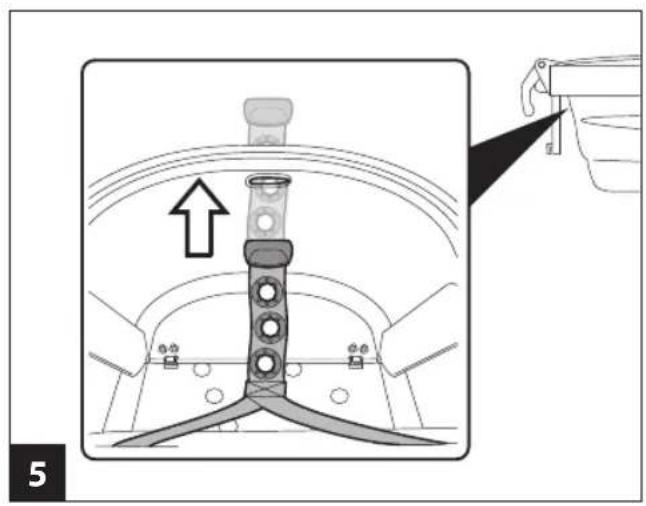

5 Insert, into the slot, the end of the belt that adjusts the position of the backrest.

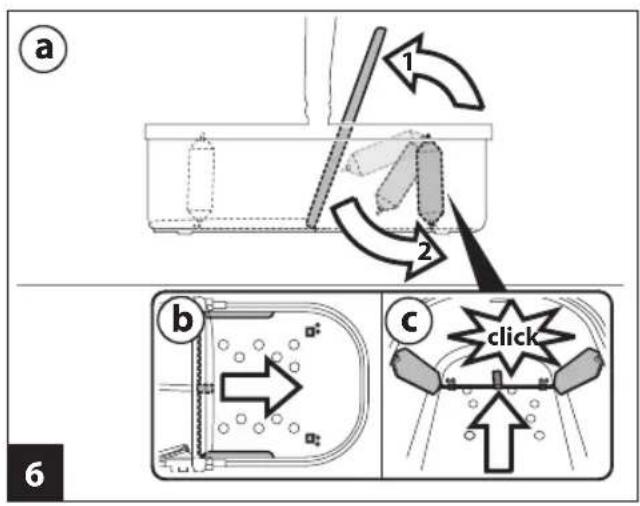

6 Lift the backrest (fig_a) and, using the latch, place the metal rod near the hooks (fig_b), then fasten it (fig_c).

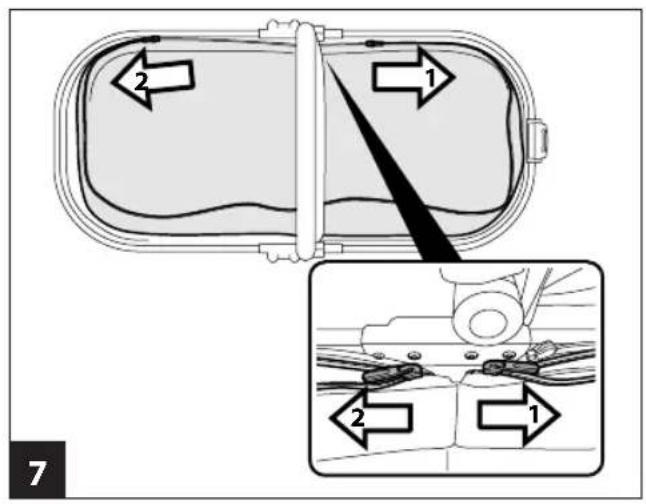

7 Lower the seat and fasten the two zips on the side of the bassinet.

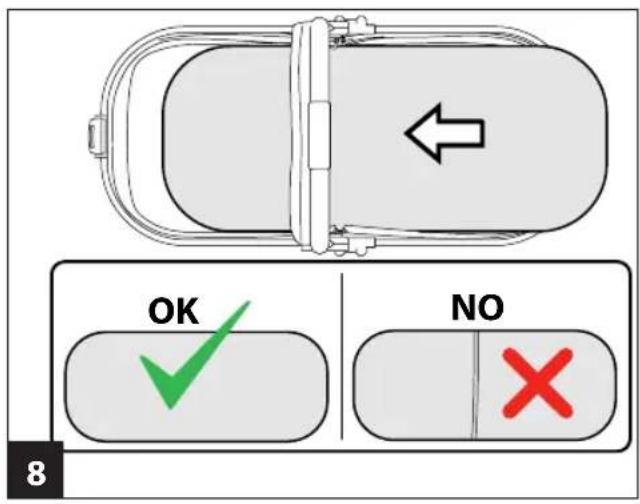

8 Insert the mattress, making sure the opening of the case is facing down and not up, in contact with the child.

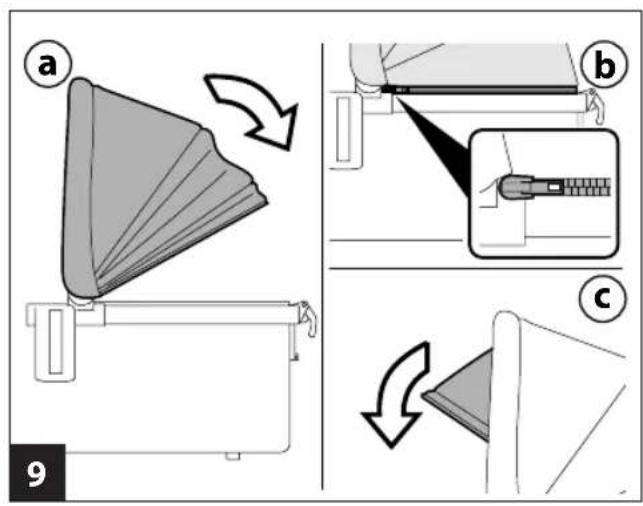

9 HOOD: lower the back of the hood (fig_a) and close the zip (fig_b). It is also possible to draw out a section of fabric from the hood to protect the child from sunlight (fig_c) and easily slip it back into the hood when it is no longer necessary.

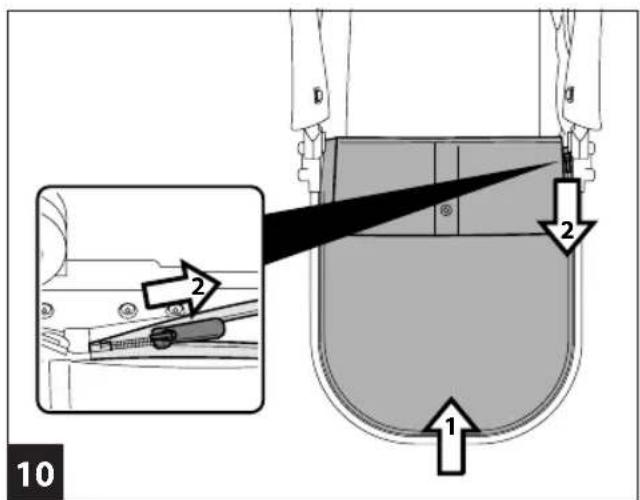

10 FOOT MUFF: position the foot muff on the Z4 Bassinet and fasten it to the padding with the zip, as shown in the picture.

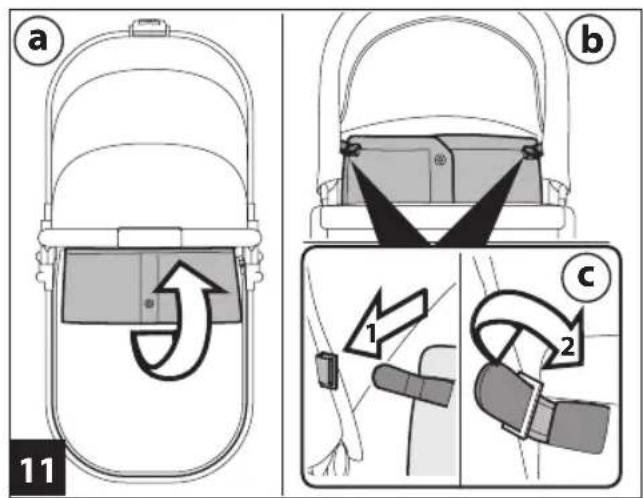

11 The Velcro straps can be used to fasten the foot muff to the hood, guaranteeing the child is better protected against the elements. Lift the edge of the foot muff (fig_a), turn it upwards (fig_b) and fasten it to the hood using the Velcro straps (fig_c).

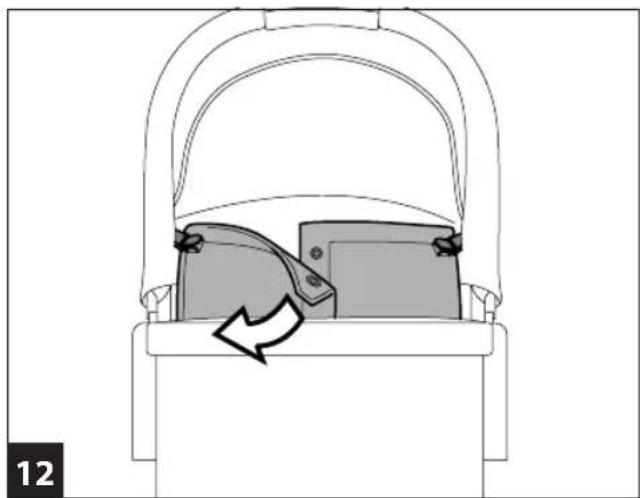

12 The foot muff's turn-up is divided into two

separate parts. Undo the button and lower a flap for easy inspection.

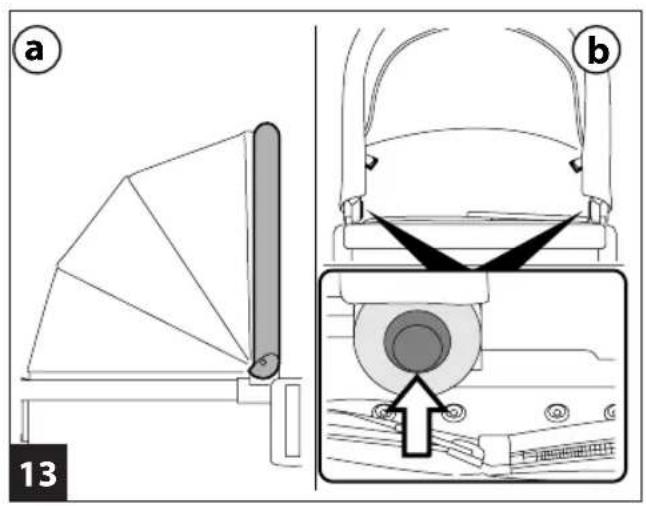

13 HANDLE BAR: the handle bar is locked only if in the vertical position (fig_a). To lower it, press the two side buttons simultaneously and rotate it downwards (fig_b).
14 The handle is useful for carrying and fastening the Z4 Bassinet onto the chassis (fig_a). To lift the bassinet, use the grip area on the handle bar (fig_b).

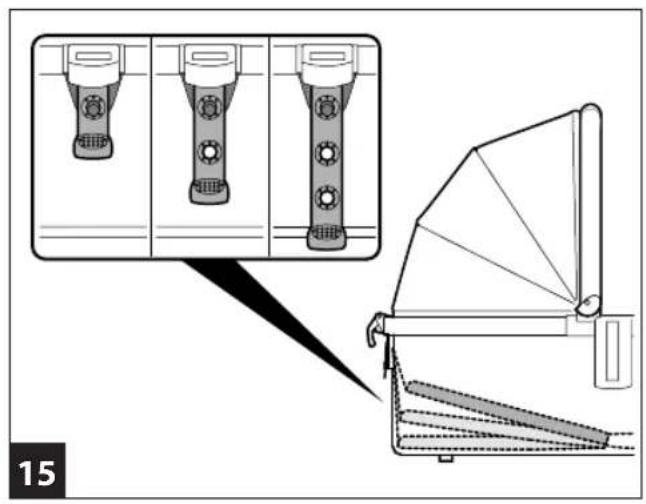

15 ADJUSTING THE BACKREST: thanks to the COMFORT SYSTEM the backrest can be adjusted in 3 positions by pulling and fastening the adjustment belt in the desired position, as shown in the picture

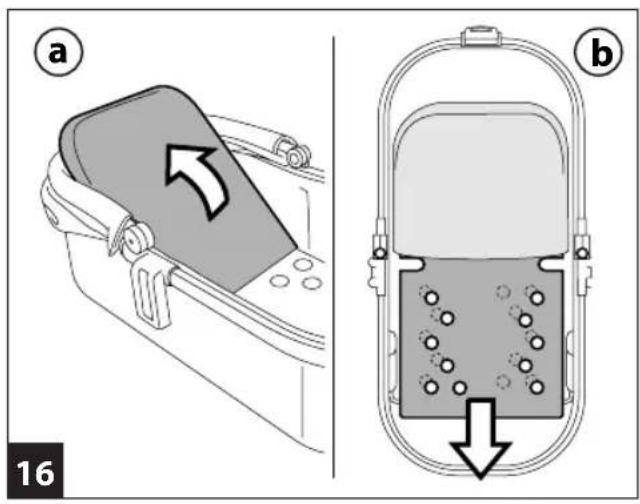

16 ALL SEASONS SYSTEM: this system allows to adjust internal air circulation in order to prevent condensation. To adjust as required, lift the seat (fig_a) and extract the air circulation panel (fig_b).

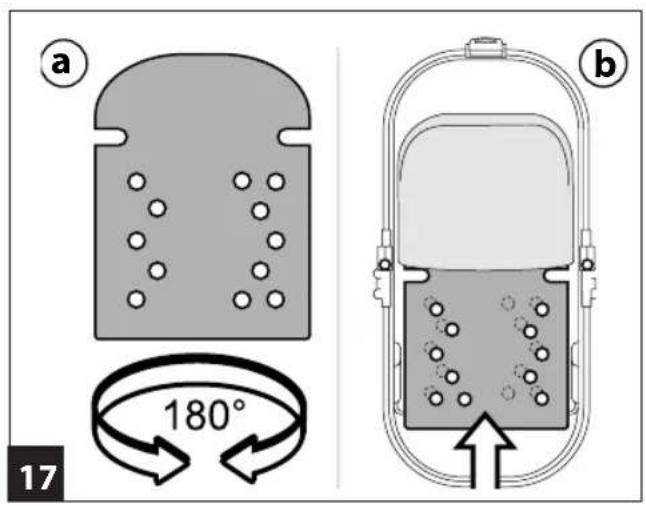

17 Rotate the air circulation panel (fig_a) so that the openings overlap (or cover) the openings on the bottom of the bassinet. If they match, air flows through. Lastly, slide the panel into the seat (fig_b).

T-MATIC SYSTEM

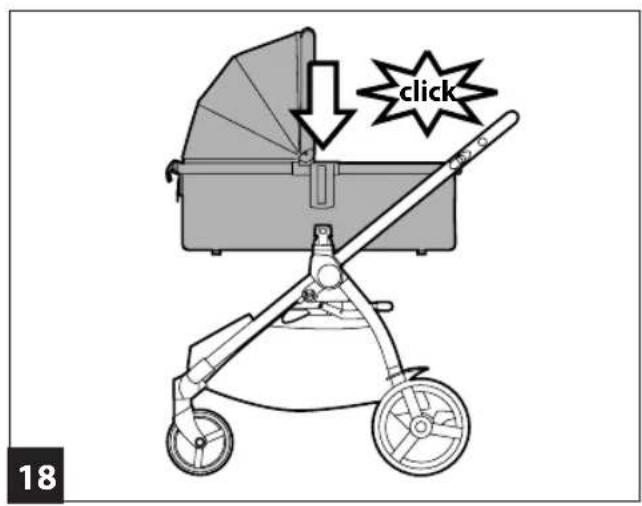

18 The T-Matic System is the quick, practical system that allows you to attach the Z4 Bassinet onto the Z4 Chassis, using the T-MATIC fastenings.

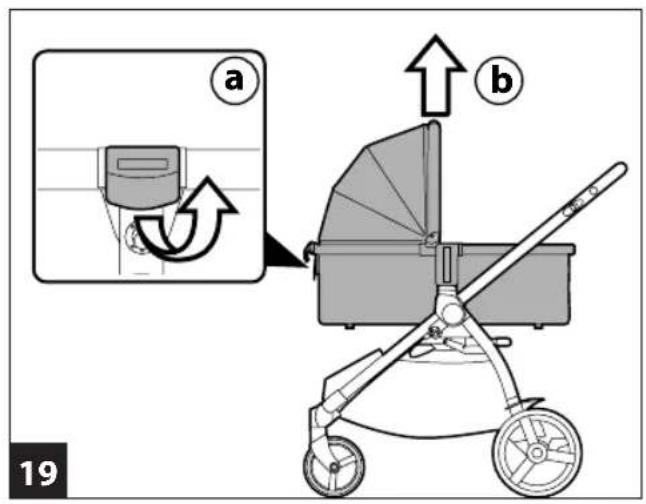

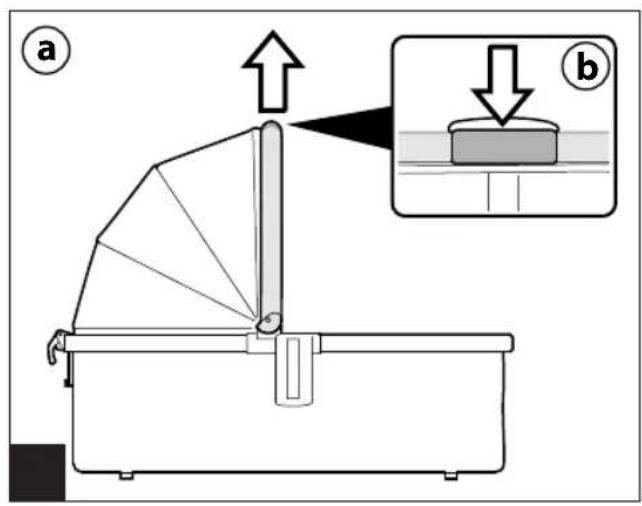

19 To unfasten the Z4 Bassinet, pull out the tab on the back (fig_a) and lift (fig_b).

Removing the soft cover

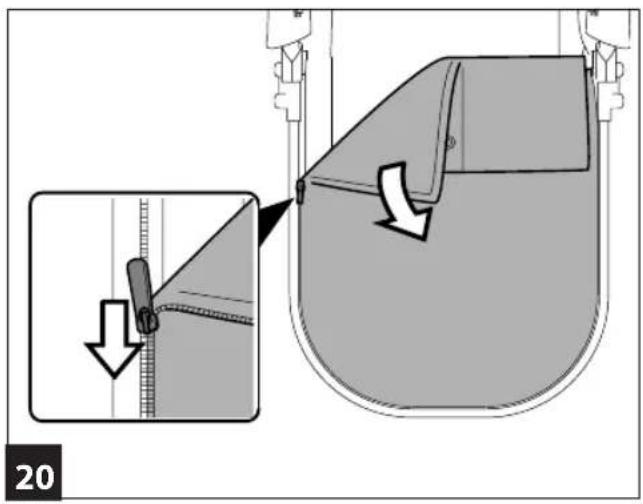

20 Remove the foot muff by opening the zip that keeps it fastened to the bassinet's padding.

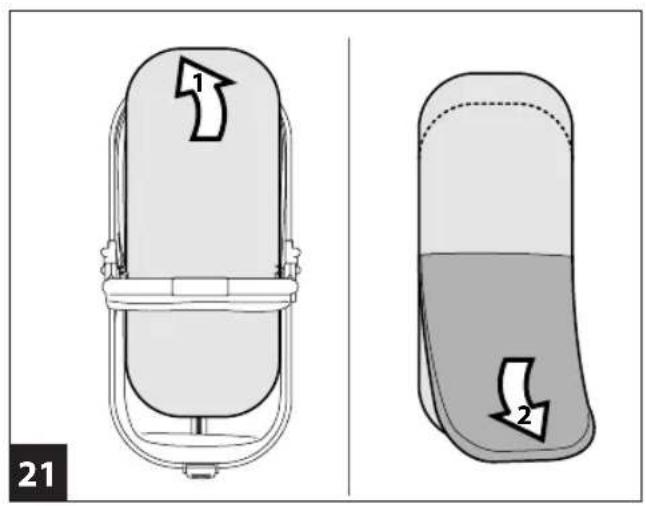

21 Remove the mattress and take off the mattress case.

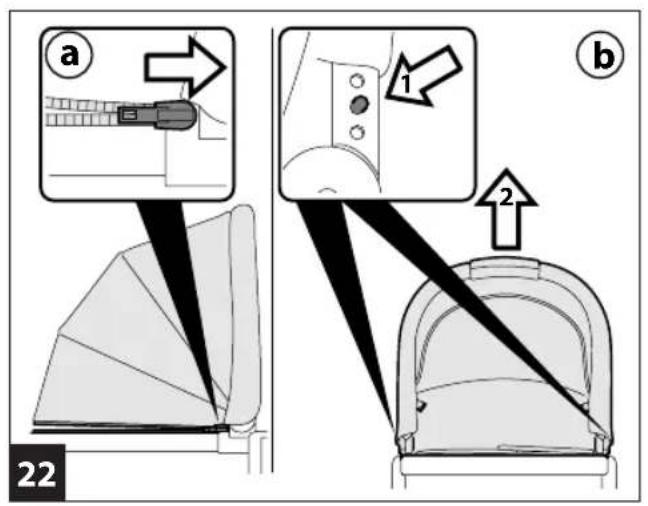

22 Open the zip that keeps the hood fastened to the bassinet's padding (fig_a). Next, press the two buttons on the sides of the handle bar and remove the hood (fig_b).

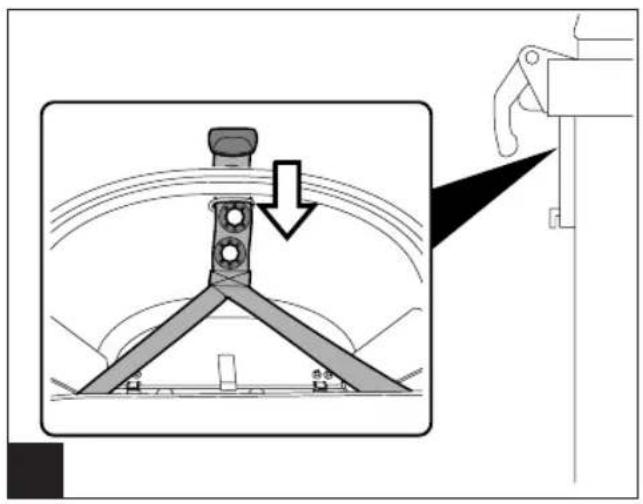

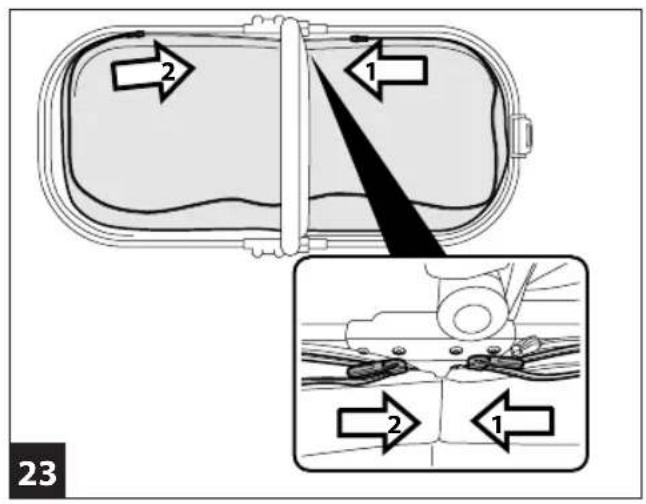

23 Remove the padding by opening the zips that keep it fastened to the bassinet frame.
24 Remove the belt that adjusts the backrest in the various positions.

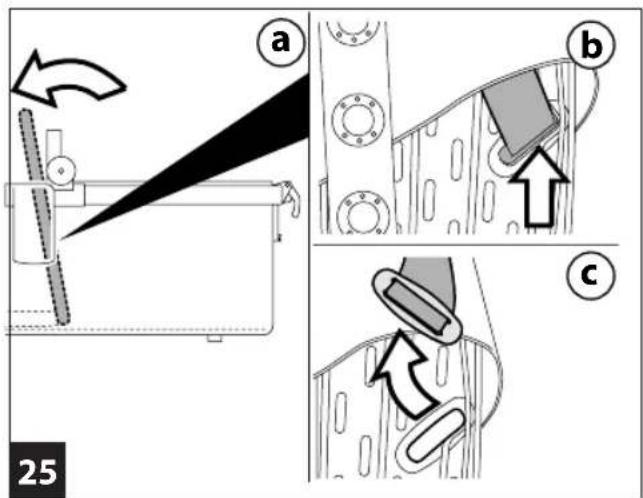

25 Lift the backrest (fig_a), then pull out the mattress until you access the two eyelets in which the ends of the belt are inserted (fig_b). Slip them out (fig_c).

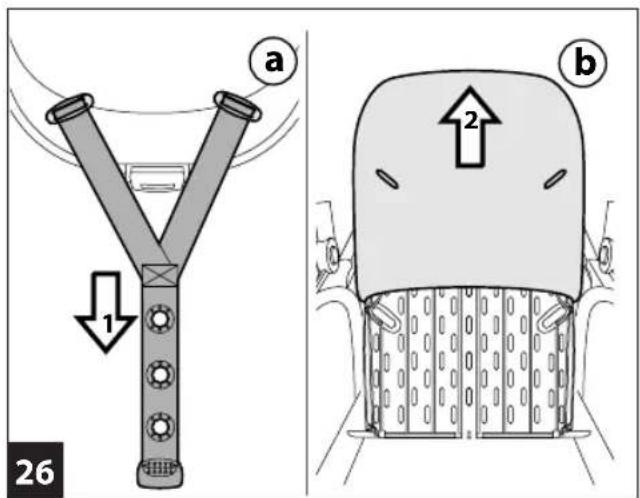

26 Remove the belt (fig_a) and then extract the mattress from the backrest (fig_b).

Folding

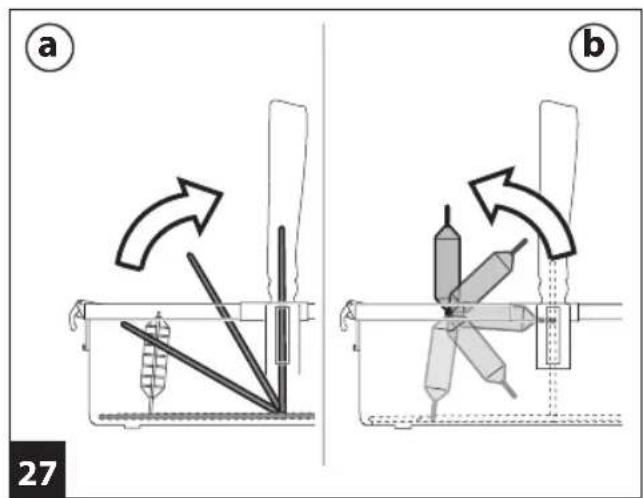

27 Remove the foot muff, the hood, the mattress and the internal lining. Lift the backrest (fig_a), unfasten the metal rod and rotate it upwards (fig_b). Lower the backrest and then the metal rod.

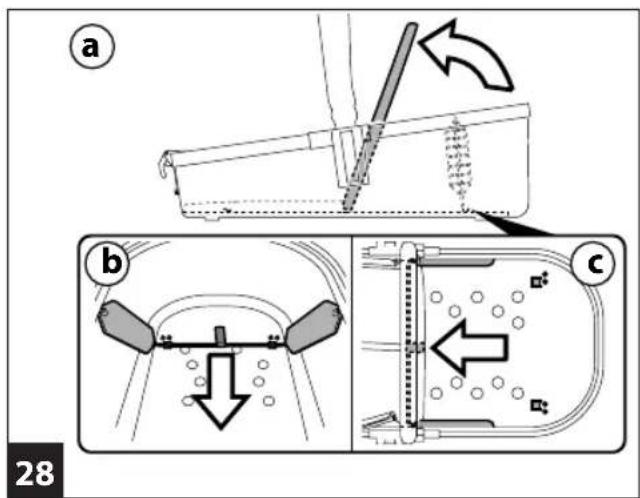

28 Lift the seat (fig_a) and, using the latch, release the metal rod (fig_b) and fold it (fig_c). Lastly, lower the seat so that the Z4 Bassinet folds.

Serial numbers

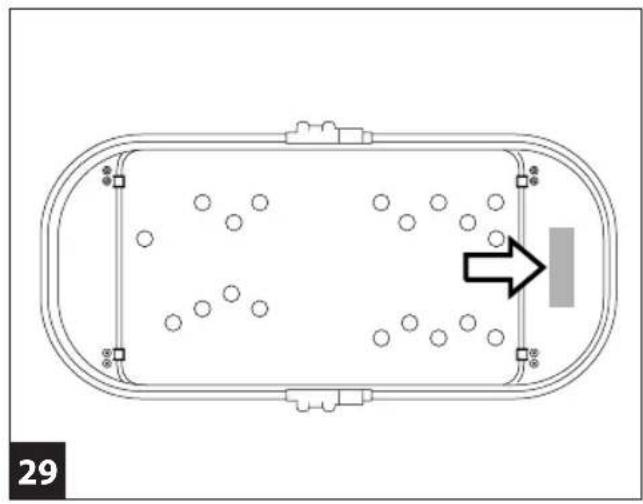

29• Information about the production date of Z4

Bassinet can be found under the base.

- Product name, production date and serial number.

This information is required for any complaints.

The Original Accessory Peg Perego

Peg-Pérego accessories are designed as a useful, practical means of simplifying the lives of parents. Discover all your product's accessories on www.pegperego.com

Padding cleaning instructions

• When washing, closely follow the instructions stated on the label sewn into the cover.
• Do not use chlorine bleach.
• Do not iron.
• Do not dry clean.
• Do not remove stains with solvents.
• Do not tumble dry.

Product cleaning

• This product requires a small amount of maintenance. Cleaning and maintenance must only be carried out by adults.
• Keep all moving parts clean and if necessary lubricate them with light oil.
• Clean the plastic parts periodically with a damp cloth. Do not use solvents or similar substances.
• Brush the fabric parts to remove dust.
• Protect the product from atmospheric agents:

humidity, rain or snow. Extended exposure to sunshine can cause colour changes in many materials.

- Store the product in a dry environment.

PEG-PÉREGO S.p.A.

Peg Pérego can make changes at any time to the models described in this publication for technical or commercial reasons.

PEG-PÉREGO

AFTER-SALES SERVICE

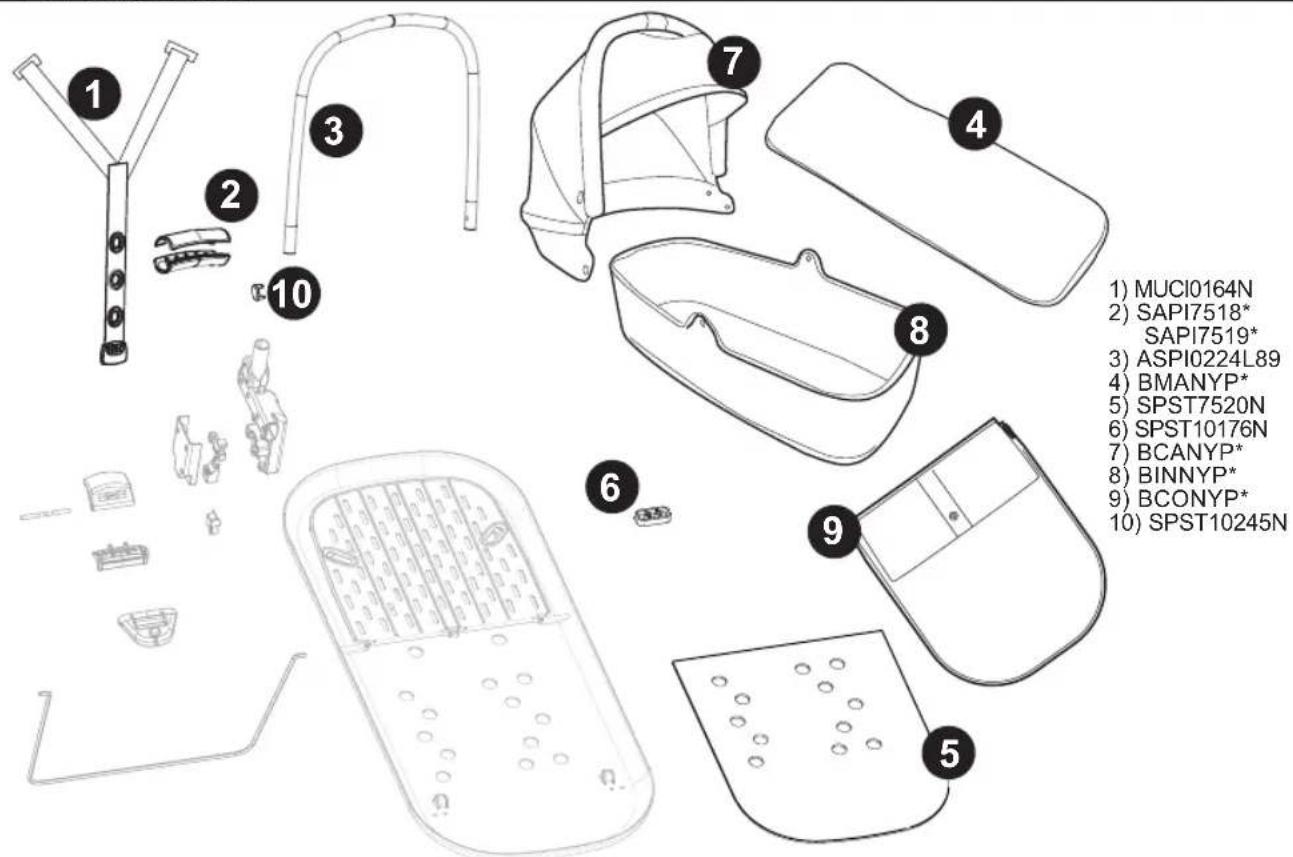

If any parts of the item get lost or damaged, only use genuine Peg Pérego spare parts. For any repairs, replacements, information on the products and sales of genuine spare parts and accessories, contact the Peg Pérego Assistance Service and state the serial number of the product, if present.

USA

tel. [phone]

fax [phone]

call us toll free 1.800.671.1701

website www.pegperego.com

CANADA

tel. [phone]

fax [phone]

call us toll free 1.800.661.5050

website www.pegperego.com

ES\_Espanol

The Original Accessory Peg Perego

The Original Accessory Peg Perego

call us toll free: 1.800.661.5050

site Internet www.pegperego.com

EN\_English

Declaration of conformity

- Product name: /A Bassine

- Product reference number: INC8 ^x

- Reference Standards (origin): ASTM F2194-13a 16C-F, 1500 & 1501, 15 USC 1278a & 2057c

Regolamento (CE) N. 190//2005 - Al. XVI pt. 43,51,52 (REACH) EN /1-3

- Date and place of issue: Arcore, August 2018

FegPerego S.p.A. Via De Gasperi, 50 20862 Ancore (MB), ITALY

ES Español

Call us toll free: 1·800·671·1701

PEG PEREGO CANADA Inc.

585 GRANITE COURT PICKERING ONTARIO CANADA L1W3K1

phone 905·839·3371 - fax 905·839·9542

Call us toll free: 1·800·661·5050

FIBX1801I276

www.pegperego.com

Z4

Bassinet

All of the intellectual property rights for the contents of this

instruction manual belong to PEG PEREGO S.p.A. and are

protected by the laws in force.
