USER MANUAL BH999E HONEYWELL

ENGLISH IMPORTANT SAFETY INSTRUCTIONS Read through all the instructions before starting to use the

fan heater. Keep this instruction manual in a safe place for

1. Supervision is necessary when the fan heater is used in

the vicinity of children.

2. Do not use the fan heater outdoors.

3. The fan heater must only be used after it has been moun-

ted according to this instruction manual. Mount the fan hea-

ter vertically on a straight wall: Be sure to observe the speci-

fied safety distances as shown in Fig. 1 and 2, and also

observe your local safety regulations. Do not mount the fan

heater on combustible or instable surfaces (e.g. wood or

plastic surfaces) or under the ceiling. Fire hazard!

4. Unwind the power cord completely. An incompletely

unwound power cord can lead to overheating and cause a

fire. Do not touch the power cord with wet hands. Make

sure that there are no objects are resting on the power

cord or could come into contact with hot parts. Position

the power cord where nobody can trip over it and where

the power socket is easily accessible.

5. Do not use an extension cord, a multiway connector or

an infinitely variable speed controller. These can lead to

overheating, fire or electric shock.

6. Connect the fan heater only to a single-phase socket

with the supply voltage as stated on the type plate of the

appliance. The fan heater is equipped with double electric

insulation (Class II) and does not have to be earthed.*

7. Always switch the fan heater off with the rotary thermo-

stat switch (2) and always disconnect the power plug (8)

from the power socket when the fan heater is not in use.

Allow the fan heater to cool off for at least 20 minutes

before it is moved, handled or cleaned. Do not tug at the

power cord to disconnect the plug. Handle the fan heater

only with dry hands. Do not leave the fan heater unatten-

ded when it is running.*

8. Do not use the fan heater anywhere near inflammable

gases or substances such as solvents, lacquers, glues etc.

9. Do not mount the fan heater immediately under a power

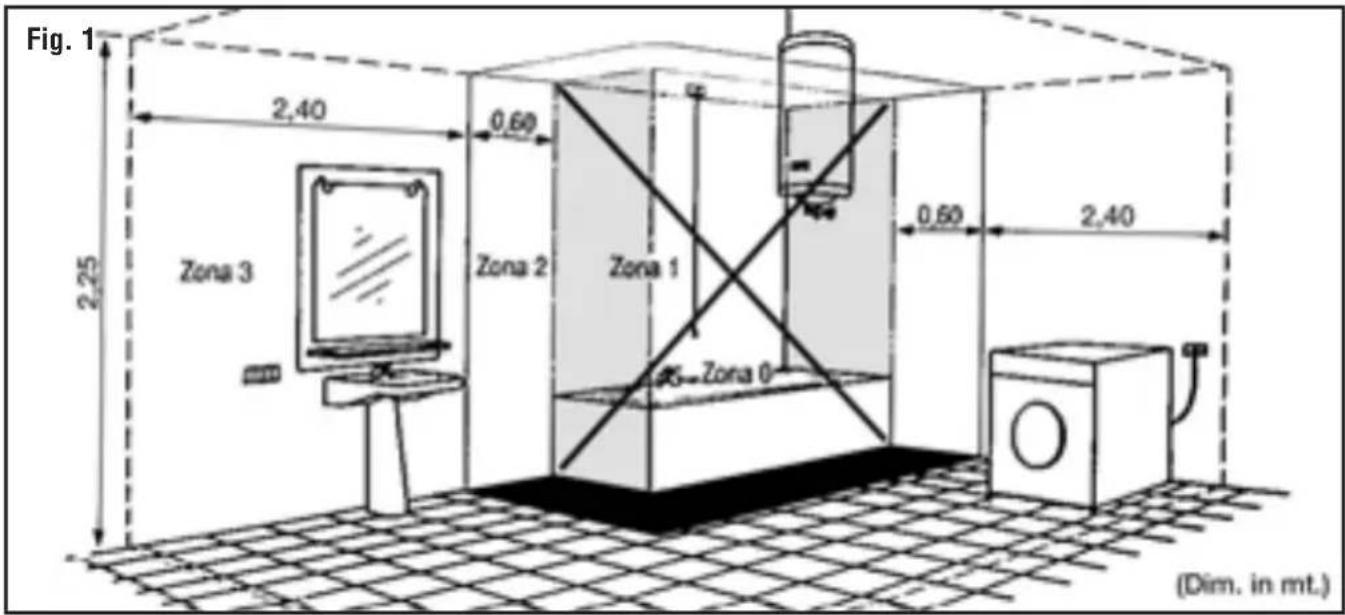

10. Do not mount and use the fan heater in close proxi-

mity to a bathtub, a shower or a swimming-pool (Fig. 1).

11. Do not use the fan heater in any kind of vehicle (e.g.

portacabin, lift, elevator, motor vehicle, cubicle) or similar

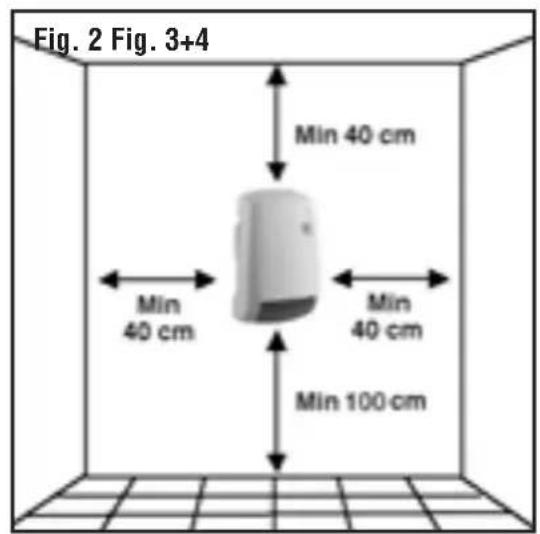

12. Caution: The air outlet vent (7) of the fan heater gets

very hot during use. Inflammable materials such as cus-

hions, pillows, duvets, blankets, furniture, paper, curtains,

drapes and clothing must be kept at least 100 cm distance

from the fan heater (Fig. 2).

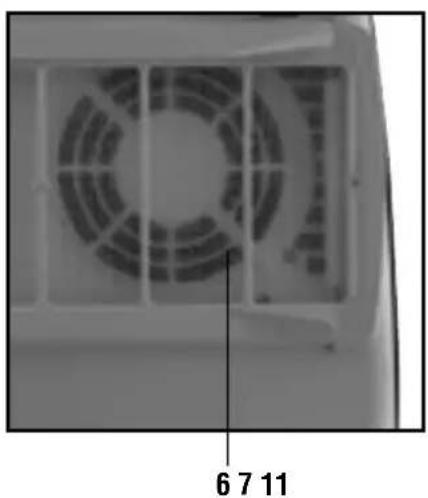

13. Keep the fan heater clean. Make sure that the air intake

vent (6) and air outlet vent (7) are open before starting to

use the fan heater. Do not allow objects to get into the air

intake vent (6) or air outlet vent (7). Do not cover up the

fan heater (( ) symbol on the side of the fan heater) This

can lead to overheating, fire or electric shock.

14. Do not dip the fan heater in water or any other liquids

and do not pour water or any other liquids over the appli-

ance or into the air intake vent (6) or air outlet vent (7).

15. The fan heater is equipped with protection against

water, Grade IPX4. This facilitates use in a bathroom or a

damp environment. However, installation inside a bath or

shower cell is not possible. The safety distances shown in

Fig. 1 must be strictly observed. The rotary switch must

not be accessible to persons using the bathtub or shower.

16. Clean the fan heater regularly by following the cleaning

17. The fan heater must only be used according to the

instructions in this instruction manual. Non-observance of

these instructions can result in injuries, fire, electric shock

or defects in the appliance.

18. The fan heater is intended exclusively for private use

indoors. It is not suitable for commercial use.

19. If the power cable of the fan heater is damaged it must

be replaced by the manufacturer or by a repair shop

approved by the manufacturer, or by similarly qualified

persons, so as to avoid damage.

20. Do not use this fan heater if it is damaged or shows

signs of damage, or if it has fallen down or is not functioning

correctly. Disconnect the power plug from the power socket.

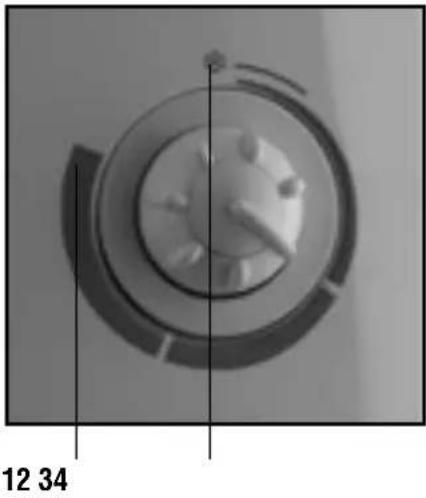

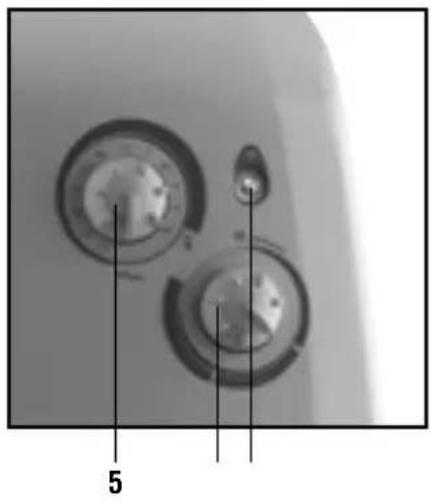

2. Rotary thermostat switch

3. Room temperature approx. + 5 °C ( )

4. Room temperature approx. + 30 °C

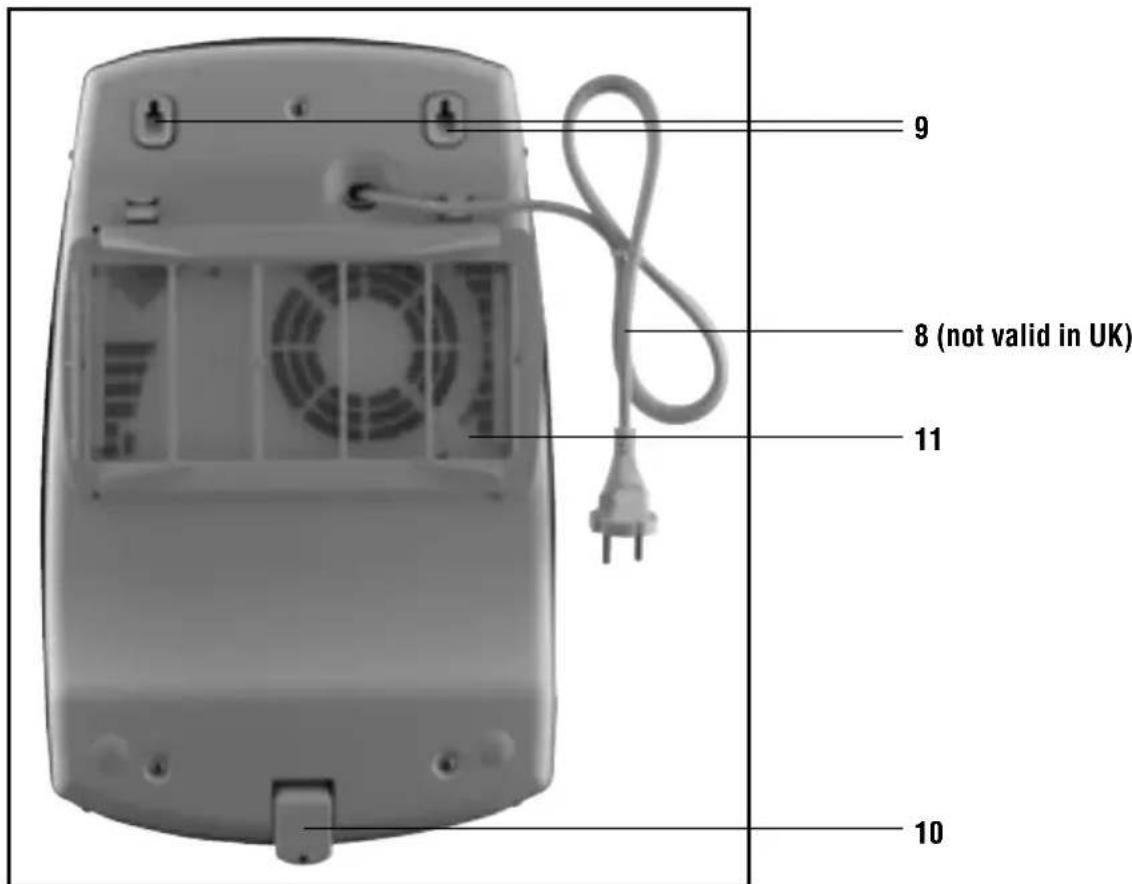

8. Power cord with power plug*

9. Wall bracket indents

10. Rear wall bracket

Read through all the instructions before starting to use

2. Unpack the fan heater and the power cord. Remove all

packaging materials and dispose of them for recycling.

3. Before starting to use the fan heater, mount it according

to the instructions for „wall mounting“.

Mount the fan heater vertically on a straight wall. Strict-

ly observe the safety distances shown in Fig. 1 and 2. Also

comply with your local safety regulations. Do not mount

the fan heater on a combustible or instable surface (e.g.

wood or plastic) or under the ceiling. Fire hazard!

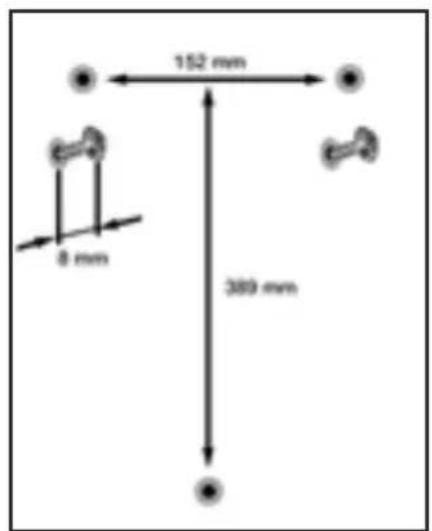

2. Drill 3 holes of 6mm diameter, spaced as shown in Fig. 3.

3. Insert the 3 plugs into the holes. Screw the two upper

screws in. 8mm of the screw heads must stick out of the

4. Hook the fan heater firmly onto the two screw heads by

exactly matching the indents at the rear of the fan heater to

the screws. Before letting go of the appliance, make sure

that the fan heater is hooked firmly onto the two screws so

that it cannot fall off.

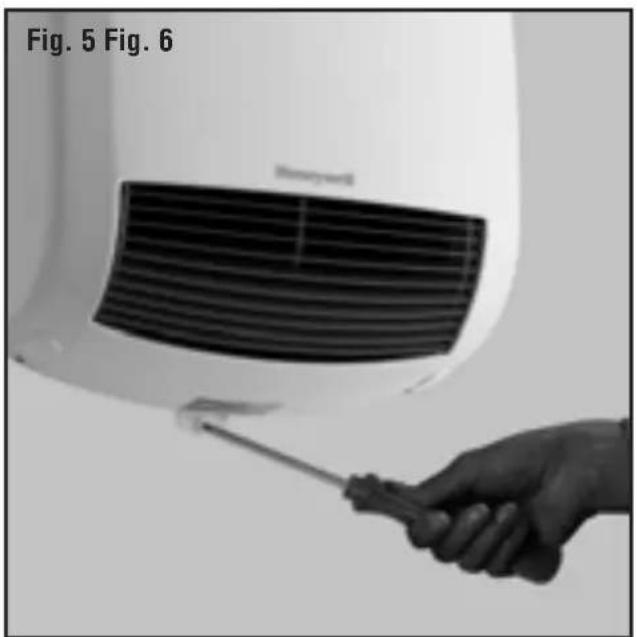

5. Fix the fan heater to the wall with the lower screw. The

fan heater must be fixed so securely that it cannot be

moved (Fig. 5) and cannot become loose and fall off.

6. Check that the fan heater is mounted securely and can-

USER INSTRUCTIONS BH-888E – Rotary thermostat switch

Make sure that the rotary thermostat switch (2) is in its

lowest position ( ) (3). Insert the power plug into the power

socket. Do not touch the power cord with wet hands.*

2. Make sure that the air intake vent (6) and air outlet vent

(7) are not covered up and that no objects have managed to

get into them. The air intake vent (6) and air outlet vent (7)

must always be free when the appliance is in use.

Turn the rotary thermostat switch (2) to its highest

position (4). The power control lamp lights up. (1). The fan

heater is now operating with an output of 2000 W.

4. When the desired room temperature has been reached,

turn the rotary thermostat switch (2) anticlockwise until

you hear it “click”. The fan heater now switches off. The

power control lamp (1) goes off.

5. Now turn the rotary thermostat switch (6) slightly in a

clockwise direction. The fan heater will now automatically

switch the heating on and off to maintain the desired room

temperature. The power control lamp (1) switches on and

off correspondingly.

6. The further you turn the rotary thermostat switch in a

clockwise direction, the hotter the room temperature will

get. The highest position equals a room temperature of

approx. 30 °C. The lowest position ( ) (3) equals a room

temperature of approx. 5 to 8 °C.

7. It is normal for the thermostat not to switch on when

the room temperature is higher than 30 °C.

If the room temperature is lower than 5° - 8°C, the fan

heater will continue heating until the room temperature

has risen to more than 5° - 8 °C.

9. When the rotary thermostat switch (2) is in the highest

position (4), you can not turn it any further in a clockwise

direction, only anticlockwise.

Before handling, moving or cleaning the fan heater,

turn the rotary thermostat switch (2) to its lowest position

(3), disconnect the power plug from the power socket and

allow the fan heater to cool for at least 20 minutes.*

BH-999E – Rotary thermostat switch and 60 Minute Timer

If you only wish to use the fan heater with the rotary

thermostat switch (2), please follow the instructions under

BH-888E – Rotary thermostat switch. The fan heater ope-

rates with an output of 1200 W.

Thermostat and Timer

Turn the rotary thermostat switch (2) to the desired

room temperature. For this, please observe the instruc-

tions under BH-888E: rotary thermostat switch.

2. Set the 60 minute timer to the desired period of use. For

the set time period the fan heater operates with an output

of 2000 W and heats the room really fast.

3. As soon as the set time has run out, the fan heater con-

tinues to operate with an output of 1200 W and maintains

the room temperature selected via the rotary thermostat

4. Before handling, moving or cleaning the fan heater, turn

the rotary thermostat switch (2) to its lowest position ( )

(3) and disconnect the power plug from the power socket.

Overheating protection

The fan heater is equipped with overheating protection

which switches the fan heater off automatically if it over-

heats. When the overheating protection is activated, the

appliance does not operate even though the power control

2. Turn the rotary thermostat switch (2) to its lowest posi-

tion ( ) (3) and disconnect the power plug from the

3. Allow the fan heater to cool for at least 20 minutes.

4. Remove any objects which might have got into the air

intake vent (6) or air outlet vent (7), or clean the openings

which have caused the faulty running with a vacuum clea-

ner or have caused overheating. If you can see that a lot

of dust has accumulated inside the fan heater, please

get appliance cleaned at a service centre.

Resume using the fan heater as described in the “user

CLEANING, MAINTENANCE, DISPOSAL We recommend you to clean the fan heater regularly. Plea-

se follow the instructions for cleaning and maintenance so

as to avoid impairing the functioning of the appliance.

Before you start cleaning the appliance, turn the rotary

thermostat switch (2) to its lowest position ( ) (3) and

disconnect the power plug from the power socket. Allow

the fan heater to cool for at least 20 minutes.*

2. To remove dust from the motor and heating element,

clean the air intake vent (6) and air outlet vent (7) with a

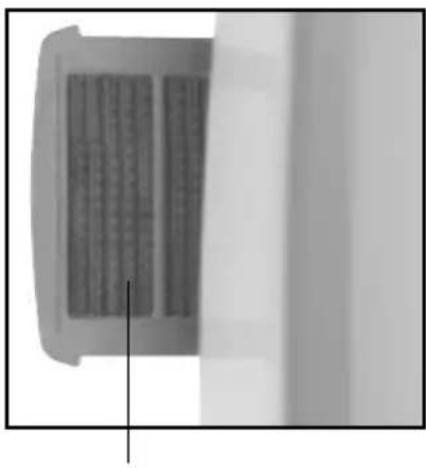

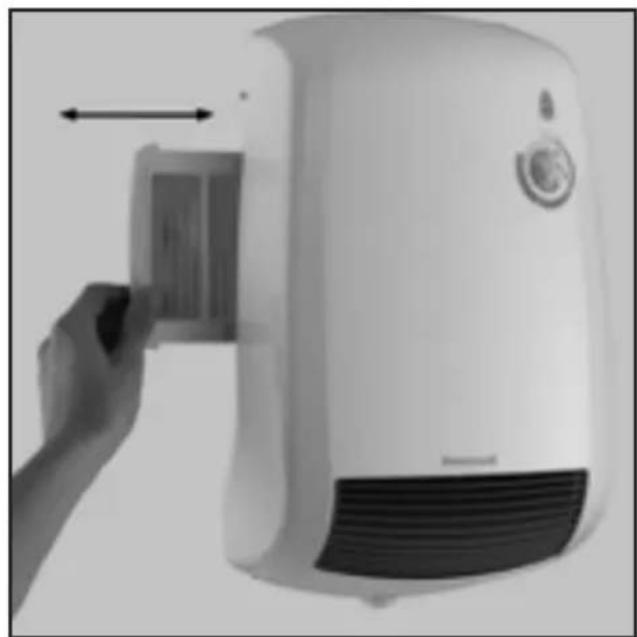

3. Pull the air filter (11) out of its holder and clean it with

the brush attachment of your vacuum cleaner. If it is very

soiled, you can use a household washing-up liquid and

clean the air filter (11) in lukewarm water at a maximum

temperature of 40°C. The air filter (11) should then be rin-

sed several times in warm water. Allow it to dry thoroughly

before you replace it in the fan heater (Fig. 6). You can

push the air filter into its holder from both the right and

If you use the fan heater regularly, we recommend you to

control and clean the air filter at least once a month. Other-

wise the fan heater could overheat.

4. Clean the outer surfaces of the fan heater with a soft,

5. Resume using the fan heater as described in “wall

mounting” and the “user instructions”.

The fan heater needs no special maintenance, but it

should be serviced at least twice a year.

2. If the fan heater has to be repaired, be sure to contact

an authorized service centre.

This symbol on the product or its packaging indicates that

the appliance cannot be treated as normal domestic trash,

but must be handed in at a collection point for recycling

electric and electronic appliances.

Your contribution to the correct disposal of this product

protects the environment and the health of your fellow

men. Health and the environment are endangered by incor-

Further information about the recycling of this product can

be obtained from your local town hall, your refuse collec-

tion service, or in the store at which you bought the pro-

This regulation is valid only in EU member states.

CONDITION OF PURCHASE As condition of purchase the purchaser assumes responsi-

bility for the correct use and care of this KAZ product

according to these user instructions. The purchaser or

user must himself or herself decide when and for how

long this KAZ product is in use.

WARNING: IF PROBLEMS ARISE WITH THIS KAZ PRO-

DUCT, PLEASE OBSERVE THE INSTRUCTIONS IN THE GUARANTEE CONDITIONS. DO NOT ATTEMPT TO OPEN OR REPAIR THE KAZ PRODUCT YOURSELF, AS THIS COULD LEAD TO TERMINATION OF THE GUARANTEE AND CAUSE DAMAGE TO PERSONS AND PROPERTY.

Technical modifications reserved

* Any reference made in this manual to power cord with

plug is not valid in UK. In UK the unit must be hard-wired.

National rules and regulations must be observed.DEUTSCH

basseng (illustr. 1)

for at undgå skader.

The Honeywell trademark is used by

Kaz, Inc. under licence from Honeywell

Intellectual Properties, Inc.
