Product Type	Electric column heater with ceramic heating element
Brand	Honeywell
Model	HCE317
Dimensions (W x D x H)	22 x 17 x 54.9 cm
Weight	2 kg
Power supply	120 V, 60 Hz, 12.5 A
Maximum power	1500 W (5118 Btu)
Heat levels	2 levels: low (900 W) and high (1500 W)
Operating mode	Continuous heating or adjustable thermostat
Oscillation	80°
Timer	Adjustable auto-off: 1, 2, 4 or 8 hours
Display	Digital: room temperature and set temperature
Safety	360° tilt switch, overheat sensor, thermal fuse, insulated housing and handle
Permanent filter	No (model HCE317 without filter)
Cleaning	Dry cloth only; do not use water, wax, or chemicals
Storage	In original packaging, in a cool, dry place
Repairability	Not disassemblable; no user-serviceable parts
Warranty	Limited 3-year warranty
Use	Residential only; do not use outdoors or in bathrooms
Safety distance	At least 0.9 m (3 ft) from combustible materials

Frequently Asked Questions - HCE317 HONEYWELL

How to turn the HCE317 heater on and off?

To turn on, plug the heater into a 120 V outlet, then press the power button (⏻). The power indicator lights up. To turn off, press the power button again; the heater performs a 6-second cooling cycle before shutting down completely. Do not unplug before the cycle ends.

How to adjust the desired temperature?

Use the thermostat control buttons (∧ and ∨) to increase or decrease the desired temperature. The set temperature flashes 5 times, then the display returns to room temperature. The heater turns on and off automatically to maintain the chosen temperature.

What are the two available heating modes?

The heater offers two modes: continuous heating (press ≈ to choose low or high level) and thermostat heating (set the temperature with the thermostat buttons). In continuous mode, the heater runs constantly until manually turned off.

How to use the auto-off timer?

Press the timer button (Ⓤ) to select 1, 2, 4 or 8 hours. The heater will turn off automatically after the selected time. Do not unplug during the cooling cycle.

Does the HCE317 heater have oscillation?

Yes, it features 80° oscillation. Press the oscillation button (⟲) to activate or deactivate it.

What to do if the heater stops suddenly?

This may be due to overheating or tipping. Check for obstructions. Turn off (⏻) and unplug. Allow to cool for at least 10 minutes, remove any obstruction, then plug back in and turn on. If the problem persists, contact customer service.

How to clean the HCE317 heater?

Turn off and unplug the heater, let it cool. Use a dry cloth to clean the exterior surfaces. Do not use water, wax, polish or chemicals. The HCE317 model has no permanent filter, so no filter cleaning.

Where to place the heater for safe use?

Place the heater on a hard, flat and stable surface, at least 0.9 m (3 ft) from walls, furniture, curtains and other combustible materials. Do not use on a bed, thick carpet or unstable surface. Keep away from walkways to avoid tripping.

Is the heater user-serviceable?

No, the heater is not disassemblable and contains no user-serviceable parts. Do not attempt to open it, as this will void the warranty and could cause injury. If you have a problem, contact customer service.

What is the warranty on the HCE317 heater?

The heater comes with a limited 3-year warranty from the date of purchase, covering defects in material or workmanship. It does not cover damage from misuse, commercial use or normal wear. For claims, contact Kaz at 1 800 477-0457 or by email at [e-mail].

USER MANUAL HCE317 HONEYWELL

Four different electric air purifiers with ventilation grilles, shown from different angles (no text or symbols visible)

WARNING

IMPORTANT SAFETY INSTRUCTIONS

WARNING – READ AND SAVE THESE OPERATING AND SAFETY INSTRUCTIONS BEFORE USING THIS HEATER. IF YOU DO NOT UNDERSTAND THESE INSTRUCTIONS OR PRODUCT LABELS PLEASE CALL OUR CUSTOMER REPRESENTATIVES AT [phone] FOR ASSISTANCE BEFORE USING THIS PRODUCT.

Warning – Failure to follow any of these safety instructions could result in fire, injury or death.

YOUR RESPONSIBILITIES

Electrical appliances may expose people to hazards that can cause severe injury as well as death. The use of electrical products may create hazards that include, but are not limited to, injury, fire, electrical shock and electrical system damage. These instructions are intended to provide you with the information you need to use the product correctly and to avoid such hazards.

When using electrical appliances, basic precautions should always be followed to reduce risk of fire, electric shock, and injury to persons including the following:

CERAMIC TOWER HEATER

HCE300 SERIES

1. Warning – Read all instructions before using this heater.

2. Warning – This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. Use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from all sides of the heater.

3. Warning – Extreme caution is necessary when any heater is used by or near children or invalids, and whenever the heater is left operating and unattended.

4. Warning – Always unplug heater when not in use.

5. Warning – DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater or return heater to authorized service facility for examination and/or repair.

6. Warning – For residential use only.

7. Warning - DO NOT use outdoors.

8. Warning – This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. DO NOT locate heater where it may fall into a bathtub or other water container.

9. Warning – DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

10. Warning – This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

11. Warning – This heater draws 12.5 amps during operation. To prevent overloading a circuit, DO NOT plug the heater into a circuit that already has other appliances working.
12. Warning – It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
13. Warning – To disconnect the heater, first turn off the product, then grip the plug body and pull it from the wall outlet. DO NOT pull by the cord.
14. Warning – DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
15. Warning – To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, or where openings may become blocked.
16. Warning – A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where gasoline, paint or flammable liquids are used or stored.

17. Warning – Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

18. Warning – Always plug heater directly into a wall outlet/receptacle. DO NOT use with an extension cord or relocatable power tap (outlet/power strip).

19. Warning – NEVER tamper with this product or attempt to fix it. Any tampering with, or modification of this product can result in serious injury, death, or fire. Risk of electric shock. DO NOT open. There are no user serviceable parts inside.
20. Warning – DO NOT remove product labels that contain warnings or safety instruction.
21. Caution – The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
22. Caution – Before cleaning, or storage, or when not in use, turn the product's controls to the OFF position and unplug the heater from the electrical outlet and allow to cool.
23. Caution – Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9 m) away from any combustible materials. DO NOT use on an unstable surface such as bedding or deep carpeting. Be sure the heater is not in a position where it may be tripped over by small children or pets.
24. Caution – If your home has aluminum wiring have a licensed electrician check your receptacle's connections. When using a 1500 watt heater, aluminum wire connections can cause a safety issue.
25. SAVE THESE INSTRUCTIONS

ABOUT CERAMIC TECHNOLOGY

• Ceramic heaters generate heat by passing electricity through heating wires embedded in ceramic plates.
• In the Honeywell Ceramic Tower Heater, air is drawn into the back of the heater by a fan, through the ceramic element and out the front of the heater to gently introduce warm air into the room.
• This type of heating technology provides consistent, even heating.
• For best results, place heater on the floor and allow heater to run for 5-10 minutes to reach maximum heat output.

SET UP

• The Honeywell Ceramic Tower Heater requires no assembly. Simply unpack heater and save all packaging materials for off-season storage.
• Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away from any wall or combustible material.
• DO NOT use on an unstable surface such as bedding or deep carpeting.
• BE SURE THE HEATER IS NOT IN A POSITION WHERE IT MAY BE TRIPPED OVER BY CHILDREN OR PETS.

MOVING THE HEATER

• This heater is equipped with a Cool Touch handle for your convenience.
• Turn off the heater.
• Allow it to cool for ten minutes.
• Unplug heater and move.

OPERATION

• NOTE: NEVER LEAVE AN OPERATING UNIT UNATTENDED
- With heater in the OFF position ( ⏻), plug the heater into a polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way.
- With 80^ oscillation, the Honeywell Ceramic Tower Heater is versatile and designed to be placed in the center of the room or closer to the wall (at least 3 feet way) for maximum convection room heating.
- Turn heater on by pressing the Power Button (💡).The Power Indicator will illuminate and the heater will start in the Constant On HI Level Setting (💡).
- The heater has two operational modes – continuous heating or heating with a thermostat setting where the heater cycles on and off according to the selected temperature setting.
- To set a Continuous Heat Setting, press ( ≈): - Choose Low ( ) to use 900 watts of power (750 watts on the HCE317 Series only) - Choose High ( ): to use 1500 watts of power

NOTE: Because the Low setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about saving energy.

• In the continuous heat mode, make sure to manually turn the heater OFF when done using this appliance.
• To set the Thermostat, press the Thermostat Control Buttons ( ▲▼) and choose your Desired Temperature. The Desired Temperature will flash five times and then the Current Temperature in the room will display as a steady red.

NOTE: If the Current Temperature is higher than your Desired Temperature, the heater will be off until the room temperature falls below this setting or until the Desired Temperature is changed.

• Press the Timer Button ( Ⓤ) to select 1, 2, 4, or 8 hour setting. The heater will run for that chosen period in the selected mode, counting down the hours and automatically shutting the heater off after the selected time has passed.
• Press the Oscillate Button ( ) to turn on or off the oscillation function.
• To shut the heater off, press the Power Button ( ⏻) and the heater will begin Powering Down. The heater will shut off after counting down 6 seconds in the Temperature Display to cool down the internal components.
• It is important to allow the heater to run through the cool down phase. DO NOT unplug the heater until it has completed the cool down cycle.

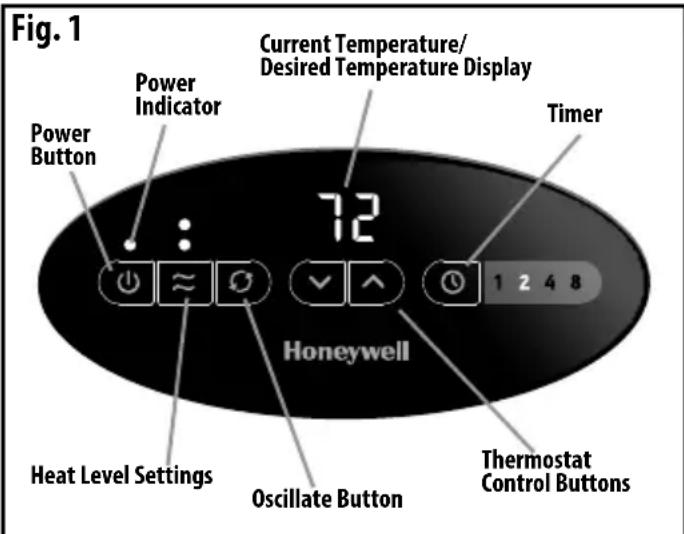

Fig. 1 Current Temperature/ Desired Temperature Display Power Indicator Timer Power Button 72 Honeywell Heat Level Settings Oscillate Button Thermostat Control Buttons

Note: Controls/features will vary slightly by model

SAFEGUARD™ MOTION SENSOR SAFETY FEATURE (HCE323/HCE353 Series only)

The Honeywell Safeguard™ Motion Sensor Digital Tower (Model series HCE323/HCE353 only) is equipped with an additional safety feature. If an object is placed too close to the heater, the Motion Sensor Light (Fig. 2) will blink to warn you that there is an obstruction. If the object is not removed, the sensor will disable the heater, turning the heater off until the object is removed. The heater will restart after a few seconds once the object is removed.

- Press the Safeguard™ Motion Sensor Button ( ) (Fig.3) to turn on or off this feature.

Fig. 2

Close-up of a gray plastic container with ventilation grilles and a small black clip (no text or symbols visible)

Safeguard™ Motion Sensor Light

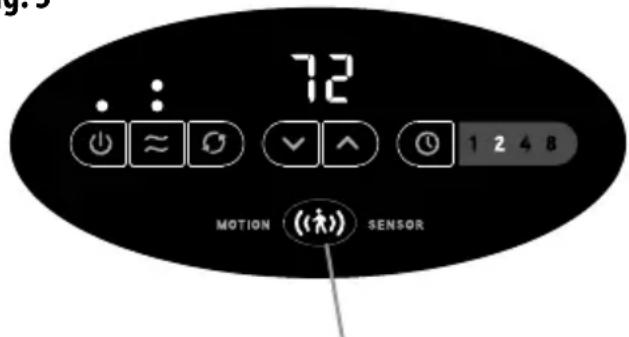

Fig. 3

72 MOTION ( ) SENSOR

Safeguard™ Motion Sensor Button

REMOTE CONTROL (HCE323/HCE353 Series only)

The Honeywell Safeguard™ Motion Sensor Ceramic Digital Tower Heaters can be completely controlled with the remote. This remote uses a button cell type battery which comes included in the remote.

• To activate the battery, simply pull the plastic tab.
• Place remote control in the holder in the back of the heater when not in use.

SAFETY FEATURES

The Honeywell Ceramic Tower Heater is equipped with several devices and features for added protection:

• A 360° tip-over switch that disables the heater if it is tipped in any direction.
• A high temperature safety sensor prevents overheating.
• This heater is also equipped with a thermal cut-off fuse that will permanently shut down the heater should it operate at a higher than normal temperature.
• This heater was built using a high temperature plastic and has a cool to touch housing and handle.
• This heater is designed with thermal insulated wiring for heat resistance and reinforced wire connections to help protect against loose connections.
• HCE323/HCE353 Series only also has a Safeguard™ Motion Sensor that shuts the heater off if an object gets too close to the motion sensor.

- Press and hold both Thermostat Control Buttons ( ▲▼ ) for three seconds to change between Fahrenheit and Celsius.

NOTE: The Remote will not change between Fahrenheit and Celsius – only the controls on the heater.

CLEANING AND STORAGE

- Periodic cleaning of the filter is recommended. Turn Off ( 🔊) and unplug heater. Allow it to cool. Remove the Filter Cover and clean/vacuum the Filter. (Fig. 4)

NOTE: This pertains to all heaters in the HCE300 Series with the exception of the HCE317 units. The HCE317 units do not contain a permanent filter.

• It is recommended that the Ceramic Tower Heater be cleaned at least once a month and before off-season storage.
• Turn Off ( ⏻) and unplug heater. Use a dry cloth only to clean the external surfaces of the heater. DO NOT USE WATER, WAXES, POLISHES OR ANY CHEMICAL SOLUTION.
• Clean the Ceramic Tower Heater using the above-mentioned steps. Wrap the cord around the unit. Place in its original box and store it in a cool, dry place.
  • This heater does not disassemble.

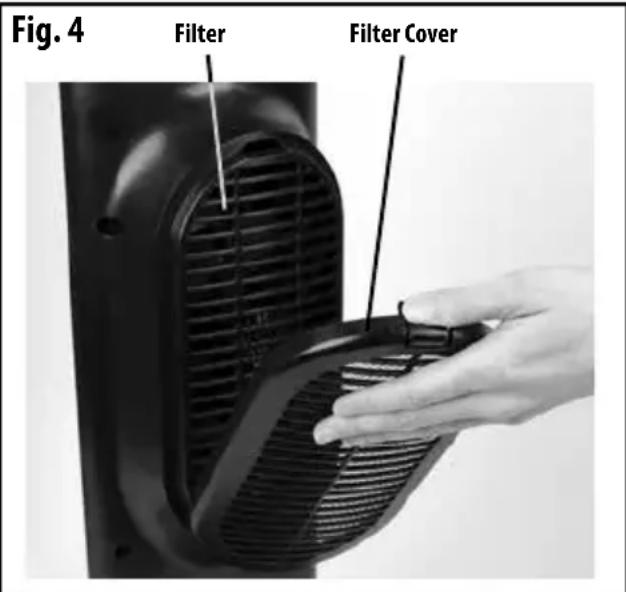

Fig. 4 Filter Filter Cover

NOTE: HCE317 series does not include a filter cover

TROUBLESHOOTING

Problem Solution

If your Honeywell Ceramic Tower Heater shuts off unexpectedly or fails to operate, one of your heater safety features may have been activated to prevent overheating.

·Be sure it is plugged in and that the electrical outlet is working.·Check for any obstructions. If you find an obstruction, turn the heater OFF ( ⏻ and unplug it.·Allow the heater to cool completely, then remove the obstruction. Wait at least 10 minutes, then re-plug the heater in and follow the OPERATION instructions.

PRODUCT SPECIFICATIONS

Model(s) Unit dims Amps Unit Voltage Max Watts Max BTUs

HCE311/HCE351 Series	8.74"L x 6.69"W x 12.8"H 3.19lbs	12.5	120V, 60Hz	1500	5118
HCE317 Series	8.74"L x 6.69"W x 21.65"H 4.41lbs	12.5	120V, 60Hz	1500	5118
HCE322/HCE352 Series	8.74"L x 6.69"W x 21.65"H 4.41lbs	12.5	120V, 60Hz	1500	5118
HCE323/HCE353 Series	8.74"L x 6.69"W x 23.15"H 4.56lbs	12.5	120V, 60Hz	1500	5118

Operation Cost\*

To estimate the cost to operate this heater, multiply the watts used by .001 convert into kilowatts used. Then, multiply the kilowatts used by your local kilowatt electric rate and the length of time you run the heater. For example, if your electric rate is .1290^** per kilowatt hour and you ran this heater in constant high mode (1500 watts) for 4 hours, it would cost you .77 cents to run the heater (1500 watts x 4 hours x .001) x 0.1290kwp = \0.77$ cents).

NOTE: Because the Low setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about the higher power consumption when the heater is on the High setting.

*Calculation (Total Wattage x .001) x Cost per Kilowatt Hour = Cost to operate

**Average Retail Price of Electricity to Ultimate Customer by End-Use, US Energy Information Administration, August 2016.

3 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.
C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

CUSTOMER SERVICE

Questions or comments

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.HoneywellPluggedIn.com

Please be sure to specify the model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HEATER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Four different electric heating air purifiers shown in black, arranged side by side (no text or labels visible)

AVERTISSEMENT

CONSIGNES DE SÉCURITÉ IMPORTANTES

AVERTISSEMENT – LISEZ LES CONSIGNES D'EMPLOI ET DE SÉCURITÉ AVANT D'UTILISER LE RADIATEUR ET GARDEZ-LES. SI VOUS NE COMPRENEZ PAS LES INSTRUCTIONS OU LES ÉTIQUETTES DE L'APPAREIL, APPELEZ LE SERVICE À LA CLIENTÈLE AU [phone] AVANT L'UTILISATION, POUR OBTENIR DES EXPLICATIONS.

Close-up of a gray plastic container with ventilation grilles and a small black clip, no visible text or symbols.

SPÉCIFICATIONS DU PRODUIT

Four different electric air purifiers with ventilation grilles, shown from different angles (no text or symbols visible)

WARNING
