| Product Type | Dual-Position Electric Heater |
| Brand | Honeywell |
| Model | HHF175 |
| Dimensions (L x W x H) | 13.7 x 24.9 x 28.7 cm (5.4 x 9.8 x 11.3 inches) |
| Weight | Approximately 3.2 kg (7 lb) |
| Power Supply | 120 V ~ 60 Hz, 12.5 A |
| Maximum Power | 1500 W (5118 BTU/h) |
| Heat Settings | Low (750 W), High (1500 W), Fan Only (no heat) |
| Thermostat | Adjustable with auto shut-off at temperature hold |
| Use Positions | Vertical or on side |
| Safety Sensor | High temperature sensor and thermal fuse |
| Overheat Protection | Yes, automatic shut-off |
| Housing | Heat-resistant plastic, insulated handle |
| Polarized Plug | Yes, for electrical safety |
| Recommended Use | Residential indoor use only |
| Safety Distance | At least 0.9 m (3 ft) from combustible materials |
| Maintenance | Monthly cleaning with a dry cloth; do not use water or chemicals |
| Storage | In original box, in a cool, dry place |
| Repairability | Not user-serviceable; no user-serviceable parts inside |
| Warranty | 1-year limited, covering defects in materials and workmanship |
| Customer Service | 1 800 477-0457 (toll-free) or www.HoneywellPluggedIn.com/Heaters |
Frequently Asked Questions - HHF175 HONEYWELL
User questions about HHF175 HONEYWELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric heater in PDF format for free! Find your manual HHF175 - HONEYWELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HHF175 by HONEYWELL.
USER MANUAL HHF175 HONEYWELL
TWO POSITION HEATER Model HHF175 Series
WARNING
IMPORTANT SAFETY INSTRUCTIONS
WARNING - READ AND SAVE THESE OPERATING AND SAFETY INSTRUCTIONS BEFORE USING THIS HEATER. IF YOU DO NOT UNDERSTAND THESES INSTRUCTIONS OR PRODUCT LABELS PLEASE CALL OUR CUSTOMER REPRESENTATIVES AT (800) 477-0457 FOR ASSISTANCE BEFORE USING THIS PRODUCT.
Warning - Failure to follow any of these safety instructions could result in fire, injury or death.
YOUR RESPONSIBILITIES
Electrical appliances may expose people to hazards that can cause severe injury as well as death. The use of electrical products may create hazards that include, but are not limited to, injury, fire, electrical shock and electrical system damage. These instructions are intended to provide you with the information you need to use the product and to avoid such hazards.
When using electrical appliances, basic precautions should always be followed to reduce risk of fire, electric shock, and injury to persons including the following:
- Warning - Read all instructions before using this heater.
- Warning - This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If, provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater and keep them away from the sides and rear.
- Warning - Extreme caution is necessary when any heater is used by or near children or invalids, and whenever the heater is left operating and unattended.
- Warning - Always unplug heater when not in use.
- Warning - DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater or return heater to authorized service facility for examination and/or repair.
- Warning - For residential use only.
- Warning - DO NOT use outdoors.
- Warning - This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
-
Warning - DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
-
CAUTION - THIS APPLIANCE HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER). TO REDUCE THE RISK OF SHOCK, THIS PLUG IS INTENDED TO FIT ONLY ONE WAY IN A POLARIZED OUTLET. IF THE PLUG DOES NOT FIT SECURELY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN. DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.
- Warning - This heater draws 12.5 amps during operation. To prevent overloading a circuit, DO NOT plug the heater into a circuit that already has other appliance working.
- Warning - It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
- Warning - To disconnect the heater, first turn off the product, then grip the plug body and pull it from the wall outlet. DO NOT pull by the cord.
- Warning - DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- Warning - To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, or where openings may become blocked.
- Warning - A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where gasoline, paint or flammable liquids are used or stored.
-
Warning - Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
-
Warning - Always plug heater directly into a wall outlet/receptacle. DO NOT use with an extension cord or relocatable power tap (outlet/power strip).
- Warning - DO NOT tamper with this product or attempt to fix it. Any tampering with, or modification of this product can result in serious injury, death, or fire. Risk of electric shock. DO NOT open. No user serviceable parts inside.
- Warning - DO NOT remove product labels that contain warnings or safety instruction.
- Caution - The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
- Caution - Before cleaning, or storage, or when not in use, turn the product's controls to the OFF position and unplug the heater from the electrical outlet and allow to cool.
- Caution - Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away from any combustible materials. DO NOT use on an unstable surface such as bedding or deep carpeting. Be sure the heater is not in a position where it may be tripped over by small children or pets.
- Caution - If your home has aluminum wiring have a licensed electrician check your receptacle's connections. When using a 1500 watt heater, aluminum wire connections can cause a safety issue.
- SAVE THESE INSTRUCTIONS
SET-UP
- This Honeywell Two Position Heater requires no assembly. Simply unpack heater and save all packaging materials for off-season storage.
BE SURE THE HEATER IS NOT IN A POSITION WHERE IT MAY BE TRIPPED OVER BY CHILDREN OR PETS.
MOVING THE HEATER
- Turn off the heater.
- Allow it to cool for ten minutes.
- Unplug heater and move. This heater is equipped with a Cool Touch Handle for your convenience.
OPERATION
NOTE: NEVER LEAVE AN OPERATING UNIT UNATTENDED

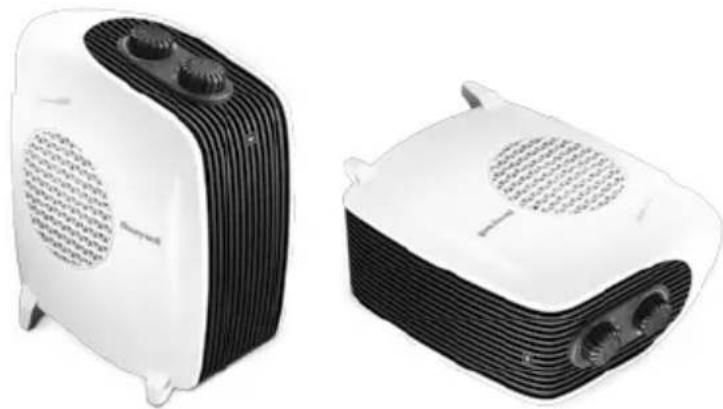

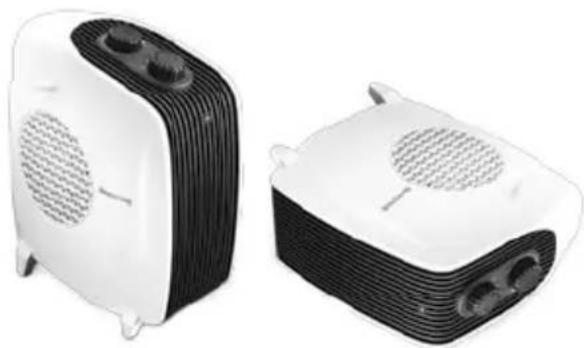

- The Two Position Heater is designed to fit the space for which it is needed. It can either operate in the upright position or on its side.

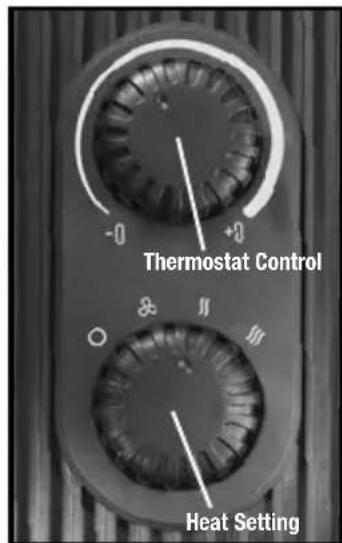

Model HHF175 Series - Manual Two Position Heater Operation
- With the Power Knob in the OFF (position, plug the heater into a polarized 120V outlet.
DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way. - The Power Knob is equipped with three (3) settings: Fan Only ( 业 ), Low ( 业 ) and High ( 业 ) Heat setting uses 750 watts of power and the High ( 业 ) heat setting uses 1500 watts of power. The Fan only ( 业 ) setting uses very low power and does not provide heat. You can select the proper setting to accommodate your comfort level with the Power Knob. When you choose any setting the red Power Light will come on. Because the Low ( 业 ) heat setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about the amperage draw on a circuit when the heater is on the High setting.
- Turn the Thermostat Control fully clockwise to the highest setting.
- When the room reaches a comfortable temperature, slowly turn the Thermostat Control counterclockwise until the heating element goes off (the red Power Light will not be shut off). This is the point at which the Thermostat setting equals the room temperature. At this setting, the Thermostat will automatically turn the heater on and off to maintain the selected temperature.
- Turn the Power Knob to OFF (O) and unplug the heater when you are finished using it.
SAFETY FEATURES
The Two Position Heater is equipped with several devices and features for added protection:
- A high temperature safety sensor prevents overheating. If activated, unplug the device and wait at least 10 minutes or allow the unit to cool completely. Make sure the operating conditions are safe and then plug the heater back in and follow the OPERATION instructions.
- This heater is also equipped with a thermal cut-off fuse that will permanently shut down the heater should it operate at a higher than normal temperature.
- This heater was built using a high temperature plastic and has a cool to touch housing and handle.
- This heater is designed with thermal insulated wiring for heat resistance and reinforced wire connections to help protect against loose connections.
CLEANING
We recommend that the Two Position Heater be cleaned at least once a month and before off-season storage.
- Turn the heater OFF ( ) and unplug it. Allow it to cool.
- Use a dry cloth only to clean the external surfaces of the heater. DO NOT USE WATER, WAXES, POLISHES OR ANY CHEMICAL SOLUTION.
STORAGE
- Clean your Two Position Heater using the above-mentioned steps. Wrap the cord around the unit. Place in its original box and store it in a cool, dry place.
TROUBLESHOOTING
If your Two Position Heater shuts off unexpectedly or fails to operate, one of your heater safety features may have been activated to prevent overheating.
- Be sure it is plugged in and that the electrical outlet is working.
- Check your Thermostat Control setting. The unit may simply be off because you have reached your desired heat setting.
- Check for any obstructions. If you find an obstruction, turn the heater OFF ( ) and unplug it. Allow the heater to cool completely, then remove the obstruction. Wait at least 10 minutes, then plug the heater back in and follow the OPERATION instructions.
PRODUCT SPECIFICATIONS
Model HHF175 Series
Unit dims 5.4^ × 9.8^ × 11.3^
Amps 12.5
Unit Voltage 120V, 60Hz
Max Watts 1500
MaxBTUs 5118
Operation Cost To estimate the cost to operate this heater, multiply the watts used by .001 to convert into kilowatts used. Then, multiply the kilowatts used by your local kilowatt electric rate and the length of time you run the heater. For example, if your electric rate is \( 1290^ * per kilowatt hour and you ran this heater in constant high mode (1500 watts) for 4 hours, it would cost you \ {.77} ) cents to run the heater (1500 watts x 4 hours x .001) x .1290kwp = \$.77 cents.
NOTE: Because the Low setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about the higher power consumption when the heater is on the High setting.
- Calculation (Total Wattage x .001) x Cost per Kilowatt Hour = Cost to operate
** Average Retail Price of Electricity to Ultimate Customer by End-Use, US Energy Information Administration, August 2016.
CONSUMER RELATIONS
Call us toll-free at: 1-800-477-0457
E-mail: consumerrelations@kaz.com
Or visit our website at:
www.HoneywellPluggedIn.com/Heaters
Please be sure to specify a model number.
NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE PRODUCT TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY Void YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.
1 YEAR LIMITED WARRANTY
YOU SHOULD FIRST READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO USE THIS PRODUCT.
A. This 1 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.
C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
RADIATEUR DOUBLE POSITION
SPÉCIFICATIONS DU PRODUIT
Modèle
Serie
HHF175
© 2017 All Rights Reserved.
Kaz USA, Inc., a Helen of Troy Company
Marlborough, MA 01752
Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited.
Distributed by: Kaz Canada Inc., A Helen of Troy Company, 6700 Century Ave., Ste # 210 Mississauga ON L5N 6A4
Contact us at 1-800-477-0457 or www.HoneywellPluggedIn.com/heaters
