USER MANUAL Origo 5100 DOMETIC

Please read this instruction manual carefully before first use, and store it in

a safe place. If you pass on the product to another person, hand over this

instruction manual along with it.

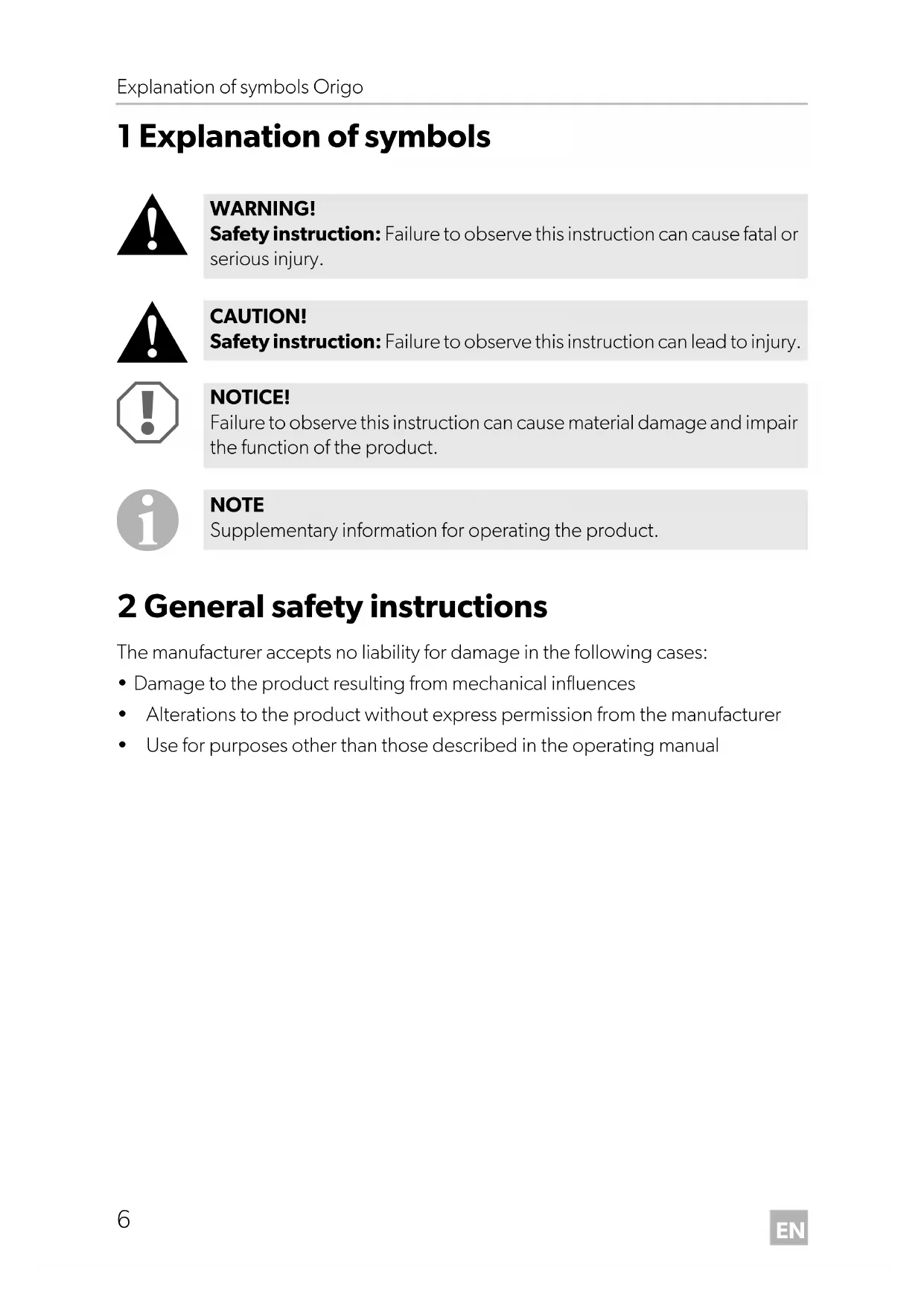

1 Explanation of symbols

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Damage to the product resulting from mechanical influences

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in the operating manual

Safety instruction: Failure to observe this instruction can cause fatal or

Safety instruction: Failure to observe this instruction can lead to injury.

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE Supplementary information for operating the product.EN Origo General safety instructions

• Use denatured or soot free alcohol only. Do not use other fuels such

as gasoline, diesel, methanol, propane or charcoal lighter.

• Danger of asphyxiation!

Before starting the device, ensure that the area is sufficiently venti-

• Place a class A fire extinguisher (for alcohol fires) in reaching distance.

Ensure the fire extinguisher is regularly checked by qualified person-

• People (including children) whose physical, sensory or mental capac-

ities or whose lack of experience or knowledge prevent them from

using this product safely should not use it without the supervision or

instruction of a responsible person.

• Use the heater only as intended.

2.2 Safety precautions when handling denatured alcohol

• Keep inflammable substances apart from heating and cooking devices

and other light and heat sources.

• Store alcohol in suitable containers only and in sufficient distance from

• Eliminate all sources of sparks or flames where the alcohol is stored or

• Overfilling, spilt alcohol and hot objects can cause severe burns.

• Denatured alcohol burns with almost invisible flame, so great damage

can arise before you notice the danger.

• Mop up any spilt alcohol immediately to prevent uncontrollable burn-

• Do not smoke when handling alcohol or when operating the heater.

• Fill the canister to the maximum capacity only. Alcohol expands in the

canister when heated. Overfilled alcohol can cause uncontrollable

burning inside the heater.EN Scope of delivery Origo

2.3 Operating the device safely

• Do not cover the heater.

• Wear proper clothing when operating the heater.

Do not wear hanging garments which can catch fire.

• Quickly remove your hand as soon as the burner ignites.

• Let the heater cool down to ambient temperature before you touch it

• Keep the area surrounding the heater and interior parts free of grease,

fat, alcoholic substances, plastic or inflammable cloths (for instance

curtains, towels, kitchen utensils).

• Be careful when heating grease or oil. Grease and oil catch fire when

exposed to great heat.

• Use only dry pot cloths to prevent the formation of steam. Do not use

towels or the like instead of pot cloths as these can catch fire.

• Never leave the heater unattended when cooking. Pots boiling over

can cause smoke and fires.

• Move the regulator (fig. 1 5, page 3) to the off position before

The Origo heater 5100 is a non-pressurized alcohol heater designed for use in vehi-

cles or boats. It can be used as heater or as cooking device.

6 Technical description

The heater is made of aluminium and stainless steel and uses the absorption princi-

ple. The canister has a capacity of 1.2 l. Denatured or soot free alcohol is used as fuel.

Alcohol is absorbed into a non-flammable material in the canister.

➤ Ensure the heater is cooled down to room temperature.

➤ Take off the top cover (1).

➤ Release the burner (4) from outer container (9) by pressing lock spring (10).

➤ Lift the grid (3).

✓ Canister (8), burner (4) and grid (3) are lifted as one unit from the outer

➤ Release the canister (8) from the burner (4) by pressing the spring (6).

➤ Hold the canister (8) tilted down (fig. 2, page 3).

The top cover (fig. 1 1, page 3) and the outer container (fig. 1 9,

page 3) heat up when in use. Touching them can cause severe burns.

Never pour fuel through the burner openings.

Do not fill near an open fire or glow.

Overfilling, spilt alcohol and hot objects can cause severe burns.EN Using the heater Origo

➤ Fill the denatured alcohol through the wire mesh into the opening of the

The maximum capacity per canister must not exceed 1.2 l.

➤ Check the fuel level by tilting the canister (8) vertically (fig. 3, page 4).

Keep it in this position for 20 s, to make sure it's not overfilled. In addition, in the

case of accidental overfilling you can get rid of the surplus fuel.

✓ The maximum fuel level is reached when the fuel is visible in the recess inside the

canister opening (fig. 3, page 4).

➤ Wipe possible spilt alcohol off the outside of the canister (8).

➤ Fasten the burner (4) to the canister (8).

Ensure that the four springs (7) hold the canister.

➤ Place the unit of canister (8), burner (4) and grid (3) into the heater.

Ensure that the lock springs (10) hold this unit.

7.2 Lighting the heater (fig. 1, page 3)

➤ Take off the top cover (1).

➤ To open burner (4), pull out the regulator (5) and turn it to the left (ON).

➤ Place a lighter in the ignition hole of the burner (4) and light it.

➤ Adjust the flame so it does not extend beyond the edge of the pot.

–To increase the heat, turn regulator (5) towards left (ON).

–To reduce the heat, turn regulator (5) towards right (OFF).

NOTE The heater will operate even if the canister isn’t filled with the maximum

Quickly remove your hand as soon as the burner ignites.

NOTE If the heater hasn’t cooled down from previous use, the burner may

ignite but immediately extinguish. In this case blow air into the burner

opening to dissipate vapour.

Afterwards light the heater as described above.EN Origo Cleaning and maintaining the heater

If you use the device as heater

➤ Place the top cover (1) on the outer container (9).

➤ Ensure the strap (2) is placed on the outside of the heater.

If you use the device as cocking appliance

➤ Do not use the top cover (1).

➤ Put your pot or pan directly on the grid (3).

7.3 Extinguish the flame (fig. 1, page 3)

➤ Turn the regulator (5) fully to right (OFF).

✓ The burner (4) is closed.

➤ Wait about five seconds.

➤ Turn regulator (5) fully to left (ON) to make sure the flame is extinguished.

✓ The burner (4) is open.

➤ Turn the regulator (5) fully to right (OFF).

✓ The burner (4) is closed.

8 Cleaning and maintaining the heater

➤ Clean the heater periodically. In particular remove carefully sticky grease and oil.

Do not use any sharp or hard objects for cleaning since they may

The statutory warranty period applies. If the product is defective, please contact your

retailer or the manufacturer's branch in your country (see the back of the instruction

manual for the addresses).

For repair and guarantee processing, please include the following documents when

you send in the device:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault

➤ Place the packaging material in the appropriate recycling waste bins wherever

M If you wish to finally dispose of the product, ask your local recycling centre

or specialist dealer for details about how to do this in accordance with the

applicable disposal regulations.

11 Technical data Origo5100Ref. no.: 9103303920Burning duration: approx. 5 hPower of burner: 1500 WBoiling time for 1 l water: 15 mincanister capacity: 1.2 l Dimensions (∅ x H): 280 x 285 mm
