Brand	Dometic
Model	ORIGO One
Product Type	Portable Spirit Stove
Fuel Type	Methylated spirits (ethanol)
Fuel Tank Capacity	0.5 L
Power Output	1.0 kW
Burn Time per Fill	Approx. 1.5 hours
Dimensions (W x D x H)	34.5 x 21.5 x 8.5 cm
Weight	2.5 kg
Material	Stainless steel and aluminum
Ignition	Manual (match or lighter)
Windshield	Folding aluminum windshield included
Safety Features	Stable base, drip tray
Maintenance	Clean burner and tank after use; empty fuel for storage
Spare Parts Availability	Burner, glass bowl, fuel tank, windshield
Repairability	User-replaceable parts; professional repair for major issues
Use	Indoor and outdoor (well-ventilated)
Country of Origin	Sweden

Frequently Asked Questions - ORIGO One DOMETIC

What fuel does the Dometic ORIGO One use?

The Dometic ORIGO One uses methylated spirits (ethanol) as its fuel. Do not use gasoline or other fuels.

How do I light the ORIGO One stove?

Fill the fuel tank with methylated spirits, then light the burner manually using a match or lighter. Ensure the windshield is in place.

Can I use the stove indoors?

Yes, but only in well-ventilated areas. Never use in a confined space without airflow due to oxygen depletion.

How long does the fuel last?

A full tank (0.5 L) provides approximately 1.5 hours of burn time on high flame.

How do I clean the ORIGO One?

Allow the stove to cool completely. Wipe the exterior with a damp cloth. Clean the burner with a soft brush and empty the fuel tank before storage.

Is the stove stable?

Yes, the ORIGO One has a wide base and low center of gravity for stability on flat surfaces.

What spare parts are available?

Replacement parts include the burner, glass bowl, fuel tank, and windshield. Contact Dometic or authorized dealers.

Can I repair the stove myself?

Yes, basic parts are user-replaceable. For internal issues, consult the manual or a professional technician.

Does the stove have a safety shut-off?

No, the ORIGO One does not have an automatic shut-off. Always supervise the stove while in use and extinguish the flame when done.

What size pot can I use on the ORIGO One?

The stove accepts pots up to 20 cm in diameter. Use flat-bottom cookware for best results.

USER MANUAL ORIGO One DOMETIC

Exterior view of a modern electric stove with a metal rack and two gas stove covers (no visible text or symbols)

Exterior view of a two-burned gas stove with dual handles and control knobs (no visible text or symbols)

ORIGO ONE, ORIGO TWO

EN Alcohol stoves

Operating manual....8

DE Spirituskocher

Line drawing of a hand using a power tool to switch a stove burner (no text or symbols present)

Line drawing of a portable stove with cooling fan and directional arrows indicating airflow (no text or symbols)

Line drawing of a portable electric stove with open lid and internal mesh chamber (no text or symbols)

Line drawing of a hand using a tool to cut concentric rings around a central object (no text or symbols)

Diagram showing a mechanical component with an arrow pointing to a circular feature, no text or symbols present

Line drawing of a hand using a tool to switch a gas stove on a two-wheeled toaster (no text or symbols present)

Line drawing of a portable stove with heat exchangers and a side-mounted fan (no text or symbols)

Please read this instruction manual carefully before first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols....9
2 General safety instructions 9
3 Scope of delivery .....12
4 Accessories....12
5 Intended use....12
6 Technical description....13
7 Using the cooker....13
8 Maintaining and cleaning the cooker. 16
9 Guarantee....17
10 Disposal....17
11 Technical data....17

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Damage to the product resulting from mechanical influences
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual

2.1 General safety

WARNING!

• Operate the cooker only with denatured alcohol. Do not use other fuels such as gasoline and diesel, methanol, propane or charcoal lighter.
  •Beware of suffocation!

Ensure proper ventilation before putting the cooker into operation.

• Keep a suitable fire extinguisher in the immediate vicinity. Ensure that the fire extinguisher is regularly checked by a specialist.

• People (including children) whose physical, sensory or mental capacities or whose lack of experience or knowledge prevent them from using this product safely should not use it without the supervision or instruction of a responsible person.

• During and immediately after use, some accessible elements can be very hot. Do not touch and keep children away from the device.

• Ensure after cooking that all controls are placed in the neutral position (0).

NOTICE!

- Use the stove only as intended.

2.2 Safety precautions when handling denatured alcohol

WARNING!

• Keep inflammable substances away from heating and cooking devices and other light and heat sources.
• Only store denatured alcohol in appropriate containers and well away from the stove.
• Ensure that there is no danger of sparks and flames in the storage place or filling location for denatured alcohol.
• Never fill the canisters in the cooker. Never pour alcohol through the burner openings in the cover (fig. 1, page 3).
• Fill the canister only to the maximum capacity (see chapter "Fill the cooker with denatured alcohol" on page 14). Heated denatured alcohol expands in the canister. Overflowing denatured alcohol causes uncontrolled burning in the cooker.
  • Overfilled canisters, spilled denatured alcohol and hot surfaces can cause severe burns.
• Wipe away any denatured alcohol to prevent uncontrolled burning.

NOTICE!

• Mop up any spilt alcohol immediately to prevent uncontrollable burning.
• Do not smoke when handling alcohol or when operating the stove.
• Fill the canister to the maximum capacity only. Alcohol expands in the canister when heated. Overfilled alcohol can cause uncontrollable burning inside the stove.

2.3 Operating the device safely

WARNING!

• Use long matches or an extended lighter to light the burner. Quickly remove your hand as soon as the burner ignites.
• Wear proper clothing when operating the device. Do not wear loose hanging clothing which might catch fire.
• Let the device cool down to ambient temperature before you touch it with bare hands.

CAUTION!

• Keep the area surrounding the device and interior parts free of grease, fat, alcoholic substances, plastic or inflammable cloths (for instance curtains, towels, kitchen utensils).
• Use only pots and pans with a maximum diameter of 23 cm (20 cm with optional potholder).
• When cooking ensure that pans and pots are securely in position. It is advisable to use potholders (accessory, fig. 4 1, page 4).
• Never allow pot handles to extend beyond the edge of the stove. Turn pot handles inward, but not extending over other burners. This will minimize the possibility of spillage, ignition of flammable materials and/or serious burns.
• Be careful when heating grease or oil. Grease and oil catch fire when exposed to great heat.
• Use only dry pot cloths to prevent the formation of steam. Do not use towels or similar materials, as these can catch fire.
• Only operate the device when you or another person can attend to it. Pots boiling over can cause smoke and fires.
• Set the control knob to the neutral setting (0) (fig. 2 3, page 3) before removing the pot or pan from the hob.
• Do not use the stove to heat the room.
• Hot parts should not be allowed to come into contact with grease, water or any other liquids.

3 S c o p e o f d

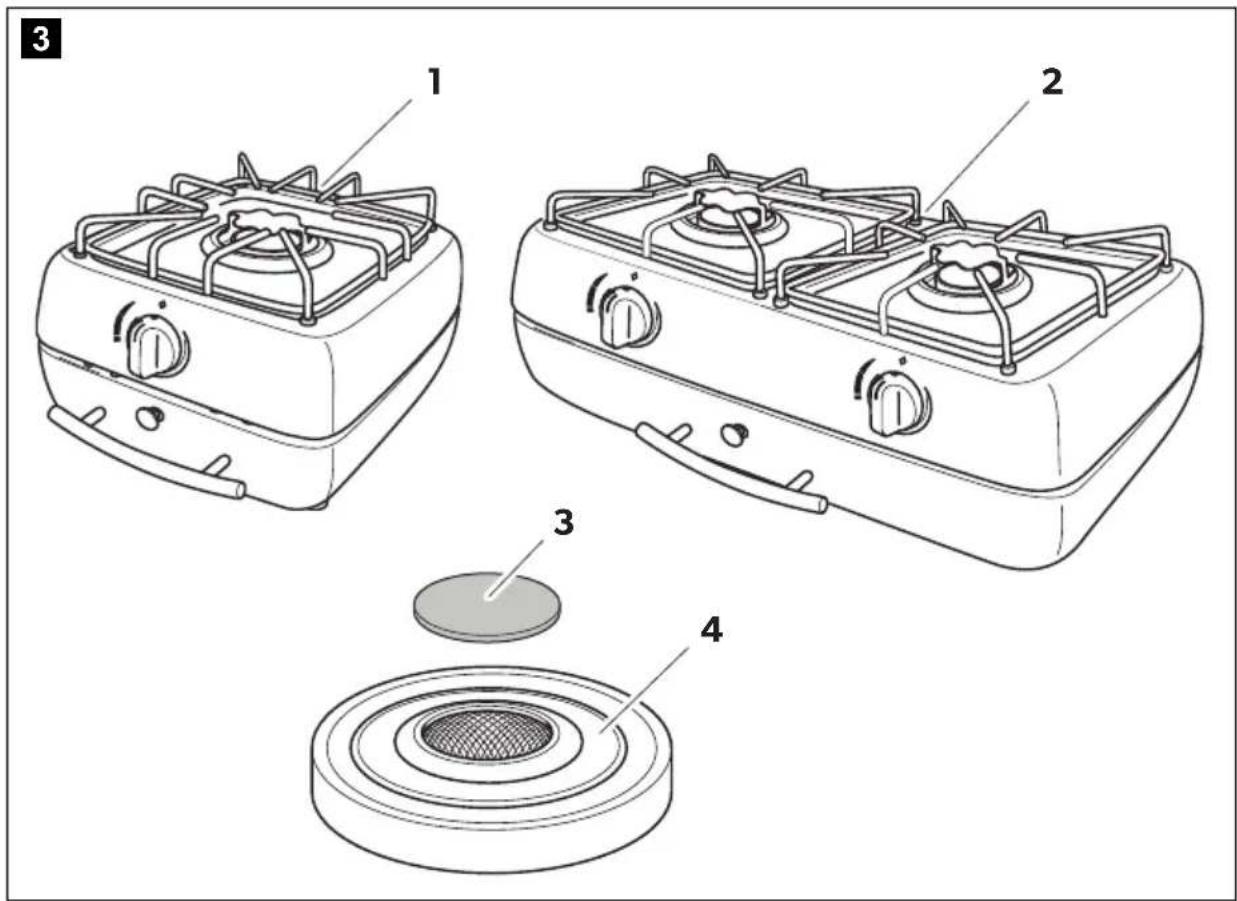

No. in fig. 3, page 4	QuantityORIGO ONE ORIGO TWO	Description
1 1x – Cooker with 1 burner
2 – 1x Cooker with 2 burners
3 1x 2x Sealing washer
4 1x 2x Canister

4 A c c e s s o r i

Available as accessories (not included in the scope of delivery):

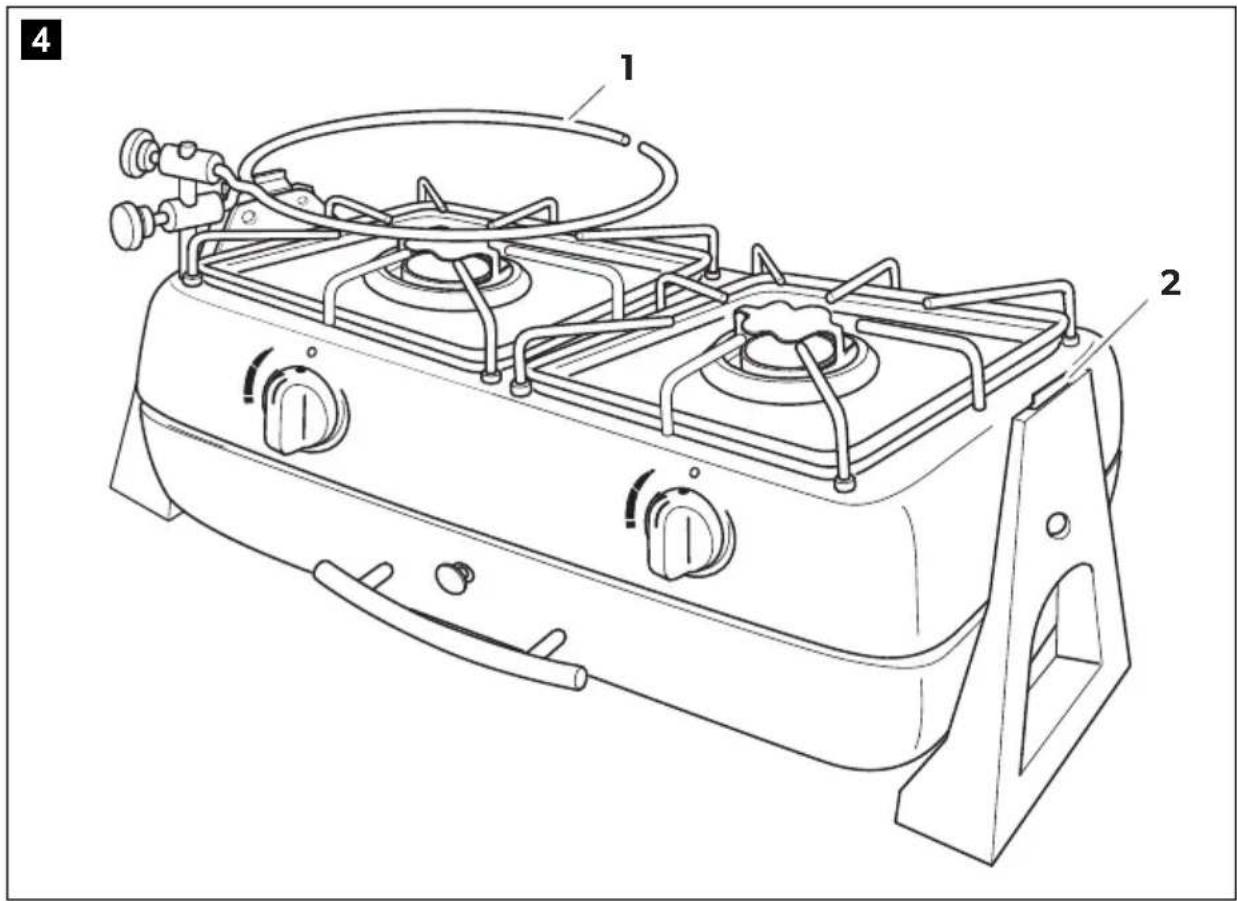

No. in fig. 4, page 4	Description Item no.
1 Pot Holder		9103303828
2	Gimbal	9103303827
-	Cutting board	9103303829

5 Intended use

The devices ORIGO ONE and ORIGO TWO are unpressurized alcohol stoves for use in vehicles and boats. The cooker may only be used for cooking foods.

The stove is installed on a freestanding basis. For use on boats, the cooker can be fitted with a gimbal mounting (accessory).

The cooker cannot be operated in enclosed spaces (e.g. tents or awnings). Let the cooker cool completely before transporting it.

6 Technical description

6.1 Function description

The stove is made of stainless steel and operates according to the absorption principle.

The denatured alcohol is absorbed in the canister of a non-combustible material. The canisters are maintenance-free.

6.2 Control elements

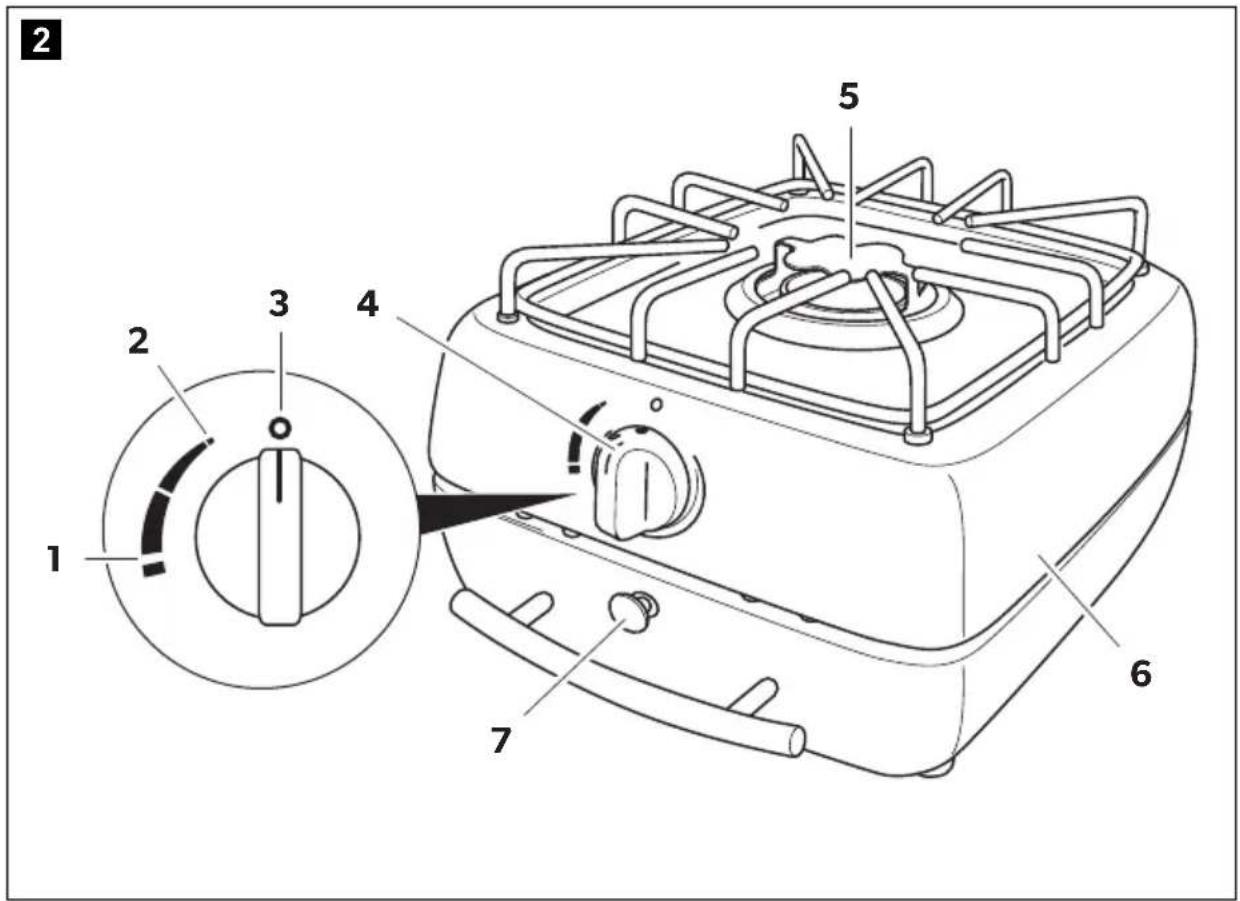

No. in fig. 2, page 3	Description
1 “Large flame” setting
2 “Small flame” setting
3 Zero setting (0)
4 Controller for hob
5 Burner opening
6	Hob
7 Button for opening the cooker

7 Using the cooker

7.1 Setting up the cooker

When selecting the installation location, observe the following instructions:

• Select a well-ventilated location for the device.
• Ensure that there are no drafts in the installation location.
• Do not operate the device in areas that are potentially explosive.

- Ensure the following minimum clearances

- 50 mm to side and back walls

- 750 mm to the ceiling

• If you are using gimbal mountings (accessory), make sure that the cooker can swing freely.
• Leave sufficient space for the vibration of the gimbal mounting.

7.2 Fill the cooker with denatured alcohol

WARNING! Beware of injury.

• Never fill the canisters in the cooker. Never pour alcohol through the burner openings in the cover (fig. 1, page 3).
• Overfilled canisters, spilled denatured alcohol and hot surfaces can cause severe burns.

▶ Turn all controls to the zero position (0) (fig. 2 3, page 3). Otherwise the stove top cannot be opened.
▶ Ensure the stove is cooled down to ambient temperature.

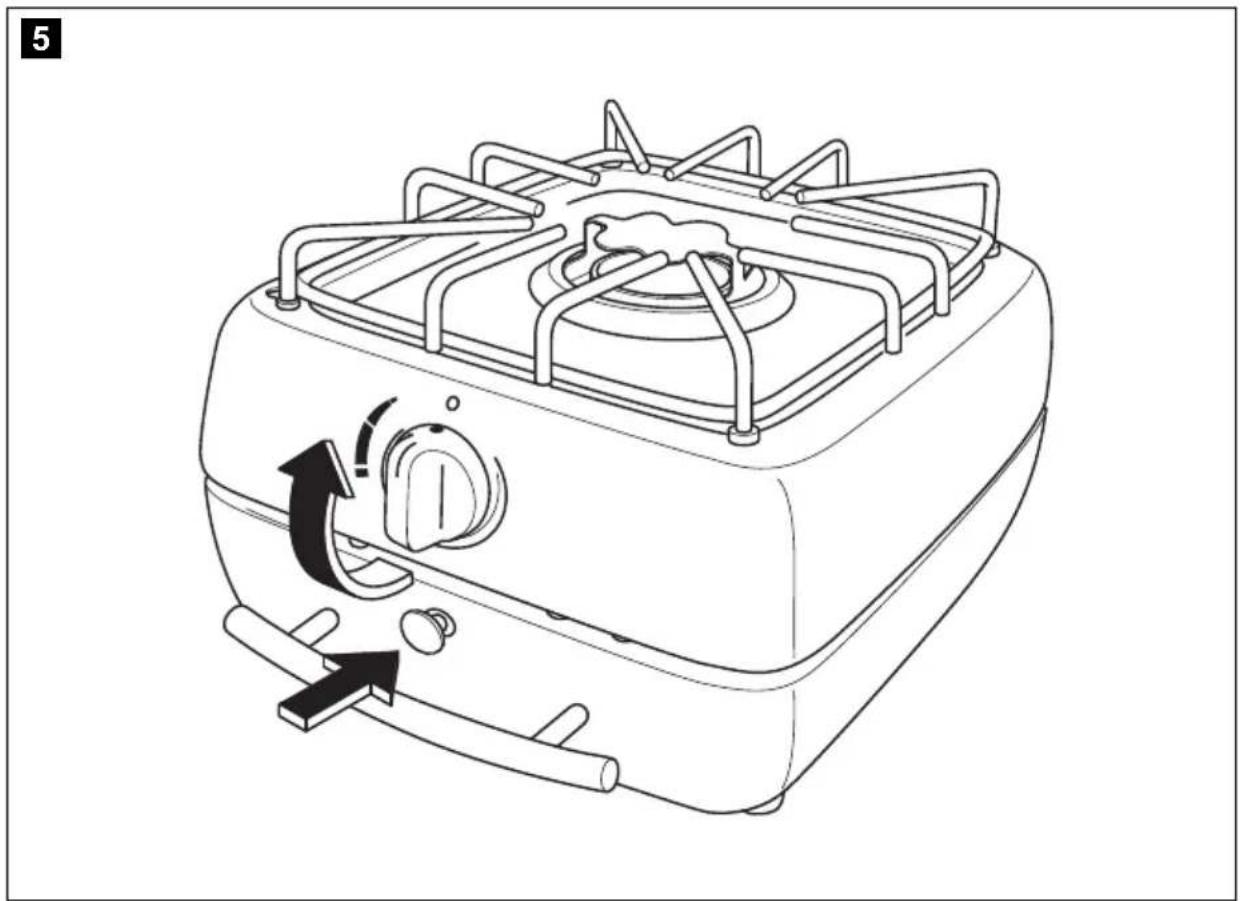

▶ Hold down the button on the front of the cooker (fig. 5, page 5).
▶ Lift the stovetop (fig. 5, page 5).
▶ Check the opening of the canister to ensure that there are neither fire nor embers.

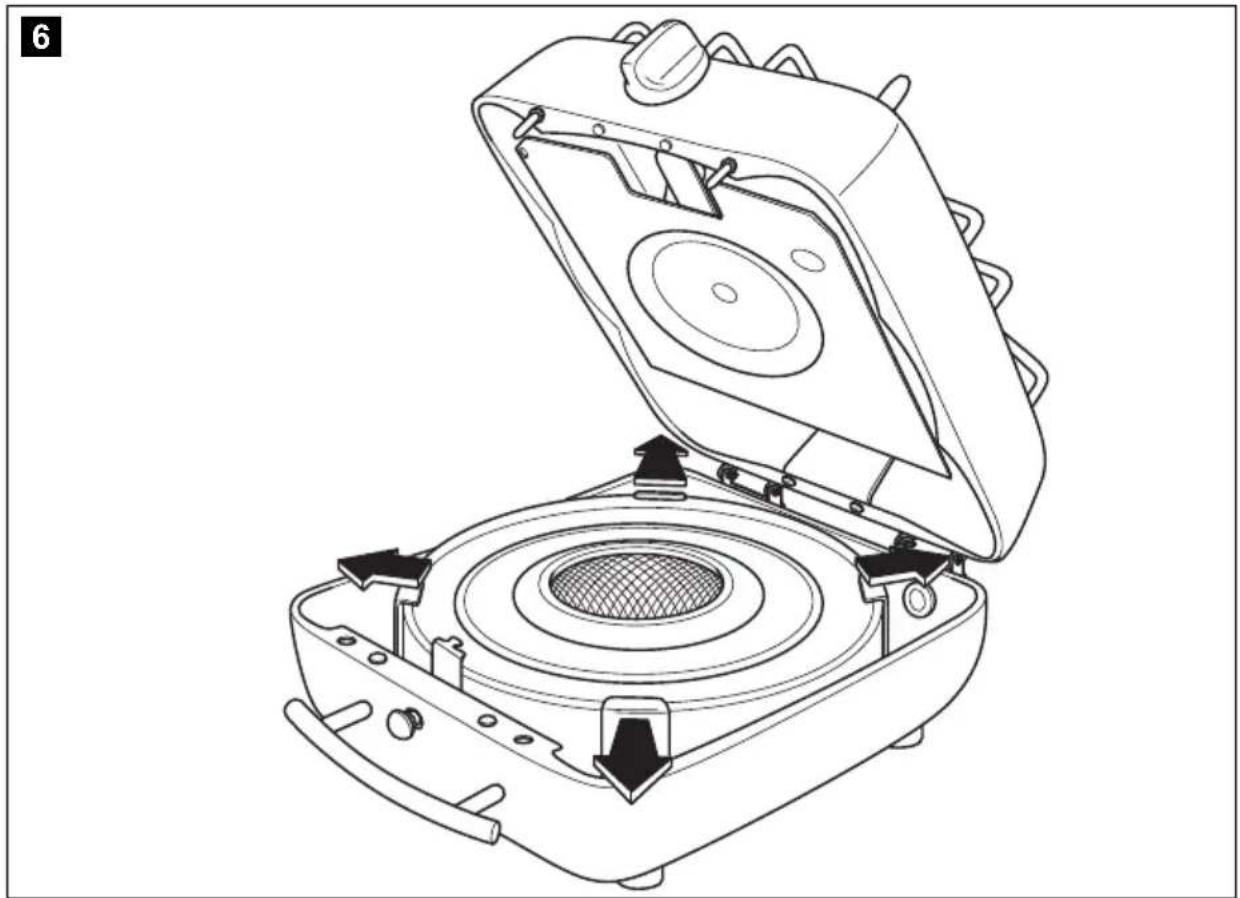

▶ Loosen the retaining clips and remove the canister (fig. 6, page 5).

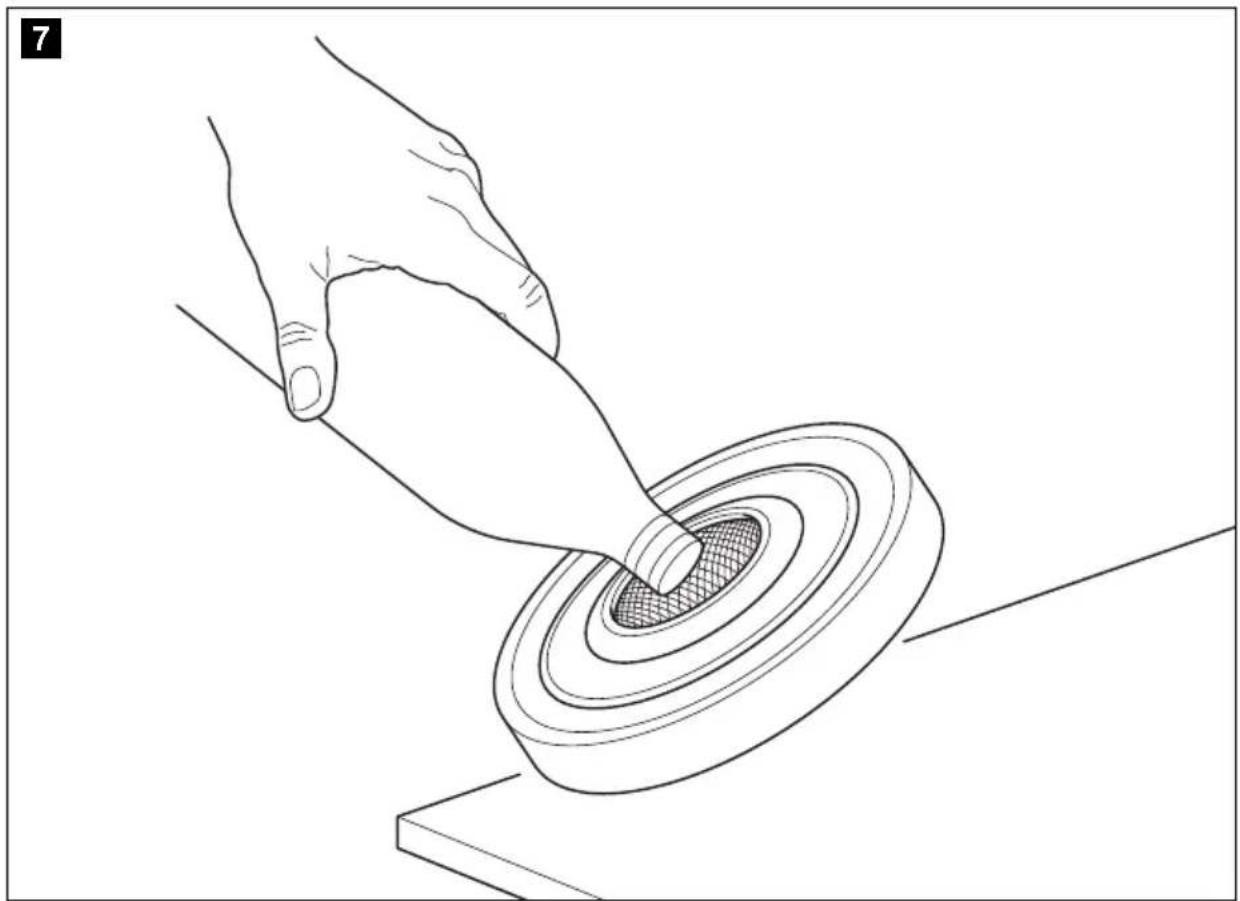

▶ Hold the canister obliquely downward (fig. 7, page 6).
▶ Fill denatured alcohol into the mouth of the canister. The maximum capacity of 1.2 litres per canister must not be exceeded.
√ The maximum fuel level is reached when the fuel is visible at the bottom of the opening (fig. 8, page 6).

NOTE

The cooker also works when the canister is not filled to maximum capacity.

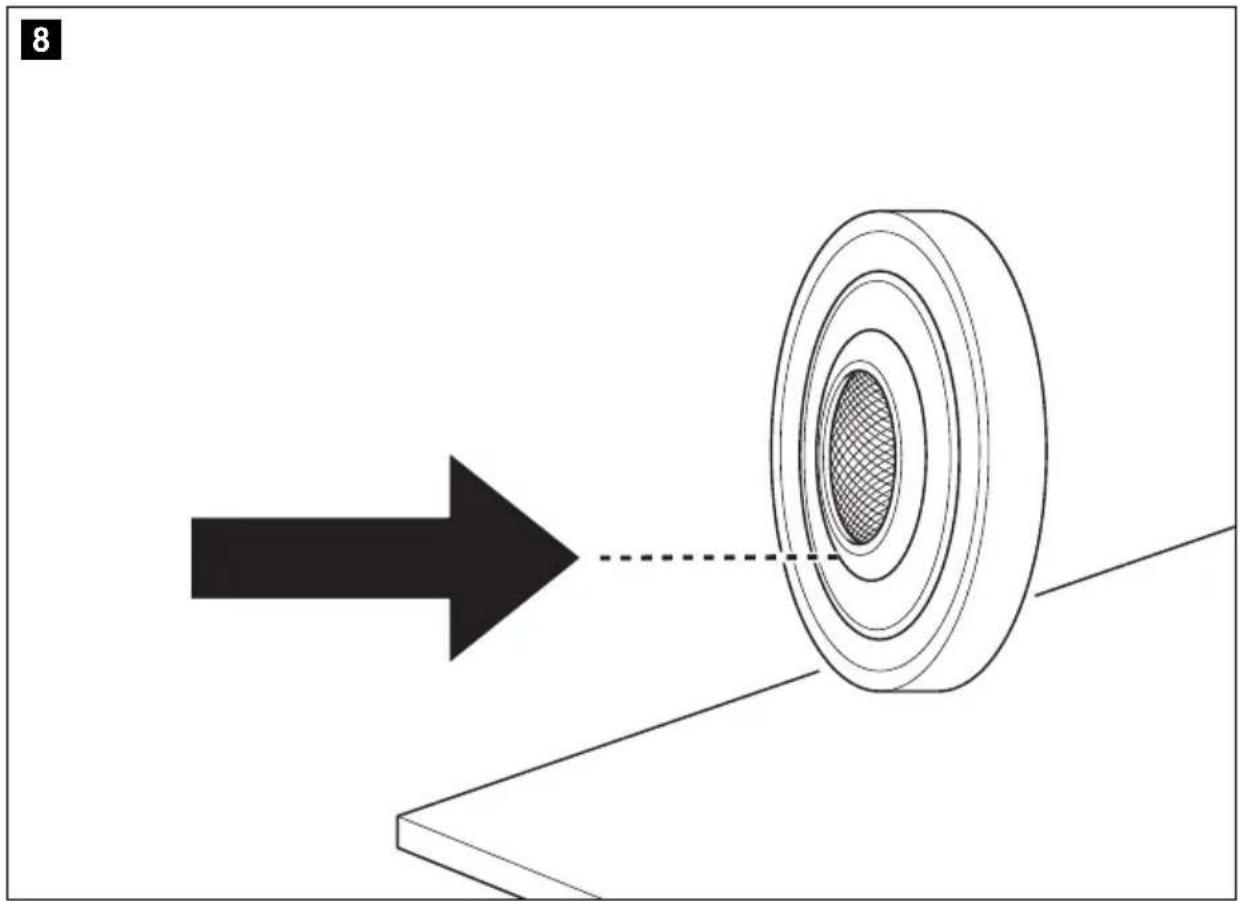

▶ Check the permissible load capacity by holding the canister vertically downwards.
Keep it in this position for 20 seconds, to make sure it's not overfilled. The excess fuel can escape in this way.
▶ Clean the outside of the canister of any remaining denatured alcohol.
▶Put in the canister so that all retaining clips lock in.

▶ Close the stovetop (fig. 2 6, page 3). The stovetop can only fold when the regulator is in the zero position (0) are.
√The catch locks.
▶ Make sure that the unit is properly closed and that the cooker ports are fully closed.

7.3 Turn on the cooker

WARNING! Beware of injury.

• Use long matches or long lighters to light the burner.
• Quickly remove your hand as soon as the burner ignites.

▶ Turn the knob all the way up (fig. 2 1, page 3).
√The burner is open.
Light the burner by placing a long match or a long lighter to the burner opening (fig. 9, page 7).
▶ Choose the desired power setting via knob. The flame must not extend beyond the edge of the pot.

NOTE

If the flame immediately goes out after ignition, blow air into the burner opening.

Then ignite the cooker as described.

7.4 Switching off the hob

▶ Turn the respective controls to the zero position (0) (fig. 2 3, page 3).
▶Wait about five seconds.
▶ Turn the knob all the way up (fig. 2 1, page 3) to check whether the flame is extinguished.
▶ Turn the knob to the zero position (0) (fig. 2 3, page 3).

7.5 Seal the canister with the sealing washer

Seal each canister with the gasket made of rubber (fig. 3 3, page 4) if you do not wish to use the cooker for an extended period. In this way you prevent the evaporation of alcohol.

▶ Turn all controls to the zero position (0) (fig. 2 3, page 3). Otherwise the stove top cannot be opened.
▶ Ensure the stove is cooled down to ambient temperature.
▶ Hold down the button on the front of the cooker (fig. 5, page 5).
▶ Lift the stovetop (fig. 5, page 5).
▶Close the opening of the canister with the gaskets.
▶Close the stovetop.
√The catch locks.
▶ Make sure that the unit is properly closed and that the cooker ports are fully closed.

NOTE

Remove the rubber seals before reusing.

8 Maintaining and cleaning the cooker

NOTICE!

Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the product.

▶Occasionally clean the product with a damp cloth.

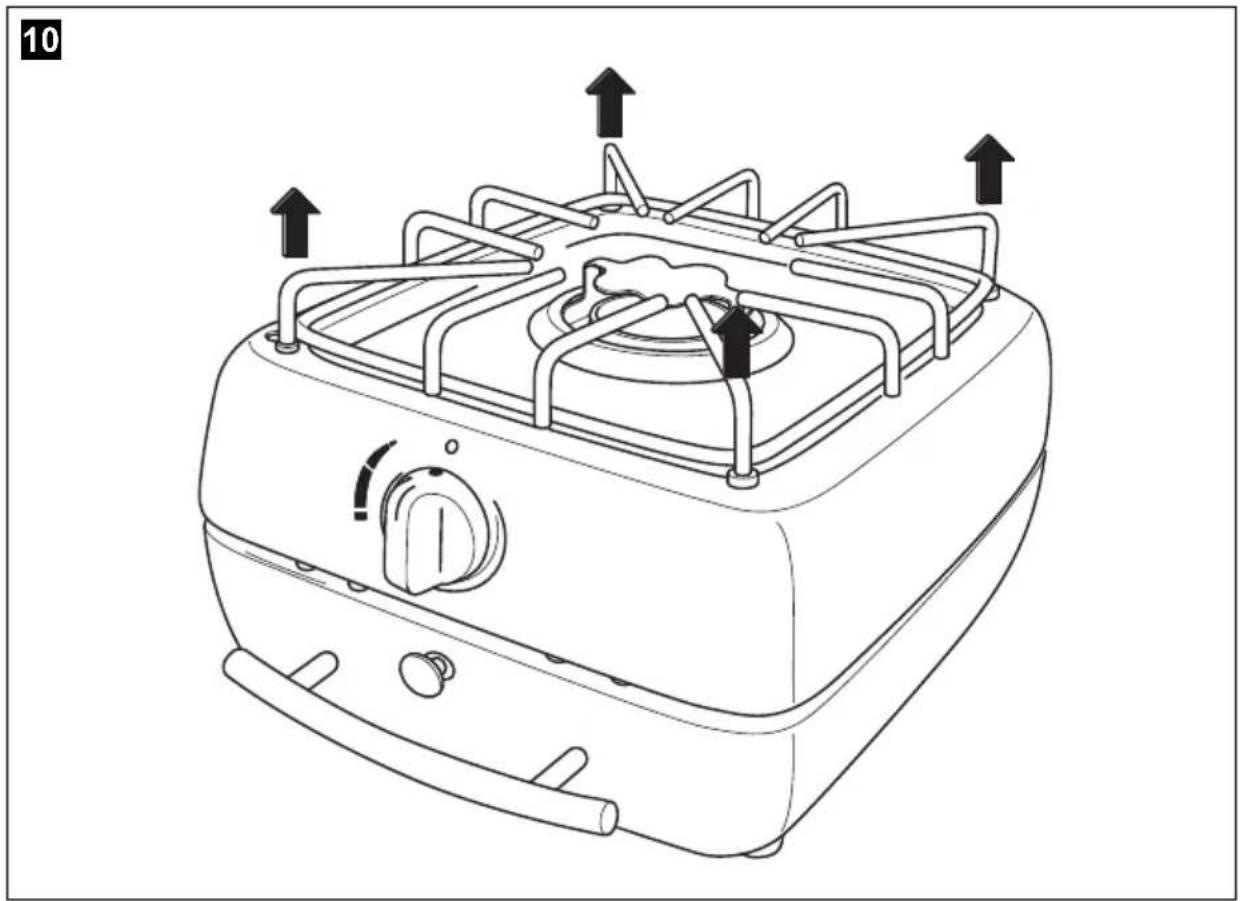

Remove the grate from the top of the device by gently pulling it up (fig. 10, page 7).
▶ Clean the hob (fig. 2 6, page 3). Carefully remove stubborn grease and oil stains.

9 G u a r a n t e e

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see the back of the instruction manual for the addresses).

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

10 Disposal

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

11 Technical data

	ORIGO ONE ORIGO TWO
Item no.: 9103303977 9103303978
Number of burners: 1 2
Burning duration: Approx. 4.5 h
Power of burner:	2000 W
Cooking time for 1 litre of water:	10 mins
Max. load capacity per canister:	1.2 l
Dimensions (W x D x H)/mm:	237 x 301 x 157	464 x 303 x 157
Dimensions with accessories (W x D x H)/mm:	295 x 301 x 266	522 x 303 x 266
Weight:	2.9 kg	5.6 kg
