USER MANUAL Cadac Safari Chef Compact 30 DOMETIC

Black DREAM DORAC Compact food cooker with open lid and control panel (no visible text or symbols on body)

Safe Appliance

USER INSTRUCTIONS

EN DE DA ES FR IT NL NO PL SV SL FITR

Explanation of Symbols

Recycling packaging material. Place the packaging material in the appropriate recycling waste bins wherever possible.

1. Safety information

These instructions are for your safety and to help you avoid risk of injury and/or damage. All warranties will become void if you do not follow these instructions.

• This appliance complies with BS EN17476:2021 and SANS 1539:2017.
- Gas appliances require ventilation for efficient performance and to ensure the safety of users and other persons in close proximity, do not use the appliance in an unventilated area. It is intended for outdoor use only.
- Ensure that the appliance is used in a well-ventilated area.
• WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.
- Read these instructions carefully before using the appliance.
• FOR OUTDOOR USE ONLY!

Assembly and use

• Do not use the appliance if it has damaged or worn seals.
• Do not use an appliance that is leaking, damaged or which does not operate properly.
• Handle the appliance with care, do not drop it.
  • Always operate the appliance on a firm level surface.
• Ensure that the assembled product is stable and does not rock.
• This appliance is not suitable for installation or connection to a reticulated gas supply.
• This appliance must be kept away from flammable materials during use. Minimum safe distances are: Above the appliance 120cm. At the rear and sides 60cm. (fig 1)
• When using a pot, the minimum recommended pot size is 150mm and maximum recommended size is 300mm.
• Do not use any cooking surface or pot that is larger than the recommended size. Our cooking surfaces have been specifically designed to allow gas combustion to escape and the closure of this space could affect the performance of this appliance.
• Do not modify this appliance, any modification may be dangerous. Do not use it for anything for which it has not been designed.
• Do not move the appliance during use.
• Never leave the appliance unattended when lit.
• During use, parts of the appliance will become hot (particularly the burner). Avoid touching hot parts with bare hands. The use of gloves is recommended.
• Ensure the pot stand /cooking surfaces are correctly placed when using the appliance.

Gas Container

• This appliance uses the CADAC 220g/227g butane cartridge with nozzle valve or any other locally approved 220/227g butane cartridge with nozzle valve and complying with EN417.
• IT COULD BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CARTRIDGES.
• Ensure that the gas container is fitted or changed in a well-ventilated location, preferably outdoors, away from any sources of ignition such as naked flames, pilots, electric fires and away from other people.
• Keep gas containers away from heat and flame. Do not place on a stove or any other hot surface.
• Refillable containers are to be used only in the upright position so as to ensure proper fuel withdrawal. Failure to adhere to this may cause liquid discharge from the gas container resulting in a dangerous operating conditions.
• Do not try to remove the gas container whilst the appliance is in operation.
• The gas container must be disconnected from the appliance after use or when in storage.

Light back

• In the event of light back (where the flame burns back and ignites inside the burner or venturi housing), immediately turn off the gas supply by closing the appliance valve. After the flame is extinguished, remove the cannister and check the condition of the seal; replace the seal if in doubt. Re-light the appliance.
• Should the flame persistently light back, return the product to your authorized repair agent.

Leaks

- If there is a gas leak on your appliance (smell of gas), immediately turn off the gas supply by turning the control knob clockwise to the OFF “•” position and take it into a flame free location where the gas leak may be detected and stopped. If you wish to check for gas leaks on your appliance, do it outside. Do not try to detect gas leaks using a flame; use soapy water.

How to check the appliance is connected to the gas supply in a sound fashion

• It is important that all gas connections have been correctly connected to prevent any gas leaks.

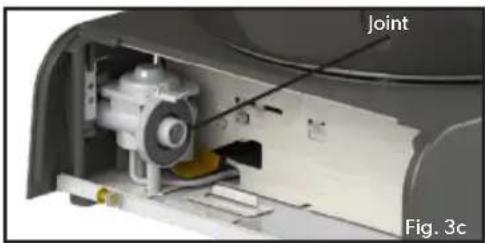

• The correct way is to smear the joint, i.e. where the gas container connects to the appliance, with soapy water. Turn the appliance control knob slightly anti-clockwise to turn the gas on. If bubbles form, then there is a gas leak. Immediately turn the gas off and disconnect the gas supply from the appliance. Check that all the connections are properly fitted. Check that the seal is in place and in good condition before connecting the gas supply. Re-check with soapy water after refitting the gas supply.
• If a gas leak persists, return the product to your local dealer for inspection/repair.

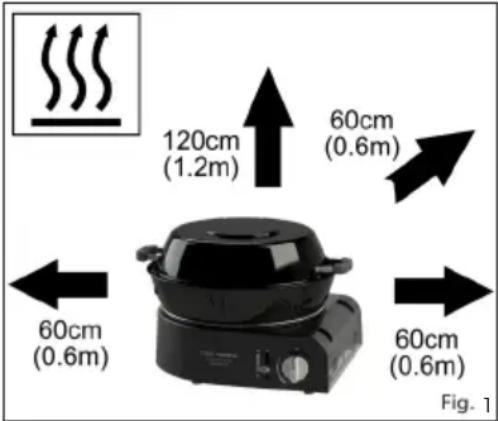

120cm (1.2m) 60cm (0.6m) 60cm (0.6m) 60cm (0.6m) Fig. 1

Country of Use	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK & SI	PL	BE, CY, DK, EE, FR, FI, HU, IT, LT, NL, NO, SE, SI, SK, RO, HR, TR, BG, IS, LU, MT, & ZA	AT, CH, DE & SK
Allowable gasses	Butane
Gas Pressure	Direct Pressure - Butane
Jet Number	0.48
Nominal Usage	114 g/hr
Gross nom. heat input	1.60 kW

Country Name and Abbreviations
AE = United Arab Emirates AL =	Albania AT = Austria BE = Belgium CH = Switzerland
CZ = Czech Republic DE = Germany DK = Denmark ES = Spain FI = Finland
FR = France GB = United Kingdom GR = Greece HR = Croatia IT = Italy
JP = Japan KR = Korea NL = Netherlands NO = Norway	PL = Poland
PT = Portugal	RO = Romania	RU = Russia	RS = Serbia	SI = Slovenia
SK = Slovakia	SE = Sweden	TR = Turkey	ZA = South Africa

2. Fitting and Changing the Gas Supply

Connecting the cartridge

• Open the cartridge cover (see section 4 for list of components).
• Check that the control knob is in the OFF “•” position and that the lever is set to “unlock” (see Fig. 2).
• Note! The cartridge can only be locked if the control knob is in the OFF “•” position.
• Check that the seal is in place and is not worn or damaged before connecting the cartridge (see Fig. 3c).
• Connect the cartridge in a horizontal position and ensure that the notch is in line with the safety guide (as shown in Fig. 3d).
  • CAUTION: Ensure that the notch is facing upwards and that the safety guide is inserted in the notch.
• Lock the cartridge into place by moving the lever to the "lock gas" position (see Fig. 2).
  • CAUTION: If you smell gas, refer to section 1 on how to check for a gas leak.

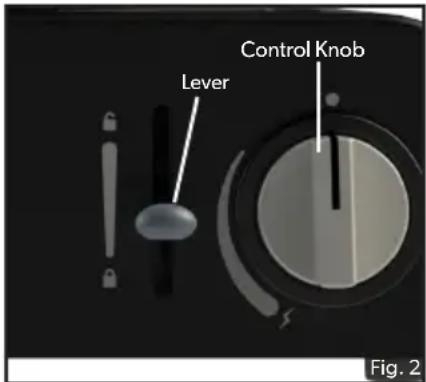

Control Knob Lever Fig. 2

Disconnecting and changing the cartridge

• Before disconnecting the cartridge, check that the burner is extinguished and that the control knob is in the "off position".
• Unlock the cartridge by moving the lever to the "unlock" position (see Fig. 2).
• Open the cartridge cover and remove the cartridge in a horizontal position (as shown in Fig. 3b).
  • Note! The cartridge can be removed even if it is not empty and can be stored to be used for another time.
• Change the gas cartridge outdoors and away from other people.

- To refit a previously used gas cartridge, refer to instructions above on how to connect the cartridge. Apply the same care and checking procedures as if fitting a new gas cartridge.

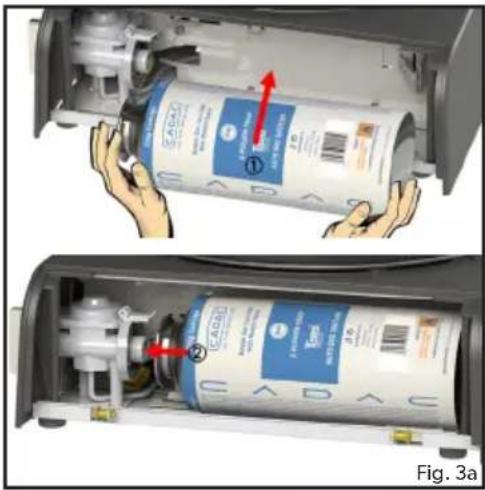

CAV ① ② Fig. 3a

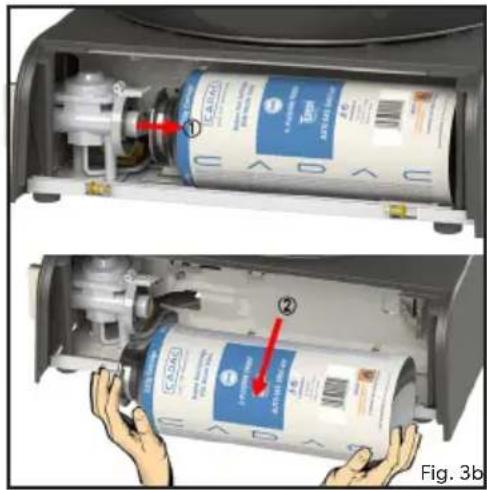

CADA ① ② Fig. 3b

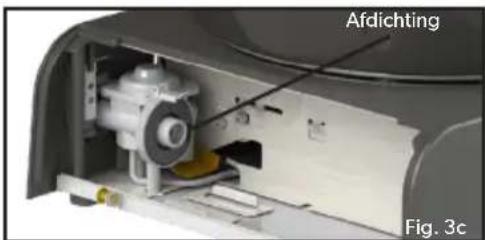

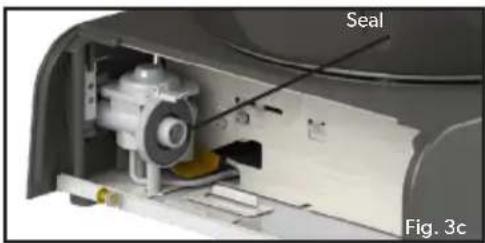

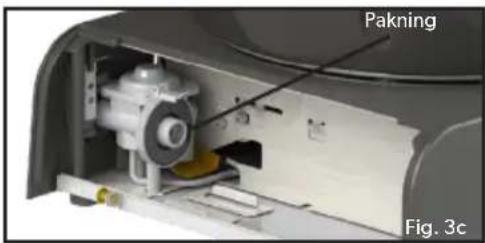

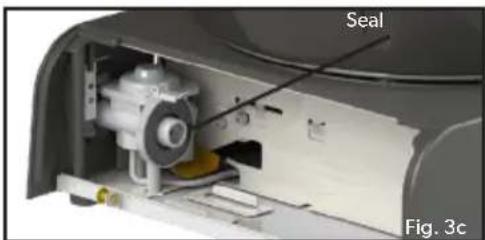

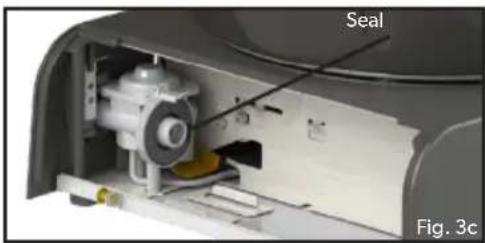

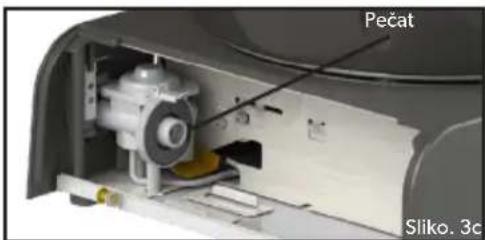

Seal Fig. 3c

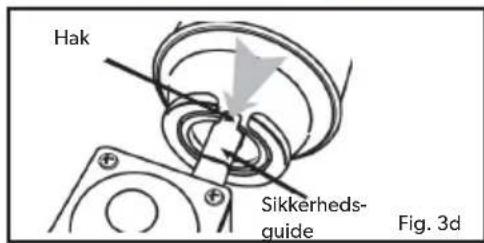

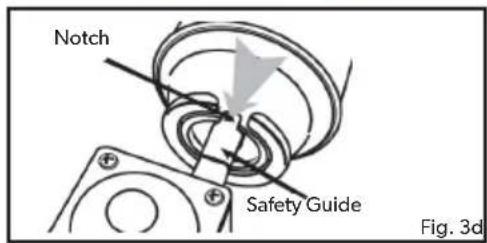

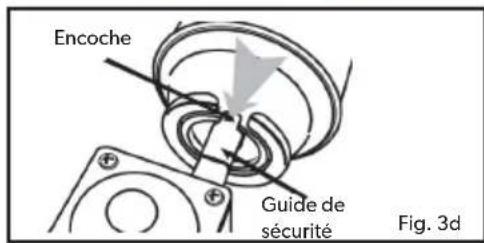

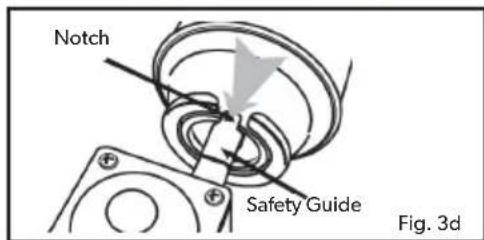

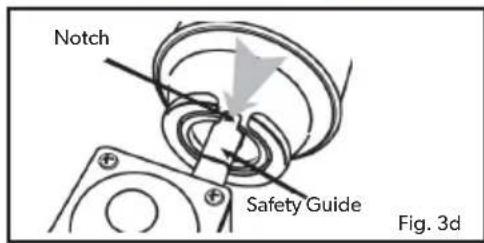

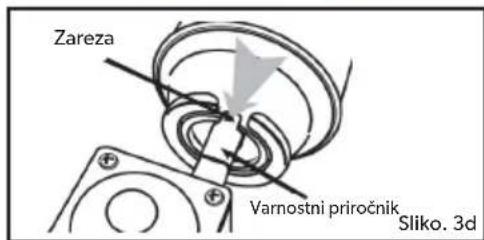

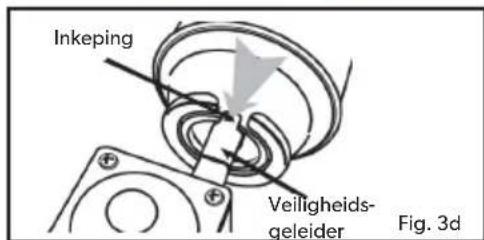

Notch Safety Guide Fig. 3d

3. Operating the Appliance

• When operating this appliance, please take care to ensure that all parts are in good working order and that you have checked for any gas leaks before lighting the appliance with every use.
• Cooking surfaces can simply be placed and are ready to use. No assembly required.
• PLEASE NOTE: Please ensure all protective packaging and plastic are removed from the appliance before use.
  • The appliance is designed for use with cooking vessels of not less than 150mm in diameter and not greater than 300mm in diameter.

Precautions to observe before lighting.

• Use this appliance only on a firm level surface.
  • After prolonged storage, inspect the appliance for any insects and webs, which may affect gas flow.

Lighting the appliance using the piezo

• It is recommended to remove any cooking surfaces when trying to light the appliance. This way it will be easy to see the burner when it is lit.
- To light up the appliance using the piezo igniter, push and turn the control knob in an anticlockwise direction until you hear a click. If the gas does not ignite on the first spark, turn the control knob back to its OFF “•” position. Try again, by pushing and turning the control knob anti-clockwise until you hear a click. If the gas has not ignited in the first two to three seconds you should close the control valve by turing the control knob back to its OFF “•” position.
- Wait approximately thirty seconds to let any accumulated gas within the burner escape. Repeat the above process if necessary until the flame ignites. The flame should normally light up within the first one to two seconds.

Lighting up using a BBQ lighter

- When starting cold, the appliance may be lit from the top prior to fitting the desired cooking surface onto the fat pan. When lighting up a hot appliance, it is recommended that this be done by sticking a barbecue lighter through one of the vent holes underneath the burner, until it is in line with the burner (DO NOT place the BBQ lighter through the large hole directly underneath the burner). Ignite the BBQ lighter. Whilst the BBQ lighter is lit, push and turn the control knob anti-clockwise to light the burner.

General

• Use the control knob to adjust the flame intensity to the desired level by turning the knob clockwise to decrease the flame and anticlockwise to increase the flame.
• When cooking food with a high fat content, flaring may occur if the selected heat setting is too high. Should this happen, turn the heat down until the flaring ceases.
• Do not move the appliance when in use. It is unsafe practice to move the appliance whilst lit and may cause flaring.
• When not in use remove the gas cartridge.

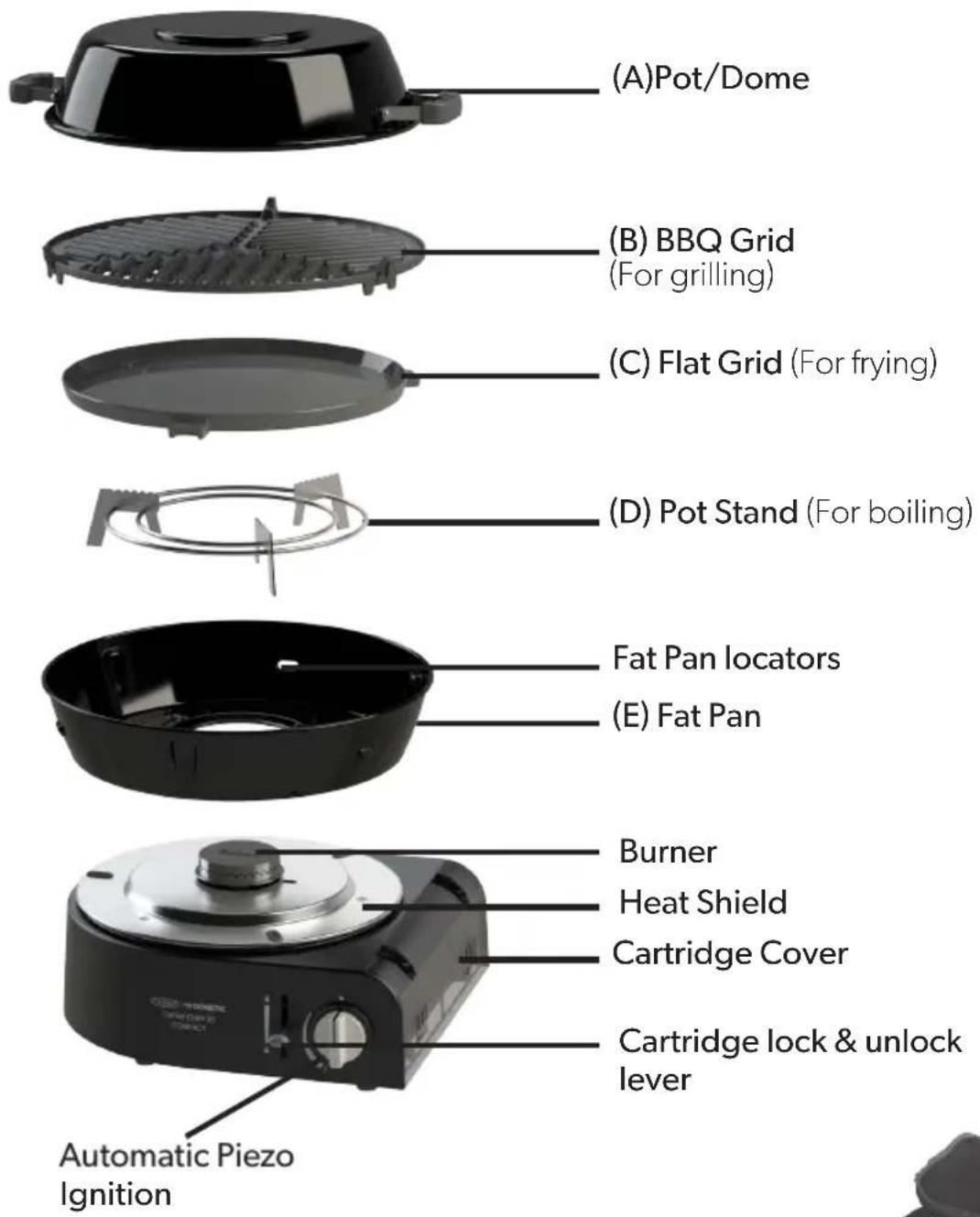

4. Component List

	A B C	D E F
6525L1-10	* * *	* * *
6525L1-20	* * *	* *

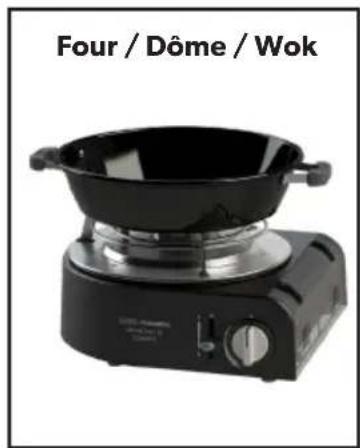

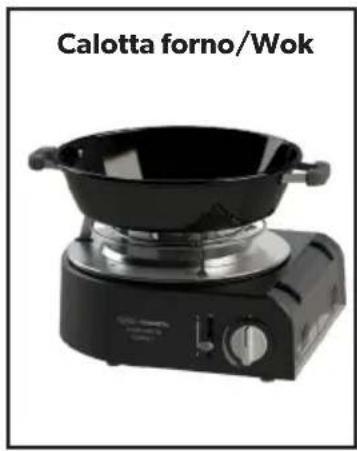

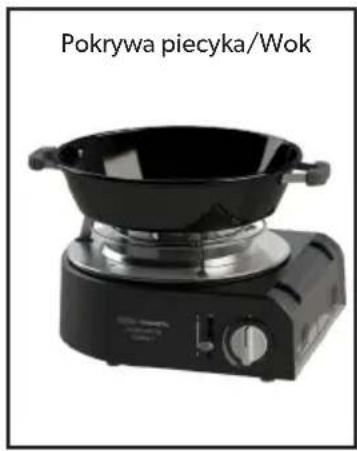

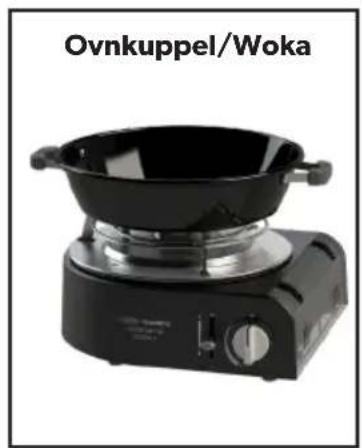

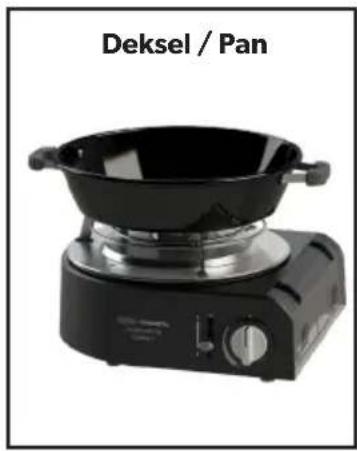

(A)Pot/Dome
(B) BBQ Grid (For grilling)
(C) Flat Grid (For frying)
(D) Pot Stand (For boiling)
Fat Pan locators
(E) Fat Pan
Burner
Heat Shield
Cartridge Cover
Cartridge lock & unlock lever

Black bucket with side handles, no visible text or symbols

(F) Convenient carry bag (included)

5. GreenGrill Cooking Options

Most CADAC | Dometic cooking surfaces feature GreenGrill non-stick ceramic coating which is PFOA-free and non-toxic, allowing for healthier cooking.

To prepare the cooking surface

- To prepare the cooking surface Before first use, it is recommended that you prepare the cooking surface to prevent food from sticking. Apply a thin layer of cooking oil over the entire cooking surface and heat it over medium heat for 2-3 minutes.

Allow the cooking surface to cool before washing it in warm soapy water.

Re-apply a thin layer of oil to the cooking surface. It is now ready for use.

Cleaning your cooking surface

• Always allow cooking surfaces to cool completely before immersing in water.
- Clean your cooking surface with warm, soapy water and a so sponge. Avoid the use of scouring pads.
• To loosen stubborn stains or residues, soak the cooking surface for a few minutes in warm water before attempting to wash.

Maintenance

• After cleaning, we recommend spreading a small amount of oil to the cooking surface before storing to protect the surface against air and moisture.
- Most cooking surfaces are supplied with a convenient storage bag. Place the oiled cooking surface in a plastic bag before storing it in its bag to keep the bag clean and free of any residue.

NOTE

• GreenGrill coating conducts heat better than regular (PTFE) non-stick coatings. Therefore, we recommend using only 75% of the usual power setting.
• To avoid damage to your cooking surface, never leave it on the heat source without a coating of oil.
• We recommend frying with sunflower or rapeseed oil due to their high burning points. The use of olive oil is not recommended due to its lower burning point, which can cause ingredients to stick or burn.

Tip: bring meat or fish to room temperature before frying to prevent sticking.

- The CADAC | Dometic Soft Soak and Soft Soak Brush (sold separately) are ideal cleaning products for GreenGrill cooking surfaces, aiding in soaking and removing stubborn food residue.

Cooking Options

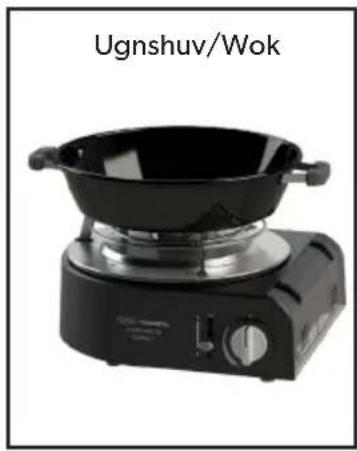

• These are the available cooking options.

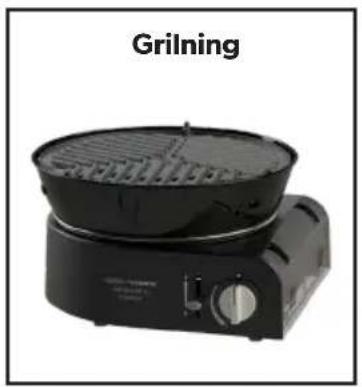

Grilling: This cooking option is ideal for fat-free grilling of chicken, sausages, chops, kebabs, fish or vegetables. For this type of cooking, use the grill plate.

Caution: Please note that when cooking fatty meats some fat will splatter onto the unit which may cause flare-ups. Please use caution when handling such meats. The cooking temperatures are easily adjusted to suit your own requirements by turning the control knob to regulate the degree of heat.

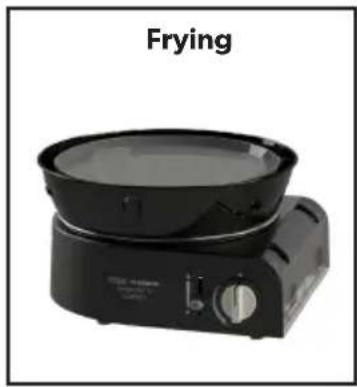

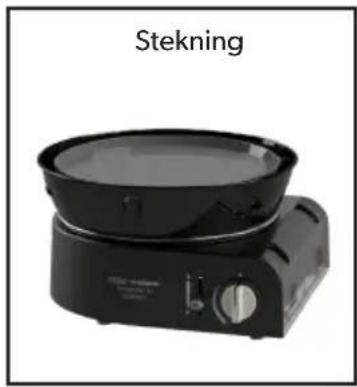

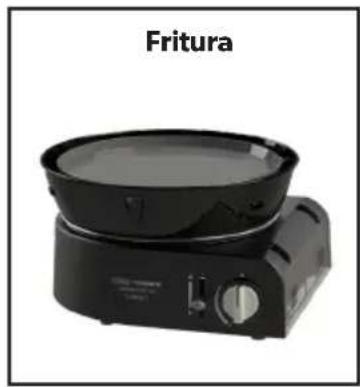

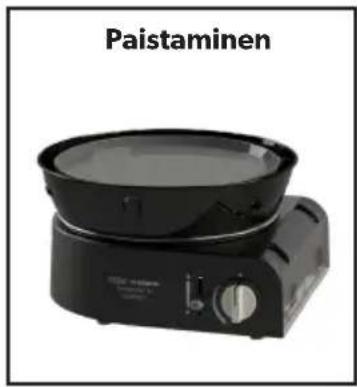

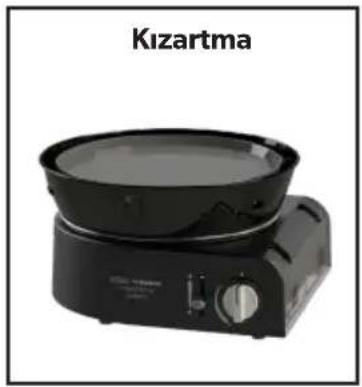

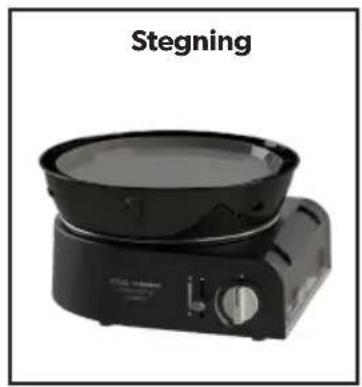

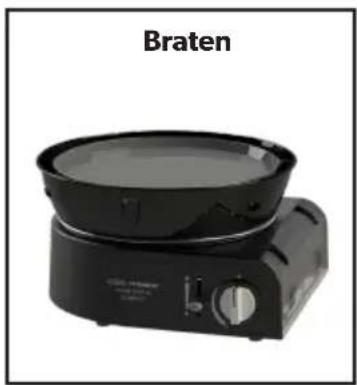

Frying: This option is ideal for stir-fries, fish, breakfast, pancakes, prawns, paella and vegetables. For this type of cooking, use the flat grill. Please note that being a shallow pan, it is not suitable for deep-frying. The easy clean surface encourages the minimum use of fat for healthy cooking.

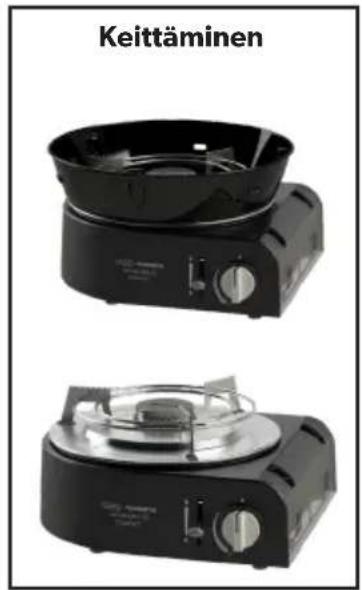

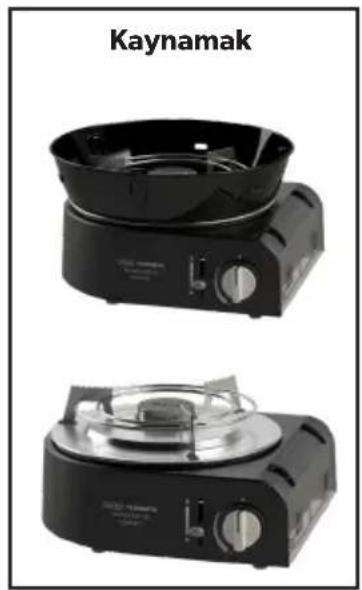

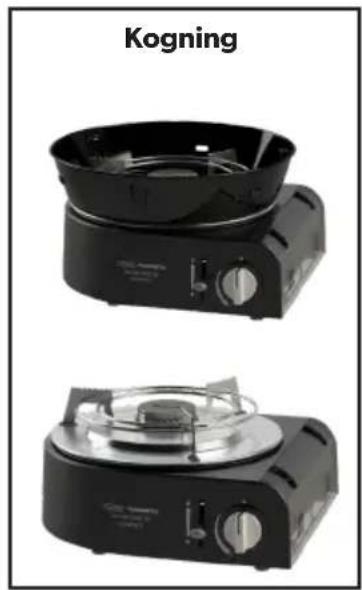

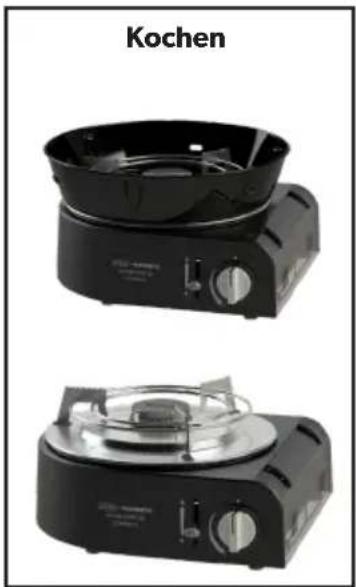

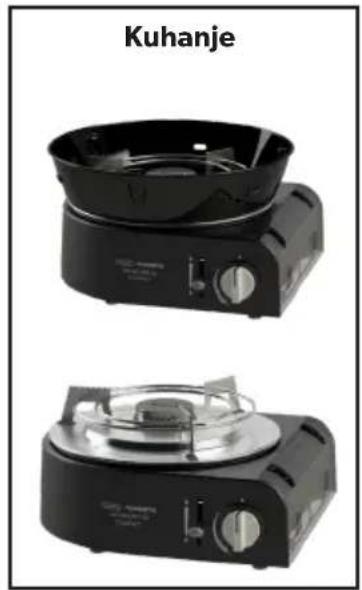

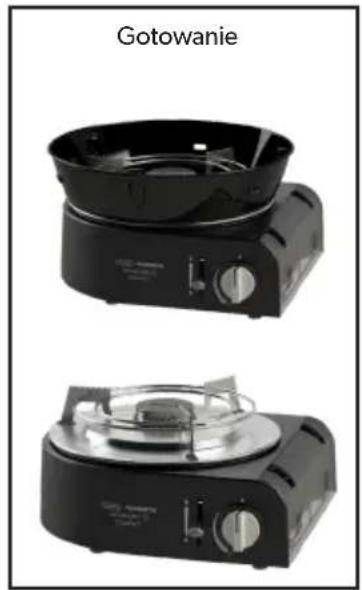

Boiling: For this type of cooking, place the pot stand in its locator grooves ensuring that it is properly seated. Place a suitable pot (not less than 150mm diameter and not more than 300mm diameter). One liter of water will boil in approximately 6 minutes depending on the conditions, size of pot used, etc. Use windshields in case of windy conditions

Note: When using small sized pots do not attempt to use pots with plastic handles as these can get extremely hot.

Paella: This cooking option is ideal for preparing paellas, risottos, pasta dishes, traditional breakfasts etc. The Paella Pan is made from a high quality pressed aluminium which allows for excellent heat distribution and retention.

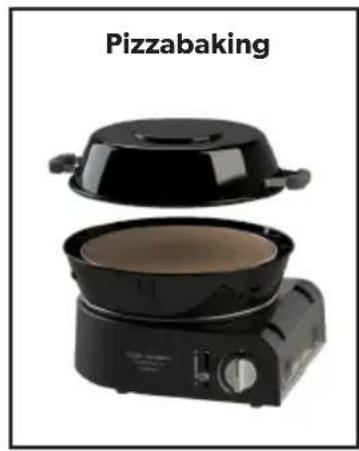

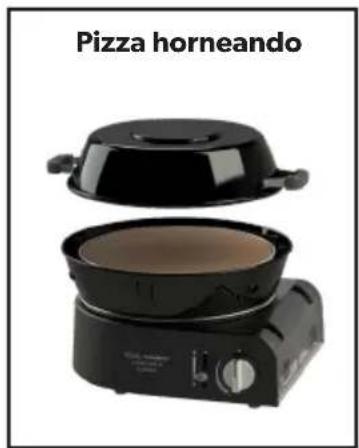

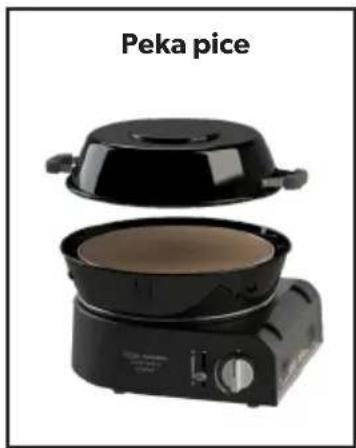

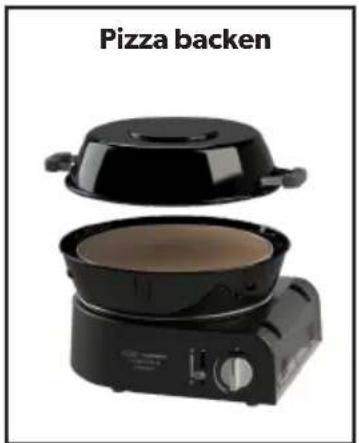

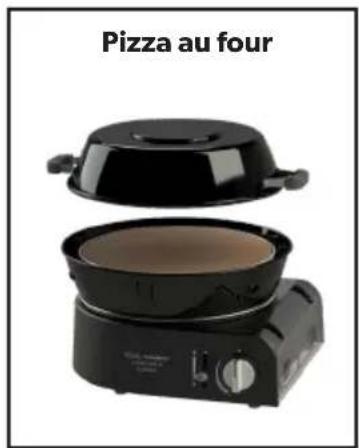

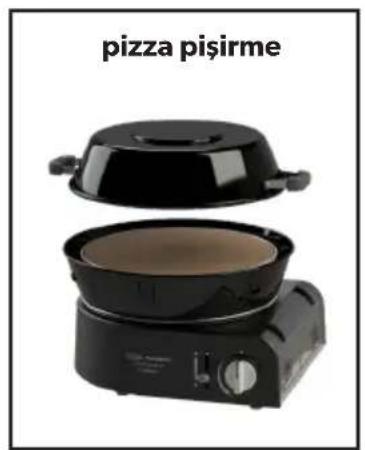

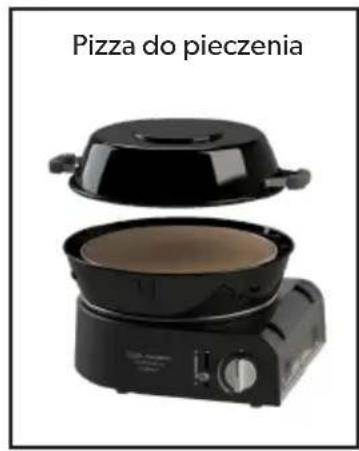

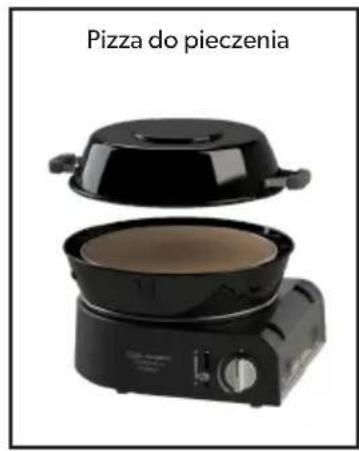

Pizza baking: This cooking option is ideal for preparing pizzas, flat breads etc. The pizza stone is 12mm thick that can withstand temperatures of up to 300°C and includes a pan. The dome needs to be used in order to create the baking effect.

Coffee: This option is ideal for brewing a hot cup of coffee. Ideal for anytime, anywhere.

The following are sold separately as optional accessories, and may not be available in all regions. Contact your local supplier for availability.

(Paella/Frying)

Circular black grater with a side panel showing internal structure (no text or symbols)

BBQ 2 Plancha 30 (Grilling/Frying)

Pizza Stone Pro 30 (Pizza making)

Soft Soak BrushPaella Pan 3C

Plain gray circular basin with a small handle, no text or symbols visible.

Soft Soak 30 (for easier cleaning)

Lid Coffee Pot Stand

EN

Barbecue grater with a black top and side-mounted base (no visible text or symbols)

Black frying pan with a side-mounted dish, labeled 'Frying' (no other text or symbols visible)

Two black portable steam cookers with visible control knobs and heat sinks, labeled 'Boiling' (no additional text or symbols)

Black pizza baking pan with open lid and side dish (no text or symbols visible)

Black oven heating appliance with a wok and two thermos (no visible text or symbols)

6. Cleaning

• It is recommended to clean your appliance after every use. This will prolong the life of your appliance.
• Allow the appliance to cool down before you clean it.
• Use a damp cloth wrung out in a solution of soapy water to clean exterior surfaces.
  • To clean the stove body, simply wipe with a damp cloth using a little detergent, if necessary.
  • DO NOT IMMERSE IN WATER as this will allow water to get into the burner tube causing the appliance to malfunction.
• The grill plate is coated with a tough durable ceramic non-stick coating that has been used with great success on some of the best cookware in the world. Never the less, taking care of it can help you to enjoy extra years of healthy, easy, non-stick cooking.
• Whilst the ceramic non-stick coating is very durable, it can easily be damaged by the use of metal cooking utensils. It is therefore recommended that only plastic or wooden utensils be used when cooking.
  • Always allow the grill/flat plate to cool before immersing it in water.
• Make sure that no water gets onto the burners or pilot/light area. Wipe the appliance completely dry before use.
• Do not use abrasive cleaners as they may damage the surfaces.
• Clean the appliance after each use. After cleaning recondition the cooking surface with a light wipe of oil.
• Do not use any high-pressure steam equipment or a water jet to clean the appliance.
• Note: For stubborn stains, CADAC oven cleaner may be used.

7. Storage

• Always allow the unit to cool down and be cleaned before storing.
- Turn off the gas supply to the appliance, disconnect and remove the gas supply from the appliance.
- Never store an appliance with the gas supply connected, this is an unsafe practice.
- Store the appliance and gas supply in a well-ventilated area away from combustible material. Storage of cylinders should preferably be outdoors and must NOT be in a basement.

8. Maintenance & troubleshooting

Maintenance

• If you clean and maintain your appliance on a regular basis, the life of your appliance will extend and the possibility of problems will decrease.
  • We recommend the service of your appliance to be every twelve (12) months by a service agent to ensure continued efficient operation.
• This appliance must only be serviced by an authorized person.
• Check your connections regularly for any signs of leaks and every time the gas cylinder is re-filled or fitted to the appliance with every use.

Troubleshooting

In the case of a spattering flame or jet blockage:

- Clean your burner ports in case of an over spill.

• Should the appliance operate abnormally after storage and all checks have not isolated the problem, the jet may be blocked. A blocked jet would be indicated by a weaker yellowish flame or no flame at all in extreme cases. Under these circumstances it will be necessary to remove and check and thoroughly clean out any foreign matter which may have gathered in the appliance.
• Should a problem persist, we recommend contacting your local authorised service agent.

9. Warranty

• The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see www.cadacinternational.com/support).
• For repair and warranty processing, please include the following documents when you send in the product: A copy of the receipt with purchasing date, A reason for the claim or description of the fault.
• Note that self-repair or non-professional repair can have safety consequences and might void the warranty.

10. Spares and Accessories

• Always use genuine spares as they have been designed to give optimum performance.

Spares
Accessories

Item Spares no		Item Spares no		Item Spares no
	6540-SP011		6525-SP001		98425
	6540-SP020		6525-SP002		6540-100
	6540-SP002		6525-SP003		6540-200
	6540-SP004		6525-SP004		6540-600
	6540-SP003				6540-701
	6540-SP017				8640
	6540-SP005-V2				203-100
	6540-SP019				98326

Black cylindrical object with a lid and two side connectors (no text or symbols visible)

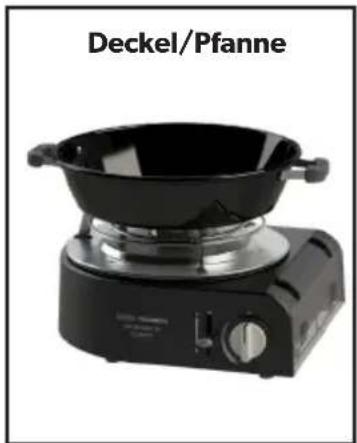

(A)Deckel/Pfanne

Circular metal grate or filter structure with no visible text or symbols

(B) Grillrost 30

Circular black object with a small protrusion at the bottom, resembling a lid or pan (no text or symbols visible)

(C) Flacher Rost

Pure diagram of a circular loop with directional arrows, no text or symbols present

(D) Topfständer

Black plastic enclosure with circular opening and side slots (no text or symbols)

Fettauffangschale- locators

(E)Fettauffangschale

Close-up of a black portable electric stove with a rotary knob and control panel (no visible text or symbols)

Black cylindrical container with two side handles, resembling a trash bin or bucket (no text or symbols visible)

Circular black grater with a side panel showing internal structure (no text or symbols)

Soft Soak BrushPaella Pan 3C

BBQ 2 Plancha 30 Pizza Stone Pro 30

Plain gray circular basin with a small handle, no text or symbols visible

Grillen portable grill with a black top and side-mounted base (no visible text or symbols)

Black Braten portable electric stove with a large lid and control panel (no visible text or symbols)

Two black portable cookers with steam covers, one emitting a fan (no visible text or symbols)

Black and white photo of a pizza backen with open lid and side dish (no text or symbols visible)

Black electric stove with a black pan and side-mounted heating unit (no visible text or symbols)

6. Reinigung

Diagram showing two steps of a spray can holder with labeled components and red arrows indicating motion direction.

Pakning Fig. 3c

Hak Sikkerheds- guide Fig. 3d

Black ceramic pot with a lid and side handles (no text or symbols visible)

(A) Låg/kuppel

Circular metal grate with evenly spaced slots and a central slot (no text or symbols visible)

Circular metal tray with two side handles, no visible text or symbols

Pure diagram of a coiled cable or loop with two metal components, no text or symbols present.

(D) Grydestativ (til kogning)

Black circular mechanical component with a central hole and a handle, shown without any text or symbols.

Exterior view of a portable electric stove with a rotary top and side grates (no visible text or symbols)

Black cylindrical bucket with side handles, no visible text or symbols

(F) Praktisk bæretaske (inkluderet)

5. GreenGrill tilberedningsoverflader

De fleste tilberedningsoverflader på CADAC | Dometic har GreenGrill non-stick keramisk belægning, som er PFOA-fri og ugiftig og giver sundere madlavning.

Circular black plastic fan with a gridded grille and side slots (no text or symbols)

BBQ 2 Plancha 30
(til stegning/grillning)

Pizza Stone Pro 30
(til pizzabagning)

Soft Soak Brush

Plain gray circular basin with a small handle (no text or symbols)

Soft Soak 30
(for lettere rengøring)

Låg

Kaffekandestander

DA

Grinding grater with a black top and side-mounted base (no visible text or symbols)

Black electric stove with a large lid and control panel (no visible text or symbols)

Two black portable steam cookers with visible branding and control knobs, labeled 'Kogning' (no additional text or symbols)

Black and white photo of a pizza bagning with open lid and side pan (no text or symbols visible)

Black and silver photo of a cooking pot on a portable stove (no visible text or symbols)

6. Rengøring

Black ceramic pot with lid and side handles (no text or symbols visible)

(A) Olla/Cúpula

Circular black metal grate or filter component with internal grating (no text or symbols visible)

(B) Parrilla de barbacoa (para asar a la parrilla)

Circular black object with a small protrusion at the bottom, resembling a lid or pan (no text or symbols visible)

Pure electrical circuit lines without any symbols

Black plastic enclosure with circular opening and central hole (no text or symbols visible)

Black and white photo of a portable electric stove with control panel and side grilles (no visible text or symbols)

Black cylindrical bucket with handles, no visible text or symbols

Circular black filter or grating device with a mesh grille and mounting holes (no text or symbols visible)

Circular gray basin with a small handle, no visible text or symbols

Soft Soak 30 (para facilitar la limpieza)

Tapa

Barbacoa portable stove with a black lid and control panel (no visible text or symbols)

Black frying pan with a side-mounted stand, labeled 'Fritura' above (no other text or symbols visible)

Two black electric cookers with steam covers, one labeled 'Hirviendo' (no other text or symbols visible)

Black and white photo of a pizza stove with open lid and side pan (no visible text or symbols)

Black and white photo of a Horno/Wok electric stove with a wok on top (no visible text or symbols)

6. Limpieza

Diagram showing two steps of a spray can holder with labeled components and red arrows indicating motion direction.

Joint Fig. 3c

Black ceramic pot with a lid and two side handles (no text or symbols visible)

(A) Pot/Dôme

Circular metal grate or filter component with evenly spaced slots and a central triangular slot (no text or symbols visible)

Circular metal tray with a small handle and two handles, no text or symbols visible.

(C) Grille plate (pour la friture)

Pure diagram of a coiled cable or coil with directional arrows, no text or symbols present

(D) Support de pot

Black circular mechanical component with central hole and side slots (no text or symbols visible)

Exterior view of a black portable electric stove with control panel and rotary dial (no visible text or symbols)

Black cylindrical bucket with side handles, no visible text or symbols

(F) Sac de transport pratique (Inclus)

5. Surfaces de cuisson GreenGrill

Circular black grater with side grating and ventilation slots (no text or symbols)

BBQ 2 Plancha 30 (pour frire/griller)

Plain gray circular basin with a small handle, no text or symbols visible

Barbecue grater with a flat-screen lid and side-mounted stand (no visible text or symbols)

Black portable electric stove with a large lid and control panel (no visible text or symbols)

Two black electric stovels with steamers, one labeled 'Ébullition' (no other text or symbols visible)

Black and white photo of a pizza cooker with open lid and side pan (no text or symbols visible)

Black four/ double-breasted boiler with a wok and control panel (no visible text or symbols)

6. Nettoyage

Black ceramic pot with a lid and two side handles (no text or symbols visible)

(A) Pentola / Calotta

Circular metal grate or filter component with evenly spaced slots and a central slot (no text or symbols visible)

(B) Griglia per barbecue (per grigliate)

Circular metal tray with a small protrusion at the bottom right (no text or symbols visible)

Pure electrical circuit lines without any symbols

Black plastic enclosure with circular cutouts and a handle (no text or symbols visible)

Exterior view of a black portable toaster with control knob and rotary dial (no visible text or symbols)

Bruciatore

Scudo termico

Black cylindrical bucket with handles, no visible text or symbols

Circular black object with a gridded side and a grid pattern, no visible text or symbols.

Plain gray circular basin with a small handle, no text or symbols visible

Per friggere

Two black electric cookers with steam covers, one emitting a per-bollire (no visible text or symbols on the devices themselves)

Black and white photo of a pizza grater with open lid and side pan, no visible text or symbols

Calotta forno/Wok electric stove with black and metallic casing (no visible text or symbols)

6. Pulizia

Diagram showing two steps of a spray can being packed inside a machine, with labeled components and red arrows indicating motion.

Afdichting Fig. 3c

Inkeping Veiligheids- geleider Fig. 3d

Black bucket with side handles, no visible text or symbols

Circular black grater with a side panel and grid pattern, no text or symbols visible

BBQ 2 Plancha 30
(om te frituren/grillen)

Plain gray circular basin with a small handle (no text or symbols visible)

Barbecueën portable stove with a black grater and side-mounted heater (no visible text or symbols)

Black portable kitchen appliance with a round top and side-mounted base, labeled 'Bakken' above (no other text or symbols visible)

Two black Koken portable cookers with steam covers, no visible text or symbols on the devices themselves.

Black pizza bakken oven with open lid and side panel (no visible text or symbols)

Exterior view of a black electric stove with a wok and side-mounted heating unit (no text or symbols visible)

6. Schoonmaken

Black ceramic pot with a lid and side handles (no text or symbols visible)

(A) Gryte / Lokk

Circular metal grate with evenly spaced slots and a central triangular fin (no text or symbols)

(B) BBQ-rist (til grilling)

Circular black plastic tray with a small protrusion at the bottom (no text or symbols visible)

(C) Flatt rutenett (til steking)

Pure electrical circuit lines without any symbols

(D) Grytestativ (For koking)

Black circular mechanical component with central hole and side slots (no text or symbols visible)

Exterior view of a black electric stove with control panel and side door (no visible text or symbols)

Brenner

Varmeskjold

Patrondeksel

Automatisk Piezo-tenning

Black bucket with side handles, no visible text or symbols

Circular black object with a gridded surface and grid pattern, no visible text or symbols

BBQ 2 Plancha
(Til steking/grilling)

Pizza Stone Pro 30
(For pizzabaking)

Soft Soak Brush

Plain light blue circular basin with a small handle (no text or symbols)

Grilling appliance with a black grater and two portable stove (no visible text or symbols)

Steaming electric stove with black appliance and control panel (no visible text or symbols)

Two black portable cookers with steam covers, one emitting a cup of liquid (no visible text or symbols)

Black and white photo of a pizzabaking toaster with open lid and side panel (no text or symbols visible)

Black and silver photo of a cooking pot on a portable stove (no visible text or symbols)

6. Rengjøring

Diagram showing two steps of a spray can being packed inside a device, with labeled components and red arrows indicating motion.

Seal Fig. 3c

Notch Safety Guide Fig. 3d

Black ceramic pot with lid and side handles (no text or symbols visible)

(A) Garnek/kopuła

Circular metal grate or filter structure with no visible text or symbols

Circular metal tray with a small protrusion at the bottom (no text or symbols visible)

Pure electrical circuit lines without any symbols

Black plastic enclosure with circular opening and side slots (no text or symbols visible)

Exterior view of a modern kitchen electric stove (no visible text or symbols)

Palnik

Osłona termiczna

Pokrywa kasety

Black bucket with side handles, no visible text or symbols

Circular black plastic fan with a grating and side slots, no text or symbols visible

Plain light blue circular basin with handles, no text or symbols visible

Grillowanie grill with two electric heaters and a flat-screen heater (no visible text or symbols)

Black rectangular kitchen appliance with a cylindrical top and side-mounted base, labeled 'Smażenie' (no other text or symbols visible)

Two black electric cookers with steam covers, one open and one closed, labeled 'Gotowanie' (no additional text or symbols visible)

Black pizza cooker with open lid and side panel, no visible text or symbols on the device itself

Pokrywa piecyka/Wok electric stove with black and metallic casing (no visible text or symbols)

6. Czyszczenie

Black ceramic pot with a lid and two side handles (no text or symbols visible)

(A) Gryta / Huv

Circular metal grate with radial slots and a central handle (no text or symbols visible)

Circular metal tray with a small protrusion at the bottom (no text or symbols visible)

Pure diagram of a coiled cable or wire with two connectors and directional arrows, no text or symbols present.

Black plastic cylindrical device with circular base and central hole (no text or symbols visible)

Fettpanne -sökare

(E) Fettpanne

Exterior view of a black and silver portable electric stove (no visible text or symbols)

Brännare

Värmesköld

Kassettkåpa

Black bucket with two handles, no text or symbols visible

Circular black plastic fan with a side grout and grid pattern (no text or symbols)

Plain light blue circular basin with handles, no text or symbols visible

Grill heating appliance with a black top and side-mounted heater (no visible text or symbols)

Black electric stove with a flat top and side-mounted base (no visible text or symbols)

Two black electric cookers with visible steam covers and control knobs, labeled 'Kokning' (no additional text or symbols)

Pizza do pieczenia

Black and silver portable stove with a black bowl on top, labeled 'Ugnshuv/Wok' (no other text or symbols visible)

6. Rengöring

Diagram showing two steps of a CADA-branded spray can being opened, with labeled components and red arrows indicating motion.

Pečat Sliko. 3c

Black ceramic pot with lid and side handles (no text or symbols visible)

(A) Kupola

Circular black metal grate or filter component with no visible text or symbols

Circular metal tray with two side handles, no visible text or symbols

Pure electrical circuit lines without any symbols

Black circular mechanical component with central hole and side slots (no text or symbols visible)

Lokatorji Fat Pan

(E) Pan maščobe

Close-up of a black Al-SONETK portable electric stove with control panel and rotary dial (no visible text or symbols)

Gorilnik

Toplotni ščit

Pokrov kartuše

Samodejni piezo vžig

Black cylindrical bucket with side handles, no visible text or symbols

(F) Priročna torba za nošenje

(vključeno)

5. Možnosti kuhanja GreenGrill

Circular black grater with side grates and a mesh grille (no text or symbols)

BBQ 2 Plancha 30 (za cvrtje/žar)

Pizza Stone Pro 30 (za peko pice)

Soft Soak Brush

Plain gray circular basin with a small handle (no text or symbols)

Black cylindrical stove with a lid and control panel, labeled 'Cvrtje' (no other text or symbols visible)

Two black Kuhanje cookers with steam covers, one open and one closed (no visible text or symbols)

Exterior view of a Peka pie cooker with open lid and side dish (no text or symbols visible)

Black and white photo of a Wok electric stove with a black pan on top (no visible text or symbols)

6. Čiščenje

Diagram showing two steps of a spray can being opened into a container, with labeled parts and red arrows indicating motion.

Seal Fig. 3c

Notch Safety Guide Fig. 3d

3. Laitteen käyttö

Black plastic electrical contactor with a circular top and side connectors (no text or symbols visible)

(A) Pannu/Kupu

Circular black metal grate or filter component with radial slots and mounting holes (no text or symbols visible)

Circular black object with a small protrusion at the bottom right (no text or symbols visible)

(C) Litteä ritilä
(paistamiseen)

Pure diagram of a coiled cable or wire with directional arrows, no text or symbols present

Black plastic cylindrical object with internal cavity and mounting holes (no text or symbols)

Close-up of a black electric stove with a rotary top and control panel (no visible text or symbols)

Black bucket with handles, no visible text or symbols

Circular black object with a gridded side and a grid pattern, resembling a fan or vent (no text or symbols visible)

Plain gray circular basin with a small handle (no text or symbols)

Grillaus portable grater with a black top and side-mounted heater (no visible text or symbols)

Black portable stove with a large lid and control panel (no visible text or symbols)

Two black industrial cookers with steam covers, one emitting a lid (no visible text or symbols)

Black and white photo of a Pizzan leivonta cooktop with open lid and side pan (no text or symbols visible)

Black and silver photo of a Uunikupu / wokki electric stove with a bowl on top (no visible text or symbols)

6. Puhdista

Black ceramic pot with a lid and two side handles (no text or symbols visible)

(A) Tencere/Kubbe

Circular black metal grate with slats and a central triangular fin (no text or symbols)

Circular black object with a small protrusion at the bottom, resembling a lid or pan (no text or symbols visible)

Pure electrical circuit lines without any symbols

Black plastic enclosure with circular opening and internal slots (no text or symbols)

Close-up of a black portable electric stove with a rotary knob and control panel (no visible text or symbols)

Brülör

Isi kalkanı

Kartuş Kapağı

Black cylindrical bucket with two side handles, no visible text or symbols

Circular black object with a gridded base and side protrusions, resembling a filter or vent (no text or symbols visible)

Plain light blue circular basin with a small handle (no text or symbols)

Barbekü portable stove with a black top and side grater (no visible text or symbols)

Black Kizartma portable stove with a large lid and control panel (no visible text or symbols)

Two black industrial cooktop appliances with visible steamers and control knobs, labeled 'Kaynamak' (no other text or symbols)

Black pizza grater with open lid and side dish, no visible text or symbols on the device itself

114 Deanfield Court, Link59 Business Park

Clitheroe, Lancashire, BB71QS

United Kingdom

Tel: [phone]

Email: [e-mail]

YOUR LOCAL DEALER:

www.cadacinternational.com/support
