USER MANUAL Cadac Safari Chef 30 LP DOMETIC

Black outdoor cooking pot with a blue water droplet on the side, mounted on a tripod stand (no visible text or symbols)

USER INSTRUCTIONS

EN DE DKES FR IT NL NO PL SESI FITR □□□□□

Explanation of Symbols

Recycling packaging material. Place the packaging material in the appropriate recycling waste bins wherever possible.

CAUTION

Provide ample ventilation. This gas appliance consumes air (oxygen). Do not use this appliance in an unventilated space to

avoid endangering your life. If still more gas appliances and/or occupants using gas are added to the space, additional ventilation must

be provided.

IMPORTANT

Read these instructions carefully so as to familiarise yourself with the appliance before fitting the appliance to a gas cylinder.

Retain these instructions for future reference.

1. Safety information

These instructions are for your safety and to help you avoid risk of injury and/or damage. All warranties will become void if you do not follow these instructions.

• This appliance complies with EN 498:2012, EN 484:2019.
- Gas appliances require ventilation for efficient performance and to ensure the safety of users and other persons in close proximity, do not use the appliance in an unventilated area. It is intended for outdoor use only.
- Ensure that the appliance is used in a well-ventilated area.
• WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.
- Read these instructions carefully before using the appliance.
• FOR OUTDOOR USE ONLY!

Assembly and use

• Do not use the appliance if it has damaged or worn seals.
• Do not use an appliance that is leaking, damaged or which does not operate properly.
• Handle the appliance with care, do not drop it.
  • Always operate the appliance on a firm level surface.
• Ensure that the assembled product is stable and does not rock.
• This appliance is not suitable for installation or connection to a reticulated gas supply.
• This appliance must be kept away from flammable materials during use. Minimum safe distances are: Above the appliance 120cm. At the rear and sides 60cm. (fig 1)
• When using a pot, the minimum recommended pot size is 150mm and maximum recommended size is 300mm.
• Do not use any cooking surface or pot that is larger than the recommended size. Our cooking surfaces have been specifically designed to allow gas combustion to escape and the closure of this space could affect the performance of this appliance.
• Do not modify this appliance, any modification may be dangerous. Do not use it for anything for which it has not been designed.
• Do not move the appliance during use.
• Never leave the appliance unattended when lit.
• During use, parts of the appliance will become hot (particularly the burner). Avoid touching hot parts with bare hands. The use of gloves is recommended.
• Ensure the pot stand /cooking surfaces are correctly placed when using the appliance.

Hose

• The hose must be checked for wear or damage before every use and before connecting to the gas container.
• Do not use the appliance if it has a damaged or worn hose. Replace the hose.
• Do not twist or pinch the hose.
• The hose length should be no less than 0.8m and shall not exceed 1.5m. Replace when the hose is damaged or shows signs of brittleness or cracks.

Gas Container

• Gas is supplied to the unit via a hose and regulator, connected to a gas cylinder or a CADAC Power Pak. The CADAC Power Pak is a unit that takes two or more gas cartridges. Note: hose, regulator and Power Pak are not supplied with the appliance.
• IT COULD BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CYLINDERS OR GAS CARTRIDGES (WHEN USING THE POWER PAK).
• This appliance must only be used with an approved hose and regulator.
  • Only to be used with a gas cylinder that does not exceed 500mm in height (not including the regulator) and 350mm in width.
• Ensure that the gas container is fitted or changed in a well-ventilated location, preferably outdoors, away from any sources of ignition such as naked flames, pilots, electric fires and away from other people.
• Keep gas containers away from heat and flame. Do not place on a stove or any other hot surface.
• Refillable containers are to be used only in the upright position so as to ensure proper fuel withdrawal. Failure to adhere to this may cause liquid discharge from the gas container resulting in a dangerous operating conditions.
• Do not try to remove the gas container whilst the appliance is in operation.
• The gas container must be disconnected from the appliance after use or when in storage.

Light back

• In the event of light back (where the flame burns back and ignites inside the burner or venturi housing), immediately turn off the gas supply by firstly closing the control valve on the gas cylinder and then the appliance valve. After the flame is extinguished, remove the regulator and check the condition of the seal; replace the seal if in doubt. Re-light the appliance.
• Should the flame persistently light back, return the product to your authorized repair agent.

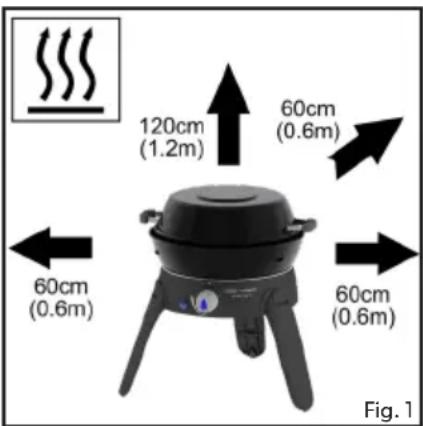

120cm (1.2m) 60cm (0.6m) 60cm (0.6m) 60cm (0.6m) Fig. 1

EN

Leaks

- If there is a gas leak on your appliance (smell of gas), immediately turn off the gas supply by turning the control knob clockwise to the "OFF" position and take it into a flame free location where the gas leak may be detected and stopped. If you wish to check for gas leaks on your appliance, do it outside. Do not try to detect gas leaks using a flame; use soapy water.

How to check the appliance is connected to the gas supply in a sound fashion

- It is important that all gas connections have been correctly connected to prevent any gas leaks.

- The correct way is to smear the joint, i.e. where the gas container connects to the appliance, with soapy water. Turn the appliance control knob slightly anti-clockwise to turn the gas on. If bubbles form, then there is a gas leak. Immediately turn the gas off and disconnect the gas supply from the appliance. Check that all the connections are properly fitted. Check that the seal is in place and in good condition before connecting the gas supply. Re-check with soapy water after refitting the gas supply.

- If a gas leak persists, return the product to your local dealer for inspection/repair.

6540L1
Country of Use	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK & SI		PL	BE, CY, DK, EE, FR, FI, HU, IT, LT, NL, NO, SE, SI, SK, RO, HR, TR, BG, IS, LU, MT, & ZA	AT, CH, DE & SK
Appliance Categories	I_3+(28-30/37)		I_3B/P(37)	I_3B/P(30)	I_3B/P(50)
Allowable gasses	Butane	Propane	Butane, Propane or their mixture
Gas Pressure	28-30mbar	37mbar	37mbar	28-30mbar	50mbar
Jet Number	0.65		0.59 0.65	0.56
Nominal Usage	130g/hr		130 g/hr	130g/hr	130 g/hr
Gross nom. heat input	1.8kW		1.8 kW	1.8kW	1.8 kW

Country Name and Abbreviations
AE = United Arab Emirates AL =	Albania AT = Austria BE =	Belgium CH = Switzerland
CZ = Czech Republic DE = Germany	DK = Denmark ES = Spain FI = Finland
FR = France	GB = United Kingdom	GR = Greece	HR = Croatia	IT = Italy
JP = Japan	KR = Korea	NL = Netherlands	NO = Norway	PL = Poland
PT = Portugal	RO = Romania	RU = Russia	RS = Serbia	SI = Slovenia
SK = Slovakia	SE = Sweden TR = Turkey	ZA = South Africa

I 3B/P (30), I 3+ (28-30/37) and I 3B/P (37), Appliance categories: (DK, FI, NO, NL, SE, AT, DE, BE, ES, FR, IE, IT, PT, GB, CH)

Push an approved hose onto the valve tailpiece until it is properly seated. On the other end, attach a suitable low pressure regulator. I3B/P(30): 30mbar Butane configurations regulator or 30mbar Propane configurations regulator or 30mbar butane/propane mixture configuration regulator.

I3B/P(37): 37mbar Butane configurations regulator or 37mbar Propane configurations regulator or 37mbar butane/propane mixture configuration regulator.

13+(28-30/37): 30mbar Butane configurations regulator or 37mbar Propane configurations regulator.

Again making sure that the hose is properly seated. The type of hose used shall comply with the relevant EN standard and locate requirement.

I 3B/P (50) Appliance category: (AT, DE, SK, CH)

I3B/P(50): 50mbar Butane configurations regulator or 50mbar Propane configurations regulator or 50mbar butane/propane mixture configurations regulator.

Screw a hose with the correct threaded fittings on each end, onto the left hand 1/4" BSP thread of the valve. Attach a suitable 50mbar low-pressure regulator on the end of the hose. The hose assembly used must comply with DIN 4815 part 2 or equivalent.

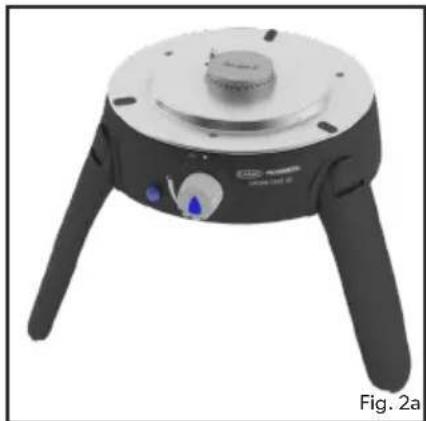

2. Assembling the appliance

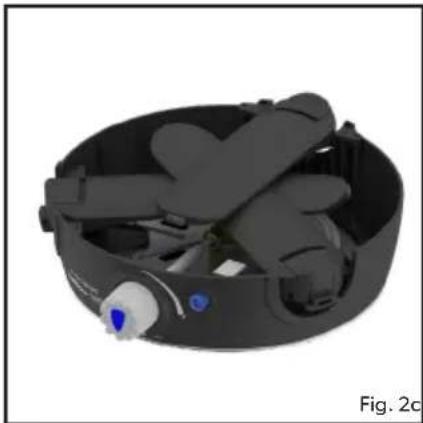

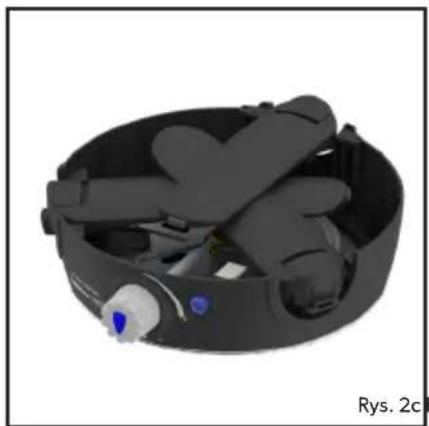

• WARNING: The legs are spring loaded. Opening and closing of the legs must be done in a controlled manner to avoid personal injury or damage to your Safari Chef.

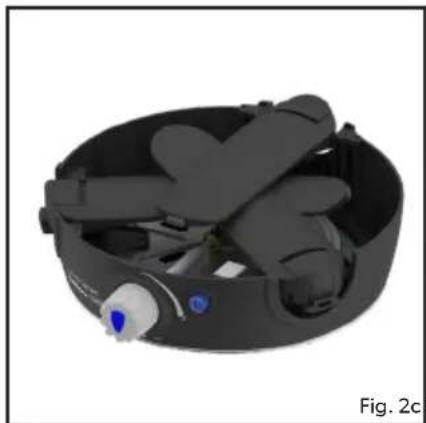

• To open the legs, turn the unit upside-down and hold the legs down while lifting each leg individually (Fig. 2c). You will hear a "click" if the leg(s) has located correctly (Fig. 2a).

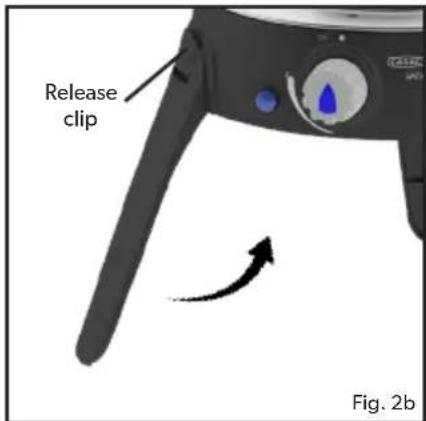

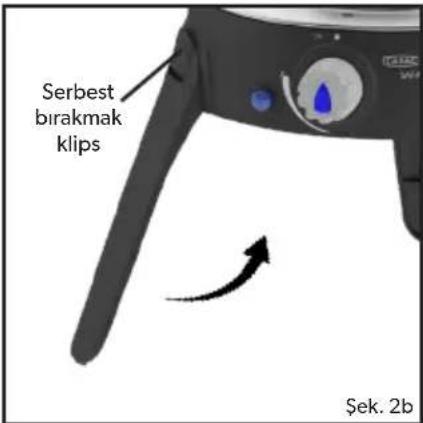

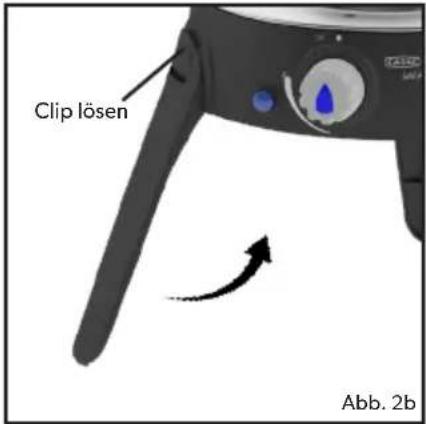

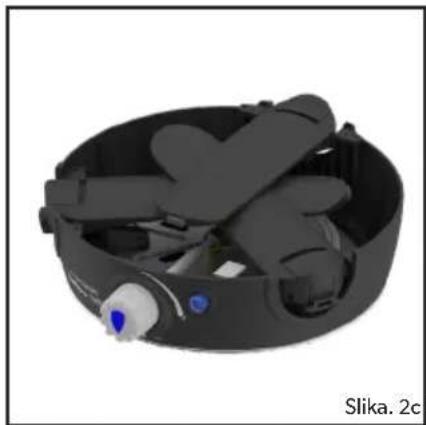

• To fold the legs back, securely hold the leg and push the leg release clip down (Fig. 4b). Then push the legs in-ward to its closed position (Fig. 2c). This needs to be done sequentially to optimize space. First the right front leg (1), then the left front leg (2), and lastly the rear leg (3) (as seen in Fig. 2d).
• Before connecting the gas supply, firstly check that the appliance valve is in the off position by turning the control knob fully clockwise (See Fig. 4).

Top-down view of a portable gas stove with three legs and control knob (no visible text or symbols)

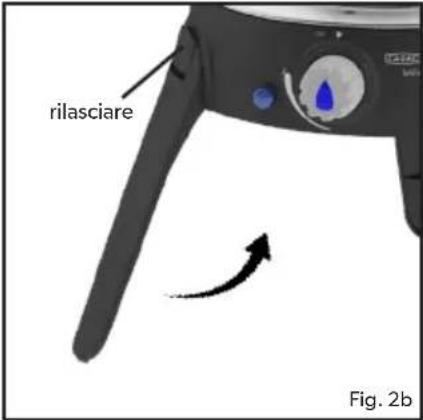

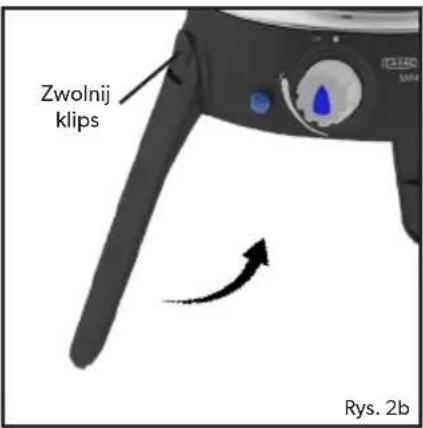

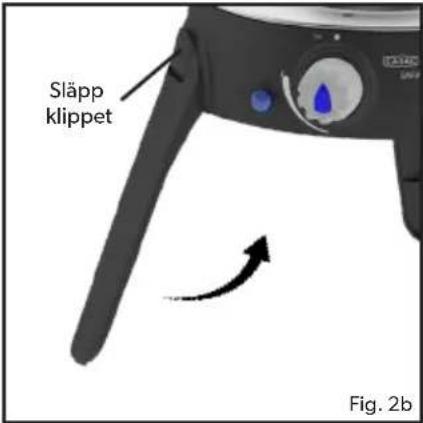

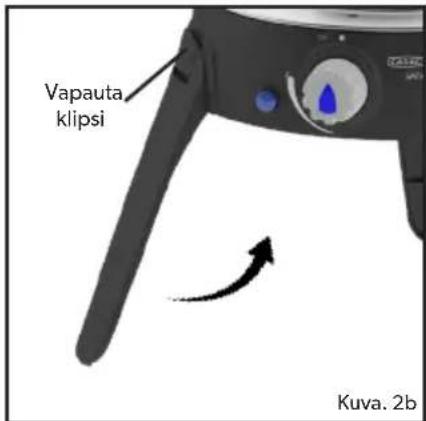

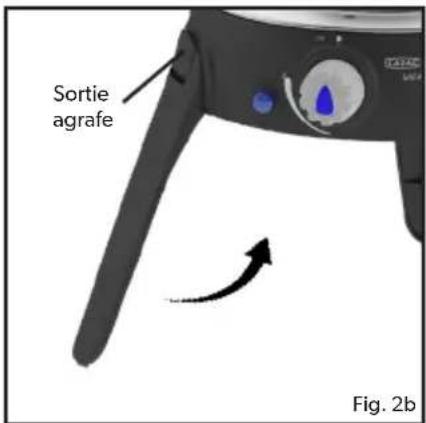

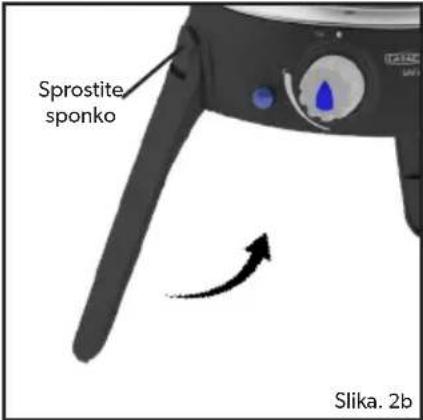

Release clip Fig. 2b

3D rendered image of a black plastic electronic device with multiple blades and mounting brackets (no text or symbols visible)

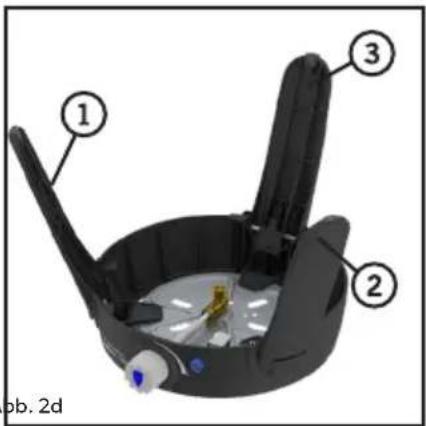

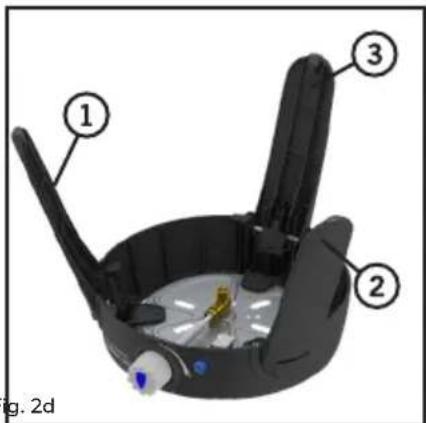

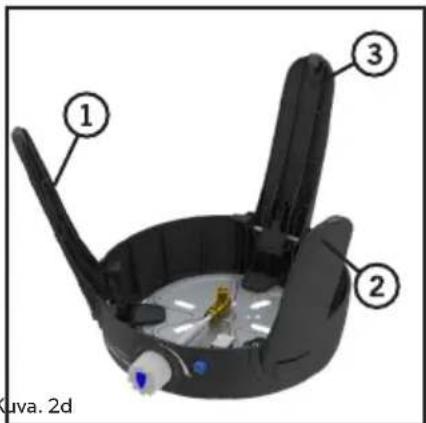

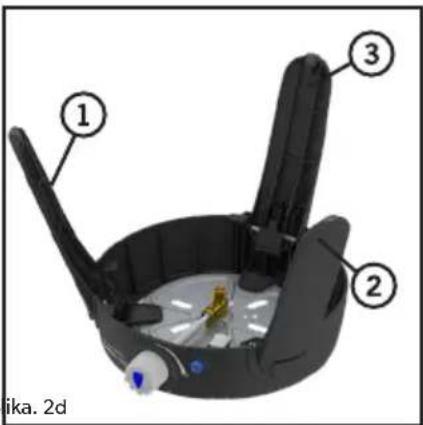

① ② ③ g. 2d

3. Connecting the gas supply and operating the Appliance

Connecting the gas supply

• Before connecting the appliance to a gas supply, ensure that the rubber seal on the regulator is in position and in good condition.
• Before connecting the hose and regulator to the appliance, check that the appliance control knob is in the "OFF" position.
• Carry out this check each time you fit the appliance to a gas cylinder.
• Blow out any dust from the gas supply opening to prevent possible blockage of the jet.
  • Fit an approved hose and regulator to the appliance.
• Ensure that the gas supply (gas cylinder/gas cartridge) is fitted in a well-ventilated location away from any source of ignition, such as naked flames and away from other people.
• Do not twist or pinch the hose. Ensure that it is routed away from the stove body so as to prevent deterioration / damage to the hose caused by heat.
• Make sure that the gas cylinder is kept upright at all times, connect to the cylinder by screwing on hand tight until fully engaged.
• Ensure that a complete gas seal has been made (check for the smell of gas around the connection joint). Do not check for leaks with a naked flame. Use warm soapy water only, applied to the joints and connections of the appliance. Any leakage will show up as bubbles around the leakage area.
  • If you cannot rectify the gas leak do not use the appliance. If you are in doubt, contact your nearest stockist.

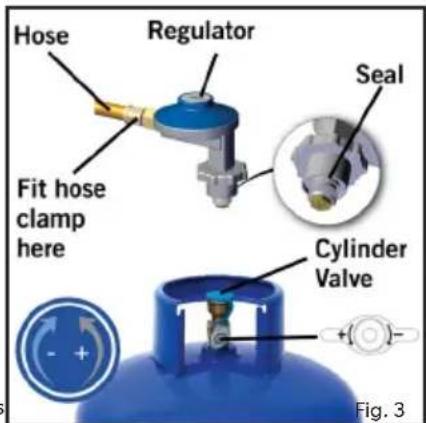

Hose Regulator Seal Fit hose clamp here Cylinder Valve Fig. 3

EN

Disconnecting and changing the gas supply

• After use, turn the appliance control knob to the "OFF" position and close the gas supply.
• When you need to replace your empty cylinder, make sure that the gas is closed at the cylinder valve.
• Do not smoke while changing the cylinder.
• Remove the regulator from the empty cylinder.
• Attach the regulator to the full cylinder, refer to the instructions above on how to connect the gas supply.
• Apply the same care and checking procedures as if fitting a new gas cylinder.

How to check if your gas cylinder is empty

• The easiest way to check if you are low on gas is by picking up your gas cylinder.
• If you think your gas cylinder is feeling a little lighter than you'd like, weighing the bottle is a great way to see how much gas is left. Most cylinders will have the empty weight stamped on either the neck or foot ring, and if the weight indicated on the stamp and the weight of your cylinder are the same, you're out of gas. You can then approximate the amount of gas you have left by the difference in weight.
• When operating this appliance, please take care to ensure that all parts are in good working order and that you have checked for any gas leaks before lighting the appliance with every use.
• Cooking surfaces can simply be placed and are ready to use. No assembly required.
• PLEASE NOTE: Please ensure all protective packaging and plastic are removed from the appliance before use.
• The appliance is designed for use with cooking vessels of not less than 150mm in diameter and not greater than 300mm in diameter.

Precautions to observe before lighting.

• Use this appliance only on a firm level surface.
  • After prolonged storage, inspect the appliance for any insects and webs, which may affect gas flow.

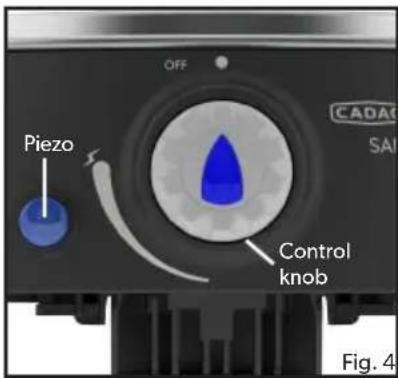

OFF Piezo Control knob CADAC SAI Fig. 4

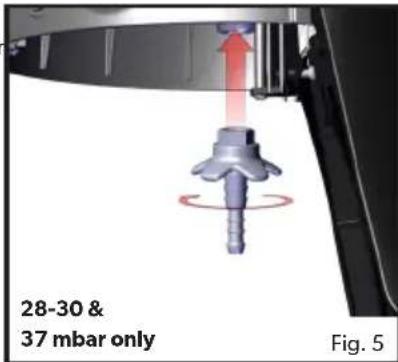

28-30 & 37 mbar only Fig. 5

Lighting the appliance using the piezo

• It is recommended to remove any cooking surfaces when trying to light the appliance. This way it will be easy to see the burner when it is lit.
- To light up the appliance using the piezo igniter, push and turn the control knob 90° in an anti-clockwise direction, then press the piezo button to ignite the gas (see Fig. 4). If the gas does not ignite on the first spark, turn the control knob back to its "OFF" position. Try again, by pushing and turning the control knob anti-clockwise and push the piezo button to ignite the gas. If the gas has not ignited in the first two to three seconds you should close the control valve by turing the control knob back to its "OFF" position.
- Wait approximately thirty seconds to let any accumulated gas within the burner escape. Repeat the above process if necessary until the flame ignites. The flame should normally light up within the first one to two seconds.

Lighting up using a BBQ lighter

- When starting cold, the appliance may be lit from the top prior to fitting the desired cooking surface. When lighting up a hot appliance, it is recommended that this be done by sticking a barbecue lighter through one of the vent holes underneath the burner, until it is in line with the burner (DO NOT place the BBQ lighter through the large hole directly underneath the burner). Ignite the BBQ lighter. Whilst the BBQ lighter is lit, push and turn the control knob anti-clockwise to light the burner.

General

• Once the appliance is lit, the flame intensity may be adjusted by turning the control knob anti-clockwise to reduce the flame or clockwise to increase the flame.
• When cooking food with a high fat content, flaring may occur if the selected heat setting is too high. Should this happen, turn the heat down until the flaring ceases.
• Do not move the appliance when in use. It is unsafe practice to move the appliance whilst lit and may cause flaring.
• After use, first close the control valve on the gas cylinder (where applicable). When the flame has extinguished, close the control valve on the appliance.

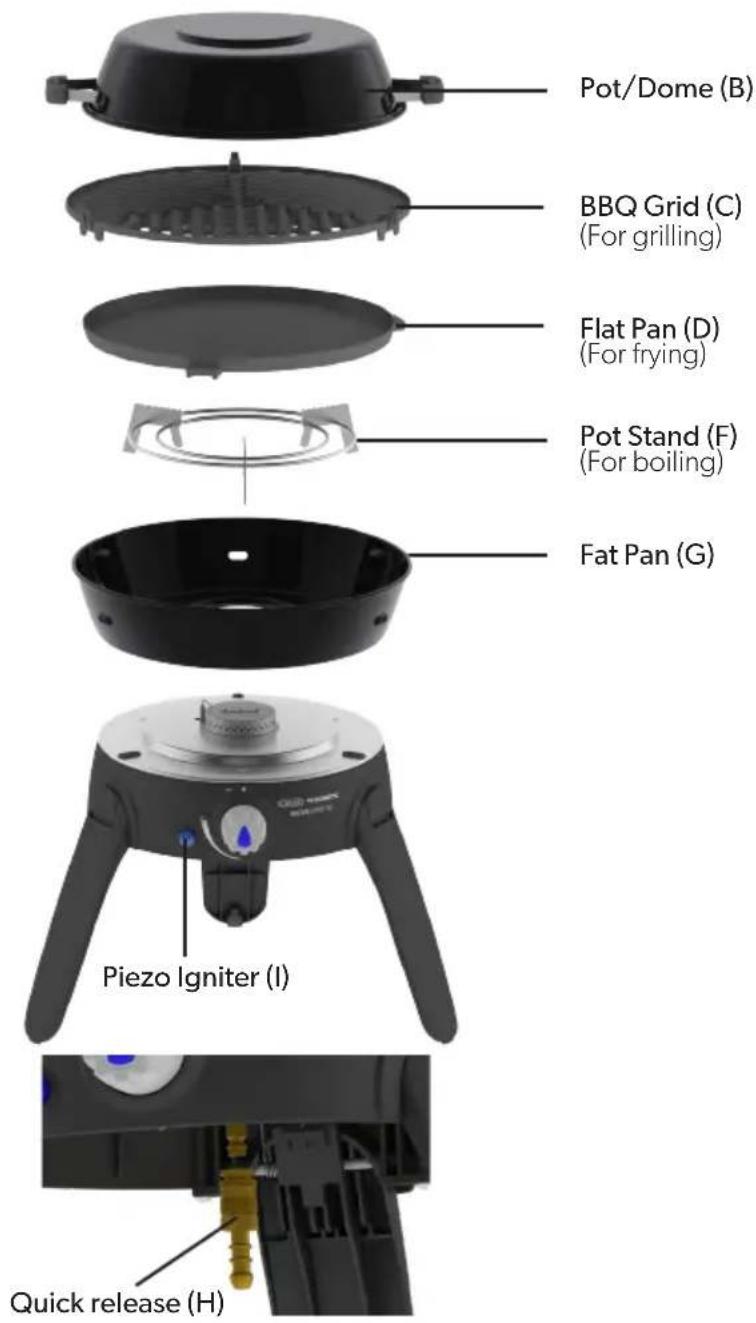

4. Component List

	ABCDEFGHIJK
6540L1-10		*	*	*		*	*		*	*
6540L1-20		*	*			*	*		*	*
6540L1-21		*			*	*	*		*	*
6540L1-25	*	*	*	*		*	*	*	*	*
6540L1-27			*			*	*		*	*	*
6540L1-28					*	*	*		*	*	*

(A) Lid

Black oval-shaped object with a diagonal striped pattern and a small star at the bottom (no text or symbols)

(E) BBQ 2 Plancha 30 (For frying/grilling)

CADAC USE THE SHAK LIFE

(J) Carry Bag

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

(K) Paella Pan 30 (For Paella/Frying)

The following surfaces are also sold separately as optional accessories

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Paella Pan 30 (Paella/Frying)

Black oval-shaped object with a slatted side and a small triangular indentation at the bottom (no text or symbols visible)

BBQ 2 Plancha 30 (Grilling/Frying)

Pizza Stone Pro 30 (Pizza making)

Plain gray circular basin with a small handle at the top (no text or symbols visible)

Soft Soak 30 (for easier cleaning)

Lid Coffee Pot Stand

5. GreenGrill Cooking Options

GreenGrill Cooking

Most of the cooking surfaces have our GreenGrill coating. This ceramic coating is completely PFOA-free; it contains no toxic substances, and guarantees healthier cooking!

PREPARATION & USE

• 'Seasoning': before using the cooking surface for the first time, you can season it to give the cooking surface a thin protective layer that prevents food from sticking. It is not required but we do recommend it. It's very easy: lightly rub cooking oil on the surface and then place over medium heat for 2 - 3 minutes. When it cools, wash the cooking surface with soapy water before use and grease it lightly with some oil (cooking oil of your choice, e.g. sunflower oil).
  It's ready to go!
• Note: GreenGrill coating conducts heat better than products with a regular (PTFE) non-stick coating. We therefore recommend using only 75% of the power of what you are used to.
• Never leave the cooking surface on the heat source without oil. Apply a thin layer of oil with a kitchen paper towel or a brush before placing the cooking surface on the heat source. Make sure you have oiled all parts, so with e.g. a BBQ grid include the raised edges as well.
  • We recommend frying in sunflower oil or Rapeseed Oil because of the high burning point. Olive oil can have a relatively low burning point, which can cause the ingredients to stick to the pan or burn. We therefore do not recommend using olive oil.
  Tip: bring meat or fish to room temperature before frying. This will prevent sticking to the cooking surface.
• Always use silicone and/or wooden utensils so that the GreenGrill coating is not damaged. Never use metal utensils as this can damage the coating.

CLEANING

• Let the cooking surface cool down before cleaning. Extreme temperature changes can cause deformation of the cooking surface.
• The GreenGrill coating is 'Easy Clean'. Warm soapy water with a soft sponge is sufficient for cleaning the cooking surfaces with GreenGrill coating. Avoid scouring pads or steel wool.

- If the cooking surface has food particles remaining from a previous use they can adhere to the coating, which can lead to brown spots. In these places, ingredients can stick to the cooking surface because the coating is no longer reached. Make sure that these spots are properly removed before use.

- For stubborn stains or residues, you can try the 'vinegar method' for the paella pan or chef pan: pour a layer of vinegar into the pan and heat the pan slightly. The vinegar does not have to boil and should certainly not evaporate completely. Pour the vinegar out of the pan, clean the pan with soapy water and the pan is as good as new. Note: heating vinegar can give off an unpleasant smell.

- The CADAC | DOMETIC Soft Soak (sold separately) is the ideal companion product to facilitate overnight soaking. When using the Soft Soak, we recommend placing the cooking surface face down which allows for maximum soaking and also uses less water.

- Any stubborn stains that remain after soaking, can be loosened and brushed away using the CADAC | DOMETIC Soft Soak Brush (sold separately).

- Dry with a soft cloth and you're done!

Two types of cleaning tools: a circular steamer with a mesh filter and a square brush holder filled with brown spikes (no text or symbols visible)

Soft Soak Brush

MAINTENANCE

• We recommend to add a little oil to the cooking surface after cleaning and spread it with kitchen paper
The oil seals the surface from the outside air and moisture. It also ensures that the food does not burn into the surface.
- Place the cooking surface in a plastic bag before you put it into its storage bag so you are ensured the storage bag remains clean and oil free.
- The storage bag prevents damage to the GreenGrill coating and your product.

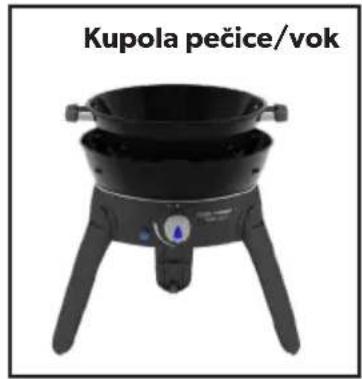

Cooking Options

• These are the available cooking options.

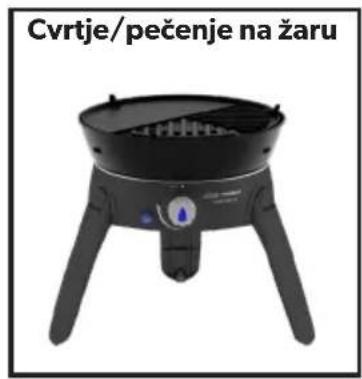

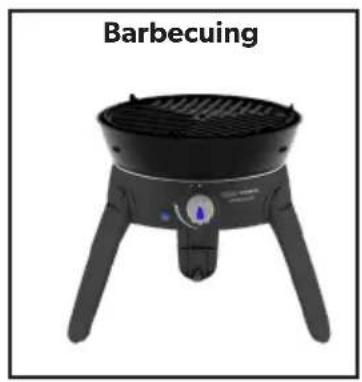

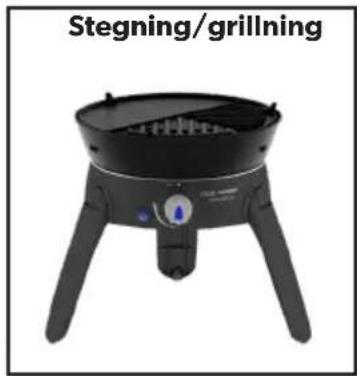

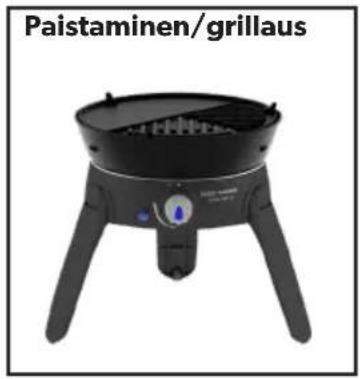

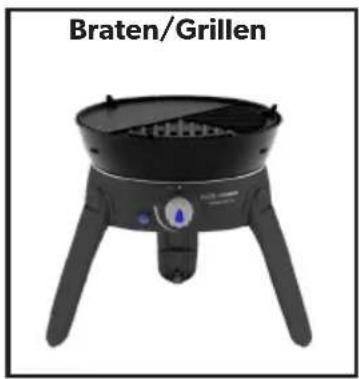

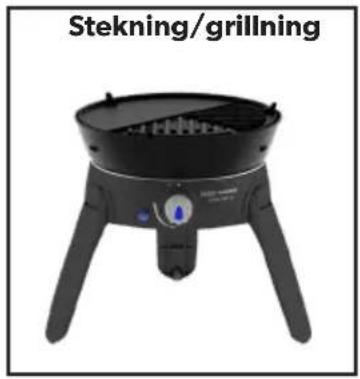

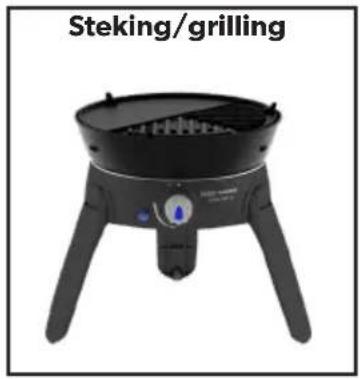

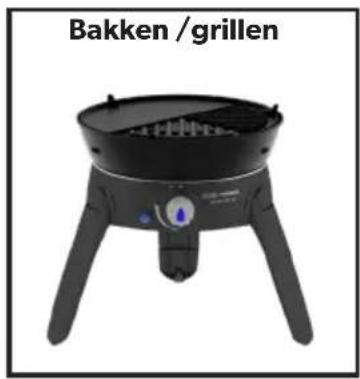

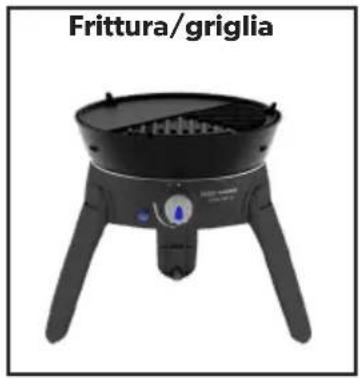

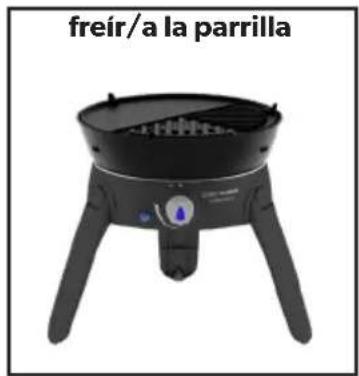

Grilling: This cooking option is ideal for fat-free grilling of chicken, sausages, chops, kebabs, fish or vegetables. For this type of cooking, use the grill plate.

Caution: Please note that when cooking fatty meats some fat will splatter onto the unit which may cause flare-ups. Please use caution when handling such meats. The cooking temperatures are easily adjusted to suit your own requirements by turning the control knob to regulate the degree of heat.

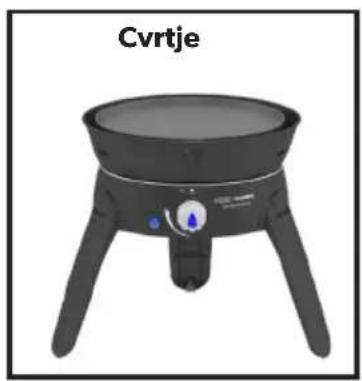

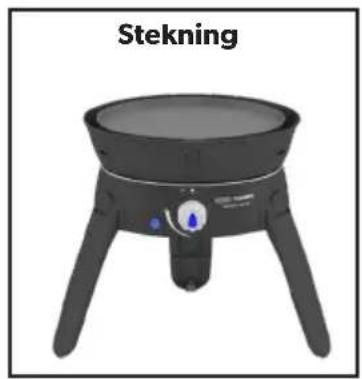

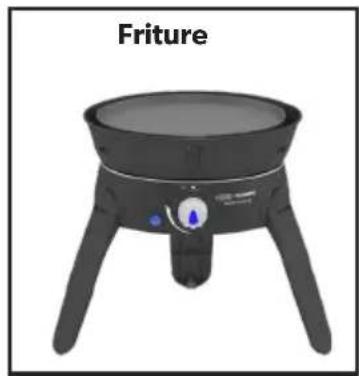

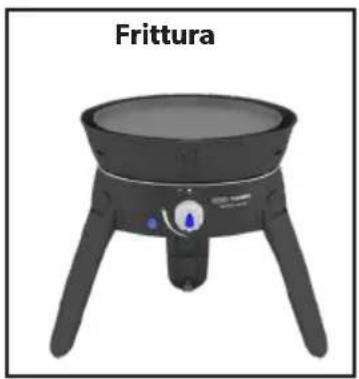

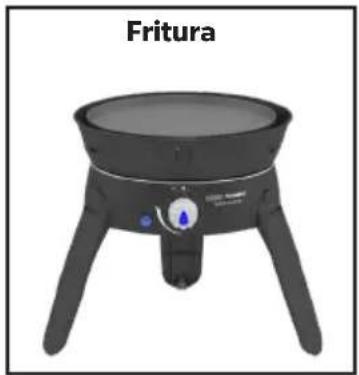

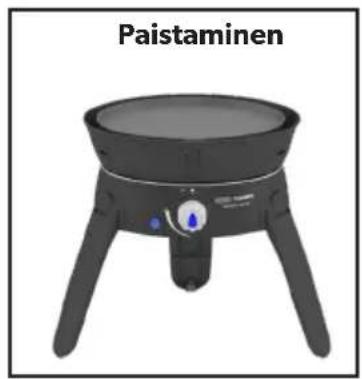

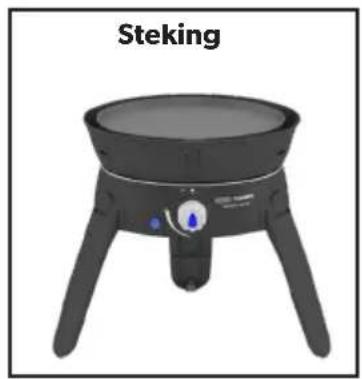

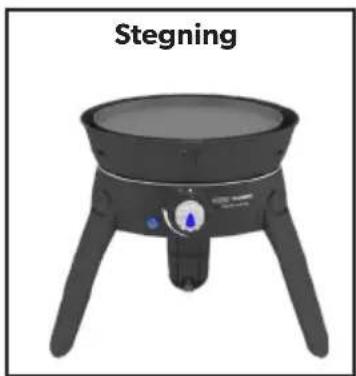

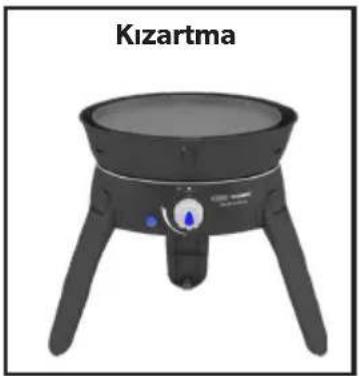

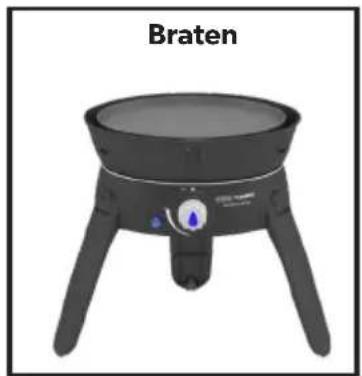

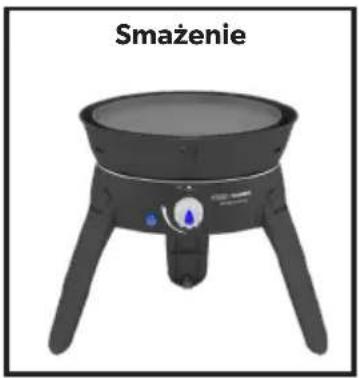

Frying: This option is ideal for stir-fries, fish, breakfast, pancakes, prawns, paella and vegetables. For this type of cooking, use the flat grill. Please note that being a shallow pan, it is not suitable for deep-frying. The easy clean surface encourages the minimum use of fat for healthy cooking.

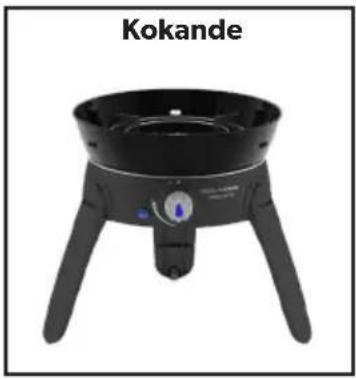

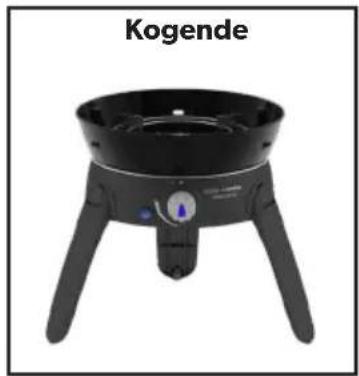

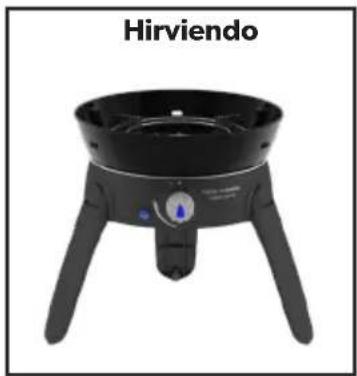

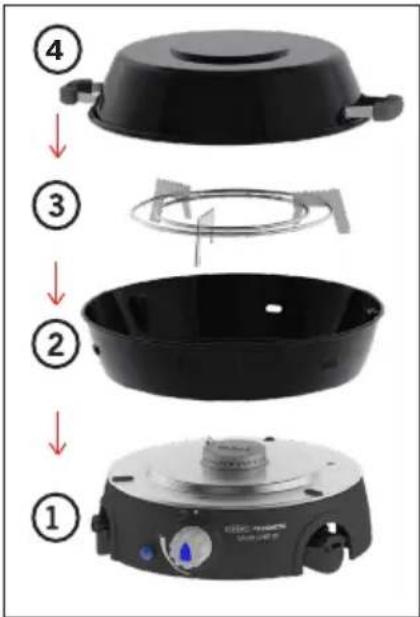

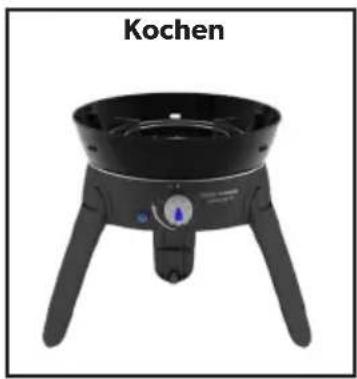

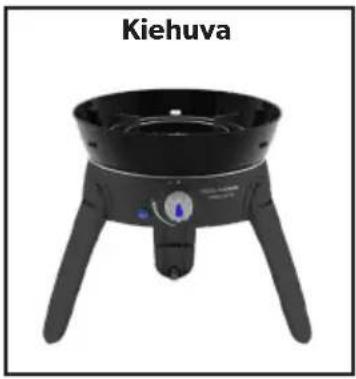

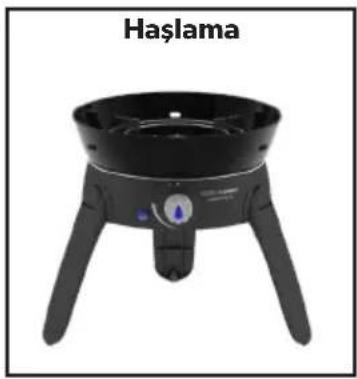

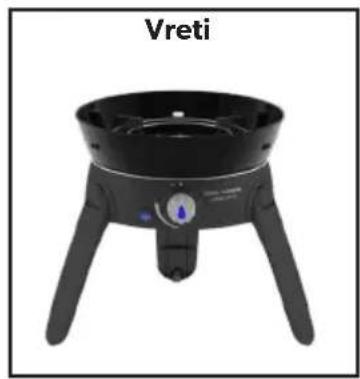

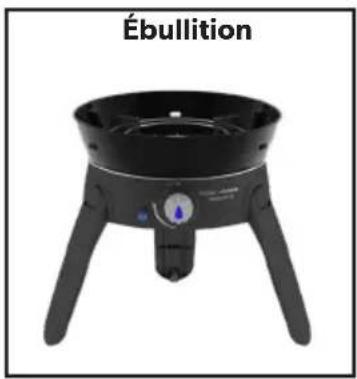

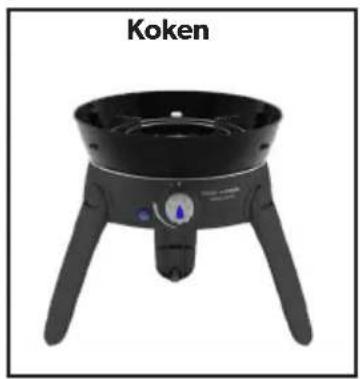

Boiling: For this type of cooking, place the pot stand in its locator grooves ensuring that it is properly seated. Place a suitable pot (not less than 150mm diameter and not more than 300mm diameter). One liter of water will boil in approximately 6 minutes depending on the conditions, size of pot used, etc. Use windshields in case of windy conditions

Note: When using small sized pots do not attempt to use pots with plastic handles as these can get extremely hot.

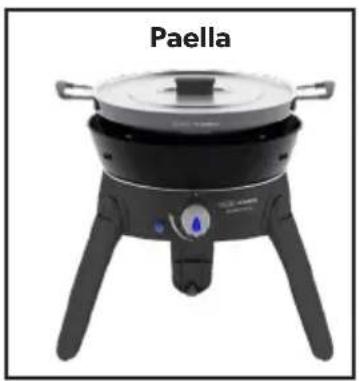

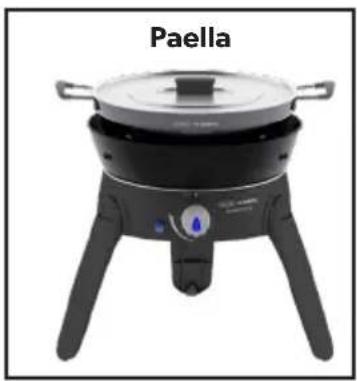

Paella: This cooking option is ideal for preparing paellas, risottos, pasta dishes, traditional breakfasts etc. The Paella Pan is made from a high quality pressed aluminium which allows for excellent heat distribution and retention.

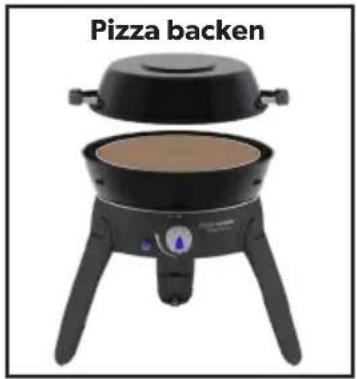

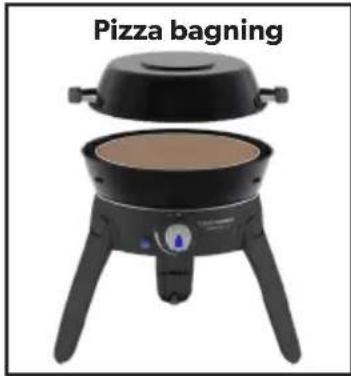

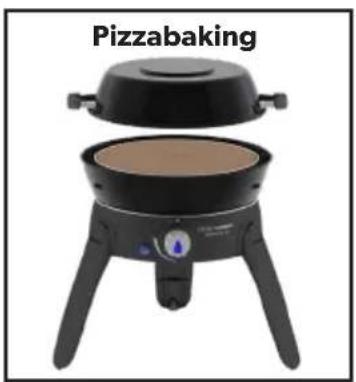

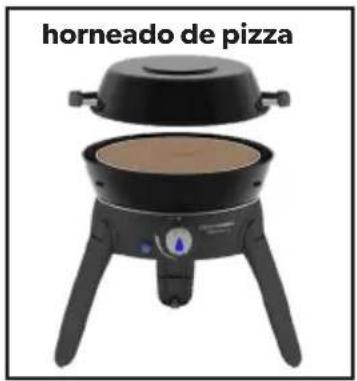

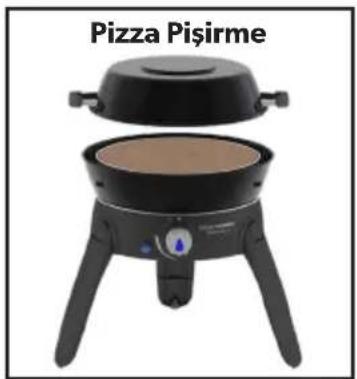

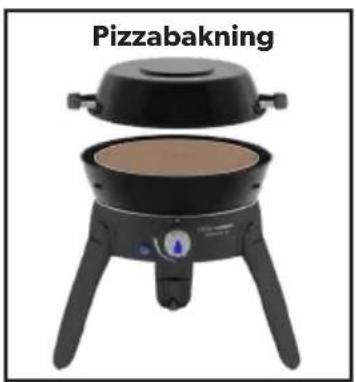

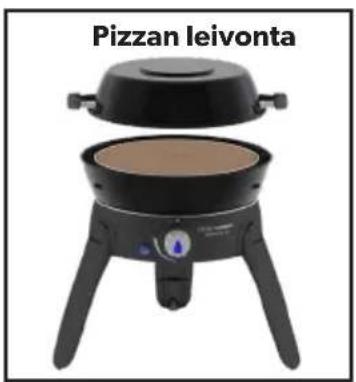

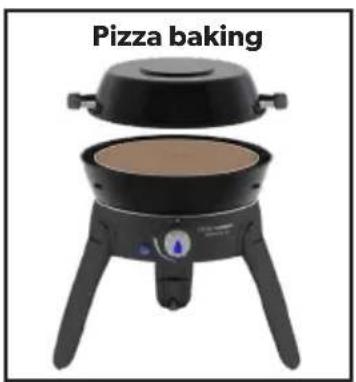

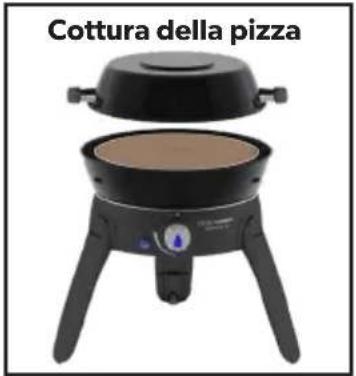

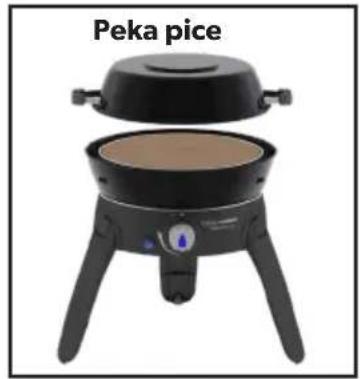

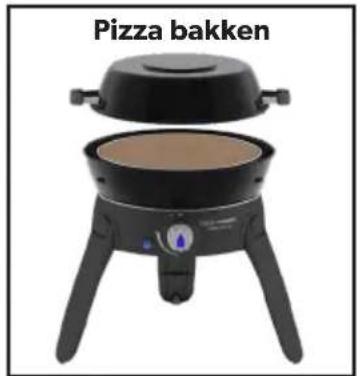

Pizza baking: This cooking option is ideal for preparing pizzas, flat breads etc. The pizza stone is 12mm thick that can withstand temperatures of up to 300°C and includes a pan. The dome needs to be used in order to create the baking effect.

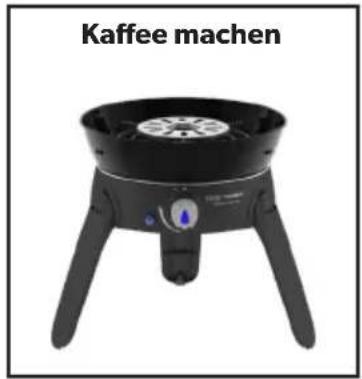

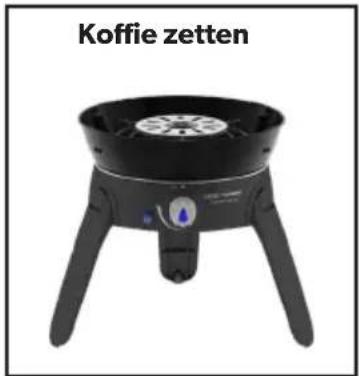

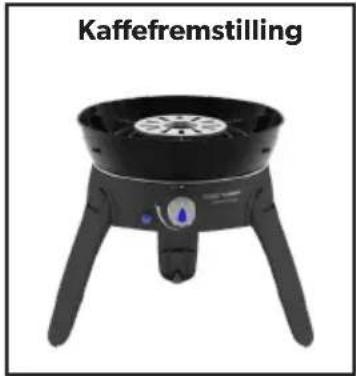

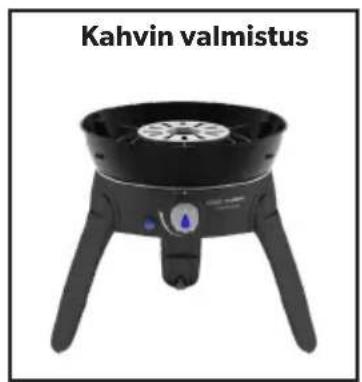

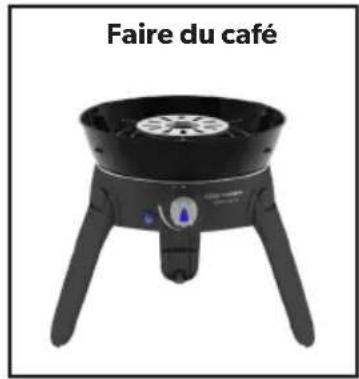

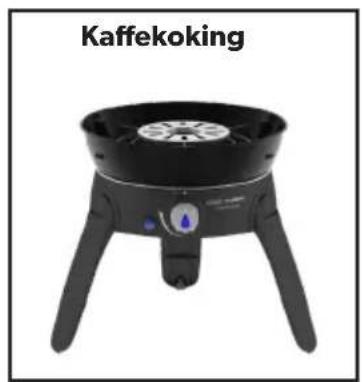

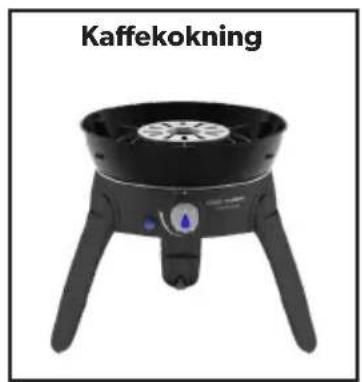

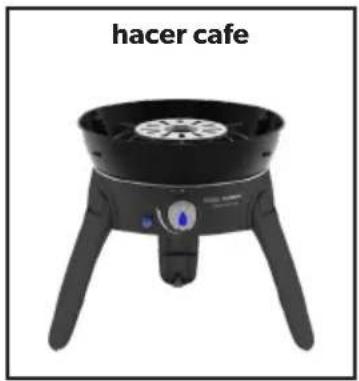

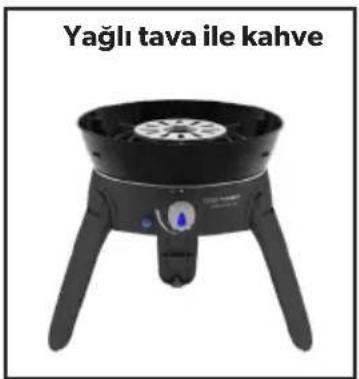

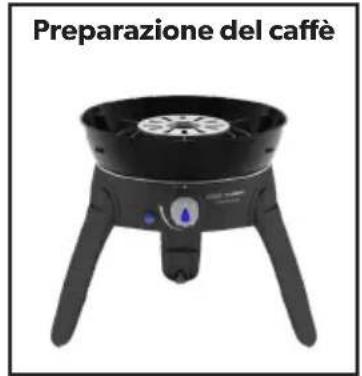

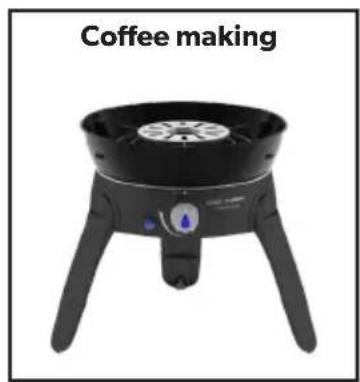

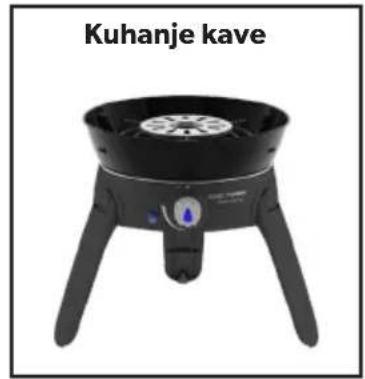

Coffee: This option is ideal for brewing a hot cup of coffee. Ideal for anytime, anywhere.

Barbecue grater with three legs and a grille (no text or symbols visible)

Black outdoor grating with three legs and a side-mounted dish, labeled 'Frying/grilling' (no other text or symbols visible)

Black portable stove with three legs and a side-mounted control panel (no text or symbols visible)

Black portable stove with three legs and a side-mounted fan, labeled 'Coffee making' above (no other text or symbols visible)

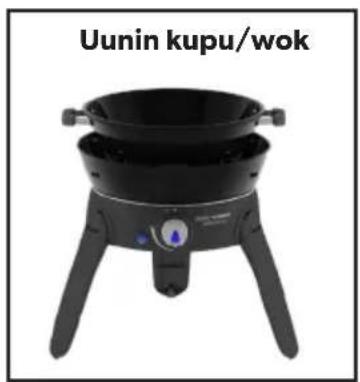

Black outdoor cooktop with three legs and a side panel, labeled 'Oven dome/wok' (no other text or symbols visible)

Black pizza baking setup with lid and side legs (no text or symbols visible)

Black frying pan with three legs and a central lid, labeled 'Frying' (no other text or symbols)

Exterior view of a Paella cooking pot with a lid and three legs (no text or symbols on the device itself)

6. Cleaning

• It is recommended to clean your appliance after every use. This will prolong the life of your appliance.
• Allow the appliance to cool down before you clean it.
• Use a damp cloth wrung out in a solution of soapy water to clean exterior surfaces.
  • To clean the stove body, simply wipe with a damp cloth using a little detergent, if necessary.
  • DO NOT IMMERSE IN WATER as this will allow water to get into the burner tube causing the appliance to malfunction.
• The grill plate is coated with a tough durable ceramic non-stick coating that has been used with great success on some of the best cookware in the world. Never the less, taking care of it can help you to enjoy extra years of healthy, easy, non-stick cooking.
• Whilst the ceramic non-stick coating is very durable, it can easily be damaged by the use of metal cooking utensils. It is therefore recommended that only plastic or wooden utensils be used when cooking.
  • Always allow the grill/flat plate to cool before immersing it in water.
  • Make sure that no water gets onto the burners or pilot/light area. Wipe the appliance completely dry before use.
• Do not use abrasive cleaners as they may damage the surfaces.
• Clean the appliance after each use. After cleaning recondition the cooking surface with a light wipe of oil.
• Do not use any high-pressure steam equipment or a water jet to clean the appliance.
  • Note: For stubborn stains, CADAC oven cleaner may be used.

7. Storage

• Always allow the unit to cool down and be cleaned before storing.
- Turn off the gas supply to the appliance, disconnect and remove the gas supply from the appliance.
- Never store an appliance with the gas supply connected, this is an unsafe practice.
- Store the appliance and gas supply in a well-ventilated area away from combustible material. Storage of cylinders should preferably be outdoors and must NOT be in a basement.

EN

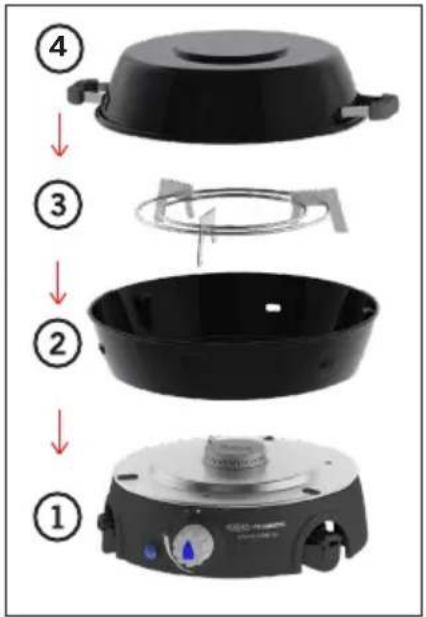

Packing back into the carry bag

• After use, allow your appliance to cool and fold legs of the base unit back as per instructions described above.
- Starting with the base unit first, pack the appliance into the carry bag following the number order.

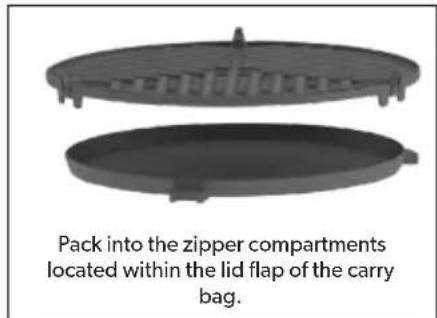

- Pack the BBQ Grid and the Flat Grid into the zipper compartments located within the lid flap of the carry bag.

Pack into the zipper compartments located within the lid flap of the carry bag.

Exploded view diagram of a kitchen appliance with numbered steps from top to bottom

8. Maintenance & troubleshooting

Maintenance

• If you clean and maintain your appliance on a regular basis, the life of your appliance will extend and the possibility of problems will decrease.
  • We recommend the service of your appliance to be every twelve (12) months by a service agent to ensure continued efficient operation.
  • This appliance must only be serviced by an authorized person.
• Check your gas hose and connections regularly for any signs of leaks and every time the gas cylinder is re-filled or fitted to the appliance with every use.

Troubleshooting

In the case of a spattering flame or jet blockage:

• Clean your burner ports in case of an over spill.
  • We recommend to clean or replace the jets every six (6) months to ensure continued efficient operation of your appliance.
• Should the appliance operate abnormally after storage and all checks have not isolated the problem, the jet may be blocked. A blocked jet would be indicated by a weaker yellowish flame or no flame at all in extreme cases. Under these circumstances it will be necessary to remove and check and thoroughly clean out any foreign matter which may have gathered in the appliance.
• This may be done by removing the jet using standard tools and blow any dirt from the jet, alternatively, you may purchase new jets from your local store. Do not attempt to clean the jet mechanically.

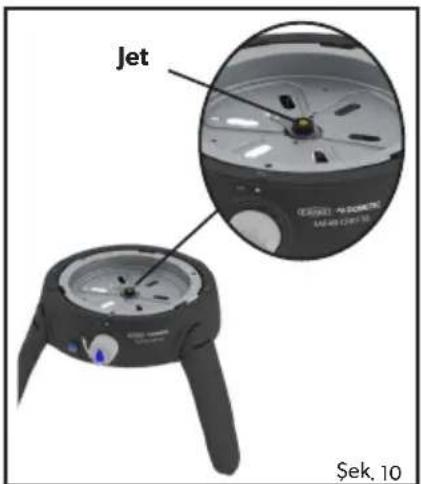

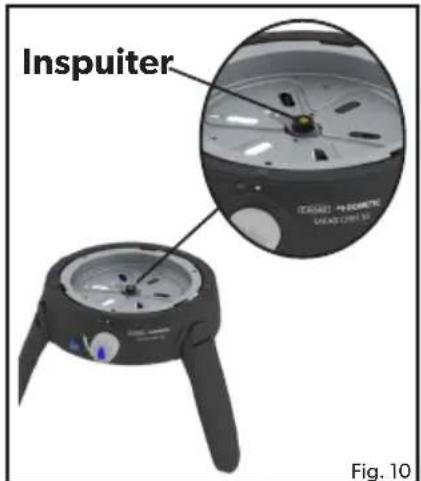

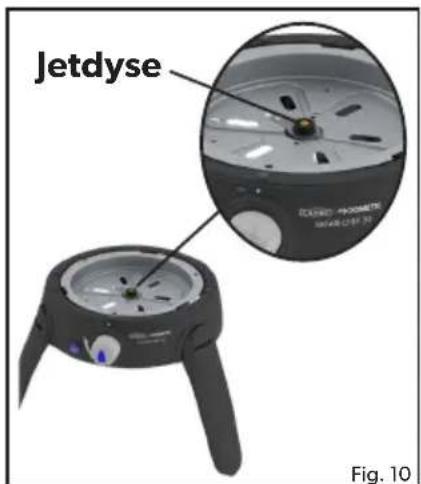

Replacing a Blocked Jet:

• Your appliance is fitted with a specific size jet to regulate the correct amount of gas.
• Should the hole in the jet become blocked, this may result in a small flame or no flame at all. Do not attempt to clean the jet with a pin or other such device as this may damage the orifice, which could make the appliance unsafe.

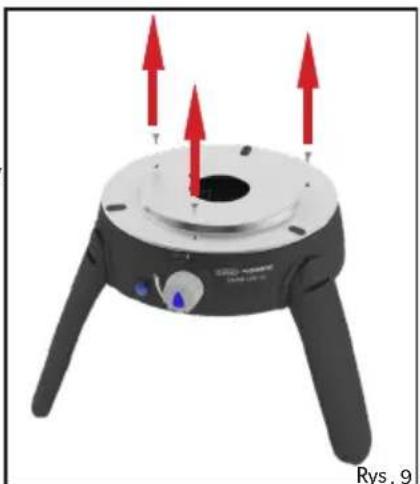

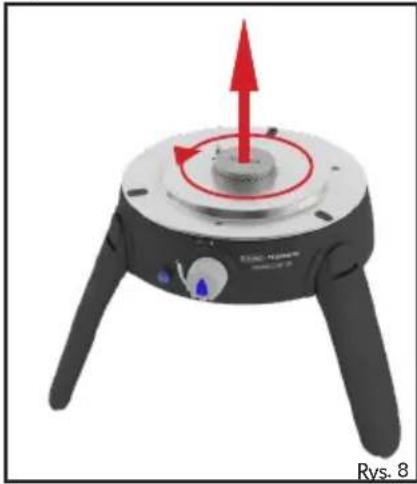

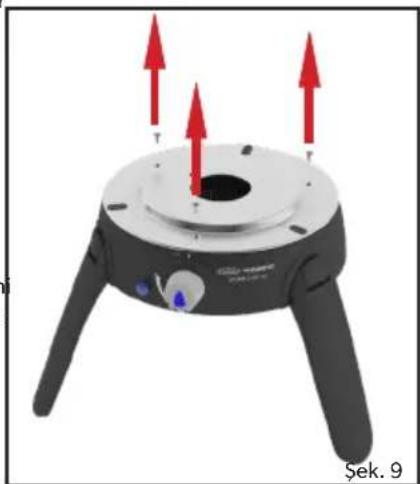

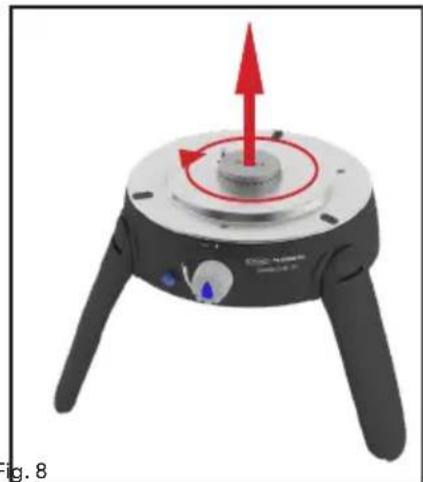

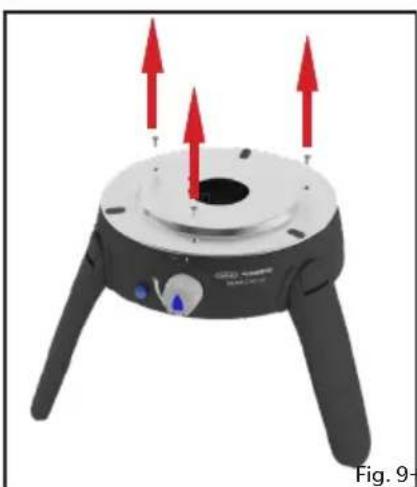

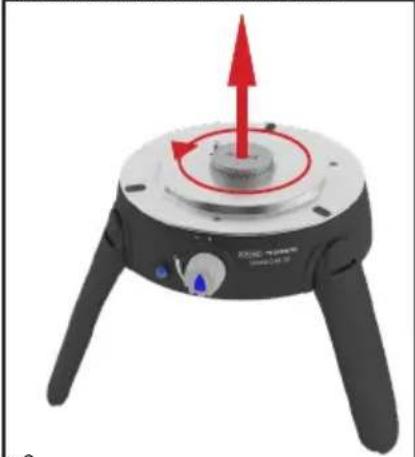

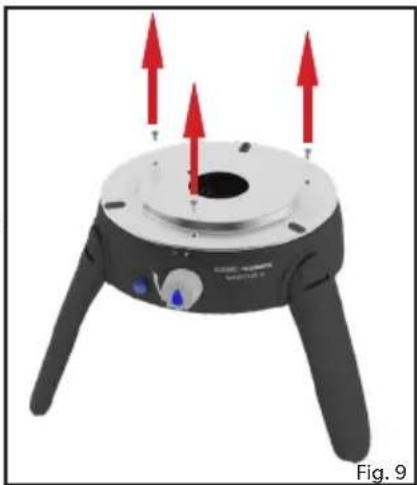

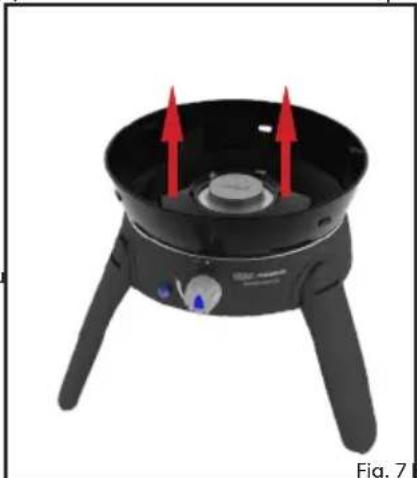

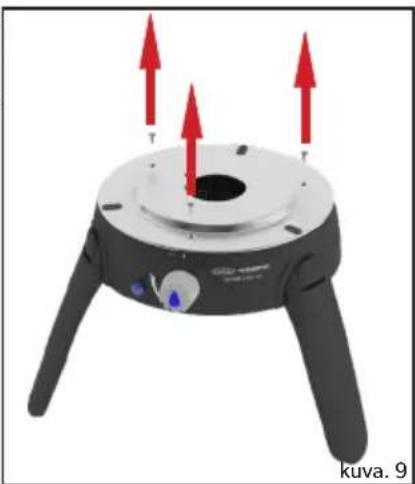

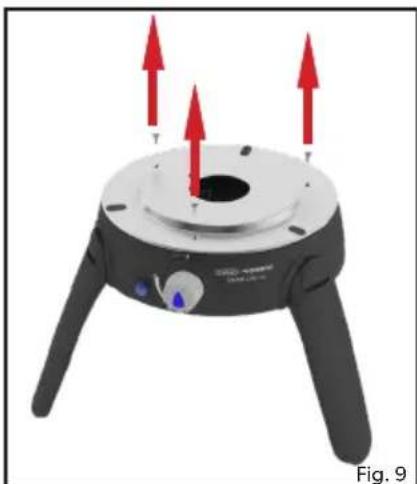

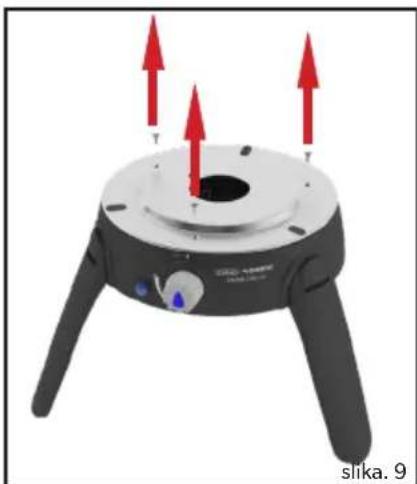

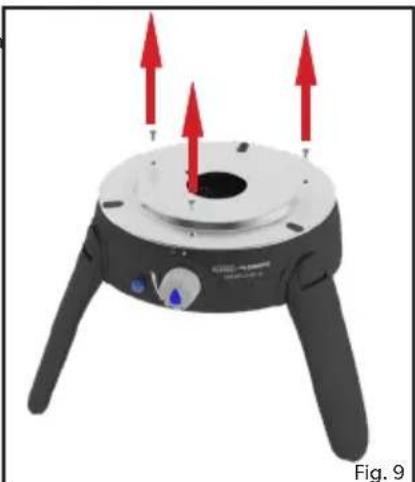

• To replace the jet: Remove the fat pan (Fig. 7). Gently unscrew the burner assembly (Fig. 8). Remove the three screws from the heat shield plate and remove the heat shield (Fig. 9), taking care not to damage the piezo electrode. The jet can now be removed using a suitable spanner (Fig. 10). Do not use pliers on the jet as this may damage the jet, making it unusable or impossible to remove. Screw the new jet into the valve. Do not over-tighten as this may damage the jet.

- Reverse the above procedure to re-assemble the unit.

Replacing the Hose:

• The fitting of a hose is described in Section 3.

Black portable gas stove with red arrows indicating heating or ventilation direction (no text or symbols)

Close-up of a circular mechanical device with red directional arrows indicating rotation or force application (no text or symbols visible)

Top-down view of a mechanical device with three legs and a central hole, showing red arrows indicating upward motion (no text or symbols)

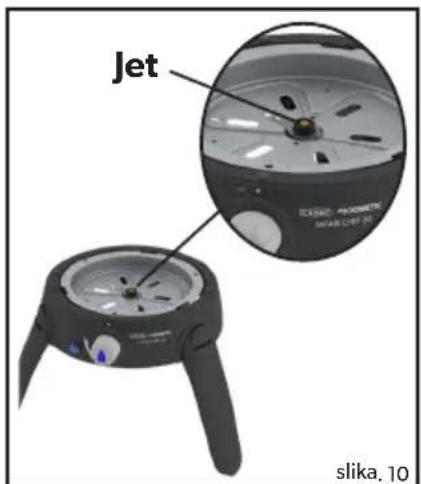

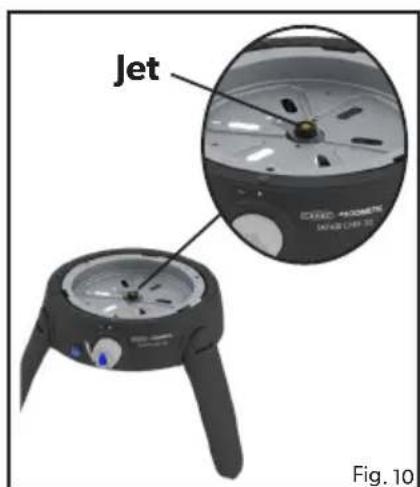

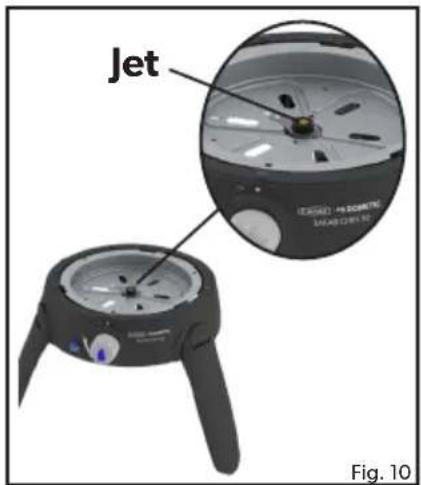

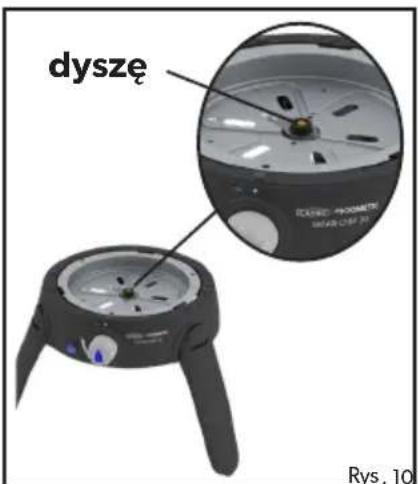

Jet FIG. 10

9. Spares and Accessories

• Always use genuine spares as they have been designed to give optimum performance.

Spares

Item Spares	No.	Item Spares	No.	Item Spares	No.
	6540-SP011		6540-SP007		rechtes (R) und linkes (L) Bein 6540-SP010
	6540-SP020		6540-SP008		hinteres Bein 6540-SP009
	6540-SP002		6540-SP037 (Jet 0.65 - 30mbar) 6540-SP038 (Jet 0.59 - 37mbar) 6540-SP039 (Jet 0.56 - 50mbar)		6540-SP018-V2
	6540-SP004		6540-SP017		6540-SP019
	6540-SP003		6540-SP055

Accessories

Item Spares	No. Item Spares No.	tem Spares No.
	6540-300 6540-6
	6540-100 6540-7
	6540-200		Abdeckhülle(300 x 300mm)6540-800		203-100

10. Warranty

CADAC Europe BV hereby warrants to the ORIGINAL PURCHASER of this appliance for 2 years, that it will be free of defects in material and workmanship from the date of purchase as follows:

Valves:

2

Years

Plastic parts: No Warranty

Enamel parts: 2 Years

Die-casting: 1 Years

Burners:

1

Year

The warranty will only apply if the unit is assembled and operated in accordance with the printed instructions.

CADAC Europe BV may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE.

This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to CADAC Europe BV's satisfaction, they are defective. Before returning any parts, contact the customer service representative in your region using the contact information provided with your manual. If CADAC Europe BV confirms the defect and approves the claim, CADAC Europe BV will elect to replace such parts without charge. CADAC Europe BV will return parts to the purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner's manual.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not cover by this Limited Warranty.

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

CADAC Europe BV is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, to this limitation or exclusion may not apply to you.

CADAC Europe BV does not authorize any person or company to assume for it any obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on CADAC Europe BV.

This Warranty applies only to products sold at retail.

To enjoy and ensure longevity of your CADAC Europe BV product, please refer to the cleaning and maintenance section of the user manual.

Exterior view of a portable gas stove with three legs and control panel (no visible text or symbols)

Clip lösen Abb. 2b

3D rendered mechanical component with blue and white ports, no visible text or symbols

① ② ③ bb. 2d

Metallic cooking pot with lid and side handles (no text or symbols visible)

Paella Pan 30

Black oval-shaped object with a diagonal striped pattern on top, resembling a vent or grille (no text or symbols visible)

BBQ 2 Plancha 30

Circular metallic object with a beigeish surface and black rim, resembling a disc or plate (no text or symbols visible)

Pizza Stone Pro 30

Circular gray basin with a small handle, no visible text or symbols

Soft Soak 30

Kaffeekannenständer

5. GreenGrill-Kochen

GreenGrill-Kochen

Circular gray basin filled with a perforated metal grate (no text or symbols visible)

Close-up of a gray plastic brush with a grid of brown beads, placed on a curved base (no text or symbols visible)

Soft Soak Brush

WARTUNG

Grillen portable grill with three legs and a grater on top (no text or symbols visible)

Black portable grater with three legs and a side-mounted control panel (no visible text or symbols)

Black outdoor cooking pot with three legs and a side-mounted control panel (no text or symbols visible)

Black Kaffee machen portable grill with three legs and a water vent (no text or symbols on the dish itself)

Black portable cooking pot with three legs and a side-mounted dish, labeled 'Deckel/Pfanne' (no other text or symbols visible)

Black outdoor pizza cooker with lid and side legs, no visible text or symbols on the appliance itself

Black Braten portable stove with three legs and a side-mounted control panel (no text or symbols visible)

Exterior view of a Paella cooking pot with three legs and a lid (no text or symbols on the device itself)

6. Reinigung

Two black plastic ovens with internal compartments, no text or symbols visible

Black plastic pot with a circular arrow and number 4, no visible text or symbols

Diagram showing a black plastic bowl with labeled parts and arrows indicating steps ② and ③.

Black portable stove with three legs and a side-mounted top, featuring red arrows pointing upward (no text or symbols visible)

3D rendering of a mechanical device with red directional arrows and a central circular component (no text or symbols)

Close-up of a mechanical device with three legs and a central hole, marked by red arrows indicating upward motion (no text or symbols visible)

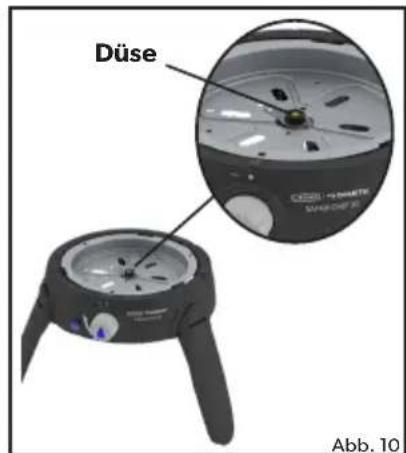

Düse Abb. 10

Top-down view of a portable gas stove with three legs and a central control knob (no visible text or symbols)

Release clip Fig. 2b

3D rendering of a black plastic electronic device with ports and connectors (no visible text or symbols)

① ② ③ g. 2d

Black oval-shaped object with a textured surface and a small protrusion at the bottom (no text or symbols visible)

BBQ 2 Plancha 30(E) (Til stegning/grillning)

CADAC USE THE SHAW LIFE

Bæretaske (J)

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

(K) Paella Pan 30 (Til Paella/stegning)

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Paella Pan 30 (til Paella/stegning)

Black oval-shaped object with a diagonal grooves and a triangular base (no text or symbols)

BBQ 2 Plancha 30 (til stegning/grillning)

Circular metallic object with a beigeish-white gradient, resembling a disc or plate (no text or symbols visible)

Pizza Stone Pro 30 (til pizzabagning)

Top-down view of a plain circular basin with a handle and central circular pattern (no text or symbols)

Soft Soak 30 (for lettere rengøring)

Kaffekandestander

5. GreenGrill Madlavningsmuligheder

GreenGrill Madlavning

Two gray plastic kitchen utensils: a circular filter with a mesh and a side view of a toothbrush (no text or symbols visible)

Soft Soak Brush

VEDLIGEHOLDELSE

Grillning portable grill with three legs and a central grille (no text or symbols visible)

Black outdoor grill with three legs and a side panel, labeled 'Stegning/grilling' (no other text or symbols visible)

Black portable stove with three legs and a central bowl, labeled 'Kogende' above (no other text or symbols visible)

Black Kaffefremstilling portable stove with three legs and a side-mounted fan (no text or symbols visible)

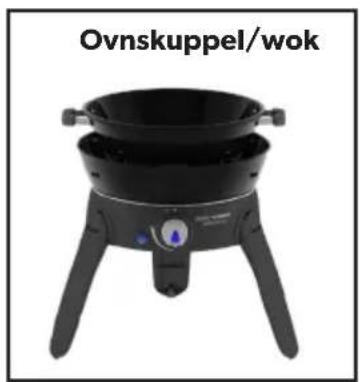

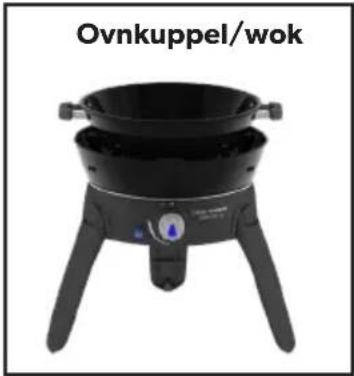

Black cooking pot with three legs and a side panel, labeled 'Ovnkuppel/wok' (no other text or symbols visible)

Top-down view of a black pizza bagging with lid and three legs (no text or symbols visible)

Black outdoor stove burner with three legs and a side-mounted control panel (no text or symbols visible)

Exterior view of a Paella cooking pot with three legs and a lid (no text or symbols on the device itself)

6. Rengøring

Exploded view diagram of a kitchen appliance with numbered steps from fan to oven

Black portable stove with red arrows indicating heating or ventilation direction (no text or symbols)

Close-up of a circular mechanical device with three legs and a central knob, featuring a red upward arrow indicating rotation or force direction (no text or symbols visible)

Close-up of a mechanical device with three legs and a central hole, showing red arrows indicating upward motion (no text or symbols)

Jet FIG. 10

Exterior view of a laboratory gas stove with three legs and control knob (no text or symbols visible)

Liberar acortar Fig. 2b

3D rendered mechanical component with attached sensors and a blue indicator light, labeled Fig. 2c (no text or symbols on the device itself)

① ② ③ g. 2d

Metallic cooking pot with lid and black handles (no visible text or symbols)

Paella Pan 30 (para paella/fritura)

Black oval-shaped object with a chevron pattern and a star at the bottom (no text or symbols visible)

Circular metallic object with a beige top and black rim, resembling a minimalist design element (no text or symbols visible)

Pizza Stone Pro 30 (para hornear pizza)

Plain gray circular basin with a small handle, no text or symbols visible

Soft Soak 30 (para facilitar la limpieza)

Two types of kitchen utensils: a circular filter with a mesh and a side view showing a textured brush (no text or symbols visible)

Soft Soak Brush

MANTENIMIENTO

Barbacoa portable grill with a black grater and three legs (no visible text or symbols)

freir/a la parrilla

Black portable gas stove with a blue water heater and three legs (no text or symbols visible)

Black portable stove with three legs and a side-mounted fan, labeled 'hacer cafe' above (no other text or symbols)

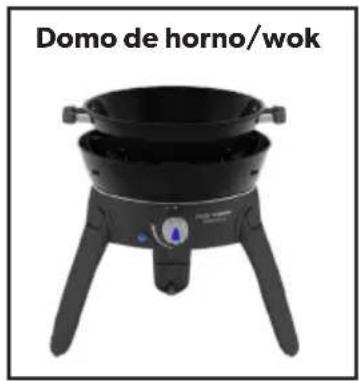

Black outdoor cooktop with three legs and a side panel, labeled 'Domo de horno/wok' (no other text or symbols visible)

horneado de pizza

Black portable grill with three legs and a side-mounted control knob, labeled 'Fritura' above (no other text or symbols visible)

Exterior view of a Paella cooking pot with three legs and a lid (no text or symbols on the device itself)

6. Limpieza

Two black circular metal fans with internal grating, shown from different angles (no text or symbols visible)

Exploded view diagram of a kitchen appliance with numbered steps from top to bottom

Black portable stove with three legs and a side-mounted top, showing red arrows indicating heating or ventilation direction (no text or symbols)

Top-down view of a mechanical device with red directional arrows indicating rotation or movement (no text or symbols)

Top-down view of a mechanical device with three legs and a central hole, showing red upward arrows indicating motion or force (no text or symbols on the device itself)

Jet FIG. 10

Close-up of a mechanical component with blue water droplet and yellow shaft, no visible text or symbols

FRA système

Close-up of a black industrial device with blue liquid droplet and gold connectors, connected by wires (no visible text or symbols)

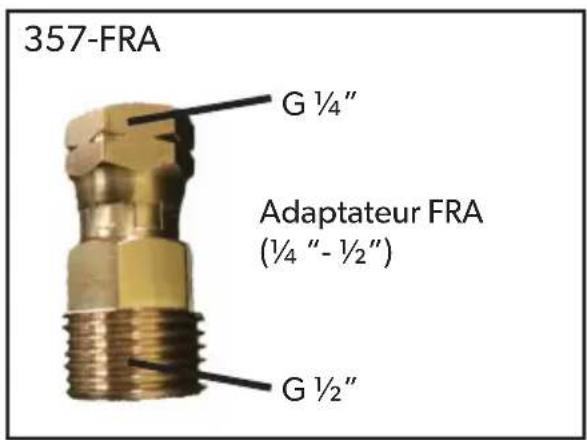

357-FRA G 1/4" Adaptateur FRA (1/4" - 1/2") G 1/2"

Close-up of a laboratory gas stove with three legs and control panel (no visible text or symbols)

Sortie agrafe Fig. 2b

3D rendering of a black circular device with multiple blades and a blue indicator light, labeled Fig. 2c (no text or symbols on the device itself)

Mechanical component diagram showing three labeled parts (1, 2, 3) with no visible text or symbols beyond labels

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Black oval-shaped object with a triangular grille and a small star at the bottom (no text or symbols visible)

BBQ 2 Plancha 30 (pour frire/griller)

Circular metallic object with a beige top and black rim, resembling a minimalist design element (no text or symbols visible)

Plain gray circular basin with a small handle (no text or symbols visible)

Blue circular basin filled with a mesh filter or filter array (no text or symbols visible)

Close-up of a gray plastic brush with a spiky, textured brush (no text or symbols visible)

Soft Soak Brush

ENTRETIEN

Black portable grill with three legs and a side panel, labeled 'Frire/griller' above (no other text or symbols visible)

Black gas stove with three legs and a pressure gauge, labeled 'Ébullition' above (no other text or symbols)

Black gas stove with lid and side legs, labeled 'Cuisson des pizzas' (no other text or symbols visible)

Black portable stove with three legs and a side-mounted control panel (no visible text or symbols)

Exterior view of a Paella cooking pot with three legs and a lid (no text or symbols on the device itself)

6. Nettoyage

Exploded view diagram of a cooking appliance with numbered steps from top to bottom

Black portable stove with three legs and a side-mounted top, showing red arrows indicating heating or ventilation direction (no text or symbols)

Close-up of a circular electronic device with three legs and a central knob, featuring a red upward arrow indicating rotation or movement (no text or symbols visible)

Mechanical component with three legs and a central hole, showing red upward arrows indicating motion or force direction (no text or symbols)

Black and white photo of a portable gas stove with three legs and a central control knob (no visible text or symbols)

rilasciare Fig. 2b

3D rendered image of a black plastic helmet with attached sensors and a blue indicator light, labeled Fig. 2c (no text or symbols on the device itself)

① ② ③ g. 2d

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Paella Pan 30 (per la paella/frittura)

Black oval-shaped object with a diagonal grooves and a central trapezoidal edge (no text or symbols)

Circular metallic object with a beige top and black rim, resembling a minimalist design element (no text or symbols visible)

Plain gray circular basin with a small handle, no text or symbols visible

Two product photos: a circular steamer with internal blades and a wooden pushpin with spiky texture (no text or symbols visible)

Soft Soak Brush

MANUTENZIONE

Barbecue grill with three legs and a grater on top (no text or symbols visible)

Black portable griffa grill with three legs and a side-mounted control panel (no visible text or symbols)

Black portable stove with three legs and a side panel, labeled 'Bollente' (no other text or symbols visible)

Black outdoor table tennis cooker with three legs and a side panel, labeled 'Cupola del forno/wok' (text is part of the image)

Cottura table tennis cooker with lid and side legs (no text or symbols visible)

Black portable grill with three legs and a side-mounted control panel, labeled 'Frittura' above (no other text or symbols visible)

Exterior view of a Paella cooking pot with a lid and three legs (no text or symbols on the device itself)

6. Pulizia

Two empty circular metal fans or filter plates, one with a central slot and the other closed (no text or symbols visible)

Black plastic pot with a circular label and red arrow pointing to the side (no text or symbols on the pot itself)

Diagram showing a mechanical assembly with a circular component and a downward arrow, no text or symbols present.

Close-up of a circular mechanical device with a central knob and control buttons, labeled with number 1 (no readable text or symbols beyond labels)

Black portable stove with red arrows indicating heating or ventilation direction (no text or symbols visible)

Fig. 7 Fig. 8

3D rendering of a mechanical device with red upward arrow and control knob (no text or symbols)

Top-down view of a mechanical device with three legs and a central hole, showing red arrows indicating upward motion (no text or symbols)

Top-down view of a black cylindrical device with three legs and a central knob, labeled Fig. 2a (no text or symbols on the device itself)

Clip vrij- geven Fig. 2b

3D rendering of a black plastic helmet with attached sensors and a blue indicator light (no text or symbols visible)

3D model of a mechanical component with labeled parts (1, 2, 3), no visible text or symbols beyond labels

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Paella Pan 30

Circular metallic object with a beigeish surface and black rim, no visible text or symbols.

Black oval-shaped object with a diagonal striped pattern and a small star at the bottom (no text or symbols visible)

BBQ 2 Plancha 30

Plain light blue circular basin with a small handle (no text or symbols visible)

Circular metal sieve with a circular vent, no visible text or symbols

Close-up of a gray plastic brush with a textured, spiky surface (no text or symbols visible)

Soft Soak Brush

ONDERHOUD

Barbecueën portable grill with three legs and a gridded top (no text or symbols visible on the dish itself)

Black portable grill with three legs and a side panel, labeled 'Bakken /grillen' above (no other text or symbols visible)

Black portable stove with three legs and a central side panel, labeled 'Koken' above (no other text or symbols visible)

Black Koffie zetten portable grill with three legs and a side-mounted fan (no text or symbols visible)

Exterior view of a black Deksel/Pan portable gas stove (no signage or text on the appliance itself)

Black pizza bakken with open lid and three legs (no text or symbols visible)

Black portable stove with three legs and a side-mounted control panel, labeled 'Bakken' above (no other text or symbols visible)

Exterior view of a Paella gas stove with black body, red legs, and blue control panel (no text or symbols on the device itself)

6. Schoonmaken

Black portable stove with red upward arrows indicating heating or ventilation (no text or symbols visible)

Close-up of a circular mechanical device with three legs and a central knob, featuring a red upward arrow indicating rotation or force direction (no text or symbols visible)

3D rendering of a mechanical device with three legs and a central hole, showing red upward arrows indicating motion or force direction (no text or symbols)

Inspuiter FIG. 10

9. Reserveonderdelen en accessoires

Top-down view of a portable gas stove with three legs and a central control knob (no visible text or symbols)

3D rendered image of a black plastic helmet with multiple arms and a blue connector, labeled Fig. 2c (no text or symbols on the helmet itself)

① ② ③ g. 2d

Slange Regulator Pakning Sett slangeklemmen inn her Sylin- derventil Fig. 3

NO

Mechanical assembly diagram showing a component with red motion arrow and circular motion indicator (no text or symbols on the diagram itself)

Tenning av apparatet med piezo

Black oval-shaped object with a textured surface and a small protrusion at the bottom (no text or symbols visible)

(E) BBQ 2 Plancha (Til steking/grilling)

CADAC USE THE BEAR LIFE

Bærepose (J)

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

(K) Paella Pan 30 (Til Paella/grilling)

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Paella Pan 30 (Til Paella/grilling)

Circular gray basin with a small handle, no visible text or symbols

Black oval-shaped object with a diagonal striped pattern, resembling a grating or vent (no text or symbols visible)

BBQ 2 Plancha (Til steking/grilling)

Pizza Stone Pro 30 (For pizzabaking)

Lokk

Kaffekanne stativ

5. GreenGrill Matlagingsalternativer

GreenGrill matlaging

Two types of kitchen utensils: a circular steamer with a lid and a rectangular tray holding a grid of brown rods (no text or symbols visible)

Soft Soak Brush

VEDLIKEHOLD

Grilling grater with three legs and a side-mounted grille (no text or symbols visible)

Black outdoor grating with three legs and a side-mounted control panel (no visible text or symbols)

Black portable stove with three legs and a side panel, labeled 'Kokende' above (no other text or symbols visible)

Black Kaffekoking portable stove with three legs and a side-mounted fan (no text or symbols visible)

Black outdoor cooking pot with three legs and a side panel, labeled 'Ovnskuppel/wok' (no other text or symbols visible)

Black and white photo of a pizzabaking grater with lid and side legs (no text or symbols visible)

Black portable steaming appliance with three legs and a central lid (no text or symbols visible)

Exterior view of a Paella cooking pot with three legs and a lid (no text or symbols on the device itself)

6. Rengjøring

Two black plastic circular trays with internal compartments, no text or symbols visible

Exploded view diagram of a cooking appliance with numbered steps from top to bottom

Black portable stove with red arrows indicating heating or ventilation direction (no text or symbols on the stove itself)

Top-down view of a mechanical device with red upward arrow indicating rotation or force, no visible text or symbols

3D rendering of a mechanical device with three legs and a central hole, showing red arrows indicating upward motion (no text or symbols)

Jetdyse Fig. 10

Close-up of a black industrial gas stove with three legs and a central control knob (no visible text or symbols)

Zwolnij klips Rys. 2b

3D rendered image of a black plastic fan or connector with blue connectors and a blue sensor, no visible text or symbols.

3D model of a mechanical component with labeled parts (1, 2, 3), no visible text or symbols beyond labels

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Black oval-shaped object with a diagonal striped pattern and a small star at the bottom (no text or symbols)

Circular metallic object with a beigeish-white gradient and reflective surface (no text or symbols)

Circular gray basin with a handle, no visible text or symbols

Two types of kitchen utensils: a circular steamer with a side panel and a rectangular brush holder containing brown spikes (no text or symbols visible)

Soft Soak Brush

UNDERHÅLL

Grillowanie grill appliance with three legs and a grater top (no visible text or symbols)

Black portable grater with three legs and a control panel, labeled 'Wrzenie' (no other text or symbols visible)

Black portable grill with a circular top and three legs, no visible text or symbols

Black outdoor cooktop appliance with three legs and a side dish, labeled 'Kopuła piekarnika/wokR' (text is part of the image content)

Black outdoor cooktop with open lid and side legs, no visible text or symbols

Black portable stove with three legs and a central top, labeled 'Smażenie' (no other text or symbols visible)

Exterior view of a Paella gas stove with black legs and lid (no text or symbols visible)

6. Czyszczenie

Two black oval-shaped objects with internal patterns, no text or symbols visible

Exploded view diagram of a kitchen appliance with numbered steps from top to bottom for assembly or maintenance.

Black portable stove with red arrows indicating heating or ventilation direction (no text or symbols on the stove itself)

Top-down view of a mechanical device with three legs and a central rotating knob, showing red directional arrows (no text or symbols)

Close-up of a mechanical device with three legs and a central hole, showing red upward arrows indicating motion or force (no text or symbols visible)

dysze Rys. 10

Top-down view of a portable gas stove with three legs and a central control knob (no visible text or symbols)

3D rendered image of a black plastic fan or mechanical component with blue indicator lights, labeled 'Fig. 2c' (no text or symbols on the device itself)

3D model of a mechanical component with labeled parts (1, 2, 3), no visible text or symbols beyond labels

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Paella Pan 30

Circular metallic object with smooth surface and reflective edges (no text or symbols)

Black oval-shaped object with a V-shaped grille and a small star at the bottom (no text or symbols visible)

BBQ 2 Plancha 30

Circular empty basin with a small handle, no visible text or symbols

Blue circular steamer with a central circular opening, no visible text or symbols

Close-up of a gray plastic brush with a spiky, textured brush (no text or symbols visible)

Soft Soak Brush

UNDERHÅLL

Grillning portable grill with three legs and a grater on top (no text or symbols visible)

Black outdoor grill with three legs and a side panel, labeled 'Stekning/grilling' (no other text or symbols visible)

Black portable stove with three legs and a side panel, labeled 'Kokande' above (no other text or symbols visible)

Black Kaffekokning portable stove with three legs and a side-mounted fan (no text or symbols visible)

Black outdoor cooking pot with three legs and a side panel, labeled 'Ugnskupol/wok' (no other text or symbols visible)

Black and white photo of a pizzabakning appliance with lid and legs (no text or symbols visible)

Black portable steaming appliance with three legs and a central lid, labeled 'Stekning' (no other text or symbols visible)

Exterior view of a Paella cooking pot with a lid and three legs (no text or symbols on the device itself)

6. Rengöring

Exploded view diagram of a cooking pot with numbered steps from top to bottom: adding, dividing, and adding a pan.

Black portable stove with red arrows indicating heating or ventilation direction (no text or symbols)

3D rendering of a mechanical device with three legs and a central rotating knob, showing red directional arrows (no text or symbols)

Top-down view of a mechanical device with three legs and a central hub, showing red arrows indicating upward motion (no text or symbols)

Jet Fig. 10

Black and white photo of a laboratory gas stove with three legs and control knob (no visible text or symbols)

Sprostite sponko Slika. 2b

3D rendered mechanical component with blue and white ports, no visible text or symbols

① ② ③ ika. 2d

3. Upravljanje naprave

Exterior view of a modern office building (no signage)

Black oval-shaped object with a diagonal striped base and a small star at the bottom (no text or symbols visible)

BBQ 2 Plancha 30 (za cvrtje/žar)

Pokrov

Circular metallic object with a smooth, gradient surface (no text or symbols visible)

Pizza Stone Pro 30 (za peko pice)

Circular gray basin with a small handle, no visible text or symbols

Circular gray plastic steamer with a circular vent, no text or symbols visible

Close-up of a gray plastic brush with a textured, spiky surface (no text or symbols visible)

Soft Soak Brush

Možnosti kuhanja

Black portable grill with a grater and three legs, labeled 'Peka na žaru' above (no other text or symbols visible)

Black portable gas stove with three legs and a side panel, no visible text or symbols on the stove itself.

Black portable stove with three legs and a central lid, labeled 'Vreti' above (no other text or symbols visible)

Black Kuhanje keva grill with three legs and a side-mounted control panel (no text or symbols visible)

Black Kupola pečice/vok appliance with three legs and a central bowl (no text or symbols visible on the device itself)

Peka pice cooker with open lid and side legs (no visible text or symbols)

Black portable stove with three legs and a side-mounted control panel (no visible text or symbols)

Exterior view of a Paella cooking pot on a tripod stand (no text or symbols visible)

6. Čiščenje

Two black oval-shaped objects with internal grating, placed side by side (no text or symbols visible)

Zapakirajte v predelke z zadrgo, ki se nahajajo znotraj zavihka pokrova torbe.

Exploded view diagram of a kitchen appliance with numbered steps from top to bottom for assembly or cleaning.

Black portable stove with red arrows indicating heating or ventilation direction (no text or symbols on the stove itself)

Close-up of a circular electronic device with three legs and a central knob, featuring a red upward arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical device with three legs and a central hole, showing red upward arrows indicating motion or force (no text or symbols visible)

Jet EXERC PHOIMETER MEAR CHIP 23 slika. 10

Black portable gas stove with three legs and a control knob, labeled Kuva. 2a (no visible text or symbols on the device itself)

3D rendered image of a black electronic device with visible ports and connectors (no text or symbols)

① ② ③ uva. 2d

Exterior view of a stainless steel cooking pot with lid and side handles (no text or symbols visible)

Paella Pan 30 (paellalle/paistamiseen)

Close-up of a black plastic fan or vent with ribbed grille and central slot (no text or symbols visible)

Circular metallic object with smooth surface and reflective edges (no text or symbols)

Pizza Stone Pro 30 (pizzan leivontaan)

Plain gray circular basin with a small handle (no text or symbols visible)

Two types of kitchen utensils: a circular steamer with a side panel and a wooden spatula with spiky beads (no text or symbols visible)

Soft Soak Brush

HUOLTO

Grilli grill with three legs and a side-mounted grater (no text or symbols visible)

Black portable grill with three legs and a side-mounted control panel, labeled 'Paistaminen/grillaus' (no other text or symbols visible)

Black Kiehuva portable stove with three legs and a central dish (no visible text or symbols)

Black portable stove with three legs and a side-mounted fan, labeled 'Kahvin valmistus' above (no other text or symbols visible)

Black Uunin kupu/wok portable grill with three legs and a side panel (no text or symbols on the appliance itself)

Black and white photo of a Pizzan leivonta grill with lid and control panel (no text or symbols on the appliance itself)

Black portable stove with three legs and a side-mounted control panel (no visible text or symbols)

Exterior view of a Paella cooking pot with a lid and three legs (no text or symbols on the device itself)

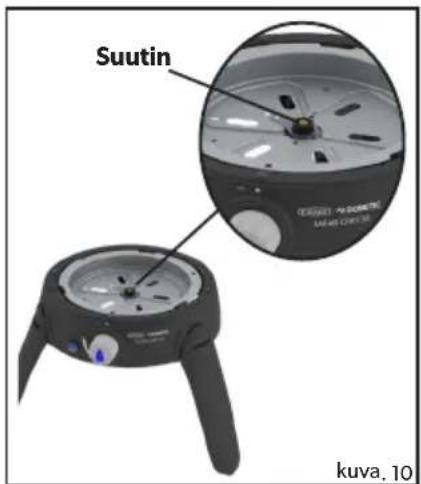

6. Puhdista

Two black plastic circular trays with internal grating, no text or symbols visible

Exploded view diagram of a cooking pot with numbered steps from top to bottom, showing internal components and control panel.

Black portable stove with red upward arrows indicating heating or ventilation (no text or symbols visible)

3D rendering of a mechanical device with three legs and a central knob, featuring a red upward arrow indicating rotation (no text or symbols on the device itself)

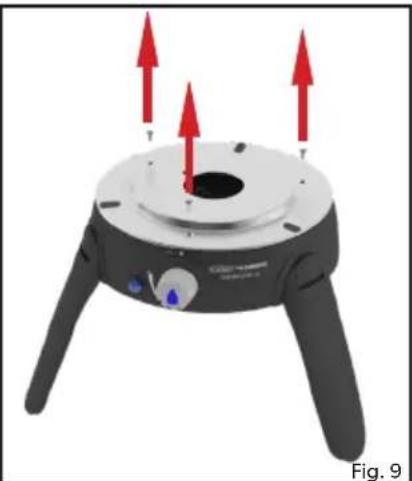

Close-up of a mechanical device with three legs and a central hole, showing red upward arrows indicating motion or force (no text or symbols on the device itself)

Exterior view of a portable gas stove with three legs and a central control knob (no text or symbols visible)

3D rendered image of a black plastic helmet with attached sensors and a blue indicator light (no text or symbols visible)

1 2 3 k. 2d

Exterior view of a modern stainless steel cooking pot with lid and side handles (no text or symbols visible)

Black oval-shaped object with a diagonal striped pattern and a small protrusion at the bottom (no text or symbols visible)

Plain gray circular basin with a small handle (no text or symbols)

Blue circular steamer with a circular lid and side handles, no visible text or symbols

Close-up of a gray plastic brush with spiky bristles, no text or symbols visible

Soft Soak Brush

BAKIM

Barbeki grill with three legs and a grater, no visible text or symbols on the device itself.

Black Kizartma/Izgara portable grill with three legs and a side-mounted control panel (no visible text or symbols on the dish itself)

Black portable gas stove with three legs and a central side panel, labeled 'Haşlama' (no other text or symbols visible)

Black portable grill with three legs and a side-mounted fan, labeled 'Yağlı tava ile kahve' (no other text or symbols visible)

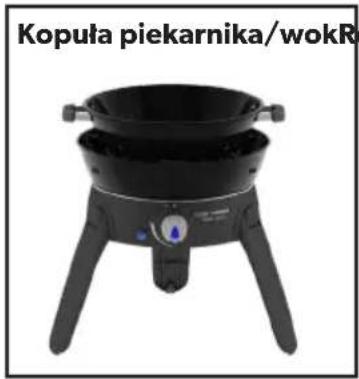

Black kubbesi/wok portable grill with three legs and a side panel (no text or symbols on the dish itself)

Top-down view of a pizza Pişirme cooktop with lid and side legs (no text or symbols on the appliance itself)

Black Kizartma portable stove with three legs and a central lid (no visible text or symbols)

Exterior view of a Paella cooking pot with three legs and a lid (no text or symbols on the device itself)

6. Temizleme

Two views of a circular mechanical component with internal slots and mounting feet (no text or symbols)

Black portable stove with red arrows indicating heating or ventilation direction (no text or symbols visible)

Close-up of a mechanical device with three legs and a central knob, featuring a red upward arrow indicating rotation or force (no text or symbols visible)

Top-down view of a mechanical device with three legs and a central hole, showing red upward arrows indicating motion or force (no text or symbols visible)

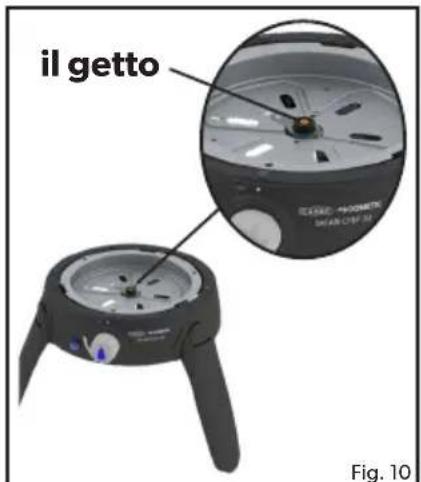

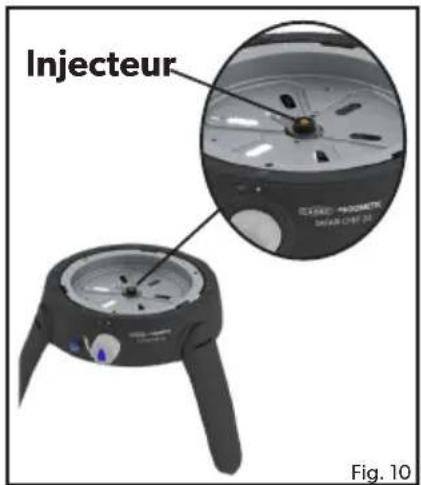

Jet Şek. 10

Email: [e-mail]

www.cadacsa.co.za

CADAC UK

14 Deanfield Court,

Link59 Business Park,

Clitheroe, Lancashire,

BB71QS

United Kingdom.

Tel: [phone]

E:mail:[e-mail]

www.cadacinternational.com

CADAC MOZAMBIQUE

Exclusive Brands Africa

492 Avenida Namaacha

Maputo, Mozambique

Tel: [phone]

www.cadac.co.mz

CADAC IRAN

Robin Bazarganan Carin Co.

Unit D, 6th Floor, Negin Zafar

Building, No.1327,

Shariati Street, Tehran, Iran

Tel: [phone]

Mail: [e-mail]

CADAC CHINA

Room 807, Huayue International

Building, No.255 Tiangao Road,

South

Yinzhou business district,

Ningbo, China

Tel:[phone]

Email: [e-mail]

CADAC SWEDEN & NORWAY

KAMA FRITID AB

0046 36 353700

[e-mail]

CADAC EUROPE

Ratio 26, 6921 RW Duiven

The Netherlands

Tel: [phone]

Email: [e-mail]

www.cadacinternational.com

CADAC SCANDINAVIA

Millarco International A/S

Rokhøj 26

8520 Lystrup, Denmark

Phone: [phone]

[e-mail]

www.millarco.com

CADAC MONTENEGRO

City kvart Z1L6

81000 Podgorica, Montenegro

Tel [phone]

E-mail: [e-mail]

CADAC DENMARK

Camper Fritid

Industrivej 11

6640 Lunderskov, Denmark

Tel.: [phone]

Email: [e-mail]

www.camper.dk

CADAC ZIMBABWE

Exclusive Brands Africa

Unit 8 Birkenhead Park

43 Josiah Chinamano Street

Belmont, Bulawayo

Tel: [phone] (Bul)

Tel: [phone] (Har)

www.cadac.co.zw

CADAC GERMANY

Ratio 26, 6921 RW Duiven

The Netherlands

Tel: [phone]

Email: [e-mail]

www.cadacinternational.com

CADAC Czech Rep.

32-007 Wola Batorska Poland

Tel: [phone]

Email: [e-mail]

www.kamai.pl

CADAC ZAMBIA

Exclusive Brands Africa Limited

7225A Kachidza Road

Light Industrial Area

Lusaka, Zambia

Tel: [phone]

Tel: [phone]

Email: [e-mail]

CADAC FRANCE

Le Viallon, 42520 Veranne

France

Tel: [phone]

Email: [e-mail]

www.cadacinternational.com

CADAC NEW ZEALAND

Riverlea Group (Pty) Ltd

2A Maui Street, Pukete,

Hamilton 3200, New Zealand

Tel: [phone]

Email: [e-mail]

www.riverleagroup.co.nz

CADAC U.A.E.

Supreme Impex General Trading

LLC Office No. 1801-7 Latifa

Tower Sheikh Zayed Road

Dubai, UAE

CADAC ITALY

Brunner SRL/GMBH

via Buozzi, 8

39100 Bolzano (Italy)

Tel:[phone]

Email: [e-mail]

www.brunnerinternational.com

CADAC SOUTH EAST EUROPE

Bulevar oslobodjenja 285

Tel: [phone]

Email: [e-mail]

www.cadac.rs
