Warning: rotating cutter. Keep hands and

Warning: rotating parts. Keep hands and

feet clear. This product is in accordance with applicable EC directives. Noise emission to the environment according to the European Community’s Directive. The machine’s emission is specified in the Technical data chapter and on the label. Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon monoxide, an odourless, poisonous and highly dangerous gas. Risk of explosion Always shut off the engine before refuelling. Hot surface. Explanation of warning levels The warnings are graded in three levels. WARNING! IMPORTANT! CAUTION!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

IMPORTANT! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed. CAUTION! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.PRESENTATION English – 55 Contents Dear Customer, The line of innovative chainsaws would continue over the decades, and business was expanded, first by airplane and kart engines in the 1950s, then by mini chainsaws in the 1960s. Later, in the 1970s and 80s, trimmers and blower vacs were added to the range. Today, as a part of the Husqvarna group, McCulloch continues the tradition of powerful engines, technical innovations, and strong designs that have been our hallmarks for more than half a century. Lowering fuel consumption, emissions and noise levels are of top priority to us, as is improving safety and user-friendliness. We certainly hope that you will be satisfied with your McCulloch product, as it is designed to be your companion for a long time. By following this operators manual’s advice on usage, service, and maintenance, its lifespan can be extended. If you should need professional help with repair or service, please use the Service Locator at www.mcculloch.com. McCulloch has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice. This manual can also be downloaded at www.mcculloch.com.

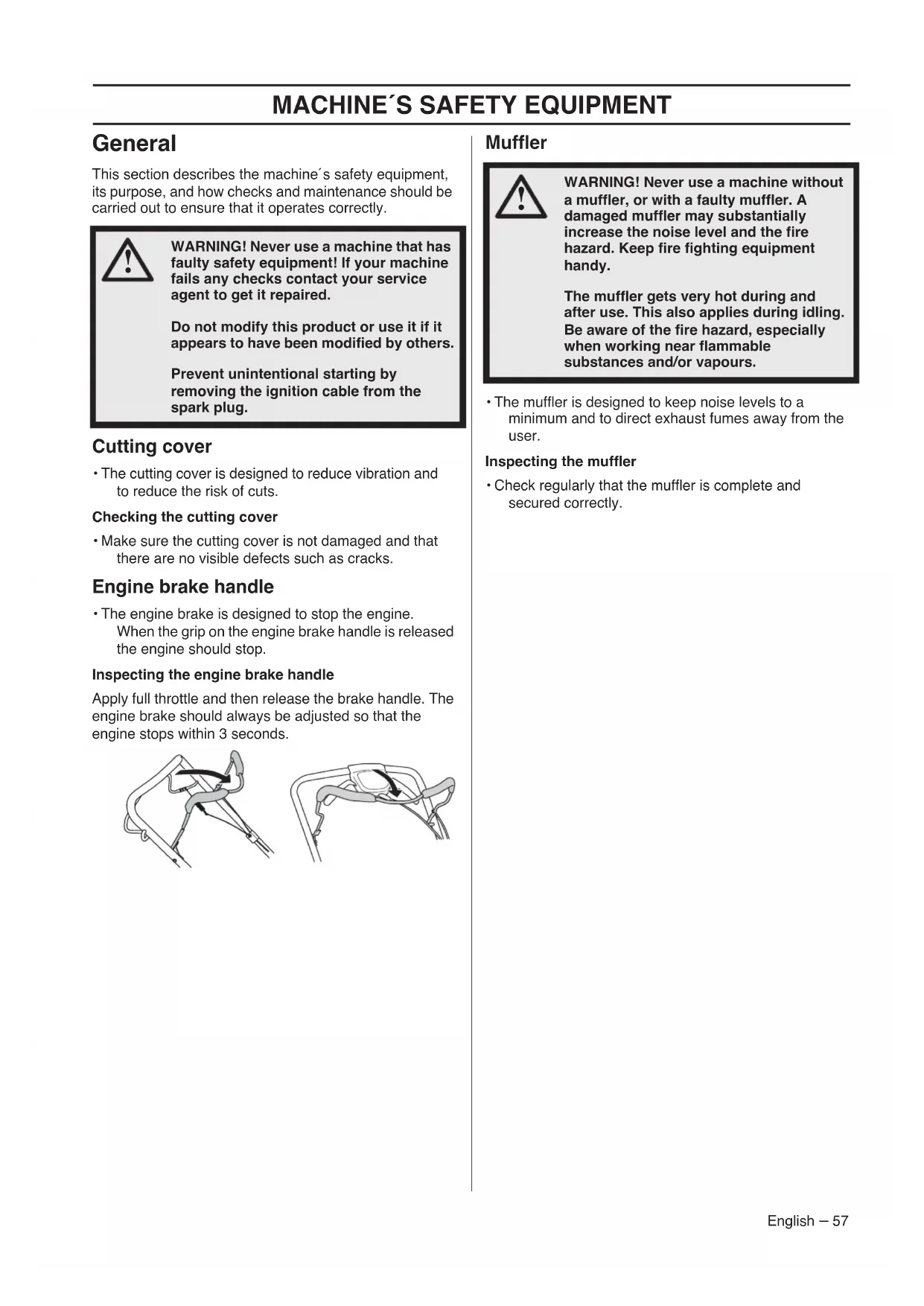

MACHINE´S SAFETY EQUIPMENT

General ................................................................. 57

ASSEMBLING AND ADJUSTMENTS

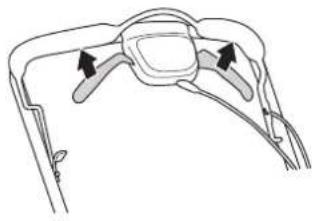

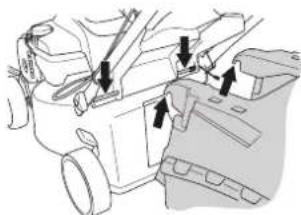

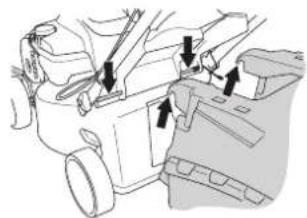

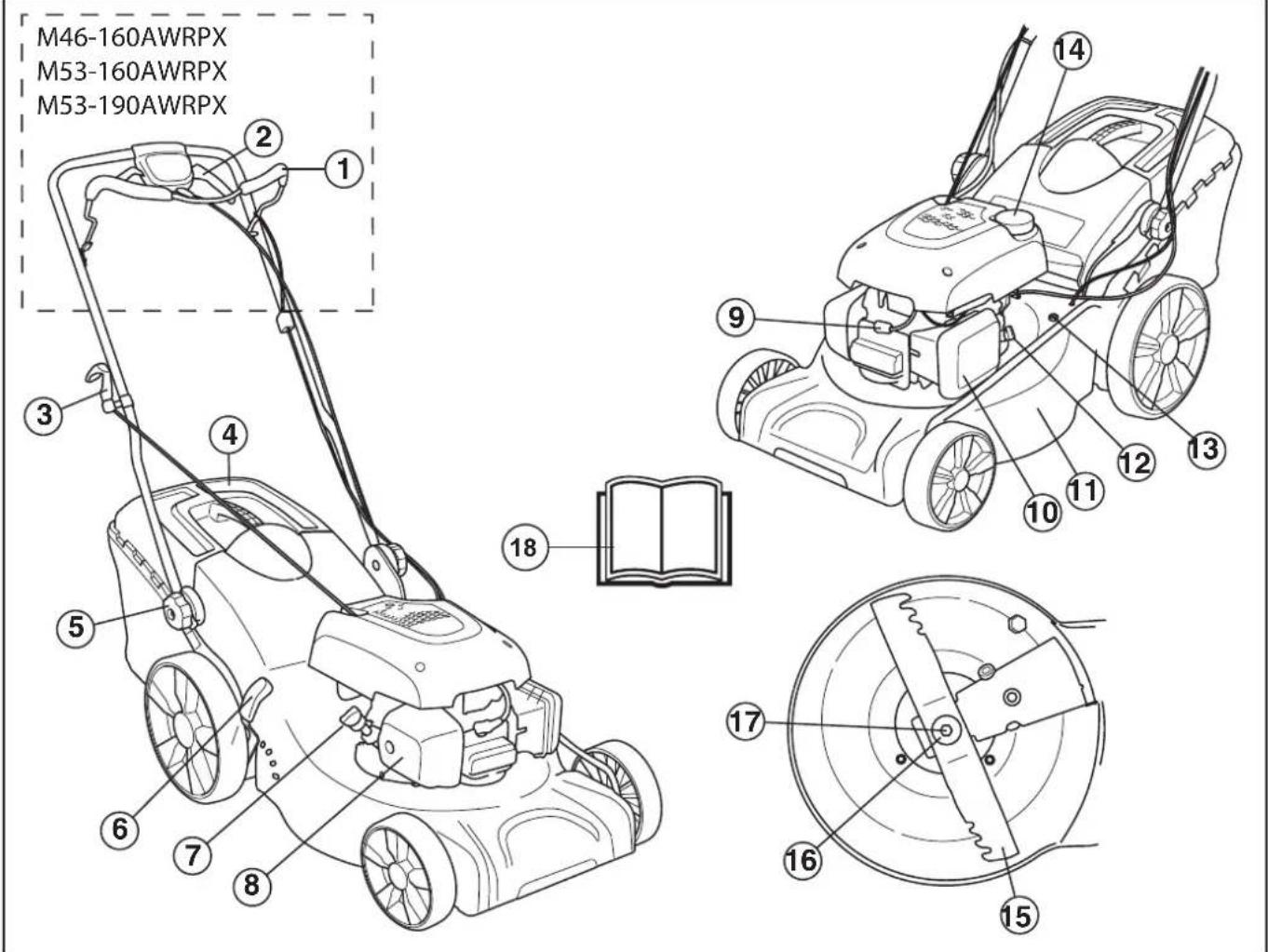

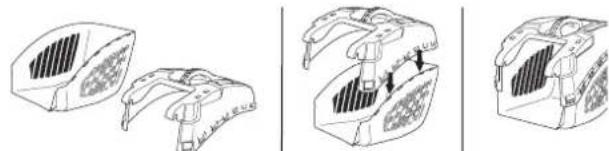

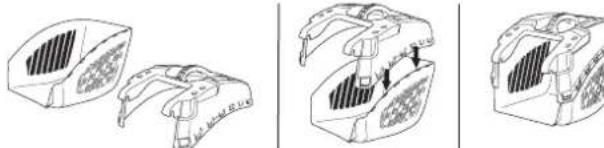

1 Engine brake handle 2 Propulsion bar 3 Starter handle 4 Catcher 5 Handle, handle height 6 Cutting height control 7 Dipstick/oil filler 8 Muffler 9 Spark plug 10 Air filter 11 Cutting cover 12 Fuel valve 13 Water connector 14 Refuelling 15 Cutter 16 Spring washer 17 Cutter bolt 18 Operator’s manualMACHINE´S SAFETY EQUIPMENT English – 57 General This section describes the machine´s safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. Cutting cover

• The cutting cover is designed to reduce vibration and to reduce the risk of cuts.Checking the cutting cover• Make sure the cutting cover is not damaged and that there are no visible defects such as cracks. Engine brake handle

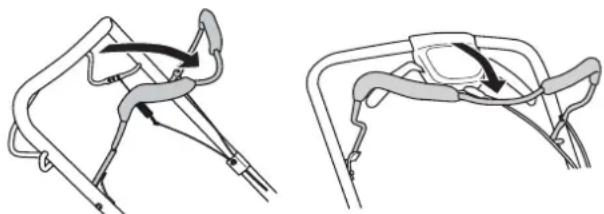

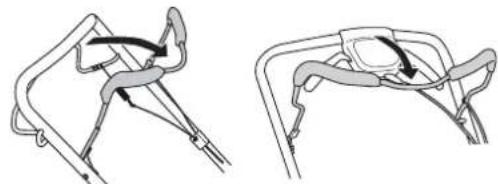

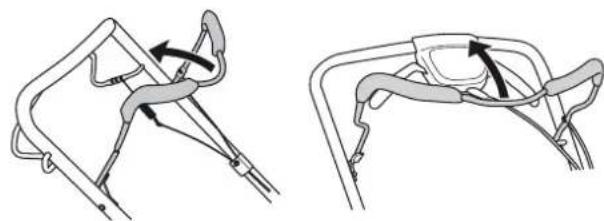

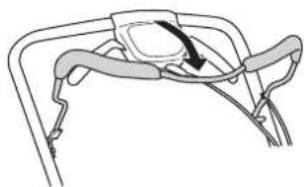

• The engine brake is designed to stop the engine. When the grip on the engine brake handle is released the engine should stop.Inspecting the engine brake handleApply full throttle and then release the brake handle. The engine brake should always be adjusted so that the engine stops within 3 seconds. Muffler
• The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.Inspecting the muffler• Check regularly that the muffler is complete and secured correctly. WARNING! Never use a machine that has faulty safety equipment! If your machine fails any checks contact your service agent to get it repaired.Do not modify this product or use it if it appears to have been modified by others.Prevent unintentional starting by removing the ignition cable from the spark plug.

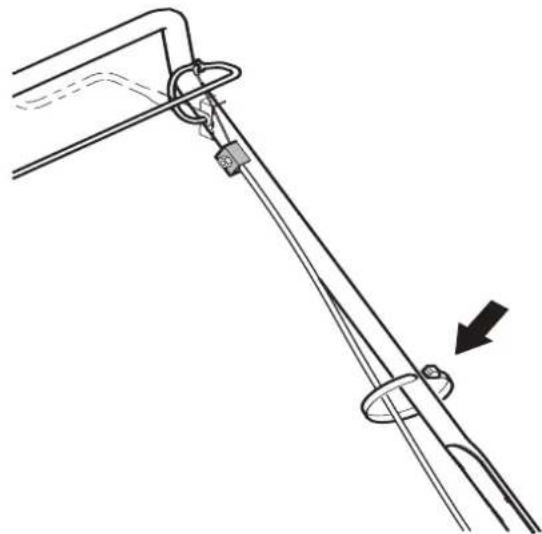

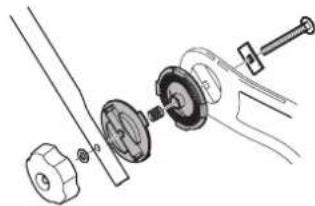

WARNING! Never use a machine without a muffler, or with a faulty muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.ASSEMBLING AND ADJUSTMENTS 58 – English General Handle Assembly Top handle Place the handlebar’s tubular construction in direct opposite to the lower part of the handlebar. Tighten the knobs properly. Use enclosed straps to secure cables to the handle. Do not overstretch cables when mounting. Settings Handle height

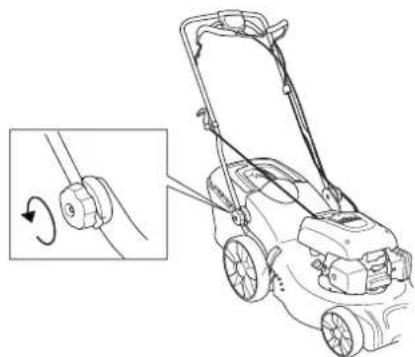

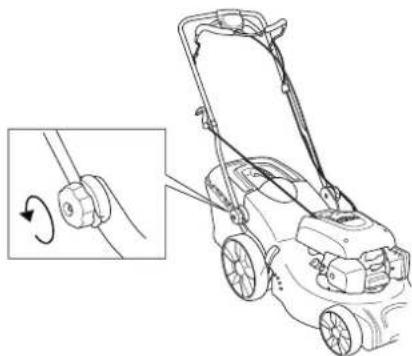

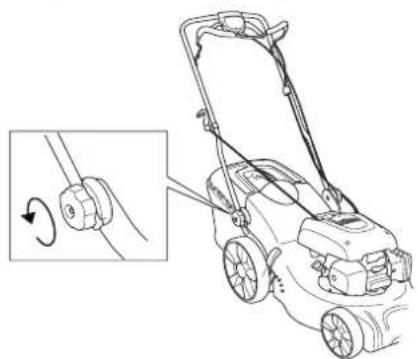

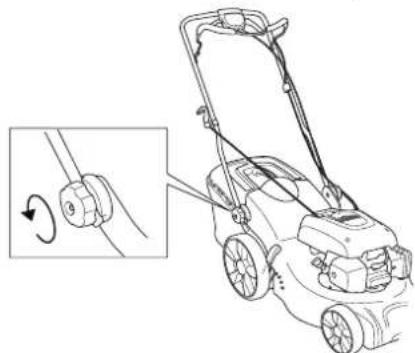

• Loosen the lower knobs.

• Adjust the height. Tighten the knobs properly. Cutting height Move the lever to the back for higher cutting height and to the front for lower cutting height. Catcher

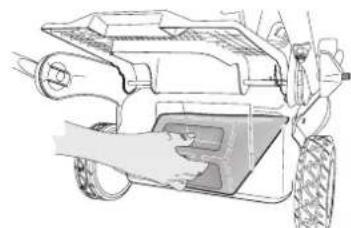

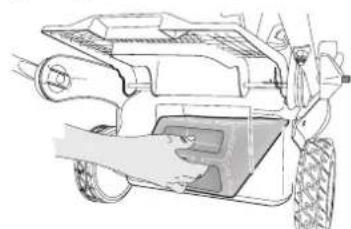

• Raise the discharge guard to mount / dismount the mulch plug. Filling with oil

• The oil tank is empty at delivery. Fill the oil slowly. See instructions under the heading Maintenance. The engine oil should be changed the first time after 5 hours running time.

IMPORTANT! Prevent unintentional starting by removing the ignition cable from the spark plug. NOTICE! Do not set the cutting height too low as there is a risk that the cutters might hit ground with unevenness.FUEL HANDLING English – 59 General Fuel Petrol

• Use good quality unleaded or leaded petrol.• The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 so-called knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.• Use low-emission petrol, also known as alkylate petrol, if it is available. Engine oil
• The engine oil should be changed the first time after 5 hours running time. Refer to Technical Data for recommendations on which oil type to use. Never use oil intended for two-stroke engines. Fueling Never start the machine:• If you have spilled fuel or engine oil on the machine. Wipe off the spill and allow the remaining fuel to evaporate.• If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.• If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines. Transport and storage
• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/switches or boilers.• When storing and transporting fuel always use approved containers intended for this purpose. Long-term storage
• When storing the machine for long periods the fuel tank must be emptied. Contact your local petrol station to find out where to dispose of excess fuel. WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.Fuel and fuel fumes are highly flammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!Do not smoke and do not place any hot objects in the vicinity of fuel.NOTICE! The machine is equipped with a four-stroke engine. Make sure that there is always sufficient oil in the oil tank.NOTICE! Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine. See instructions in the section "Maintenance".

WARNING! Always stop the engine and let it cool for a few minutes before refuelling.Use a fuel can at all times to avoid spillage.When refuelling, open the fuel cap slowly so that any excess pressure is released gently.Clean the area around the fuel cap.Tighten the fuel cap carefully after refuelling. Negligence may lead to the start of a fire.Move the machine at least 3 m from the refuelling point before starting it.OPERATING 60 – English Personal protective equipment You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. Always wear:

• Use ear muffs if the noise level exceeds 85 db.

• Sturdy, non-slip boots or shoes.

• Heavy, long pants. Do not wear shorts, sandals or go barefoot.

• Gloves must be worn when required, for example when fitting, inspecting or cleaning cutting attachments. General safety precautions This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

• Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.

• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.

• The machine must be kept clean. Signs and stickers must be fully legible. Always use common sense It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of! Work area safety

• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.

• Objects hitting against the cutting attachment could be thrown and cause damage to people and objects. Keep people and animals well away.

• Never use the machine in bad weather, for instance in fog, in rain, damp or in wet locations,strong winds, intense cold, risk of lightning, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.

• Observe your surroundings to ensure that nothing can affect your control of the machine.

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others. Never allow children or other persons not trained in the use of the machine to use or service it. The machine should not be used by people with reduced physical or mental capacities or people who are unsuitable for health reasons to operate the machine, without supervision of a person responsible for their safety. Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator’s manual. Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer. Do not modify this product or use it if it appears to have been modified by others. Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. Always use genuine accessories.OPERATING English – 61• Beware of roots, stones, twigs, pits, ditches etc. Tall grass can hide obstacles.• Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes. The lawn mower should not be used on inclines greater than 15 degrees.• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.• Be careful when you are approaching hidden corners and objects that could block your view. Work safety

• A lawn mower is only designed to mow lawns. All other use is forbidden.• Wear personal protective equipment. See instructions under the ”Personal protective equipment” heading.• Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.• Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent axle gives imbalance and heavy vibration, which results in a great risk of the cutter becoming loose.• The brake handle must never be permanently anchored to the handle when the machine is running.• Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.• Always place yourself behind the machine. Allow all the wheels to remain on the ground and keep both hands on the handle when mowing. Keep your hands and feet away from the rotating blades.• Do not tilt the machine when the engine is running.• Pay particular attention when pulling the machine towards you during work. • Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.• Do not mow the lawn while walking backwards.• The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.• Never run with the machine when it is running. You should always walk with the lawn mower.• Shut down the engine before changing the cutting height. Never make adjustments with the engine running.• Never leave the machine unsupervised with the motor running. Turn off the motor. Ensure the cutting attachment has stopped rotating.• If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage. Basic working techniques
• Always cut with a sharp blade for optimal results. A dull blade gives an uneven cut and the grass becomes yellow on the surface of the cut.• Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.• Cut in different directions each time in order to avoid stripes in the lawn. Transport and storage
• Secure the equipment during transportation in order to avoid transport damage and accidents.• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.• Store the machine and its equipment in a dry and frost proof place.• For transport and storage of fuel, see the section "Fuel handling". Starting and stopping Before starting
• Keep people and animals well away from the working area.• Perform daily maintenance. See instructions in the section "Maintenance".• Ensure the ignition lead sits correctly on the spark plug.

WARNING! Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.Wear personal protective equipment. See instructions under the ”Personal protective equipment” heading.OPERATING 62 – English Starting Open the fuel valve.

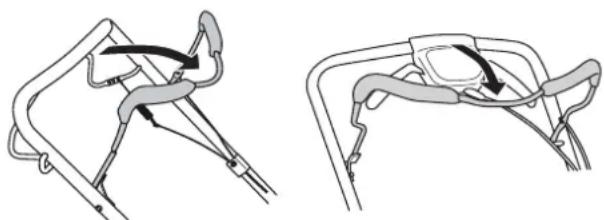

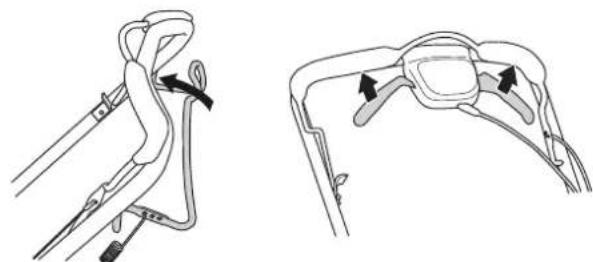

• The engine brake handle must be held against the handlebar when the engine is started.

• Position yourself behind the machine.

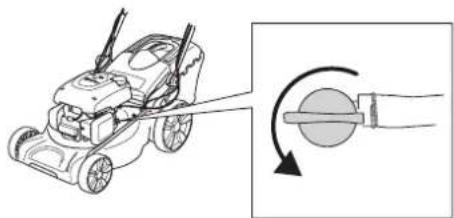

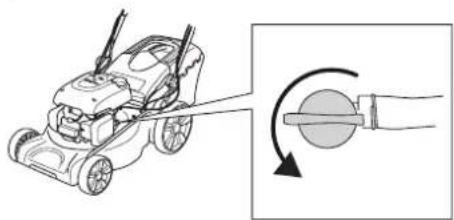

• Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip). Pull with force to start the engine. Never twist the starter cord around your hand. Drive

• Push the propulsion bar in towards the handle in order to start the drive.

• Before pulling the machine towards you, disengage the drive and push the machine forward approx. 10 cm. Stopping

• Stop the engine by releasing the engine brake handle.

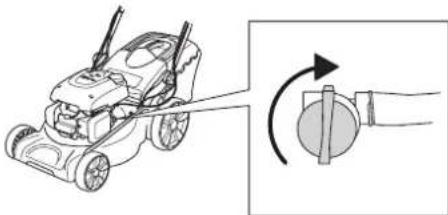

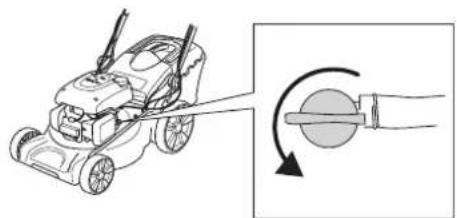

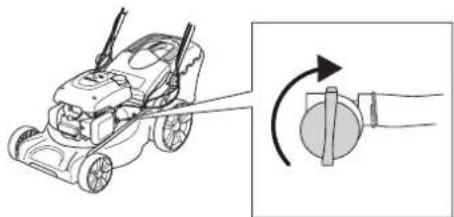

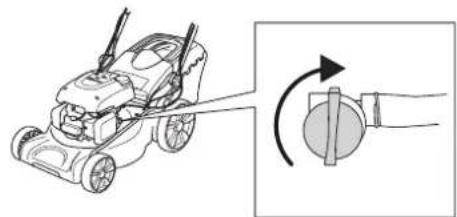

• Close the fuel valve.MAINTENANCE English – 63 General
• Always use genuine accessories. Maintenance schedule In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on daily use of the machine, and may differ depending on the rate of usage.*See instructions in the section "Machine’s safety equipment". General inspection
• Check that nuts and screws are tight. External cleaning
• Brush leaves, grass and the like off of the lawn mower.• Do not use a high pressure washer to clean the machine.• Never flush water directly on the engine. • Clean the air intake on the starter. Check the starter and starter cord.• When cleaning under the cutting deck, turn the machine with the spark plug upwards. Empty the fuel tank. Oil level The lawn mower should stand on flat ground when you check the oil level. Check the oil level with the dipstick on the oil filler cap.• Remove the oil cap and wipe the dipstick clean.• Put the dipstick back in.• If the oil level is low, fill using engine oil up to the upper level on the dipstick. Cutting equipment
• Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.• Always ensure the cutter is well ground and balanced correctly.Replacing the bladesDismantling• Unscrew the bolt holding the cutter.• Remove the old blade. Make sure the blade bracket is free of damage. Also check that the blade bolt is undamaged and that the engine shaft is not bent. WARNING! The user must only carry out the maintenance and service work described in this Operator’s Manual. More extensive work must be carried out by a service workshop.Switch off the engine before carrying out any checks or maintenance. Prevent unintentional starting by removing the ignition cable from the spark plug.The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.CAUTION! When the machine is tilted, make sure the air filter always is placed in the highest position.Before startingWeekly maintenanceMonthly maintenanceGeneral inspection Spark plug Air filterExternal cleaning Muffler* Fuel systemOil levelCutting equipmentCutting cover*Adjusting the clutch wire Engine brake handle*CAUTION! The blades should be balanced after sharpening. Balancing, replacing or sharpening the blades should be conducted by a service workshop.Damaged blades should be replaced when hitting obstacles that result in a breakdown. Let the service centre assess whether the blade can be sharpened or must be replaced.

WARNING! Always wear heavy-duty gloves when servicing and maintaining the cutting equipment. The cutters are very sharp and cuts can occur very easily.MAINTENANCE 64 – English Assembly

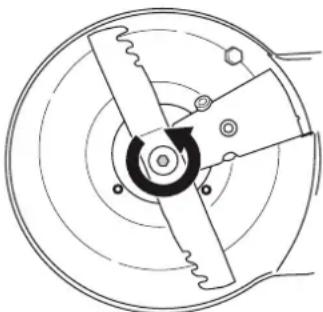

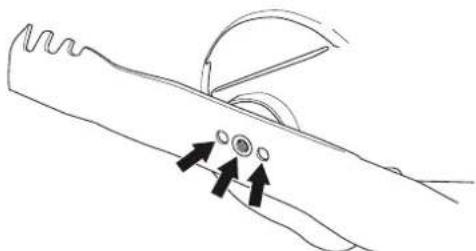

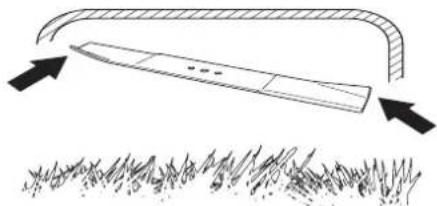

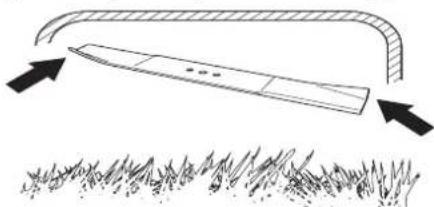

• The blade must be mounted with the angled ends pointing up towards the cover.

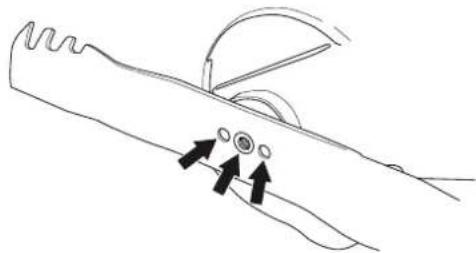

• Make sure the cutter centers correctly on the shaft.

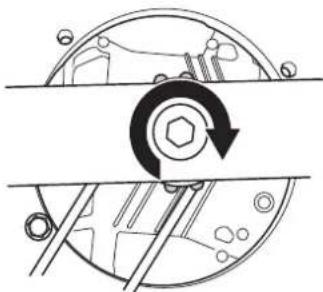

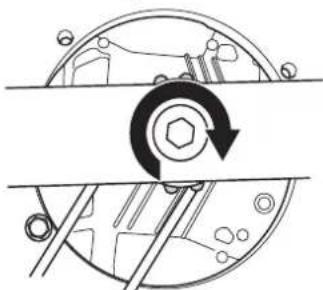

• Fit the washer and tighten the bolt correctly. The bolt should be tightened with a torque of 45-60 Nm.

• Pull the blade around by hand and make sure it rotates freely.

• Test run the machine. Spark plug

• If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking other steps.

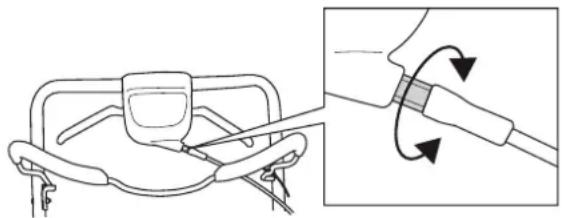

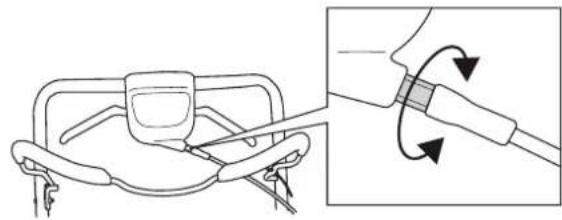

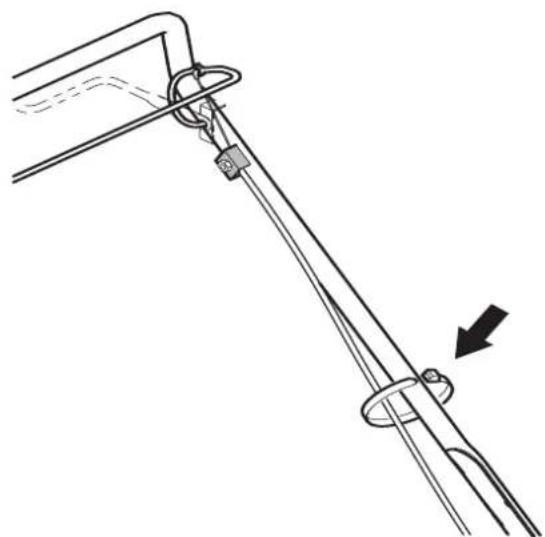

• If the spark plug is dirty, clean it and check that the electrode gap is 0.5 mm. Replace if necessary. Adjusting the clutch wire Finely adjust the wire using the adjuster screw. Air filter

• Remove the air filter cover and take out the filter.

• An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals.

damaged air filter must always be replaced.

• When reassembling, make sure that the filter completely seals against the filter holder. Clean the paper filter

• Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter. Cleaning the foam plastic filter

• Remove the foam plastic filter. Wash the filter well in tepid soapy water. After cleaning, rinse the filter well in clean water. Squeeze out and allow the filter to dry. NOTE! High pressure compressed air can damage the foam. After cleaning the filter should be oiled using engine oil. Wipe away excess oil by pressing a clean cloth against the filter. Oil change

• Empty the fuel tank.

• Unscrew the oil filler cap.

• Place a suitable vessel to collect the oil in.

• Drain the oil by tipping the engine so that the oil runs out through the filler pipe. When the machine is tilted, make sure the air filter always is placed in the highest position. Ask where you can dispose of surplus engine oil at your local petrol station.

• Fill with new engine oil of a good quality. See instructions in the section "Technical data". Fuel system

• Check that the fuel cap and its seal are not damaged.

• Check the fuel hose. Replace if necessary. IMPORTANT! Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Contact an authorised service workshop. Always use genuine parts. For more information, see the ”Technical data” section. NOTICE! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.English – 65 TECHNICAL DATA Technical data Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values. Note 2: Noise emissions in the environment measured as sound power (L

) in conformity with EC directive 2000/14/ EC. Note 3: Noise pressure level according to ISO 5395:2013. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB(A). Note 4: Vibration level according to ISO 5395:2013. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s

*Use engine oil of quality SJ or higher. See the viscosity chart in the engine manufacturer’s manual and select the best viscosity based on the expected outside temperature. M46- 160AWRPX M53- 160AWRPX M53- 190AWRPX Engine Engine manufacturer Honda Honda Honda Cylinder displacement, cm

dB(A) 96 98 98 Sound levels (see note 3) Sound pressure level at the operators ear, dB(A)

8,77 8,36 9,39 Cutting system Cutting height, mm 30-80 30-70 30-70 Cutting width, cm 46 53 53 Cutter PX3 PX3 PX3 Article number 5802592-02 5802584-02 5802584-02 Bagger capacity, litre 50 60 6066 – English TECHNICAL DATA EC Declaration of Conformity (Applies to Europe only) Manufacturer’s name: Husqvarna AB, SE-561 82 Huskvarna, Sweden (Tel: +46-36-146500). Husqvarna AB claims sole responsibility for the rotary mower with fixed blades model(s): McCulloch M46-160AWRPX, M53-160AWRPX, M53-190AWRPX from 2016 serial numbers and onwards. The model number is clearly stated in plain text on the type plate along with the year with subsequent serial numbers. The object of the declaration described above is in conformity with the requirements of the Council’s Directives:

• 2006/42/EC ”relating to machinery” 17 May 2006.

• 2014/30/EU ”relating to electromagnetic compatibility” February 26, 2014

• 2000/14/EC ”relating to noise emissions in the environment” 08 May 2000
