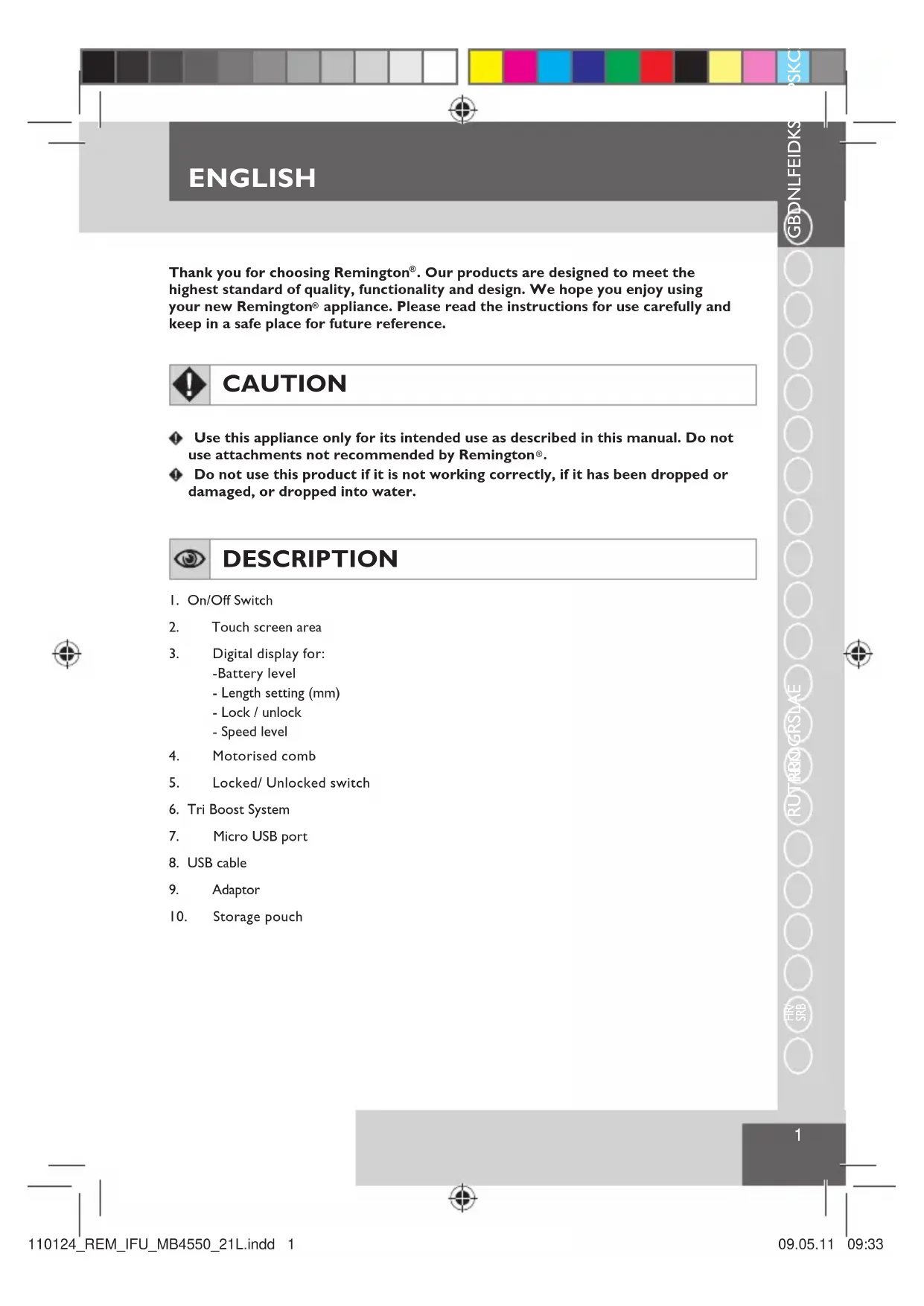

SRB GB Thank you for choosing Remington ® . Our products are designed to meet the highest standard of quality, functionality and design. We hope you enjoy using your new Remington ® appliance. Please read the instructions for use carefully and keep in a safe place for future reference.

CAUTION Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Remington ®

Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped into water. DESCRIPTION 1. On/Off Switch2. Touch screen area3. Digital display for:-Battery level- Length setting (mm)- Lock / unlock- Speed level4. Motorised comb5. Locked/ Unlocked switch6. Tri Boost System7. Micro USB port8. USB cable9. Adaptor10. Storage pouch110124_REM_IFU_MB4550_21L.indd 1 09.05.11 09:33ENGLISH

GETTING STARTED CHARGING YOUR TRIMMER Before using your trimmer for the first time, charge for 14-16 hours.

Ensure the product is switched off.

Connect the charging adaptor to the product and then to the mains. The charging indicator

If the product is not going to be used for an extended period time (2-3 months), unplug it

from the mains and store.

Fully recharge your trimmer when you would like to use it again.

To preserve the life of your batteries, let them run out every six months then recharge for

CHARGING VIA STANDARD ELECTRICAL SOCKET Ensure the product is switched off.

Connect the charging adaptor to the product and then to the mains.

When charging the digital display will illuminate.

Allow 90 minutes for a complete charge.

USB CHARGING VIA PC Ensure the product is switched off.

Connect your USB cable to the USB port on the PC Connect the USB cable to your trimmer

When charging the digital display will illuminate.

Allow 90 minutes for a complete charge.

CORDED USE Connect the charging adaptor to the product and then to the mains.

When the cord is connected to the mains, a digital display will be displayed on the trimmer.

CAUTION: Extended mains only use will result in the reduction of the battery life.

WARNING: The trimmer can not be operated in corded mode while connected to a PC

CORDLESS USE When the unit is switched on and fully charged, the product can be used in cordless mode

for up to 40 minutes.

110124_REM_IFU_MB4550_21L.indd 2 09.05.11 09:33ENGLISH

GBDNLFEIDKSFINPSKCZPL HUN RUTRROGRSLAE HR/

SRB GB HOW TO US E BEFORE YOU BEGINAlways comb your beard or moustache with a fine comb before you start trimming.USING THE TOUCH SCREEN ADJUSTING THE TRIM LENGTHThe trimmer comb can be adjusted to give you 175 different trim lengths, with 0.1mm increase, simply by pressing the arrows on the touch screen. Press and hold the arrow up to increase the cutting length and down to decrease it. The comb will move to reach each setting, the lengths will change slowly and then speeds up as you hold the up/down arrow, and the setting number will appear on the digital display. NOTE: Trimmer comb must be attached to the groomer in order to use the hair length selector. To achieve 0.4mm, the comb must be removed. TO THIN AND TAPER THE BEARD/MOUSTACHE (DIAGRAM 1) Use the touch screen to set the trimmer comb to the desired length setting. The setting will appear on the length position indicator. If you are trimming for the first time start with the maximum trimming length setting Turn the unit on. Place the flat top of the trimmer comb against the skin. Slowly slide the trimmer through the hair. Repeat from different directions as necessary.

If hair builds up in the trimmer comb during the trimming process, switch the unit off, pull off the comb and brush off. TO DEFINE THE BEARD/MOUSTACHE LINE Remove the trimmer comb attachment. Start with edge of beard/moustache line and gently lower the trimmer blade onto your skin.

Use motions towards edge of beard/moustache line to trim to desired locations in facial area and away from beard in neck area. Shape as desired. TRIMMING EDGE OF SIDEBURNS (DIAGRAM 2) Hold the trimmer with the trimmer blade facing you. Start with edge of sideburn, and with the trimmer blades resting lightly against your skin, use motions towards edge of sideburn line to trim to desired locations in facial area. Shape as desired. TRIMMING THE NAPE OF YOUR NECK NOTE: You will need a hand mirror for this operation if performing it alone. Remove the trimmer comb attachment. Use your fingers to lift the hair at the base of your head up off the neck. Your index finger should be covering the roots of the hairs you are lifting to prevent accidental removal by trimmer.110124_REM_IFU_MB4550_21L.indd 3 09.05.11 09:33ENGLISH

With your other hand, use the trimmer as shown in.

Using your other hand, hold the trimmer to the base of your neck with the cutting unit facing

up, and move the trimmer up the length of the neck until it touches your finger covering the

hair roots at the base of your head.

Be sure to move the unit slowly when performing this operation and to keep the hair roots at

the base of your head out of the way of the trimmer.

Tips for best results

Beard, moustache and sideburn hairs should be dry.

Avoid using lotions before using your trimmer.

CARE FOR YOUR PERSONAL GROOMER AFTER EACH USE Turn the trimmer off.

Remove trimmer comb attachment and cutter assembly.

Gently brush the remaining hairs away from the trimmer comb and trimmer blade.

Do not rinse the cutter assembly under water.

CLEANING CAUTIONS Only the trimmer comb attachment and trimmer blade may be removed from the product for

Cleaning should be done with a soft brush, such as the brush supplied with the product.

This trimmer is not washable.

Do not rinse under water.

Do not use harsh or corrosive cleaners on the units or their blades.

Do not submerge in water as damage will occur.

STORAGE Always store this appliance and cord in a moisture-free area. Do not store it in

temperatures exceeding 140°F (60°C).

Do not wrap the cord of the charging adaptor around the appliance.

CLEANING Ensure the shaver is switched off and unplugged from the mains outlet.

Never use the cleaning brush on the foils as damage may occur.

110124_REM_IFU_MB4550_21L.indd 4 09.05.11 09:33ENGLISH

GBDNLFEIDKSFINPSKCZPL HUN RUTRROGRSLAE HR/

SRB GB IMPORTANT SAFETY INSTRUCTIONS WARNING – TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR INJURY TO PERSONS: An appliance should never be left unattended when plugged into a power outlet. Keep the power plug and cord away from heated surfaces. Make sure the power plug and cord do not get wet. Do not use the product with a damaged cord. A replacement can be obtained from an International Service Centres listed at the back of this booklet. Charge, use and store the product at a temperature between 15°C and 35°C Only use the parts supplied with the appliance. PROTECT THE ENVIR ONMENT This appliance contains an environmentally friendly rechargeable Nickel Metal Hydride battery. Do not dispose the appliance or the battery in the household waste as restrictions exist in most countries. Adhere to national or local regulations for collection and disposal that apply to your specific location. In case you are required to remove the battery from the appliance for separate disposal see the instructions in the ‘Battery Removal’ section on how to open the housing.

CAUTION: Do not put in fire or mutilate your battery packs as they may burst or release toxic materials. For further information on recycling see www.remington-europe.com BATTERY REMOVAL To remove the battery for safe disposal, please follow the instructions below: The battery must be removed from the appliance before it is scrapped. Turn the trimmer on and discharge all remaining power. Remove the comb attachment. Detach the blade head. Remove the head clip using a screw driver. Using a screwdriver carefully pull out the top housing. Unscrew the six screws on the motor bracket then lift out the bottom housing. 110124_REM_IFU_MB4550_21L.indd 5 09.05.11 09:33ENGLISH

Remove the upper circuit board.

Cut the motor connecting wires and remove the motor bracket, front portion of motor

bracket, comb rail, middle motor & gear chains.

Disconnect the batteries from the lower circuit board by solder iron then remove.

The batteries are to be disposed of safety.

SERVICE AND WARRANTY This product has been checked and is free of defects. We warrant this product against any

defects that are due to the faulty material or workmanship for a 3 year period from the

original date of consumer purchase. If the product should become defective within the

warranty period, we will repair any such defect or elect to replace the product or any part

of it without charge provided there is proof of purchase. This does not mean an extension

of the warranty period.

In the case of a warranty simply call the Remington

Service Centre in your region.

This warranty is offered over and above your normal statutory rights.

The warranty shall apply in all countries in which our product was sold via an authorised

This warranty does not include shaving heads / foils and the cutters which are consumable

parts. Also, not covered is damage to the product by accident or misuse, abuse, alteration

to the product or use inconsistent with the technical and/or safety instructions required.

This warranty shall not apply if the product has been dismantled or repaired by a person

not authorised by us.
