USER MANUAL Omniblade Multi Pro HG5000 REMINGTON

Black and white photo of a Dritten Skirt with a textured handle and no visible text or symbols

Diagram of a mechanical device with a rotating arrow indicating motion (no text or symbols)

Illustration of a hairdryer with an arrow indicating compression (no text or symbols)

C

Diagram showing a hairpin with teeth being inserted into a mechanical component (no text or symbols)

D

Diagram showing a brush tool interacting with a device, illustrating the process of turning or positioning (no text or symbols present)

CLICK!

E

Diagram showing a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols present)

CLICK!

F

3 mm 6 mm 9 mm

Thank you for buying your new Remington ^® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFEGUARDS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Suitable for use in a bath or shower.

• Do not use the product with a damaged cord.
• The battery in this device is not replaceable.
• Do not use the appliance if it is damaged or malfunctions.
• Do not use attachments other than those we supply.
• This appliance should never be left unattended when plugged into a power outlet, except when charging.
• Keep the power plug and cord away from heated surfaces.
• Do not plug or unplug the appliance with wet hands.
• Do not twist or kink the cable, or wrap it round the appliance.
• This appliance is not intended for commercial or salon use.

PARTS

1. On/Off switch
2. Charging indicator light
3. Charger connector
4. Adjustable precision comb
5. Fixed guide combs (7, 9, 12, 16mm)

6. Micro trimmer

7. Facial cleansing brush attachment

8. Body blade attachment
9. Body blade comb
   Not shown:
10. USB charging cable
11. Travel pouch

CHARGING YOUR APPLIANCE

It is recommended to fully charge your appliance before using it for the first time.

1. Ensure the product is switched off.
2. Connect the product to the USB cable and then to the USB end of the cable to a powered USB port.

CHARGING INDICATOR LIGHTS

Charging Fully charged Battery Low
The lights will come in a repeating sequence from bottom to top while charging	All lights will stay on for 5 minutes then go out	The bottom light will flash for 5 seconds

Light off Light on Light flashing

• Your trimmer cannot be overcharged. However, if it is not going to be used for an extended period of time (2-3 months), unplug it from the mains supply and store.
• To preserve the life of your batteries, let them run out every 6 months then recharge for 2 hours.
• Run time from fully charged is up to 60 mins.

ATTACHMENTS

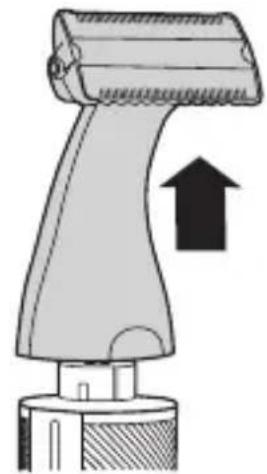

TO FIT AND REMOVE ATTACHMENTS (FIG. B)

Ensure that the device is switched off before fitting or removing attachments.

• To remove, rotate the attachment anti-clockwise until it unlocks and then lift it off.
• To fit, place the desired attachment on top of the device and rotate the attachment clockwise to lock it into place.

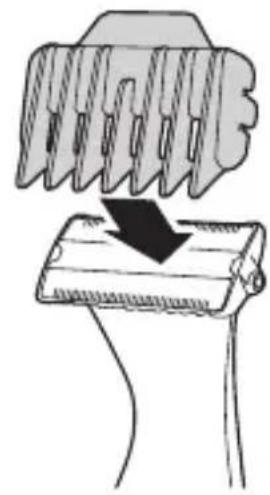

FITTING AND REMOVING FIXED GUIDE COMBS (FIG. C)

To Fit

• Hook the front of the guide comb over the blade.
• Press the back of the guide comb down until it clicks into place.

To Remove

- Lift the tab on the back of the guide comb upwards until it comes free from the blade.

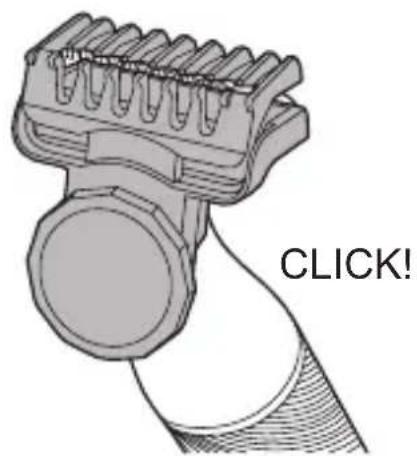

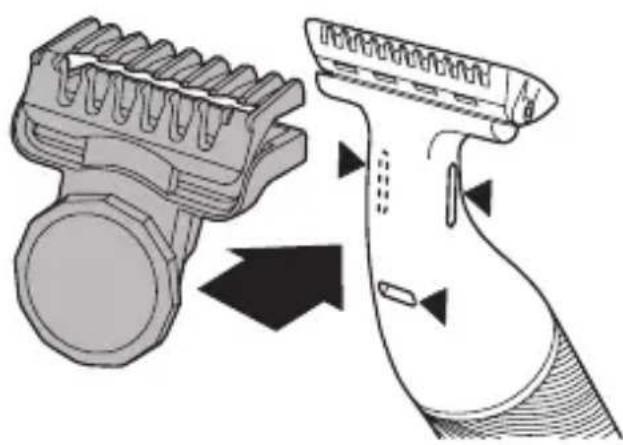

FITTING AND REMOVING THE ADJUSTABLE PRECISION COMB (FIG. D)

• Clip the adjustable comb over the blade as shown ensuring that the three tabs on the comb fit into the notches on the back of the blade (shown by the ▲ marks).
• The 0.5 - 5 mm comb can be adjusted in 0.5mm increments simply by turning the wheel until the desired setting is shown on the scale. Turn the wheel clockwise for longer length and anticlockwise for shorter length.
  • To remove, lift the back of the comb upwards and lift it off the blade.

INSTRUCTIONS FOR USE

Switch the product on by rotating the on-off switch to the I mark.

Always comb your beard or moustache with a fine comb before you start trimming.

TO TRIM THE BEARD

1. Select your desired trimming length comb. If you are trimming for the first time start with the maximum trimming length setting.
2. Turn the unit on.
3. Place the flat top of the comb against the skin.
4. Slowly slide through the hair. Repeat from different directions as necessary.
5. If hair builds up in the trimmer comb during the trimming process, switch the unit off, pull off the comb and brush the hair off.

TO GET A SHAVEN LOOK

To trim any length of beard or stubble hair for a clean, shaven look then follow the above steps without a comb attached to the blade head.

Place the flat top of the blade against the skin and slowly slide through the hair against the direction of growth.

Shave in an upwards direction when shaving under the chin (Fig. A).

TRIMMING AND EDGING

1. Hold the device with the back side of the blade facing you with no combs attached.
2. Start with the blades resting lightly against your skin, use motions towards edge of beard line to trim to desired locations in facial area.
3. Shape as desired.

TRIMMING WITH SHAVING GEL

Follow the same instructions as dry shaving if using shaving gel.

Caution: After use with shaving gel, please rinse the blade under warm water to clean away any excess gel and debris.

BODY HAIR MAINTENANCE

Attachments

Body blade attachment

Body hair maintenance: Trimming to length

1. Fit the body blade attachment.

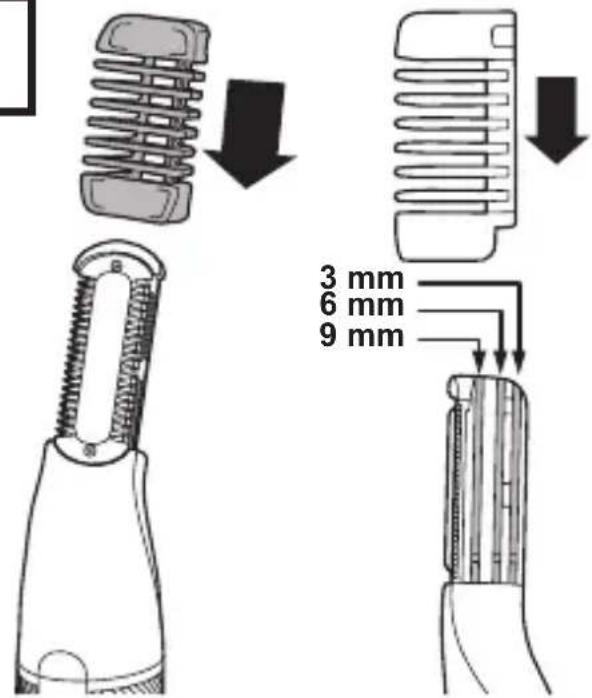

2. Body hair can be trimmed to 3 different lengths (3, 6 and 9 mm). Select the desired length by sliding the comb into one of the three slots on the side of the attachment (Fig. F).
3. Place the flat side of the attachment against the skin.
4. Slowly slide the trimmer through the hair in the direction of hair growth.
5. Use slow, well-controlled movements.

Body hair maintenance: Removal

1. Remove the comb from the body blade attachment and go over the areas where you want to remove the body hair.
2. Stretch the skin with your free hand to make the hairs stand upright.
3. Use light pressure and shave against the direction of hair growth.

DETAILED NOSE, EYEBROW AND EAR HAIR TRIMMING

Attachments

Micro trimmer

Nose and ear:

1. Fit the micro trimmer.
2. Insert the attachment gently into the nostril or ear.
3. Gently move the attachment in and out while rotating the body of the groomer at the same time.
4. Don't insert the attachment more than 6 mm.
5. Wash the attachment after each use.

Eyebrow:

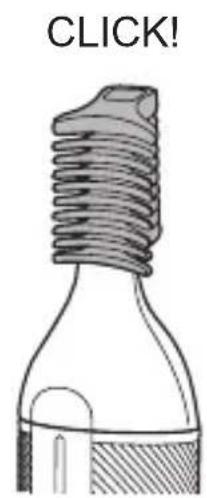

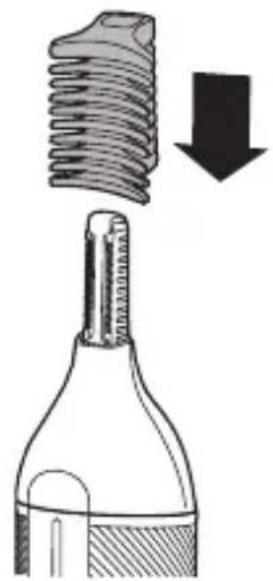

1. Slide the desired eyebrow comb attachment (3 or 6 mm) over the trimmer head (Fig. E).
2. Carefully guide the attachment to remove any stray or longer hairs from the eyebrow.
3. To completely remove hairs, let the attachment touch the skin then move over the desired area.

FACIAL CLEANSING BRUSH

Attachments

Facial Cleansing Brush

1. Moisten the brush bristles by running under water. NOTE: DO NOT use the brush head whilst completely dry as this can cause skin irritation.
2. Dampen your skin with water and apply face wash onto your skin. Alternatively, apply your face wash directly onto the brush.
3. We recommend cleansing with the Facial Cleansing brush in 3 sections:
   • T-Zone (1), Right side (2) and Left side (3).
4. Switch on using the On/Off button.
5. Place the facial brush directly onto your skin.
6. Gently glide the brush over the skin and beard in circular motions avoiding the delicate eye area.

NOTE: Try to avoid applying too much pressure with the brush when directly on the skin.

Care for your product to ensure a long lasting performance. We recommend that you clean your groomer after each use.

AFTER EACH USE

• Brush any accumulated hairs from the groomer and attachment heads.
• The easiest and most hygienic way to clean the groomer is by detaching the head from the groomer body and rinsing the head with warm water.
• Place one or two drops of cutter oil or sewing machine oil on the blades.
• Turn the device on to distribute the oil evenly, wipe off any excess oil.

BATTERY REMOVAL

We strongly recommend that a professional removes the rechargeable battery. Parts of the shaver case, and tools have sharp edges and may cause injury if not handled correctly.

- The rechargeable battery must be removed from the appliance before it is scrapped.

1. Ensure the trimmer is discharged of all power. To do this, operate the device until it stops.

2. Remove any attachments.

3. Pry off the switch button/switch cover.

4. Unscrew the 2 screws under the cover then remove the lower housing.

5. Slide out the battery assembly.

6. Unscrew the 2 screws from the cover then remove the battery.

7. The battery is to be disposed of safely.

8. Do not attempt to operate the device once you have opened it.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

GB

UW APPARAAT VERZORGEN

FÖR ATT FÄSTA OCH AVLÄGSNA TILLBEHÖR (FIG. B)

FÄSTA OCH AVLÄGSNA FASTA GUIDEKAMMAR (FIG. C)

Att fästa

FÖR ATT TRIMMA SKÄGGET

Luz ligada Luz a pi-car

Two identical diagrams of a trash bin with cross-bracing, no text or symbols present

DETALJNO TRIMOVANJE DLAKA U NOSU, UŠIMA I NA OBRVAMA

Prilozi

Mikro trimer

Nos i uvo:

1. Namestite mikro trimer.
2. Lagano umetnite nastavak u nosnicu ili uho.
3. Nežno pomerajte nastavak unutar i van nozdrve i istovremeno okrećite trimer.
4. Nastavak nemojte uvući više od 6 mm.
5. Nakon svake upotrebe operite nastavak.

Obrve:

Solid gray rectangular shape with no text, symbols, or discernible features

Solid gray rectangular shape with no text, symbols, or discernible features

Ref. No. HG5000

Type No. HG03A

Remington ^® is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries

Russell Hobbs Deutschland GmbH, Am Unisyspark 1, 65843 Sulzbach, Germany remington-europe.com
