LED-STEHLEUCHTE

Assembly, operating and safety instructions

NL BE

STAANDE LED-LAMP

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

List of pictograms used

Introduction

Intended use Page 15

Scope of delivery.. Page 15

Parts description. Page 15

Technical data.. Page 15

Safety

Safety notes.. Page 16

Preparation Page 17

Initial use

Assembling the lamp (see Fig.) Page 17

Switching the lamp to learning mode. Page 18

Resetting the light. Page 18

Connecting the light with a smartphone.. Page 18

Disconnecting the smartphone . Page 18

App functions

The following modes are available via app control. Page 18

Maintenance and cleaning

Disposal

Warranty and service.. Page 19

Warranty. Page 19

Service address.. Page 19

Declaration of conformity.. Page 20

Manufacturer. Page 20

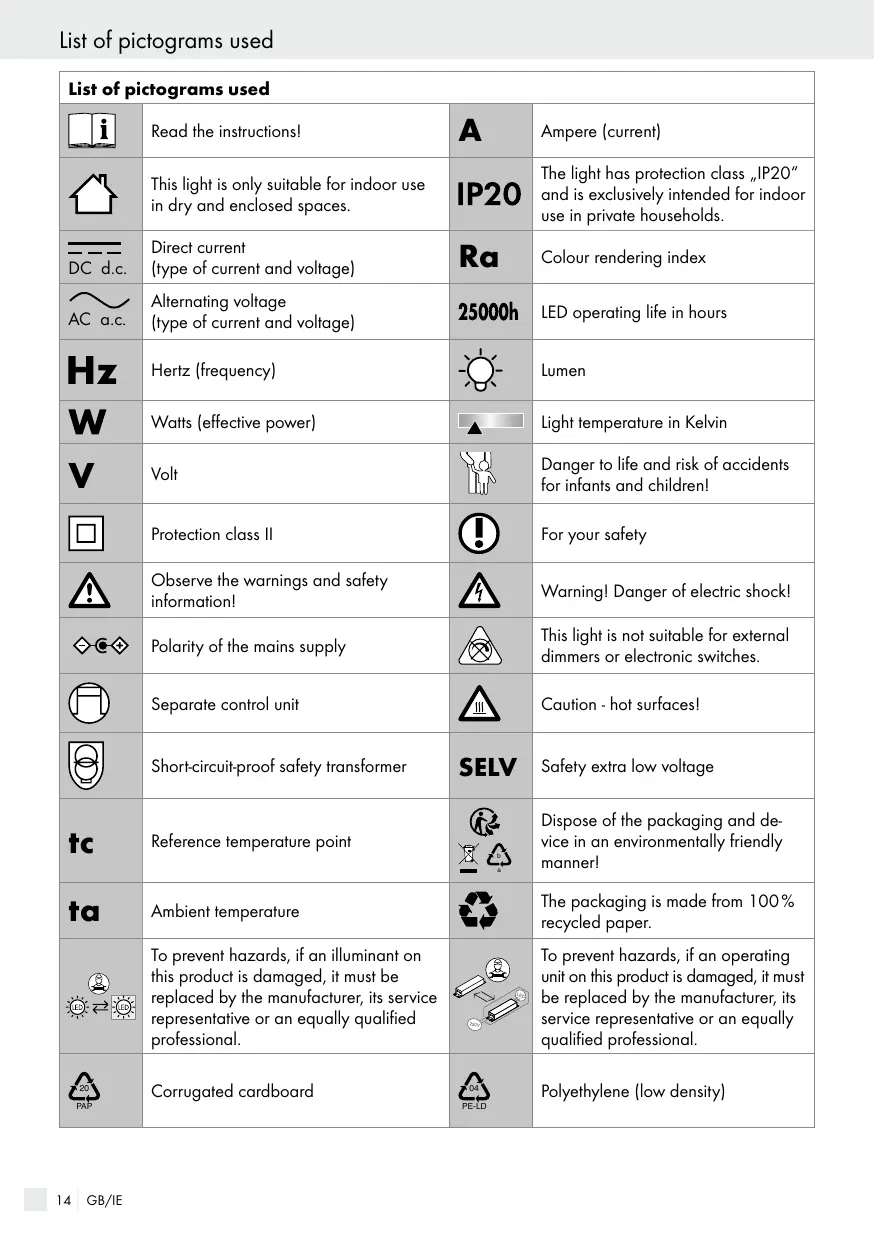

List of pictograms used
i	Read the instructions!	A	Ampere (current)
	This light is only suitable for indoor use in dry and enclosed spaces.	IP20	The light has protection class "IP20" and is exclusively intended for indoor use in private households.
DC d.c.	Direct current (type of current and voltage)	Ra	Colour rendering index
AC a.c.	Alternating voltage (type of current and voltage)	25000h	LED operating life in hours
Hz	Hertz (frequency)		Lumen
W	Watts (effective power)	▲	Light temperature in Kelvin
V	Volt		Danger to life and risk of accidents for infants and children!
	Protection class II		For your safety
	Observe the warnings and safety information!		Warning! Danger of electric shock!
	Polarity of the mains supply		This light is not suitable for external dimmers or electronic switches.
	Separate control unit		Caution - hot surfaces!
	Short-circuit-proof safety transformer	SELV	Safety extra low voltage
tc	Reference temperature point		Disposition of the packaging and device in an environmentally friendly manner!
ta	Ambient temperature		The packaging is made from 100% recycled paper.
	To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.		To prevent hazards, if an operating unit on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.
20 PAP	Corrugated cardboard	04 PE-LED	Polyethylene (low density)

LED floor lamp

Introduction

Congratulations on the purchase of your new device. You have selected a high quality product. Please be sure to carefully

read all the instructions for use. These instructions are part of the product and contain important information on setup and operation. Always observe all safety information. Before using this product for the first time, verify that the correct voltage is available and that all parts are properly assembled. If you have any questions or are unsure about using this device, please contact your retailer or the service centre. Please keep these instructions in a safe place and include them when passing this product on to others.

Intended use

This light is only suitable for indoor use in dry and enclosed spaces.

This light is only intended for private residential use, not for commercial use. Any use other than that described above is prohibited and will result in product damage. This is further associated with dangers, e.g. short-circuit, fire, electric shock, etc. This product is intended for normal operation.

- Scope of delivery

Check that all the parts are present and that the device is in perfect condition immediately after unpacking.

1 LED floor lamp Zigbee, model 14161805L/ 14161902L
1 base (14161902L)
2 bases (14161805L)
2 screws (14161805L)
4 screws (14161902L)
1 hexagonal key
1 set of assembly instructions and instructions for use

Parts description

Lamp body (14161805L)
Assembly bracket (14161805L)
3 Base
4 Screw (base)
5 Hexagonal key
6 Mains cable
ON/OFF in-line switch
Plug-in mains adapter
Top lighting unit (14161902L)
10 Connecting plug (top lighting unit) (14161902L)
11 Connection socket (bottom lighting unit) (14161902L)
Bottom lighting unit (14161902L)
13 Screw (top and bottom lighting unit) (14161902L)
14 Connection cable (14161902L)

Technical data

Light:

Model no.: 14161805L/14161902L

Operating voltage: 230-240V\~50Hz

Rated power: 14161902L: max. 13W

14161805L: max. 13W

Protection class: II/回

IP rating: IP20

LED module:

Rated power: 14161805L: max. 11W

14161902L: max. 11W

ZigBee:

Version: 3.0

Compatible: iOS 9.0/Android 5.0

Frequency: 2.4 GHz ISM band

Max. transmitting power: < + 10dBm

Plug-in power supply:

Model: ANU-120100EU-R231

Operating voltage: 220-240V~50/60Hz

Output power: 12V = -1 A max. 12W

Protection class: II/

This light can only be operated with the supplied plug-in mains adapter "ANU-120100EU-R231".

This product contains illuminants from energy efficiency category "F" (corresponding to Ordinance (EU) 2019/2015).

Safety

Safety notes

Damage due to failure to comply with these operating instructions will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury caused by improper handling or failure to observe the safety notes!

A!WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.

• Do not leave the light or packaging material lying unattended. Plastic films/bags, plastic parts, etc. are dangerous for children to play with.
  This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

Check the light for possible damage before every use. Never use the light if it shows any signs of damage.

WARNING!

A damaged light means there is a danger of death from electric shock. In the event of damage, repairs or other problems with the light, please contact the service centre or an electrician.

Before use, verify that the available mains voltage corresponds to the required operating voltage of the light (see "Technical data").
- Never allow the light to come into contact with water or other liquids.
Always unplug the plug-in mains adapter from the mains socket prior to assembly, disassembly, cleaning, or if the lamp will not be used for extended periods.
- Never open any of the electrical equipment or insert any objects into this equipment. Such interferences pose a risk of fatal injury from electric shock.
The illuminant in this lamp must be replaced by the manufacturer or by an authorised technician or similarly qualified person.
To prevent hazards, if the external flexible lead on this lamp is damaged, it must only be replaced by the manufacturer, the service representative of the manufacturer, or an equally qualified person.

This light is not suitable for external dimmers or electronic switches.

Prevent fire and injury hazards

• Do not look into the illuminant from a close distance during operation.
  Do not look at the LED with an optical instrument (e.g. magnifier).
• Do not cover the lamp or the plug-in mains adapter with objects. Excessive heat build-up can result in fire.

Do not operate the product inside the packaging. Otherwise there is the risk of overheating!
Do not leave the light unattended when in use.

For your safety

Install the light in a location where it is protected from moisture and dirt.
Always be alert! Always pay attention to what you are doing and always use common sense. Never mount or use the light if you are having difficulty concentrating or do not feel well.
In order to fully disconnect the lamp from the power supply, the plug-in mains adapter must be unplugged from the mains socket.

Preparation

To pair the light with the smartphone you will need a Gateway, the "Lidl Home" app and an internet connection.

Install the Gateway per the manufacturer instructions.
Download the "Lidl Home" app from the App Store.

- Initial use

Note: Before first use, remove all packaging materials and remove the protective films from the light's cover.

- Assembling the lamp (see Fig.)

Model 14161805L only:

Place the two parts of the base 3 on top of each other so that the fastening holes are on top of each other (see fig.).
Place the lamp body 1 onto the pre-drilled holes in the base 3. Ensure that the openings on the assembly bracket 2 for the screws 4 are aligned precisely with the pre-drilled holes in the base 3.

Screw the lamp body 1 onto the base 3. To do this, insert the screws 4 through the base 3 from underneath into the assembly bracket 2 and tighten the screws 4 with the help of the hexagonal key 5.
Note: Make sure that the side with the foot pad on the base 3 is facing downwards.
Plug the plug-in mains adapter 8 into a properly installed socket.

Your lamp is now ready to use.

Model 14161902L only:

Note: We recommend assembling this product with two people.

Plug the connecting plug [10] of the top lighting unit [9] into the connection socket [11] for the bottom lighting unit [12].
Insert the top lighting unit 9 into the bottom lighting unit 12. Ensure that the connection cable 14 is inserted in a loop in the bottom lighting unit 12.

Note: Ensure that the connection cable 14 is not crushed.

• Secure the top lighting unit 9 on the bottom lighting unit 12 by tightening the screws 13 with the help of the hexagonal key 5.
  Place the assembled light onto the pre-drilled holes in the base 3. Ensure that the openings on the bottom lighting unit 12 for the screws 4 are aligned precisely with the pre-drilled holes in the base 3.
  Screw the assembled light onto the base 3. To do this, insert the screws 4 through the base 3 from underneath into the bottom lighting unit 12 and tighten the screws 4 with the help of the hexagonal key 5.

Note: Make sure that the side with the foot pad on the base 3 is facing downwards.

Plug the plug-in mains adapter 8 into a properly installed socket.

Your lamp is now ready to use.

• Switching the lamp to learning mode
  Use the ON/OFF in-line switch 7 to switch the lamp to learning mode.

- Resetting the light

The light must be in learning mode to pair the light with the app. This is indicated by the light flashing regularly.

If the light does not automatically start flashing, return the light to learning mode. To activate learning mode, switch the light on and off as follows:

• switch on
• 1 sec. off
  -1 sec. on
  -1sec.off
  -1 sec. on
• 1 sec. off
  -1 sec. on

The light should now be flashing regularly in learning mode.

Note: This procedure only resets the product to offline mode and starts the learning mode.

If you want to remove all product and cloud data, please refer to the section Disconnecting the remote control and smart phone. Follow the instructions and select "Disconnect and delete data" under "Remove device".

- Connecting the light with a smartphone

Please consult the "Lidl Home" app for DETAILS of our privacy policy.

1. Open the "Lidl Home" app.
2. Go to the "Home" tab. Select "+" (add device).
3. Choose the category "Lighting" and the desired lighting type.

4. Select the gateway (only available when using multiple gateways).

5. Now click "OK".

6. Go to "Confirm" whilst the LED floor lamp is flashing.
7. Connect to the device.
8. Go to
9. Go to "Device name". Enter a name and confirm.
10. Choose a room in order to specify the position of the light. The selected room will now be greyed out.
11. Click "Finish" to confirm.
12. The learning process is complete.
13. Click to return to the home screen.

- Disconnecting the smartphone

1. Open the "Lidl Home" app.
2. Go to the "Home" tab.
3. Choose one of the categories:

ZigBee Gateway
- LED Floor Lamp

1. Go to
2. Go to "Remove device".
3. Click "Confirm" to proceed. To remove all product data from the cloud, select "Disconnect and delete data".

- App functions

Note: Make sure that you are always operating the current version of the app on your smartphone. Update the app if necessary.

Note: To use voice control, the light must be connected online with the "Lidl Home" app and the "Google Home" app.

The following modes are available via app control

Switching on and off

Remaining time: set timer
- switch on and off
Programme: create schedules to automatically switch the lights on and off at certain times

White

• Touch arc: adjust light colour from 3,000 K to 6,500 K
• Touch panel: adjust light intensity from 1% to 100%

Scene

• Night: warm, soft light
• Reading: neutral light
• Working: cold white light
  Leisure: bright, warm light
• Add a scene: to save custom-designed lighting setups

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Maintenance and cleaning

WARNING! DANGER OF ELECTRIC SHOCK!

First unplug the plug-in mains adapter 8 from the socket.

WARNING! DANGER OF ELECTRIC SHOCK!

For electrical safety reasons, never clean the light with water or other fluids nor immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

First allow the light to cool down completely.

• Do not use solvents, petrol, etc. These would damage the light.
  Only clean with a dry, lint-free cloth.
  Plug the plug-in mains adapter 8 back into the socket.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Warranty and service

Warranty

You receive a 36-month warranty for this device, valid from the date of purchase. This device has been manufactured with care under strict quality control. During the warranty period we will remedy any defects in material or manufacture free of charge. In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14161805L/14161902L.

Damages caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty, as well as wear parts (such as e.g. illuminants). Services performed under the warranty do not extend or renew the warranty period.

Service address

Free service number:

Tel.: [phone]

IAN 383855_2110

Please have your receipt and the product number (IAN 383855_2110) available for all queries as proof of purchase.

Declaration of conformity (C)

This product meets the requirements of the applicable European and national directives (Directive 2014/53/EU, Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU). Conformity has been verified. The relevant declarations and documents are held by the manufacturer.

Briloner Leuchten GmbH & Co. KG hereby declares that the wireless system model 14161805L/ 14161902L complies with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at:
