Éclairage ou lampes à LED, 4,5 W - Consumer product LIVARNO - Free user manual and instructions

Product type	Under-cabinet LED light
Brand	LIVARNO
Model	14164506L / 14164602L
Nominal power (LED module)	4.5 W (14164506L) or 3 x 1.8 W (14164602L)
Operating voltage (lamp)	230-240 V~ 50 Hz
Input voltage (power supply)	200-240 V~ 50/60 Hz
Output voltage (power supply)	21 V ===
Output current (power supply)	0.24 A (14164506L) or 0.5 A (14164602L)
Output power (power supply)	5.04 W (14164506L) or 6 W (14164602L)
Protection class	II
Protection rating	IP20
Intended use	Indoor, dry and closed rooms, domestic use
Switch type	Infrared (14164506L) or pull cord (14164602L)
Number of lamps included	1 (14164506L) or 3 (14164602L)
Delivery contents	Lamp(s), power supply, power cable, screws, covers (depending on model), instructions
Mounting	Fixing on normally non-flammable surface, within arm's reach
Maintenance and cleaning	Dry non-lint cloth, do not use water or solvents
Safety instructions	Do not open electrical components, replace light source by a professional
Warranty	36 months (spare parts available during the warranty)
Spare parts and repairability	Light source and external cable not replaceable by user, professional intervention required
Dimmer compatibility	Not compatible with external dimmers or electronic switches
Energy efficiency class	E (14164506L) or F (14164602L)

Frequently Asked Questions - Éclairage ou lampes à LED, 4,5 W LIVARNO

How to install the under-cabinet lamp?

Before installation, make sure that a power outlet is nearby. For model 14164506L, hold the lamp against the surface, use a spirit level, fix it with the supplied screws, then put on the covers. Connect the connector plug and the mains plug. For model 14164602L, remove the cover ring and the reflector plate, fix the base plate, connect the cables in the junction box, then reassemble the plate and ring.

Can I use this lamp with a dimmer?

No, this lamp is not designed to work with external dimmers or electronic switches. Use it only with the supplied switch (infrared or pull cord).

How to clean the lamp safely?

Always unplug the lamp before cleaning. Let it cool down completely. Use a dry, non-lint cloth. Never use water, solvents, or abrasive products, as they could damage the lamp or cause an electric shock.

What to do if the lamp does not turn on?

First check that the mains plug is correctly inserted and that the socket works. Make sure the power cable is not damaged. For model 14164506L, check that the connection between the connector plug and the lamp is fully pressed in. If the problem persists, contact customer service.

Is the LED light source replaceable?

No, the LED light source cannot be replaced by the user. In case of failure, replacement must be carried out exclusively by the manufacturer, its after-sales service, or a qualified specialist.

What is the warranty period?

The warranty is 36 months from the date of purchase. It covers defects in materials and workmanship. Keep the receipt and the IAN 420079_2201 reference as proof of purchase.

Can I use this lamp outdoors?

No, this lamp is exclusively designed for indoor use, in dry and closed rooms. Its IP20 protection rating does not protect against moisture.

How to turn the lamp on and off?

For model 14164506L, pass your hand within 10 cm of the infrared switch. For model 14164602L, use the pull cord switch located on the lamp.

What to do if the power cable is damaged?

Do not use the lamp if the cable is damaged. Replacement of the external cable must be carried out only by the manufacturer, its after-sales service, or a qualified specialist to avoid any risk of electrocution.

How many lamps can I connect to the same socket with model 14164602L?

With model 14164602L, you can connect a maximum of 3 lamps of the same type to the same mains socket. Do not exceed this limit to avoid overload risks.

USER MANUAL Éclairage ou lampes à LED, 4,5 W LIVARNO

Interior view of a modern kitchen appliance with recessed lighting fixtures and a ceiling-mounted fixture (no visible text or symbols)

LED-UNTERBAULEUCHTE/LED-UNTERBAULEUCHTEN/UNDER-CABINET LED LIGHT/LED UNDER-CABINET LIGHTS/ÉCLAIRAGE SOUS MEUBLE À LED/ÉCLAIRAGES SOUS MEUBLE À LED

DE AT CH

LED LÁMPA/LED LÁMPÁK POLC ALÁ

Installation, operating and safety information

NL BE

LED-ONDERBOUWLAMP/ LED-ONDERBOUWLAMPEN

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

14164602L

Included items ......Page 15

Description of parts....Page 15

Technical data......Page 16

Safety Page 16

Safety advice......Page 16

Preparation......Page 17

Required tools and materials......Page 17

Preparations for use......Page 17

Fitting the light Page 17

Switch the light on/off Page 18

Maintenance and cleaning......Page 18

Disposal Page 18

Warranty and service......Page 19

Warranty Page 19

Declaration of Conformity....Page 19

Manufacturer / Service Page 19

List of pictograms used
	Read the instructions!		Electric shock warning!Danger to life!
	This light is only suitable for indoor use in dry and enclosed spaces.		For your safety
A.C. a.c.	Alternating current(type of current and voltage)		Caution! Risk of burns due to hot surfaces!
	Hertz (frequency)		Dispose of the packaging and device in an environmentally-friendly manner!
	Watt (effective power)		Danger to life and risk of accidents for infants and children!
d.c. DC	Direct current (type of current and voltage)		Observe the warnings and safety notices!
	Operating life		The packaging is made from 100% recycled paper.
	This lamp is not suitable for external dimmers and electronic switches.		To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.
	The operating unit can be replaced.		Light temperature in Kelvin
[2H02]	Volt		Lumen
[SWBW]	Colour rendering index		Polarity of the connection
	The light has protection class "IP20" and is exclusively intended for indoor use in private households.		Short-circuit proof safety transformer
[222X]	Ampere		Separate control unit
[07XS]	MilliampereHighest design / ambient temperature	[243K]	Safety extra-low voltage14164602L: The lamp may only be operated with the plug-in adapter HS1200500V included in the delivery.
	Housing temperature at stated point		14164506L: The lamp may only be operated with the plug-in adapter HS2100240V included in the delivery.
	Protection class II

Under-Cabinet LED Light/LED Under-Cabinet Lights

- Introduction

Congratulations on your new product. You have selected a high quality product. Please read carefully and completely through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important information about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary.

- Proper use

This light is suitable only for interior use, in dry and enclosed spaces. The light should be positioned within reach so that the switch can be operated conveniently. The light can be fitted to all normally inflammable surfaces. Any use other than that described above or modification to the lamp is not permitted and may lead to damage to people or property. Moreover, there is the risk of injury or loss of life and that the lamp may develop technical faults such as short

circuit or fire or give an electric shock. This lamp is intended for use only in a domestic environment. This product is intended for normal operation.

Included items

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

14164506L:

1 LED Under-Cabinet Light

1 Power cable

2 Screws

2 Caps

1 Assembly and operating instructions

14164602L:

3 LED Under-Cabinet Lights

1 Mains adapter

6 Screws

1 Assembly and operating instructions

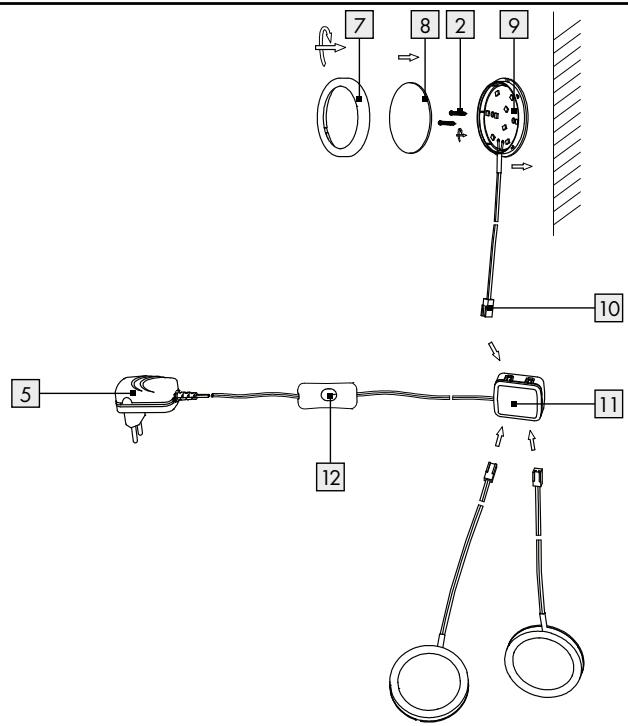

• Description of parts

1 Cover cap (14164506L)
2 Screw
3 Light socket (14164506L)
4 Connection plug (14164506L)
5 Power plug
6 Infrared On/Off Switch (14164506L)
7 Cover ring (14164602L)
8 Reflector plate (14164602L)

9 Bottom Plate (14164602L)
10 Light Wire (14164602L)
11 Junction box (14164602L)
12 Cord switch (14164602L)

- Technical data

14164506L:

Light (incl. plug-in mains adapter)

Model number: 14164506L

Operating voltage: 230-240V\~50Hz

Rated power: 5.8 W

Protection class: II/☐

IP rating: IP20

Plug-in mains adapter

Model number: HS2100240V

Operating voltage: 200-240V\~50/60Hz

Output power: 21 V===; 0.24 A; 5.04 W

Protection class: II/☐

LED module

Rated power: 4.5 W

This product contains an illuminant from energy efficiency category "E".

14164602L:

Light (incl. plug-in mains adapter)

Model number: 14164602L

Operating voltage: 230-240V\~50Hz

Rated power: max. 7.2 W

Protection class: II/☐

IP rating: IP20

Plug-in mains adapter

Model number: HS1200500V

Operating voltage: 200-240V\~50/60Hz

Output power: 21 V=--; 0.5A; 6W

Protection class: II/☐

LED module

Rated power: 3 x 1.8 W

This product contains an illuminant from energy efficiency category "F".

● Safety

Safety advice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions. No liability is accepted for consequent damage. No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice.

DANGER TO LIFE AND ACCIDENT HAZARD FOR TOD- DLERS AND SMALL CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Always keep children away from the product.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

To avoid danger to life from electric shock

Before connecting it to the mains, always check the light, the power cable as well as the connecting cable if need be for any damage. Never use the light if you see any damage.

WARNING!

Damaged power cables and connecting cables are a danger to life as you could suffer an electric shock.

Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (see "Technical data").

• Never let the lamp come into contact with water or other liquids.
  ■ Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock.
  ■ Touch only the insulated part of the plug when connecting to or disconnecting from the mains supply.
  The illuminant in this light must be replaced by the manufacturer or an authorised technician or a similarly qualified person.
  To prevent hazards, if the external flexible lead on this lamp is damaged, it must only be replaced by the manufacturer, the service representative of the manufacturer, or an equally qualified person.
• Only connect the under-cabinet light to the mains current using the original power cable.
  14164602L: Make sure that you only connect a maximum of 3 linked-up under-cabinet lights of the same type to one socket.

Prevent fire and injury hazards

RISK OF INJURY!

Immediately after unpacking check each light and the lamp glass for damage. Do not operate the lamp with defective bulbs and/or defective lamp glass. In this case, contact the service centre for a replacement.

RISK OF BURNS!

To prevent burns, be sure the light is switched off and has cooled down before touching it. The illuminants become very hot.

This product does not contain any parts that can be serviced by the user.

Do not look into the LED from a close distance during operation. Do not look at the LED with an optical instrument (e.g. magnifying glass).

Do not operate this light with a dimmer or an electronic switch. It is not suitable for this mode of operation.

Working safely

■ Fit the light in such a way to ensure it is protected from damp and dirt.
■ Make careful preparations for the assembly and take sufficient time. Clearly lay out all components and any additional tools or materials that might be required so that they are readily to hand.
■ Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell.

● Preparation

- Required tools and materials

The tools and materials mentioned are not included in the delivery. The details and values given are non-binding and for guidance only. The nature of the material depends on the individual circumstances on site.

• Pencil / Marking tool
• Screwdriver
• Spirit level
• Measuring tape

● Preparations for use

- Fitting the light

Note: Before mounting, make sure there is an electrical outlet nearby that can be reached with the supplied power cord.

14164506L:

1. Hold the light against the mounting surface. Use a spirit level for accurate alignment.

2. Attach the light to the mounting surface using the screws 2 provided. Then put on the cover caps 1 .

3. Insert the connector plug 4 into the lamp socket 3.

4. Insert the power plug 5 into a properly installed power outlet.

Your light is now ready for operation.

14164602L:

1. Remove the cover ring 7 by turning it counterclockwise.
2. Carefully remove the reflector plate 8 from the base plate 9.
3. Hold the base plate 9 at the desired position on the mounting surface.
4. Secure the light fixture to the mounting surface using the screws 2 provided.
   Note: When attaching the other lights, make sure that all connections of the light cables 10 can reach the junction box 11.
5. Then connect all connections of the lamp cables 10 to the junction box 11.
   6 Place the reflector plate 8 on the base plate 9 and then attach the cover ring 7 by turning it clockwise.
6. Insert the mains plug 5 into a properly installed socket.

Your light is now ready for operation.

- Switch the light on/off

14164506L:

☐ Turn the light on/off by holding your hand no more than 10 cm above the infrared on/off switch 6.

14164602L:

☐ Switch the light on or off using the cord switch 12.

● Maintenance and cleaning

WARNING! DANGER OF ELECTRIC SHOCK!

To do this pull the mains plug on the mains lead 5 out of the socket.

WARNING! DANGER OF ELECTRIC SHOCK!

For reasons of electrical safety, the light must never be cleaned with water or other fluids or be immersed in water. When cleaning, only use a dry, lint-free cloth.

• Do not use solvents, benzene or similar substances. They could damage the light.
  ☐ Allow the lamp to cool down completely.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibre-board/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

The packaging is made from 100% recycled paper.

Legacy equipment can also be returned to retailers who offer electrical appliances for sale.

● Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase.

The device has been carefully produced under strict quality control.

Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the device to the listed Service Centre address, making reference to the following model number: 14164506L/14164602L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty.

The performance of services under the warranty does not extend or renew the warranty period.

● Declaration of Conformity CE

This product conforms to the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer / Service

Free service number:

Tel.: [phone]

IAN 420079\_2201

When inquiring about your product, please have your receipt and product number (IAN 420079_2201) ready as your proof of purchase.
