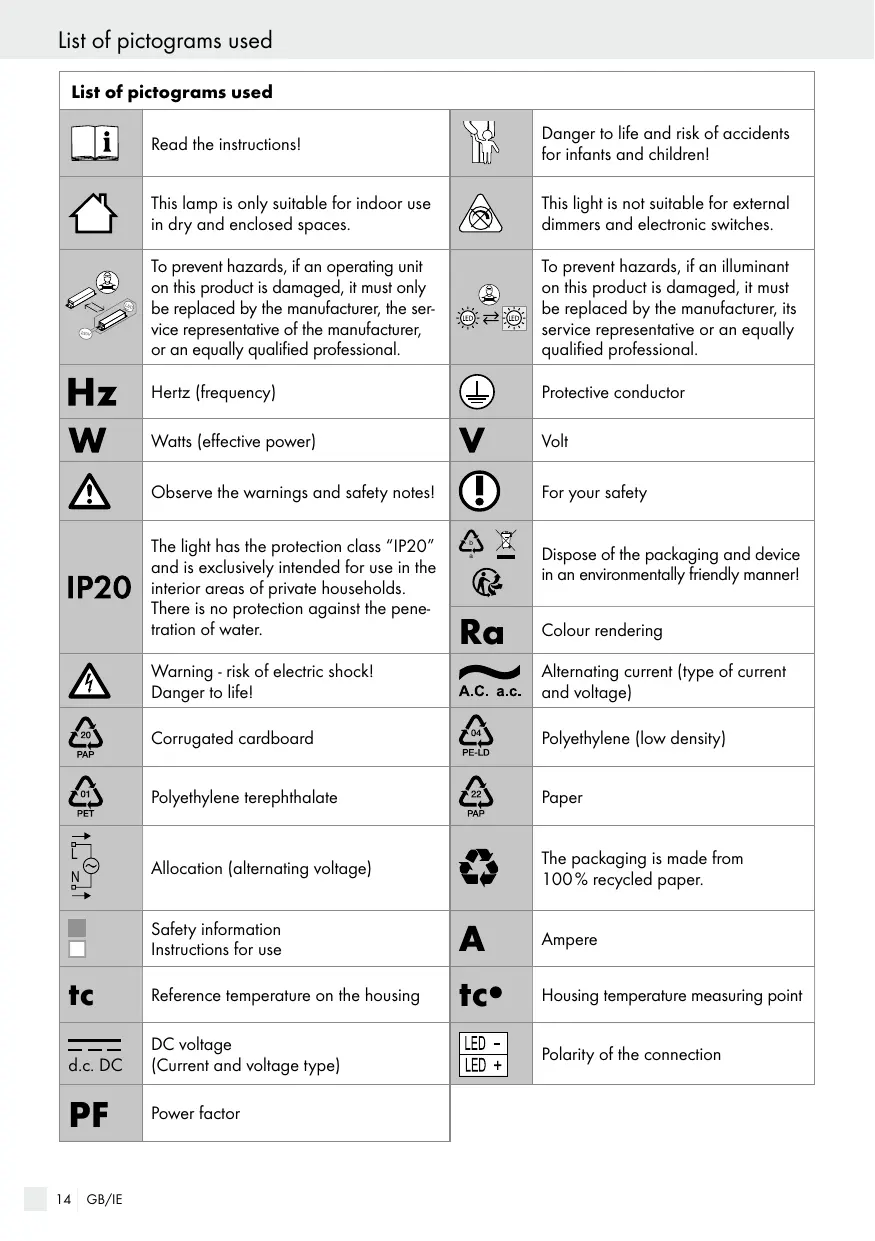

List of pictograms used
i	Read the instructions!		Danger to life and risk of accidents for infants and children!
	This lamp is only suitable for indoor use in dry and enclosed spaces.		This light is not suitable for external dimmers and electronic switches.
	To prevent hazards, if an operating unit on this product is damaged, it must only be replaced by the manufacturer, the service representative of the manufacturer, or an equally qualified professional.		To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.
Hz	Hertz (frequency)		Protective conductor
W	Watts (effective power)	V	Volt
!	Observe the warnings and safety notes!		For your safety
IP20	The light has the protection class "IP20" and is exclusively intended for use in the interior areas of private households. There is no protection against the penetration of water.		Dispose of the packaging and device in an environmentally friendly manner!
		Ra	Colour rendering
1	Warning - risk of electric shock! Danger to life!	A.C. a.c.	Alternating current (type of current and voltage)
20PAP	Corrugated cardboard	04PE-LD	Polyethylene (low density)
01PET	Polyethylene terephthalate	22PAP	Paper
N	Allocation (alternating voltage)		The packaging is made from 100% recycled paper.
	Safety information Instructions for use	A	Ampere
tC	Reference temperature on the housing	tC°	Housing temperature measuring point
d.c. DC	DC voltage (Current and voltage type)	LED + LED +	Polarity of the connection
PF	Power factor

LED Light Panel

Introduction

Congratulations on your new product.

You have selected a high quality product.

Please be sure to carefully read the com

plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on to third parties as applicable.

Intended use

This light is suitable for indoor use. This product is intended for private household use only. This product is an illuminated

decoration. Do not use this light as a night light.

This product is intended for normal operation.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED Light Panel (14170806L/14170906L)
4 Screws
4 Dowels
2 Protective tubes
1 Set of installation instructions and instructions for use

Parts description

LED light panel
Screw for LED light panel
3 Mounting bracket
4 Wall plug
5 Screw for mounting bracket
6 Mains connection cable (external)
7 Protective tube
8 Lustre terminal

Technical data

Model number: 14170806L

Light:

Operating voltage: 230-240V\~,50Hz

Max. rated power: 38 W

Protection class:

IP rating: IP20

LED module:

Max. rated power: 37.5W

This product contains energy efficiency category "E" light sources.

Model number: 14170906L

Light:

Operating voltage: 230-240V\~,50Hz

Max. rated power: 38W

Protection class:

IP rating: IP20

LED module:

Max. rated power: 37.5W

This product contains energy efficiency category "E" light sources.

Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

A! WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.
This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

ATTENTION!

Do not look into the LED from a close distance during operation.
To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.
- Do not look at the LED with an optical instrument (e.g. magnifier).

Avoid the risk of fatal injury from electric shock

Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.

We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
Never use the light if any defects have been identified.
Prior to installation, remove the fuse or switch off the circuit breaker 0 setting in the fuse box.
Ensure that the light does not come into contact with water or other liquids under any circumstances.
Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (see "Technical data").
- Be careful not to damage any lines during installation.
This light is not suitable for external dimmers or electronic switches.

Prevent fire and injury hazards

To prevent burns, be sure the light is switched off and cooled down before touching it.
- Do not mount the light to a damp or conductive surface.
Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts etc. can turn into dangerous toys for children.

Safe working

Install the light so it is protected from moisture, dirt and extreme heating.
Before drilling, ensure that there are no gas or water pipes or power cables where you intend to drill. Installation may only be carried out by experts. It is essential that you take note of how the wall is constructed, as the included fittings are not suitable for all types of wall. Ask the retailer about screws and wall plugs suitable for the respective wall structure.
The manufacturer accepts no responsibility for an inappropriate wall plug connection and any resulting damage.

Always be attentive! Always pay attention to what you are doing and use common sense. Never use the light if you are having difficulty concentrating or do not feel well.
Verify the installation site is suitable to bear the weight of the lamp before installation.
Familiarise yourself with all instructions and diagrams in this manual as well as with the light itself before use.

Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil / marking tool
• 2-pole voltage tester
• Screwdriver (cross-tip screwdriver and slotted screwdriver)
  Electric drill
• Drill (ø 6 mm)
• Side cutting pliers
  Ladder

- Mounting the LED light panel

WARNING! DANGER OF ELECTRIC SHOCK!

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection requirements. For this installation, remove the fuse or switch off the circuit breaker in the fuse box (position 0) (see Fig. A).

Remove the screws for the LED light panel 2 visible at the side of the LED light panel 1 (see Fig. A) and remove the mounting bracket 3 on the back (see Fig. B).

Use the holes in the mounting bracket intended for the screws to mark the drill holes.
Now drill the mounting holes. Be sure not to damage the power cable.
Insert the wall plugs into the drill holes (see Fig. C).
Secure the mounting bracket 3 using the screws provided (see Fig. D).
Pull the protective tubes over cables L and N of the mains connection cable (external) (see Fig. E).
Connect the connection cable of the LED light panel with the mains connection cable (external) using the lustre terminal (see Fig. E).
- Be sure to correctly connect each of the individual conductors of the mains connection cable (external) 6 : live conductor, black or brown = symbol L, neutral conductor, blue = symbol N, protective conductor, green-yellow = symbol (earth connection). Make sure they are correctly positioned.
Now attach the LED light panel 1 to the mounting bracket 3 using the screws 2.

Note: Make sure that the screws 2 are properly engaged (see Fig. F and G).

Reinstall the fuse or switch on the circuit breaker in the fuse box (I setting) (see Fig. H).

Your LED light panel is now ready to use.

- Switching the light on and off

Use the light switch (wall switch) to switch the LED light panel on or off.

- Maintenance and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Disconnect the light from the power supply before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box 0 position (see Fig. A).

To prevent burns, be sure the light is switched off and cooled down before touching it.
Do not use solvents, benzene or similar substances. They could damage the light.

Use a dry, lint-free cloth to clean the LED panel light [1].
Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box (see Fig. H).

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment. The Triman logo is valid in France only.

Information

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has

been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the appliance to the listed Service Centre address, making reference to the following model number: 14170806L/14170906L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Declaration of conformity (C

This product meets the requirements of the applicable European and national directives. Conformity has been verified. The relevant declarations and documents are held by the manufacturer.

Manufacturer/Service

Free service number:

Tel.: [phone]

IAN 428255_2301

Please have your receipt and the item number (IAN 428255_2301) ready as your proof of purchase when enquiring about your product.
