USER MANUAL R7130 REMINGTON

All technical modifications reserved. 03/09. TSC 09.0249

360 ROTARY SHAVER FLEX AND PIVOT TECHNOLOGY

Model No. R4130/R5130/R6130/R7130

09/INT/R4130/R5130/R6130/R7130 Version 03/09 Part No. T22-26207 Remington® is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries VARTA Consumer Batteries GmbH & Co. KgaA Alfred-Krupp-Str.9 73479 Ellwangen Germany www.remington-europe.com © 2009 SBI

Mo.-Fr. 9 a.m. – 5 p.m. Central European Time (free call) E-Mail: service@remington-europe.com www.remington-europe.com

SPAIN MALTA Tel. 00800 821 700 82 (free call)

GREECE Tel. 00800 49 12 91 60 (free call)

UNITED KINGDOM Tel. +44 0800 212 438 (free call)

Rayovac Europe Ltd, Watermans House, Kingsbury Crescent, The Causeway, Staines, Middlesex, TW18 3BA, UNITED KINGDOM, www.remington.co.uk

ČESKÁ REPUBLIKA Tel. +420 487 754 605

Tel. +353 (0) 1 460 4711

Remington Consumer Products, Unit 7C, Riverview Business Park, New Nangor Road, Dublin 22, IRELAND, www.remington.co.uk

MAGYARORSZÁG Tel. 06 1 347 9000

VARTA Consumer Batteries, Khalid Bin Waleed Street, Al Jawhara Bldg 504, Dubai, U.A.E., www.remington-europe.com

CROATIA Tel. +385 12481111

Alca Zagreb d.o.o., Zitnjak bb, 10000 Zagreb, Croatia, www.remington-europe.com

CYPRUS Tel. +357 24-532220

Thetaco Traders Ltd, Eletherias Ave 75, 7100 Aradippou, Cyprus, www.remington-europe.com

ROMANIA Tel. +40 21 411 92 23

TKFexpert SRL , 4th, Drumul Taberei St., sector 6, Bucharest, Romania, www.remington-europe.com

SLOVENIA Tel. +386 (0) 1 568 00 00

Sarig Electric Ltd., Nesher Industrial Area, Ramle.

P.O. BOX 841, ISRAEL, www.sarig.com

Thank you for choosing Remington®. Our products are designed to meet the highest standard of quality, functionality and design. We hope you enjoy using your new Remington® appliance. Please read the instructions for use carefully and keep in a safe place for future reference.

6 LED light (R4130):

- Green charging indicator

LED light (R5130): - Green charging indicator - Red low battery indicator

LCD Display (R6130/R7130):

- Minutes remaining - Recharge warning

8 Head guard 9 Power plug

4 On/Off Push button

3 Individual flexing heads

2 Head release button

1 Pivoting Head & cutter assembly

AE DESCRIPTION P FIN Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped into water.

S DK Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Remington®.

Power System Full Charge Time Cordless Shave Time

LCD LCD Voltage Type

SP-SF SP-TF SP-DF SP-DF GETTING STARTED For best shaving performance, it is recommended that you use your new shaver daily for up to four weeks to allow time for your beard and skin to become accustomed to the new shaving system.

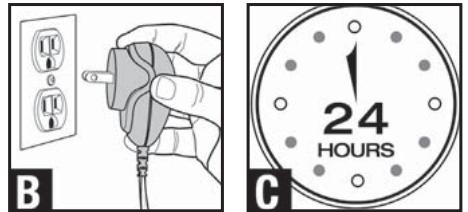

CHARGING YOUR SHAVER Always ensure that your hands, shaver and power cord are dry before charging your shaver. Ensure the shaver is switched off. Connect the shaver to the adapter (Fig. A), then to the mains (Fig. B) and charge for at least 24 hours when using for the first time (Fig. C). R7130 – Place your shaver in the charging stand, connect the charging adaptor to the stand and then to the mains. Charge for at least 24 hours when using for the first time. After the shaver batteries are fully charged, the green indicator light will blink (R4130), the fuel gauge (R5130) or the LCD display (R6130/R7130) will indicate the shaver is fully charged. Use product until the battery is low. This is indicated by illuminated red light or the LCD display. Fully recharge for 24 hours every 6 months to maintain battery condition. When empty, the battery will be fully charged around 90 minutes for the R5130, R6130, R7130, and around 24 hours for the R4130. The shaver adapts automatically to a mains voltage between 100V and 240V.

Extended mains only use will result in the reduction of the battery life.

NL CORDED USE (R5130, R6130, R7130)

Connect the shaver to the adapter, then to the mains and recharge for 5 min. before using.

D GB ENGLISH Care for your product to ensure a long lasting performance. We recommend you clean your shaver after each use. Using the brush supplied clean the internal parts of the head assembly and shaver body. The easiest and the most hygienic way to clean the shaver is by rinsing the product head after use with warm water. Always keep the protective cap on the shaving head and keep the trimmer in the “off” position when the shaver is not in use.

SL CARE FOR YOUR SHAVER HR/

SRB TIPS FOR BEST RESULTS Ensure your skin is dry. Always hold the shaver at right angles to the skin so that all three heads are touching the skin with equal pressure. Use moderate to slow stroking movements. The use of short circular motions in stubborn areas may obtain a closer shave, especially along the neck and chin line.

DO NOT press hard against the skin in order to avoid damage to the rotary heads.

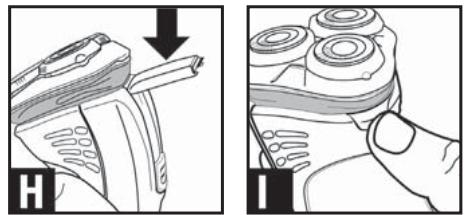

AE TRIMMING Push the trimmer button down (Fig. F). Place trimmer at desired trim line for a quick, easy, professional trim. Hold the shaver as shown in the illustration (Fig. G). To retract and switch off the trimmer, push the trimmer lock button in and downwards (Fig. H).

CZ SK SHAVING Switch the shaver on (Fig. D).

Use the trimmer to remove long hair first (see below). Hold the shaving head so all three heads touch your face simultaneously (Fig.E). The independently floating heads will automatically adjust to the contours of your face. Stretch the skin with your free hand so the hairs stand upright. Only apply light pressure on the shaving head while shaving (pressing too hard can damage the heads and make them vulnerable to breakage). Use short, circular strokes.

CLEANING DAILY Ensure the shaver is switched off and unplugged from the mains.

Open the shaver head by pressing the release button on the front of the shaver (Fig. I) and flipping open the head away from the body of the shaver (Fig. J). Rinse the shaver head with warm water (Fig. K). Close head assembly (Fig. L). CLEANING WEEKLY Perform the daily cleaning steps first. Grasp plastic case around outer cutter and rotate toward the small dot on the shaver head (Fig. M). Pull outer cutter up and off the head assembly and remove inner cutter repeat steps 1-2 for the remaining cutters (Fig. N). Brush hairs from inner and outer cutter (Fig. O). Replace inner cutter (Fig. P). Replace outer cutter by lining up the locator with the small dot (Fig. Q). Twist towards large indent to lock in place. Repeat steps 4-6 remaining cutters (Fig. R). CAUTION: Never submerge your shaver in water. The shaver can be rinsed with water. The water temperature should not exceed 70 degrees. Attention. Unplug the shaver before cleaning with water. Keep the adaptor and cable dry.

CLEANING TRIMMER Lubricate the teeth of the trimmer every six months with one drop of sewing machine oil.

IMPORTANT SAFETY INSTRUCTIONS WARNING – TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE,

OR INJURY TO PERSONS: An appliance should never be left unattended when plugged in to a power outlet, except when charging. Keep the power adaptor and cord away from heated surfaces. Make sure the power adaptor and cord do not get wet. Do not plug or unplug the shaver with wet hands. Do not use the product with a damaged cord. A replacement can be obtained via the Remington® Service Center. Charge, use and store the product at a temperature between 15°C and 35°C.

If your shaver battery is completely empty or the shaver has not been used for an extended period of time, the shaver may not start when operated using the cord. If this occurs, charge the shaver for approximately 15 sec. before shaving.

Your shaver should be mainly used in cordless mode and only recharged when battery charge is low. Extended mains only use or continuous connection to the mains will result in the reduction of the battery life.

FIN TROUBLESHOOTING DK I Always unplug from the mains when cleaning or when being used under running water.

Only use parts supplied or recommended by Remington®. Do not submerge. Keep this product out of reach of children. The use of this appliance by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

D GB ENGLISH This appliance contains an environmental friendly rechargeable Nickel Metal Hydride battery. Do not dispose the appliance or the battery in the household waste as restrictions exist in most countries. Adhere to the national or local regulations for collection and disposal that apply for your specific location. In case you are required to remove the battery from the appliance for separate disposal see instructions in the

‘Battery Removal’ section on how to open the housing. For further information on recycling see www.remington-europe.com

SRB For further information on recycling see www.remington-europe.com

Do not put in fire or mutilate your battery packs as they may burst or release toxic materials.

GR RO TR RU HUN PL CZ BATTERY REMOVAL DANGER:

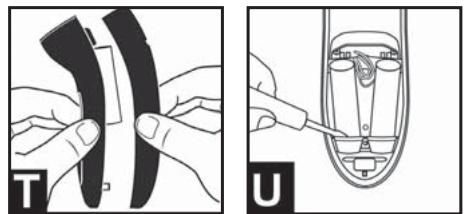

Once the shaver has been dismantled for disposal, do not attempt to reassemble and/or use. Unplug the shaver. Remove the head from the shaver (Press release button and pull head straight away from the shaver body) Using a small screwdriver, pry front cover from the shaver. Remove the 4 screws located on the front of shaver. (Fig. S) Remove rear cover from inner housing to expose batteries (Fig. T) Pry batteries free from circuit board and cut wires (Fig. U – V) Dispose of batteries

SERVICE AND WARRANTY This product has been checked and is free of defects. We warrant this product against any defects that are due to faulty material or workmanship for a 2 year period from the original date of consumer purchase. If the product should become defective within the warranty period, we will repair any such defect or elect to replace the product or any part of it without charge provided there is proof of purchase. This does not mean an extension of the warranty period.

In the case of a warranty simply call the Remington® Service Center in your region. This warranty is offered over and above your normal statutory rights. The warranty shall apply in all countries in which our product was sold via an authorised dealer. This warranty does not include shaving heads / foils and cutters which are consumable parts. Also not covered is damage to the product by accident or misuse, abuse, alteration to the product or use inconsistent with the technical and/or safety instructions required. This warranty shall not apply if the product has been dismantled or repaired by a person not authorised by us.

Snoerloze scheertijd

SP-TF SP-DF SP-DF Indicators

ZORG VOOR UW SCHEERAPPARAAT SL OCHRANA ŽIVOTNÉHO PROSTREDIA

NL F E I DK S FIN P S FIN P SK CZ HE AE HR/

SRB NAVODILA ZA UPORABO

S FIN P SK CZ HE AE HR/

E I DK S FIN P SK CZ HE AE HR/

.œš™ œ’•¡ £•šš• ¥Ÿ•–Œš –•š•š™ Œ› ••—’ –•šš•¤Œ ”’ –” –¡›Œš •” ¦•›š ”
