440 M - Pressure washer KARCHER - Free user manual and instructions

Product Type	High Pressure Washer
Brand	KARCHER
Model	440 M
Supply Voltage	230-240 V / 50 Hz
Connected Power	1.9 kW
Mains Fuse (time-delayed)	10 A
Protection Class	I
Rated Pressure	120 bar
Maximum Operating Pressure	130 bar
Flow Rate	400 l/h
Detergent Suction Flow	20 l/h
Max. Inlet Water Temperature	40 °C
Minimum Inlet Water Flow	600 l/h
Max. Inlet Pressure	12 bar
Vibration Level	0.8 m/s²
Automatic Shut-off (pressure switch)	Yes
Safety Devices	Relief valve, pressure switch, trigger lock
Recommended Use	Non-professional use (machines, vehicles, facades, terraces)
Water Connection	Tap or open container (suction hose optional)
Included Accessories	Double nozzle lance, high-pressure hose, trigger gun with lock

Frequently Asked Questions - 440 M KARCHER

How to assemble the KARCHER 440 M high pressure washer?

Attach the high-pressure hose to the device, insert the lance into the trigger gun, screw on the high-pressure hose, connect the water supply by opening the tap, then plug the plug into a socket.

How to use the washer in high-pressure mode?

Adjust to high pressure by turning the lance, set the switch to '1', unlock the trigger gun by pressing the trigger lock, then press the trigger. Hold the handle firmly due to the recoil force.

How to use detergent with this washer?

Set to low pressure by turning the lance, hang the detergent suction hose in the container, turn on the device, then operate the trigger. Detergent is not suctioned in high-pressure mode.

How to stop the device safely?

Set the switch to '0', unplug the plug, close the water tap, press the trigger to release residual pressure, then lock the trigger gun with the trigger lock.

What to do if the device does not reach the desired pressure?

Check that the mains voltage matches that on the rating plate. Bleed air bubbles by running the pump without the high-pressure hose. Clean the water filter and check that the lines are not clogged or leaking.

How to clean the high-pressure nozzle?

Use a needle to remove debris blocking the nozzle hole, then rinse it from the front with clean water.

How to protect the device from frost?

Store the device in a frost-free room. Before winter, completely drain the water by disconnecting the lance and operating the trigger. Clean the filters and check that the suction hose is dry.

What accessories are available for the KARCHER 440 M?

Optional accessories such as wash brush, rotating brush, rotor nozzle, high-suction flow kit, suction hose with filter, and various Kärcher detergents (universal, for cars, etc.) are available from your dealer.

How to maintain the water filter?

Disconnect the detergent suction hose and clean the metering valve. Extract the strainer in the water inlet with flat pliers and clean it under running water.

What are the important safety instructions for this washer?

Never direct the jet at people, animals, the device, or live electrical equipment. Do not use it in a potentially explosive environment. Wear protective clothing if necessary. Only use original Karcher spare parts.

USER MANUAL 440 M KARCHER

Before first use of the unit read these operating instructions and act in accordance with them. Keep these operating instructions in a safe place for later use or for a subsequent owner.

Français

1 Detergent suction hose
2 Appliance switch (ON/OFF)
3 High-pressure outlet
4 Water connection with filter
5 Coupling
6 Spray lance with double nozzle
7 High-pressure hose
8 Spray gun with safety ratchet (A)
9 Connection lead
10 Drawing bar

FRANÇAIS

12 Assembly
34 Spray gun assembly
5 Attach spray lance
6 Screw on high-pressure hose
7 Connect to water inlet
3 Open water tap fully
Plug in power plug
For additional information see page 18 and following

FRANÇAIS

Preparation

Operation with high pressure

1 Set to high/low pressure
2 Unit switch on "1"
3 Release safety catch on handgun
4 Press lever
5 Caution: recoil
6 Safety instructions

FRANÇAIS

Pa6oTb C NcNoJIb3ObaHnEM BODI NOI BvICOKIM DaBJIeHnEM

1 PpoeBtuye yctaHOBky 3haeHHy BbOcKO/ HIGKOrO DaJIeHHr.
2IpeKIOHATeB yCTPOXCTBA yCTAHOBITE B nonOxHEYi
CHIMITE pyHNOXnCTONET C rpeoxaHTIeIA.
4 HaxMMTHeHaBbHAR. 5 OctopoxHo, BcMOxHbOTDaHb.
6 CobIkaJIte yKz3aHnI IO TeXnIKe 6e3rAchOCTN.

Slovensko

Operation with Detergent

1 Adjust to low-pressure jet
2 Suspend detergent suction hose...
3 ... in detergent reservoir
4 Switch on high-pressure cleaner
5 Release safety catch on handgun
6 Press lever
No detergent in high-pressure mode

FRANÇAIS

Finishing the operation

1 Unit switch to "0"
2 Unplug power plug
3 Turn off water tap
4 Press lever (to de-pressurise)
5 Engage safety catch on handgun

Care, storage

6 Clean detergent filter
7 Clean water filter
3 Frost protection

FRANÇAIS

Fin du service

OkoHuaHne npoucecca pa6oTbI

1 PepeKNoHTeBly cTPOCTBaTeBpeEBnDEI B NOJOKHeNVE YO.
2 BbTaunTe BNkUy n3 po3eTkn.
3 3akpoTe BOOpPOBOHbI KpaH.
1 HaxmITE Ha pbHr nIcToJea (c6Op DaBnEH).
IocabteBpyuHnHCTOJETHa IpeDoxpAHITbE.

yxo, xpaheHne

Пов dediteчпсгддян OЧТКИСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕОСТРЕO
71 PnOBeUHTy HCTKy FmblbTa JnA HICTKN BObl.
BbIIOJIHITMeMOpNpTmIPO3aIIITcCtEmlOTMOpO3a.

Magyar

Nega in shranjevanie

6 Ocistite filter za cistilno sredstvo
Ocistite vodni filter
Zavarovanje pred zamrznenjem

Polski

Zakoningie pracy

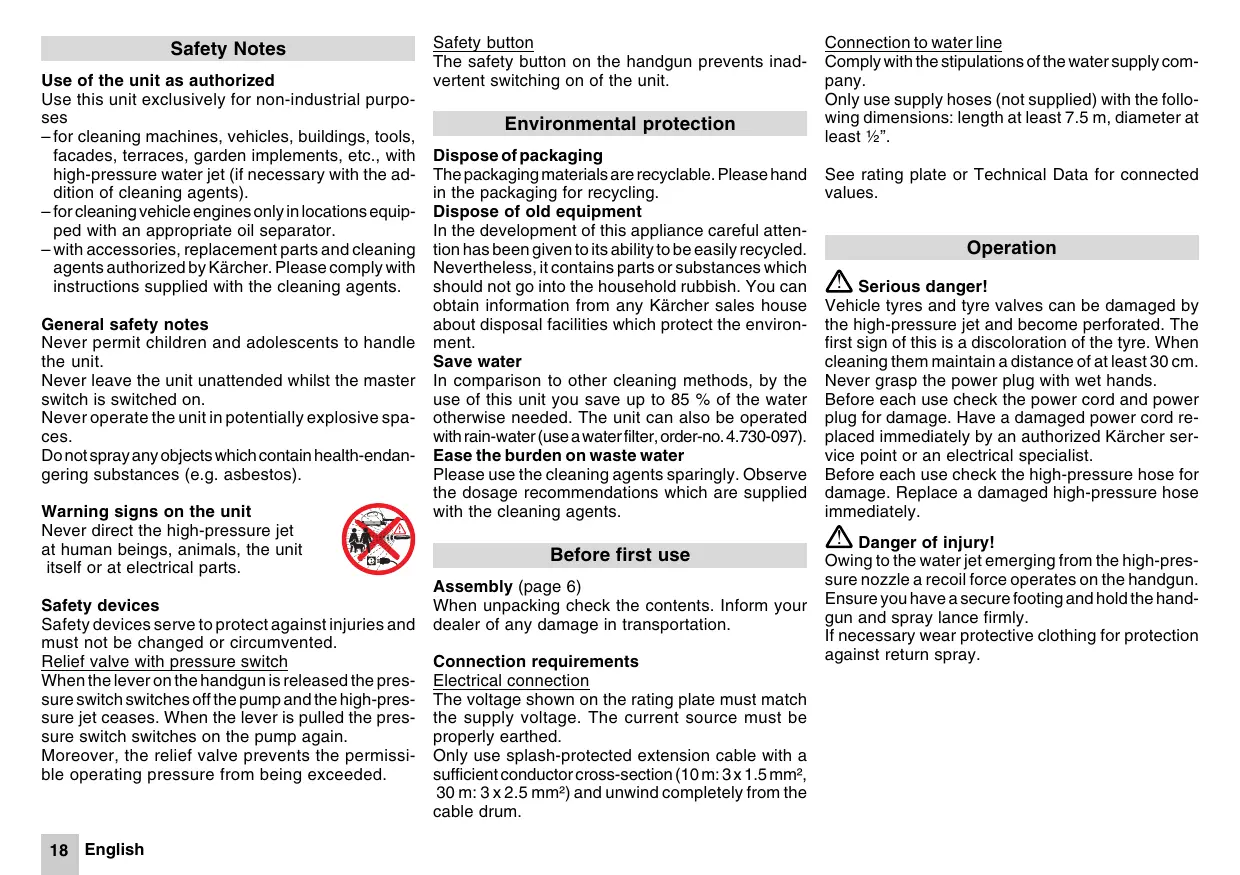

Use of the unit as authorized

Use this unit exclusively for non-industrial purposes

• for cleaning machines, vehicles, buildings, tools, facades, terraces, garden implements, etc., with high-pressure water jet (if necessary with the addition of cleaning agents).
• for cleaning vehicle engines only in locations equipped with an appropriate oil separator.
  with accessories, replacement parts and cleaning agents authorized by Karcher. Please comply with instructions supplied with the cleaning agents.

General safety notes

Never permit children and adolescents to handle the unit.

Never leave the unit unattended whilst the master switch is switched on.

Never operate the unit in potentially explosive spaces.

Do not spray any objects which contain health-endangering substances (e.g. asbestos).

Warning signs on the unit

Never direct the high-pressure jet at human beings, animals, the unit itself or at electrical parts.

Safety devices

Safety devices serve to protect against injuries and must not be changed or circumvented.

Relief valve with pressure switch

When the lever on the handgun is released the pressure switch switches off the pump and the high-pressure jet ceases. When the lever is pulled the pressure switch switches on the pump again.

Moreover, the relief valve prevents the permissible operating pressure from being exceeded.

Safety button

The safety button on the handgun prevents inadvertent switching on of the unit.

Environmental protection

Dispose of packaging

The packaging materials are recyclable. Please hand in the packaging for recycling.

Dispose of old equipment

In the development of this appliance careful attention has been given to its ability to be easily recycled. Nevertheless, it contains parts or substances which should not go into the household rubbish. You can obtain information from any Karcher sales house about disposal facilities which protect the environment.

Save water

In comparison to other cleaning methods, by the use of this unit you save up to 85% of the water otherwise needed. The unit can also be operated with rain-water (use a water filter, order-no. 4.730-097).

Ease the burden on waste water

Please use the cleaning agents sparingly. Observe the dosage recommendations which are supplied with the cleaning agents.

Before first use

Assembly (page 6)

When unpacking check the contents. Inform your dealer of any damage in transportation.

Connection requirements

Electrical connection

The voltage shown on the rating plate must match the supply voltage. The current source must be properly earthed.

Only use splash-protected extension cable with a sufficient conductor cross-section (10 m: 3 x 1.5 mm², 30 m: 3 x 2.5 mm²) and unwind completely from the cable drum.

Connection to water line

Comply with the stipulations of the water supply company.

Only use supply hoses (not supplied) with the following dimensions: length at least 7.5m , diameter at least 12 .

See rating plate or Technical Data for connected values.

Operation

Serious danger!

Vehicle tyres and tyre valves can be damaged by the high-pressure jet and become perforated. The first sign of this is a discoloration of the tyre. When cleaning them maintain a distance of at least 30~cm . Never grasp the power plug with wet hands.

Before each use check the power cord and power plug for damage. Have a damaged power cord replaced immediately by an authorized Kärcher service point or an electrical specialist.

Before each use check the high-pressure hose for damage. Replace a damaged high-pressure hose immediately.

Danger of injury!

Owing to the water jet emerging from the high-pressure nozzle a recoil force operates on the handgun. Ensure you have a secure footing and hold the handgun and spray lance firmly.

If necessary wear protective clothing for protection against return spray.

Water supply

Caution! Impurities in the intake water damage the pump. To prevent this we expressly urge you to use the Karcher water filter (order no. 4.730-097). The operation of the high-pressure cleaner with a closed water supply line causes damage to the cylinder head unit. Please never operate the high-pressure cleaner with a closed water supply tap.

The unit can either be supplied from the water main or from water in an open container. Water supply from the water main

• Connect a supply hose (not included) to the water inlet of the unit and to the water supply (e.g. water tap).
• Open the water supply. Water supply from an open container
• Unscrew the coupling part for the water inlet.
• Screw the suction hose with filter (not included, see "Special accessories") onto the water connection of the unit.
• Hang the filter in the container.

• Vent the unit before operation.

• Unscrew the high-pressure line at the high-pressure outlet of the unit.

• Switch on the unit and let it run until water free of bubbles emerges at the high-pressure outlet.
• Switch off the unit and screw on the high-pressure hose again.

Preparation

• Insert power plug.
• Turn master switch to "I".

Switching on

• Press safety button on the handgun and pull the lever.

Switching off

• Release the lever.

During breaks in work and when leaving the unit secure it against inadvertent switching on by pressing the safety button.

Regulate operating pressure

Raise operating pressure:

• twist spray lance in direction
• Reduce operating pressure:
• twist spray lance in direction

Adding the cleaning agent

• Draw the cleaning agent suction hose out of the housing to the required length.
• Hang the cleaning agent suction hose in the cleaning agent container.
• Twist the spray lance in the " direction until the stop.

If cleaning agent has been added:

• Hang the cleaning agent suction hose in a container of clear water, switch on the unit for about one minute and flush through.

Recommended cleaning method

1. Spray the cleaning agent on the dry surface sparingly and let it react (but not dry out).
2. Wash off the loosened dirt with the high-pressure jet.

Connect accessories

Depending on the model the following accessories are either included in the scope of delivery or are obtainable from specialist dealers (see also "Special accessories").
- Exchange the respective accessory with the spray lance.

Wash brush

for large, smooth surfaces - e.g. on the automobile, caravan or boat.Cleaning agent can be added.

Rotating wash brush

for gentle and thorough cleaning-e.g. bodywork and glass surfaces.

Cleaning agent can be added.

Rotary nozzle

for stubborn accumulations of grime - e.g. moss-covered promenade tiles or facades.

Work without cleaning agent and with the highest operating pressure.

Finishing operations

• Master switch to "0".
  Draw out power plug.

Water supplied from the water main

• Close the water supply tap.
• Separate the unit from the water connection. Water supplied from an open container
• Unscrew the suction hose with filter at the water inlet of the unit.
• Pull the lever on the handgun until the unit is without pressure.
• Press in the safety button to protect the unit against inadvertent switching on.

Safekeeping

Caution! Frost can destroy an incompletely emptied unit. In the winter keep the unit in a frost-free room.

• Separate the spray lance from the handgun.
• Wind up the power cord and, for example, hang it around the handgun.

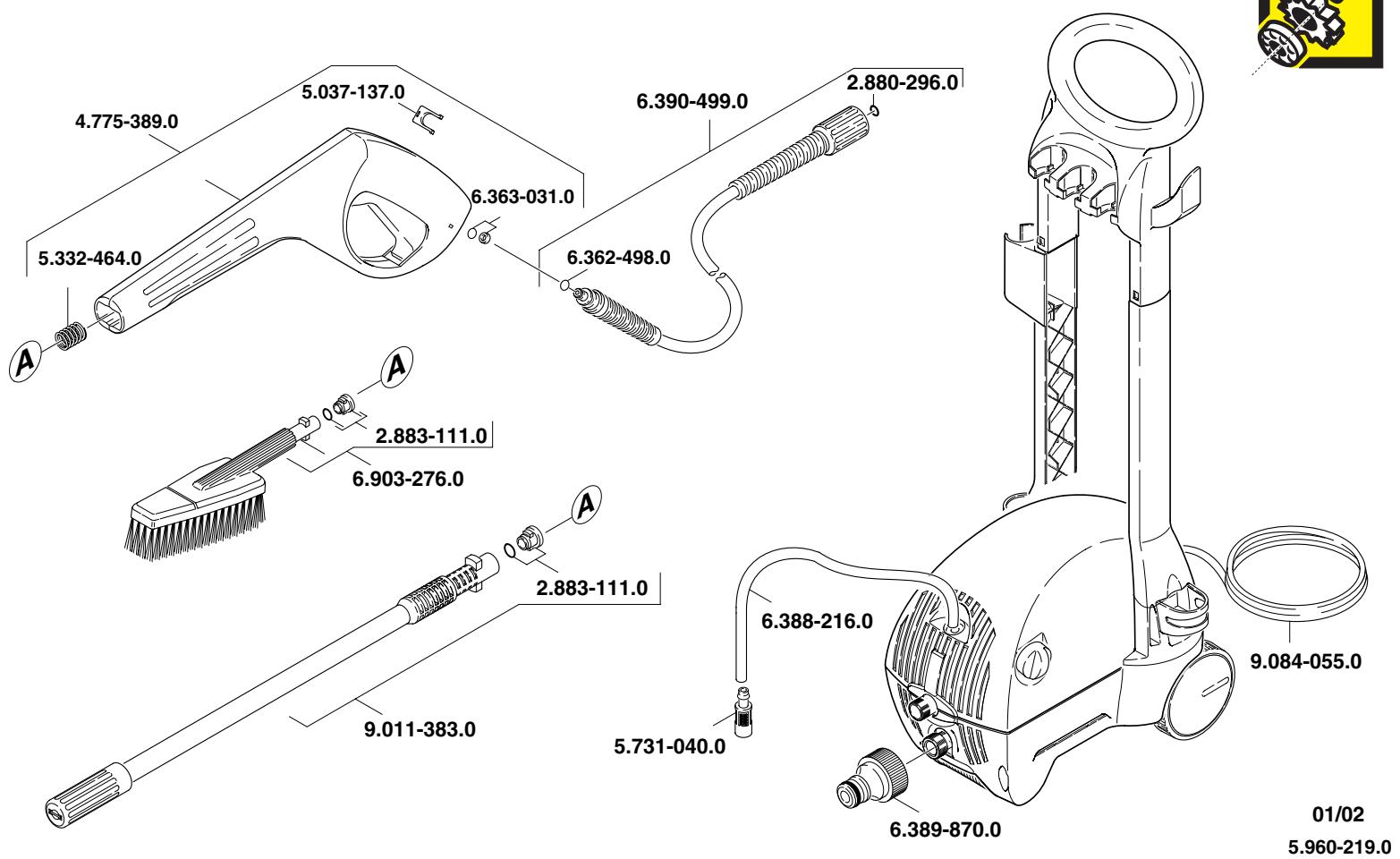

Special accessories

Special accessories expand the scope of use of your machine. You can obtain further information from your Kärcher dealer.

See page 106 for illustrations and order-no.

1 Rotary nozzle
2 Spray guard for rotary nozzle
3 Pipe-cleaning set
4 Rotating wash brush
5 Wash brush
6 Wet blasting set
7 Flexible spray lance
8 Three-way nozzle with spray lance
9 Spray lance for places which are difficult to access
10 Floor spray lance
11 Spray lance extension
12 High-pressure hose
13 Hose extension
14 Large volume suction set
15 Suction hose with filter
16 Water filter
17 Non-return valve

Cleaning agents

For trouble-free operation and for matching to the relevant cleaning task we recommend our Kärcher cleaning agents and care range. Please let us advise you or ask for information about them. Here is a small selection:

Universal cleaner

• Profi RM 555 ULTRA

Automobile cleaner

• Profi RM 565 ULTRA

House and garden cleaner

Boat cleaner

• Profi RM 570 ULTRA

• Profi RM 575 ULTRA

Care and Maintenance

Cleaning

Before long periods of storage, e.g. in winter:

• Pull the cleaning agent metering valve off the cleaning agent suction hose and clean it under running water.
• Pull out the strainer in the water inlet with flat-nose pliers and clean it under running water.

Maintenance

The unit is maintenance-free.

Help with faults

Faults often have simple causes which you can rectify yourself with the aid of the following summary. In case of doubt or of faults or remedies not mentioned here apply to the authorized customer service.

Danger of electric shock!

Repair work on the unit can only be carried out by the authorized customer service.

Appliance does not Work

-Check whether the voltage shown on the rating plate corresponds to that of the power source.
-Check the connector cable for damage.

Appliance does not reach Operational Pressure

-Vent the appliance:Allow the pump to operate without the high-pressure hose until water appears at the high-pressure outlet without any more bubbles. Then reattach the high-pressure hose.
-Clean the strainer in the water connection.
-Check the inlet water flow rate.
-Check all inlet pipes to the pump for leaks or blockage.

Strong Pressure Fluctuations

-Clean the high-pressure nozzle. Remove dirt from the nozzle hole with a needle and then rinse out with water from the front.

Pump Leaks

-10 drops per minute are permissible. In the case of more serious leakage, you should contact the authorized customer service.

No Detergent Suction

• Clean the detergent suction hose with filter, and check for leaks.

Replacement parts

Use exclusively Karcher original replacement parts. You will find a replacement parts summary at the end of these operating instructions.

Technical Data

Power supply
Voltage (at 1~50 Hz)	230-240 V
Connected load	1.9 kW
Supply fuses (time-lag)	10 A
Safety class	1
Water connection
Supply temperature (max.)	40 °C
Supply volume (min.)	600 l/h
Supply pressure (max.)	2-12 bar
Performance data
Operating pressure	120 bar
max. permissible pump pressure	130 bar
Flow volume	400 l/h
Cleaning agent metering	20 l/h
Suction height from open container (20 °C)	1 m
Recoil force of the handgun	15 N
Unit vibrations	0,8 m/s2
Sound level
LPA(EN60704-1)	74,5 dB(A)
LWA(EN4871)	90 dB(A)
Dimensions
Length	395 mm
Width	315 mm
Height	935 mm
Weight	12 kg

Circuit Diagram

C1 Capacitor
M1 Motor
Q1 Switch
T Temperature limiter
S1 Pressure switch

Service

Guarantee

In each country the guarantee conditions issued by our responsible sales company are applicable. We clear any faults occurring in the unit free of charge during the period of guarantee providing the cause is a fault in a material or in the manufacture. In the case of a claim under the guarantee please contact your dealer or the nearest authorized customer service point, accompanying your claim with accessories and purchase voucher.

Customer Service

In the case of questions or faults our Kärcher branches will be pleased to assist you further.

EU Declaration of Conformity

We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate EU Directives, both in its basic design and construction as well as in the version marketed by us. This declaration will cease to be valid if any modifications are made to the machine without our express approval.

Product: High-pressure cleaner

Relevant EU Directives:

EU Machinery Directive (98/37/EEC).

EU Low-Voltage Equipment Directive (73/23/EEC) amended by 93/68/EEC.

EU Directive on Electromagnetic Compatibility (89/336/

EEC) amended by 91/263/EEC, 92/31/EEC, 93/68/EEC.

Harmonised standards applied:

DIN EN 60 335 - 1

DIN EN 60 335 - 2 - 79 : 1998

Appropriate internal measures have been taken to ensure that series-production units conform at all times to the requirements of current EU Directives and relevant standards. The signatories are empowered to represent and act on behalf of the company management.

Dr. B. Graf

H. Jenner

S. Reiser

Relevant EU-directtiver:

HnKOrJa He pa3peaIe DeTAM M MoIodbIM IIOdM NOIb3ObaTbcraYCTpoIcTBOM.
HnKorda He ocTabJIaIte yCTpoIcTBo 6e3 npICMOtpa, ecN BkJIIOUeH rJaBbIy BbIKJIIOuAteJIb.
JaHHbIM yCTPOIcTBOM HeJIb3A NOJIb3OBaTbcB BO B3pbIOONaCHbIX NOMEueHnX.
He HaprablaIe CTpyo BObI Ha Te PnpdMetbl, MaTePnAI KOtOpBix COdepKHT BSeIcTBA, OAnChIe IJIa 3DOpOBbY ChelOBeka (HapnMpE, acObct).

PpeDynpexKaIoum 3HaK Ha yCTpoiCTBE

HnKoJaHe HnpaBnJaTe CTRYBObIHaJIIOeJ, XNBoTHbIX, CaMO yCTPOIcTBOHIN3JeKTPnueCckne 3NeMEnTb KOHcTpyKuIN.

3aunTHbIe npncnoc6JeHnA

3aunthbie npncnocobnna

PpeHa3NaYeHbI IJIpyDynpexKdEHHaTpaBMaTHMa.

Hn B KOem Cnyae HeJIb3a HN I3MeHArTb IN KOHCTpyKcIIO, HN BblBOIDNTb IN N3 CTPOR.

IpeenBHOKJIanaHcNHeBMOBbIKJIOHaTeJeM

Zorda otnyckaetc pyharg ykoarkn nictoleta, NHEMBOIBKIOHATeBbIKIOHaTACOC, YTO npBOIDNT KOBByCTpyn. PnN NOBTOPHOM HaxkATIN Ha BYAR NHEMBOIBKIOHATe CHOBA BKNIOHaTACOC. ZpOME TORO, NepeJIINBHO KlananHnpENTCTBYET ppeBbIeHHIO

donyctmoro paoboyero daBleHna.

PpeoXpaHnTeIbHaN KHOJa

PpeOxoPaHnteBnHa KNOpKa Ha pyKoTKe nCToTeTa npenrTCTByET CnyaHOMy BKNIOUeHInO yCTpoNCTBa.

3aunTa okpykaioe cpebl

YtJIn3aun ynaKOBKn

Matepnabl yanaokBKn npriroDnbl Ia BtopnuHoi nepepa60Tkn. PoxanyuCTa, no3a6oTbTeCb 0 TOM, Tc6bIy naokBaYcTpoiCtBA bIaHa cDaHa B pIneMhNb nyKKT, rfe 6bET npOBeDeHa ee KOnolrHuHa YtunlMaacn.

Ytuln3auncaTaporo yctpoicTba

HOpMauno 3KOnOrnHou yTnIn3aunn OTCnyJWBxN CBOI cPOK yCTPOINCTB BbI MoKTe NOyUHTB TTOPROBOp ORpAHn3aunn, npOABwe Bam n3dennHe pmpbl Karcher.

3KOHOMNBAOdbI

IcnoIb3y daHHOe yctpoCTBO, Bbl 3Kohomnte B cpaBHeHHn C dpyrHM MeToaAMn HcSTKn Do 85% BObl. 3KcNpyaTaN yctpoCTBa BO3MOxHa TaKxe C npImeHHeHem DoXdEBoi BObl (B 3tOM cNoyae Heo6xoHmФnIbTp DnOcHTKn BObl).

Bo n36eXaHne dONoHNHTeJIbHOrO 3aRpa3HeHHA CTOHbIX BOJ

Ioxaanycta, pacxoynte ynctyunce cpecdtba 3OKOHOMHO. yuTbBaHTe peKomeHdaun no nx Do3npOBe, haxoJusneB yynaKOBBe Bmecte co cpeCDTBAM.

Ipeed BBODOMB 3KcnnyaTaunIO

C6opka yctpoiCTBa (cTpaHnue 6)

Pn pacnakokBe yctpoiCTBa npokoHTpOInpyuIte, BCE nHa MeCte. Ecny yctpoCTBO BO BPEM TpaHcNoptnpOBKn 6bIIO nobpeKdEHO,To cooBUnTe o6 tOM, noxkanUcTa, B TopROByO prOraHn3auHIO, npOdaBswU Bo yctpoiCTBO. YcNoBMy NOklnoueHn

3NeKtpoNoKJIIOHeHne

3NaueHne HapnHexHn, npBedeHHoe B fnpMeHHoT
TaBnUe YCTPOICTBA, DoJHKHO COOTBETCTBOBaTb
HapnHexHnIO B cTeN 3NEKTPONIHAn. CeTeBaP oTeKa
doJHKHO bIb TcOoBETCTBYOUMM oBpA3OM 3a3eMJIHe.
MoxHO nCnObl3OBaTb TOnBko yDlnHtENbHk Ka6BeH
c 3aunTHOH N0rHnE, npenATCTBYOe NnonaHnIO
6bpItR BoDbl BVHTpb, n C nOpeneHbIM ceEHennM
DOctaTOOH NIOuaAD (10 M: 3 x 1,5 MM², 30 M: 3 x 2,5 MM²), KOTOpB dONJH e 6bITb NOHOCTBo pa3MOtAH.

IoiKIOUOHeHnE K BOIoNpOBOy

IopKJIIOUeHnepoBOaNTe B COOTBETCTBnC npEpnncAHnAMnpEpnpnTnA NO BOOCha6KeHnIO.

MOxHO nCnOJb3oBaT bToKbO uHaHr (He cOeApKHTCB Oobeme noCTaBKN) co CneIyUOImn NapaMeTpAmn: dInHna MMNIMYM 7,5,mDnAmeTP MmNIMYM 1/2".

IapameTpbl noKliuOHeHn Bb HauTe B cnpMeHHoI Tabnue n pa3JeT "Texnueckne daHhle".

06cnyxmbHne

OnacHOJIAJXUNH!

CTpye BObl NOd dABJIeHHeM MOKHO NOBpeINb WInHb ABTomO6nII INX 30JONTHNK, a 3TO YACTo pNIBoNT K TOMy, QTO WInHa JOnaETcN. IepBbI npi3Hak NOBpeKJeHn WInHb -n3MeHeHne ee cBaTe. NoTOMy MoKy WHN CTpye BObl CNeDyEt npOBoHTb c pacSTOrHn He MeHee 30 cm

HnKoIa He 6epuTeCb 3a cTeByIO BUNKy MOKpbIMnypkam.

CteBoi KaebIи Bnky npOBepHne Ha HAnuHne NOBpeKdEnHkKaDbI pa3 nepeid nCpOJIb3OBAHNEM yCTPOICTBa.YcPoINCTBO C nobPexDeHbIM KaebIeM cJeDyET HeMeJEnHO OTdaTb B cepBnCHyMoCTepckyIO no pEmOnTy N3dEInnФinPmbl Karcher Ia 3AmEHbI KaebHa HOBI.

BbICOKoHaOpHbI WlaHr CneJeT TAKKe NpeK KeKdbIM cNcONJIb3OBAHNEM yCTPOINCTBa InpOBePrtb Ha HaNHe NOBpeJdHn. NOBpeJdHbI WlaHr HeO6XoHmO HEmEJaHHO 3aMeHHTb.

Onachoctb TpABMnPOBaHnI

BbipbBaOuaaRc n3 CTbOla cTpy BoIb Bbl3bIbae TOnaHy NCTOJETA, No3TOMy Nepei NaHApOM paOTo b3aMnTe yctOnuHByIO No3uHIO NKpEKNo DeepKNTe BY PKaX NCTOJET.

JnA3aunTbOT OTetaoUxN H3azd6pI3r BOyB BMeCTe COTdEJIHOUMMCH aCTNHKaMn 3aqr3HeHm MOKHO npn HeO6XoIMOCNT HocNt3aunTHyO OJekJy.

Bodocha6xehne

UcTpoCTBO MOXHO CHa6KaTb BOiO, HApnIMep, n3 BOIOPOB0Da IIN OTKpbITOro pe3epByapa C BOiO.

Bodocha6keHne n3 BOOnpoBOda

• OINH KOHeu nOdaHJeero 7IaHra (He coepKHTcB oIbEme NoCTabKn) npCoeDHHte K 3JeMeHTy oNkHIOueHn yctpOCTBa, a DpyrO - K I NCTOCHNY BODOCHA6XeHn.
• OtkpoTe KpaH.

Bodocha6keHne n3 oKpbItoro pe3epByapa

OTBUNHTTE COEDHINTeBHyTO Detalb JnOndKIOUChyN ONDaOIOEo WJHaA.
- PnKpyTne BCacbBaOuOu nIaHr C cHnIbTpOM (he CoedepxNtC B OBeMe NoctabKn, CMOTnTe 4a3Je - CceuaNaBhbe npHaJdEeKHoCTn) K 3JeMenty NODKJIIOUeHHe BObl.
Onyctnte KOHeuIaHa r c pIbTpom B pe3epByap.
- Параюправедные уд�ени ВОЗдуха n3 устороства.
- OTKpyTte BbICOKOHaOpHbI WlaHr OT 3JeMeHt aNDKJIIOUeHnYcTPOiCTBa.
- BkIIOHte yctpoCTBO u daTBe mEv npo6bTaTb Do Tex nop, NOKA BYIINBAUOaCn 3N 3eMeHTa NODKLIQUeHn BOa He nepeCTaHETy3bIPuTbCn.
- BbikIIOHTe ycTpoNCTBO n npKpyTne Ha MeTo BbICOKOHaOpHbI IJNaHr.

NoDrotOBka

BCTaBbTe BnJky Bpo3eTky.
- YctaHOBnte TJIaBbIy BbIKJIouaTeJIb B IOJIOXeHne "I".

BkJIOyHeHne

• Haxmte Ha npedoxpahntelbHyIO KhoNky Ha pykoTKe nCToTe NaHa pbHar pykoTKn.

BbIKJIoueHne

OTnyctnte pbHar pyKoTkn. BoBpeMa nepepbBa B pa6Ote n B cnyuae,ecn yctpoiCtBO octaetc 6e3 npCmToPa, haxmaiTe Ha npEoXpAHNTeblHyK hONkY, npEaTCTbUOyU cnuayHOMy BKJIOUeHHIO yctpoiCTBa.

Pa6oyee daBJeHne

• NobblieHne pa6oOerdoabLeHnH: nobepHNTe CTBOJ NtCToJeTa HnapBLeHn "

-ПОНЖЕніе pafoуero daBJIeHnA: noBepHnTe CTBOI nCtOJeTa B haNPaBJIeHn "

OuHCTInTeIb IJI CTeH 3aHaH N caObIx npHaJdlexHoCTeI

Profi RM 570 ULTRA

OuHCTnTeJb dJa KaTePOB

Profi RM 575 ULTRA

YxOAn Texo6cJnyKuBaHne

UcTka

Ipeed oJrUm xpaHeHnEm, HappmeR, 3mOi:

CHMnTe Klaapan DIA O3nOboBKN UcTaeero CpeCTBaC KOHcaBCaSbIaOooero 0JHaRn n IpomOtTe ero noD npOTooHoi BOIo.
C NOMOsbIO NIOCKORYBEB BITaunTe n3 3nEMeHTa NOKJIIOUChENI BObI ΦINbTp IN POMOIte ERO NOI pTOHOH BOJIo.

TexobcnyxmbHne

Данhoe yctpoCTBO He HxKdaetcA

B Texo6cnyxuBaHn.

3anachbdeTaJn

Pb3yTeBc 1ckIOHTeBbO 3anaChIMn DeTANMnΦpMb Karcher.Ob3op 3aHacte BbHaJteB ToKoUe daHNHnCTpyKUnn IO o6cnyKJBAHINo

Pomoub npu ycTpaHn HncnpaBHOtei

PnunHOn HeNCnpaBHOCTu cacto ABnReTc KaKanHbOyIb MeNoCb, TAK YTO C NOMOUsIO pNBEeDEHHo HnKe TaBnUb Bi CMOKeTe yCtpaHnTbe ee camocToTeNbHO. B Cnyae comHeHn UIN npn HeNCnpaBHOCTu, He yKa3aHHoB TaBnUe, ObaaauTecb, NoXaynuCTa, B Cnyk6 cepBnca.

Onachoctb 3JektpoWioka!

Pa6oTbI no pemOnTy yCTpoiCTBa DOJIxHbI BbIIOJIHTbCToIbKO CneuHaNtAmu CnyKbI cepBvca.

TexHnueckne daHHbIe

NapameTpbl 3JektpoNoKJIIOUeHnA

HapxkeHe (npu 1\~50 T)230-240 B

O6aI noKJIouaemaM MoHocTb 1,9 KBT

PpeOxpaHnTeJIb (HHepUOnHHbI) 10 A

Znaacc 3aunTb1

NapaMeTpbI CnCTeMbI BOOCha6XeHNA

Temnepayps
побаевыоь (мак.)	40 °C
Pacxod boй (MнH.)	600 ml/h
Давлице на bхODE (мак.)	2-12 6ap

Pa6oynexapaKTeepncn

Cleaning Systems
Alfred-Kächcher-Str. 28-40
P.O. Box 160
D-71349 Winnenden

Biztonsagiutasitask

suciti teava in sensul

Reducerea presiunii:

suciti teava in sensul , "

Lucrul cu detergent

Bootreiniger (Cistic pre cnly)

Profi RM 575 ULTRA

Osetrovanie a udrzba

Cistenie

Pred dlhšim skladovanim, napr. v zime:

Stiahnite z nasávacej hadice Čiustiaceho prostriedku dákovaci ventil a yciistite ho pod tecúcou vodou.
- Pomocou plochych kliestviytiahnite sitko z vodnej pripojky a yvčistite ho pod tecúcouvodou.

Udrzba

Cleaning Systems Alfred-Karcher-Str. 28-40 P.O.Box 160 D-71349 Winnenden

YnbTbHn3a6e3onacHOCT

Ynotpe6a cnopei npedha3HaueHneTo

UpeIbTe npeHa3HaueH 3a yNoTppe6a npeiMnHO B He HNHyCTpnaJIHn CΦepn

• 3a nouchTbahe C BODHa CTpy NOB BUCOKO HALLAhe (BCUYaH Ha Heo6xOIMOCCT PnRb6ABHe Ha nouchTbaunpenapatu) Ha MaunHn, npeBOzHN cpeDCTBa,CTponTeHNCbOpXeHn, INCHtpymEnTu, facadI, Tepacn, rpaunHcN ypei np.
• 3a nouchCTBAHE NaBnIgATEENCaMO HA MeCTa CbC CbOTBEthaBHeMOnKHOCT3a OTCTpaHraBaHe Ha OTnAdbYHOTo MACNo.
  -cpa3peweHnTeOT Kaercher donbHnTeIHO
  obOpyaBaHe,pe3epBHN cactNI nooNCTbaun
  cpeCDtBA.Cb6JIOaBaJIte yka3aHHaTAt, npInloXeHN
  KbM noOHTBaUaTIne npenapATi.

06uynyTBaHHa 3a6e3onacHOCT

Hnkora He pa3pewabai Te Ha deca n Mnaedexn da pa6oTc ypea.

He octabraye ypea 6e3 na6IIOeHne, KOrato rnaBnraT wanTepe BkIoueh.

Ja He cyyntpe6bYa ypeBbT B NOMEUENH, B KONTO CbIeCTByBa ONaCHOCT OT EKCNIO3N.

Да He ce Mnyt ПпedmETи, CBdpbXauni OnaChi 3a 3dpabeto BwecTBA (Hanp. a36ecT).

IpeynpeinteHn 3haunBbpxy ypeda

HnKora He hacoubaiye CTbpyTa noI nHaJIrahe cpeSyxoxa, XJbOTHN, CaMna ypeD ane jneEKeTpuJecku qactN.

CbopBXeHn3a6e3onacHOCT

CbopxehnraTa 3a 6e30anachocT

npedna3BaT OHT hapaHbAne H He Tp6Ba Da 6bDaT nponyckaHn nn nPomeHn.

Bb3BpateH BeHTn C wAnTeP 3a HanaReHaTeO

Ako loctbHa nuctoTa 3a pbuH NoPbckaHe ce OcBO6OAn, uJItepST 3a HauRgHeTo I3KIIouBa NOMnata nCTpyTA NOHANHLaRHaTe Cnnpa. Ako loctbCe I3Dbpa, uJItepST 3a HauRHaTe OTHOB 3aJeNCTBa NOMnata.OCBen TOBA Bb3BpTHNtBEHTIN Bb3PpeNtCTBa HaXbPrlHETo HA pa6OTHO THaJIraHe.

OcnrypnteHbYToH

OcnIpynteJIHnIa6yToH naIncToJIeTa3a pbYHO npBcKaHe npEJa3Ba OT HeBOJHO BKJIQUCbAHe Ha ypea.

N3XbBpIaHeHa cTapn ypeDu

InΦopMauia 3a nXbBpIHeTo c6o6pa3HO uNCKBAHnTa 3a onaBaHe Ha OKIoHaTc CpTe da MoIyUHTe oT BaOnu TbProBeu Ha Mapkata «KDrcher'.

Икономия на вoda

IocpeDCTBOM yonTpe6aba HaTo3n ypeD Bne cnpctBaTe Do85%BOA bCpaBHeNc CdpyH MeToDi HaOnuChTaBe. YpeDbT MoKe J daBoToH n CdbJdoBHa BOa (B To3n Cnyau Ce n3nO3Ba BoDhenΦInTpBp).

N3XbPJIHe Ha OTnAbyHInTe BOHN

Mojia, n3noJ3BaIte noocCTBaunite npenapatn IkoHOMnHO. C6bIoJaBaIte npenOpBHTeHNITe DO3nPoBKN, pInIOJKeHN KbM NOcHCTBaunite cpeDCTBA.

Ppei npbBaTa ynoTpe6a

Crtno6bahe (ctpahnca 6)

Поверете рпн паэлakованс сьдрханито на onakobka.Tп пт<aнсорTNи uteу ybeodomete CBOR TbproBeu.

YcnoBna 3a BkIIOUbaHe

BknIOUcbHe B enEKeTpueeCKaTa MpeKa

HanpexeHneto, n3nncano Ha TnOBaTa Ta6eIka, Tp8Ba Da cBbnaDa CbC 3axpaHbAaTO HapexeHne. ToKoN3OToHnKbT Tp8Ba Da e 3a3EmeH cnopeD npdeNcAHaTnra.

Ja ce n3no3BaT cAmO yIbJNtEnHn Ka6eHn, 3aunTeHn O npBcKaHTo Ha BOa, C DOCTaTbHOn HappeHc CeHHe Na npoBODnUte (10 m: 3 x 1,5 mm², 30 m: 3 x 2 mm²) Ja da ce pa3BvBt OT 6apab6aHa n3quJIo.

CTOHOCTN 3a BKJIOUbaHe BNX TINOBaTa Ta6eJka/ TexHnueckn daHHN.

BkIIOUyBaHe KbM BODOnpOBOa

Ja ce cna3BaT npednncanhyaHa BOOCHa6DntHeHOTnpedpnraTne.

BkIIOUBaHeTo Ce n3BbPbWA qpe3 Mapky 3a noJaBaHe Ha BOda (KoITo He e BkIOUeH B IOCTaBHnO o6eM).

ДьлжинаMuHmym7,5M，Диametbp1%OJa.

3a cToHIOCTnTe 3a BkIIOUBaHe BIX TabeJIkaTAp/ TexHnueeCKn DaHHN.

Ynotpe6a

Onachoct3aXUBOTA!

Ctpya nod hajrahe moxse da ybrepn ia do boede do nykaheTo ha rymn Ha npebo3n cpecdtba/BeHTnuHa rymn. Tbpbn pnp3nak

3a TOBA e OuBETBaHETO ha rymata. Iopadn ToBa YIcHTeHTo ce n3BbPbBa oT pa3ctoHne mHmym 30 CM.

Hnkora He xbaaate uencela c Mokpn pbue.

IpeiBcRA ynoTpe6a npOBeRbAte 3axpaHbAunia Ka6en IuenceLa 3a nobPeDIn. NObpeEn CBbp3BaU Ka6en Tp6Ba Da ce CmEH He3a6aBH0 OT OTOPI3npan EneKtpoTeXnIK.

PpeiBvBCaKy yNtOe6pa NIOpeBRAeTae 3a NOBpeiMapeKyu oND hAJIraHe. IIOBpeIeH MapeKyu 3a BOJaNoD hAJIraHe Tp8bBa da ce CmEH He3aBabHO.

OnachoctOTHapaHbahe!

Излзаца ппeз дioза тпдн haягане boндастуу улраххьа вьзврата сильврху nichtолета 3a рьсно рьсckeaning.Осичтete cn устонвсстөки ndoбpe npьхтene nichtoleteta 3a рьнho nрьсkaнe n pa3nрьсckвцада Трь6a.

PnHyjda Hocete CbOTBeTHo npednazHO 6NeIko 3a3auita Ob spato HeTua qactu npn pnbckaneto.

3axpaHbAe C BOda

UpeBt MoKe Ja pa6Otn Happ. C B0da OT B0doPBODa NIM OT OKpNT BOeH pe3epBoAp.

3axpaHbAHe c B0a oT B0onpOb0a

3axpaHbAHe C B0a O T OTKpTuN pe3epBoapu

3aXpaHbauMpKyu Ce Cbbp3Ba Ha MRCTOTo 3a BODoNoDaBaHe Ha ypeJa N KbM BOOn3TOHnKa (Hanp. Kpan 3a B0a).
OTbapcceBODOn3TOUHKnBt.
- OTBIBA ce Cbpbaaata YacCT 3a noDaBaHe Ha BODA.
Ha mrcToTO 3a CbBp3BaHe Ha noDaBaHeTo Ha B0da Ha ypeJa Ce 3aBBa BCMyKaTeJIeH MapKyu C qntTpB (He e BKIOUeH B OCTaBnIg O6em, BIX «CneuAnHO o6OpyDbaHe»).
- ΦιπΤ𝑏ρΤ CE OKaΥBa B pe3ερΒοΑρα.

• Праздуnotpe6a урдьт trябba да ce obe3Bb3duyn.

• MapkybT NOI haJIraHe CE OTBnBa OT MCTOTO 3a CbP3BaHe Ha npOBoJa NoI haJIraHa He YapeJa.

• YpeIbT CE BKIOUBA y Ce OCTABa Da pa60Tn, DOKaTO Ha CBpB3kATA NOI HAIraHene BOdaTa 3anoHne DA m3JIm3a 63E mexyPHTa.
• YpeDbT Ce n3KJIIOUbMa n OTHOBO Ce 3aBnBaMapkyuT NOD HaJIraHe.

NoDroTobKa

EneKtpo-cxemaHa npoTuHa He Ha ToKa

CepBn3Ha noDpBxxKa

Tapaanzna

Bb BcKa CtpaHa Ca BaIiDHi N3JaDeHHe TcNObH 3a rapaunu O T cTpaHa Ha H aHe OToPi3npuHo DpyxKctBO 3a pa3npocTpahEn He Na npOdykTtHe H. EBeHTyAJIH NoBpeDi B ypeDa B pAMKInTe Ha cPoka Ha rapaHUnrTa ce OTCpAraBaT 6e3PiAtHO, Ako npUHHata 3a TEx e B MaTePnAHa IIN npI npOn3BOdCTBO.To B cJyai Ha n3NoJ3BaHe Ha npABOTO Ha rapaHUnce 0bpbuaIte, MoJIA, KbM BaWna TbProBoeU IIN hAI- 6bnKm OTOpN3upAn cepBn3, Kato npEdctabnte 06OpyDbAHeto I NOKyMeHtA 3a NOKynka.

CepBn3n

PnBbnpocn nn nobpeH naHte FmnaIi Kaercher" ca Ha Bahe pa3noJxene:

Декларача 3a cbotbetCTBne ha EO

C HacTOrAto To DeKnapnPame, Ye 06o3HaueHata
no-DoJy MaunHa OTroBapr Bb3 OCHOBa Ha
KOHcEunraTa N KOHCTpyKcnra Ta Cn, KaKTo N B
u3NbIhHeHneTo, B KoTe e NychaTa B o6Opot, Ha
CbOTBeHTHe npInuINn H3NCKBaHn 3a
6e3ONaChocT n 6e3BpeDnOct 3a 3dPaBeTo Ha noDoLy cHTnPAHnTe HAcOKn Ha EO.
PnpomEn Ha MaunHaTa, KOnTo He ca
cbrIacyBaHn C hAc, HactoMaTa DeKnapaunry r6b
CBOITa BaIHnHOCT.

PpOdyKT:MaunHa 3a NOUcTbAHe NOp BnCOKo HaJraHe

Tun: KARCHER 440 M

BalaHn HacOKn Ha EO:

Hacokn Ha EO oTHOCHO Maunn (97/37/EO)
Hacokn Ha EO oTHOCHO ypeinte Ha Hncko
Hanpexhene (73/23/ENO)
IpomHeHH qpe3 93/68/ENO
HaocKn Ha EO 3a eNeKtpomarHHeTnHaTa
cbBMcTeMnOCT (89/336/EMO) npomHeHH c 918263/ ENO, 92/31/ENO, 93/68/ENO

Ppnilarahn CbrlacybaHn CTaHdaptn:

DIN EN 60 335 -1
DIN EN 60 335 -2 -79 : 1998
DIN EN 55 014 -1 : 1999
DIN EN 55 014 -2 : 1997
DIN EN 61 000 -3 -2 : 1995
DIN EN 61 000 -3 -3 : 2000

IocpeDCTBOM BbTpeHn MeponpnaTne o cNrgyeHO ypeHNTe cepHNO npOn3BOcTBO BnHarn da OTBovaprt Ha akTyalHnTe Hacokn Ha EO nHa npInlaHnTe cTaHdaptn. IoNDncBaunte HactOaTOto DeiCTByBat no Bb3NoXeHne n C nbHNOUMoUHTa Ha ynpabnteHnTO TIA.

Alfred Karcher GmbH & Co. Cleaning Systems Alfred-Karcher-Str. 28-40 P.O.Box 160 D-71349 Winnenden

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

A

Alfred Kärcher Ges.m.b.H.

Lichtblaustraße 7

1220 Wien

01/250600

DK

Karcher Rengoringsystemer A/S

Gejhavegard 5

6000 Kolding

70206667

GR

Karcher Cleaning Systems A.E.A

31-33 Nikitara Str. &

Konstantinoupoleos Str.

136 71 Acharnes

010/2316153

J

Karcher (Japan) Co., Ltd.

No.2, Matsusaka-Daira 3-chome

Taiwa-cho, Kurokawa-gun

Miyagi, 981-3408

022/3443140

PRC

BKC Equipment Co., Ltd.

No 16, Hong Da Bei Lu

Economic & Technological Dev. Area

Beijing 100176

010/67881653

AUS

Karcher Pty Ltd

40 Koornang Road

Scoresby 3179

Victoria, Australia

61397652300

E

Karcher S.A.

Pol. Industrial Font del Radium

Calle Doctor Trueta 6-7

08400 Granollers (Barcelona)

93/8464447

H

Karcher Hungary KFT

Tormásrét ut 2.

2051 Biatorbagy

23/5300

MAL

Karcher Cleaning Systems Sdn Bhd

No.8 Jalan Serindit 2

Bandar Puchong Jaya

47100 Puchong, Selangor

03/58821148

S

Kärcher AB

Tagenevagen 31

42502 Hisings-Karra

031/577300

B/LUX

Karcher N.V.

Industriebweg 12

2320 Hoogstraten

03/3400711

BR

6975 Creditview Road, Unit 2

Mississauga, Ontario L5N 8E9

905/6728233

CH

Kärcher AG

IndustriestraBe 16

8108 Dallikon

0844 85 08 63

CZ

Karcher spel. s r.o.

Za Mototechnou

155 00 Praha 5 -Stodulky

02/6521665

MEX

Karcher Mexico, SA de CV

East Tamaki, Auckland

09/2744603

SGP

Karcher Asia Pacific Pte. Ltd.

30 Toh Guan Road, #07-05

Singapore 608840

065/68971811

TR

Kärcher Servis Ticaret A.S.

9 Eylul Mahallesi

307 Sokak No. 6

Gaziemir / Izmir

0232/2520708

TWN

Karcher Limited

5F/6.No.7

Wu-Chuan 1st Road

Taipei County, ROC

02/22999626

UAE

Karcher FZE

Jebel Ali Free Zone

RA 8, XB 1, Jebel Ali, Dubai

04/8836776

USA

Alfred Karcher, Inc

2170SatelliteBlvd,Suite350

Duluth, GA 30097

678-935-4545; 877-527-2437

D

Banbury, Oxon, OX16 1TB

01295/752000；09066/800632

HK

Karcher Limited

Unit 10, 17/F., APEC Plaza

49 Hoi Yuen Road,

Kwun Tong, Kowloon

23575863

1

Karcher S.p.A.

Via Elvezia 4

21050 Cantello (VA)

03 32/417400;848-998877

IRL

Karcher Limited (Ireland)

12 Willow Business Park

Nangor Road, Clondalkin

Dublin 12

01/4097777

P
