Product type	High-pressure cleaner
Brand	Kärcher
Model	K 3 Sport
Maximum pressure	120 bar
Water flow rate	400 L/h
Motor power	1400 W
Power supply	230 V / 50 Hz
Weight	6.4 kg
Dimensions (L × W × H)	402 × 305 × 588 mm
High-pressure hose length	8 m
Water connection	Quick-connect with filter
Main features	Vario Power lance, Dirty Blaster rotary nozzle, integrated detergent tank, automatic shut-off
Included accessories	High-pressure gun, 8 m hose, Vario Power lance, rotary nozzle, detergent tank, water filter
Storage	Wall mount and accessory storage
Sound level (LpA)	76 dB(A)
Protection class	IPX5
Maintenance and cleaning	Clean water filter regularly, rinse detergent tank after use, winterization necessary
Safety	Automatic shut-off, thermal safety, gun safety lock
Spare parts and repairability	Parts available on Kärcher website, repairability index 8/10

Frequently Asked Questions - K 3 Sport KARCHER

How to connect water to the Kärcher K 3 Sport?

Connect the water hose (1/2 inch diameter) to the quick-connect with integrated filter. Make sure the water supply is open and the hose is not kinked. Use clean water, preferably filtered.

How to use detergent with the K 3 Sport?

Fill the integrated detergent tank with a suitable Kärcher product. Use low pressure by turning the Vario Power lance to 'Mix' or using the detergent nozzle. Always rinse after use.

Why is the pressure low?

Check that the water filter is not clogged, the hose is not kinked, and the nozzle is not dirty. Bleed air by pulling the trigger without a nozzle for a few seconds.

How to winterize my high-pressure cleaner?

Drain all water from the device and hose. Use a special antifreeze for high-pressure cleaners if necessary. Store it in a frost-free place.

Can I use rainwater or well water?

It is not recommended because impurities can damage the pump. Use clear mains water. If necessary, use a suitable pre-filter.

How to clean the filters of the K 3 Sport?

The water filter is easy to clean: unscrew it and rinse it with clean water. Do this regularly, especially if the water is hard.

The motor stops and restarts by itself, is this normal?

Yes, the automatic shut-off stops the motor when the trigger is released to save energy and extend lifespan. It restarts as soon as you press.

What is the maximum pressure in 'Sport' mode?

The K 3 Sport delivers up to 120 bar nominal pressure. The maximum pressure can reach 130 bar peak, but for continuous use, stay within the recommended 120 bar.

How to replace the high-pressure hose?

Unplug the device. Unscrew the fitting nut on the gun side and pump side. Replace with an original Kärcher hose (ref. 2.640-944.0). Tighten firmly.

What to do if water leaks from the bottom of the device?

This may be due to a worn seal or safety valve. Check that the water connection is tight. If the problem persists, contact customer service.

USER MANUAL K 3 Sport KARCHER

Deutsch 5

English 10

Français 15

Italiano 20

Nederlands 25

Español 30

Português 35

Dansk 40

Norsk 45

Svenska 50

Suomi 55

Ελληνικά 60

Türkçe 65

Русский 70

Magyar 76

Čeština 81

Slovenščina 86

Polski 91

Românește 96

Slovenčina 101

Hrvatski 106

Srpski 111

Български 116

Eesti 121

Latviešu 126

Lietuviškai 131

Українська 136

Register and win! www.kaercher.com/register-and-win

Inhaltsverzeichnis

www.kaercher.com/dealersearch

Technische Daten

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Contents

Scope of delivery....EN 5

Proper use.....EN 5

Environmental protection....EN 5

Safety EN 5

Description of the Appliance ..... EN 6

Assembly.....EN 6

Start up....EN 6

Operation.....EN 7

Transport....EN 7

Storage....EN 8

Maintenance and care....EN 8

Troubleshooting.....EN 8

Spare parts....EN 8

Warranty EN 8

Technical specifications.....EN 9

EC Declaration of Conformity ..... EN 9

Dear Customer.

Please read and comply with these original operating instructions and the enclosed safety instructions. Proceed ac-

cordingly. Keep both booklets for future reference or subsequent owners.

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Proper use

This high pressure cleaner is designed for domestic use only.

– for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents).

– with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the information accompanying the cleaning agents.

Environmental protection

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

The packaging material can be recycled. Please arrange for the environmentally appropriate disposal of the packaging.

Old appliances contain valuable recyclable materials that should be recycled properly. Please arrange for the environmentally appropriate disposal of the old devices.

Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.

Work with detergents must only be performed on liquid-tight work surfaces with a connection to the sewer system. Do not let release detergent into waters or earth.

Safety

Safety instructions

Prior to the first use of this device, the accompanying "Safety instructions for high-pressure cleaners" must be read.

Hazard levels

△DANGER

Pointer to immediate danger, which leads to severe injuries or death.

△WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Symbols on the machine

The high pressure jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.

Protect the appliance against frost.

The appliance must not be directly connected to the public drinking water network.

Safety Devices

△CAUTION

Safety installations serve the protection of the user and may not be modified or bypassed.

Appliance switch

The appliance switch prevents unintentional operation of the appliance.

Lock trigger gun

This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.

Overflow valve with pressure switch

The overflow valve prevents the permissible working pressure from being exceeded.

If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

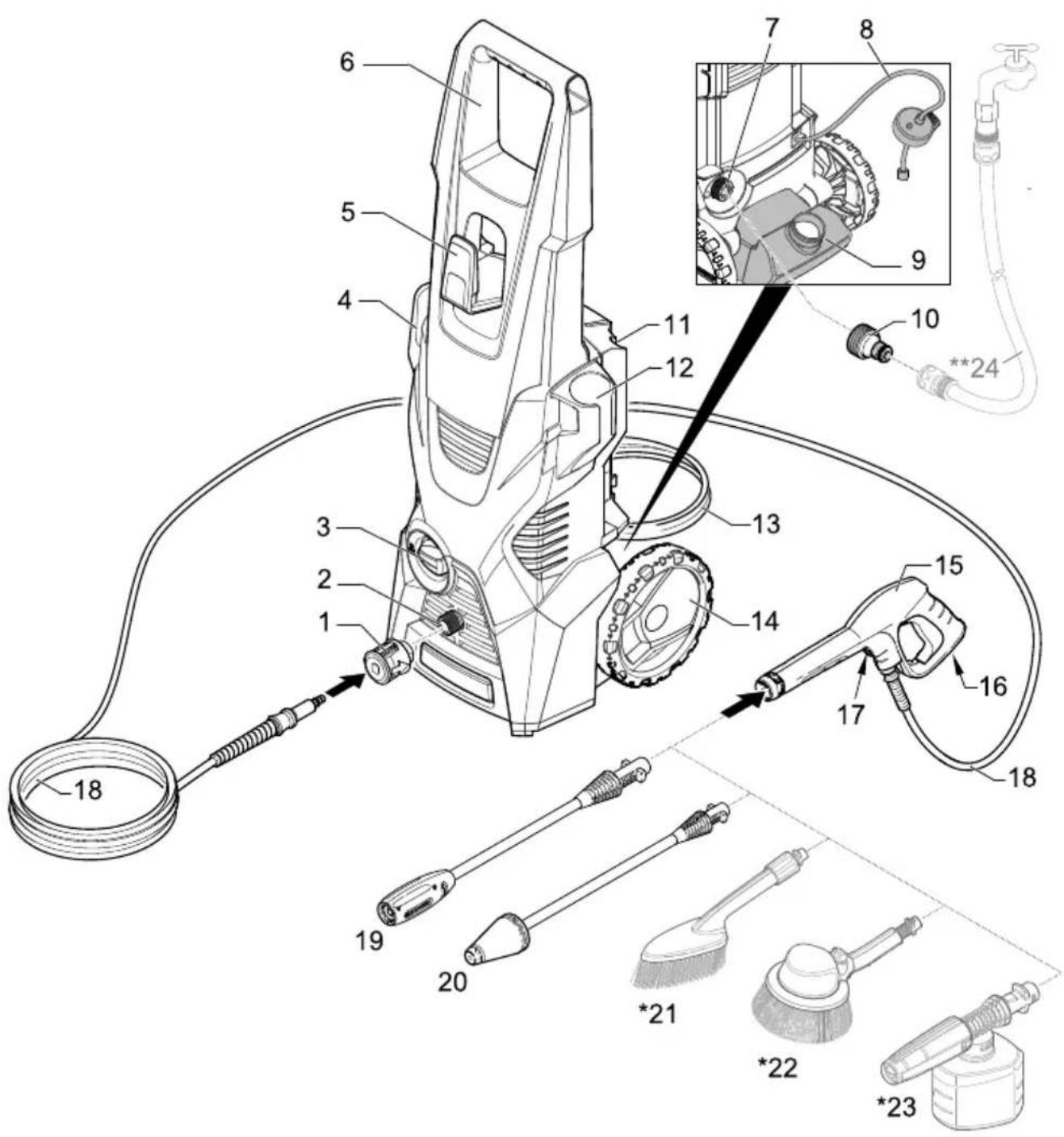

See fold-out page 3 for illustrations

1 Quick coupling for high pressure hose

2 High pressure connection

3 Appliance switch "0/OFF"/ „I/ON“

4 Storage hook for mains connection cable

5 Storage for high pressure hose

6 Transport handle

7 Water connection with integrated sieve

8 Detergent suction hose with detergent filter and lid

9 Detergent Tank

10 Coupling element for water connection

11 Storage for spray lance

12 Storage for trigger gun

13 Mains cable with mains plug

14 Bearing wheel

15 Trigger gun

16 Lock trigger gun

17 Key to detach the high pressure hose from the trigger gun

18 High pressure hose

19 Spray lance with pressure regulation (Vario Power) Carrying out the most common cleaning tasks. The work pressure can be stagelessly regulated between "Min" and "Max". You can add detergent when "Mix" is selected. In order to adjust the working pressure, release the lever of the hand spray gun and turn the spray lance to the desired position.

20 Spray lance with Dirtblaster For strong contaminations

* Optional accessories

21 Washing brush

Suitable for use with detergents.

22 Rotary washing brush

Suitable for use with detergents.

Especially suitable for cleaning cars.

23 Foam nozzle with detergent container

With powerful foam for effortless cleaning.

** not included in the scope of delivery

24 Water supply hose

Use a fabric reinforced water hose with a commercially available coupling. Minimum diameter 13 mm (1/2 inch); minimum length 7.5 m.

Special accessories

Special accessories expand the possibilities of using your appliance. Please contact your KÄRCHER dealer for further information.

Assembly

Mount loose parts delivered with appliance prior to start-up.

See fold-out page 4 for illustrations

Illustration A

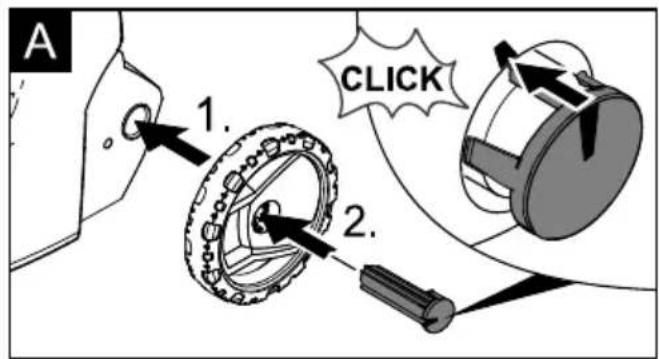

→ Push the wheels into the intake.

→ Secure the wheels using the included plug. Align the plug properly!

Illustration B

→ Insert the transport handle and screw in.

Illustration C

→ Screw the coupling element to the water connection on the appliance.

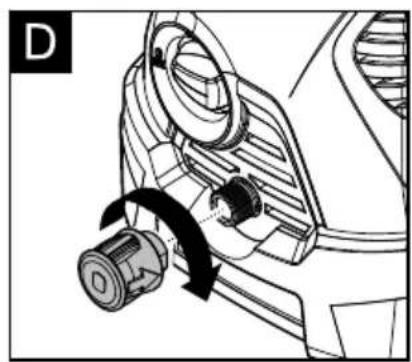

Illustration D

→ Fasten the quick coupling for the high pressure hose to the high pressure connection.

Illustration E

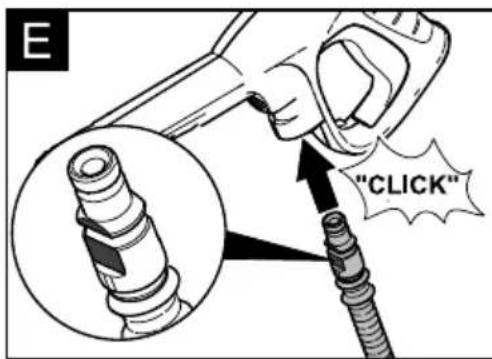

→ Push the high pressure hose into the trigger gun until it locks audibly.

Note: Make sure the connection nipple is aligned correctly.

→ Check the secure connection by pulling on the high pressure hose.

Start up

→ Park the appliance on an even surface.

Illustration F

→ Push the high pressure hose into the quick coupling until it locks audibly.

Note: Make sure the connection nipple is aligned correctly.

Check the secure connection by pulling on the high pressure hose.

→ Insert the mains plug into the socket.

Water supply from mains

For connection values, see type plate/technical data. Observe regulations of water supplier.

ATTENTION

Impurities in the water can damage the high-pressure pump and the accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.

→ Attach the water supply hose to the coupling on the water connection.

→ Connect the water supply hose to the water supply.

→ Completely open the water tap.

Operation

ATTENTION

Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".

High pressure operation

△CAUTION

Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage.

ATTENTION

Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.

Illustration G

→ Push the spray lance into the trigger gun and fasten it by turning it through 90°.
→ Turn on the appliance "I/ON".
→ Unlock the lever on the trigger gun.
→ Pull on the lever of the trigger gun; the device will switch on.

Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.

Operation with washing brush

ATTENTION

Risk of damage to the paintwork

When working with the washing brush, it must be free of dirt or other particles.

→ Push the washing brush into the trigger gun and fasten it by a 90° turn.

Note: If required, the washing brushes can be used to work with detergent.

Operation with detergent

Note: Detergent can only be added when the device is operated in low pressure mode.

△DANGER

When using detergents, the material data safety sheet issued by the detergent manufacturer must be adhered to, especially the instructions regarding personal protective equipment.

Illustration H

→ Fill the detergent solution in the detergent tank (observe dosage instructions on the packaging of the detergent).

Illustration I

→ Close the detergent tank with the lid.

→ Lock the detergent tank in place on the appliance.

Illustration J

→ Use spray lance with pressure regulation (Vario Power).
→ Turn the spray lance to "Mix" position.

Note: This will mix the detergent with the water stream.

Optional

→ Fill the detergent solution in the detergent tank of the foam nozzle (observe dosage instructions on the packaging of the detergent).

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high pressure jet.

Interrupting operation

→ Release the lever on the trigger gun.
→ Lock the lever on the trigger gun.
→ Insert the trigger gun in its holder.
→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.

Finish operation

△CAUTION

Only separate the high-pressure hose from the hand spray gun or the appliance when there is no pressure in the system.

→ After operation with detergent: Run the machine for approximately 1 minute for a clear rinse.
→ Release the lever on the trigger gun.
→ Turn off the appliance "0/OFF".
→ Disconnect the mains plug from the socket.
→ Turn off tap.
→ Press the lever on the trigger gun to release any remaining pressure in the system.
→ Lock the lever on the trigger gun.
→ Detach the appliance from the water supply.

Transport

△CAUTION

Risk of personal injury or damage! Mind the weight of the appliance during transport.

When transporting by hand

→ Pull the appliance by its transport handle.

When transporting in vehicles

→ Empty detergent tank.
→ Secure the appliance against shifting and tipping over.

Storage

△CAUTION

Risk of personal injury or damage!

Consider the weight of the appliance when storing it.

Storing the Appliance

Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.

→ Park the machine on an even surface.
→ Push the casing of the quick coupling for the high pressure hose toward the rear and disconnect the high pressure hose from the appliance.
→ Press the disconnect on the trigger gun and remove the high pressure hose from the trigger gun.
→ Insert the trigger gun in its holder.
→ Engage the spray lance in its compartment.
→ Stow away the mains cable, the high-pressure hose and accessory on the appliance.

Frost protection

ATTENTION

Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage:

→ Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.
→ Store the appliance and the entire accessories in a frost free room.

Maintenance and care

△DANGER

Risk of electric shock.

■ Prior to all work on the appliance, switch off the appliance and pull the power plug.

Clean the sieve in the water connection

Clean the sieve in the water connection regularly. ATTENTION

The sieve must not be damaged.

→ Remove coupling from the water connection.
→ Pull the sieve out using flat pliers.
→ Clean the sieve under running water.
→ Reinsert the sieve into the water connection.

Cleaning the detergent filter

Prior to longer periods of storage, e.g. in the winter:

→ Remove filter from suction hose for detergent and clean under running water.

Troubleshooting

You can rectify minor faults yourself with the help of the following overview.

If in doubt, please consult the authorized customer service.

△DANGER

Risk of electric shock.

→ Prior to all work on the appliance, switch off the appliance and pull the power plug.

Appliance is not running

→ Pull on the lever of the trigger gun; the device will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.

Appliance does not start, motor hums

Voltage reduction due to weak mains supply or when using an extension cable.

→ When switching on, first pull the lever of the trigger gun and then switch the appliance switch to "I/ON".

Pressure does not build up in the appliance

→ Check setting at the spray lance.
→ Check water supply for adequate delivery rate.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
→ Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.

Strong pressure fluctuations

→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
→ Check water flow quantity.

Appliance is leaking

→ Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.

No detergent infeed

→ Use spray lance with pressure regulation (Vario Power).
Turn the spray lance to "Mix" position.
→ Clean the detergent suction hose filter.
→ Check the detergent suction hose for kinks.

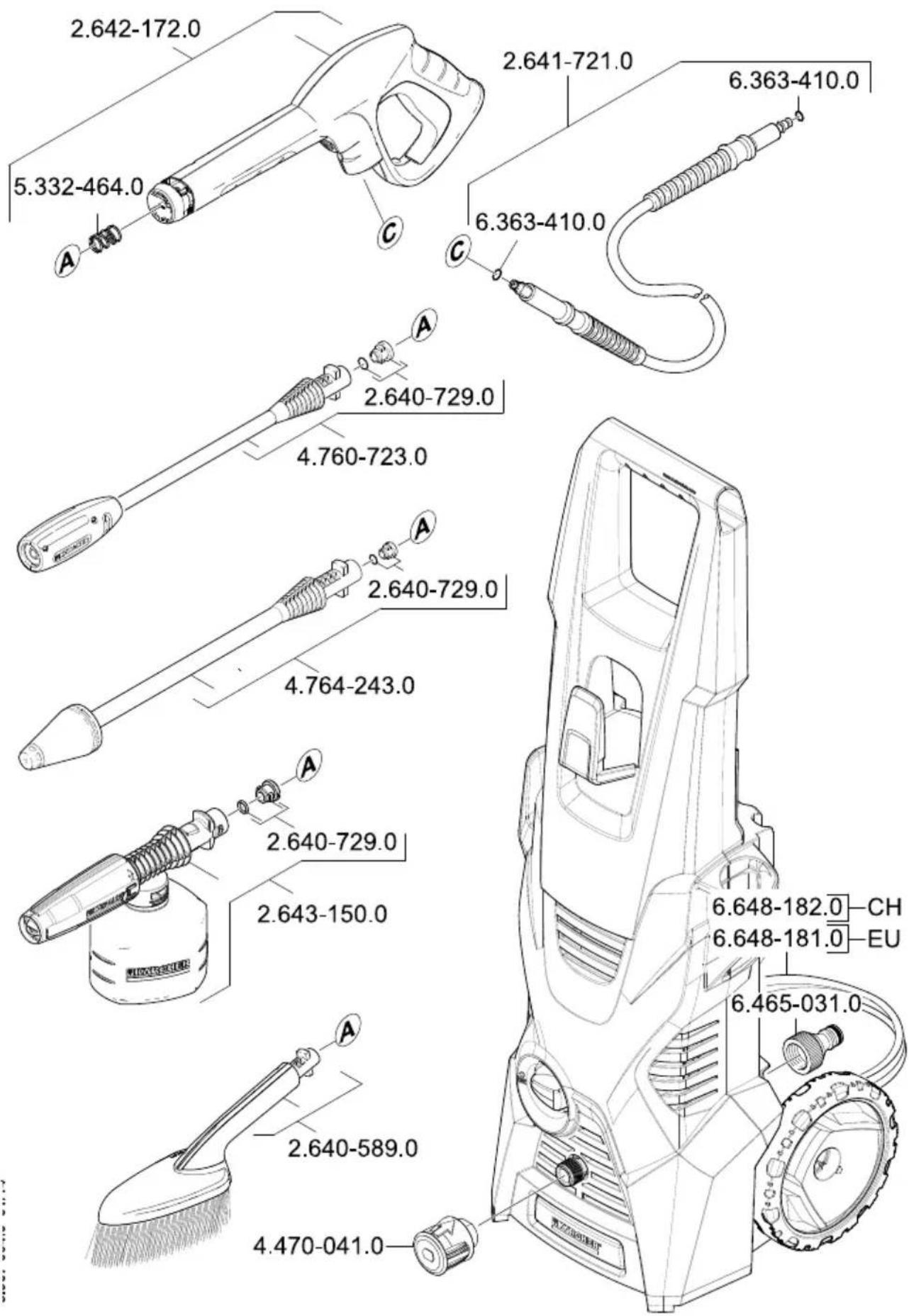

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.

Please submit the proof of purchase.

Addresses can be found under:

www.kaercher.com/dealersearch

Technical specifications

Electrical connection
Voltage 220-240	V1~50-60 Hz
Connected load 1,6 kW
Protection class IP X5
Protective class II	回
Mains fuse (slow-blow) 10 A
Water connection
Max. feed pressure 1,2 MPa
Max. feed temperature 40 °C
Min. feed volume 8 l/min
Performance data
Working pressure 9 MPa
Max. permissible pressure 12 MPa
Water flow rate 5,7 l/min
Max. flow rate 6,3 l/min
Detergent flow rate 0,3 l/min
Recoil force of trigger gun 11 N
Dimensions and weights
Length 280 mm
Width 274 mm
Height	803 mm
Weight, ready to operate with accessories	6,5 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value	<2,5 m/s2
Uncertainty K	0,3 m/s2
Sound pressure level LpA	73 dB(A)
Uncertainty KpA	3 dB(A)
Sound power level LWA + Uncertainty KWA	89 dB(A)

Subject to technical changes.

EC Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.676-xxx

Relevant EU Directives

2000/14/EC

2004/108/EC

2006/42/EC (+2009/127/EC)

2011/65/EU

Applied harmonized standards

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 86

Guaranteed: 89

The undersigned act on behalf and under the power of attorney of the company management.

CEO

S. Reiser
Head of Approbation

Authorised Documentation Representative S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Table des matières

www.kaercher.com/REACH

3 Interrupteur principal "0/OFF" / "I/ON"

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

Responsable de la documentation: S. Reiser

Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Téléphone : [phone] Télécopieur : [phone] Winnenden, 2014/09/01

Indice

Fornitura IT 5

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Dati tecnici

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Inhoud

www.kaercher.com/dealersearch

Technische gegevens

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

www.kaercher.com/REACH

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Índice

www.kaercher.com/REACH

3 Interruptor do aparelho "0/OFF" / "I/ON"

www.kaercher.com/dealersearch

Dados técnicos

Ligação eléctrica

2006/42/CE (+2009/127/CE)

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Indholdsfortegnelse

Leveringsomfang.	DA 5
Bestemmelsesmæssig anvendelse.	DA 5
Miljøbeskyttelse.	DA 5
Sikkerhed	DA 5
Beskrivelse af apparatet	DA 6
Montering	DA 6
Ibrugtagning	DA 6
Drift	DA 7
Transport	DA 7
Opbevaring	DA 7
Pleje og vedligeholdelse	DA 7
Hjælp ved fejl.	DA 8
Reservedele	DA 8
Garanti.	DA 8
Tekniske data	DA 9
EU-overensstemmelseserklæring	DA 9

Kære kunde.

www.kaercher.com/dealersearch

Tekniske data

2006/42/EF (+2009/127/EF)

2011/65/EU

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Innholdsfortegnelse

Leveringsomfang....NO 5

www.kaercher.com/REACH

Materialet i emballasjen kan resirkuleres. Kvitt deg med emballasjen på miljøvennlig måte.

3 Apparatbryter "0/OFF" / "I/ON"

4 Oppbevaringskroker for strømkabel

www.kaercher.com/dealersearch

Tekniske data

2006/42/EF (+2009/127/EF)

2011/65/EU

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Mält: 86

Garantert: 89

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tlf: [phone]

Winnenden, 2014/09/01

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Tekniska data

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Sisällysluettelo

Toimitus....FI 5

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2014/09/01

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2014/09/01

İçindekiler

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Teknik Bilgiler

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2014/09/01

Оглавление

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Технические данные

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2014/09/01

Tartalomjegyzék

www.kaercher.com/REACH

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Obsah

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Technické údaje

2006/42/ES (+2009/127/ES)

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Vsebinsko kazalo

www.kaercher.com/REACH

Embalažni materiali so primerni za recikliranje. Embalažo zavrzite okolju prijazno.

Stare naprave vsebujejo dragocene za recikliranje primerne materiale, ki jih je treba odvesti za po- novno uporabo. Stare naprave zavrzite okolju pri- jazno.

www.kaercher.com/dealersearch

Tehnični podatki

2006/42/ES (+2009/127/ES)

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2014/09/01

Spis treści

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Dane techniczne

2006/42/WE (+2009/127/WE)

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2014/09/01

Cuprins

Articolele livrate ..... RO 5

Mult stimate client,

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Date tehnice

Racord electric

Directive EG respectate:

2000/14/CE

2004/108/CE

2006/42/CE (+2009/127/CE)

2011/65/UE

Norme armonizate utilize:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Obsah

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Technické údaje

2006/42/ES (+2009/127/ES)

2011/65/EÚ

Uplatňované harmonizované normy:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2014/09/01

Pregled sadržaja

Opseg isporuke .... HR 5

www.kaercher.com/REACH

Materijali ambalaže se mogu reciklirati. Ambalažu odložite na otpad u skladu s propisima o očuvanju okoliša.

Stari uređaji sadrže vrijedne materijale koji se mogu reciklirati te bi ih stoga trebalo predati kao sekundarne sirovine. Stare uređaje odložite na otpad u skladu s propisima o očuvanju okoliša.

www.kaercher.com/dealersearch

Tehnički podaci

Električni priključak
Napon 220-240	V1~50-60 Hz
Priključna snaga 1,6 kW
Stupanj zaštite IP X5
Klasa zaštite II	回
Strujna zaštita (inertna) 10 A
Priključak za vodu
Dovodni tlak (maks.) 1,2 MPa
Dovodna temperatura (maks.) 40 °C
Dovodni protok (min.) 8 l/min
Podaci o snazi
Radni tlak 9 MPa
Maks. dozvoljeni tlak 12 MPa
Protok vode 5,7 l/min
Maksimalni protok 6,3 l/min
Protok sredstva za čišćenje 0,3 l/min
Povratna udarna sila ručnog pištolja za prskanje	11 N
Dimenzije i težine
Duljina 280 mm
Širina 274 mm
Visina	803 mm
Težina u stanju pripravnosti za rad, s priborom	6,5 kg
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci	<2,5 m/s 2
Nepouzdanost K	0,3 m/s 2
Razina zvučnog tlaka L pA	73 dB(A)
Nepouzdanost K pA	3 dB(A)
Razina zvučne snage L WA + nepouzdanost K WA	89 dB(A)

2006/42/EZ (+2009/127/EZ)

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2014/09/01

Pregled sadržaja

Obim isporuke .... SR 5

Namensko korišćenje ....SR 5

Zaštita životne sredine ....SR 5

Sigurnost SR 5

Opis uređaja SR 6

Montaža. SR 6

Stavljanje u pogon. SR 6

Rad .... SR 7

Transport SR 7

www.kaercher.com/REACH

Ambalaža se može ponovo preraditi. Ambalažu odložite u otpad ekološki primereno.

Stari uređaji sadrže vredne materijale sa sposobnošću recikliranja i treba ih dostaviti na ponovnu preradu. Stare uređaje odložite u otpad ekološki primereno.

Radovi na čišćenju kod kojih nastaju uljne otpadne vode, kao što su pranje motora, pranje donjeg dela vozila, smeju da se izvode samo u perionicama sa separatorom ulja.

S deterdžentima se sme raditi samo na vodonepropusnim radnim površinama koje su priključene na kanalizacioni sistem. Ne dozvolite da deterdženti prodru u površinske vode ili tlo.

Sigurnost

Sigurnosne napomene

Pre prvog korišćenja ovog uređaja obavezno pročitajte priložene „Sigurnosne napomene za visokopritisne uređaje za čišćenje“.

Stepeni opasnosti

△OPASNOST

Napomena koja ukazuje na neposredno preteću opasnost koja dovodi do teških telesnih povreda ili smrti.

⚠UPOZORENJE

Napomena koja ukazuje na eventualno opasnu situaciju koja može dovesti do teških telesnih povreda ili smrti.

△OPREZ

Napomena koja ukazuje na eventualno opasnu situaciju, koja može izazvati lakše telesne povrede.

PAŽNJA

Napomena koja ukazuje na eventualno opasnu situaciju koja može izazvati materijalne štete.

Simboli na uređaju

www.kaercher.com/dealersearch

Tehnički podaci

2006/42/EZ (+2009/127/EZ)

2011/65/EU

S. Reiser
Head of Approbation

Opunomoćeni za izradu dokumentacije: S. Reiser

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2014/09/01

Съдържание

www.kaercher.com/dealersearch

Технически данни

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2014/09/01

Sisukord

Tarnekomplekt....ET 5

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Tehnilised andmed

Elektriühendus

Toode: Körgsurvepesur

Tüüp: 1.676-xxx

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2014/09/01

Satura rādītājs

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Tehniskie dati

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2014/09/01

Turinys

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Techniniai duomenys

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2014/09/01

3Mict

www.kaercher.com/REACH

www.kaercher.com/dealersearch

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2014/09/01
