Product type	Cordless orbital sander
Brand	Festool
Model	DTSC 200
Motor voltage	18 V
No-load speed	6000 - 10 000 min⁻¹
Sanding stroke	2.5 mm
Sanding pad	145 x 195 mm (StickFix)
Weight (without battery, with pad)	1.6 kg
Power supply	Festool BP series 18 V battery (not included)
Dust extraction system	Integrated with Longlife dust bag, compatible with Festool vacuum (27 mm diameter)
Speed control	Progressive adjustment wheel (6 positions)
Electronic functions	Constant speed, anti-restart protection, speed reduction in case of vibrations
Lighting	LED work light with adjustable intensity and configuration via Festool App
Connectivity	Bluetooth® (via compatible battery), integrated data chip
Sound pressure level	LPA = 82 dB(A)
Sound power level	LWA = 90 dB(A)
Vibration emission value (ah)	3 m/s² (K=1.5 m/s²)
Required safety equipment	Hearing protection, goggles, respirator mask
Compatible materials	Wood, plastic, composites, paints/lacquers, filler
Prohibited use	Wet sanding, pure metal, asbestos
Routine maintenance	Weekly cleaning of dust extraction ducts; do not clean with compressed air
Spare parts and repairability	Use only Festool spare parts; repairs by manufacturer or authorized workshops
Package contents	Sander, sanding pad, Longlife bag, instruction manual (battery and charger sold separately)

Frequently Asked Questions - DTSC 200 FESTOOL

Which battery to use with the Festool DTSC 200?

Use exclusively Festool BP series batteries, 18 V voltage category. Do not use batteries from other manufacturers or power supplies. Refer to the battery manual for details.

How to adjust the sanding speed?

The speed is adjusted using the wheel [1-7] (see illustration). Turn the wheel to select one of 6 speeds, from 1 (slow) to 6 (fast). Adapt the speed to the material: for example, position 5-6 for maximum abrasive sanding, position 1-2 for thermoplastic synthetics.

How to change the sanding pad?

Remove the battery before any intervention. Loosen screws [3-1] (see illustration) with a suitable tool. Remove the pad [3-2] from below. Install the new pad and tighten the screws by hand (torque 2.5 Nm). Use only original Festool pads.

What to do if suction power decreases?

Remove the Longlife dust bag by loosening the locking lever [5-2] and empty it. Also check that the extraction ducts are not blocked. Clean them once a week with a small flat brush or cloth. For prolonged use, connect a Festool vacuum (27 mm diameter hose) to the extraction port [1-9].

How to use the work light?

The work light [1-5] turns on automatically when the tool starts in the last used mode. You can also activate it with the light switch [1-2]: 1 press = on, 2 presses = intensity variation, 3 presses = off. A long press (5 s) resets settings. Brightness and duration after shutdown are configurable via the Festool App.

What are the mandatory protective equipment?

Always wear safety goggles, hearing protection and a suitable respirator mask. In case of hazardous dust, use a suitable vacuum. Do not look into the light beam of the work light (harmful optical radiation).

The sander stops and emits a beep, what to do?

A single beep may indicate: empty or incompatible battery (recharge or replace), overload (reduce pressure), or overheating (let it cool). A continuous beep indicates a fault: contact Festool after-sales service. Do not reuse the tool until the problem is resolved.

Can I sand metal with the DTSC 200?

No, this sander is not designed for sanding pure metal or wet sanding. It is suitable for wood, plastic, composites, paints/lacquers and filler. In case of dust containing metal (e.g., sanding automotive paint), follow the safety instructions in chapter 2.3 of the manual.

How to maintain the sander?

Before any maintenance, remove the battery. Clean the dust extraction ducts [7-1] every week with a flat brush. Keep the cooling air vents clean and unobstructed. Do not use compressed air. Ensure the electrical contacts of the tool and battery are always clean. For any repair requiring opening the housing, contact an authorized workshop.

Where to find accessories and spare parts?

Original Festool accessories and spare parts are available on www.festool.com. Use only Festool accessories (StickFix abrasives, sanding pads, Longlife bags, etc.) to ensure safety and performance of the tool.

USER MANUAL DTSC 200 FESTOOL

Exterior view of a black and white electric iron shaver with green buttons (no text or symbols visible)

de Originalbetriebsanleitung 9
en Original instructions 13
fr Notice d'utilisation d'origine 17
es Manual de instrucciones original 22
bg Оригинална инструкция за експлоатация 27
cs Původní návod k obsluze 31
da Original brugsanvisning 35
el Прототипо одnyiwv xpńonç 39
et Originaalkasutusjuhend 44
fi Alkuperäiset käyttöohjeet 48
hr Originalne upute za uporabu 52
hu	Eredeti használati utasítás	56
it Istruzioni d'esercizio originali		61

lt	Originali naudojimo instrukcija	65
lv	Originālā lietošanas pamācība	69
nb	Original bruksanvisning 74
nl	Originele gebruiksaanwijzing	78
pl	Oryginalna instrukcja obstugi	82
pt	Manual de instruções original	87
ro	Manualul de utilizare original	91
sk	Originálny návod na obsluhu	95
sl	Originalna navodila za uporabo	100
sv	Originalbruksanvisning	104

1

2A

2B

3

4

4A

Geometric diagram of a triangular shape with internal holes and a vertical line (no text or symbols)

4B

5A

5B

5C

6A

6B

7

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

7-1

en: EU Declaration of Conformity. We declare under sole responsibility that this product complies with all the relevant requirements in the following EU Directives, and following standards or normative documents were applied:

We as the manufacturer declare under our sole responsibility that the product(s) fulfill(s) all the relevant provisions of the following UK Regulations and are manufactured in accordance with the following designated standards:

S.I. 2008/1597 Supply of Machinery [Safety] Regulations 2008

S.I. 2017/1206 Radio Equipment Regulations 2017

S.I. 2016/1091 Electromagnetic Compatibility Regulations 2016

S.I. 2021/422 Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

BS EN 62841-1:2015 + AC:2015 + A11:2022,

BS EN 62841-2-4:2014 + AC:2015,

BS EN 55014-1:2017 + A11:2020,

BS 55014-2:1997 + A1:2001 + A2:2008 + AC:1997,

BS EN 300 328 V2.2.2,

BS EN 303 446-1 V1.2.1

BS EN 301 489-1 V2.2.3,

BS EN 301 489-17 V3.2.4,

BS EN IEC 63000:2018

Head of Research & Development Products

Tim Weber

Head of Product Compliance

Deutsch

1 Symbole

Warning of general danger

Warning of electric shock

Read the operating manual and safety warnings.

Wear ear protection.

Wear protective goggles.

Wear a dust mask.

CAUTION! Do not look directly into the light beam.

Remove the battery pack.

Inserting the battery pack.

CE conformity marking

UKCA marking: Confirms the conformity of the product with UK regulations.

Tool contains a chip which stores data. See section 13.2

Do not dispose of it with domestic waste.

Tip or advice

2 Safety warnings

2.1 General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications

provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. Follow the operating manual for the charger and the battery pack.

2.2 Further safety instructions

- Harmful/poisonous dust may be produced when working (e.g. paint products containing lead and some types of wood). Contact with or inhalation of this dust may pose a risk for the operating personnel or persons in the vicinity. Comply with the safety regulations that apply in your country. Connect the power tool to a suitable dust extractor.

English

• Wear suitable personal protective equipment: Ear protection and safety glasses.
• Use suitable breathing protection to protect your health. In enclosed spaces, ensure that there is sufficient ventilation and connect a mobile dust extractor.
• Warning of harmful light radiation. Do not look directly into the light beam. Do not direct the light beam towards other people or animals. Optical radiation can damage the eyes.
• Only use the power tool if all safety devices are in their correct positions and the power tool is in good condition and has been well maintained.
• If the power tool is dropped or falls, check for damage to the machine and sanding pad. Remove the sanding pad for closer inspection. Have the damaged parts repaired before use. Broken sanding pads and damaged machines can cause injuries and machine instability.
• Clean using materials soaked in oils, e.g. abrasive pad or polishing felt with water, and spread them out to dry. Materials soaked in oil may ignite spontaneously.
• Caution: Fire hazard! Prevent the material being sanded and the sander from overheating. Always empty the dust container before taking breaks from work. Grinding dust in the filter bag and/or in the filter of the mobile dust extractor may ignite spontaneously under unfavourable conditions, such as flying sparks, when sanding. There is a particular risk if the sanding dust is mixed with clear coats or polyurethane residues or other chemical substances and the material being sanded becomes hot after it has been worked on for a long time.
• Always use the power tool with a long-life dust bag or a Festool mobile dust extractor with an antistatic suction hose (AS). A slight electric shock may cause you to panic briefly and become distracted, which may result in an accident.
• Do not use power supply units to operate cordless power tools. Only use the intended battery packs. Do not use third-party chargers to charge the battery packs. The use of accessories not expressly authorised by the manufacturer can result in electric shocks and/or serious accidents.

2.3 Dealing with mixed dust containing metal and sanding damp surfaces

With mixed dust containing metal (such as dust ced from sanding paint in the automotive field) and sanding damp surfaces, the following measures be observed for reasons of safety:

• Connect the machine to a suitable dust extractor.
• Regularly vacuum the motor housing of the machine to remove dust deposits.

- Wear protective goggles.

2.4 Emission levels

The levels determined in accordance with EN 62841 are typically:

Sound pressure level L

$$ _ {\mathrm{PA}} = 8 2 \mathrm{dB(A)} $$

Sound power level L

$$ _ {W A} = 9 0 \mathrm{dB(A)} $$

Uncertainty K = 2.5 dB

CAUTION

Noise emissions created while working with the power tool may damage your hearing.

▶ Always use ear protection.

Vibration emission level a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 62841:

$$ a _ {h} = 3 m / s ^ {2} $$

$$ K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

The specified emission levels (vibration, noise)

• are used to compare machines.
• They are also used for making preliminary estimates regarding vibration and noise load during operation.
• They represent the primary applications of the power tool.

CAUTION

The emission values may deviate from the specified values. This is dependent on how the tool is used and the type of workpiece being machined.

• Assess the actual load during the entire operating cycle.
• Determine suitable safety measures depending on the actual load.

3 Intended use

The sanders are designed for sanding wood, plastic, composites, paint/varnish, filler and similar materials.

With mixed dust containing metal (such as dust resulting from paint sanding in the automotive industry) and when sanding damp surfaces, special safety warnings must be observed (see chapter 2.3).

The sanders are not intended to be suitable for wet sanding and for grinding bare metal.

Material containing asbestos must not be sanded.

This power tool is suitable for use with BP Festool battery packs of the same voltage class.

The user is liable for improper or non-intended use.

4 Technical data

Cordless orbital sander DTSC 200

Motor voltage 18V

---

Speed (no-load) 6000–10000 rpm

Sanding stroke 2.5 mm

Sanding pad 145 x 195 mm

Weight (excl. battery pack, incl. sanding pad)

1.6 kg

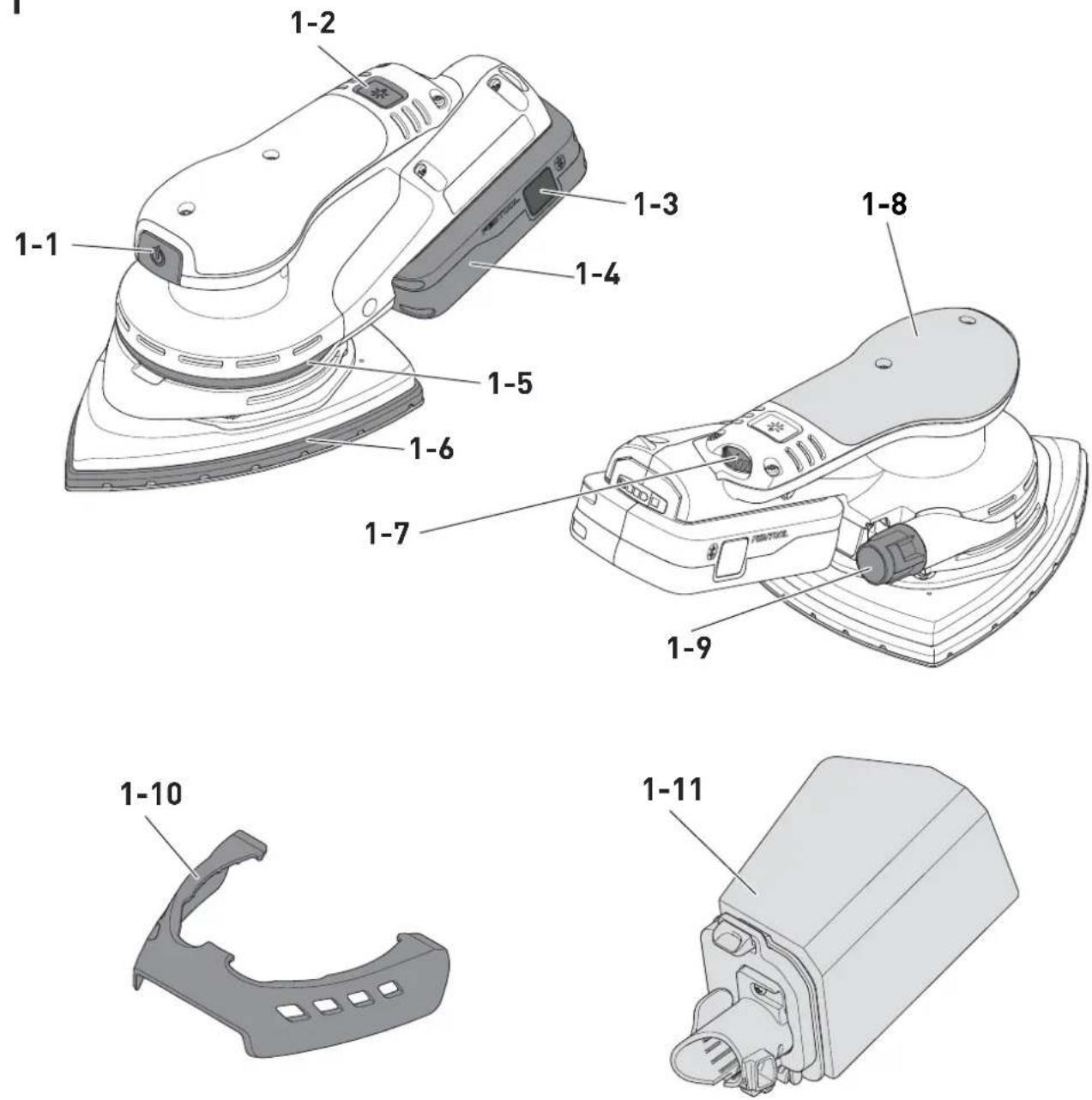

5 Parts of the device

[1-1] On/off switch

[1-2] Light switch

[1-3] Button for releasing the battery pack

[1-4] Battery pack

[1-5] Surface control light

[1-6] Sanding pad

[1-7] Speed control

[1-8] Handle (insulated gripping surfaces)

[1-9] Extractor connector

[1-10] Edge protector

[1-11] Long-life dust bag

Accessories shown or described are not always included in the scope of delivery.

The specified illustrations appear at the beginning of the Operating Instructions.

6 Battery pack

Before using the battery pack, check that the battery interface is clean. Any contamination of the battery interface may impair correct contact and lead to the contacts being damaged.

A faulty contact may result in the machine overheating or being damaged.

[2A]

[2B]

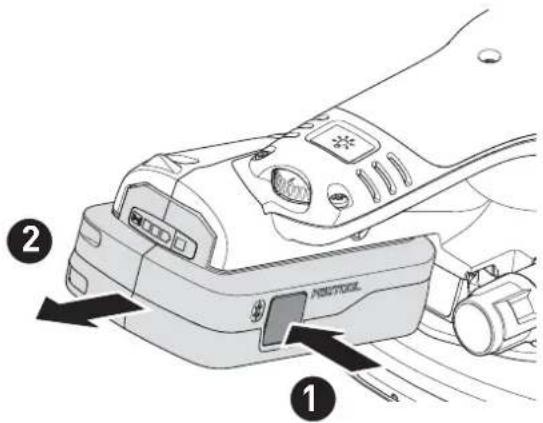

Remove the battery pack.

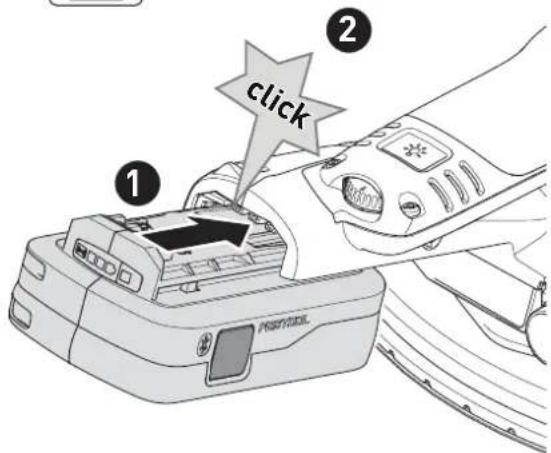

Insert the battery pack until it clicks into place.

You can find further information about the battery pack in the operating manual for the battery pack.

7 Commissioning

7.1 Switching on/off

ON Press the on/off switch [1-1].

OFF Press the on/off switch [1-1].

8 Settings

WARNING

Risk of injury

- Remove the battery pack from the power tool before performing any work on the power tool.

8.1 Electronics

Temperature cut-out

The power tool switches off if it becomes too hot. It can only be switched on again once the power tool has cooled sufficiently.

Constant speed

The preselected motor speed is kept constant through electronic control. This means that, if the machine is used as intended (reasonable contact pressure), a constant sanding speed is achieved.

Speed reduction in the event of high vibrations

If high vibrations and oscillations occur at the power tool, e.g. with the use of an interface pad, the speed is automatically reduced in order to protect the power tool and the user.

Speed control

You can use the adjusting wheel [1-7] to continuously adjust the speed within the speed range (see Section 4). This enables the sanding speed to be optimally adjusted to suit the material you are working on.

Speed range by sanding task

- Sanding with max. abrasion	5-6
- Sanding off old paint
- Sanding wood and veneered surfaces prior to paintwork
- Intermediate sanding of paintwork on surfaces
- Sanding thinly applied undercoat	4-5
- Edge breaking on wooden parts
- Smoothing primed wooden surfaces
- Sanding solid wood and veneered edges	3-4
- Sanding rebate of windows and doors
- Intermediate sanding of paintwork on edges
- Intermediate sanding of paintwork on stained surfaces	2-3
- Sanding stained edges	1-2
- Sanding thermoplastics

Restart protection

The built-in restart protection prevents the power tool from starting up again automatically if the power is disconnected during continuous use. To restart it, the power tool must be switched on again.

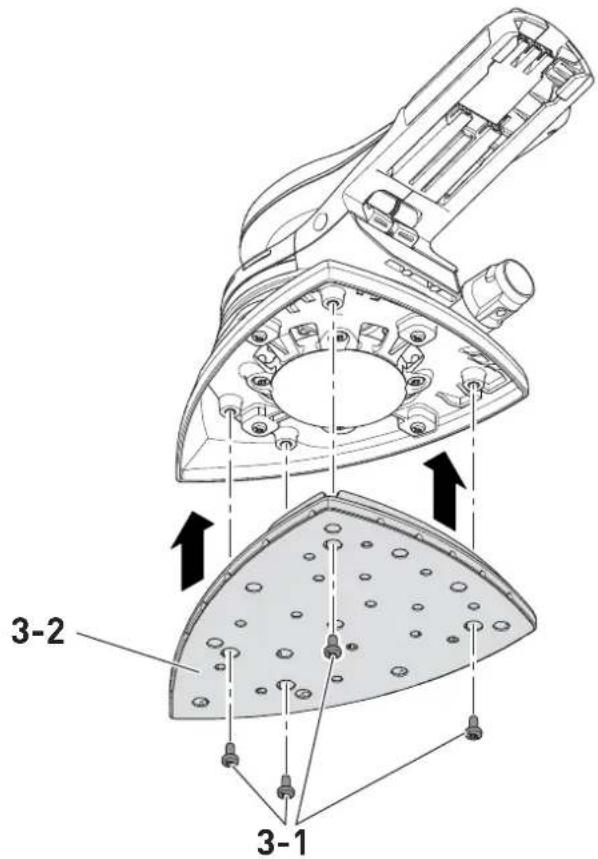

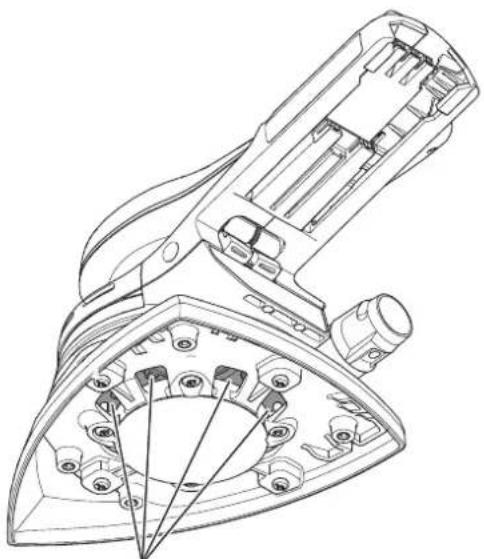

8.2 Changing sanding pad [3]

Always use original Festool tools and original Festool accessories. Using low-quality tools or accessories from other manufacturers may increase the risk of injury and seriously unbalance the machine, decreasing the quality of the working results and accelerating power tool wear.

WARNING! Do not perform any structural changes to the open interior space of the power tool when the sanding pad is dismantled.

▶ Undo the screws [3-1].
- Remove the sanding pad [3-2] by pulling it downwards.
▶ Attach the new sanding pad.
▶ Tighten the screws by hand (2.5 Nm).

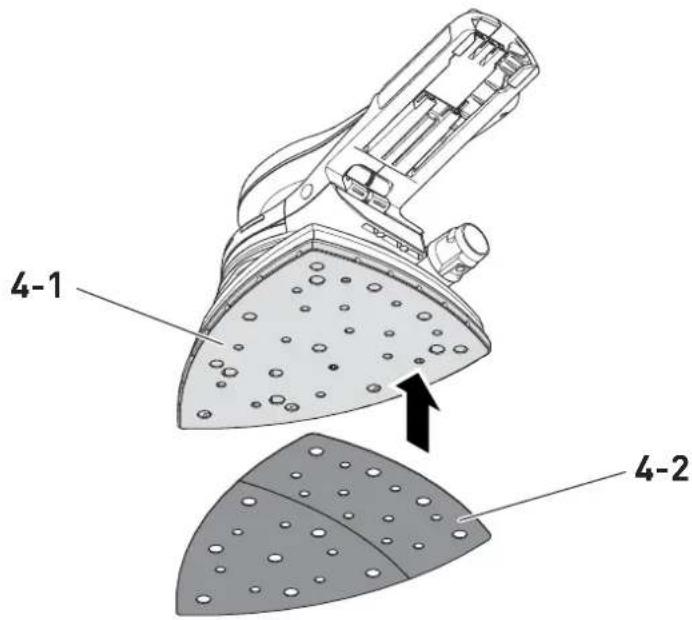

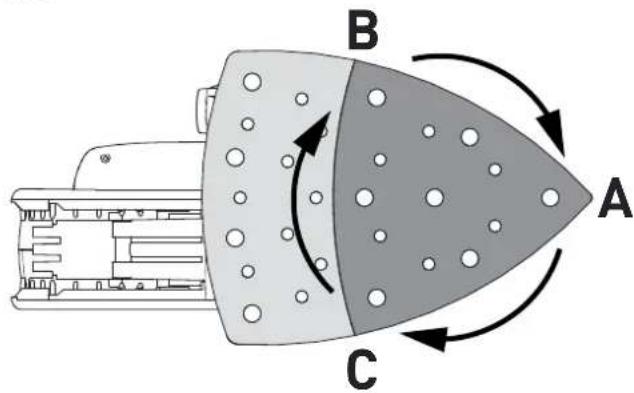

8.3 Attaching sanding accessories using StickFix [4]

Compatible StickFix sandpaper is quick and easy to attach to the StickFix sanding pad.

CAUTION

Risk of injury from decreasing StickFix adhesion The sanding accessories can come loose from the sanding pad.

▶ Change sanding pad.

- Affix the self-adhesive sanding accessory [4-2] to the sanding pad [4-1].

8.4 Dust extraction

WARNING

Hazardous dust

Damage to the respiratory passage

▶ Always work with an extractor.
▶ Comply with national regulations.
▶ Wear a dust mask.

Integral dust extractor with long-life dust bag

As standard, the sanders are equipped with an integral dust extractor. The sanding dust is extracted through extraction openings in the sanding pad and is collected in the dust bag.

The integral dust extraction system is not suitable for mineral or metallic types of dust or coatings with a low melting point. These would clog the fabric structure of the long-life dust bag and the power tool, which would in turn restrict the integral dust extraction function of the sander.

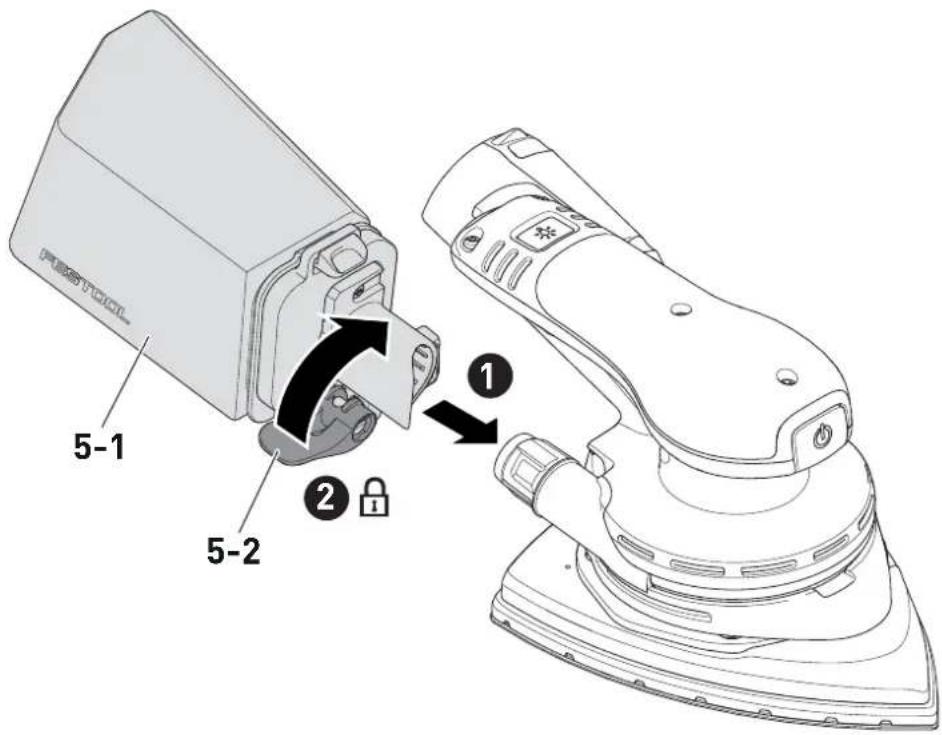

Fitting the dust bag [5A]

▶ Push the dust bag [5-1] until it clicks into place.
▶ Tighten clamping lever [5-2].

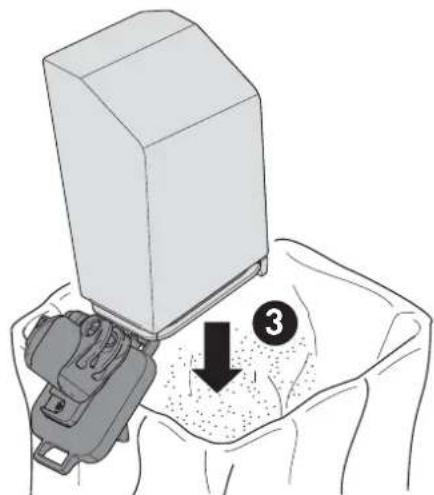

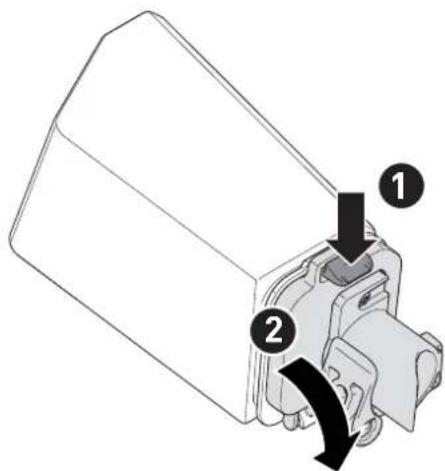

If the suction power is decreasing, remove and empty the dust bag [5C].

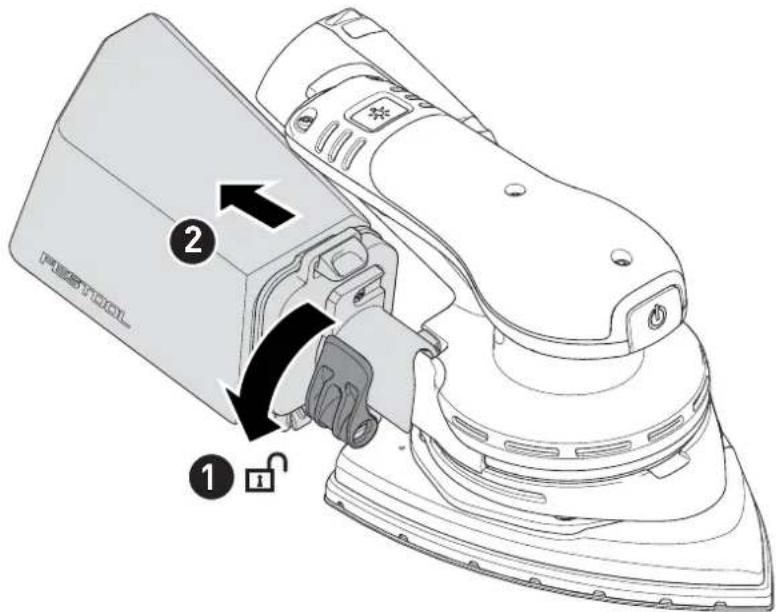

Removing the dust bag [5B]

▶ U10 the clamping lever.
Remove the dust bag.

Dust extraction with Festool's mobile dust extractor

To prevent having to frequently empty the dust bag when working with the power tool for a long period of time, you can connect Festool's mobile dust extractor with an extraction hose diameter of 27 mm to the extractor connector [1-9].

CAUTION! A static charge may build up if no antistatic suction hose is used. The user may receive an electric shock and the power tool's electronics may be damaged.

The start-up mode of the mobile dust extractor can be used by connecting a Bluetooth® battery pack (see battery pack operating manual).
If the power tool is used in cordless operation with a mobile dust extractor, the battery life decreases. Reducing the suction power minimises this effect.
High suction power can impair control of the power tool. Reducing the suction power minimises this effect.

8.5 Adjusting the surface control light

When the power tool is switched on, the surface control light [1-5] switches on in the most recently used mode. The surface control light can also be controlled using the light switch [1-2] when the power tool is switched off.

Switching on

▶ Press the light switch once.

Dimming

▶ Press the light switch twice.

Switching off

▶ Press the light switch three times.

Brightness and afterglow time

▶ Can be configured using the Festool App.

Resetting

▶ Press the light switch for at least five seconds.

8.6 Festool app\*

The power tool can be configured with the Festool app. To do this, the battery pack used must be a Bluetooth® battery pack.

The battery pack is connected via Bluetooth®, see the operating manual for the battery pack.
You can find further information about operating the power tool in the Festool app.

* Not available in all countries.

9 Working with the electric power tool

WARNING

Risk of injury

▶ Always secure the workpiece in such a manner that it cannot move while being machined.

• Do not overload the machine by pressing with excessive force! The best sanding results are achieved with moderate application pressure. The sanding performance and quality are mainly dependent on the selection of the correct abrasive.
• Hold the machine with one hand by the handle [1-8] to ensure safe guidance.
• Work in corners and on edges tends to subject the tip to increased load and results in increased heat development. In such cases, work with reduced contact pressure.

9.1 Warning signals

Warning signals occur and the power tool switches off in the following operating states:

Acoustic signal	Cause Action
Beeps once.	Battery pack empty/ incompatible.	Charge/change the battery pack.
	Power tool overloaded.	Reduce the load on the power tool.
	Power tool has overheated.	Once it has cooled down, restart the power tool.
Beeps continuously.	The power tool is faulty.	Contact the manufacturer to rectify the fault.

10 Service and maintenance

WARNING

Risk of injury, electric shock

▶ Always remove the battery pack from the power tool before performing any maintenance or service work.
▶ Have all maintenance and repair work that requires the motor housing to be opened carried out by an authorised service workshop.

Customer service and repairs must only be carried out by the manufacturer or service workshops. You must only use original Festool spare parts.

Further information: www.festool.co.uk/service

• To ensure constant air circulation, always keep the cooling air openings in the motor housing clean and free of blockages.
• In the event of a slowdown in performance or increased vibrations, vacuum and clean cooling air openings.
• Do not clean the power tool with compressed air.
• Always keep the contacts on the power tool and battery pack clean.

10.1 Cleaning the extraction channels [7]

We recommend cleaning the extraction channels in the sander [7-1] with a small flat brush or a cloth roughly once a week (especially when sanding artificial resin putty, when sanding damp surfaces or plaster).

11 Accessories

You can find the PO numbers for accessories and tools under www.festool.co.uk.

12 Environment

Do not dispose of electrical devices, used batteries and battery packs in the household waste. Recycle devices, accessories and packaging. Observe applicable national regulations. Before disposing of used batteries, battery packs and lamps, separate them from the electrical device without

destroying them. This means they can be recycled efficiently.

In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used electrical devices must be collected separately and handed in for environmentally friendly recycling.

Information on the collection points can be viewed at www.festool.com/environment.

Information on critical materials: www.festool.co.uk/reach

13 General information

13.1 Licence information

Licence information on any open source licences used in the product can be found in the Festool app* at Information > Power tool open source licenses.

* Not available in all countries.

13.2 Information on data privacy

The power tool contains a chip which automatically stores machine and operating data. The data saved cannot be traced back directly to an individual.

The data can be read in a contactless manner using special devices and shall only be used by Festool for fault diagnosis, repair and warranty processing and for quality improvement or enhancement of the power tool. The data shall not be used in any other way without the express consent of the customer.

13.3 Bluetooth®

The Bluetooth® word mark and the logos are registered trademarks of Bluetooth SIG, Inc.; they are used by TTS Tooltechnic Systems AG & Co. KG, and therefore by Festool, under licence.

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way

Bury St Edmunds

IP30 9XH

Great Britain

Français

1 Symboles

13.1 Informations relatives aux licences
