Product type	Multi-cooker / electric pressure cooker
Brand	Gorenje
Model	GMC6SBK
Capacity	5.7 L
Power	1000 W
Power supply	220-240 V / 50-60 Hz
Working pressure	70 kPa
Keep warm temperature	60 °C to 80 °C
Cooking functions	Pressure cooking, Stew/Meat, Beans/Chili, Soup, Rice, Steam, Slow cooking, Sauté, Porridge/Beef/Mixed rice/Poultry
Other functions	Keep warm, Delayed start, Cancel
Display	Digital with indicator lights
Inner pot material	Corrosion-resistant metal (non-stick coating)
Safety	Exhaust valve, float valve, anti-blockage cover, safety lock, overheating protection
Dimensions (approx.)	30 x 30 x 28 cm
Weight (approx.)	5 kg
Included accessories	Quick start guide, spoon, measuring cup, steam basket (check according to version)
Care and cleaning	Clean the seal, valve, anti-blockage cover and water tank regularly; inner pot washable with mild soap
Spare parts and repairability	Sealing ring, anti-blockage cover, exhaust valve, float valve; repair by authorized distributor
Warranty	International Gorenje warranty (see warranty card)

Frequently Asked Questions - GMC6SBK GORENJE

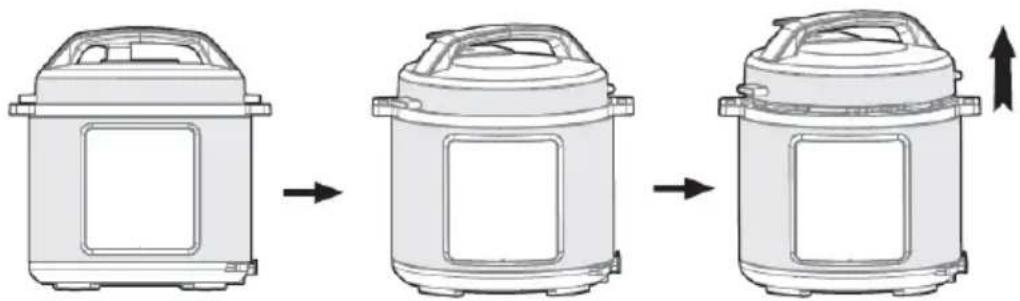

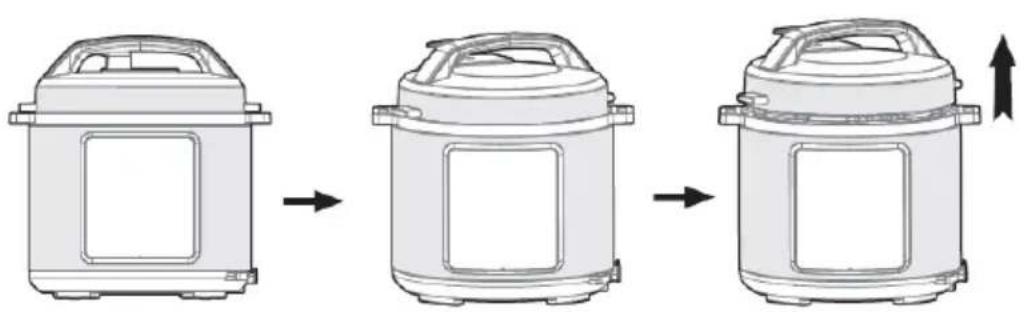

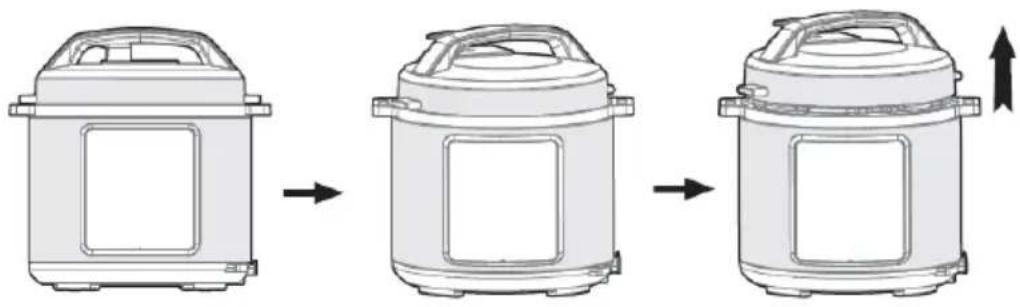

How to open the lid after cooking?

Make sure the pressure has fully dropped: the float valve must be lowered. Turn the lid counterclockwise to the open position, then lift it. Never force the lid open if pressure is still present.

Steam is escaping from the lid, what to do?

Check that the sealing ring is properly installed and clean. If the ring is damaged, replace it. Also make sure the lid is properly closed and locked.

The float valve does not rise during cooking, why?

This may be due to insufficient food or water in the pot. Add enough liquid according to the recipe. Also check that the exhaust valve is in the closed position.

How to clean the pressure cooker?

Unplug and let it cool. Remove the inner pot and wash it with mild soap. Clean the lid, seal, exhaust valve and float valve with a brush and cloth. Do not immerse the appliance body.

Why is the rice overcooked or too hard?

For overcooked rice, reduce the amount of water. For too hard rice, increase water. After cooking, leave the lid closed for an additional 5 minutes before opening.

Can I use the delayed start function for all cooking?

No, the Sauté and Keep warm functions are not compatible with delayed start. For other programs, press 'Delay' before starting.

The power indicator does not light up, what to do?

Check the electrical outlet and power cord. Make sure the lid is properly closed (buttons are inactive if lid is not locked). If the problem persists, contact an authorized distributor.

How to release steam quickly?

Turn the exhaust valve to the 'exhaust' position (or press the steam release button if present). Never place your hands or face over the vent. Beware of burns.

Can I open the lid immediately after cooking soup?

No, for liquid foods (porridge, soup), do not release steam manually. Let the appliance cool naturally until the float valve drops, then open.

Where can I find spare parts?

Use only genuine Gorenje parts (sealing ring, anti-blockage cover, etc.). Contact an authorized distributor or Gorenje after-sales service. Any repair must be carried out by a professional.

USER MANUAL GMC6SBK GORENJE

SI Instructions for use ....2

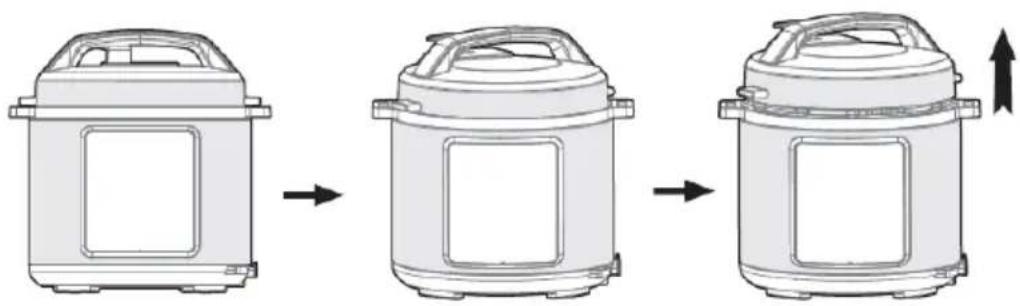

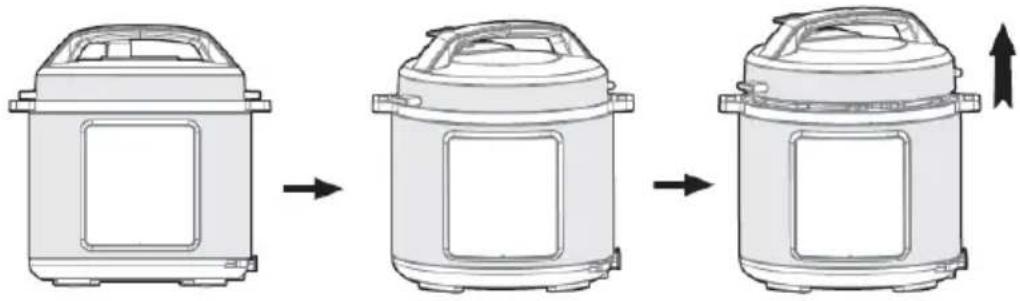

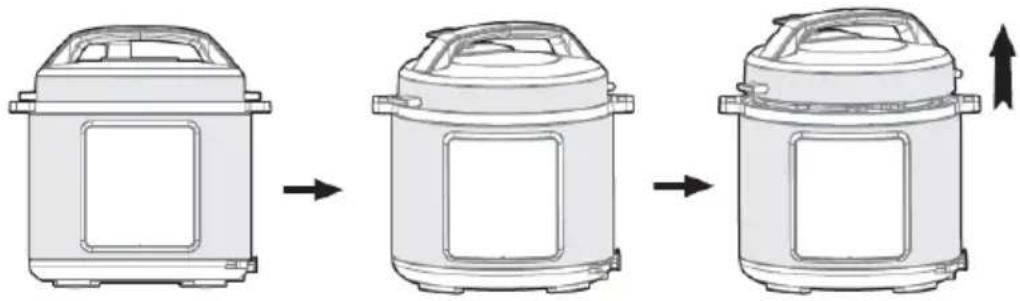

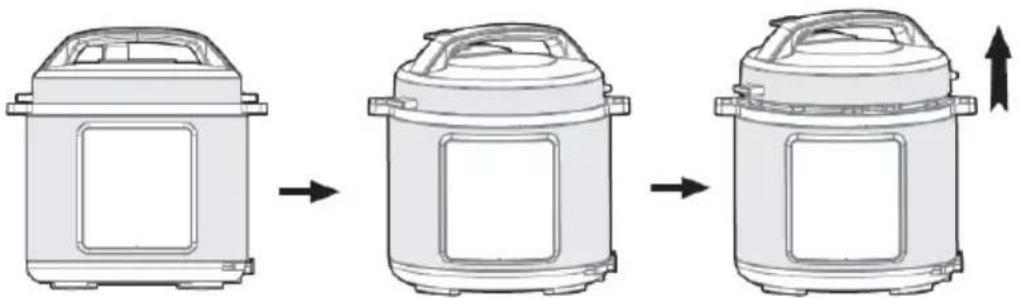

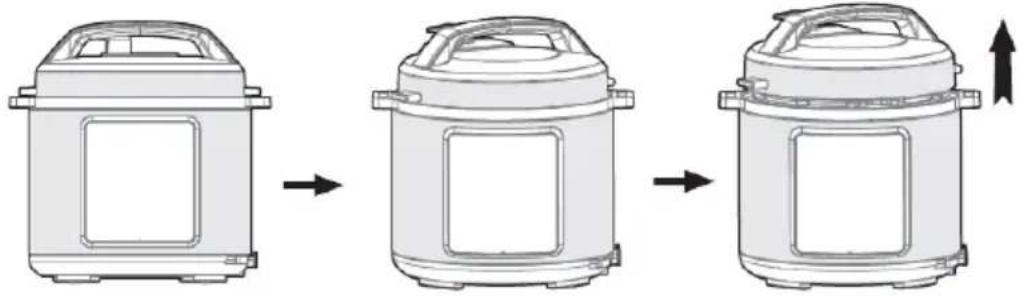

Disassembly: pull it upwards

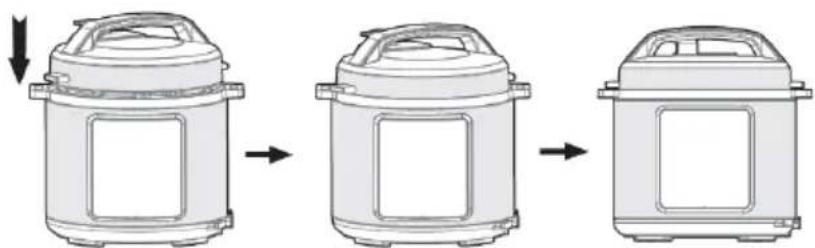

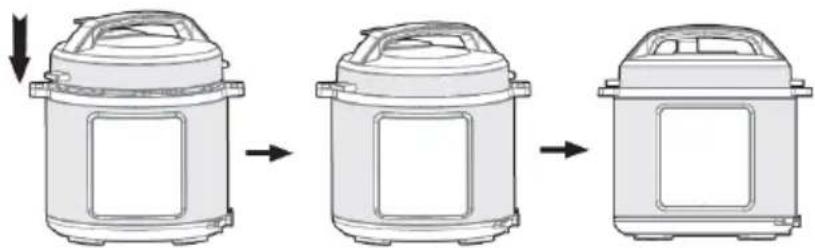

Installation: press down to install

Disassembly: pull it upwards

Installation: press down to install

Before using the cooker, check that the floating valve has descended (before heating).

General operation

Usage tips

Check periodically

Do not place the inner pot on another heating device

Disassembly: pull it upwards

Installation: press downwards

Disassemble and install the sealing ring:

Disassembly: pull it upwards

Installation: Press it downward.

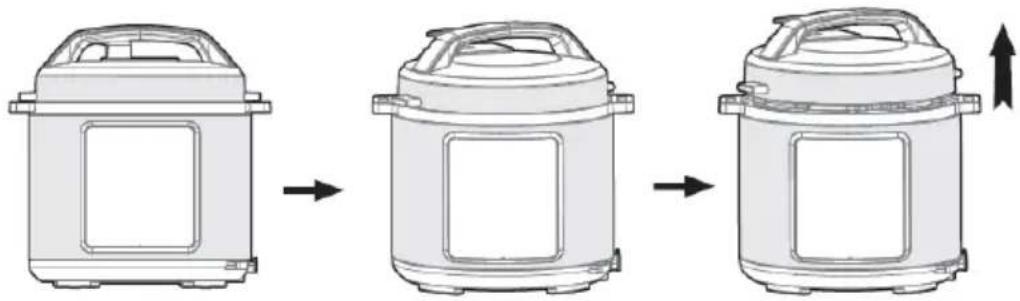

- Firmly close the top lid.

- Properly position the exhaust valve.

During operation, turn the exhaust valve to the sealed position. In this position, the electric pressure cooker will operate in a sealed mode.

To manually release steam, turn the exhaust valve handle to the release position. The electric pressure cooker will switch to release mode. Do not place your hands or face over the steam vent when releasing steam.

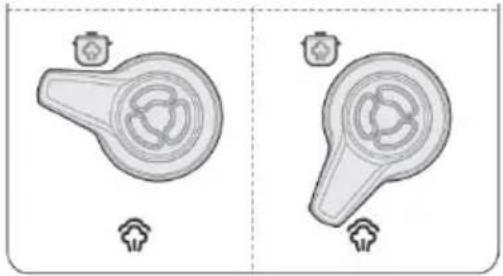

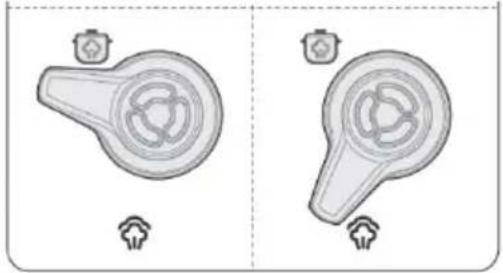

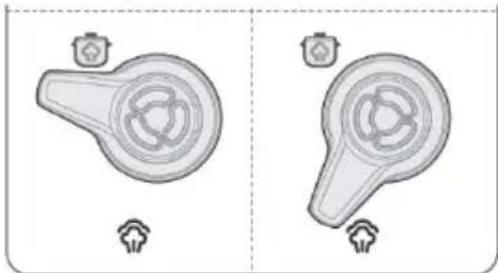

Sealed position diagram

Release position diagram

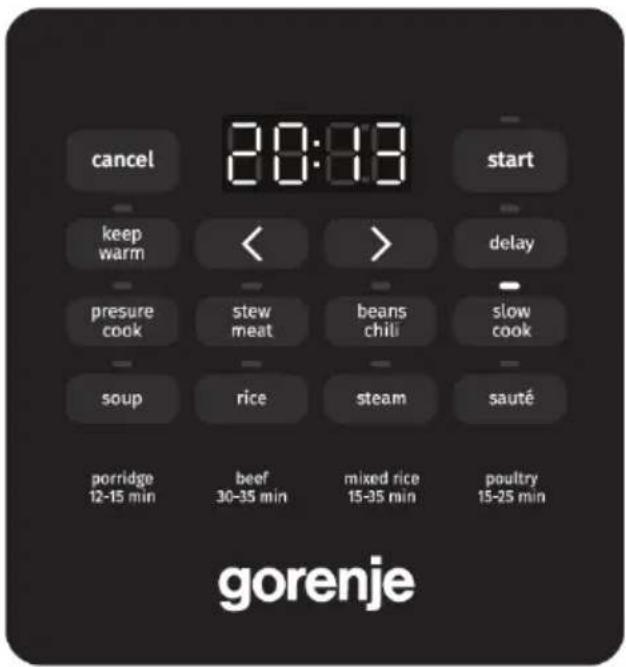

Operating guidelines

Funkcija Smjernice za rad
Otkaži(Cancel)	Pritisnite tipku "Otkaži" za poništenje trenutnog stanja rada i povratak u stanje pripravnosti.
Održavanjetopline(KeepWarm)	U stanju pripravnosti, pritisnite tipku "Održavanje topline" za aktiviranje funkcije održavanja topline. Uključeno je indikatorsko svjetlo "Održavanje topline", a na digitalnom zaslonu prikazano je radno vrijeme.
Start	Započnite kuhanje ili odgodite.
Odgoda(Delay)	Odgoda kuhanja: Prije početka programa pritisnite tipku "Odgoda". Na zaslonu se prikazuje pohranjeno vrijeme početka kuhanja. Zatim pritisnite gumb "+" ili "-" za podešavanje vremena odgode. Pritisnite tipku "Start", uređaj počinje odbrojavati vrijeme odgode. Kada odbroji do kraja, program počinje raditi.Napomena: Pirjanje Odgoda se ne može postaviti kad je aktivirana funkcija održavanja topline
Kuhanje pod tlakom, varivo/meso, grah/čili, juha, riža, kuhanje na pari (Pressure Cook, Stew/Meat, Beans/Chili, Soup, Rice, Steam)	U stanju pripravnosti pritisnite tipku funkcije, indikatorsko svjetlo je uključeno, a na digitalnom zaslonu prikazano je zadano vrijeme tlaka. Pritisnite tipku "+" ili "-" za podešavanje vremena tlaka. Pritisnite tipku "Start" za ulazak u stanje kuhanja. Digitalni zaslon počinje odbrojavati čim tlak poraste na radni tlak. Ulazi u stanje održavanja topline kada završi s radom.
Sporo kuhanje (Slow Cook)	U stanju pripravnosti pritisnite tipku funkcije, indikatorsko svjetlo je uključeno, a na digitalnom zaslonu prikazano je zadano radno vrijeme. Pritisnite tipku "+" ili "-" za podešavanje radnog vremena. Pritisnite tipku "Start" za ulazak u stanje kuhanja. Digitalni zaslon počinje odbrojavati i uređaj ulazi u stanje održavanja topline kada završi s radom.
Pirjanje (Sauté)	U stanju pripravnosti pritisnite tipku funkcije "Pirjanje", indikatorsko svjetlo je uključeno, a na digitalnom zaslonu prikazano je zadano radno vrijeme. Pritisnite tipku "+" ili "-" za podešavanje radnog vremena. Pritisnite tipku "Start" za ulazak u stanje kuhanja. Pokreće odbrojavanje i ulazi u stanje pripravnosti kada završi s radom.
Kaša/ govedina / miješana riža/ perad (Porridge/ Beef/ Mixed Rice/ Poultry)	U stanju pripravnosti pritisnite tipku funkcije "Kuhanje pod tlakom", indikatorsko svjetlo je uključeno, a na digitalnom zaslonu prikazano je zadano vrijeme tlaka. Pritisnite tipku "+" ili "-" za podešavanje vremena tlaka u skladu s preporučenim vremenom. Pritisnite tipku "Start" za ulazak u stanje kuhanja. Digitalni zaslon počinje odbrojavati čim tlak poraste na radni tlak. Ulazi u stanje održavanja topline kada završi s radom.

It is strictly forbidden to use any other top lid.

Discontinue use if the power cord is damaged.

- Replace the damaged power cord with a special flexible cord or a special assembly purchased from the manufacturer or an authorized service center.

Do not insert foreign objects.

- Inserting metal shavings, needles, or other foreign objects into the opening is strictly prohibited, as this may lead to electric shock or abnormal operation.

Products must not be immersed or sprayed with water.

- This may lead to electric shock and short circuit.

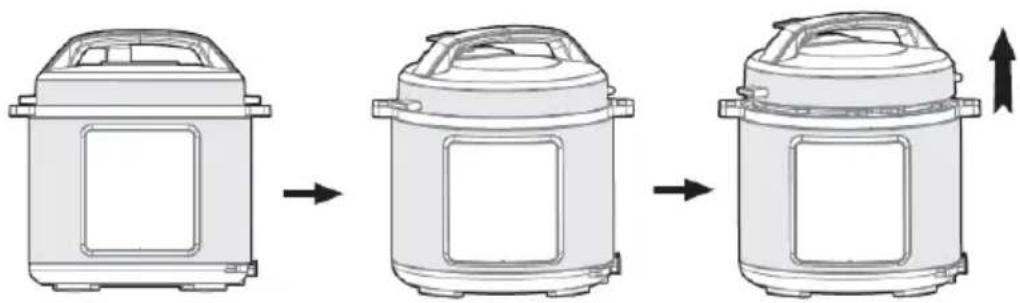

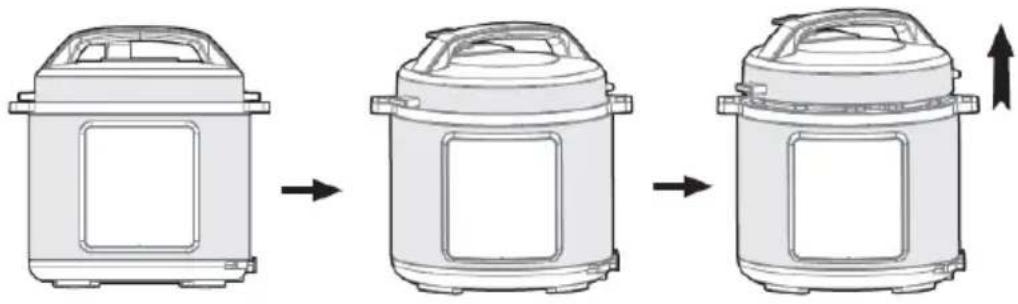

Warning regarding opening the top lid

• When the electric pressure cooker is not working, there is no pressure in the pressure cooker, and the floating valve is lowered;
• When the electric pressure cooker is working, the pressure in the pressure cooker rises, and the floating valve rises; do not force open the top lid before the pressure

has completely dropped;

- If the top lid is difficult to open, do not force it open, as this may lead to burns or physical injury.

Never unplug the appliance with wet hands

. This may lead to electric shock.

When pulling the plug, you must squeeze it

• When pulling the plug, be sure to squeeze the plug;
• Do not pull the power cord, as this may damage the cord and cause electric shock or short circuit.

Do not touch the top lid while the pressure cooker is working

- When the pressure cooker is working, the top lid heats up, do not touch it, as it may cause burns.

The total amount of food and water must not exceed the Max mark

- The total amount of food and water must not exceed the Max mark, otherwise the food will not be cooked well or a malfunction may occur.

Do not use any other container than the one specified

When moving the product, hold the handles of the pressure cooker housing.

Disassembly: Pull it upward.

Disassembly: Pull it upward.

• Make sure that the lid parts and accessories are properly positioned.

Check that the floating and exhaust valves are not blocked; check that the sealing ring and sealing cover are properly positioned.

- Remove the inner pot and add food and water to it.

Make sure that the total amount of food and water does not exceed the Max mark on the inner pot (usable capacity is 2/3 of the total capacity).

Usable capacity

• Return the inner pot to the pressure cooker.

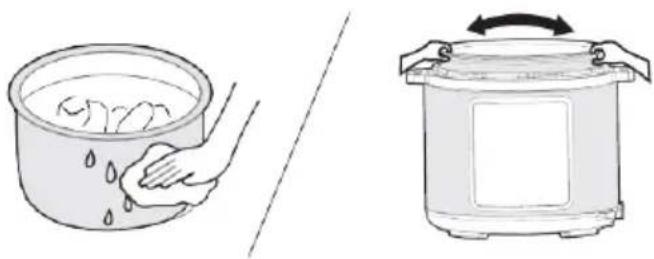

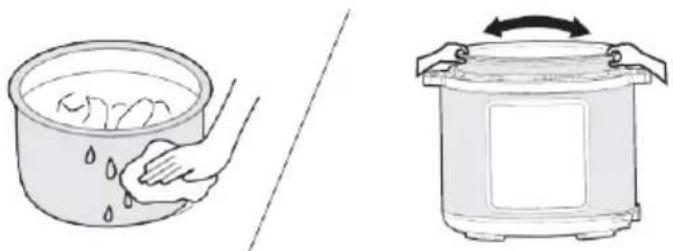

Clean the outer surface of the inner pot, making sure that there are no foreign objects or water on the inner surface of the electric pressure cooker.

Turn the inner pot left and right to ensure proper contact with the heating plate.

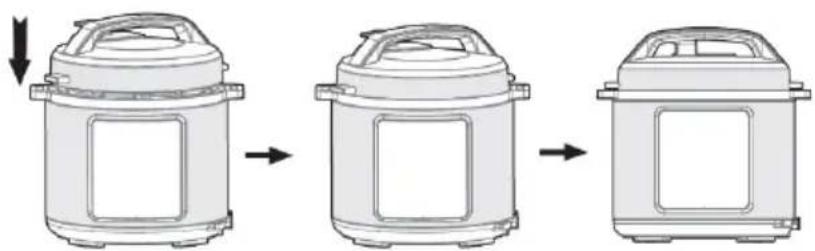

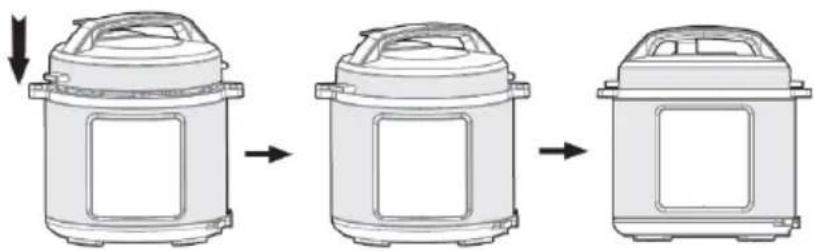

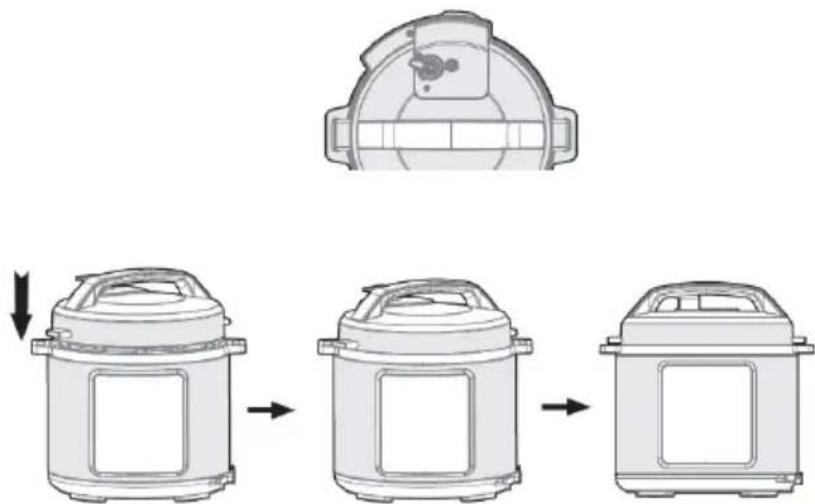

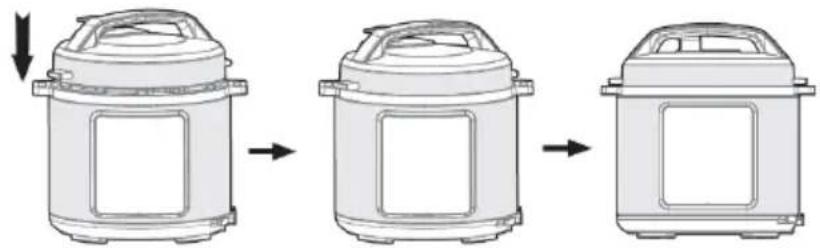

- Close the top lid firmly.

Before closing the top lid, make sure that the sealing ring is properly positioned. Hold the handle of the top lid and set it to the "Lid unlocked" position. Place the top lid horizontally on the pressure cooker housing and turn the top lid clockwise by about 30° to the locked position ("Lid locked").

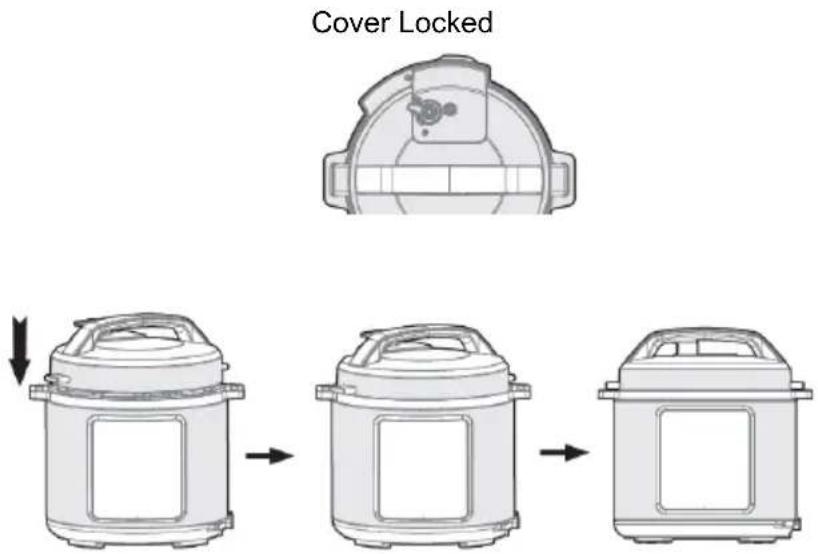

Lid locked

- Properly position the exhaust valve.

During operation, turn the exhaust valve to the sealing position. In this position, the electric pressure cooker will operate in a sealed mode. To manually release steam, turn the exhaust valve handle to the release position. The electric pressure cooker will enter the release mode. Do not place your hands or face above the steam vent when releasing steam.

Diagram of sealing position Diagram of release position

Check that the float valve has dropped before handling the pressure cooker (it is lowered before heating).

General use

Operating guidelines

Funkcija Smernice za rad
Otkaži(Cancel)	Pritisnite taster "Otkaži" da biste otkazali trenutno stanje rada i vratili se u stanje pripravnosti.
Održavanje toplote(Keep Warm)	U stanju pripravnosti, pritisnite taster "Održavanje toplote" za pokretanje funkcije održavanja toplote. Svetli indikator "Održavanje toplote" i digitalni ekran prikazuje vreme rada.
Start	Počnite sa kuvanjem ili odložite.
Odlaganje (Delay)	Odlaganje kuvanja: Pre početka programa, pritisnite taster "Odlaganje". Na ekranu se prikazuje unapred podešeno vreme početka kuvanja. Zatim pritisnite taster "+" ili "-" da biste podesili vreme odlaganja. Pritisnite taster "Start", uređaj pokreće odbrojavanje vremena odlaganja. Kada odbroji do kraja, program počinje da radi.Napomena: Dinstanje Odlaganje se ne može podesiti kada je aktivirana funkcija održavanja toplote
Kuvanje pod pritiskom, gulaš/meso, pasulj/čili, supra, pirinač, kuvanje na pari	U stanju pripravnosti, pritisnite taster funkcije, lampica indikatora je uključena i digitalni ekran prikazuje podrazumevano vreme pritiska. Pritisnite taster "+" ili "-" da biste podesili vreme pritiska. Pritisnite taster "Start" da biste ušli u stanje kuvanja. Digitalni ekran počinje da odbrojava čim pritisak poraste na radni pritisak. Ulazi u stanje održavanja toplote kada se završi rad.
(Pressure Cook, Stew/Meat, Beans/Chili, Soup, Rice, Steam)
Sporo kuvanje (Slow Cook)	U stanju pripravnosti, pritisnite taster funkcije, lampica indikatora je uključena i digitalni ekran prikazuje podrazumevano vreme rada. Pritisnite taster "+" ili "-" da biste podesili vreme rada. Pritisnite taster "Start" da biste ušli u stanje kuvanja. Digitalni ekran počinje da odbrojava i uređaj ulazi u stanje održavanja toplote kada završi sa radom.
Dinstanje (Sauté)	U stanju pripravnosti, pritisnite taster funkcije "Dinstanje", lampica indikatora je uključena i digitalni ekran prikazuje podrazumevano vreme rada. Pritisnite taster "+" ili "-" da biste podesili vreme rada. Pritisnite taster "Start" da biste ušli u stanje kuvanja. Pokreće odbrojavanje i ulazi u stanje pripravnosti kada završi sa radom.
Kaša/ govedina / mešani pirinač/ živina (Porridge/ Beef/ Mixed Rice/ Poultry)	U stanju pripravnosti, pritisnite taster funkcije "Kuvanje pod prtiskom", lampica indikatora je uključena i digitalni ekran prikazuje podrazumevano vreme pritiska. Pritisnite taster "+" ili "-" da biste podesili vreme pritiska u skladu sa preporučenim vremenom. Pritisnite taster "Start" da biste ušli u stanje kuvanja. Digitalni ekran počinje da odbrojava čim pritisak poraste na radni pritisak. Ulazi u stanje održavanja toplote kada se završi rad.

Daily inspection and maintenance

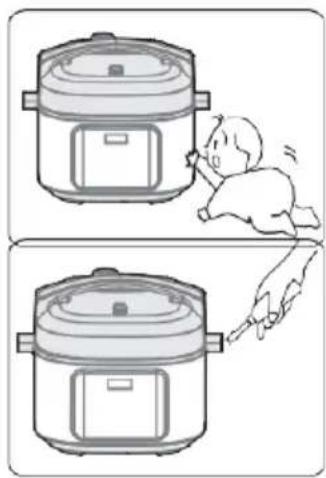

Do not insert foreign objects

- Inserting metal shavings, needles, or other foreign objects into the opening is strictly prohibited, as this may lead to electric shock or abnormal movement.

Place the appliance out of reach of children

- Place the appliance out of reach of children to avoid electric shock and burns.

Modification is prohibited

- Modification or repair by non-professionals is strictly prohibited. - Violation may lead to fire or electric shock. - Repairs or replacement of parts must be carried out at an authorized service center.

The product must not be immersed or sprayed with water

- This may lead to electric shock and short circuits.

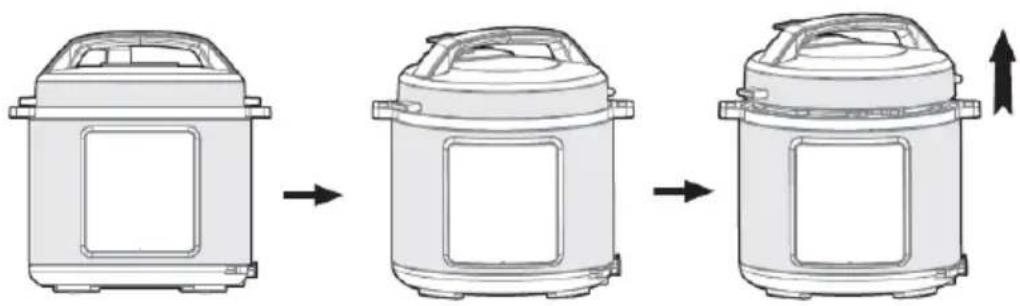

Warning regarding opening the top lid

• When the electric pressure cooker is not working, there is no pressure in the pot, and the floating valve is lowered;
• When the electric pressure cooker is working, the pressure in the pressure cooker rises, and the floating valve rises; do not force open the top lid before the pressure completely drops;
• If it is difficult to open the top lid, do not force it open, as this may lead to burns or physical injury.

Never unplug the appliance with wet hands

. This may cause electric shock.

When pulling the plug, you must squeeze it

• When pulling the plug, be sure to squeeze the plug;
• Do not pull the power cord, as this may damage the cord and cause electric shock or short circuit.

Unplug when not in use

- Otherwise, leakage, fire, or malfunction may occur.

During operation, never bring your hands near the exhaust vent.

Do not touch the top lid while the pressure cooker is working

- When the pressure cooker is working, the top lid heats up, do not touch it, as it may cause burns.

Do not use any other container than the one provided

• If there are foreign materials on the bottom of the container and on the heating plate, remove them before use.
• Otherwise, overheating, abnormal operation, etc. may occur.

Do not place the inner pot on another heating device.

This may cause deformation or malfunction. Use the designated inner pot.

When moving the product, hold the handles of the pressure cooker housing.

Gasket

Modifications are prohibited.

Periodic checks

Important safety instructions

Please read the User Manual carefully before using this product.

1. Read all instructions.
2. Do not use outdoors.
3. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. This appliance is not intended for use by children. Keep the appliance and its cord out of the reach of children.
5. Children should be supervised to ensure that they do not play with the appliance.
6. This appliance is intended for use in the household and similar applications, such as:
7. Staff kitchen areas in shops, offices and other work environments.
8. Farmhouses.
9. By customers in hotels, motels and other residential environments as well as Bed and Breakfast type environments.
10. Do not immerse any part of the appliance in water or other liquids.
11. The pressure regulators that allow steam to escape should be checked regularly to ensure that they are not blocked.
12. Do not open the pressure vessel until the pressure has dropped sufficiently.
13. The surface of the heating element is exposed to residual heat after use, do not touch.
14. Warning: Avoid spilling liquid on the connector.
15. Warning: Misuse may cause potential injury.
16. Do not place the pressure cooker in a heated oven.
17. Handle the pressure cooker with the utmost care. Avoid touching hot surfaces and always utilize the provided handles and knobs. If needed, use appropriate protective gear for added safety and protection.
18. Keep children away from the pressure cooker while it is in use.
19. Do not use the pressure cooker for any purpose other than its intended use.
20. This appliance cooks under pressure. Improper use of the pressure cooker may result in scalds. Make sure that the cooker is properly closed before applying heat, see "User Manual".
21. Never force the pressure cooker open. Do not open until the internal pressure has been completely released. See the "User Manual".
22. Never operate your pressure cooker without adding water or food, as this could cause significant damage.
23. Use the designated heat source(s) in accordance with the provided instructions.
24. When cooking meat with skin (e.g., ox tongue) that may expand due to pressure, avoid puncturing the swollen skin. Piercing the swollen skin could result in scalding.
25. When preparing doughy food, carefully shake the cooker before opening the lid to prevent any sudden ejection of food.
26. Prior to each use, make sure the valves are clear of any obstructions. Refer to the User Manual.
27. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
28. Before cleaning, performing maintenance, or relocating the appliance, please make sure to turn it off and unplug it. In addition, be sure to turn off and unplug the appliance whenever it is not in use.
29. Do not fill the cooker to more than 2/3 of its capacity. When cooking foods that expand during cooking, such as rice or dehydrated vegetables, do not fill the cooker to more than half its capacity.
30. Do not use the pressure cooker in its pressurized mode for deep or shallow frying of food.
31. In case of damage to the supply cord, replacement must be carried out by the manufacturer, its service agent, or qualified individuals to prevent any potential hazards.
32. The appliance is not designed for use with an external timer or a separate remote control system.
33. Do not tamper with any of the safety systems beyond the maintenance instructions given in the User Manual.
34. Only use the manufacturer's spare parts for the relevant model. In particular, use a body and a lid from the same manufacturer that are indicated as compatible.
35. Any repairs must be carried out by an authorized service agent.
36. Never use your pressure cooker without adding water, as this will seriously damage it.
37. When cooking meat with skin (e.g., ox tongue) that may expand due to pressure, avoid puncturing the swollen skin. Piercing the swollen skin could result in scalding.

This product is labelled in compliance with the European Directive 2012/19/EC on Waste Electrical and Electronic Equipment – WEEE. The Directive sets out the requirements for the collection and management of waste electrical and electronic equipment across the European Union.

Specification

Product Model	GMC6SBK
Capacity	5,7L
Power Supply 220-240V~50/60Hz
Rated Power	1000W
Working Pressure	70kPa
Keep Warm Temperature	60°C~80°C

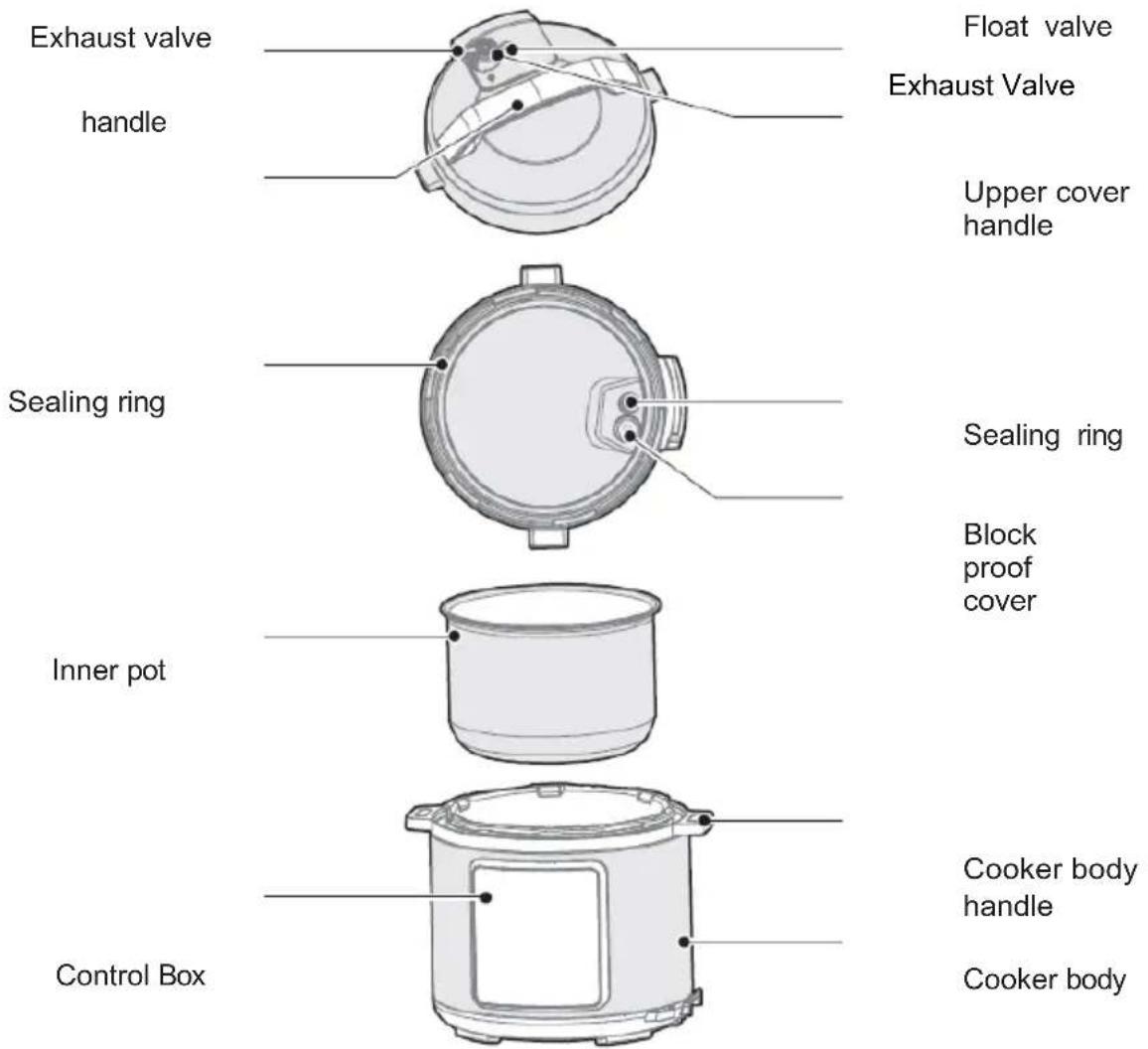

General description

Accessories

Rice Spoon

Soup Spoon

User Manual

Measuring cup

Steamer

Steaming rack

Quick start guide

• Please use the handle on the cooker body when moving the appliance; • To remove any water from the housing cover, use a cloth.
• Exhaust valve: Pull the exhaust valve out of the lid. At least once a month, clean the inside of the exhaust valve, as well as the exhaust valve and float valve on the lid, using a brush and cloth. • Sealing ring: Please remove oil and dirt from the sealing ring using detergent and a brush.
• Water box: After cooking, residual steam may collect in the water box of the outer pot as water. To prevent unpleasant odours, please clean it by wiping it with a clean cloth and removing any remaining water.

Disassemble and Install the Block Proof Cover and Seal Ring

Disassemble and install the block proof cover:

• Before each use, check that the seal ring and block proof cover are properly installed in the upper cover. • After use, please clean the seal ring and the area around the block proof cover to prevent the cover from jamming, keep it clean to avoid unpleasant odors.

Block proof cover

Disassemble: Pull it out upwards

Install: Press it down to install

Disassemble and install the seal ring:

• Please do not pull the seal ring, otherwise the distorted seal ring may affect the sealing and pressure effect. • If the seal ring is damaged, do not use it and replace it at an authorized service center.

Seal ring

Disassemble: Pull it out upwards

Install: Press it down to install

Use and Maintain the Inner Pot

- Do not empty.

It may cause the inner pot to become yellowish and stained or the bottom to warp if left empty for a long time.

• Do not use it to store acid, alkali, and canned food for a long time.

Although the inner pot has excellent anti-corrosion performance, prolonged storage may lead to corrosion to some extent. It is recommended that the suggested keep-warm time does not exceed 2 hours.

- Keep it clean to prolong its life.

Do not immerse it in water for a long time.

Clean the inner pot with soap, mild detergent, or warm water to remove dust, oil, and dirt.

• Do not use a metal scoop or another hard tool as it will damage the inner surface of the pot.

Prepare for Cooking

• How to correctly open the upper cover.

Hold the upper cover handle and turn it counterclockwise about 30 degrees until the cover is unlocked, then lift the upper cover.

Cover Unlocked

• Ensure that the cover parts and accessories are installed correctly.

Check for any obstructions in the floater valve and exhaust valve; verify that the sealing ring and block proof cover are properly installed.

- Remove the inner pot and add food and water into it.

Make sure that the total amount of food and water does not exceed the Max mark on the inner pot (Usable Capacity is 2/3 of the total capacity).

Usable Capacity

• Place the inner pot back into the cooker.

Wipe the external surface of the inner pot clean, ensuring there are no foreign objects or water on the inner surface of the electric pressure cooker.

Rotate the inner pot to the left and right to ensure proper contact with the heating plate.

- Securely close the upper cover.

Before closing the upper cover, make sure that the sealing ring is correctly installed. Hold the handle of the upper cover and set it to the "Cover Unlocked" position. Place the top cover horizontally onto the cooker body and turn the upper cover clockwise by about 30° to the locked position ("Cover Locked").

• Position the exhaust valve correctly.

During operation, turn the exhaust valve to the sealing position. In this position, the electric pressure cooker will operate in sealed mode.

To manually release the steam, turn the handle of the exhaust valve to the exhaust position. The electric pressure cooker will enter exhaust mode. Do not place your hands or face above the steam vent/exhaust when releasing steam.

Sealing schematic diagram Exhaust schematic diagram

Check that the floater valve has dropped down before operating the cooker (it is down prior to heating).

General operation

• Turn on the pressure cooker. If the buttons are inactive, make sure the upper cover is properly closed. If the upper cover is not closed correctly, the buttons will be inactive. • After cooking, the cooker may automatically enter the keep-warm state. In this case, the indicator will display "00:00 (0 min), 00:01 (1 min), 00:02 (2 min)..."

Tips:

• When the cooker is in operation, it is normal to hear a "cluck" sound. This is not cause for concern.
• When cooking a small amount of food, the inner pot may lift when you open the upper cover. In this case, gently shake the upper cover to lower the inner pot back into the cooker body, and then remove the upper cover.

Safely opening the upper cover

• Disconnect the power supply or unplug the power cord - Exhaust method

A: Quickly open the upper cover (non-liquid foods)

Turn the exhaust valve to the exhaust position by pressing the steam release button until the float valve drops down.

B: Open the upper cover normally

Let the electric pressure cooker cool down naturally until the float valve drops down.

- Opening the upper cover

Turn the upper cover counterclockwise with your left hand until you reach the fully open upper cover open position, then lift the upper cover with your right hand to open.

Do not open the upper cover until the pressure in the pot has gone down completely. Do not force the upper cover, if it is difficult to open.

Do not pull out the exhaust valve when turning the it.

After cooking liquid foods (porridge and soup), do not turn the exhaust valve or press the steam release button. Please disconnect the power supply to allow the pot to cool down naturally until the float drops prior to opening the upper cover.

Operational Overview

Operation guidelines

Function	Operation Guidelines
Cancel	Press “Cancel” button to cancel the current work state and return standby state.
Keep Warm	Under standby state, press “Keep Warm” button to start keep warm funtion. “Keep Warm” indicator light is on and the digital screen shows working time.
Start • Start cooking or delay.
Delay	Delay cooking: Before the program start, press “Delay” button. The screen shows the preset beginning time. Then press “+” or “-” button to adjust the delay time. Press “Start” button, the unit starts delay time count down. When it countdown to the end, the program starts working.Note: Sauté、Keep Warm function cannot set the dela
Pressure Cook, Stew/Meat, Beans/Chili, Soup, Rice, Steam	Under standby state, press the function button, the indicator light is on and the digital screen shows default pressure time. Press “+” or “-” button to adjust the pressure time. Press “Start” button to enter into cooking state. The digital screen starts countdown as soon as the pressure rise to working pressure. Enters into keep warm when it finishes working.
Slow Cook	·Under standby state, press the function button, the indicator light is on and the digital screen shows default working time. Press “+” or “-” button to adjust the working time. Press “Start” button to enter into cooking state. The digital screen starts countdown and the unit enters to keep warm when it finishes working.
Sauté	·Under standby state, press “Sauté” button, the indicator light is on and the digital screen shows default working time. Press “+” or “-” button to adjust the working time. Press “Start” button to enter into cooking state. Starts countdown and enters to standby state when it finishes working.
Porridge/Beef/MixedRice/Poultry	·Under standby state, press the “Pressure Cook” button, the indicator light is on and the digital screen shows default pressure time. Press “+” or “-” button to adjust the pressure time according to the recommended time. Press “Start” button to enter into cooking state. The digital screen starts countdown as soon as the pressure rise to working pressure. Enters into keep warm when it finishes working.

Daily check and maintenance

For safe use and longer life, please check and maintain the product carefully.

If the following occurs	Solution
The power cord and plug are stretched, deformed, damaged, and their color is changed.A part of the power cord and plug is hotter.The power cord is flexible with intermittent power supply.The electric pressure cooker is experiencing abnormal heating and emitting an unpleasant odor.There is abnormal noise or vibration when power is supplied.	Discontinue use and have the unit repaired by an authorized service center.
There is dust or dirt on the plug or socket.	Remove dust or dirt.

Safety precautions

To prevent personal injury and property damage, be sure to observe the following safety precautions.

Meanings of labels:

	Means “Forbidden” items		Generally Forbidden		Disassembling Forbidden		Wet hands Forbidden
			Contact Forbidden		Spray Water Forbidden
	Means “Mandatory” items		Take necessary action		Remove the power plug

There are two levels of danger from misuse if the following warnings are ignored.

WARNING

Failure to comply with the warnings may result in death or serious injury.

CAUTION

Failure to comply with the cautions may result in personal injury or property damage.

WARNING

It is strictly forbidden to use any other upper cover

- The use of any upper cover other than the original for heating is strictly forbidden. During the switching-on process, the use of a non-original upper cover is not allowed, as this may cause electric shock or safety hazards.

Discontinue use if the power cord is damaged

- Replace the damaged power cord with a special soft cord or a special assembly purchased from the manufacturer or an authorized repair center.

Do not insert foreign objects

- Inserting metal shavings, needles, or other foreign objects into the gap is strictly forbidden, as this may lead to electric shock or abnormal movement.

Place the appliance in a location out of reach of infants

- Place the appliance in a location out of reach of infants to avoid electric shock and scalding.

Modification is prohibited

• Modification or repair by non-professionals is strictly prohibited.
• Violation may result in a fire or electric shock.
• Repairs or part replacement must be conducted at a designated service center.

Products may not be immersed in or sprinkled with water

- Doing so could lead to electric shock and electrical short circuits.

Warning regarding the opening of the upper cover

• When the electric pressure cooker is not in operation, there is no pressure in the cooker, the float valve is down;
• When the electric pressure cooker is in operation, the pressure in the cooker rises, the float valve rises; do not force the upper cover open before the pressure has gone down completely;
• If it is difficult to open the upper cover, please do not open it forcefully, as this may result in scalding or physical injury.

Check periodically

• Be sure to periodically check the block proof cover and exhaust valve core to make sure that they are not blocked;
• Do not cover the exhaust valve with heavy objects or replace it with another object.

CAUTION

Never unplug the unit with a wet hand.

This may result in an electric shock.

When pulling the plug, you must pinch it.

• When pulling the plug, be sure to pinch the plug;
• Do not pull on the power cord, as this may damage the cord and cause electric shock or short circuit.

Unplug when not in use.

Failure to do so may result in leakage, fire or breakdown.

During operation, never bring your hands close to the exhaust port.

• During the cooking process, never bring your hands close to the exhaust port to avoid burns.
• Do not cover the vent with a cloth or other objects during cooking.

Do not touch the upper cover when the cooker is in operation.

When the cooker is in operation, the upper cover becomes hot, do not touch as it may possibly cause scalding.

The total amount of food and water may not exceed the Max scale.

- The total amount of food and water may not exceed the Max scale, otherwise food may be undercooked or cause malfunction.

Do not use any pot other than the designated one.

- If there is foreign matter on the bottom of the pot and on the heating plate, remove it before use.

- Failure to do so may cause overheating, abnormal operation, etc.

Do not place the inner pot on another appliance for heating.

· Doing so may cause deformation or malfunction.

- Please use the designated inner pot.

When moving the product, please hold the handles of the cooker body.

- When moving the product, do not directly hold the upper cover handle to prevent the cover from falling.

Do not use in the following locations:

- Do not use in unstable locations.

- Do not use in locations near water or fire.

- Do not use near walls or furniture.

- Do not use in locations exposed to direct sunlight and oil splash.

- Do not approach the stove to avoid fire.

Clean after use

- Clean after each use.

- Before cleaning and maintenance, unplug the appliance from the wall outlet until it has cooled down.

- Remove the upper cover and inner pot, clean with detergent first, then rinse well with water, and wipe dry with a soft cloth.

- Clean the inside of the upper cover with water. The seal ring, block proof cover, exhaust valve core and float valve can be removed for washing. Reinstall them promptly and correctly after washing, and then dry the inside of upper cover with a cloth.

- Wipe the cooker body clean using a rag – do not soak the cooker body in water or spray water on it.

Troubleshooting

Problem	Reason	Solution
Upper cover difficult to close	· Sealing ring not installed properly.	· Ensure the sealing ring is properly positioned.
	· The floater valve is clamping down on the push rod.	· Gently push the push rod.
Upper cover difficult to open	· Floater valve is in the raised position.	· Gently press the floater valve down using a chopstick.
	· There is pressure inside the cooker.	· Open the lid when the pressure has gone down completely.
Steam is leaking from the upper cover	· Sealing ring installed improperly.	· Install the sealing ring as required.
	· Food debris attached to the sealing ring.	· Clean the sealing ring.
	· Sealing ring damaged.	· Replace the sealing ring.
	· The upper cover is not closed properly.	· Close the upper cover properly.
Steam is leaking from the float valve.	· Food residue on the float valve gasket.	· Clean the float valve gasket.
	· Float valve gasket worn-out.	· Replace the float valve gasket.
Float valve does not rise	· Insufficient amount of food and water in the inner pot.	· Add water and food according to recipe.
	· Steam is leaking from the upper cover or exhaust valve.	· Send to the service center for repair.
Steam comes out from exhaust valve non-stop.	· Exhaust valve not in sealing position	· Turn the exhaust valve to the sealing position
	· Pressure control fails	· Send to the service center for repair
Power indicator doesn't light on.	· Power socket bad contact	· Please check the power socket

All indicators flas.	Display screen displays E1 / Display screen displays E2Display screen displays E8	· Bottom sensor fault.· Pressure switch fault.	· Send to the service center for repair.
Rice half cooked or too hard.		· Too little water.	· Add water accordingly.
		· Lid opened prematurely.	· After cooking cycle completes, leave the lid on for 5 more minutes.
Rice too soft.		· Too much water.	· Reduce water accordingly.

ENVIRONMENT

At the end of its useful life, do not dispose of the appliance with other household waste. Dispose of it at an authorized recycling center. This will help protect the environment.

WARRANTY AND REPAIR

For more information or in case of problems, please contact the Gorenje Call Center in your country (phone number listed in the International Warranty Sheet). If there is no such center in your country, please contact the local Gorenje dealer or the Gorenje small domestic appliances department.

For personal use only!

GORENJE

WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE.

We reserve the right to make modifications.

Anti-blocking cap

Sealing ring

Check periodically

Operating instructions

Modification prohibited

Operating instructions

Periodic checks

Removal: Pull it upwards Installation: Push it down and install

Removal: Pull it upwards Installation: Push it down and install

Do not insert foreign objects

Modification prohibited

Check regularly

Appliance operation

Periodic inspection

Float valve

Exhaust valve

control

Accessories

Rice spoon

Soup spoon

Operation

Modification is prohibited

Check periodically

Operating guides

Periodic inspection

Check periodically

Operating guidelines

Assembly: Press it down to assemble it

Assembly: Press it down to assemble it

- Position the exhaust valve correctly.

Do not insert foreign objects into the device.

Regular inspection

- Close the lid.

• Position the outlet valve correctly.

Use

Check regularly

Disassembly: Pull the cover upwards

Disassembly: Pull the cover upwards

• Close the top cover completely.

Before closing the top cover, check that the gasket ring is seated correctly.

Regular check

Do not pull out the plug with wet hands

- This can cause electric shock.

GOOD LUCK WITH YOUR NEW DEVICE.

Instructions for use

Operating Guidelines
