USER MANUAL AF2700BP GORENJE

Black Gorenje air fryer oven with digital display showing 200°F temperature and open photo of roasted chicken (no text or symbols on device)

AF2700BP

SI Navodila za uporabo ....2
HR, BIH Upute za uporabu 15
SRB - MNE Uputstva za upotrebu 28
MK Упатства за употреба ....41
GB Instruction manual ....55
RO Manual de instructiuni 68
HU Használati útmutató 82
BG Инструкции за употреба .....95
UA Інструкція з експлуатації .....109
SK Návod na obsluhu....122
CZ Návod k obsluze 135
PL Instrukcja obsługi....148
RU Руководство по эксплуатации ..... 162
SQ Udhëzime për përdorim ....176
FR Notice d'utilisation....189
DE Gebrauchsanleitung ....204
KA gsdmygbgdou lsbgmaddzsbgmm .....218

Diagram showing a multi-step assembly of a toaster oven with labeled parts and directional arrows indicating steps 1, 2, and 3.

Slika 1

Line drawing of an open microwave oven with internal compartments and housing (no text or symbols)

Slika 2

Technical line drawing of a mechanical assembly with multiple circular components and grid-like structures (no text or symbols)

Slika 3

Line drawing of a device with a rectangular housing and a closed lid, showing internal components (no text or symbols)

Slika 4

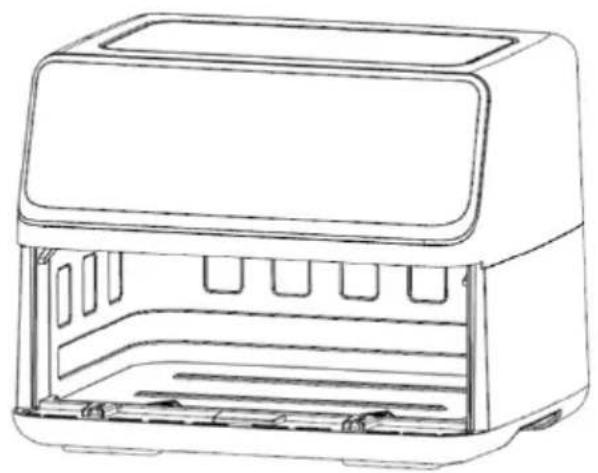

Pred prvo uporabo

Diagram showing a multi-step assembly of a toaster oven with labeled parts and directional arrows indicating steps 1, 2, and 3.

Slika 2

Technical line drawing of a mechanical housing assembly with three views and a base plate (no text or symbols)

Line drawing of a rectangular toaster oven with lid and front panel (no text or symbols)

Slika 2

Technical line drawing of a mechanical assembly with multiple blades and mounting brackets (no text or symbols)

Slika 3

Line drawing of a device with internal components and housing, showing exterior view (no text or symbols)

Slika 4

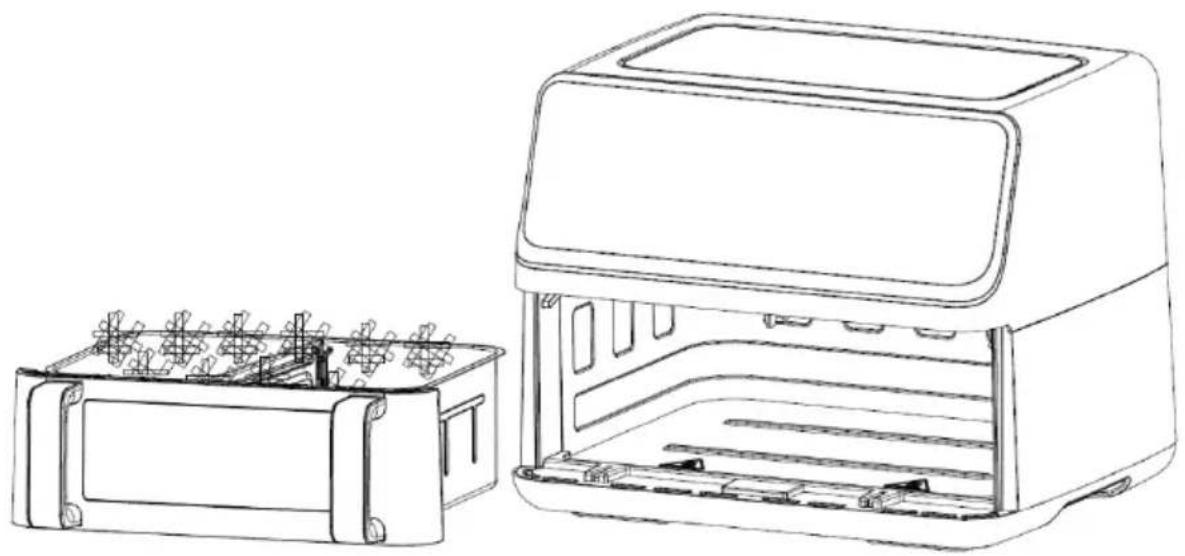

Prije prve uporabe

1. Uklonite svu ambalažu.
2. Uklonite sve naljepnice ili oznake s uređaja.
3. Temeljito očistite nosač i lonac toplom vodom, malo tekućine za pranje i neabrazivnom spužvom.
4. Obrišite unutrašnjost i vanjsku stranu uređaja vlažnom krpom.
   Ovo je friteza bez ulja koja radi na vrućem zraku. Nemojte puniti lonac uljem ili masnoćom za prženje.

Diagram showing a device assembly process with labeled steps 1, 2, and 3 for packaging or assembly.

Slika 3

Technical line drawing of a mechanical housing assembly with three views and a base plate (no text or symbols)

Line drawing of a toaster oven with front panel and side grilles (no text or symbols)

Slika 2

Line drawing of a mechanical assembly with multiple cross-shaped components and a person standing on top (no text or symbols)

Slika 3

Line drawing of a device with a rectangular housing and a multi-tiered base, showing internal components (no text or symbols)

Slika 4

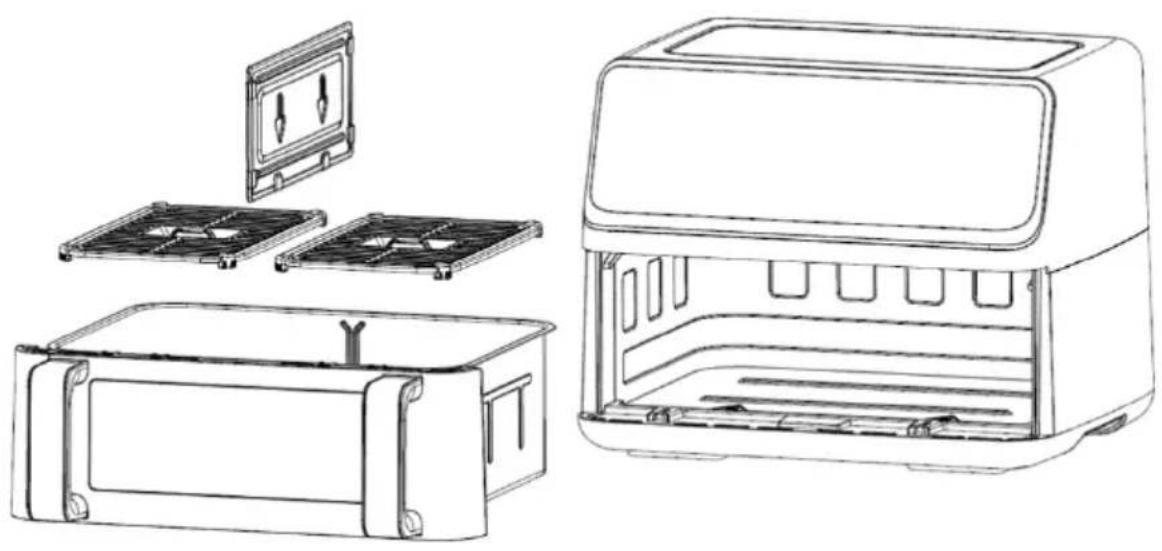

Pre prve upotrebe

1. Uklonite sav ambalažni materijal.
2. Uklonite sve nalepnice ili etikete sa uređaja.
3. Temeljito očistite rešetku i posudu toplom vodom sa malo deterdženta i neabrazivnim suđerom.
4. Obrišite unutrašnjost i spoljašnjost uređaja vlažnom krpom.
   Ovo je friteza za prženje bez ulja koja radi pomoću vrućeg vazduha. Nemojte sipati ulje ili mast direktno u posudu.

Diagram showing the assembly of a toaster oven with labeled parts and steps

Слика 4

Слика 2

Technical line drawing of a mechanical assembly with multiple cross-shaped components and mounting brackets (no text or symbols)

Слика 3

Line drawing of a microwave oven with internal compartments and a separate open base (no text or symbols)

Слика 4

Detailed Operation Instructions

1. Режим на стартување

Important safety instructions

Carefully read the instructions for use before using the appliance.

1. Save the instructions, certificate of warranty, proof of payment, and preferably the appliance packaging.
2. Do not immerse the housing with electric components and heating elements in liquid and do not rinse it under running water.
3. Prevent any ingress of water or other liquid into the appliance as this may cause electric shock.
4. Always place the food to be fried in the basket in order to avoid contact with the heating elements.
5. Do not cover the air inlets and outlets during appliance operation.
6. Do not fill the pan with oil as this may result in a risk of fire.
7. Do not touch any part of the appliance interior during operation.
8. Before connecting the appliance to the power mains, make sure the voltage indicated on the appliance matches the power mains voltage in your home.
9. Do not use the appliance if the plug, power cord, or any other component is damaged.
10. If the power cord is damaged, it may only be replaced by Gorenje, Gorenje authorized service and repair centre, or an adequately trained professional.
11. This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way and if they understand the hazards involved. Keep children under supervision while they use the appliance and make sure they do not play with it. Children should not perform any cleaning or maintenance tasks on the appliance, unless they are older than 8 years and do so under supervision.
12. Keep the power cord away from hot surfaces.
13. Do not plug the power cord to the power outlet, and do not use the appliance control panel if your hands are wet.
14. Only connect the appliance to a grounded power outlet. Make sure the power plug is inserted correctly into the power outlet.
15. This appliance cannot be controlled using an external timer or a separate remote control system.

16. Do not place the appliance on or close to a flammable material such as a tablecloth or curtains.

17. Do not place the appliance next to a wall or on top of other appliances. Make sure there is at least 10 cm of clearance behind, next to, and above the appliance. Do not place any objects on the appliance.

18. Only use the appliance for the purposes described in this manual.
19. Do not leave the appliance to operate unattended.
20. During hot air frying, hot steam is released through the air outlet vents. Take care not to come too close to the air outlet vents with your hands and face. Also be careful not to be scalded by steam when removing the pan from the appliance.
21. During operation, accessible surfaces of the appliance may become hot.
22. If there is dark smoke coming out of the appliance, immediately switch it off. Before removing the tray from the appliance, wait for the smoke to subside.
23. Place the appliance on a level flat and stable surface.
24. The appliance is intended solely for normal household use. It is not intended for use in environments such as kitchenettes at stores, offices, farms, or other working environments. It is also not intended to be used by guests in hotel rooms, motels, bed and breakfast establishments, and other establishments offering accommodation.
25. If the appliance is not used correctly or if it is used for professional or semi-professional purposes or in a way not in compliance with these instructions, the warranty shall be void and Gorenje shall not be responsible for any resulting damage.
26. For inspection or repair of the appliance, contact an authorized Gorenje service centre.
27. Do not attempt to repair the appliance yourself as this will void the warranty.
28. Always disconnect the appliance from the power mains after use.
29. Before holding or cleaning the appliance, wait for it to cool down for approximately 30 minutes.
30. Make sure the food cooked in the appliance is a golden colour, rather than dark or brown. Remove any residue of burnt food. Do not fry raw potatoes at a temperature above 180 °C (to reduce the formation of acrylamides).

This equipment is labelled in compliance with the European Directive 2012/19/EC on waste electric and electronic equipment – WEEE. The Directive specifies the requirements for collection and management of waste electric and electronic equipment effective in the entire European Union.

Automatic switch off

This appliance is fitted with a timer. When the time runs out, the appliance will beep and automatically switch off.

Before using the appliance for the first time

Remove all packaging material. If there are any labels or stickers on the appliance, remove them. Rinse the basket and the pan with hot water. Do not use abrasive or aggressive cleaners. Use a damp cloth to clean the interior and exterior of the appliance. Do not wash the pan and the basket in the dishwasher.

The appliance uses hot air for frying. Therefore, do not fill the pan with frying oil or grease!

Electrical connection:

The appliance may only be connected to a correctly fitted 220-240 V \~ 50-60 Hz, 16A power outlet.

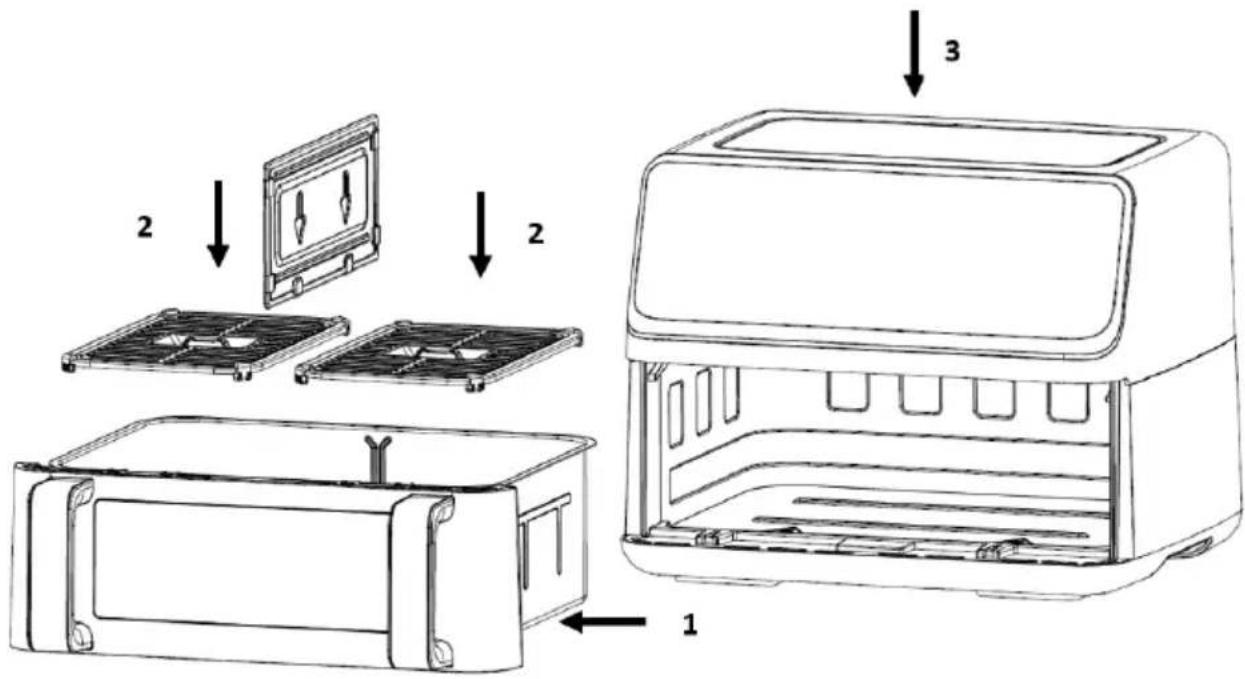

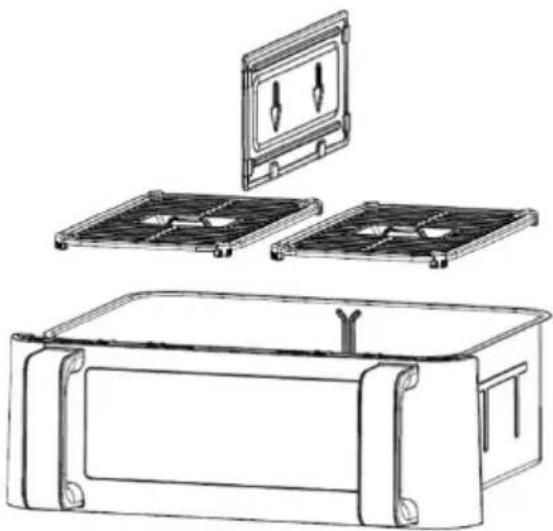

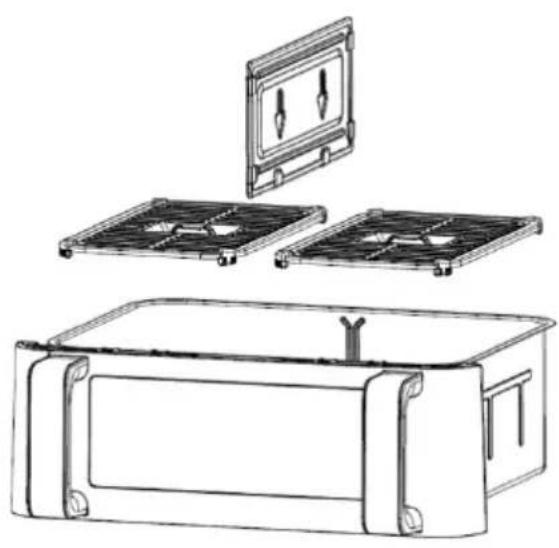

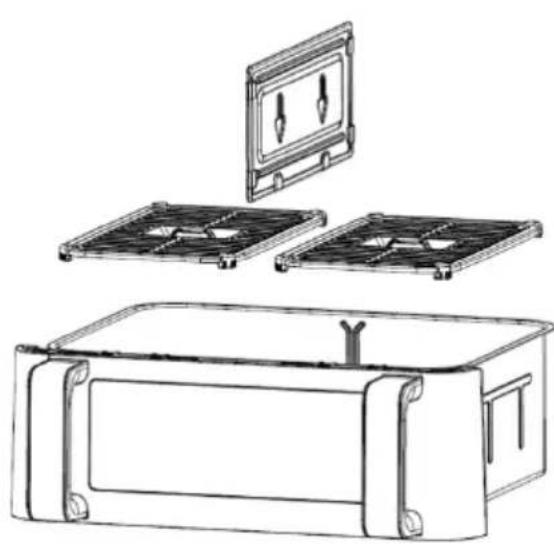

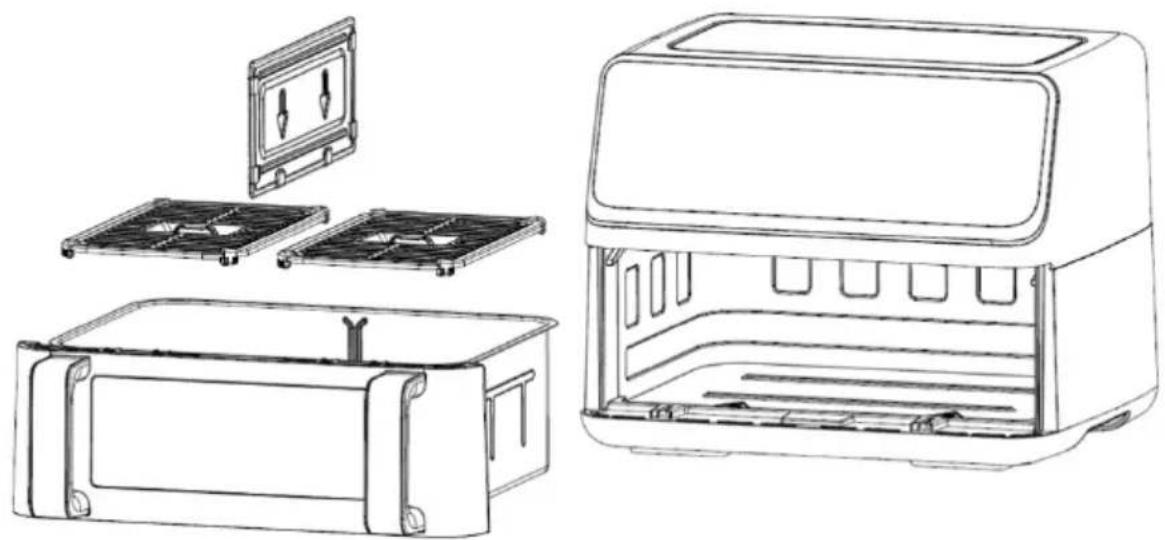

General description (Picture1)

1. F rying pot
2. F rying rack
3. Appliance

Diagram showing a multi-step assembly of a toaster oven with labeled parts and directional arrows indicating steps 1, 2, and 3.

Figure 5

Technical line drawing of a mechanical housing assembly with three mounting brackets and a base case (no text or symbols)

Line drawing of a toaster oven with front panel and side outlets (no text or symbols)

Figure 2

Technical line drawing of a mechanical assembly with mounting brackets and grid-like components (no text or symbols)

Figure 3

Line drawing of a device with a rectangular base and a multi-tiered open chamber (no text or symbols)

Figure 4

Before first use

1. Remove all packaging materials.
2. Remove any stickers or labels from the appliance.
3. Thoroughly clean the shelf and pot with hot water, some washing-up liquid, and a non-abrasive sponge.
4. Wipe the inside and outside of the appliance with a moist cloth.
   This is an oil-free fryer that works on hot air. Do not fill the pot with oil or frying fat directly.

Notice: When your air fryer is heated for the first time, it may emit slight smoke or odour. This is normal with many heating appliances. This does not affect the safety of your appliance.

Preparing the appliance for use

1. Place the appliance on a stable, horizontal and even surface.
   Do not place the appliance on non-heat-resistant surface.
2. Place the frying rack in the pot

Do not fill the pot with oil or any other liquid.

Do not put anything on top of the appliance as this could obstruct the airflow and affect the hot air frying result.

Using the appliance

1. Connect the mains plug into an earthed wall socket.

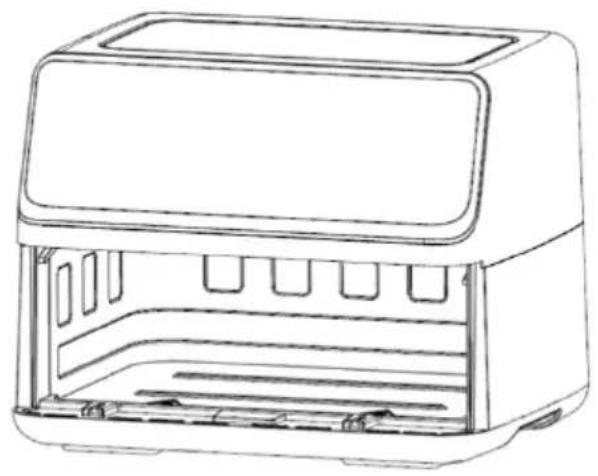

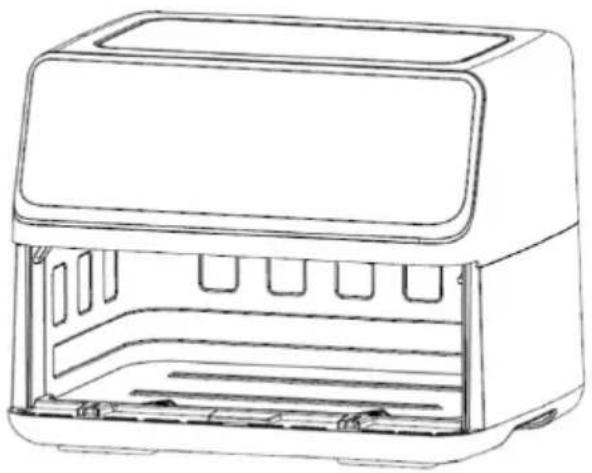

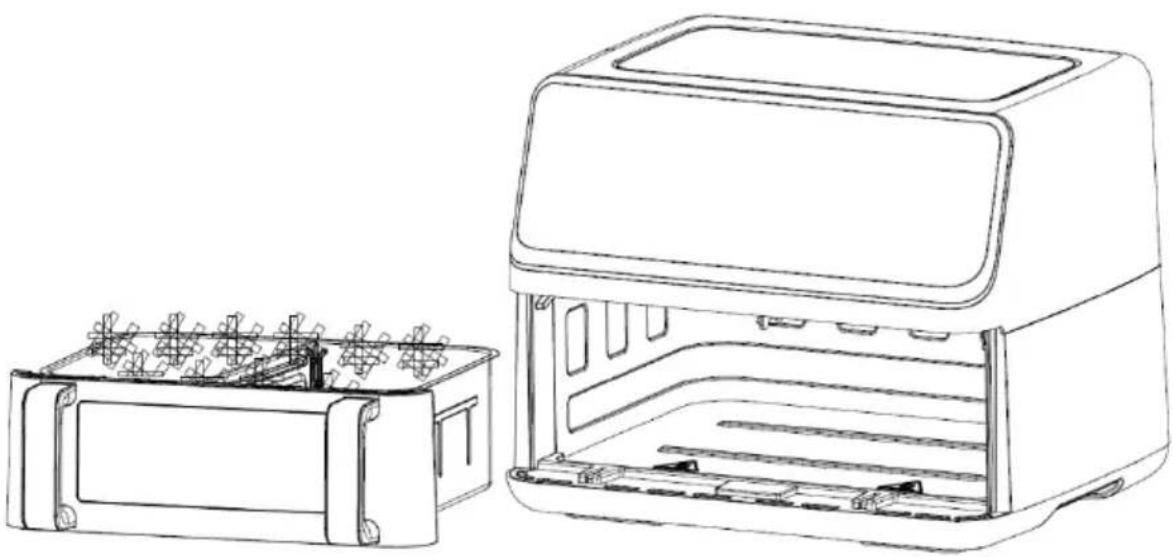

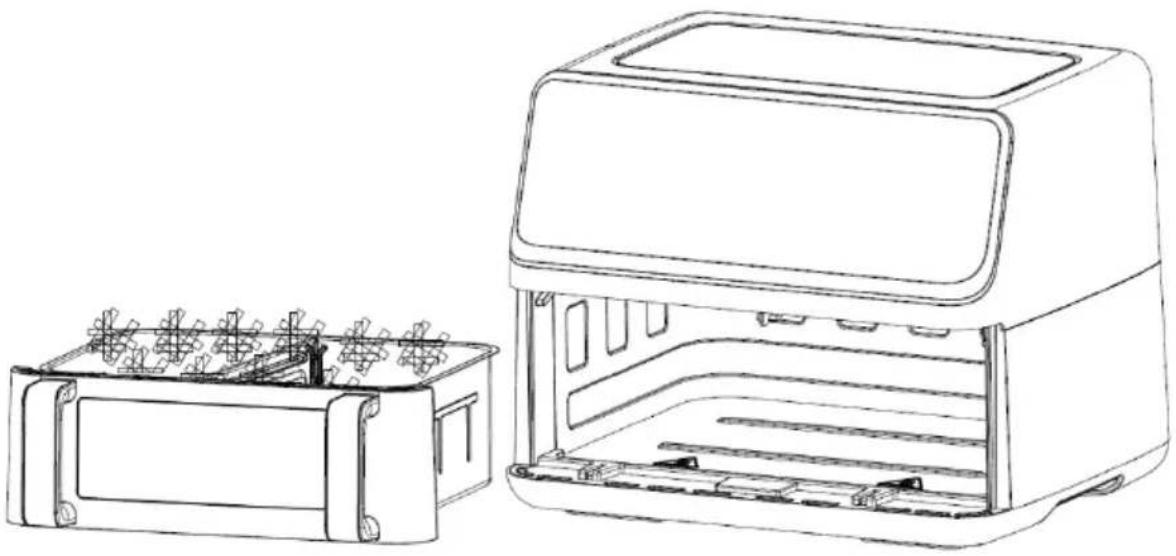

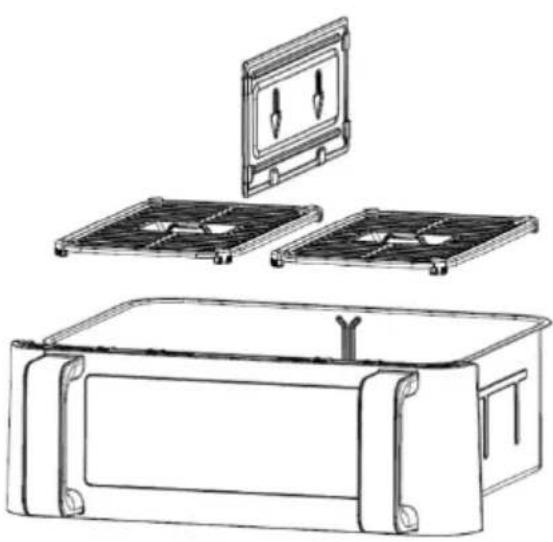

2. Carefully pull the pot out of the air fryer (Figure 2).

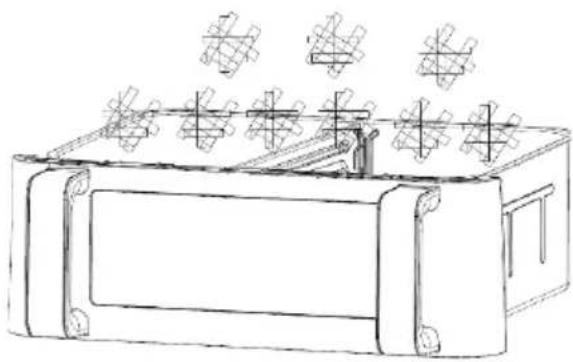

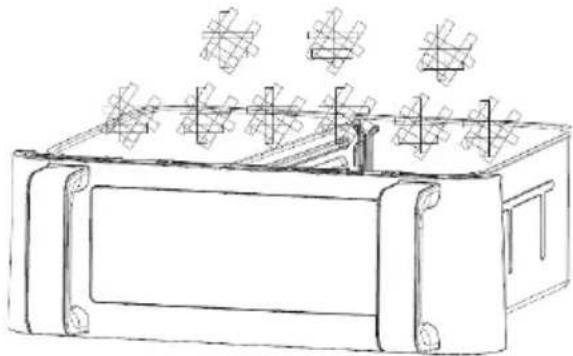

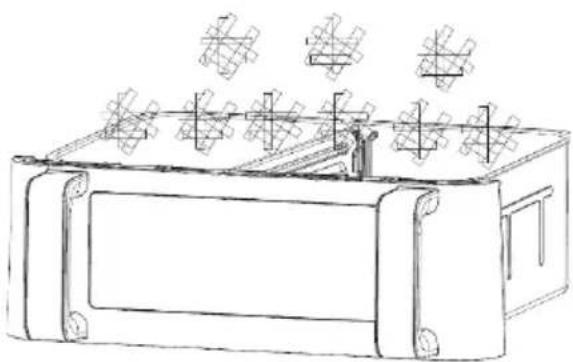

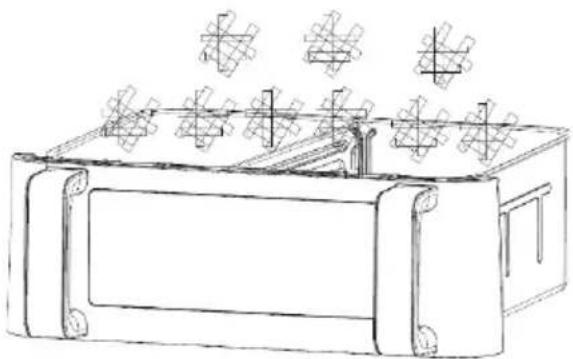

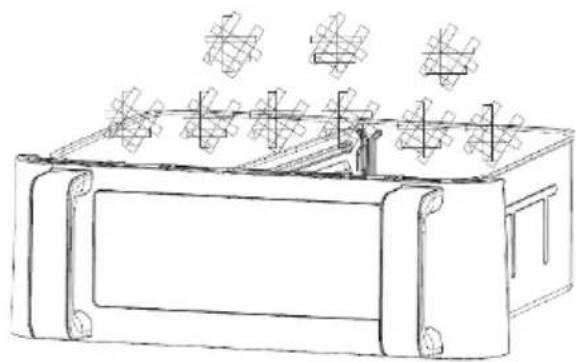

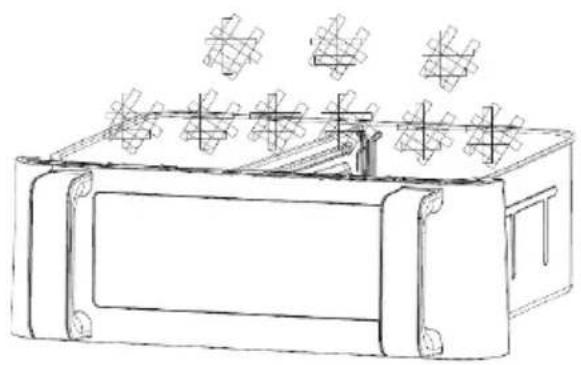

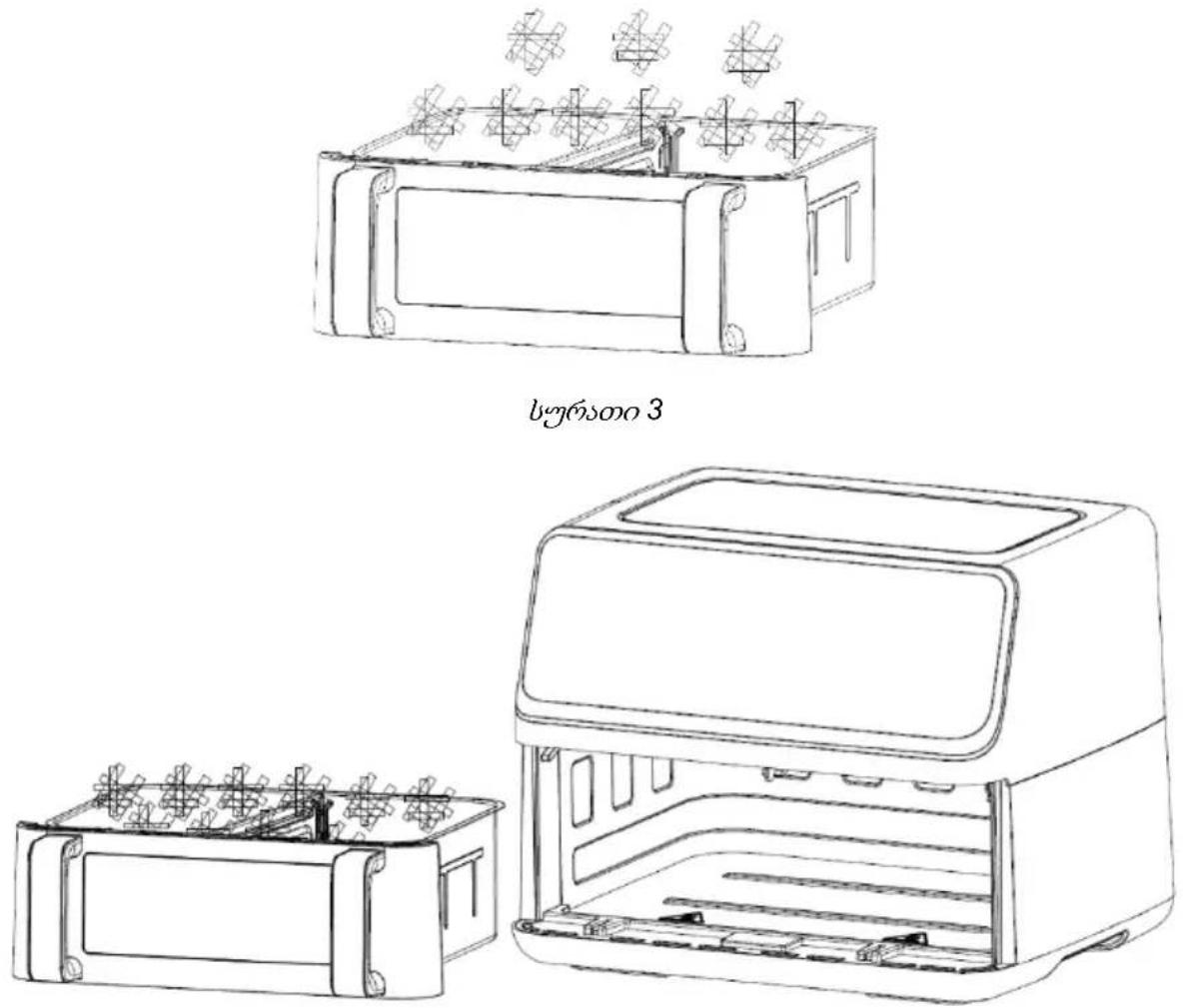

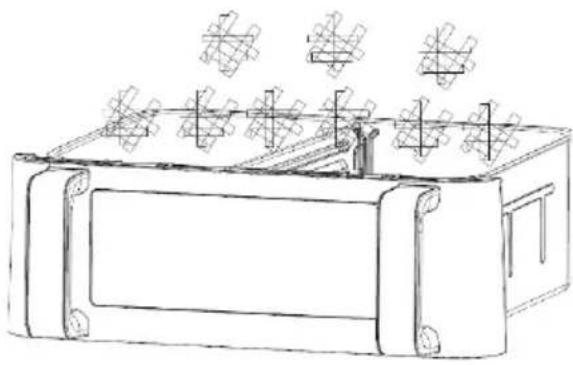

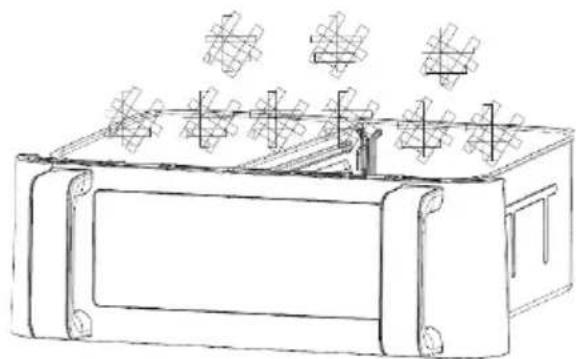

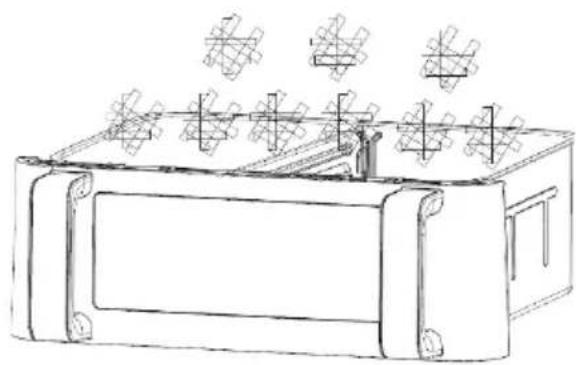

3. Put the ingredients in the pot. (Figure 3).

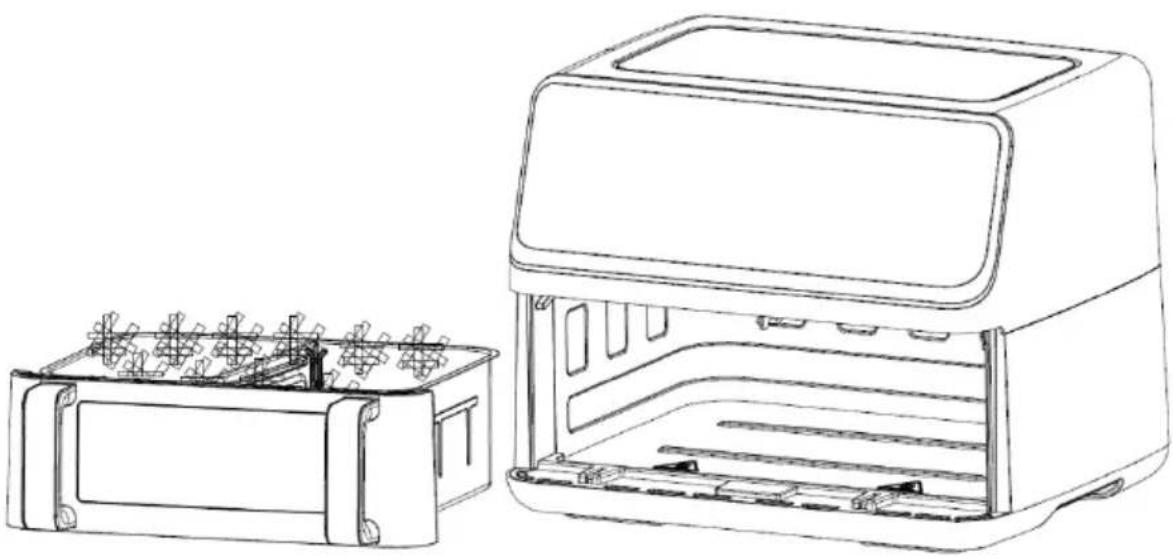

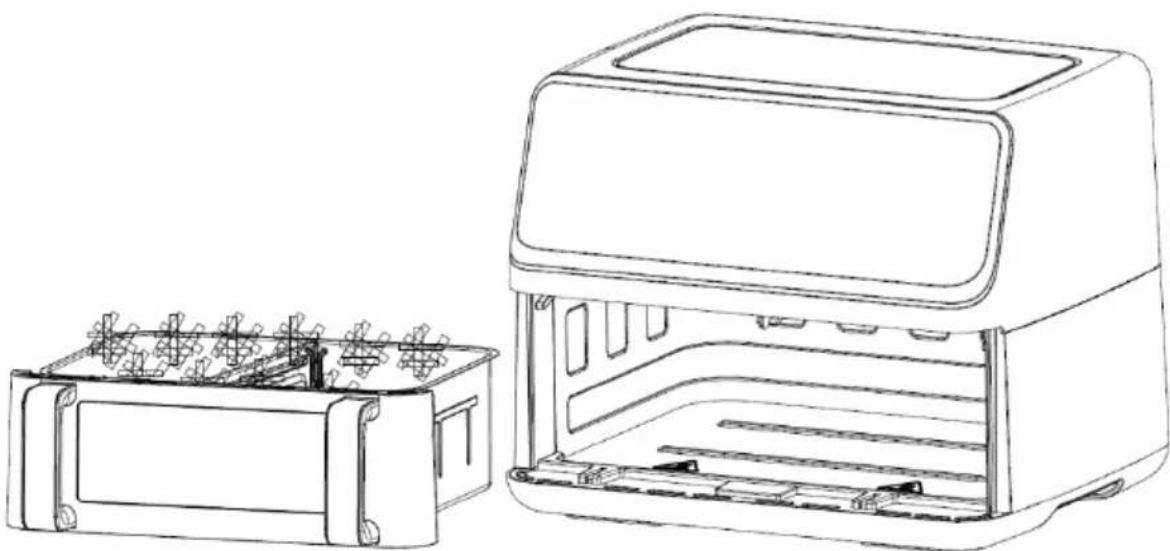

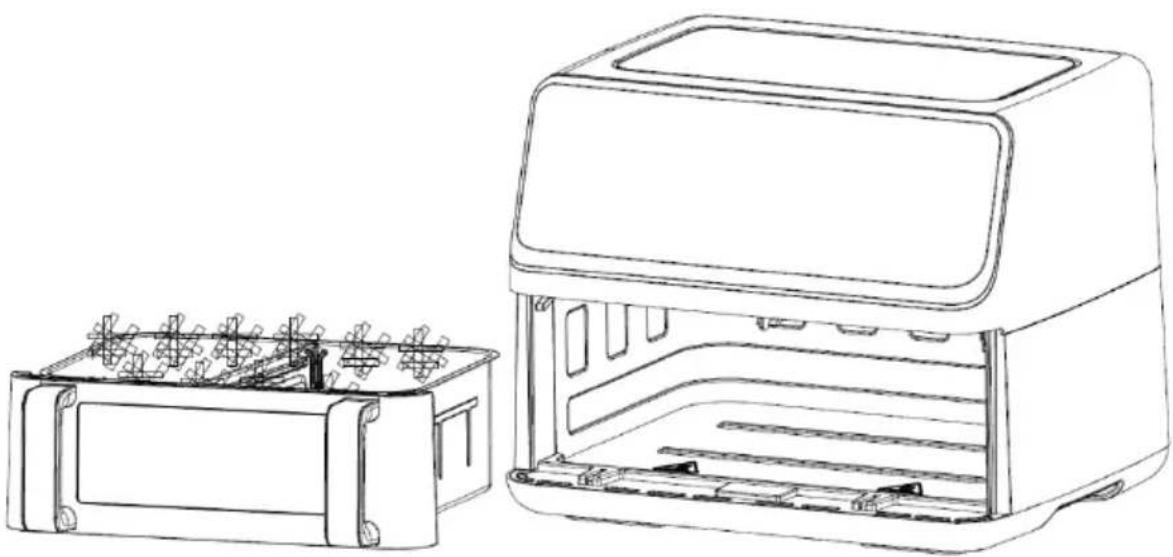

4. Slide the pot back into the air fryer (Figure 4).
   Never use the pot without the frying rack in it.

Caution: Do not touch the pot during and for some time after use as it gets very hot. Only hold the pot by the handle.

1. Determine the required preparation time for the ingredient (see section "Settings" in this chapter).

2. Some ingredients require shaking halfway through the preparation time (see section "Settings" in this chapter). To shake the ingredients, pull the pot out of the appliance by the handle and shake it. Then slide the pot back into the air fryer.

3. When you hear the buzzer, the set preparation time has elapsed. Pull the pot out of the appliance Note: Long press the power button for 2 seconds. Then, you can switch off the appliance manually.

Tip: You can adjust temperature or time according to your preference during use.

1. Check if the ingredients are ready.

If the ingredients are not ready yet, simply slide the pot back into the appliance and set the timer to a few extra minutes.

1. To remove ingredients (e.g., fries), pull the pot out of the air fryer and place it on a trivet.

Do not turn the pot upside down as any excess oil that has collected on the bottom of the pot will leak onto the ingredients.

The pot and the ingredients are hot. Depending on the type of the ingredients in the air fryer, steam may escape from the pot.

1. Use appropriate utensils for transferring food to a plate.
2. When a batch of ingredients is ready, the air fryer is instantly ready for preparing another batch.

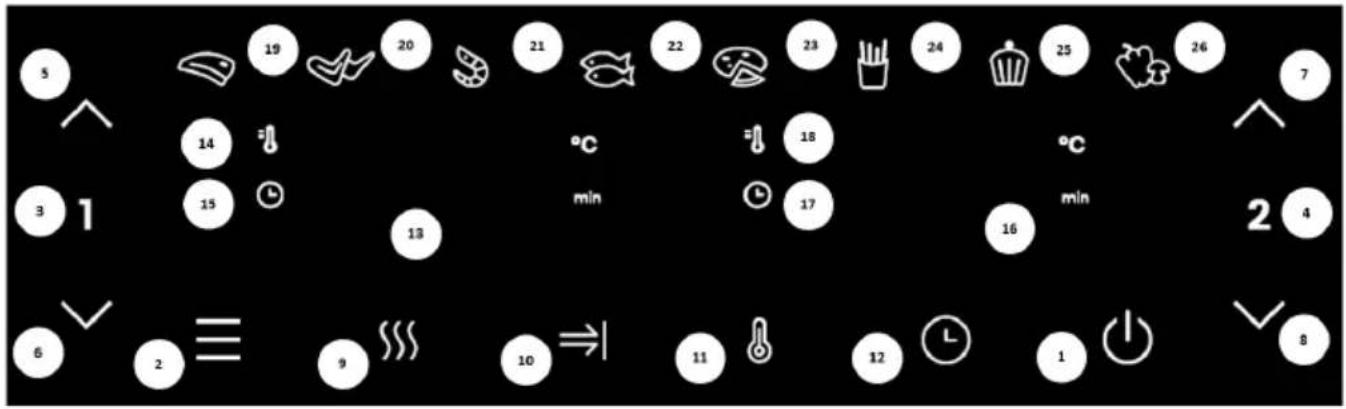

Control panel instruction

5 14 15 13 19 20 21 22 23 24 25 26 7 °C min 18 17 16 min 2 4 6 2 ≡ 9 10 ⇒| 11 12 1 8

Key 1 Power key

Once both pots are properly placed in the main housing, the Power light will be illuminated. Press the power key to put the appliance into standby mode, after you have selected the pot to be used. Press the Power key a second time to start the cooking process. Press the power key for 2 seconds to close the entire appliance during cooking. The motor will shut down at the same time.

Key 2 Preset key

Selecting the Preset key enables you to scroll through the 8 popular food choices (19-26). Once selected, the predetermined time and cooking temperature function begins.

Key 3 1 Left pot key

Touch the Left pot key, the icon of the function key of the left pot will light up and the menu will default to the first menu (steak). At this time, the steak indicator and the corresponding left pot digital display will flash and alternately display the default temperature and time of the steak programme. When the temperature is displayed, the temperature indicator on the upper left side of the display is always on. When the time is displayed, the time indicator on the lower left side of the display is always on. If you press the the Left pot key for 2 seconds, you can cancel the selection of the left pot and the product enters standby mode.

Key 4 Right pot key

Touch the Right pot key, the icon of the function key of the right pot will light up and the menu will default to the first menu (steak). At this time, the steak indicator and the corresponding right pot digital display will flash and alternately display the default temperature and time of the steak programme. When the temperature is displayed, the temperature indicator on the upper left side of the display is always on. When the time is displayed, the time indicator on the lower left side of the display is always on. If you press the Right pot key for 2 seconds, you can cancel the selection of the right pot and the product enters standby mode.

Key 5 and Key 6 - Temperature and time control keys for left pot key

The Key 5 and Key 6 symbols enable you to increase or decrease the cooking temperature by 5^ at a time for the left pot. Pressing and holding the key will rapidly change the set temperature. Temperature control range: 80^ - 200^ . You can also increase or decrease cooking time for the left pot by one minute at a time. Pressing and holding the key will rapidly change the set time. Time control range: 1 min-60 min.

Key 7 ▲ and Key 8 ▼ - Temperature and time control keys for right pot key

The Key 7 and Key 7 symbols enable you to increase or decrease the cooking temperature by 5 °C at a time for the right pot. Pressing and holding the key will rapidly change the set temperature.

Temperature control range: 80 °C – 200 °C. You can also increase or decrease cooking time for the right pot by one minute at a time. Pressing and holding the key will rapidly change the set time. Time control range: 1 min-60 min.

Key 9 🎨reheat key icon

Touch the Preheat key icon, press it, then select 1 or 2, and press ⏻ again to start the device. The default setting of the preheat function is 160 degrees and 3 minutes.

Key 10 ≈ simultaneous end key

Touch the Simultaneous end key; two recipes with different time settings can be ended at the same time.

Key 11 temperature selection key

Touch the Temperature selection key. You can adjust the temperature indicated on the display unit as needed.

Key 12 Time selection key

Touch the Time selection key. You can adjust the time indicated on the display unit as needed.

Indicator light "13" Display for the left pot
Indicator light "14" Temperature light for the left pot
Indicator light "15" Time light for the left pot
Indicator light "16" Display for the right pot
Indicator light "17" Temperature light for the right pot
Indicator light "18" Time light for the right pot
Indicator lights "19-26" Recipe indicator

Detailed Operation Instructions

1. Boot mode

Firstly, to ensure that the frying pan is correctly installed into the appliance, insert the plug into the socket. The appliance will turn on, beep once, all the lights will go on for one second and then go out again. The Power Icon will light up.

2. Standby mode

Touch the Power Icon. The Pot 1 Selection Icon and Pot 2 Selection Icon indicators will light up and stay on, the product is now in standby mode. When the unit is in standby mode and has not been operated within 5 mins, it will return to boot mode.

3. Single pot working mode (Bulkhead)

3.1. Touch the icon 1 or 2. The function indicator and the menu will turn on and stay on. The Steak indicator will flash, as this is the default menu, and the other indicators will also stay on. Meanwhile, the indicator of temperature and time will flash. If you press and hold the icon 1 for 2 sec, you can cancel the selection for the left pot. You do the same for the

right pot by pressing and holding the icon 2 if you cancel the selection of both pots by pressing the icons, the product enters standby mode.

3.2. Touch the Menu Choice Key Icon to select the menu you want to use according to what you are cooking or to adjust the temperature and time if needed. When adjusting temperature, every time you press the key, the temperature will change by 5 °C, and if you long press the " ▲" or " ▼" key, the temperature will increase or decrease continuously. For each menu, the adjustable temperature range is 80 °C-200 °C; Time adjustment: every time you press the key, the time changes by 1 min. The adjustable time range is 1 min-60 min.

3.3. After you have selected the correct recipe, temperature and time, touch the Power Key Icon. The pot 1 / 2 starts working, and the display shows the current cooking time, counting it down before it stops flashing. The selected recipe indicator will be lit continuously, other recipe indicators will be off.

3.4. If you need to adjust the temperature or time during the cooking process, press the Temp or Time Key Icon once, then press “▲” or “▼” Key Icon to adjust the temperature or time. During the adjustment process, the appliance will keep working.

3.5. If you need to reset the recipe during cooking, you need to lightly press the Menu Choice Key Icon once to pause cooking, the heater and the motor will stop working, and the recipe indicator and the display screen will flash. Adjust the recipe as required. At this time, you can also adjust the temperature and time.

3.6. Press the power key during cooking and the appliance will stop. If there is no operation, the appliance will automatically return to standby mode after 5 minutes.

3.7. If you need to turn off the appliance during cooking, press the power key for 2 seconds and the appliance will be turned off. The heating tube and the motor will stop working. The display screen will display the word "OFF" and the buzzer will beep.

3.8. After cooking, the screen will display the word "OFF" and the buzzer will promptly beep 5 times. The display screen turns off and the appliance returns to standby mode.

3.9. If, during cooking, you take out the frying basket, the display screen will show the word "OPEN" and the appliance will stop working. After you have re-inserted the frying basket, the appliance will resume its previous operation.

1. Double pot working mode (Bulkhead)

4.1. Starting the 2 pots

4.1.1. Firstly, select one side and set the recipe, temperature and time according to your needs. Secondly, select the other side and set the desired recipe, temperature and time in the same way.

4.1.2. When you press the Power Key Icon, the left and right pot will start working at the same time. The key and the indicator light of the left pot recipe will flash once every 6 seconds simultaneously, also the key and the indicator light of the right pot recipe will flashes once every 6 seconds simultaneously. The left and right pot displays will light up alternately in an about 3-second interval.

4.1.3. You can also start the left pot first by pressing the Power key after setting the parameter Pot 1 and then pressing 2 to set the parameter of the right pot. When the right pot is ready, press the Power key to start the right pot.

4.1.4. While working with both pots, press the Temp or Time Key Icon once and the recipe and temperature will be displayed alternately on the left and right display screen. 3 seconds after no operation the display will switch to time.

4.2. Changing a setting while working with both pots

4.2.1. When the left and right pot are working at the same time and you need to set the temperature or time for the left pot, press 1 and then set the temperature and time

as needed. The recipe can not be changed in this state. If there is no operation within 10 seconds after the setting, the display screen automatically returns to normal.

4.2.2. If you need to set the temperature or time of the right pot, refer to 4.2.1.

4.2.3. During the cooking process, the recipe and temperature/time can be adjusted by pressing 1 / 2 and the Power key. The left or right pot will enter pause mode. Press the Power key to resume cooking after changing your settings.

4.2.4. After the appliance has entered the pause mode, if there is no operation in 5 minutes, the pot will enter standby mode.

4.3. Turning off left or right pot

4.3.1. Press the 1 or 2 key first, and then long press the Power key for 2 seconds, the selected pot will stop working and return to standby mode.

4.4. Pulling out the basket

4.4.1. During cooking process, if the basket was pulled out, the display will show the symbol "OPEN". The side will stop working (both heating and motor will be stopped), and it will resume working with the previous setting when the basket is inserted back.

4.4.2. When the frying basket is pulled out in standby state, the display will show the symbol "OPEN". At this time, both pots cannot be operated at the same time.

4.5. Pausing the left and right pot

4.5.1. When cooking with both pots, press the Power key once, and the left and right pot will enter pause mode at the same time. Both screens and recipes will now be flashing. Press the Power key again, and the left and right pot will resume operation.

4.5.2. When left and right pot are paused at the same time and there is no operation within 5 minutes, both pots will stop working and return to standby mode.

4.5.3. When cooking with both pots, gently press the Power key once. The left and right pot will enter pause mode at the same time. If you need to adjust anything, first press 1 or 2 and then adjust the recipe, temperature and time according to your needs. Now press the Power key once to resume the simultaneous operation of the left and right pot.

4.5.4. When cooking with both pots, gently press the Power key once. The left and right pot will enter pause mode at the same time. Long press the Power key again for 2 seconds, and the left and right pot will stop working at the same time. The left and right screens will display "OFF", and the product will return to standby mode after a prompt beep.

4.6. Stopping the left and right pot

4.6.1. When cooking with both pots, long press the Power key for 2 seconds. The left and right pot will stop working at the same time, and the left and right screens will display "OFF". After a prompt beep, the appliance will enter standby mode.

4.6.2. There will be no operation of the left or right pot after the display time has ended, both heating and motor will be stopped, and the display screen will show "OFF". After the buzzer gives out 5 prompt beeps, the display screen will turn off and the appliance will return to standby mode.

4.6.3. If you want to turn off one pot, press 1 or 2 first and then long press the Power key for 2 seconds. The selected pot will stop working, and the corresponding display screen will show "OFF". After a prompt beep, it will return to standby mode. At this point, the appliance state changes to single pot working mode.

4.7. Simultaneous end function

4.7.1. This function is active only when two recipes with a different time setting are selected in the left and right pot mode. The indicator light will light up at the same time. When the function is active, the display is flashing.

4.7.2. After selecting the menu, press the Simultaneous End Key first, then press the Power key again. The appliance will begin to work. At this point, the pot with the longer cooking time is working, while the pot with the shorter cooking time is showing

the symbol "HOLD". When the extra time has passed, the second pot begins to work. The Simultaneous End Key normally stays on during this process.

4.7.3. During operation, if the time displayed on the "HOLD" side is longer than the time on the other side, exit the Simultaneous End mode. The Simultaneous End button indicator will turn off.

4.7.4. If you pull out a pot during operation, the timer will pause and the screen will show the symbol "OPEN". Insert the pot back into the appliance to continue with work.

4.7.5. During the simultaneous operation, if the operation of one pot is suspended and the other pot continues to work, exit the Simultaneous End function and the Simultaneous End Key indicator will turn off.

1. No Bulkhead MODE

5.1. When the food you are cooking is very large, do not use the middle partition. Select 1, select the menu, then select 2, select the same menu, and press the power button to start cooking with the appliance. For details, see Double pot working mode (Bulkhead).

5.2. Do not use the middle partition mode to roast a whole chicken. Choose any menu in the left pot and the right pot at the same time, adjust the temperature in the menu to 200 degrees Celsius, set the time, and press the power button to turn on the left and right heaters at the same time for cooking.

Notes:

1. Boot mode: when in this mode, only the Power Key Icon is illuminated.

2. Standby mode: the Power Key Icon, the Left Pot Key and the Right Pot Key are all illuminated.

3. Setting the unit when it is not working: the corresponding function key is always on, the selected recipe indicator is flashing, the other menu indicators are always on, the corresponding display is flashing alternately to show the temperature/time of the selected recipe. When adjusting the menu, the selected recipe is flashing, when setting the temperature, press the temperature key, the display is flashing to show the current temperature, press the time key to adjust the time, the display switches the current time and flashes. When the left and right pot is the selected state at the same time, the menu of the side that is not selected does not flash, the corresponding display alternately shows the temperature and time without flashing. During this process the heaters and motors are not working.

4. Making adjustments during cooking: the recipe does not flash. The screen flashes to display the temperature and time. You can adjust the temperature and time, but the recipe cannot be adjusted.
5. Single pot pause mode: the corresponding function key is steadily lit, and the menu indicator blinks when selected. The other menu indicators are steadily lit, and the corresponding display screen blinks,

indicating temperature/time. The corresponding 1 or 2 key blinks, and the menu, temperature and time can be adjusted at this time.

1. Left pot and right pot pause mode: the corresponding function key is steadily lit, the selected menu indicator blinks, the other menu indicator is steadily on, the display screen blinks, showing the

temperature/time, the corresponding 1 and 2 keys blink.

1. Working mode: the corresponding function key is steadily lit, the selected menu indicator is steadily lit, other menu indicators are off, and the corresponding screen displays the menu time.

2. When the left and right pot are working at the same time, the key indicator and the corresponding menu indicator of the 1 pot blink at the same time /3 seconds, and the extinguishing time < 0.5

seconds. After 3 seconds, the key indicator and the corresponding menu indicator of the 2 pot blink at the same time /6 seconds, with the extinguishing time < 0.5 seconds, the left and right indicators blink alternately, and the left and right interval time is 3 seconds.

1. Memory function: this appliance has a memory function. When the cooking is finished, the appliance does not power off. At next use, if you select the same pot as the last time, the appliance will directly display the menu that was used the last time. The memory function will disappear when the appliance is powered off for 1 hour. After at least 1 hour has passed, the initial state will be displayed when the

appliance is powered on again. Power off memory: if the appliance is in use, and the power is cut off accidentally, the machine will return to the working state before power off as long as it is re-energized within 30 minutes.

Settings

The table below will help you select the basic settings for the ingredients.

Note: Keep in mind that these settings are indicative only. As ingredients differ in origin, size, shape, and brand, we cannot guarantee the best settings for your ingredients.

Because the rapid air technology instantly reheats the air inside the appliance, briefly pulling the pot out of the appliance during hot air frying will barely disturb the process.

Tips:

1. Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
2. A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
3. Shaking smaller ingredients halfway through the preparation time optimizes the final result and can help prevent unevenly fried ingredients.
4. Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you have added the oil.
5. Do not prepare extremely greasy ingredients such as sausages in the air fryer.
6. Snacks that can be prepared in an oven can also be prepared in the air fryer.
7. The optimal amount for preparing crispy fries is 500 grams.
8. Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
9. Place a baking tin or oven dish in the air fryer pot if you want to bake a cake or quiche or if you want to fry delicate ingredients or dishes with filling or stuffing.

Menu	Reference weight (g)	Default temperature (°C)	Single pot time (min)	Temperature range (°C)	Time frame (min)	Shake
Steak	400	200	15	80-200	1-60	1-2
Chicken legs	600	200	30	80-200	1-60	1-2
Shrimp	600	190	10	80-200	1-60	1-2
Fish	500	180	25	80-200	1-60	1-2
Pizza	400	180	10	80-200	1-60	--
Fries	450	200	25	80-200	1-60	1-2
Baking	400	180	12	80-200	1-60	--
Vegetables	300	170	20	80-200	1-60	1-2

Note 1: Add 3 minutes to the preparation time when you start frying while the air fryer is still cold. Note 2: You can adjust the temperature or time according to the actual cooking effect when using two cooking pots at the same time.

Cleaning

Clean the appliance after every use.

Do not use metal kitchen utensils or abrasive cleaning materials to clean the pot and the frying rack as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the pot to let the air fryer cool down more quickly.

1. Wipe the outside of the appliance with a moist cloth.

2. Clean the pots with hot water, some washing-up liquid, and a non-abrasive sponge.

You can use degreasing liquid to remove any remaining dirt.

Tip: If dirt is stuck to the shelf (rack) or the bottom of the pot, fill the pot with hot water and some washing-up liquid. Put the frying rack in the pot and let the pot and the frying rack soak for approximately 10 minutes.

1. Clean the inside of the appliance with hot water and a non-abrasive sponge.
2. Clean the heating element with a cleaning brush to remove any food residues.

Troubleshooting

Problem	Possible cause	Solution
The appliance does not operate.	The appliance is not connected to the power mains.	Connect the power cord plug to a grounded power outlet.
The ingredients fried with the air fryer are not done.	Excessive amount of ingredients or ingredients are too large.	Fill the pot with suggested amount of ingredients (of recommended size).
	The temperature is too low.	Adjust the temperature accordingly.
	The appliance was not pre-heated.	Set the time to required preparation time .
The ingredients are fried unevenly.	Certain types of ingredients need to be shaken halfway when cooking.	Ingredients that lie on top of or across each other (e.g., fries) need to be shaken halfway through the preparation time.
Fried snacks are not crispy when they come out of the air fryer.	Used the type of snacks intended for preparation in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
Cannot slide the pan into the appliance properly.	Too much ingredients in the pot.	Do not fill the pan beyond the MAX indication.
	The pot is not placed in the pot correctly.	Push the pot down into the appliance until you hear a click.
White smoke comes out of the appliance.	Cooking greasy ingredients.	When cooking greasy ingredients, a large amount of oil will leak into the pot. The oil produces white smoke, and the pot may heat up more than usual. This does not affect the appliance or the final result.
	The pot was not cleaned after the last cooking.	White smoke is caused by grease heating up in the pan. Make sure you clean the pan properly after each use.
Fresh fries are fried unevenly.	Did not use the right potato type.	Use fresh potatoes and make sure they stay firm during cooking.
	Did not rinse the potato sticks properly before cooking.	Rinse the potato sticks properly to remove starch from the outside of thesticks.
Fresh fries are not crispy.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly.
		Cut the potato sticks smaller for a crispier result.
		Brush some oil for a crispier result.

ENVIRONMENT

At the end of the appliance's useful life, do not discard it with common household waste. Take is to an authorized recycling centre. This will help preserve the environment.

WARRANTY AND REPAIR

For more information or in case of problems, please contact Gorenje Call Centre in your country (phone number listed in the International Warranty Sheet). If there is no such centre in your country, please contact the local Gorenje dealer or Gorenje's small domestic appliance department.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE.

We reserve the right to modifications.

Diagram showing a multi-step assembly of a toaster oven with labeled parts and directional arrows indicating steps 1, 2, and 3.

Figura 6

Technical line drawing of a mechanical housing assembly with three views and a base plate (no text or symbols)

Line drawing of a rectangular toaster oven with lid and front panel (no text or symbols)

Figura 2

Line drawing of a mechanical device with multiple blades and mounting brackets (no text or symbols)

Figura 3

Line drawing of a microwave oven with internal compartments and a separate open base (no text or symbols)

Figura 4

Detailed Operation Instructions

1. Modul Boot (Initializare)

Diagram showing a multi-step assembly of a device into a rack, with numbered steps indicating each step.

1. ábra

Technical line drawing of a mechanical housing with three components and mounting brackets (no text or symbols)

Line drawing of a toaster oven with open door and side grilles (no text or symbols)

1. ábra


Technical line drawing of a mechanical assembly with mounting brackets and grid-like components (no text or symbols)

1. ábra

Line drawing of a device with a rectangular housing and an open top enclosure, showing internal components (no text or symbols)

4.ábra

Detailed Operation Instructions

Diagram showing a device assembly process with labeled steps 1, 2, and 3 for packaging or assembly.

Фигура 8

Technical line drawing of a mechanical housing with three mounting brackets and a separate panel assembly (no text or symbols)

Line drawing of a toaster oven with lid and side outlets (no text or symbols)

Фигура 2

Line drawing of a mechanical device with multiple cross-shaped components and mounting brackets (no text or symbols)

Фигура 3

Line drawing of a device with a rectangular housing and a multi-tiered open base (no text or symbols)

Фигура 4

Detailed Operation Instructions

Diagram showing a multi-step assembly of a toaster oven with labeled parts and directional arrows indicating steps 1, 2, and 3.

Puc. 9

Technical line drawing of a mechanical housing with three views and mounting brackets (no text or symbols)

Line drawing of a toaster oven with front panel and side grilles (no text or symbols)

Puc. 2

Line drawing of a mechanical assembly with multiple cross-shaped components and a worker on top (no text or symbols)

Puc. 3

Line drawing of a device with a rectangular base and a multi-tiered open chamber (no text or symbols)

Puc. 4

Diagram showing a device's internal components and assembly steps, labeled with numbers 1, 2, and 3.

Obrázok 10

Technical line drawing of a mechanical device with three labeled components and a separate open box (no text or symbols)

Line drawing of a toaster oven with front panel and side grilles (no text or symbols)

Obrázok 2

Line drawing of a mechanical device with multiple blades and mounting brackets (no text or symbols)

Obrázok 3

Line drawing of a device with a rectangular base and a multi-tiered open chamber (no text or symbols)

Obrázok 4

Pred prvým použitím

Detailed Operation Instructions

1. Režim bootovania

Diagram showing assembly steps of a toaster oven with labeled components and directional arrows

Obrázek 11

Technical line drawing of a mechanical housing assembly with three mounting brackets and a rectangular base (no text or symbols)

Line drawing of a rectangular oven with lid and side grilles (no text or symbols)

Obrázek 2

Technical line drawing of a mechanical assembly with mounting brackets and grid-like components (no text or symbols)

Obrázek 3

Line drawing of a device with a rectangular base and a multi-tiered open chamber (no text or symbols)

Obrázek 4

Detailed Operation Instructions

1. Režim spouštění

Diagram showing a multi-step assembly of a device into a closed storage unit, with numbered annotations indicating steps 1, 2, and 3.

Rysunek 12

Technical line drawing of a mechanical housing assembly with three views and a base plate (no text or symbols)

Line drawing of a toaster oven with front panel and side grilles (no text or symbols)

Rysunek 2

Technical line drawing of a mechanical assembly with no visible text or symbols

Rysunek 3

Line drawing of a microwave oven with internal compartments and a separate housing (no text or symbols)

Rysunek 4

Detailed Operation Instructions

1. Tryb rozruchu

Diagram showing the assembly of a toaster oven with labeled parts and steps

Puc. 13

Technical line drawing of a mechanical housing with three views and a base plate (no text or symbols)

Line drawing of a toaster oven with front panel and side grilles (no text or symbols)

Puc. 2

Line drawing of a mechanical assembly with multiple cross-shaped components and a central worker (no text or symbols)

Puc. 3

Line drawing of a device with a rectangular housing and a closed lid, showing internal components (no text or symbols)

Puc. 4

Detailed Operation Instructions

1. Режим загрузки

Diagram showing assembly steps of a toaster oven with labeled components and directional arrows

Figura 14

Technical line drawing of a mechanical housing with three panel designs and a base case (no text or symbols)

Line drawing of a toaster oven with open door and side grilles (no text or symbols)

Figura 2

Technical line drawing of a mechanical assembly with multiple components and mounting holes (no text or symbols)

Figura 3

Line drawing of a device with a front panel and internal components, no text or symbols present

Figura 4

Technical diagram showing assembly steps of a device with labeled components and component details

Schéma 2

Technical line drawing of a mechanical assembly with multiple cross-shaped components and a central rod (no text or symbols)

Schéma 3

Line drawing of a microwave oven and its internal structure, showing front and side views (no text or symbols)

Schéma 4

Diagram showing the assembly of a toaster oven with labeled parts and steps

Abbildung 16

Technical line drawing of a mechanical housing with three mounting brackets and a separate panel assembly (no text or symbols)

Line drawing of a rectangular toaster oven with lid and side grilles (no text or symbols)

Abbildung 2

Line drawing of a mechanical assembly with multiple cross-shaped components and mounting brackets (no text or symbols)

Abbildung 3

Line drawing of a microwave oven with internal compartments and a separate open base (no text or symbols)

Abbildung 4

s30mds8y6no 8sdm6n3s

gù dnhymdōqnmòs sghyīnzhōmòs gāodgāmò. qhēmòu zhuīzīmòu āydāqggā dnhymdōqnmòs bāmzhō būgbsāmì yāsdmbgādī qas sghīmdāsghīnq gāsdmośmzhòs.

m o m o b m g m o q m y g s q g

Diagram showing assembly steps of a portable appliance with labeled parts and directional arrows

Lugmoo 17

Line drawing of a microwave oven with open lid, showing internal components and mounting base (no text or symbols)

Lugmoo 2

3.9. Money is just enough to make money from the government, which is not a money source, and is not a money source. The government has an open access to the government.

4.2. 3s6s3g06n5 3g33ns m6039 f3s8msb deq3smd0bsb

bsm3g6g8ou smdmgb3ms

zǒu yǒng zhōn, lǒu dǎn zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng zhōng

B3B 30Bm3Dm B3CmOgDgDol DgSbO GmGdsl.
