USER MANUAL AL5 NOCO

User Guide & Warranty

READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING THIS PRODUCT. Failure to follow these safety instructions may result in ELECTRICAL SHOCK, EXPLOSION, FIRE, which may result in a SERIOUS INJURY, DEATH, or PROPERTY DAMAGE.

Electrical Shock. The Product is an electrical device that can shock and cause serious injury. Do not cut power cords. Do not submerge in water.

Explosion. Unmonitored, incompatible, or damaged batteries can explode if used with Product. Do not leave Product unattended while in use. Operate Product in well ventilated areas.

Fire. The Product is an electrical device that emits heat and is capable of causing burns. Do not cover Product or place objects on top of the Product. Do not smoke or use any source of electrical spark or fire when operating the Product. Keep the Product away from combustible materials.

Eye Injury. Wear eye protection when operating Product. Batteries can explode and cause flying debris. Battery acid can cause eye and skin irritation. In the case of contamination of eyes or skin, flush affected area with running clean water and contact poison control immediately.

Hot Surface. The Product may become hot while in use and is capable of causing burns. Wait for the Product to cool down before handling.

For operating instructions and support visit:

www.no.co/support

Important Safety Warnings

CAUTION:

Risk of fire, explosion, and burns. Do not disassemble, crush, heat above 45^ C ( 113^ F) or incinerate. This Product is intended for temporary use outdoors and reasonable care should be exercised when using this Product in wet conditions.

WARNING:

Do not overcharge the internal battery. See Instruction Manual. Do not smoke, strike a match, or cause a spark in the vicinity of the power pack. Only charge the internal battery in a well ventilated area when not in use.

CAUTION:

Risk of Injury To Persons. This Product is not intended for use in a commercial repair facility. This Product is intended to be stored indoors when not in use. This Product shall not be stored or left outdoors when not in use.

Proposition 65. ▲ WARNING: This Product can expose you to chemicals including lead and exhaust fumes, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Personal Precaution. Only use the Product as intended. In case of an emergency, have someone nearby while using this Product. This Product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the Product by a person responsible for their safety. Minors. If the Product is intended by Purchaser to be used by a minor, the purchasing adult agrees to provide detailed instructions and warnings to any minor before use. The Purchaser agrees to indemnify NOCO for any unintended use or misuse by a minor. Children should be supervised to ensure that they do not play with the Product. Choking Hazard. Accessories for the Product may present a choking hazard to children. Do not leave children unattended with the Product or any accessory. The Product is not a toy. Handling. Handle Product with care. The Product can become damaged if impacted. Do not use a damaged Product, including, but not limited to, cracks to the casing or damaged cables. Humidity and liquids may damage Product. Do not handle Product or any electrical components near any liquid. Store and operate Product in dry locations. Do not operate Product if it becomes wet. If Product is already operating and becomes wet, disconnect it and discontinue use immediately. Do not disconnect the Product by pulling on the charging cable. Modifications. Do not attempt to alter, modify, or repair any part of the Product. Disassembling the Product may cause injury, death, or damage to property. If the Product becomes damaged, malfunctions or comes in contact with any liquid, discontinue use, and contact NOCO. Any modifications to the Product void your warranty. WARNING: Changes or modifications to the Product not expressly approved by the party responsible for compliance could void the user's authority to operate the Product. Accessories. This Product is only approved for use with NOCO accessories. NOCO is not responsible for user safety or damage when using accessories not approved by NOCO. Location. Do not operate the Product in a closed-in area or an area with restricted ventilation. Operating Temperature. The operating temperature range is 14°F to 113°F (-10°C to 45°C). Do not operate outside of the recommended temperature ranges. The recommended charging temperature is 32°F to 113°F (0°C to 45°C). Storage. The recommended storage temperature range is 14°F to 113°F (-10°C to 45°C). Never exceed 113°F (45°C) under any circumstances. Store at 77°F (25°C) for optimal longevity. Do not store outdoors. Store in a dry location indoors or inside the vehicle. Wrap hose and disconnect charging cable for protection during storage. Ventilation. It is crucial to minimize temperature extremes or restricting airflow to the Product. A minimum of 0.50 inch (12.7mm) of space should be kept around the Product to allow

for adequate airflow. Connections. Make sure all connections to the Product are secure. Loose connections may cause reduced performance or cause air to leak, and increased heat due to resistance that may cause the melting of the enclosure or potentially a fire. The Battery. The built-in lithium-ion battery in the Product should be replaced only by NOCO, and must be recycled or disposed of separately from household waste. Do not attempt to replace the battery yourself and do not handle a damaged or leaking lithium-ion battery. Never dispose of battery in household trash. Disposal of batteries in household trash is unlawful under state and federal environmental laws and regulations. Always take used batteries to your local battery recycling center. If the Product battery is excessively hot, emitting an odor, deformed, cut, or is experiencing or demonstrating an abnormal occurrence, immediately stop all use and contact NOCO. Medical Devices. Product contains magnetic components that may emit electromagnetic fields, which may interfere with pacemakers, defibrillators, or other medical devices. Consult with your physician before use if you have any medical device. If you suspect the Product is interfering with a medical device, stop using the Product immediately, and consult your physician. Medical Conditions. If you have any medical condition that you believe could be affected by the Product, including but not limited to; seizures, blackouts, eyestrain or headaches, consult your physician prior to use of the Product. The use of an integrated high-powered flashlight contains a light sensitivity hazard. Light. Staring directly into the light beam or shine of the flashlight may result in permanent eye injury. The Product is equipped with a high output LED pre-focused lamp that emits a powerful beam at the highest setting. Cleaning. Power "OFF" the Product before attempting any maintenance or cleaning. Clean and dry Product immediately if it comes in contact with liquid or any type of contaminant. Use a soft, lint-free (microfiber) cloth. Avoid getting moisture in openings. Do not use a pressure washer to clean the Product. Explosive Atmospheres. Obey all signs and instructions. Do not operate the Product in any area with a potentially explosive atmosphere, including fueling areas or areas which contain chemicals or particles such as grain, dust, or metal powders. High-Consequence Activities. Do not use the Product where the failure of the Product could lead to injury, death, or severe environmental damage. Radio Frequency Interference. This Product complies with regulations governing radio frequency emissions. Such emissions from the Product may negatively affect the operation of other electronic equipment, possibly causing them to malfunction. Model Number AL5: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This Product has been tested and found to comply with the limits for a Class B digital Product, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This Product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this Product does cause harmful interference to radio or television reception, which can be determined by turning the Product "OFF" and "ON", the user is encouraged to try to correct the interference by one or more of the following measures: (a) Reorient or relocate the receiving antenna. (b) Increase the separation between the Product and receiver. (c) Connect the Product into an outlet on a circuit different from that to which the receiver is connected. (d) Consult the dealer or an experienced radio/ TV technician for help.

How To Use

How To Charge.

The AL5 comes partially charged out of the box and needs to be fully charged prior to use. Connect the AL5 using the included USB-C Charge Cable to the USB-C IN/OUT port. It can be recharged from any compatible USB Power Delivery source, like an AC adapter, car charger, laptop and more. The USB-C IN/OUT port utilizes Power Delivery technology capable of receiving/delivering up to 30W. The time to recharge a AL5 will differ based on the discharge level and the power source used. Actual results may vary due to battery and environmental conditions. When recharging, the charge level of the internal battery is indicated by the charge LEDs. The LEDs will slowly pulse "ON" and "OFF" and become solid until all four charge LEDs are "ON". When the battery is fully charged, the green 100% LED will be solid, and the 25%, 50% and 75% charge LEDs will turn "OFF". From time to time, the green 100% LED will pulse indicating maintenance charging is occurring.

Fast Charge.

The AL5 is equipped with fast charging technology that allows it to be recharged at a rate of up to 30W. A compatible charger, capable of 30W USB-C Power Delivery, is required to fully utilize this feature.

Power Source.

The USB in/out port is USB-C Power Delivery Dual Role Protocol (DRP), enabling it to power other USB devices. When charging USB devices, it's important to turn "ON" the AL5 Product before connecting the device to be charged.

If the AL5 Product is not turned "ON" first, it might draw power from the USB device. To charge the AL5 using a DRP-compatible device (such as a phone, laptop, or power bank), make sure the AL5 is powered "OFF" before connecting the cable between the AL5 and the DRP device.

How To Inflate.

Connecting The Air Hose.

Connect the air hose on the AL5 to the tire before starting inflation. The air hose will screw onto the tire's air valve. No tools are necessary and should be hand tightened. If the inflator is not connected properly the air may leak and will not run as efficiently. For other applications, attach the required adapter for the intended purpose. Adapters screw to end of the air hose. Hand tighten the adapters, no tools are required for tightening.

Recharge Time: Charger Rating:

1.5h	30W
2.5h	10W

Internal Battery Level

		Hardware Purpose
		Presta Valve Adapter Bicycle Tires
		Plastic Inflatable Nozzle Toys, Air beds
		Inflating Needle Sports Balls
		Quick Connect Adapter Quick Connection

Initialization.

Turn the Product "ON" by pressing the Power Button, if more than 3 PSI is detected, then the detected pressure will be displayed with the "SET" LED being "OFF".

Tire Inflation.

1.) Change the Set Pressure to desired tire pressure level by pressing the "▲" or "▼" Buttons.
2.) Hold both "▲" and "▼" Buttons together at anytime to change the unit of pressure displayed (BAR, KPA, PSI).
3.) Press the Air Button to begin tire inflation.
4.) Inflation will continue until the Set Pressure has been reached.

Setting Pressure Unit.

To change the units for pressure, hold the "▲" and "▼" buttons down simultaneously for 3 seconds. The selected pressure units will flash and the rest of the display will turn "OFF".

Pressing the "▲" or "▼" buttons within the next 3 seconds will turn "ON" the LED of the next pressure unit and turn "OFF" the previous unit LED. This operation will continue until nothing is pressed for 3 seconds. The selected pressure unit will be solid white and the display will turn back "ON".

Air Hose Positioning.

The AL5 does not need to be positioned on a surface to function properly.

Auto-Memory.

The AL5 has built in Auto-Memory and will return to the last used pressure unit and Set Pressure when connected.

Display.

The Display will turn "ON" when the Power Button is pressed. When the Display is in Pressure Set Mode and the Air Button is pressed, the compressor will turn "ON" and will display the actual pressure and the "SET" LED will turn "OFF". When the compressor is "ON", the current pressure unit LED will be solid white.

Automatic Shut-Off.

The AL5 is built with an Automatic Shut-off feature. The compressor will turn "OFF" when the desired pressure has been reached, or if the battery is fully drained. The Display will remain "ON" after the Automatic Shut-off. Automatic Shut-off will not occur in Manual Air Mode unless the maximum rated pressure of the Product has been reached.

Manual Air Mode.

To enter Manual Air Mode, set the pressure to 0.0. Press the Air Button to turn "ON" the compressor and the compressor will run until the Air Button is pressed again (or maximum pressure limit of the Product is reached or an error has occurred such as overtemperature, etc.). During Manual Air Mode the display will cycle LEDs. When Manual Air Mode is shut "OFF", the display will show the current pressure.

CAUTION.

USE MANUAL AIR MODE WITH EXTREME CARE. AUTOMATIC SHUT-OFF WILL ONLY OCCUR IN MANUAL AIR MODE IF THE MAXIMUM PRESSURE OF THE PRODUCT IS REACHED OR IF AN ERROR STATE OCCURS. MANUAL AIR MODE MUST BE TURNED "OFF" MANUALLY BY PRESSING THE AIR BUTTON AGAIN.

Power Conservation.

The AL5 will turn "OFF" after 10 minutes if it is in its normal state and is unused. While operating the flashlight with no other modes selected, the AL5 will turn "OFF" after 2 hours.

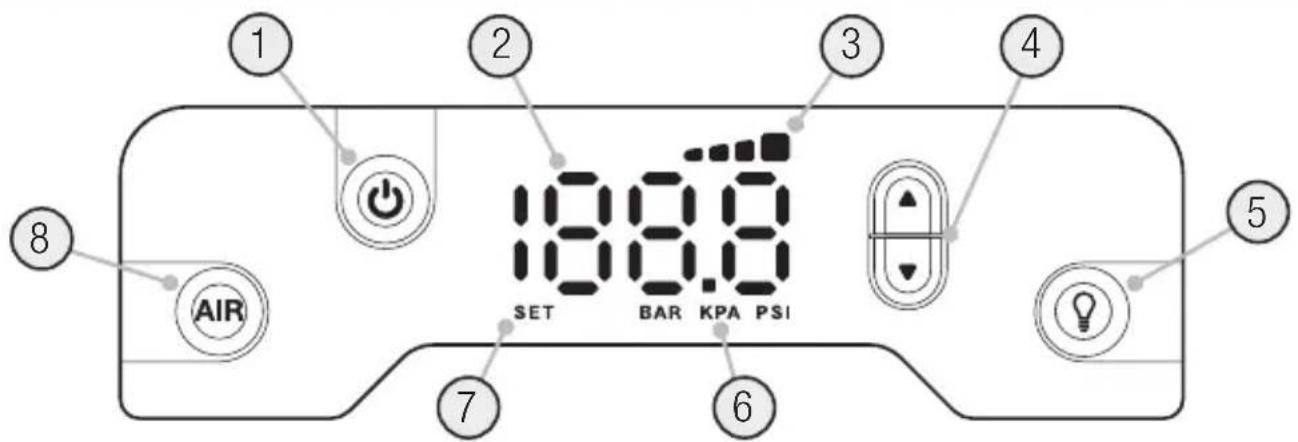

Interface

1 2 3 4 5 8 AIR SET BAR KPA PSI 7 6

1.) Power Button Push to turn Product "ON" & "OFF".
2.) LED Display When pressure is sensed at the hose, the display will show the actual pressure reading. If the displayed pressure is above 99.9, the decimal will not light up, indicating 100 or above. In case of an error, the display will show the type of error.
3.) Internal Battery Level Indicates the charge level of the internal battery.
4.) Arrow Buttons Hold both "▲" and "▼" Buttons to begin changing the pressure units. When LED Display is "ON", use the "▲or "▼" buttons to change the Set Pressure.

5.) Light Mode Button Toggles the ultra-bright LED light through 6 light modes: 100% > 50% > 10% > SOS > Blink > "OFF".
6.) Unit LEDs Only one unit LED, "PSI", "BAR" and "KPA" will illuminate solid White at a time to indicate the current units for pressure on the LED Display. When flashing, use the "▲" or "▼" Buttons to cycle through the different units.
7.) SET LED Illuminates solid amber when LED Display indicates the Set Pressure.
8.) AIR Button Push to start inflating.

Troubleshooting

Error	Recovery Process
Product does not turn "ON"	Charge Product.
Over-Temperature	Turn the Product "OFF" and place it in a well ventilated area, wait for Product to cool before powering "ON" again.
Under-Temperature	Turn the Product "OFF" and place it in an area within the recommended operating temperature, wait for Product to warm up before powering "ON" again.

Technical Specifications

Max Airflow at 0 PSI 17 SLPM		Pressure Sensor	Automatic Shut-Off
Max Pressure	130 psi / 8.96 bar / 896 kPa	Internal Battery 22Wh Lithium Ion
No. of Cylinders	1	USB-C (In)	30W
Motor Rating	90W	USB-C (Out)	30W
Motor Max Current Draw	10A	Charging Temperature	32°F to 113°F (0°C to 45°C)
Duty Cycle	20 min @ 50 PSI "ON" time/40 min "OFF" time	Operating Temperature	14°F to 113°F (-10°C to 45°C)
Manual Air Mode Duty Cycle	10 min "ON" time/50 min "OFF" time	Storage Temperature	14°F to 113°F (-10°C to 45°C)
Approximate Inflation Time (35-40 PSI)	1 min +/- 10% with 195-70R14 Tire	Cooling	Fan
Working Current	8A	Dimensions (W x D x H)	7.68 x 2.12 x 4.33 in (19.5 x 5.4 x 11 cm)
Voltage	11.1V Nominal	Weight	1.8lb (0.82kg)
Lumens	50 Lumen

NOCO One (1) Year Limited Warranty.

IMPORTANT: BY USING THIS PRODUCT, YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THE NOCO ONE (1) YEAR LIMITED WARRANTY (WARRANTY) AS SET OUT BELOW. DO NOT USE THE PRODUCT UNTIL YOU HAVE READ THE TERMS OF THE WARRANTY. IF YOU DO NOT AGREE TO THE TERMS OF THE WARRANTY, DO NOT USE THE PRODUCT AND RETURN IT.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE, COUNTRY, OR PROVINCE. OTHER THAN AS PERMITTED BY LAW, NO CO DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU MAY HAVE, INCLUDING THOSE THAT MAY ARISE FROM THE NONCONFORMITY OF A SALES CONTRACT. FOR A FULL UNDERSTANDING OF YOUR RIGHTS, YOU SHOULD CONSULT THE LAWS OF YOUR STATE, COUNTRY, OR PROVINCE.

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES, AND CONDITIONS, WHETHER ORAL, WRITTEN, STATUTORY, EXPRESS, OR IMPLIED. NOCO DISCLAIMS ALL STATUTORY AND IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS, TO THE EXTENT PERMITTED BY LAW. IN SO FAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, NOCO LIMITS THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION OF THIS EXPRESS WARRANTY AND, AT NOCO'S OPTION, THE REPAIR OR REPLACEMENT OF PRODUCTS DESCRIBED BELOW. SOME STATES, COUNTRIES, AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY - OR CONDITION - MAY LAST, SO THE LIMITATION DESCRIBED ABOVE MAY NOT APPLY TO YOU.

NOCO warrants the NOCO-branded Products contained in the original packaging («NOCO Product») against defects in materials and workmanship when used normally in accordance with NOCO's published guidelines for a period of ONE (1) YEAR from the date of original retail purchase or delivery date by the end-user purchaser («Warranty Period»). NOCO's published guidelines include but are not limited to, the information contained in this Warranty, technical specifications, and user manuals. For end-user purchasers in the European Union (EU), the European Free Trade Area (EFTA), Northern Polices, or the United Kingdom, the Warranty Period may extend to a minimum of TWO (2) YEARS. IN SOME STATES, COUNTRIES, OR PROVINCES, NATIONAL LAW MAY PROVIDE MORE EXTENDED WARRANTY PERIODS. As such, the benefits of the Limited Warranty are intended to supplement, and not replace, the rights provided by consumer protection laws.

NOCO'S LIABILITY IS LIMITED TO REPLACEMENT OR REPAIR. NOCO SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION OR UNDER ANY OTHER LEGAL THEORY, INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, LOST REVENUE, LOST BUSINESS, PROPERTY DAMAGE, PERSONAL INJURY, OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER.

This Warranty is non-transferable and does not cover return packaging and transportation costs. This Warranty does not apply: (a) to damage caused by accident, abuse, misuse, fire, liquid contact, or other external cause, (b) mishandling, improper installation, modifications, disassembly, or attempted unauthorized repair, (c) cosmetic damage - such as dents or scratches - that doesn't affect the functionality of the Product, (d) to damage caused by operating the Product outside NOCO's published guidelines, (e) to defects caused by normal wear and tear or otherwise due to the normal aging of the Product, or (f) if any serial number has been removed or defaced from the Product.

If, during the Warranty Period, you submit a claim, NOCO will, at its option: (a) repair the Product that has been tested and passed our functional requirements, (b) replace the Product with a replacement product of the same model (or with your consent a product that has the same or substantially similar features as the original Product – e.g., a different model with the same features), that is new or like-new and has been tested and passed our functional requirements, or (c) exchange the Product for a refund of your purchase price. We require certain information,

including proof of purchase, to process Limited Warranty claims. To make a claim under the Limited Warranty, please get in touch with NOCO Support at:
