| Product type | Brush cutter (hedge trimmer) |
| Brand | Hillvert |
| Model | HT-HBC-500 |
| Dimensions (L x W x H) | 1245 x 450 x 980 mm |
| Weight | 14.1 kg |
| Engine type | Two-stroke engine, air-cooled, single cylinder (1E44F) |
| Engine power | 1.6 kW |
| Displacement | 51.7 cm³ |
| Maximum speed | 8120 rpm |
| Idle speed | 2990 rpm |
| Fuel tank capacity | 1.2 L |
| Fuel type | Gasoline ≤10E, mixture 40:1 with 2-stroke oil |
| Oil type | 2-stroke oil FC/FD |
| Transmission grease | Lithium-based |
| Sound power level (LwA) | 114 dB |
| Starter cord length | 850 mm |
| Cutting width | 255/430 mm |
| Wheel diameter | 300 mm |
| Power source | Gasoline (thermal engine) |
| Main functions | Trimming brush and tall grass |
| Maintenance and cleaning | Clean air filter, check spark plug, drain fuel for long-term storage |
| Safety | Wear protective equipment (goggles, gloves, helmet, ear protection), safety distance >15 m |
| Spare parts and repairability | Repairs by after-sales service only, use original parts |
Frequently Asked Questions - HT-HBC-500 Hillvert
User questions about HT-HBC-500 Hillvert
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cutting tool in PDF format for free! Find your manual HT-HBC-500 - Hillvert and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HT-HBC-500 by Hillvert.
USER MANUAL HT-HBC-500 Hillvert
| Description of the parameter | Value of the parameter |
| Product name | Handpush Brush Cutter |
| Model | HT-HBC-500 |
| Dimensions [Width x Depth x Height; mm] | 1245x450x980 |
| Weight [kg] | 14.1 |
| Engine type (model) | Air-cooled 2 stroke engine, 1 cylinder (1E44F) |
| Motor power [W]. | 1.6 |
| Displacement volume [cm3] | 51.7 |
| Maximum motor speed [rpm] | 8120 |
| Engine idle speed [rpm] | 2990 |
| Fuel tank capacity [L] | 1.2 |
| Fuel type | Petrol ≤E10 (Fuelmix - Petrol 40:1 Oil) |
| Energy consumption [g/kWh] | 620 |
| Oil type | Two-stroke FC/FD oil |
| Gearbox grease | Lithium |
| Sound Power Level Lwa [dB] | 114 |
| Starting cable length [mm] | 850 |
| Cutting width [mm] | 255/430 |
| Wheel size [mm] | 300 |
1. General Description
The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.
PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,
To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit
EN
is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.
Explanation of symbols
| CE | The product complies with applicable safety standards. |
| Please read the instructions before use. | |
| Recyclable product. | |
| CAUTION! or WARNING! or REMINDER! describing a situation. (general warning sign). | |
| Wear ear protection. Exposure to noise may cause hearing loss. | |
| Wear protective goggles. | |
| Wear protective gloves. | |
| Wear protective footwear. Do not use the unit barefoot, in sandals or other footwear that exposes the foot. Risk of injuring your feet! | |
| Wear protective head gear. | |
| Wear a protective suit. | |
| CAUTION! Danger of fire - flammable material! | |
| Warning against poisoning by toxic substances! |
EN
| Caution! Hot surface can cause burns! Motor parts get very hot during operation, do not touch. | |
| Do not use the unit near bystanders. Keep a distance of a min. of 15 m. | |
| Do not store or use the unit close to sources of fire. Smoking is prohibited in the vicinity! | |
| Risk of being struck by foreign objects in the working area. | |
| Protect the unit from rain and wetness. |
The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.
CAUTION!
The original instruction manual is in the German language version. Other language versions are translations from German.
2. Safety of use
Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.
CAUTION!
The term "unit" or "product" in the warnings and in the description of the instructions refers to the Handpush Brush Cutter.
2.1. Safety in the workplace
EN
a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.
b) Do not use the unit in explosion hazardous areas.
c) If you have any doubts as to whether the unit is working properly or if it is damaged, contact the manufacturer's service department.
d) Only the manufacturer's service department can repair the unit. Do not carry out repairs yourself!
e) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
f) Use the appliance in a well-ventilated area.
g) Running unit can generate dust and splitter, protect bystanders against an y harm.
h) Check the condition of the safety stickers regularly. Replace them if they are illegible.
i) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
j) Keep the packaging and small assembly parts out of the reach of children.
k) Keep the unit away from children and animals.
Please Keep children and other bystanders safe while operating the unit. note!
2.2. Personal safety
a) D do not operate this unit if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the unit.
b) The appliance may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
c) The machine is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the machine.
d) Use caution and common sense when operating this appliance. A moment's inattention during operation may result in serious personal injury.
e) Use personal protective equipment as required when operating the unit as specified in Section 1 of the explanation of symbols.
The use of appropriate, approved personal protective equipment reduces the risk of injury.
f) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
g) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
h) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
i) Eye, ear, and respiratory protection is recommended.
j) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.
k) Do not place your hands or any objects inside the running appliance!
2.3. Safe use of the unit
a) D do not use the unit if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.
c) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the unit). If damaged, have the unit repaired before use.
d) Keep the unit out of the reach of children.
e) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
f) To ensure the designed operational integrity of the unit, do not remove factory-installed covers or loosen screws.
g) Avoid situations in which the machine stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.
h) Do not touch any moving parts or accessories unless the unit is unplugged.
i) Do not leave the unit switched on unattended.
j) Clean the unit regularly to prevent permanent dirt build-up.
k) The value of vibration emission may change if the unit is used under different environmental conditions.
I) The unit is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
EN
m) Do not tamper with the unit to alter its performance or design.
n) Keep the unit away from sources of fire and heat.
o) Avoid working with wet or very tall grass and bushes.
p) Do not use the unit in enclosed spaces or buildings!
q) Do not operate the unit on slippery ground, at night, during fog, thunderstorms, strong winds or other difficult weather conditions that prevent clear vision and balance.
r) Before starting work, make sure there are no bystanders, animals, or objects in the vicinity that could become obstructions during operation.
s) Before operating, make sure the unit has been properly assembled and is undamaged.
Do not use a unit that has visible signs of use.
t) Some screws may loosen as a result of the vibration generated by the machine during operation. Check their condition and tighten them before each use.
u) The machine is not designed to cut material other than brush.
v) To start work in another location, first turn off the unit and then move it to its destination paying special attention to the blade.
w) Do not make any adjustments while the engine is still running.
x) If the machine encounters an obstacle during operation, switch it off immediately.
y) If the blade becomes jammed, do not straighten it by hand!
z) Take regular breaks during operation. Prolonged exposure to noise and exhaust fumes can damage your health.
aa) It is advisable to use the machine only when it is needed and to switch it off during breaks to reduce the risk of damage to hearing or respiratory tract.
bb) Do not use the unit on wet areas, which would prevent the wheels from moving.
cc) Do not run while operating the unit.
dd) Use extreme caution when changing the direction of operation.
ee) It is not recommended to operate the unit on very steep roadsides. Doing so may cause you to lose control of the unit.
WARNING FOR WORKING WITH FLAMMABLE MATERIAL:
- The unit's engine is designed to operate on mixed fuel: gasoline (unleaded or leaded) + two-stroke oil at a ratio of 40:1.
Mixing gasoline and oils other than those recommended may damage gaskets, hoses and tanks.
- Do not store fuel supplies near sources of fire and heat (such as a boiler, oven), electrical discharges, welding sparks that may ignite the fuel. Smoking is prohibited near fuel tanks.
- Before refueling, make sure the engine is turned off and cooled down and then are no fire sources near the refueling area.
- Try not to spill fuel. If this happens, thoroughly wipe spilled fuel off the ground with a dry rag.
- When you have finished refueling, carefully close the cap on the tank.
- To start the machine after refueling, move it at least 3 meters away from the refueling point.
- Empty the fuel tank when transporting the unit.
Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.
3. Rules of use
The unit is designed for commercial use.
The user is responsible for any damage resulting from misuse.
3.1. Description

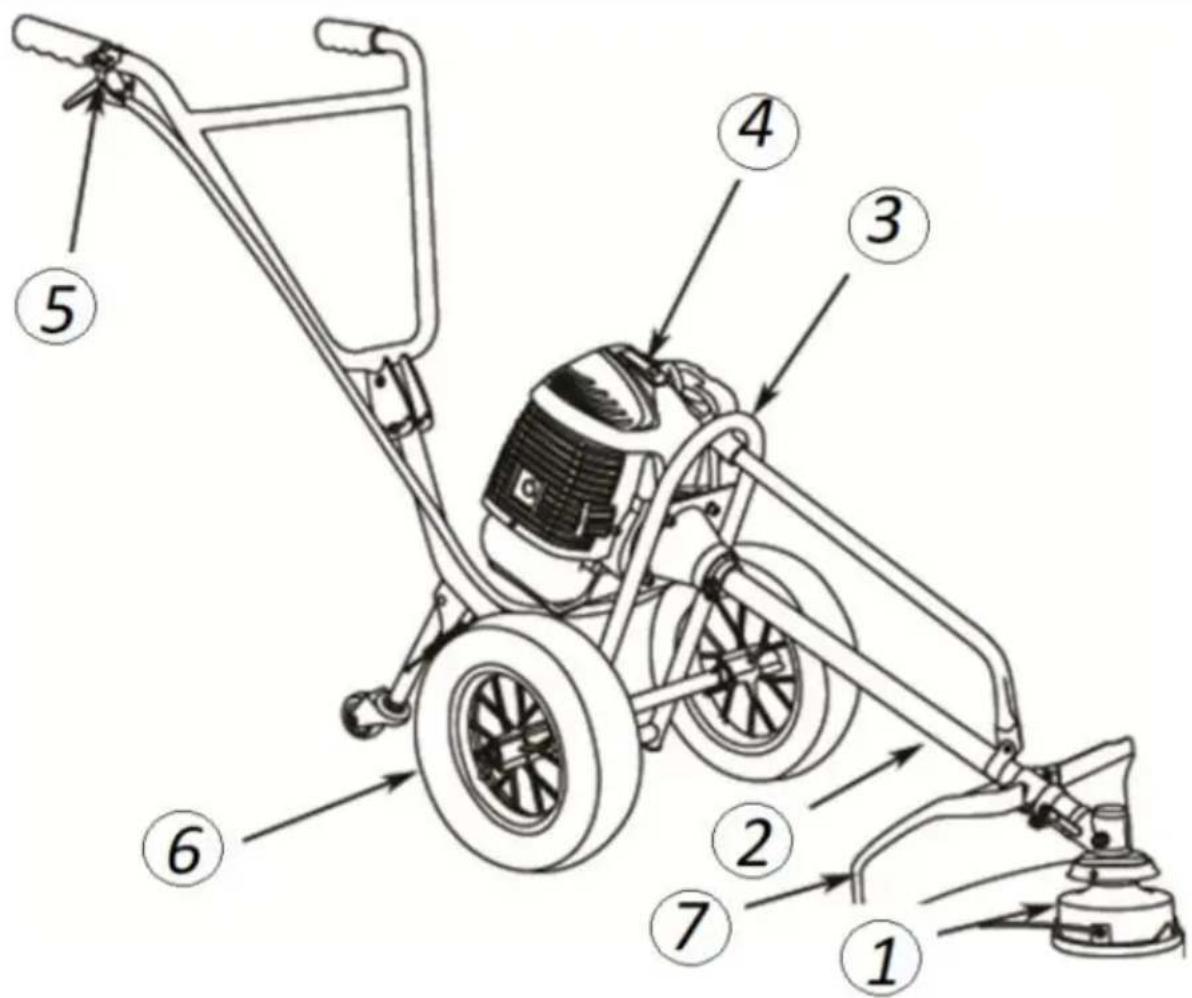

1 - nylon head
2 - roller
3-frame
4 - motor
5 - accelerator handle
6- wheel
7-casing
3.2. Preparation for operation
POSITIONING OF THE UNIT
Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. The user should wear protective clothing when using the equipment, primarily long pants and safety shoes.
3.3. Installation of the unit
EN

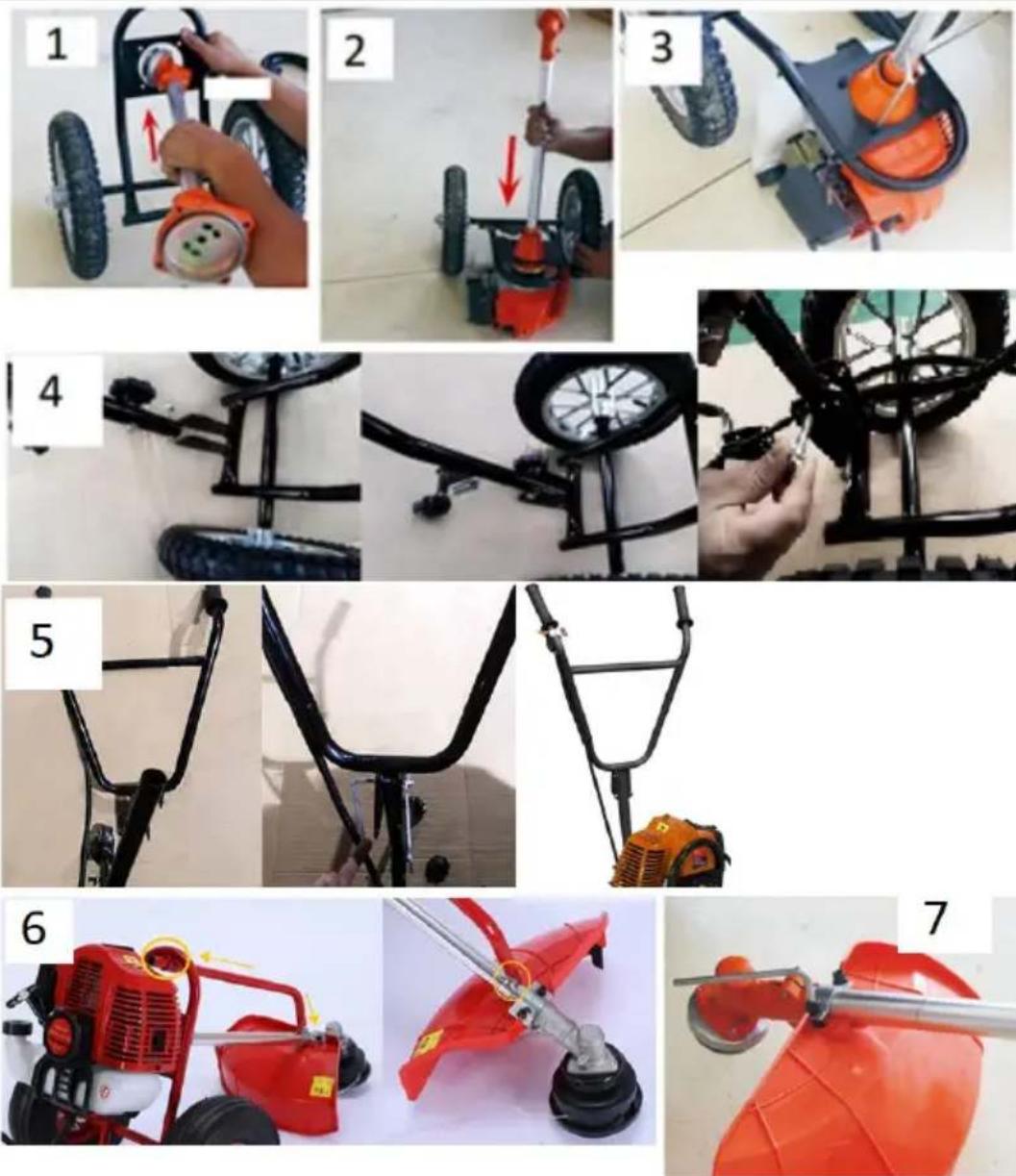

- Place the roller in the slot in the base.
- Connect the roller to the motor.
- Tighten with 4 screws.
- Remove the two securing screws from the lever and use them to connect the lever to the base.
- Connect the handle to the lever.
- Screw on the safety bar.
- Screw on the cover.
NYLON HEAD ASSEMBLY
- Hold the lower flange with a screwdriver, then use a socket wrench to loosen the nut by turning it clockwise.
Remove the upper flange.
- Still holding the flange, place the nylon head on the shaft and tighten by turning counterclockwise.
BLADE INSTALLATION:
- While holding the lower flange, loosen the nut and remove the upper flange.
- Place the blade, disc, and top flange on the mandrel, then tighten the nut by turning counterclockwise.
3.4. Working with the unit
3.4.1. BEFORE STARTING:
EN
- Assume a stable position on a level surface without any obstacles. Do not use the unit while standing on a ladder, for example.
- Always hold the unit firmly with both hands using your whole palm.
- Do not work with the unit with your arms stretched out in front of you or held above shoulder height.
- It is recommended that there be people within a safe distance (more than 15m ) who are aware of your presence.
This will ensure that assistance can be obtained if necessary.
- While operating the unit, you may hit material that will cause the unit, and the user, to recoil. Therefore, it is important to hold the equipment firmly and securely in your hands. This will minimize the risk of losing control of the unit.
- Working at the highest speed is recommended. It allows you to complete tasks quickly and efficiently and deal with obstacles such as unforeseen materials.
- Before turning on the machine, check that the switch works properly, the connectors and spark plug are firmly installed.
After turning on the engine, wait for a while before starting work to make sure that no malfunction has occurred.
- For safe use, wash the handle before each use so that the unit will not slip out of your hands under the residue.
- Make sure that there are no animals or bystanders or unwanted objects near the work area.
- Keep feet away from the blade when starting the engine!
3.4.2. USING THE UNIT:

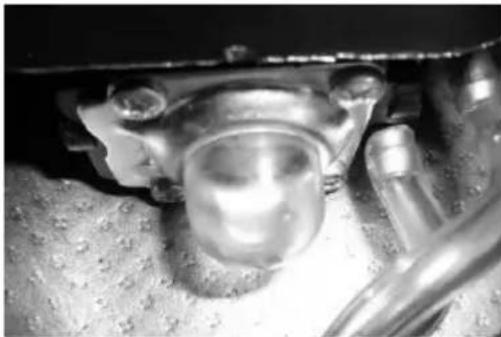

- Press the manual fuel pump several times.

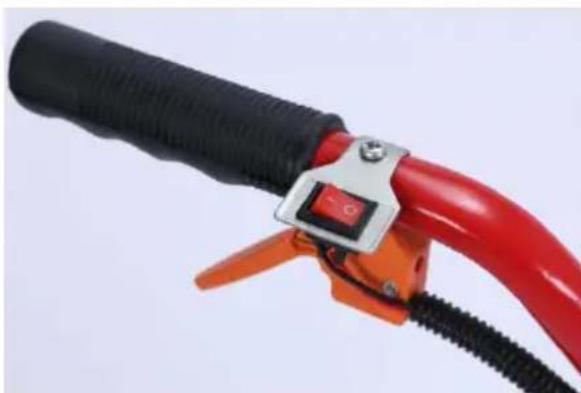

- Turn the switch to the ON position (unit on).

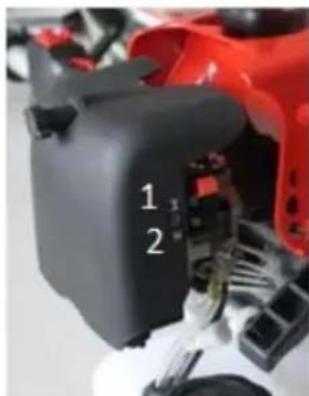

- Move the suction lever to the closed (off) position.
- 1 - closed position
-2 - open position
- Rapidly pull the starter rope.
- Wait a moment, then move the suction lever to the open (on) position.
- Adjust engine speed with the accelerator handle.
CAUTION: The blade will take a few more seconds to stop after the engine is turned off.
3.5. Cleaning and maintenance
a) Store the unit in a dry and cool place protected from moisture and direct sunlight.
b) Do not spray the unit with a stream of water or immerse it in water.
c) Perform regular inspections of the unit checking technical fitness and any damages.
d) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.
e) Make sure the motor is off and cooled down before performing maintenance.
f) Use only non-flammable products for cleaning.
g) If operating in a dusty environment, the machine should be maintained more frequently than specified in the table below.
h) If you do not have the ability, knowledge, and tools to perform maintenance, have the machine serviced.
3.5.1. MAINTENANCE SCHEDULE
| Maintenance schedule | |||
| After 12 hours of use | After 24 hours of use | After 36 hours of use | |
| Air filter | Clean | Clean | Replace |
| Spark plug | Check | Clean | Replace |
3.5.2. SPARK PLUG CLEANING:
- After the engine has cooled, remove the spark plug using a socket wrench.
- Clean the spark plug with a wire brush.
- Use a feeler gauge to set the spark gap to between 0.6 and 0.7 mm .
- Reinstall the spark plug by hand.
- Tighten with a socket wrench.
3.5.3. CLEANING THE AIR FILTER:
- Remove the cover and sponge from the filter.
- Replace the cover to prevent unwanted objects from falling into the tank.
- Clean the air filter in warm soapy water.
- Rinse.
- Allow the filter to dry thoroughly.
CAUTION: Do not start the engine without the filter installed.
3.5.4. STORAGE:
Old fuel is one of the main causes of engine starting problems, so empty the fuel tank if the unit will not be used for an extended period of time.
Store the unit indoors and protect it from rust.
3.6. Troubleshooting
| Problem | Action |
| The engine does not start | Remove and reinstall the blade and head. Check fuel level. |
| Efficiency decreases | Sharpen/replace the cutting element. |
| Unit is very hot | Switch off. Allow unit to cool completely. |
DISPOSAL OF USED UNITS.
At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this unit are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used units.
Your local administration will provide you with information about the appropriate disposal point for used units.
Dane techniczne
A NYLONFEJ FELSZERELESE
APPARATETS PLACERING
3.5.1. VEDLIKEHOLDSPLAN
PLACERING AV APPARATEN
NYLONOVÁ HLAVOVÁ ZOSTAVA
For the disposal of the device please consider and act according to the national and local rules and regulations.
CONTACT
expondo Polska sp. z o.o. sp. k.
