TECHNICAL DATA

Parameter description Parameter value
Product name	Log lifter
Model	HI-LOGL-1800
Dimensions [width x depth x height; mm]	1190 x 1170 x 1080
Weight [kg]	~133
Max lifting capacity [kg]	180
Powering method	Hydraulic system

The product is designed as a help for wood log processing - by lifting and proceeding bigger and/or heavier logs through the hydraulic system (external power supply).

ASSEMBLY

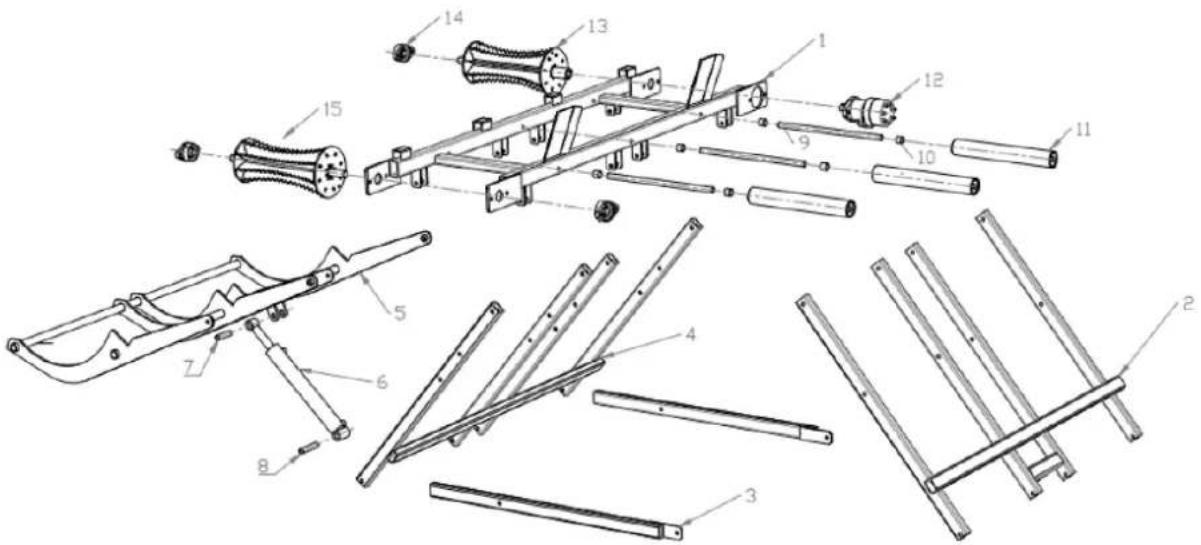

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

1. Main frame (x1)
2. Stand frame 1 (x1)
3. Lower frame (x2)
4. Stand frame 2 (x1)
5. Lifter frame (x1)

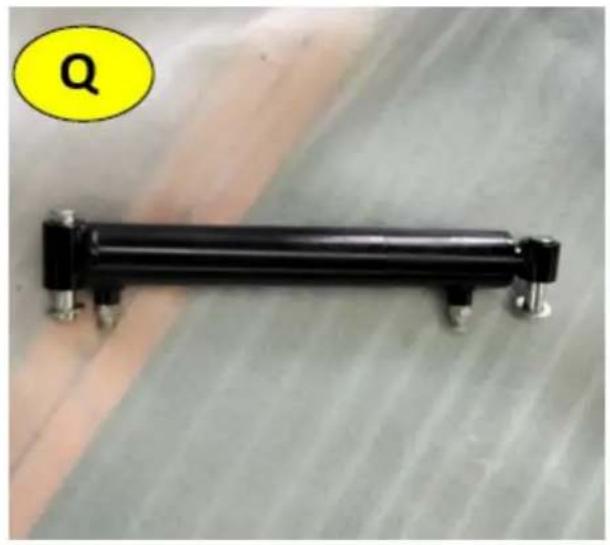

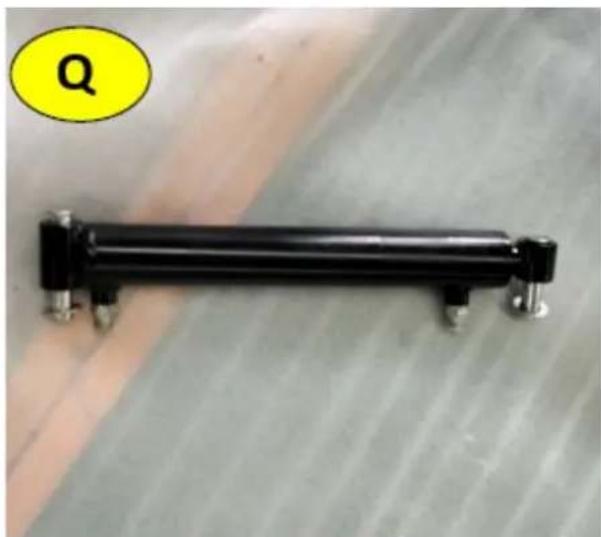

6. Hydraulic cylinder (x1)
7. Hydraulic cylinder pin 1 (x1)
8. Hydraulic cylinder pin 2 (x1)
9. Supporting roller shaft (x3)
10. Supporting roller bushing (x6)
11. Supporting roller (x3)
12. Hydraulic motor (x1)
13. Roller (x1)
14. UCFLU205 Bearing (x3)
15. Roller (x1)

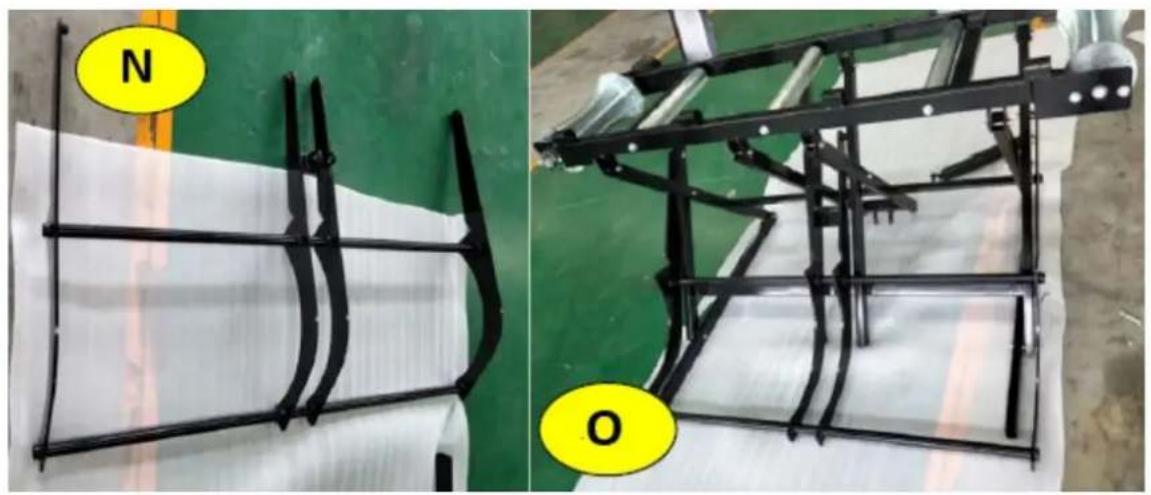

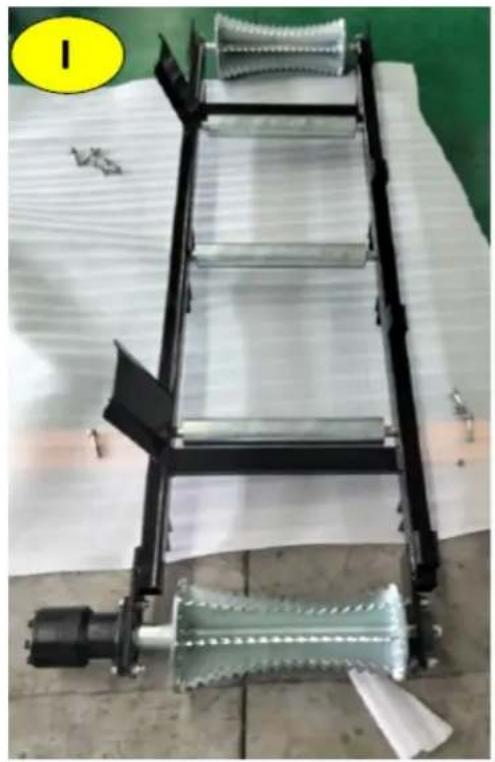

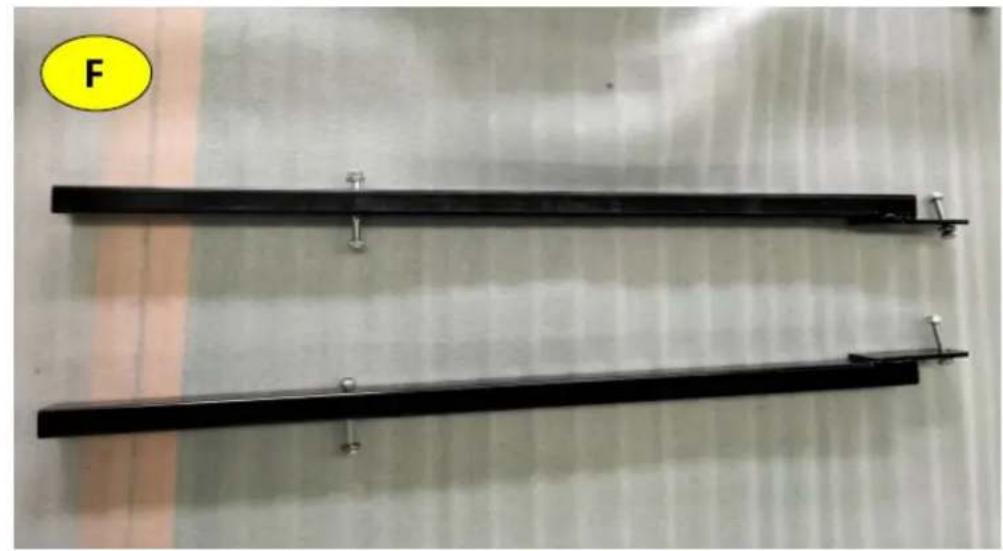

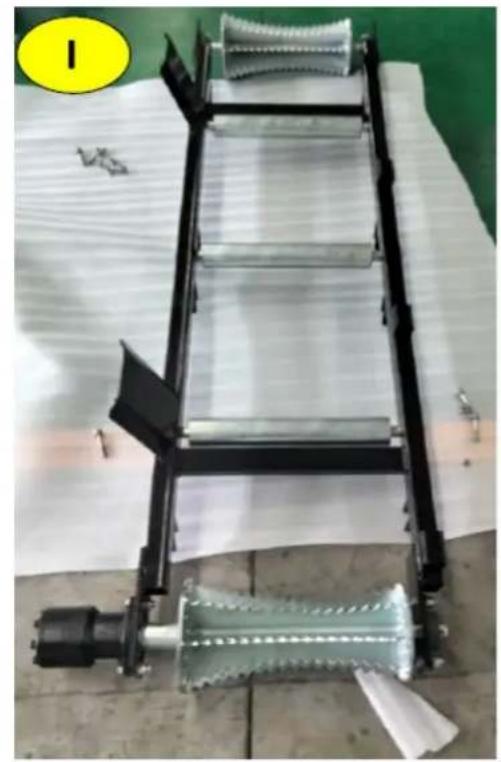

Frame:

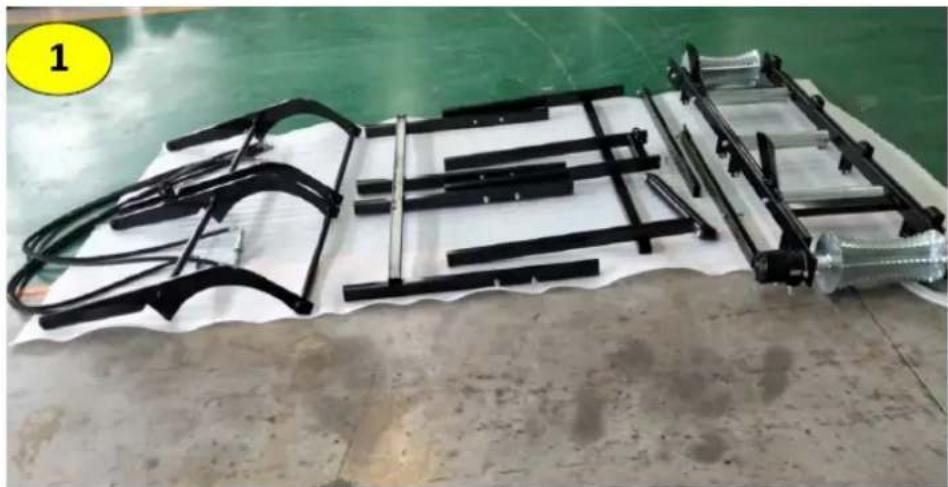

Industrial machinery laid out on a white sheet with green flooring, no visible text or symbols

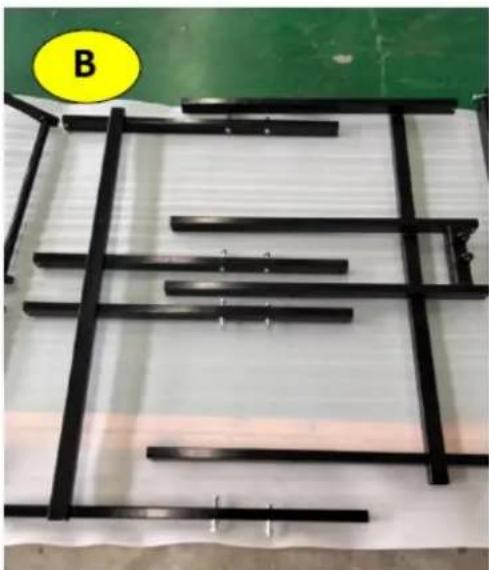

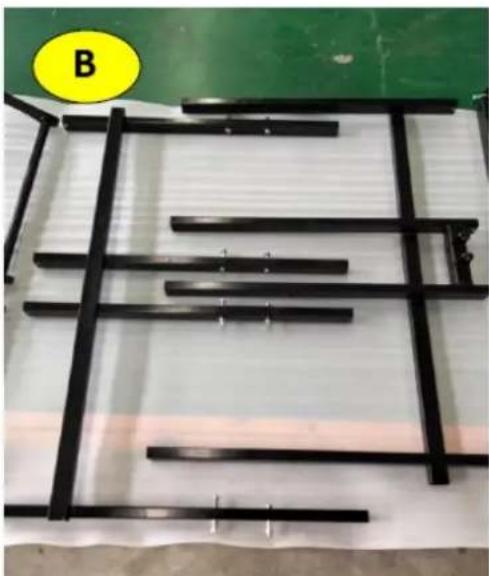

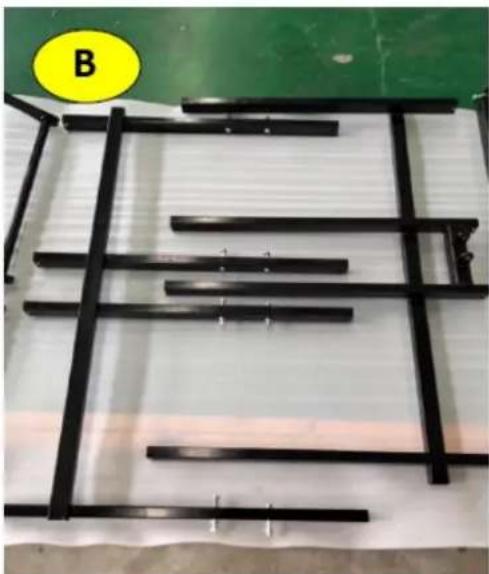

Black metal frame structure on a green surface, no text or symbols visible

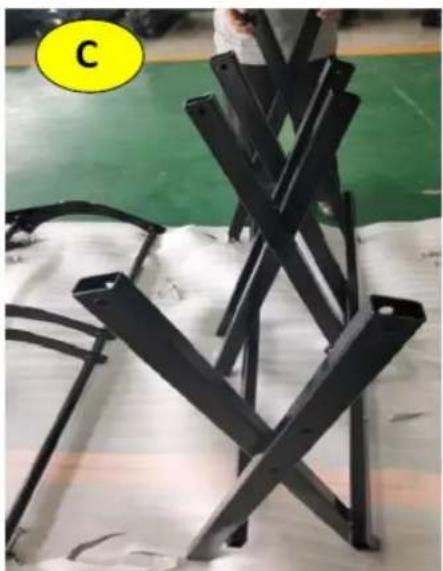

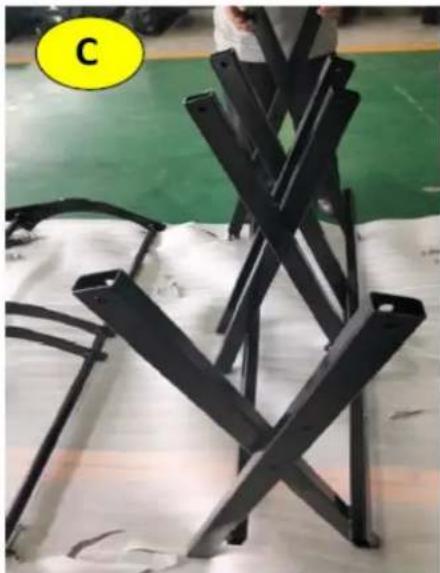

Black metal X-shaped structural components arranged on a white surface, with a yellow circular label 'C' in the corner (no readable text or symbols on the main structure)

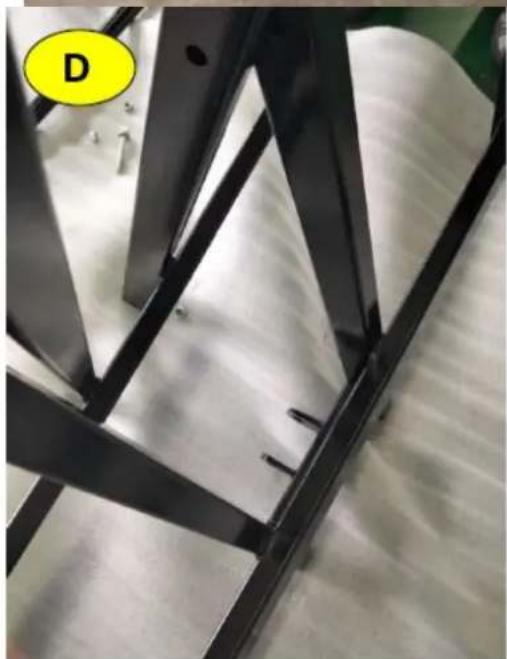

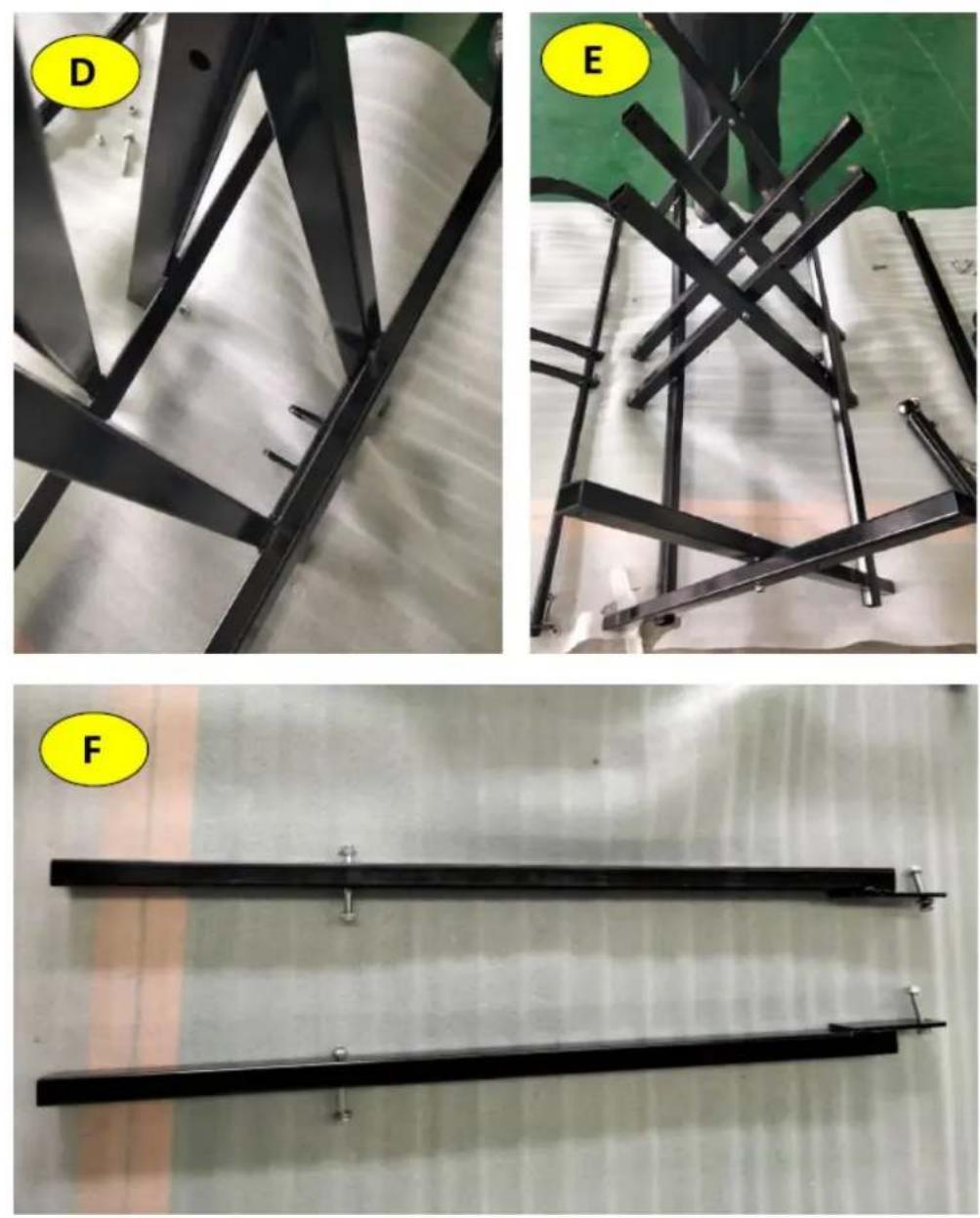

Close-up of a black metal frame with white insulation, no visible text or symbols

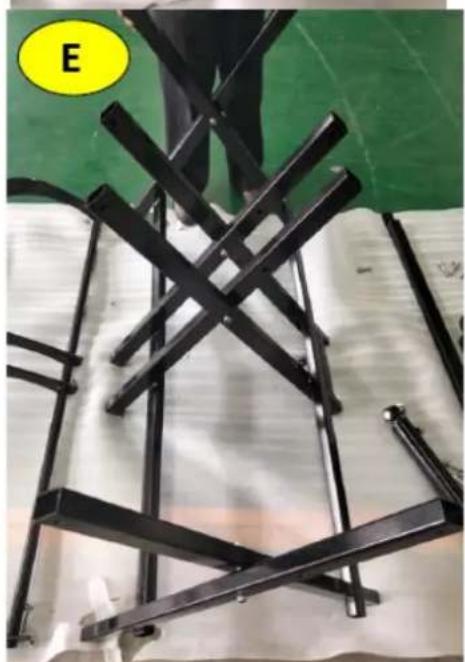

Black metal truss structure with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

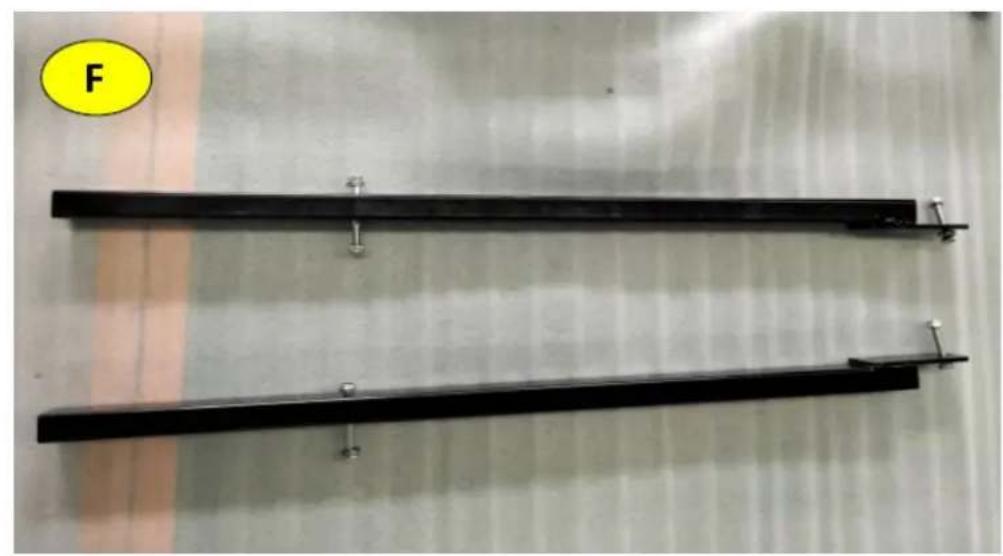

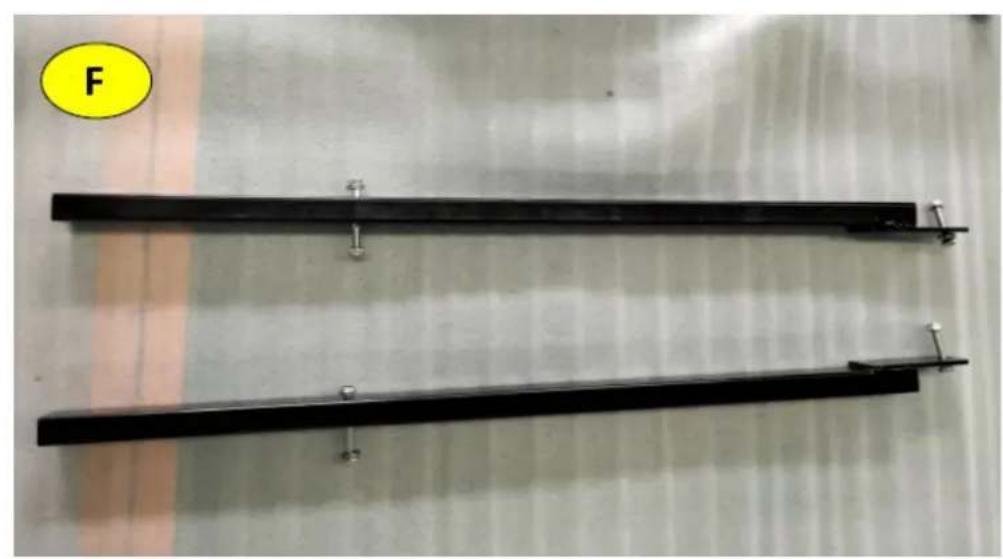

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

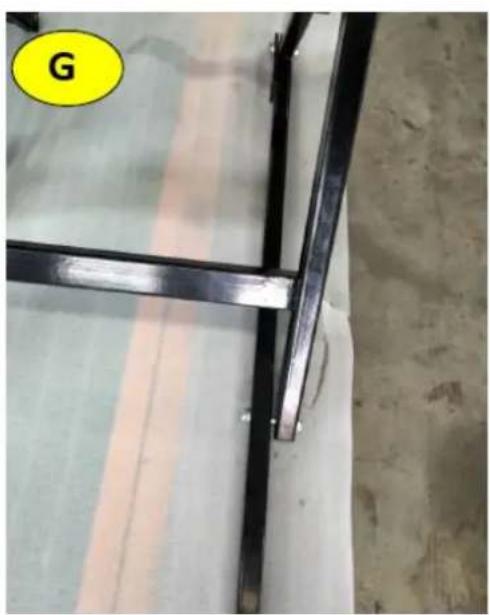

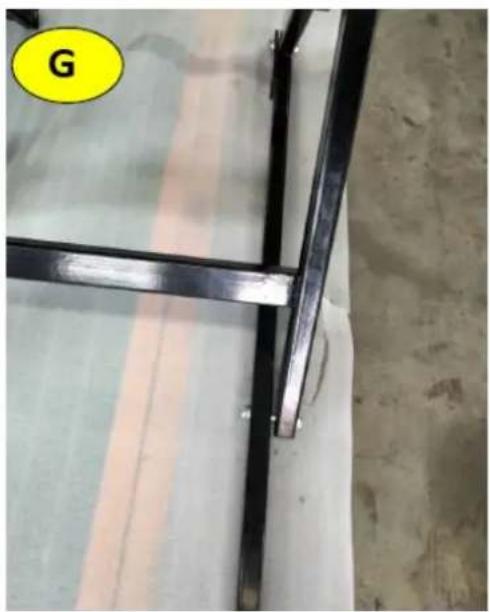

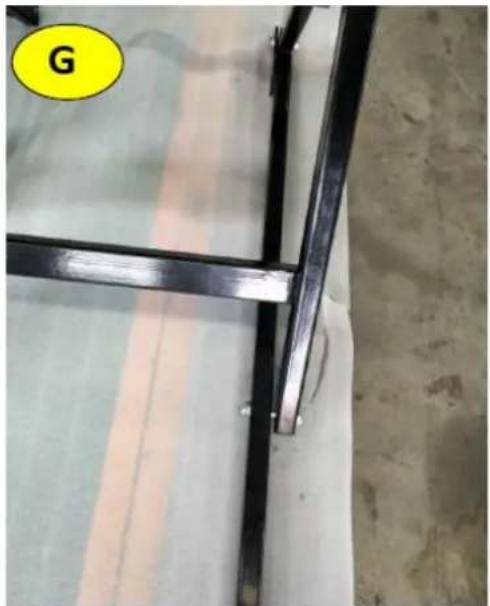

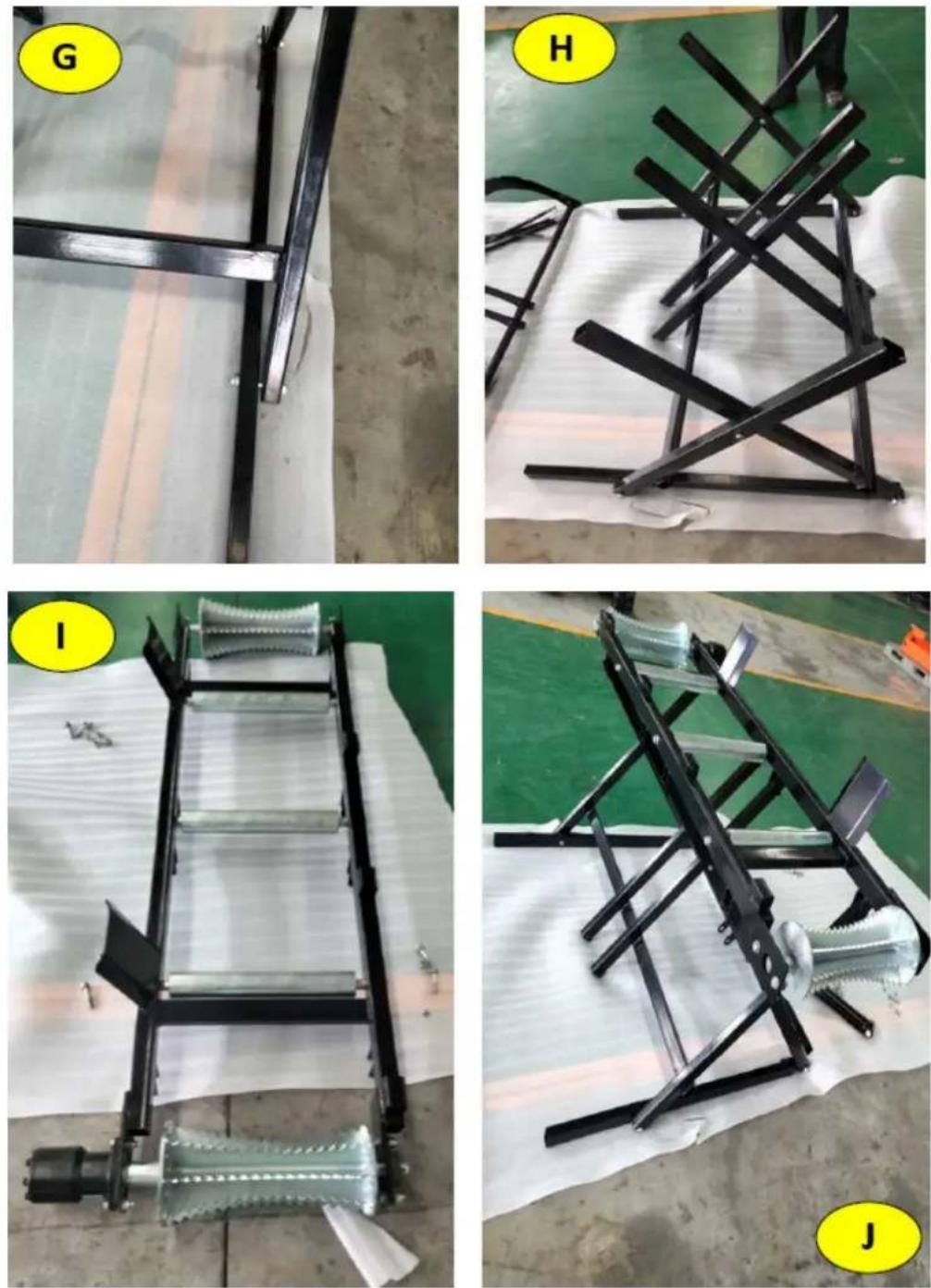

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

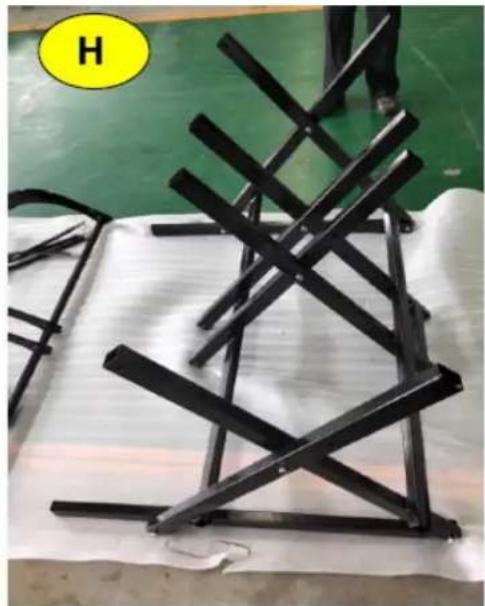

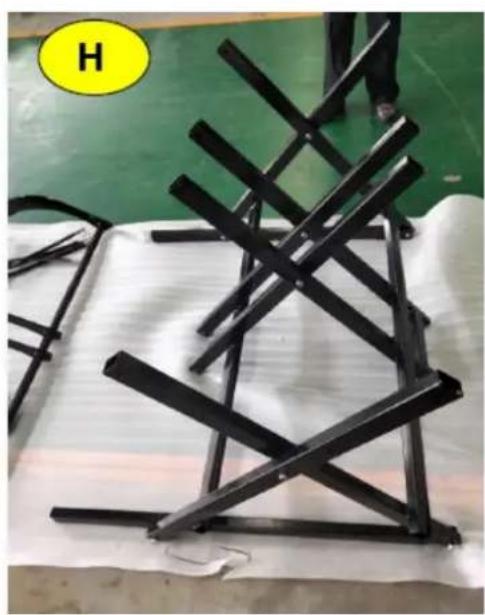

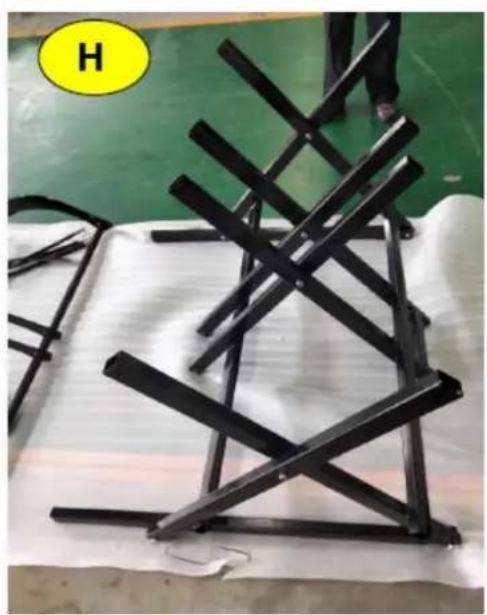

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a yellow circular icon (no visible text or symbols)

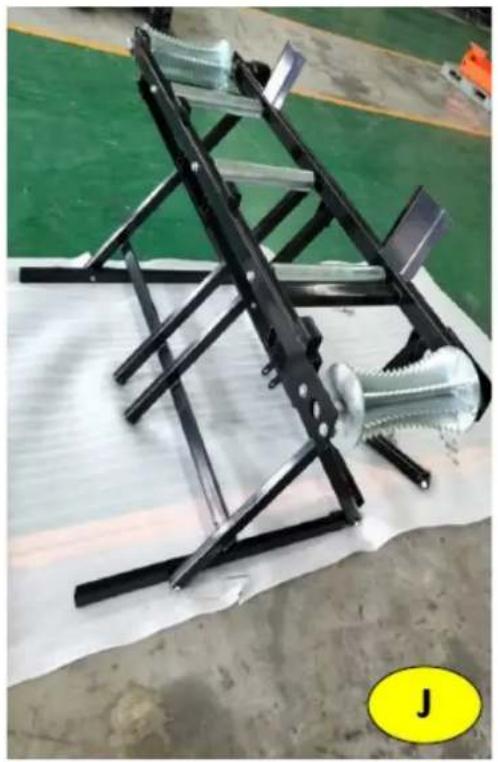

Black metal frame structure with attached saw and a metallic tool, displayed on a white sheet (no text or symbols visible)

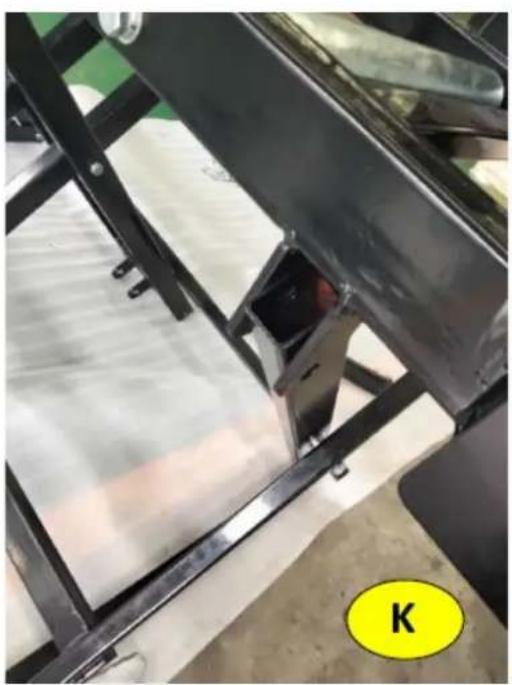

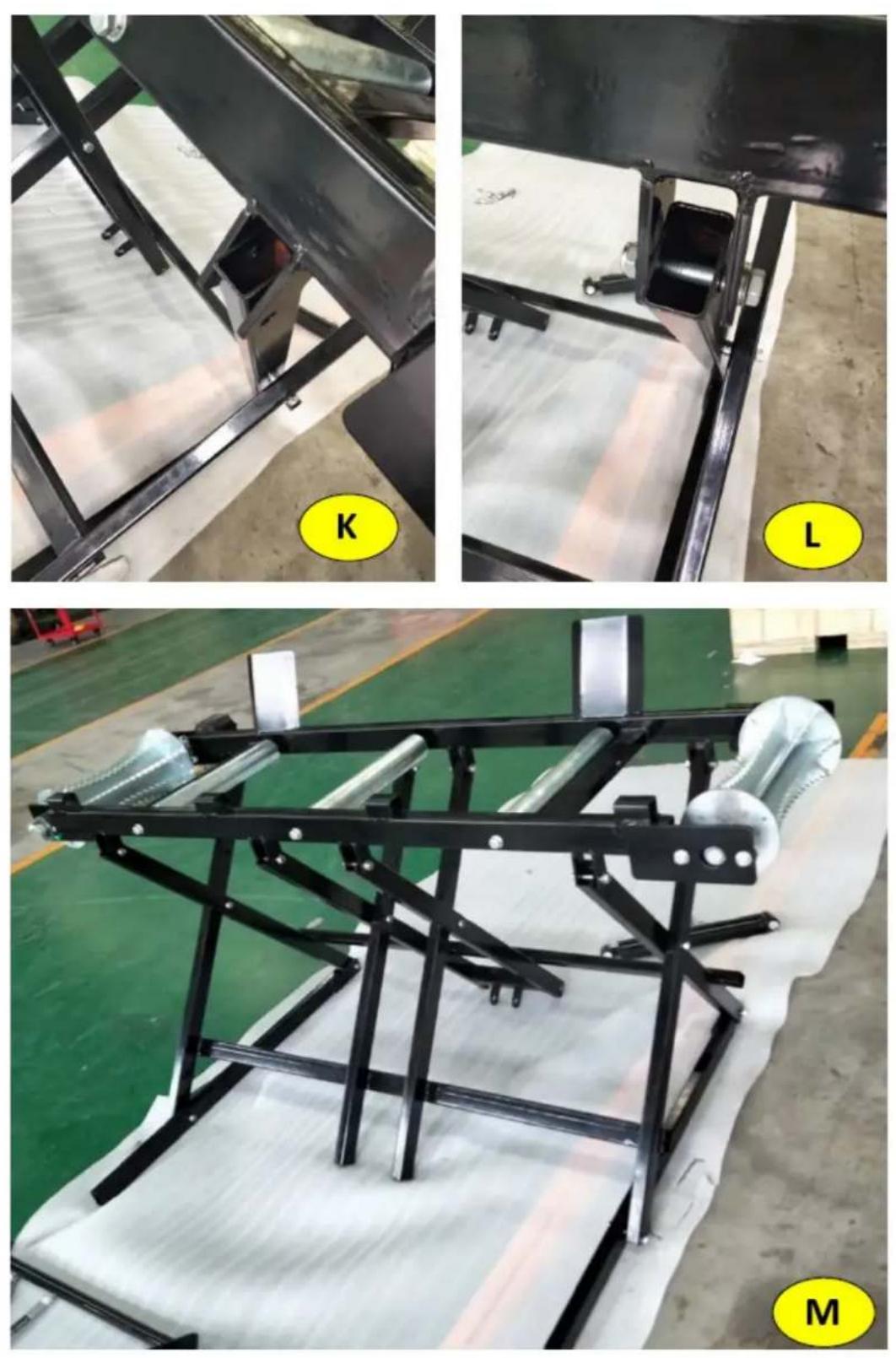

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

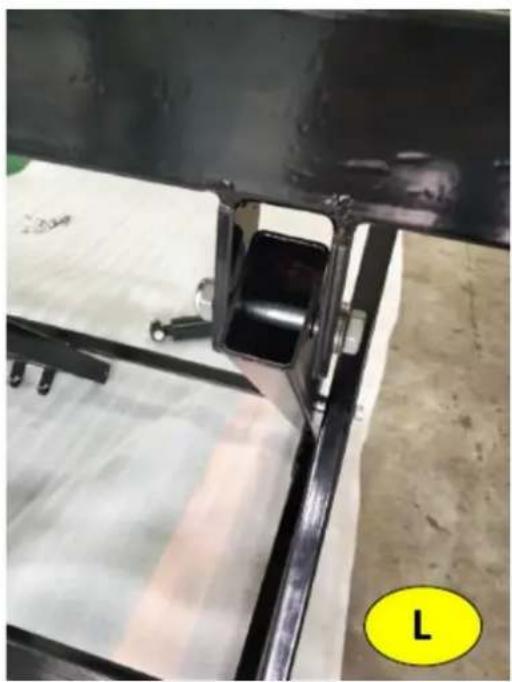

Close-up of a mechanical assembly with a black bracket and yellow circular indicator (L) on the floor, no visible text or symbols.

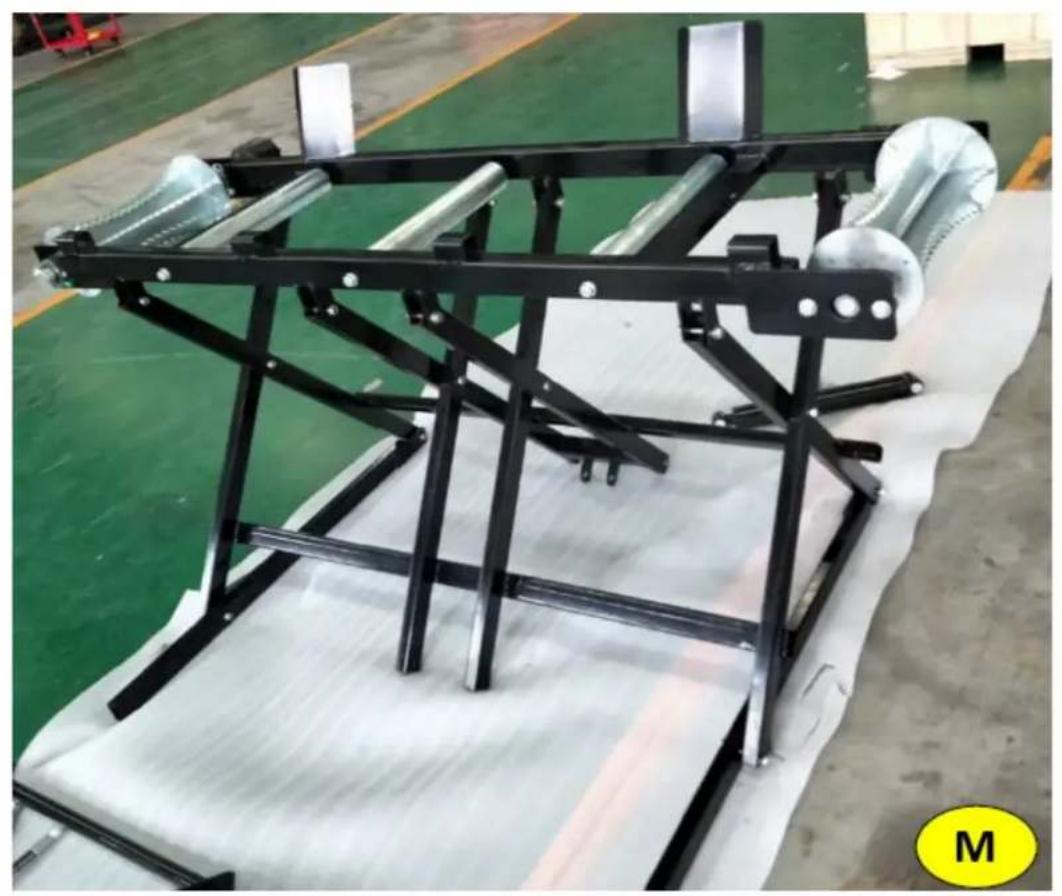

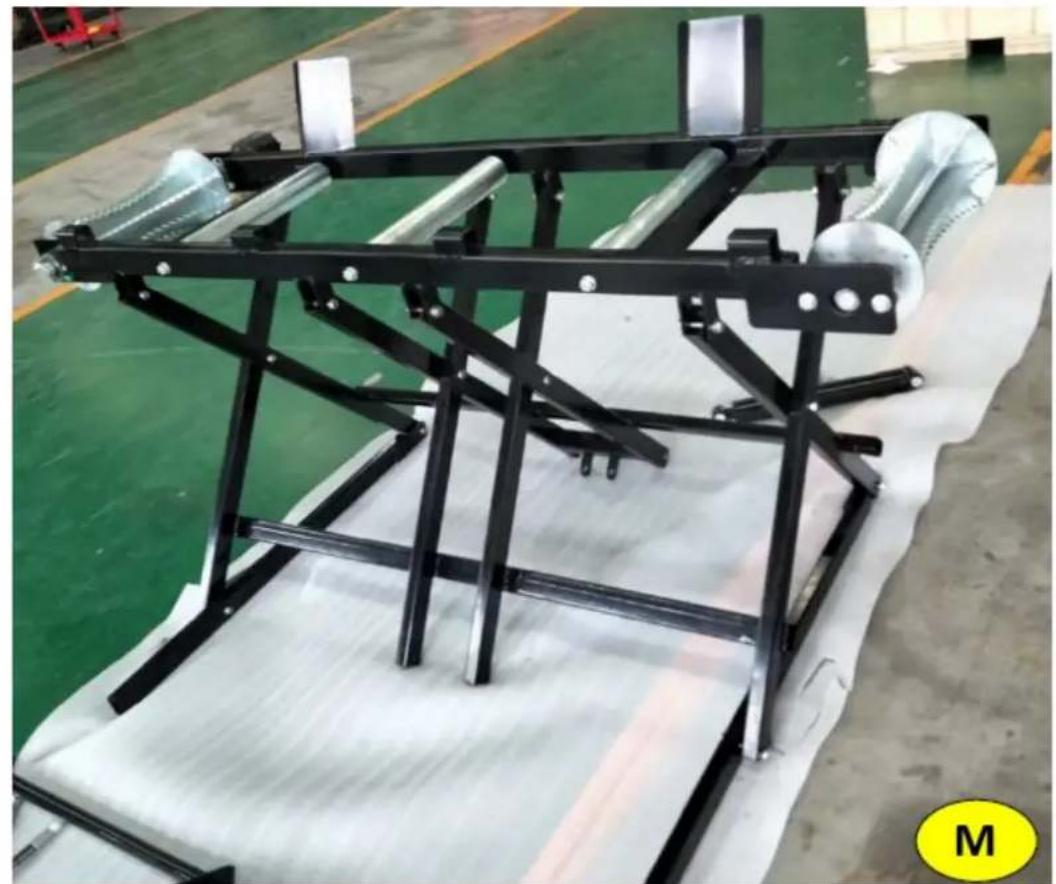

Industrial machine with black frame and white sheet material, no visible text or symbols

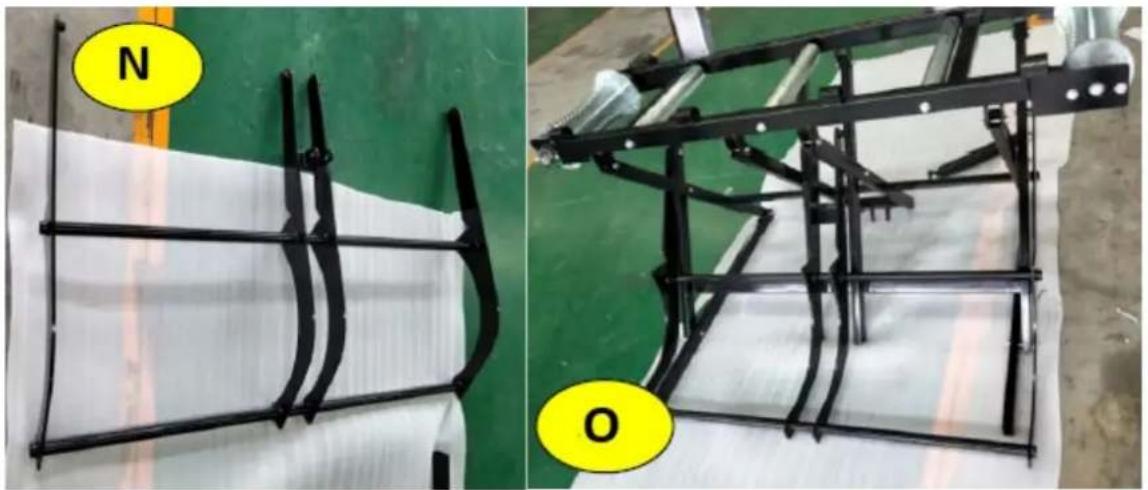

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

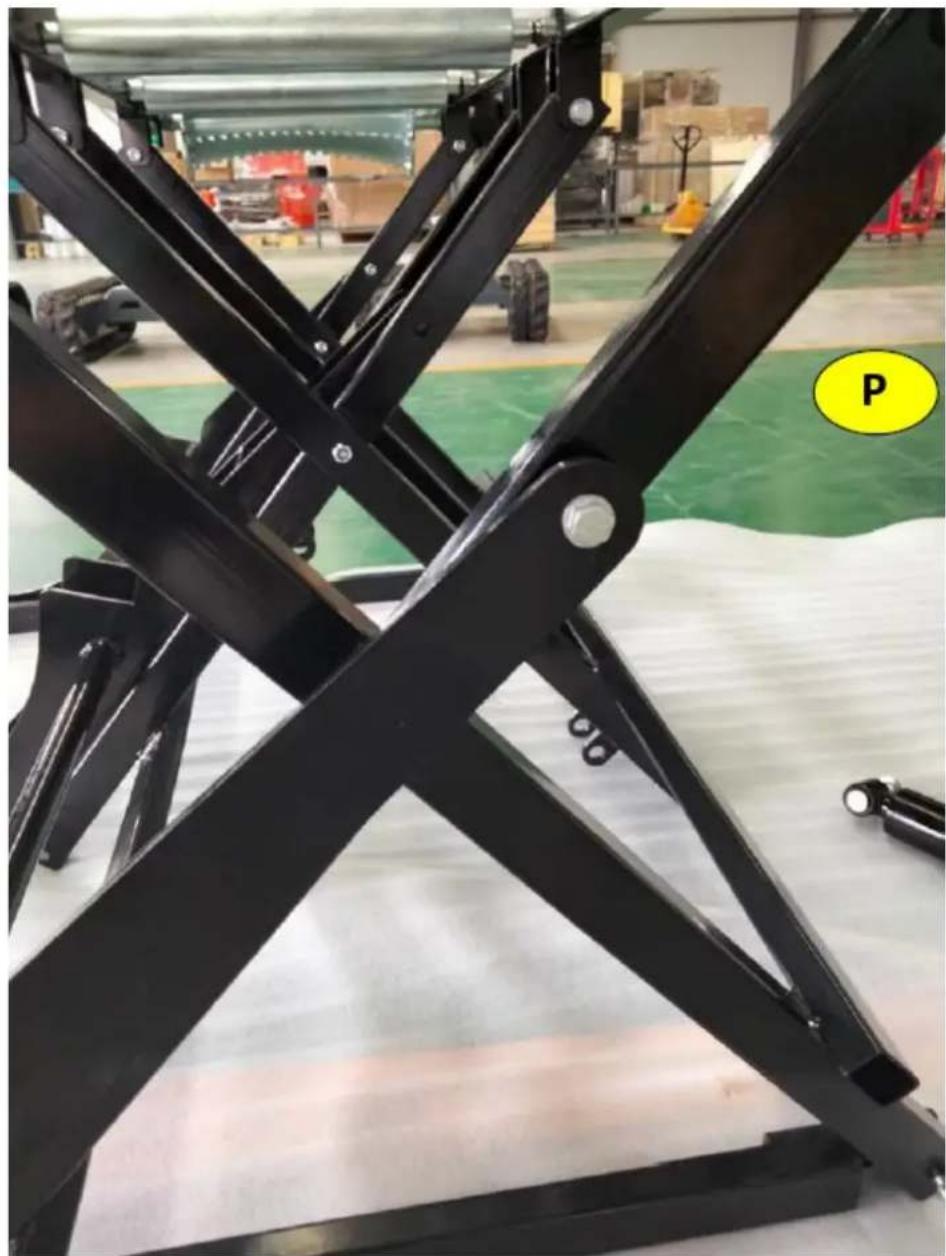

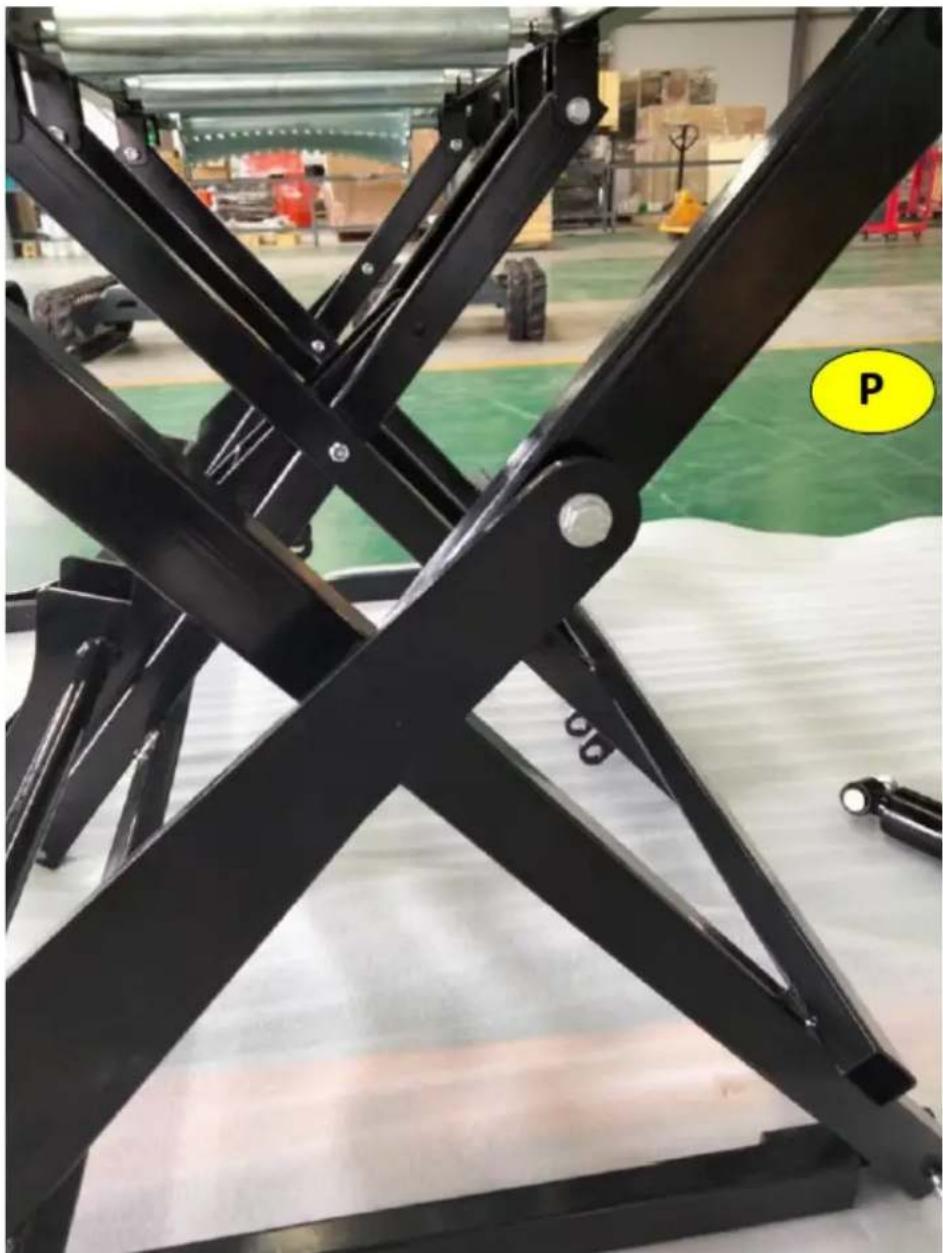

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

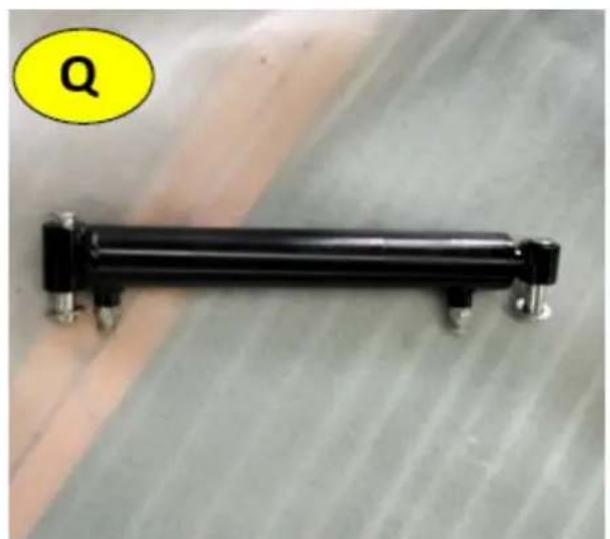

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

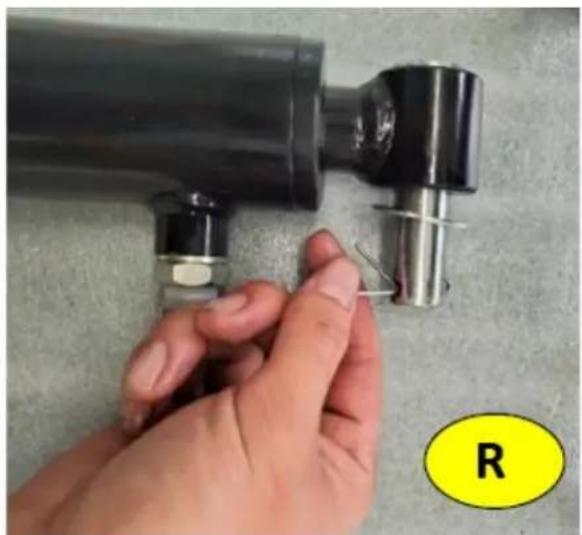

Hand holding a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

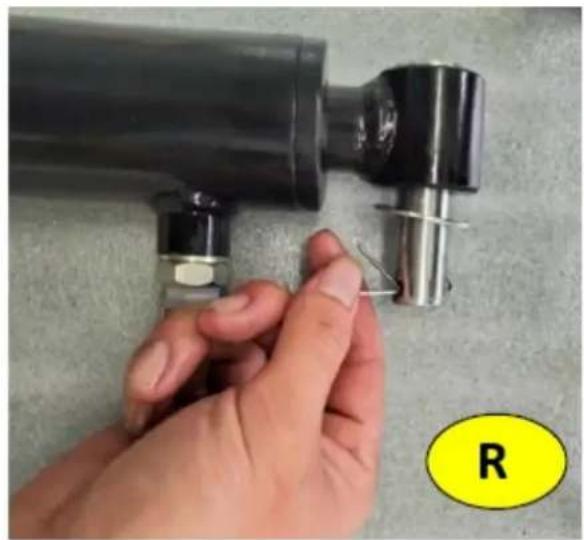

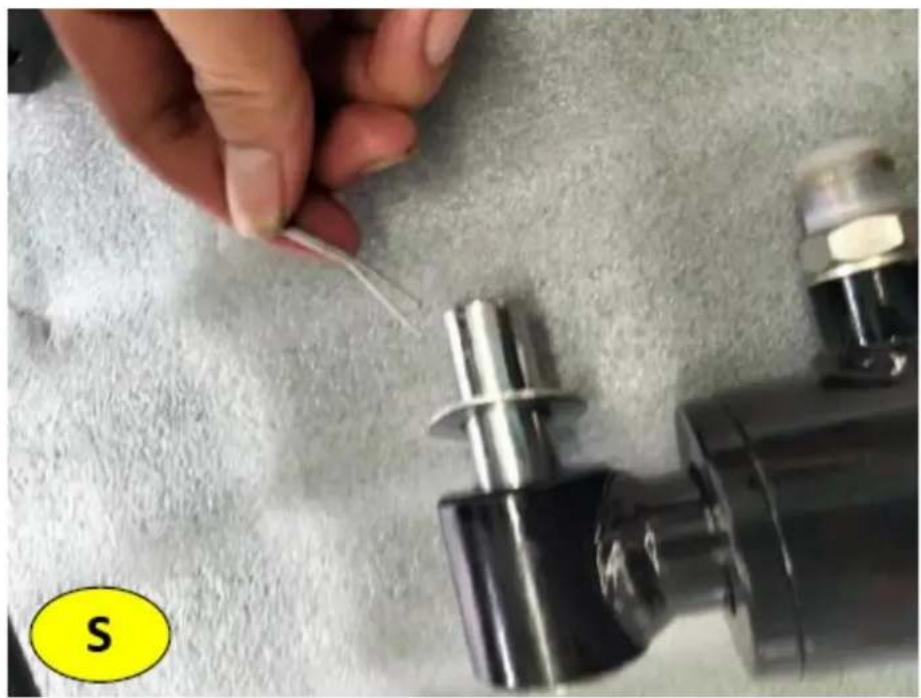

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

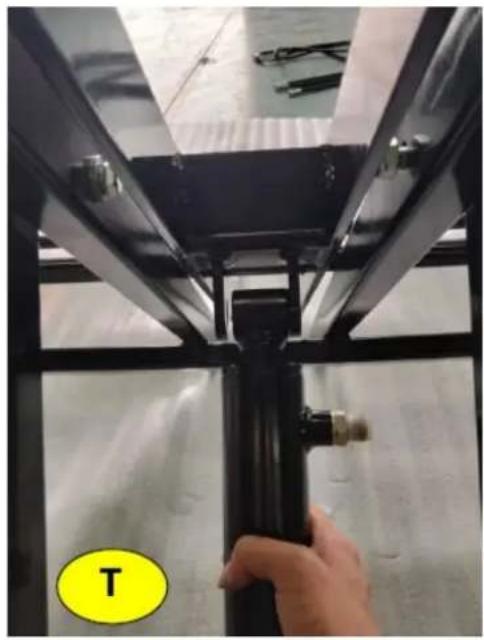

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

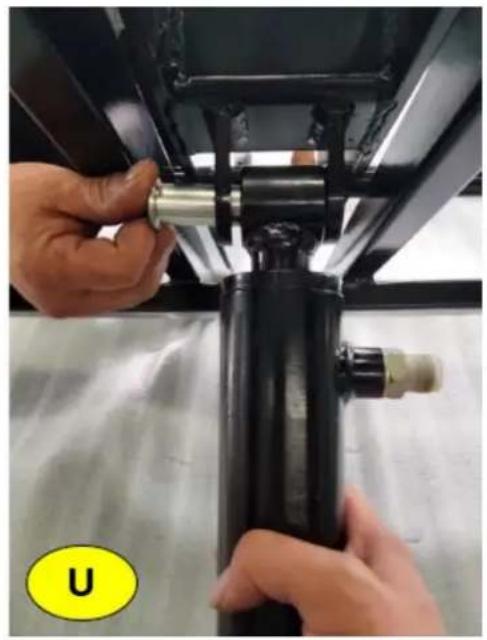

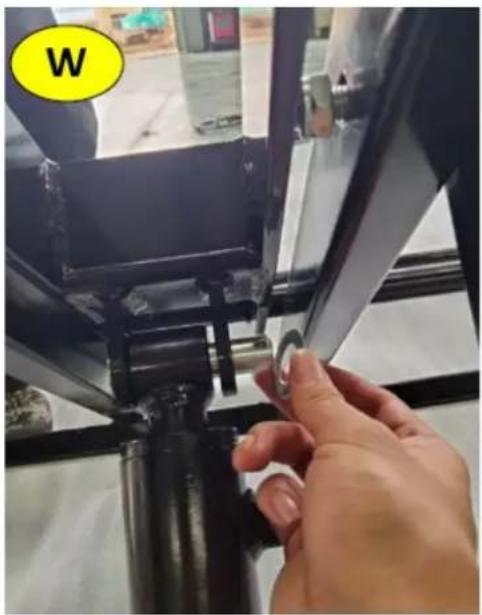

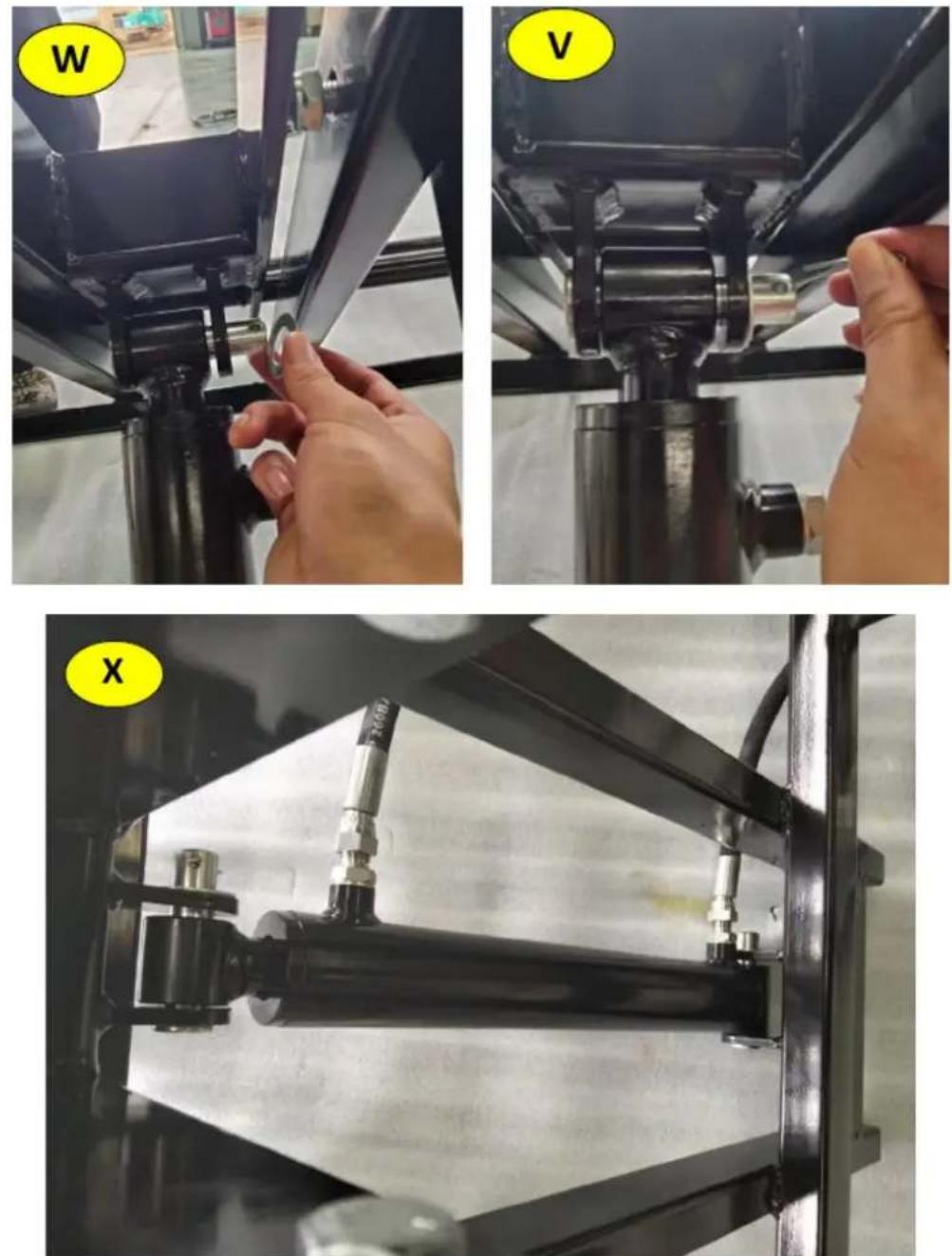

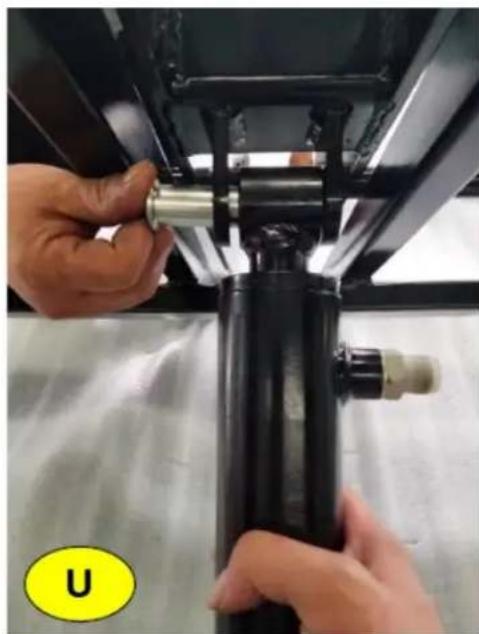

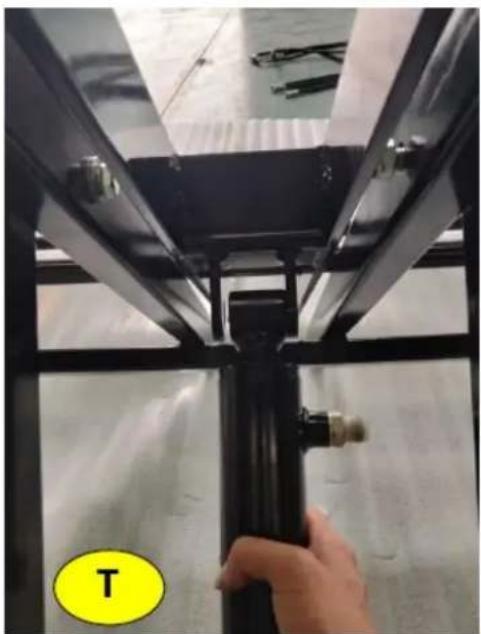

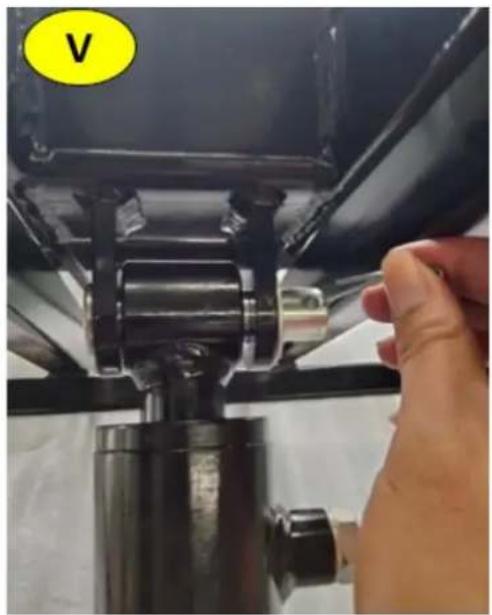

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

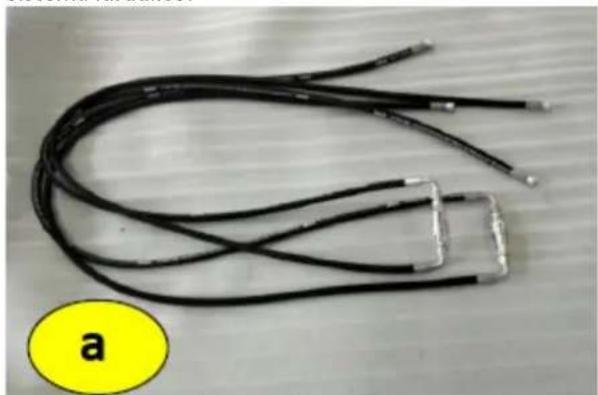

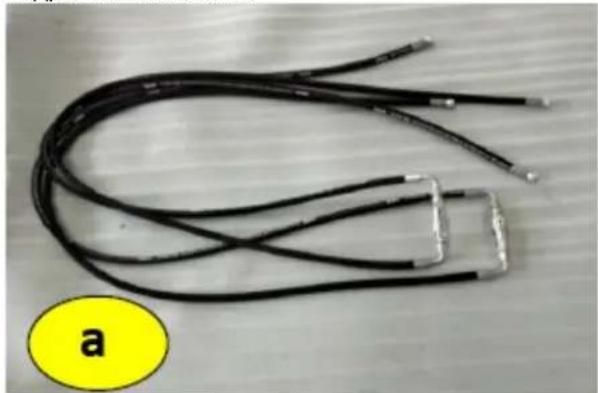

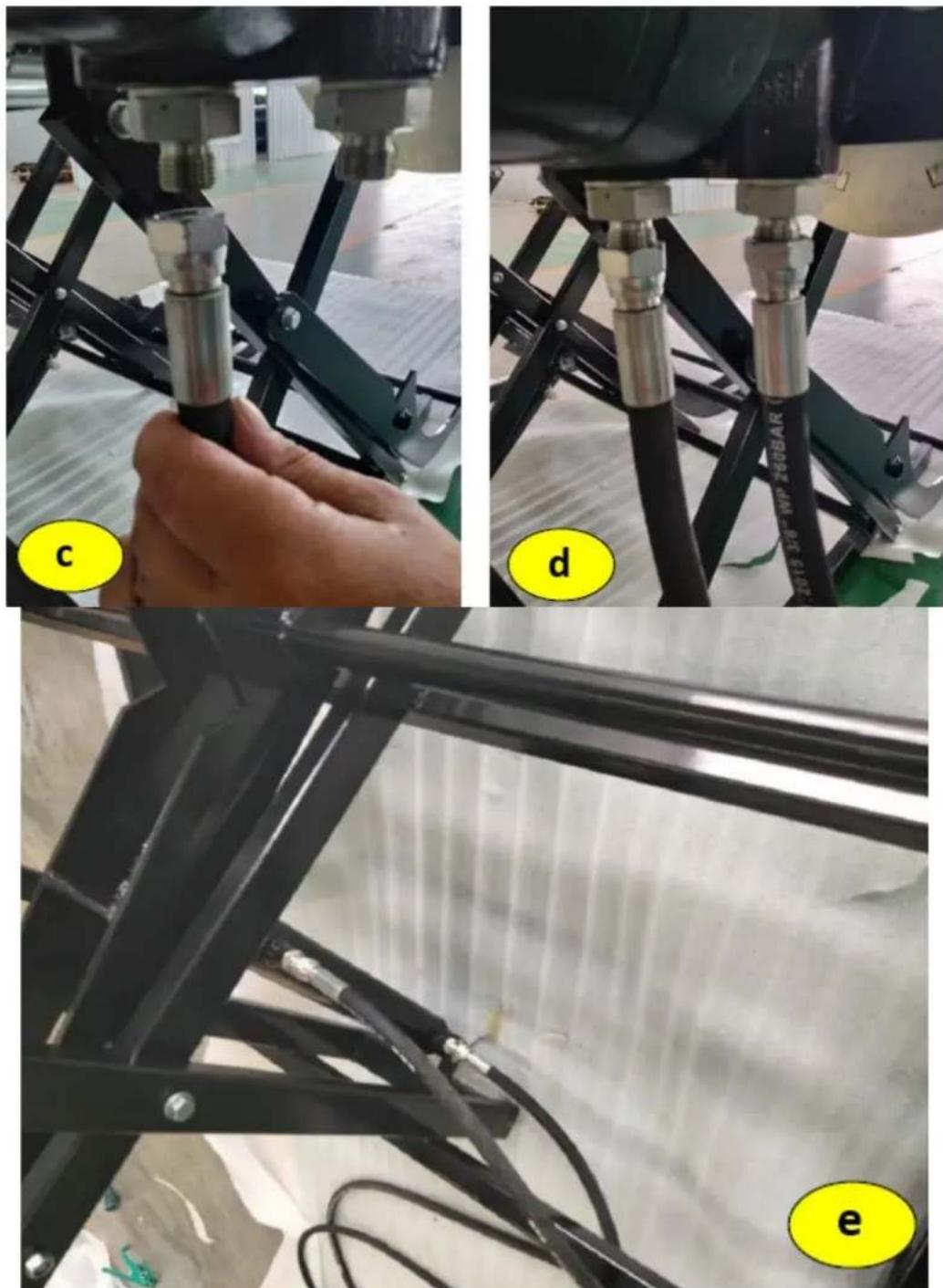

Hydraulic system:

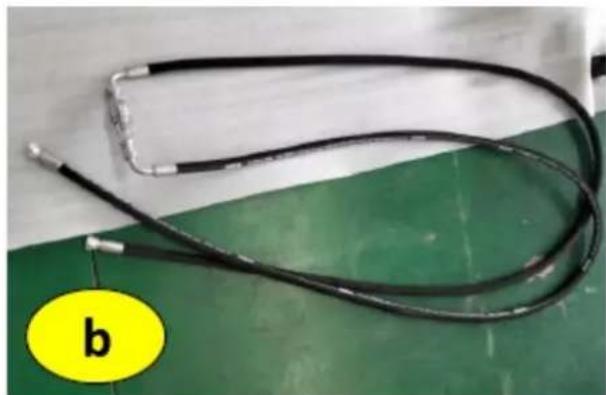

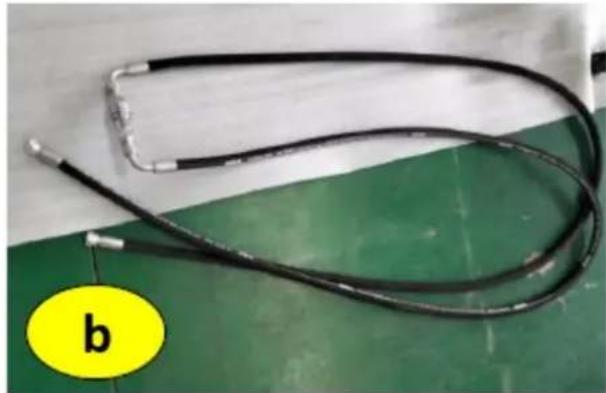

Coiled black electrical wires with metallic contacts, placed on a wooden surface (no text or symbols visible)

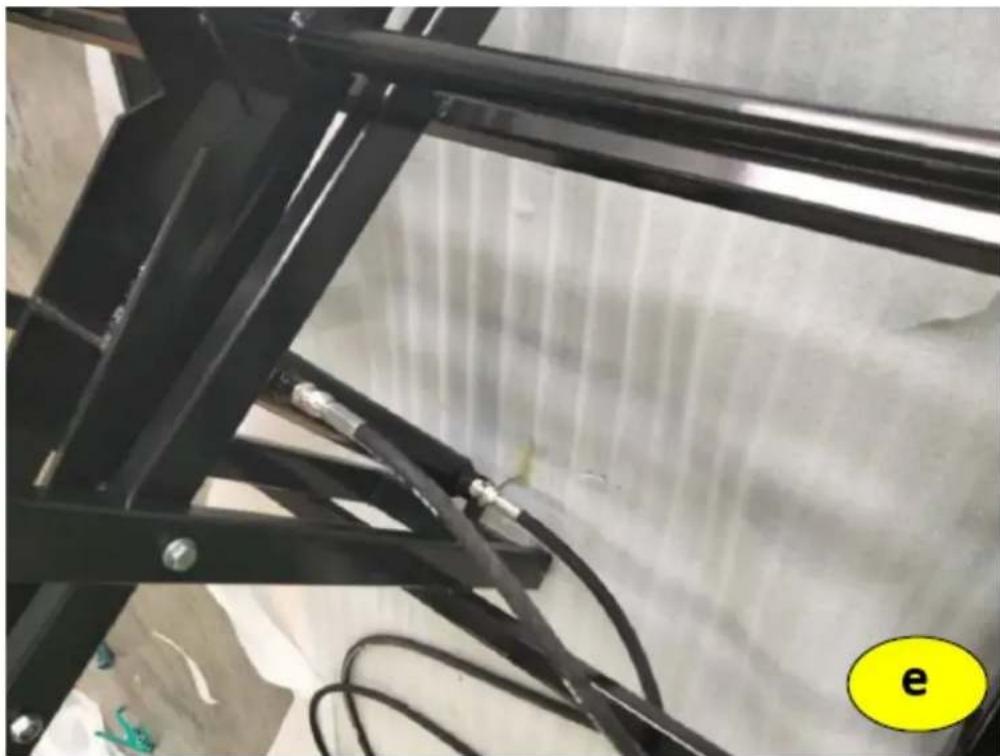

Close-up of a black stethoscope with metallic fittings resting on a green surface, labeled 'b' in a yellow circle (no other text or symbols visible)

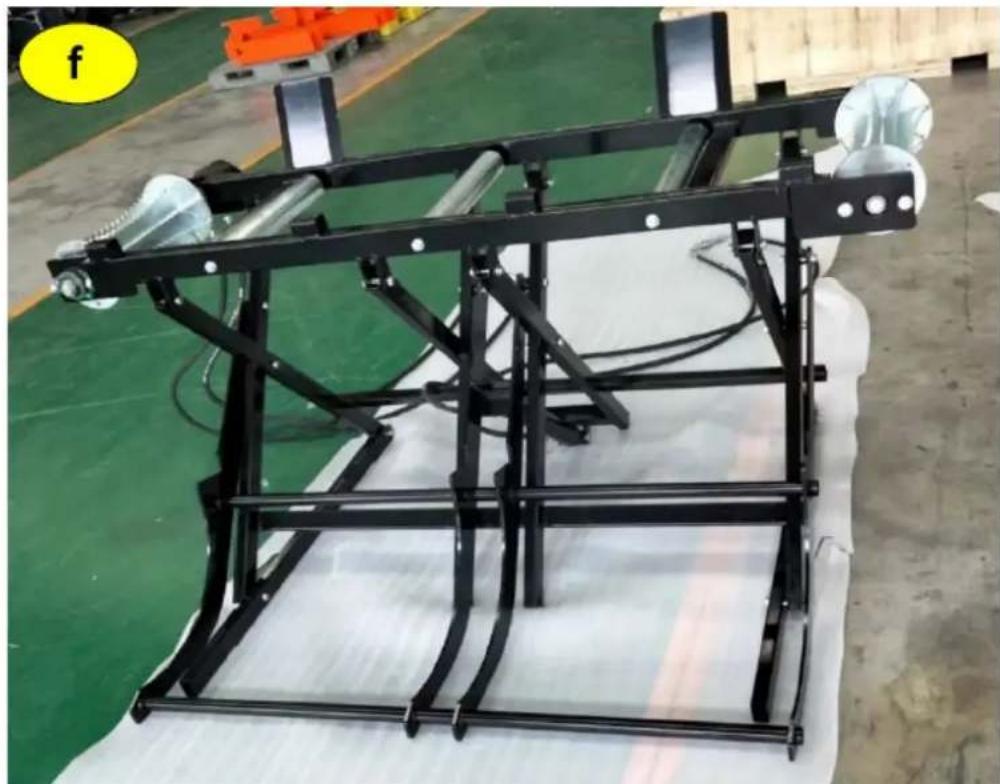

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

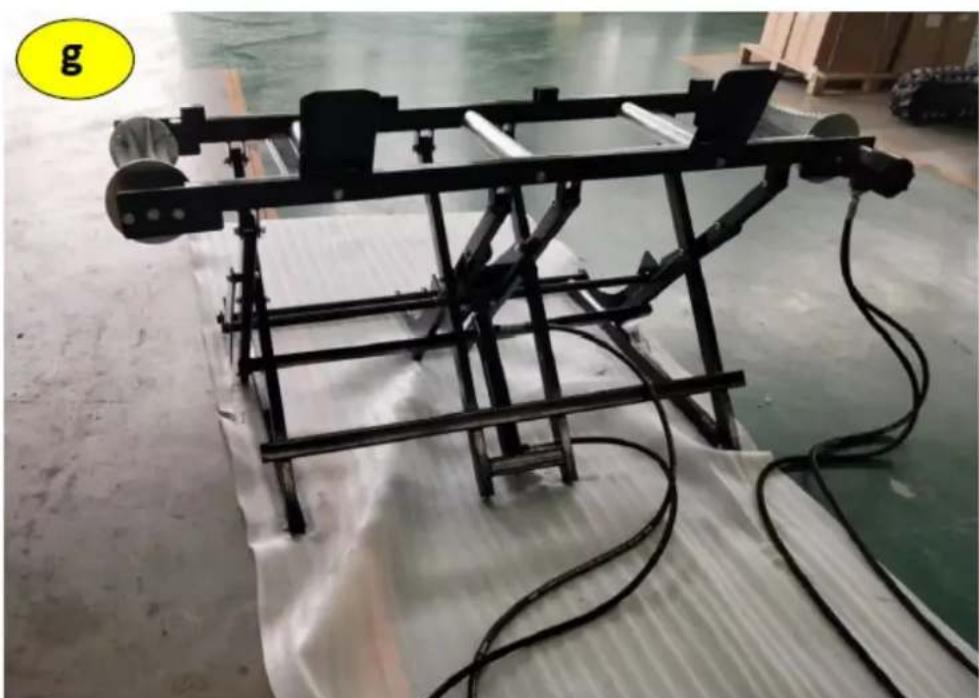

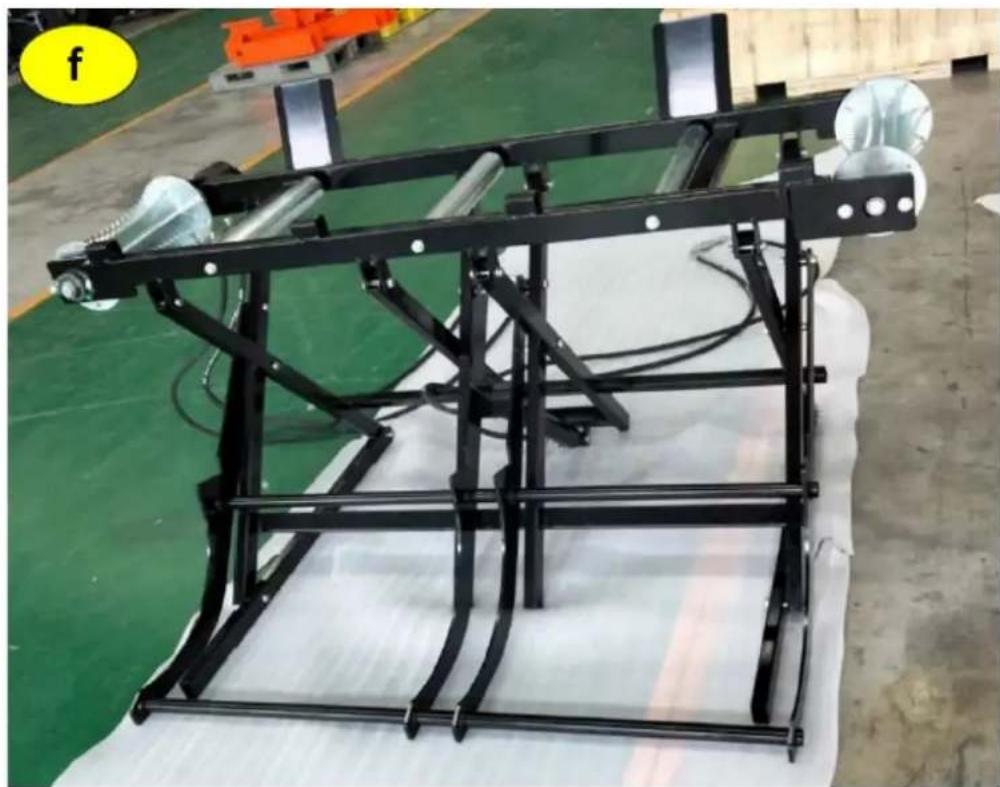

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)


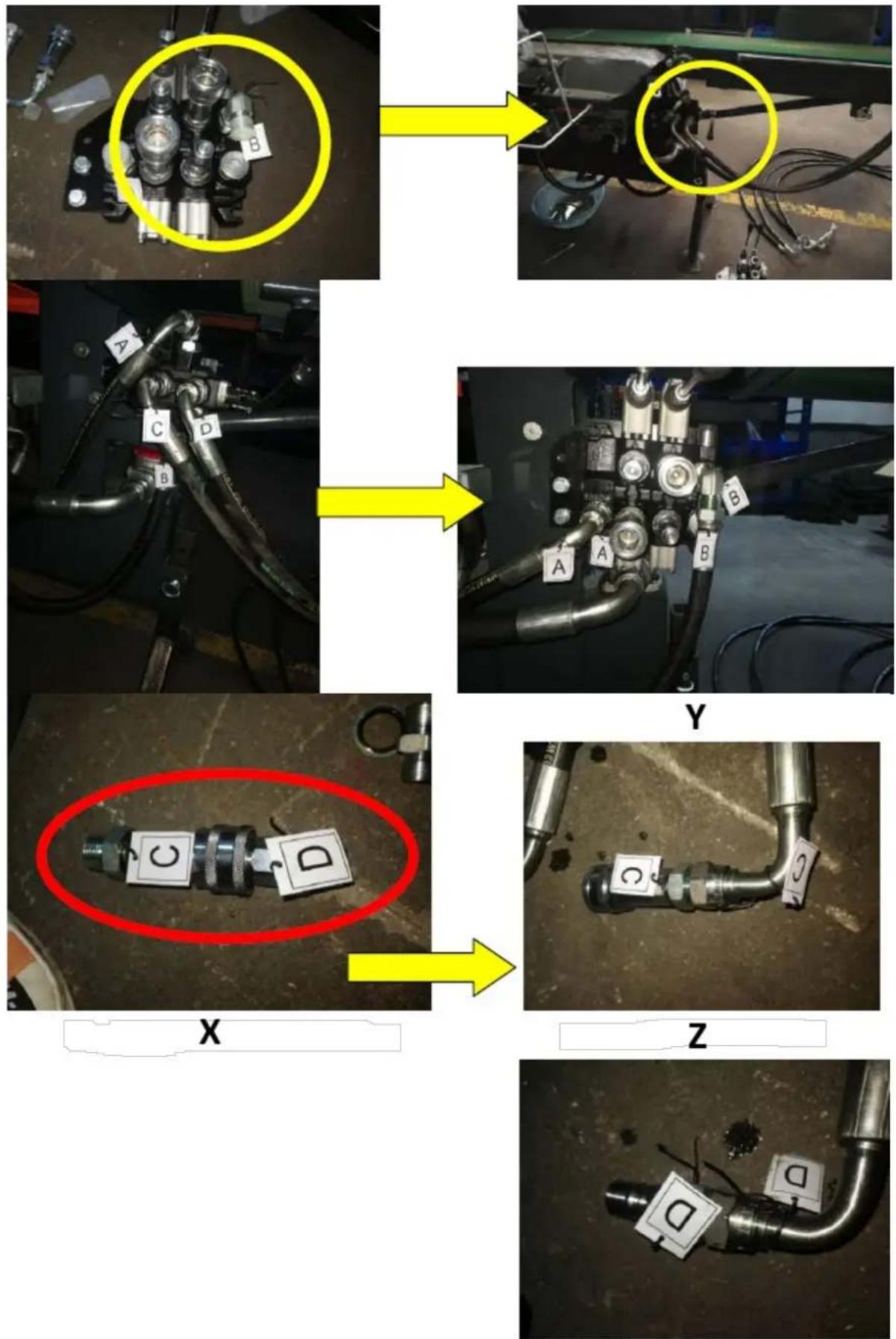

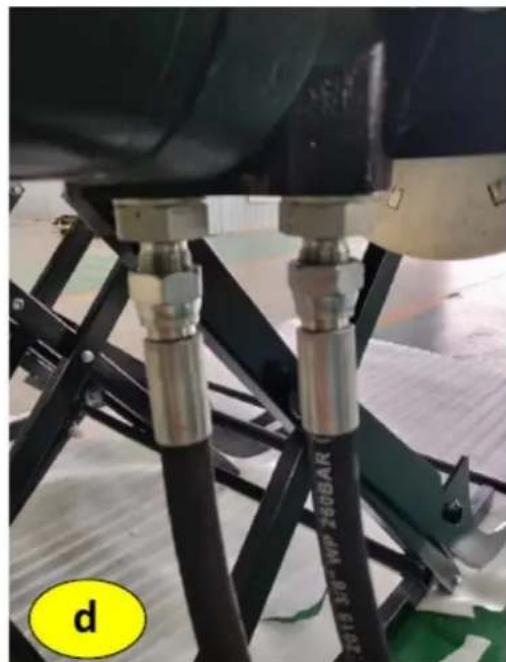

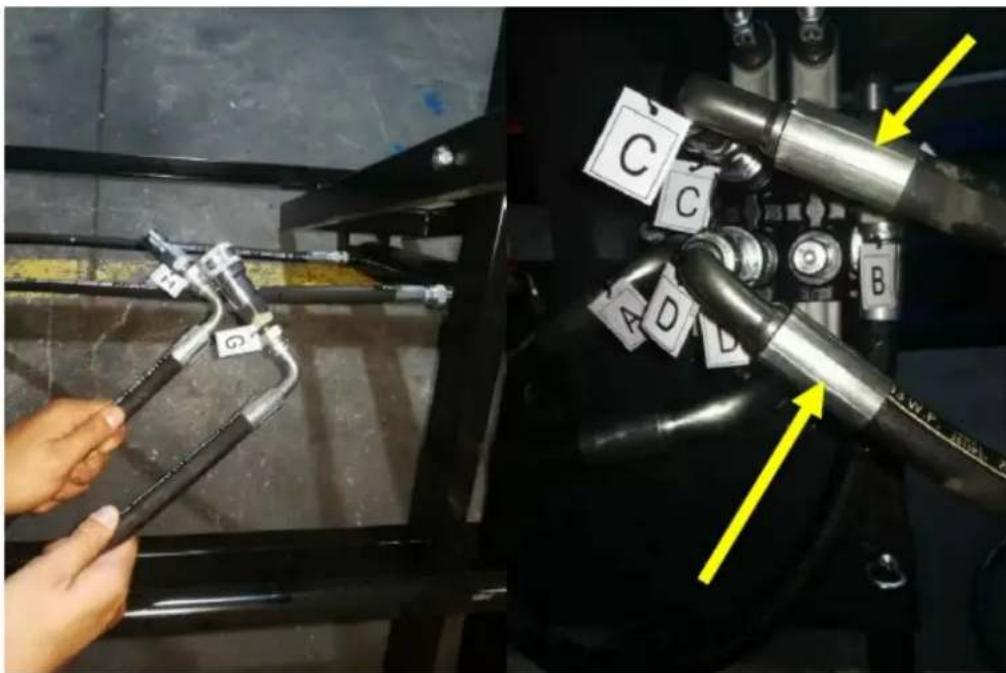

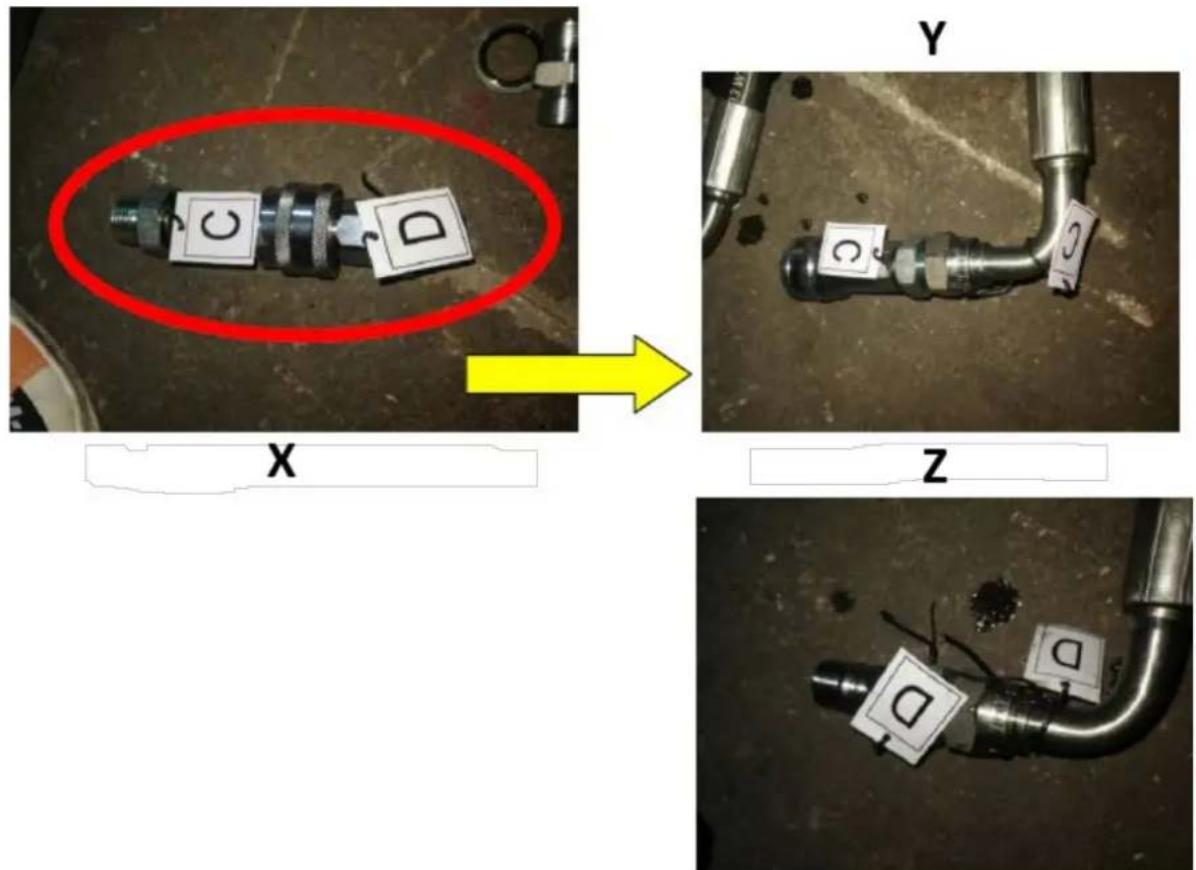

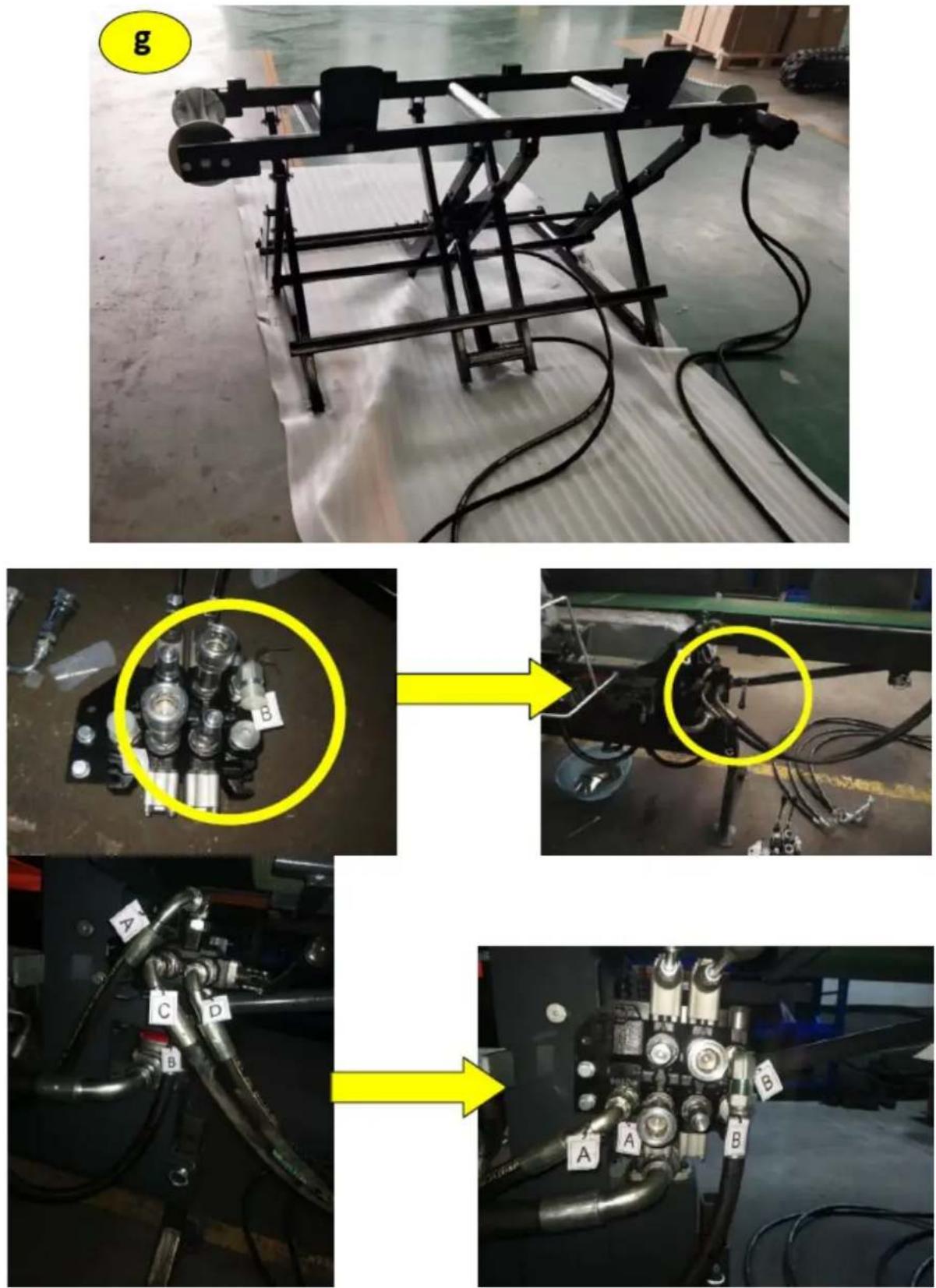

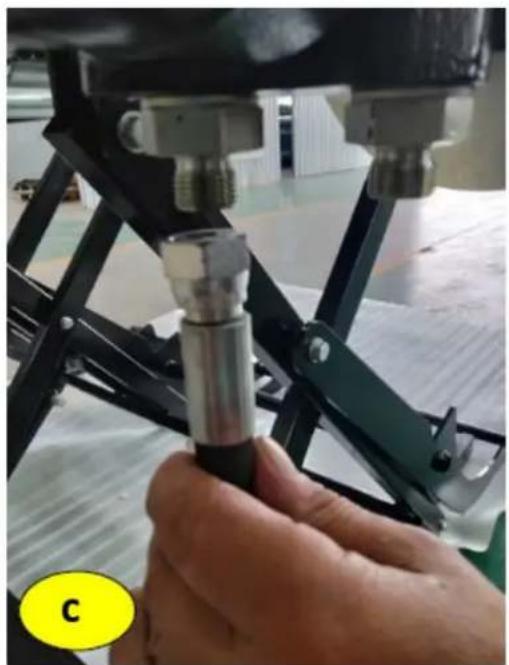

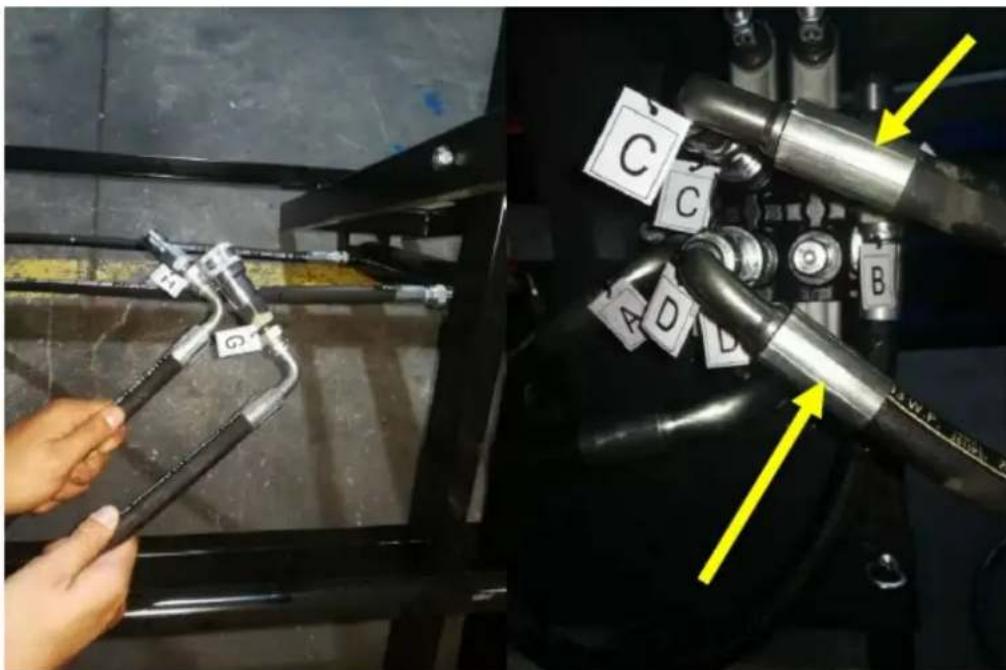

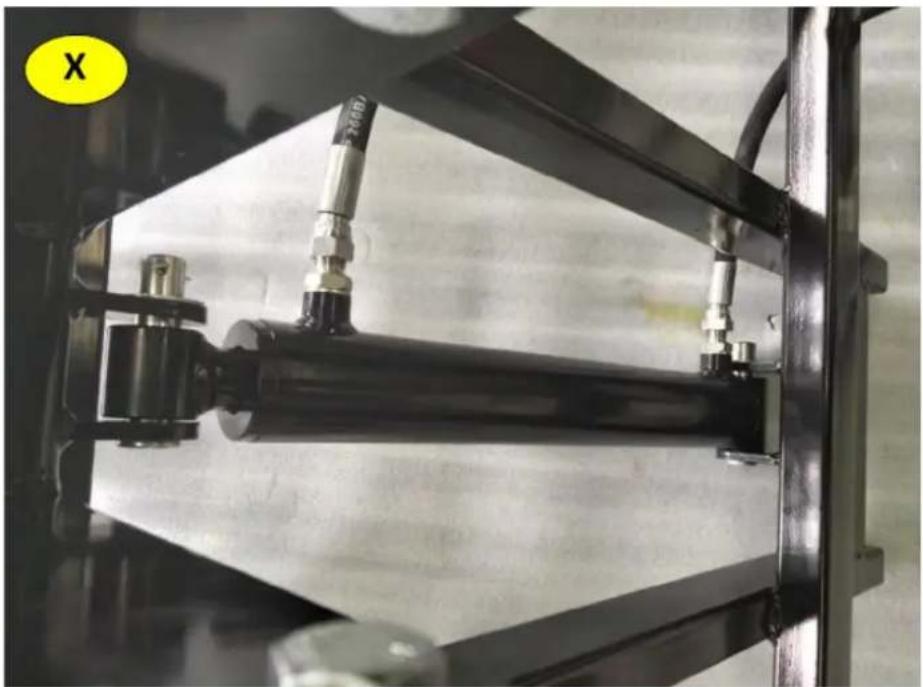

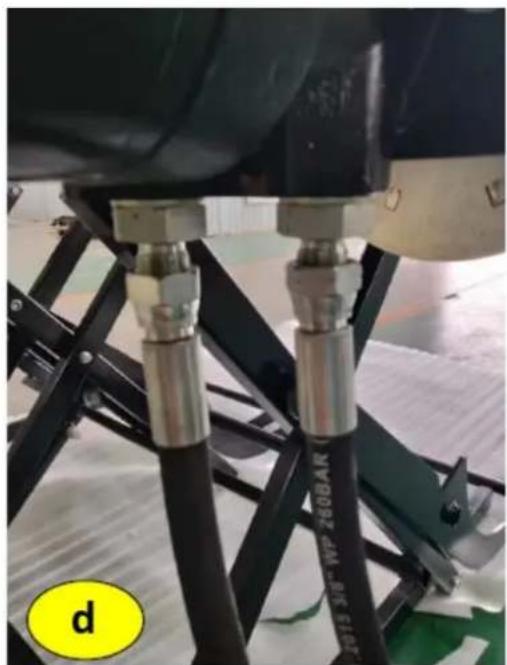

X – quick connector, Y – hydraulic feeder input (C), Z – hydraulic feeder output (D)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

H/G - log lifter cylinder connection for the lifter motor.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment. Contact local authorities for information on your local recycling facility.

Technical diagram of a mechanical assembly with numbered components for identification

Assembly of black metal brackets and clamps laid out on a white sheet on a green floor, no visible text or symbols.

Metal frame structure with multiple parallel black rods on a white surface, no text or symbols visible

Black metal bracket structure on white sheet, no visible text or symbols

Close-up of black metal structural beams and panels on a tiled floor, with a yellow circular label labeled 'D' in the corner (no readable text or symbols)

Metal frame structure with intersecting black rods, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, each with a small metallic bracket and a yellow circular label labeled 'F' in the top-left corner.

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheeted fabric, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller on a white sheet (no visible text or symbols)

Black metal frame structure with attached metallic components on a white sheet, displayed indoors (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand holding a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Układ hydrauliczny:

Coiled black electrical wires with metallic connectors, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Technical diagram showing a hand holding a pipe with labeled components and arrows pointing to labeled parts A, B, C, D, and others.

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Assembly of black metal components laid out on a white sheet, placed on a green floor (no visible text or symbols)

Black metal truss structure arranged on a white surface, with a yellow circular label labeled 'B' in the top-left corner (no other text or symbols)

Black metal X-shaped structure with green safety railing in background (no text or symbols visible)

Close-up of black metal structural beams with white insulation, no visible text or symbols

Black metal truss structure with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a yellow circular icon (no visible text or symbols)

Metal frame structure with attached screw and glass components on a white sheet, displayed indoors (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label marked 'K' (no readable text or symbols)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O, with no visible text or symbols.

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Hydraulický systém:

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical arms and connectors with black and metallic fittings, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Technical diagram showing a hand holding a pipe with labeled components and arrows pointing to labeled parts A, B, C, D, and others.

Technical diagram of a mechanical assembly with numbered components for identification

Industrial machinery laid out on a white sheet with green flooring, no visible text or symbols

Black metal truss structure on a white surface, no text or symbols visible

Black metal X-shaped structural components laid out on a white sheet, with a yellow circular label 'C' in the corner (no readable text or symbols on the main structure)

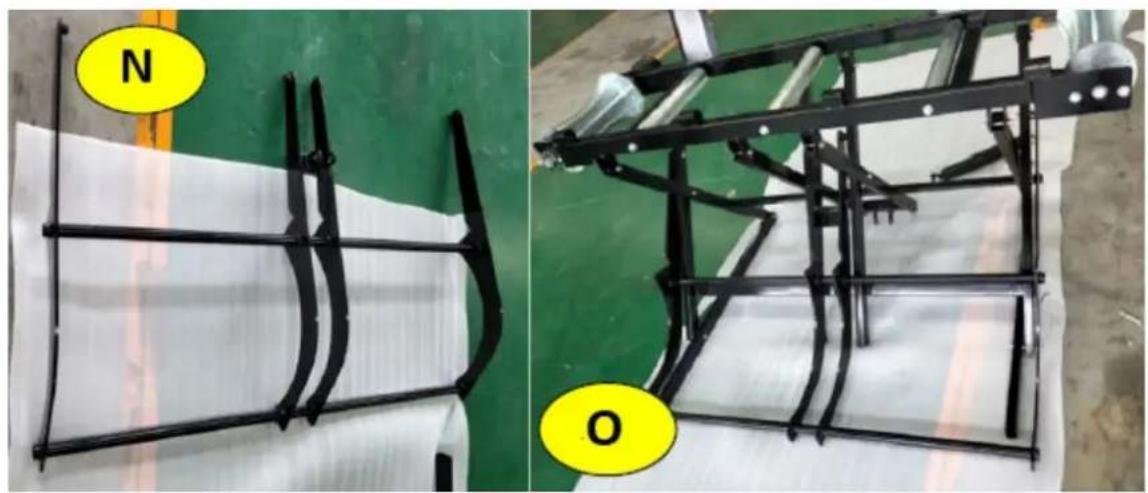

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols, displayed indoors in a factory setting (no readable signage or symbols)

Black cylindrical mechanical component with four metallic pins, placed on a textured surface (no visible text or symbols)

Hand adjusting a mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small white object next to a metallic mechanical component, placed on a textured surface (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label (T) in the corner, no visible text or symbols on the main subject.

Close-up of hands adjusting a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a yellow 'W' label (no readable text or symbols on the object itself)

Close-up of a hand adjusting a mechanical component with a yellow circular label containing the letter 'V' (no readable text or symbols on the object itself)

Industrial mechanical assembly with black cylindrical components and metallic fittings (no visible text or symbols)

Coiled black and silver wires on a wooden surface, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the device itself)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical pin (no visible text or symbols)

Close-up of mechanical components with black and metallic connectors, no visible text or symbols

Close-up of a black metal frame with attached cables and connectors, against a white curtain background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white base, displayed indoors on a green floor (no visible text or symbols)

Experimental setup showing a mechanical component with labeled parts (C, D) and three views (X, Y, Z) before and after modification.

Technical diagram showing a hand holding a pipe with labeled components and arrows pointing to parts labeled A, B, C, D, and others.

Technical diagram of a mechanical assembly with numbered components for identification

Assembly of black metal brackets and clamps laid out on a white sheet on a green floor, no visible text or symbols.

Metal frame structure with multiple parallel black rods on a white surface, no text or symbols visible

Black metal bracket structure on white sheet, no visible text or symbols

Close-up of black metal structural beams and joints on a white surface, with a yellow circular label 'D' in the corner (no text or symbols on the beams themselves)

Metal frame structure with intersecting black rods, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, each with a small pin and a yellow label 'F' in the top-left corner (no other text or symbols)

Close-up of a metal frame with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background (no text or symbols)

Mechanical assembly with metal components and a spring-loaded roller, placed on a white surface (no visible text or symbols)

Black metal frame structure with attached saw and a metallic tool, displayed on a white sheet (no text or symbols visible)

Close-up of a metal mechanical component with a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator (L) on the floor, no visible text or symbols.

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand holding a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Sistema idraulico:

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical arms and connectors with black and metallic fittings, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts labeled A, B, C, D.

Technical diagram of a mechanical assembly with numbered components for identification

1. Marco principal (x1)
2. Marco de soporte 1 (x1)
3. Marco inferior (x2)
4. Marco de soporte 2 (x1)
5. Marco elevador (x1)
6. Cilindro hidráulico (x1)
7. Pasador de cilindro hidráulico 1 (x1)
8. Pasador de cilindro hidráulico 2 (x1)
9. Eje del rodillo de soporte (x3)
10. Casquillo de rodillo de soporte (x6)
11. Rodillo de soporte (x3)
12. Motor hidráulico (x1)
13. Rodillo (x1)
14. Cojinete UCFLU205 (x3)
15. Rodillo (x1)

Marco:

Assembly of black metal brackets and clamps laid out on a white sheet on a green floor, no visible text or symbols.

Metal frame structure with multiple parallel black rods on a white surface, no text or symbols visible

Black metal bracket structure on white sheet, no visible text or symbols

Close-up of black metal structural beams with white insulation, no visible text or symbols

Metal frame structure with intersecting black rods, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, each with a small pin and a yellow label 'F' in the corner (no other text or symbols)

Close-up of a metal bracket with bolts and a yellow circular label 'G' in the corner (no readable text or symbols on the main subject)

Black metal truss structure on white sheeted fabric, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller on a white sheet (no visible text or symbols)

Black metal frame structure with attached metallic components on a white sheet, displayed indoors (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand holding a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Sistema hidráulico:

Coiled black electrical wires with metallic connectors, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical components with black and metallic fittings, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components, likely a tool or device with labeled parts.

Assembly of black metal brackets and clamps laid out on a white sheet on a green floor, no visible text or symbols.

Metal frame structure with multiple parallel black rods on a white surface, no text or symbols visible

Black metal bracket structure on white sheet, no visible text or symbols

Close-up of black metal structural beams with white insulation, no visible text or symbols

Metal frame structure with intersecting black rods, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, each with a small metallic bracket and a yellow circular label labeled 'F' in the top-left corner.

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheeted fabric, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller on a white sheet (no visible text or symbols)

Black metal frame structure with attached metallic components on a white sheet, displayed indoors (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator (L) on the floor, no visible text or symbols.

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the device itself)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical components with black and metallic tubing, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, placed on a concrete floor (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components for identification

1. Hovedramme (x1)
2. Stativramme 1 (x1)
3. Nedre ramme (x2)
4. Stativramme 2 (x1)
5. Løfteramme (x1)
6. Hydraulisk cylinder (x1)
7. Hydraulikcylinderstift 1 (x1)
8. Hydraulikcylinderstift 2 (x1)
9. Bærende rulleaksel (x3)
10. Støttende rullebøsning (x6)
11. Støttende rulle (x3)
12. Hydraulisk motor (x1)
13. Rulle (x1)
14. UCFLU205 Leje (x3)
15. Rulle (x1)

Ramme:

Collection of mechanical components laid out on a white sheet, including clamps and hoses, placed on a green floor (no visible text or symbols)

Black metal truss structure on a green surface, no text or symbols visible

Black metal X-shaped structure made of steel beams, displayed on a white surface with green safety railing in background (no text or symbols visible)

Close-up of black metal structural beams with white insulation, no visible text or symbols

Black metal truss structure with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller on a white sheet (no visible text or symbols)

Black metal frame structure with attached metallic components on a white sheet, displayed indoors (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator (L) on the floor, no visible text or symbols.

Industrial machine with black frame and white sheet material, no visible text or symbols

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand holding a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Hydraulisk system:

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope with metallic fittings resting on a green surface, labeled 'b' in a yellow circle (no other text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components for identification

1. Päärunko (x1)
2. Jalustan runko 1 (x1)
3. Alakehys (x2)
4. Jalustan runko 2 (x1)
5. Nostokehys (x1)
6. Hydraulisylinteri (x1)
7. Hydraulisylinterin tappi 1 (x1)
8. Hydraulisylinterin tappi 2 (x1)
9. Tukirullan akseli (x3)
10. Tukirullan holkki (x6)
11. Tukirulla (x3)
12. Hydraulimooottori (x1)
13. Rulla (x1)
14. UCFLU205-laakeri (x3)
15. Rulla (x1)

Kehys:

Industrial machinery components laid out on a white sheet with green flooring, no visible text or symbols

Black metal frame structure on a green surface, no text or symbols visible

Black metal X-shaped structural components arranged on a white surface, with a yellow circular label 'C' in the corner (no readable text or symbols on the main structure)

Close-up of a black metal frame structure with white insulation, no visible text or symbols

Black metal truss structure with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols visible)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller, placed on a white surface (no visible text or symbols)

Black metal frame structure with attached saw and a metallic tool, displayed on a white sheet (no text or symbols visible)

Close-up of a metal mechanical component with a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator (L) on the floor, no visible text or symbols.

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand holding a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical components with black and metallic tubing, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components for identification

1. Hoofdframe (x1)
2. Standaardframe 1 (x1)
3. Onderframe (x2)
4. Standaardframe 2 (x1)
5. Liftframe (x1)
6. Hydraulische cilinder (x1)
7. Hydraulische cilinderpen 1 (x1)
8. Hydraulische cilinderpen 2 (x1)
9. Ondersteunende rolas (x3)
10. Ondersteunende rolbus (x6)
11. Steunrol (x3)
12. Hydraulische motor (x1)
13. Rol (x1)
14. UCFLU205 Lager (x3)
15. Rol (x1)

Kader:

Industrial machinery components laid out on a white sheet with green flooring, no visible text or symbols

Black metal frame structure on a green surface, no text or symbols visible

Black metal X-shaped structural components arranged on a white surface, with a yellow circular label 'C' in the corner (no readable text or symbols on the main structure)

Close-up of a black metal frame with white insulation, no visible text or symbols

Black metal truss structure with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller, placed on a white surface (no visible text or symbols)

Black metal frame structure with attached saw and a metallic tool, displayed on a white sheet (no text or symbols visible)

Close-up of a metal mechanical component with a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material, no visible text or symbols

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Coiled black electrical wires with metallic connectors, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope with metallic fittings resting on a green surface, labeled 'b' in a yellow circle (no other text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

X – snelkoppeling, Y – hydraulische invoer (C), Z – hydraulische uitvoer (D)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

1. Hovedramme (x1)
2. Stativramme 1 (x1)
3. Nedre ramme (x2)
4. Stativramme 2 (x1)
5. Løfteramme (x1)
6. Hydraulisk sylinder (x1)
7. Hydraulisk sylinderstift 1 (x1)
8. Hydraulisk sylinderstift 2 (x1)
9. Støtterulleaksel (x3)
10. Støtterullebøssing (x6)
11. Støtterulle (x3)
12. Hydraulisk motor (x1)
13. Rulle (x1)
14. UCFLU205 lager (x3)
15. Rulle (x1)

Ramme:

Assembly of black metal brackets and clamps laid out on a white sheet on a green floor, no visible text or symbols.

Metal frame structure with multiple parallel black rods on a white surface, no text or symbols visible

Black metal bracket structure on white sheet, no visible text or symbols

Close-up of black metal structural beams with white insulation, no visible text or symbols

Metal frame structure with intersecting black rods, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, each with a small metallic bracket and a yellow circular label labeled 'F' in the top-left corner.

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller on a white sheet (no visible text or symbols)

Black metal frame structure with attached saw and a white tool, displayed on a white sheet (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, resting on a textured surface (no visible text or symbols)

Hand adjusting a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Hydraulisk system:

Coiled black electrical wires with metallic connectors, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

X - hurtigkobling, Y - hydraulisk materinngang (C), Z - hydraulisk materutgang (D)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components for identification

1. Huvudram (x1)
2. Stativ ram 1 (x1)
3. Nedre ram (x2)
4. Stativ ram 2 (x1)
5. Lyftram (x1)
6. Hydraulcylinder (x1)
7. Hydraulcylinderstift 1 (x1)
8. Hydraulcylinderstift 2 (x1)
9. Stödande rullaxel (x3)
10. Stödande rullbussning (x6)
11. Stödrulle (x3)
12. Hydraulmotor (x1)
13. Rull (x1)
14. UCFLU205 lager (x3)
15. Rull (x1)

Ram:

Assembly of black metal brackets and tools laid out on a white sheet on a green floor, no visible text or symbols.

Metal frame structure with multiple parallel black rods on a white surface, no text or symbols visible

Black metal bracket structure on white sheet, no visible text or symbols

Close-up of black metal structural beams with white insulation, no visible text or symbols

Metal frame structure with intersecting black rods, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, each with a small pin and a yellow label 'F' in the corner (no other text or symbols)

Close-up of a metal frame with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller, placed on a white surface (no visible text or symbols)

Black metal frame structure with attached saw and a metallic tool, displayed on a white sheet (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Hydraulsystem:

Coiled black electrical wires with metallic connectors, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope with metallic fittings resting on a green surface, labeled 'b' in a yellow circle (no other text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a pipe with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components for identification

1. Quadro principal (x1)
2. Estrutura do suporte 1 (x1)
3. Quadro inferior (x2)
4. Estrutura do suporte 2 (x1)
5. Estrutura do elevador (x1)
6. Cilindro hidráulico (x1)
7. Pino do cilindro hidráulico 1 (x1)
8. Pino do cilindro hidráulico 2 (x1)
9. Eixo do rolo de suporte (x3)
10. Bucha de rolo de suporte (x6)
11. Rolo de suporte (x3)
12. Motor hidráulico (x1)
13. Rolo (x1)
14. Rolamento UCFLU205 (x3)
15. Rolo (x1)

Quadro:

Assembly of black metal brackets and clamps laid out on a white sheet on a green floor, no visible text or symbols.

Metal frame structure with multiple parallel black rods on a white surface, no text or symbols visible

Black metal bracket structure on white sheet, no visible text or symbols

Close-up of black metal structural beams with white insulation, no visible text or symbols

Metal frame structure with intersecting black rods, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, each with a small pin and a yellow label 'F' in the corner (no other text or symbols)

Close-up of a metal bracket with bolts and a yellow circular label 'G' in the corner (no readable text or symbols on the main subject)

Black metal truss structure on white sheeted fabric, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller on a white sheet (no visible text or symbols)

Black metal frame structure with attached metallic components on a white sheet, displayed indoors (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine component with black frame and white sheet, no visible text or symbols

Two black metal frame structures on a green surface, labeled N and O, with no visible text or symbols.

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a black mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Sistema hidráulico:

Coiled black electrical wires with metallic connectors, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical components with black and metallic tubing, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components for identification

Industrial machinery components laid out on a white sheet with green flooring, no visible text or symbols

Black metal frame structure on a green surface, no text or symbols visible

Black metal X-shaped structural components arranged on a white surface, with a yellow circular label 'C' in the corner (no readable text or symbols on the main structure)

Close-up of a black metal frame structure with white insulation, no visible text or symbols

Black metal structural frame with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller on a white sheet (no visible text or symbols)

Black metal frame structure with attached saw and a white tool, displayed on a white sheet (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Hydraulický systém:

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the device itself)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components, including exploded and assembled views.

Industrial machinery laid out on a white sheet with green flooring, no visible text or symbols

Metal frame structure made of black rods on a white surface, with a yellow circular label labeled 'B' in the top-left corner (no other text or symbols)

Black metal X-shaped structural components laid out on a white sheet, with a yellow circular label 'C' in the corner (no readable text or symbols on the main structure)

Two black metal frame structures on a green floor, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black cylindrical mechanical component with four metallic pins, placed on a textured surface (no visible text or symbols)

Hand adjusting a mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic valve component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label (T) in the corner, no readable text or symbols on the main subject.

Close-up of hands adjusting a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a yellow 'W' label (no readable text or symbols on the object itself)

Close-up of a hand adjusting a mechanical component with a yellow circular label containing the letter 'V' (no readable text or symbols on the object itself)

Industrial mechanical assembly with black cylindrical components and metallic fittings (no visible text or symbols)

Хидравлична система:

Coiled black and silver wires on a wooden surface, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the device itself)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical pin (no visible text or symbols)

Close-up of mechanical components with black and metallic connectors, no visible text or symbols

Close-up of a black metal frame with attached cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white base, displayed on a green floor (no visible text or symbols)

Technical diagram showing a hand holding a pipe with labeled components and arrows pointing to labeled parts A, B, C, D.

Technical diagram of a mechanical assembly with numbered components for identification

Assembly of black metal brackets and clamps laid out on a white sheet on a green floor, no visible text or symbols.

Metal frame structure with multiple parallel black rods on a white surface, no text or symbols visible

Black metal bracket structure on white sheet, no visible text or symbols

Close-up of black metal structural beams with white insulation, no visible text or symbols

Metal frame structure with intersecting black rods, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, each with a small metallic bracket and a yellow circular label labeled 'F' in the top-left corner.

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background (no text or symbols)

Mechanical assembly with metal components and a spring-loaded roller, placed on a white surface (no visible text or symbols)

Black metal frame structure with attached saw and a metallic tool, displayed on a white sheet (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material, no visible text or symbols

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Υδραυλικό σύστημα:

Coiled black electrical wires with metallic contacts, placed on a wooden surface (no text or symbols visible)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical arms and connectors with black and metallic fittings, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

Technical diagram of a mechanical assembly with numbered components for identification

1. Glavni okvir (x1)
2. Okvir stalka 1 (x1)
3. Donji okvir (x2)
4. Okvir postolja 2 (x1)
5. Okvir podizača (x1)
6. Hidraulički cilindar (x1)
7. Zatik hidrauličkog cilindra 1 (x1)
8. Zatik hidrauličkog cilindra 2 (x1)
9. Osovina potpornog valjka (x3)
10. Potporni valjkasti ležaj (x6)
11. Potporni valjak (x3)
12. Hidraulički motor (x1)
13. Valjak (x1)
14. UCFLU205 ležaj (x3)
15. Valjak (x1)

Okvir:

Industrial machinery components laid out on a white sheet with green flooring, no visible text or symbols

Black metal frame structure on a green surface, no text or symbols visible

Black metal X-shaped structural components arranged on a white surface, with a yellow circular label 'C' in the corner (no readable text or symbols on the main structure)

Close-up of a black metal frame structure with white insulation, no visible text or symbols

Black metal structural frame with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Industrial conveyor system with metal coils and a black rail, placed on a white sheet (no visible text or symbols)

Metal frame structure with attached screw and glass components on a white sheet, displayed indoors (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand holding a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Hidraulički sustav:

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

X – brzi spoj, Y – ulaz hidrauličkog dodavača (C), Z – izlaz hidrauličkog dodavača (D)

Industrial equipment photo showing a hand holding a pipe with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

H/G – priključak cilindra podizača trupaca za motor podizača.

ZBRINJAVANJE KORIŠTENIH UREĐAJA

Nemojte odlagati ovaj uređaj u sustave komunalnog otpada. Predajte ga mjestu za prikupljanje i recikliranje električnih i električnih uređaja. Provjerite simbol na proizvodu, priručniku s uputama i pakiranju. Plastika koja se koristi za izradu uređaja može se reciklirati u skladu s oznakama. Odabirom recikliranja dajete značajan doprinos zaštiti našeg okoliša.

Obratite se lokalnim vlastima za informacije o vašem lokalnom pogonu za recikliranje.

Technical diagram of a mechanical assembly with numbered components for identification

1. Pagrindinis rémas (x1)
2. Stovo rémas 1 (x1)
3. Apatinis rêmas (x2)
4. Stovo rémas 2 (x1)
5. Kélimo rémas (x1)
6. Hidraulinis cilindras (x1)
7. Hidraulinio cilindro kaištis 1 (x1)
8. Hidraulinio cilindro kaištis 2 (x1)
9. Atraminio ritinélio velenas (x3)
10. Atraminé ritininé jvoré (x6)
11. Atraminis volas (x3)
12. Hidraulinis variklis (x1)
13. Volelis (x1)
14. UCFLU205 guolis (x3)
15. Volelis (x1)

Rémas:

Assorted black metal components laid out on a white sheet on a green floor, no visible text or symbols

Black metal truss structure on a green surface, labeled 'B' in yellow circle (no text or symbols on the structure itself)

Black metal bracket structure on white fabric, no visible text or symbols

Close-up of black metal structural beams with white insulation, no visible text or symbols

Black metal truss structure with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal frame and coiled spring on a white sheet (no visible text or symbols)

Black metal frame structure with attached saw and a metallic tool, displayed on a white sheet (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a black mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Hidraulinė sistema:

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical arms and connectors with black and metallic fittings, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

H/G – rąsto kélimo cilindro jungtis kélimo varikliui.

PANAUDOTŲ PRIETAISŲ IŠMETIMAS

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Industrial machinery components laid out on a white sheet with green flooring, no visible text or symbols

Black metal frame structure on a green surface, no text or symbols visible

Black metal X-shaped structural components arranged on a white surface, with a yellow circular label 'C' in the corner (no readable text or symbols on the main structure)

Close-up of a black metal frame structure with white insulation, no visible text or symbols

Black metal structural frame with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller on a white sheet (no visible text or symbols)

Black metal frame structure with attached saw and a white tool, displayed on a white sheet (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material on a green factory floor (no visible text or symbols)

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a black mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Sistem hidraulic:

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

X – conector rapid, Y – intrare hidraulic alimentator (C), Z – ieşire alimentator hidraulic (D)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts labeled A, B, C, D.

Technical diagram of a mechanical assembly with numbered components for identification

1. Glavni okvir (x1)
2. Okvir stojala 1 (x1)
3. Spodnji okvir (x2)
4. Okvir stojala 2 (x1)
5. Dvižni okvir (x1)
6. Hidravlični cilinder (x1)
7. Podporni valj (x3)
8. Hidravlični motor (x1)
9. Roler (x1)
10. Ležaj UCFLU205 (x3)

11. Roler (x1)

12. Zatič hidravličnega cilindra 1 (x1)

13. Zatič hidravličnega cilindra 2 (x1)

14. Nosilna valjčna gred (x3)

15. Podporna valjčna puša (x6)

Okvir:

Assorted black metal components laid out on a white sheet on a green floor, no visible text or symbols

Black metal truss structure on a green surface, labeled 'B' in yellow circle (no text or symbols on the structure itself)

Black metal X-shaped structure made of steel beams, displayed on a white surface with green safety railing in background (no text or symbols visible)

Close-up of black metal structural beams with white insulation, no visible text or symbols

Black metal truss structure with intersecting beams, displayed on a white surface against a green background (no text or symbols visible)

Two black metal beams mounted on a textured surface, with a yellow circular label labeled 'F' in the top-left corner (no other text or symbols)

Close-up of a metal bracket with a yellow circular label 'G' in the corner (no other text or symbols visible)

Black metal truss structure on white sheet with green background, no visible text or symbols

Mechanical assembly with metal components and a spring-loaded roller, placed on a white surface (no visible text or symbols)

Black metal frame structure with attached saw and a metallic tool, displayed on a white sheet (no text or symbols visible)

Close-up of a mechanical assembly with metal brackets and a yellow circular label containing the letter 'K' (no readable text or symbols on the main subject)

Close-up of a mechanical assembly with a black bracket and yellow circular indicator labeled 'L' (no readable text or symbols)

Industrial machine with black frame and white sheet material, no visible text or symbols

Two black metal frame structures on a green surface, labeled N and O (no text or symbols on the structures themselves)

Close-up of a black metal mechanical structure with no visible text or symbols on the main body, displayed indoors in a factory setting.

Black mechanical component with four metallic pins, placed on a striped surface (no text or symbols visible)

Hand adjusting a black cylindrical mechanical component with a yellow circular label containing the letter 'R' (no text or symbols on the object itself)

Close-up of a hand holding a small wire near a metallic mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black metal frame structure with a yellow circular label 'T' in the corner (no readable text or symbols on the structure itself)

Close-up of hands installing a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

Hidravlični sistem:

Coiled black electrical wires with metallic contacts, labeled 'a' in yellow circle (no text or symbols on wires)

Close-up of a black stethoscope resting on a green surface, with a yellow circular badge labeled 'b' in the corner (no text or symbols on the subject)

Close-up of a hand adjusting a mechanical component with a metallic cylindrical part inserted, no visible text or symbols.

Close-up of mechanical arms and connectors with black and metallic fittings, no visible text or symbols

Close-up of a black metal frame structure with coiled cables and connectors, against a light background (no text or symbols visible)

Mechanical assembly frame with black metal frame and white insulation on a green floor, no visible text or symbols

Industrial robotic platform with black frame and connecting cables on a green floor (no visible text or symbols)

Industrial equipment photo showing a hand holding a flexible hose with labeled components and yellow arrows pointing to parts marked C, C, A, D, B.

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
