Product type	Pipe welding machine
Brand	MSW
Model	SWG-SW01A
Rated voltage	230 V / 50 Hz
Rated power	950 W
Compatible welding diameters	20, 25, 32, 40, 50, 63 mm
Maximum temperature	320 °C
Dimensions (L x W x H)	410 x 110 x 140 mm
Weight	1.5 kg
Heating type	Electric heating plate with interchangeable sockets
Display	Screen with red (heating) and green (ready) indicators
Temperature adjustment	Shift, Up, Down and SET buttons
Indicative heating time (20 mm)	5 seconds
Indicative heating time (63 mm)	24 seconds
Fusion depth (20 mm)	14 mm
Fusion depth (63 mm)	24 mm
Cooling time (20 mm)	3 minutes
Cooling time (63 mm)	6 minutes
Safety	Mandatory grounding; fault indicators
Maintenance	Clean after use; avoid humidity
Repairability	Repair by qualified professional only
Included accessories	Heating sockets for each diameter
Intended use	Welding of plastic pipes (PPR, PE, etc.)
Housing material	Heat-resistant plastic

Frequently Asked Questions - SWG-SW01A MSW

How to adjust the temperature on the SWG-SW01A?

Use the Shift ←, Up ↑, Down ↓ buttons to set the temperature, then confirm with the SET button. Press the temperature decrease button once to activate the operating mode (OUT indicator on).

What pipe diameters can be welded with this model?

Compatible diameters are: 20, 25, 32, 40, 50 and 63 mm. Specific heating sockets are provided for each diameter.

What is the welding procedure?

1. Install the appropriate socket. 2. Turn on the machine and wait for the green light. 3. Cut the pipe to length. 4. Insert the pipe and fitting into the sockets for the indicated heating time. 5. Remove quickly and join without twisting. 6. Allow to cool for the recommended time.

What to do if the red light stays on for a long time?

If the red light does not turn green after an abnormal time, this may indicate a fault. Immediately stop the machine, unplug it, and have it repaired by a professional.

Can the machine be used in the rain?

No. Avoid any ingress of water or liquids. Do not use the machine outdoors in rainy weather. The power supply must be properly grounded.

Should gloves be worn during use?

Yes, it is strongly recommended to wear protective gloves to avoid burns as the heating parts reach 320 °C.

How to install the heating sockets?

Place the machine on a stable surface. Firmly attach the sockets to the heating plate using a wrench. Generally, the smaller sockets are placed at the front of the plate.

What is the heating time for a 32 mm pipe?

For a diameter of 32 mm, the heating time is 8 seconds, with a fusion depth of 20 mm and a cooling time of 4 minutes.

What to do if the machine does not heat?

Check that the power is connected and the outlet is grounded. If the red light does not come on, the problem may be electrical. Contact a qualified professional for repair.

Where to find the manual in French?

The manual in French is available for free download on notice-facile.com. You can also request a translation by email.

USER MANUAL SWG-SW01A MSW

I. Produktstruktur

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Pipe Welding Machine
Model	MSW-SWG-SW01A	MSW-SWG-SW02A
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	950	800
Welding diameter [mm]	20, 25, 32, 40, 50, 63	20, 25, 32
Max. temperature [°C]	320
Dimensions [Width x Depth x Height; mm]	410 x 110 x 140	400 x 110 x 140
Weight [kg]	1.5	1.3

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

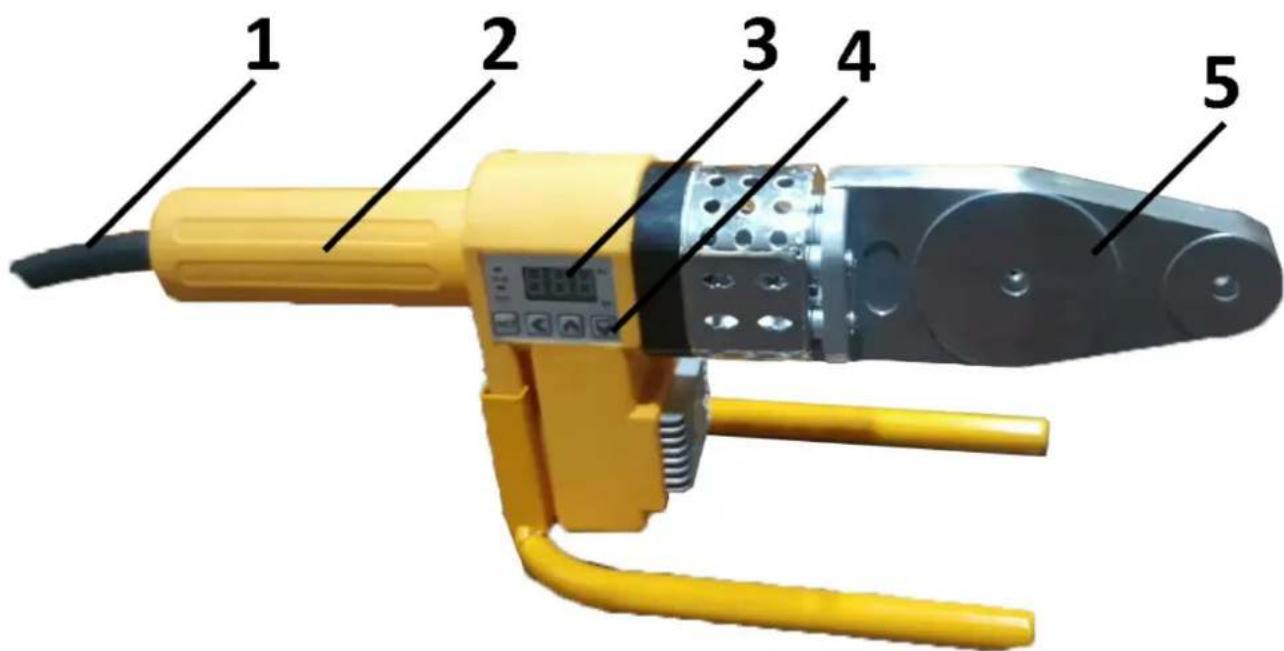

1	Power cord
2	Handle
3	Display screen
4	Setting buttons
5	Heating Board

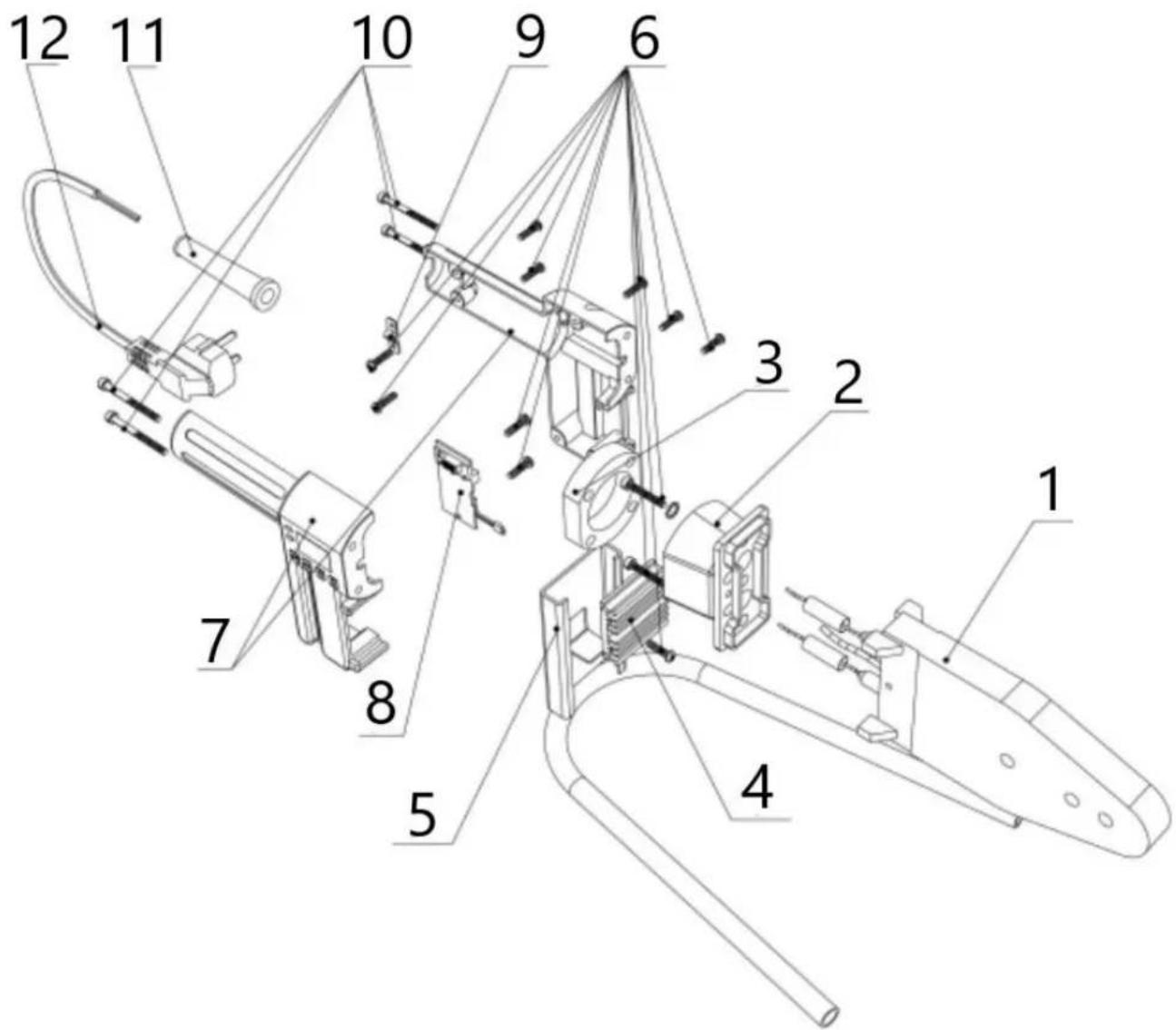

I. Product structure

1. Heating board
2. Connection
3. Insulation
4. Radiator
5. Support
6. Screw
7. Machine body
8. Circuit board
9. Wire clip
10. Connecting screw
11. Wire handle
12. Cable

II. Using

1. Set up the machine

Place the machine on a stable, flat surface. Install the appropriate heating sockets based on the required specifications. Secure the heating sockets tightly to the board using a wrench. Typically, smaller sockets should be positioned at the front of the heating board.

2. Power on the machine

Turn on the power. Caution: Ensure the power supply is grounded. A red indicator light will show that the machine is heating. When the green indicator light appears, the machine has reached the correct temperature and is ready for use. Use the Shift ←, Up ↑ and Down ↓, keys to adjust the temperature and confirm with "SET" button.

3. Prepare and heat the pipe

a. Cut the pipe to the desired length.
b. Insert the pipe or fitting into the heating heads for the specified heating time (see the table below for details).

c. After heating, quickly remove the pipe or fitting and insert it into place to the required depth. Note: Do not twist or screw the pipe into position; simply push it in to ensure a proper fit.

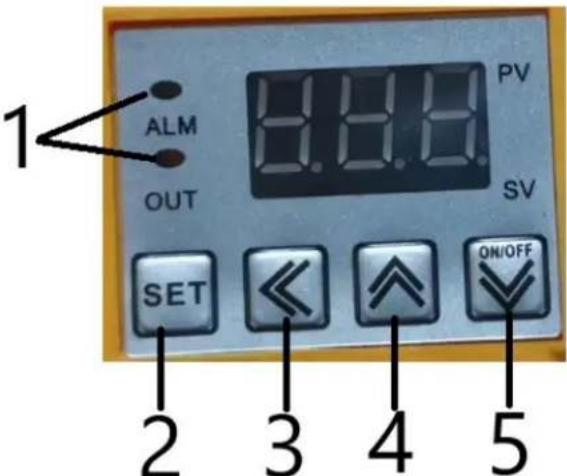

1	When the machine starts to work, this indicator light will come on
2	Set temperature button
3	Select number button
4	Temperature rise button
5	Temperature down button.When the temperature is set, press this button once. The "OUT" light will turn on, indicating that the machine is ready and has started working.

Specification (mm)	Heating time (s)	Melting depth (mm)	Cooling time (mm)
20	5	14	3
25	7	16	3
32	8	20	4
40	12	21	4
50	18	22.5	5
63	24	24	6

Note: If the temperature is below 5°C, increase the heating time by 50%

III. Caution

1. Inspect the machine Check the outer cover and cables of the machine before use. Do not operate the machine if any part is damaged.

2. Ensure grounding The power supply must be properly grounded.

3. Prevent liquid exposure Avoid any water or other liquids from entering the machine. Do not use the machine outdoors on rainy days.

4. Keep flammable materials away Maintain a safe distance between the machine and any flammable materials.

5. Use protective gloves It is strongly recommended that operators wear gloves while working with the machine.

6. Restrict access to professionals For safety and optimal performance, only qualified professionals should open the machine or adjust its temperature settings.

7. Monitor indicator lights If the indicator lights do not change for an extended period, the device may be malfunctioning. Stop work immediately, and turn off the power.

8. Seek professional repair If the machine requires repair, contact the manufacturer or a qualified professional.

I. Struktura produktu

I. Struktura produktu

I. Produktstruktur

I. Tuotteen rakenne

I. Productstructuur

1. Verwarmingsbord
2. Verbinding
3. Isolatie
4. Radiator
5. Understøtte
6. Skrue
7. Machinelichaam
8. Printplaat
9. Draadklem
10. Verbindungsschroef
11. Draad handvat
12. Kabel

I. Produktstruktur

I. Produktstruktur

I. Δομή προϊόντος

I. Struktura proizvoda

1. Ploča za grijanje
2. Veza
3. Izolacija
4. Radijator
5. podrška
6. Vijak
7. Tijelo stroja
8. tiskana ploča
9. Žičana kopča
10. Spojni vijak
11. Ručka od žice
12. Kabel

II. Korištenje

1. Postavite stroj

Postavite stroj na stabilnu, ravnu površinu. Ugradite odgovarajuće grijaće utičnice na temelju potrebnih specifikacija. Čvrsto pričvrstite grijaće utičnice za ploču pomoću ključa. Tipično, manje utičnice trebaju biti postavljene na prednjoj strani grijaće ploče.

1. Uključite stroj

1	Kada stroj počne raditi, ovo indikatorsko svjetlo će se upaliti
2	Tipka za postavljanje temperature
3	Odaberite gumb s brojem
4	Gumb za povećanje temperature
5	Tipka za smanjenje temperature.Kada je temperatura postavljena, pritisnite ovu tipku jednom. Lampica "OUT" će se upaliti, što znači da je stroj spreman i da je počeo s radom.

Specifikacija (mm)	Vrijeme grijanja (s)	Dubina topljenja (mm)	Vrijeme hlađenja (mm)
20	5	14	3
25	7	16	3
32	8	20	4
40	12	21	4
50	18	22,5	5
63	24	24	6

Napomena: Ako je temperatura ispod 5°C, produljite vrijeme zagrijavanja za 50%

III. Oprez

For the disposal of the device please consider and act according to the national and local rules and regulations.
