USER MANUAL SWM-1000S MSW

Product photo of a mechanical tool with multiple cylindrical components and a separate clamp-like device (no visible text or symbols)

Close-up of hands performing a manual tooling operation with a metal component and a bent tool (no visible text or symbols)

Close-up of a mechanical clamp device with a circular dial and pliers, no visible text or symbols

Close-up of a hand pressing a circular button on a black rectangular device (no visible text or symbols)

Close-up of a hand holding a black electronic device with four buttons (no visible text or symbols)

Close-up of hands holding a white cylindrical object with a metallic bracket, no visible text or symbols

MSW-SWM-1000S

Black-and-white photo of a mechanical tool with cylindrical and multi-pin components, no visible text or symbols

Close-up of hands performing a manual tooling operation with a metal component and a bent tool (no visible text or symbols)

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

1. Symbols

Read the operating instructions.

Recyclable product.

The product meets the requirements of relevant safety standards.

Wear protective clothing that protects the entire body

Caution! Wear protective gloves.

Wear protective glasses.

Wear protective footwear.

Caution! Hot surface can cause burns!

Caution! Risk of fire or explosion.

Caution! Harmful vapors, danger of poisoning. Gases and fumes can be hazardous to your health. Welding process gives off welding gases and fumes. Inhalation of these substances can be hazardous to health.

Use a welding mask with an appropriate filter shade.

CAUTION! Harmful radiation from the welding arc

Do not touch live parts.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

2. Technical data

Parameter description Parameter value
Product name Pipe welding machine
Model	MSW-SWM-1800P	MSW-SWM-1000S
Nominal input voltage [V] / frequency [Hz] 230 / 50
Power [W] 1750 800
Max temp. [°C]	320
Welding diameter [mm] 20, 25, 32, 40, 50, 63
IP class IPXO
Insulation class	I
Dimensions (width x depth x height) [cm] 110*380*80	140*350*60
Weight [kg] 2.15 1.8

3. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

4. General instructions for use

a) The device should be used in accordance with its intended purpose, in compliance with the health and safety regulations and the restrictions resulting from the data on the rating plate (IP level, duty cycle, supply voltage, etc.).
b) Do not open the unit as this will void the warranty; also, exploding exposed parts may cause injury.
c) The manufacturer shall not be liable for technical changes to the equipment or material damage resulting from the introduction of these changes.
d) If the equipment malfunctions, contact the service center.
e) Do not cover the ventilation slots of the device - place the welder at a distance of 30 cm from the surrounding objects.
f) The welder must not be held under the arm or close to the body.
g) The appliance must be earthed during operation.

h) When the thermal overload LED illuminates during operation of the appliance, stop operation immediately and wait for the appliance to cool down.
i) When the appliance is used for a long time or with high current, switch off the power supply only after the appliance has cooled down.
j) Do not switch off the device during welding!
k) Maintain the unit regularly and clean the inside of the unit of dust.

5. Product purpose

The product is a tool designed for connecting pipes and connecting elements made of thermoplastic materials through welding.

The product has been designed exclusively for domestic use and must not be applied for professional purposes, i.e. in factories or for profitable jobs.

The user is liable for any damage resulting from unintended use of the device.

6. Operation of the device

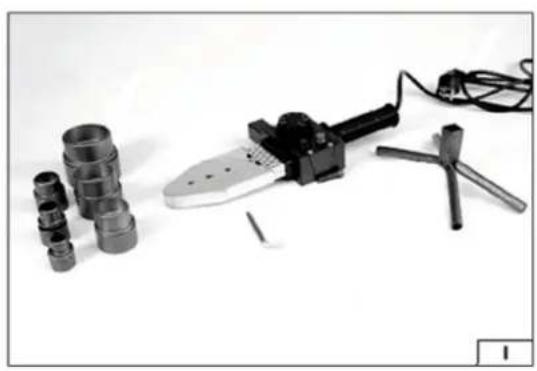

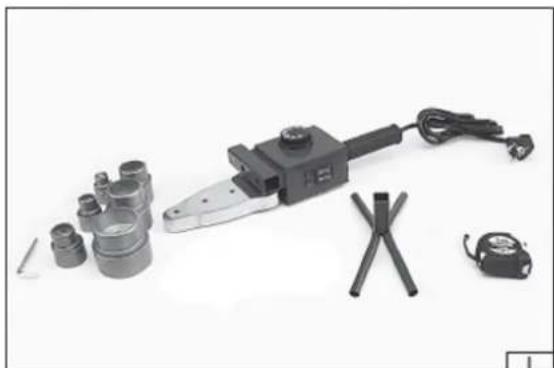

The product is provided complete, and it does not require assembly. It is provided with pipe adapters and a support.

MSW-SWM-1800P

Product photo of a mechanical tool with multiple cylindrical components and a tripod-mounted sensor (no visible text or symbols)

Close-up of hands performing a manual tool manipulation on a mechanical component (no visible text or symbols)

Close-up of a mechanical clamp device with a circular dial and pliers, no visible text or symbols

Close-up of a hand pressing a circular button on a black electronic device (no visible text or symbols)

Close-up of a hand holding a black electronic device with four buttons (no visible text or symbols)

Close-up of hands holding a white cylindrical object with a metallic bracket, no visible text or symbols

MSW-SWM-1000S

Black-and-white photo of a mechanical tool with cylindrical and multi-pin components, no visible text or symbols

Close-up of hands performing a manual tooling operation with a metal component and a bent tool (no visible text or symbols)

6.1. General instructions

Before starting work, ensure the housing, power cord, plug, and any extension cords are undamaged. Clean the tool and ventilation slots as needed. Do not use metal tools to clean the welder, as they may damage the connection elements or heating head. If any damage is found, discontinue use immediately.

Attention! Always turn off the tool and unplug it from the mains socket before performing any tasks such as replacing pipe adapters or cleaning.

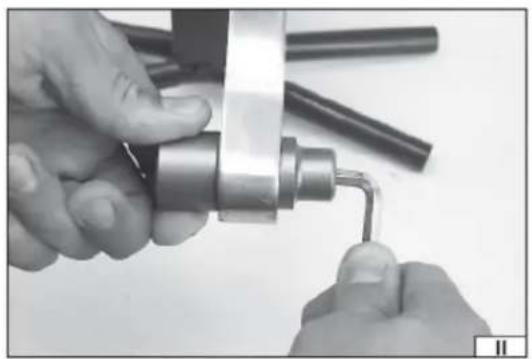

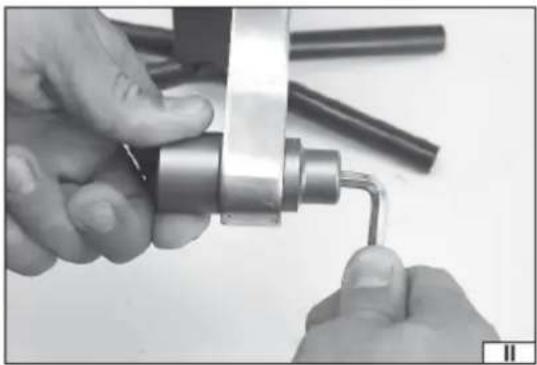

6.2. Installation of pipe adapters (The above figure II)

Choose the adapter set that matches the required diameter. Ensure that the contact surfaces between the heating head and adapters are clean. Securely fasten the adapters on both sides of the heating head. When positioning the adapters, follow the guideline that smaller adapters should be installed closer to the end of the head. The edge of each adapter must remain within the boundary of the heating head.

Only one diameter of adapters may be installed at one time.

6.3. Heating

MSW-SWM-1800P

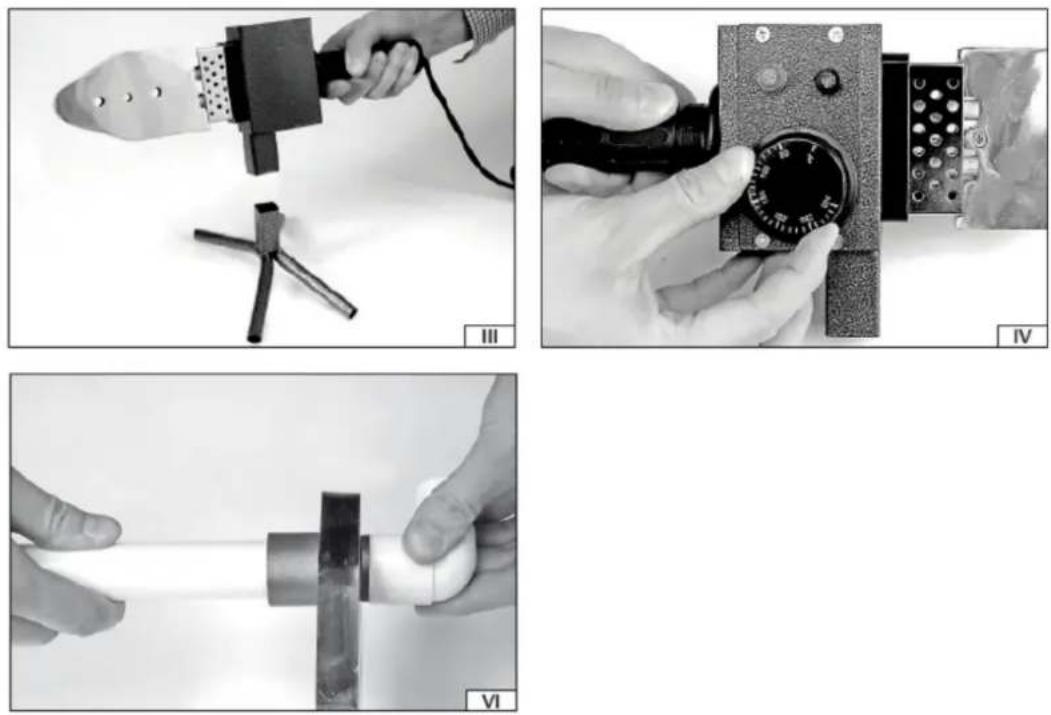

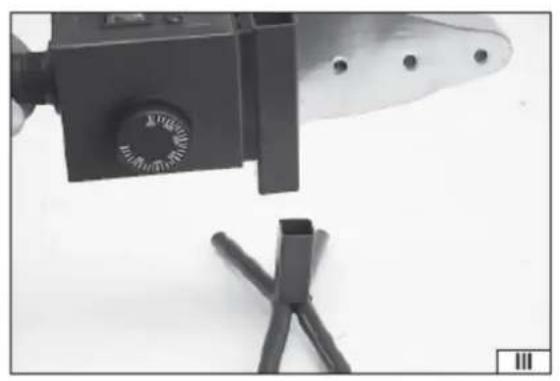

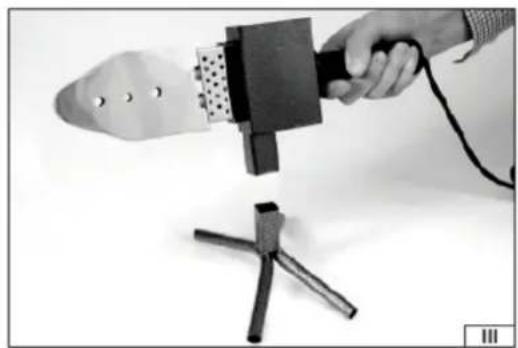

Once the installation has been finished, place the welder on the support (III). Make sure the pipe adapters and the heating head are not in contact with other objects. Set the proper temperature by the knob (IV). Choosing the temperature should be guided by the information provided in the specification of materials to be welded. Connect the plug of the power supply cord to the mains. Turn the power on by selecting the appropriate setting switches (V). For smaller diameters the power of 750 W can be used, for this purpose, press one of the buttons, in the case of larger diameters, connected elements choose the power of 1500 W, for this purpose press both switches.

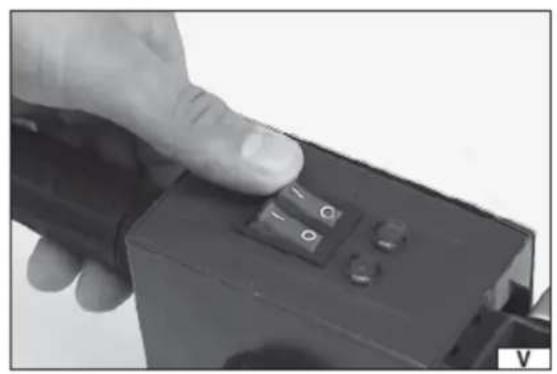

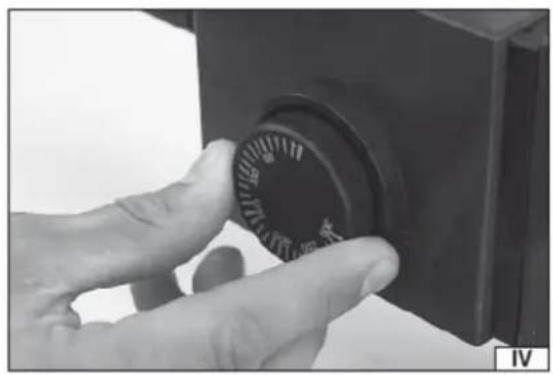

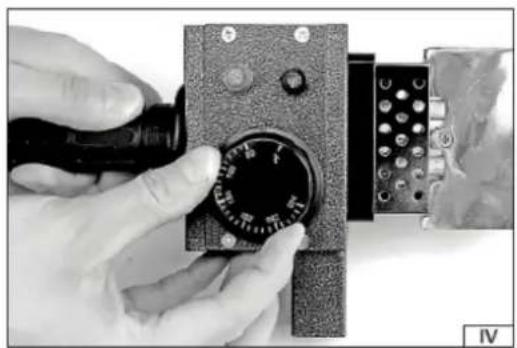

The thermostat lamp lights up, this means that warming up started. The light goes off when the warm-up is completed. Welding is ready for operation.

MSW-SWM-1000S

Once the installation has been finished, place the welder on the support (III). Make sure the pipe adapters and the heating head are not in contact with other objects. Set the proper temperature by the knob (IV). Choosing the temperature should be guided by the information provided in the specification of materials to be welded. Connect the plug of the power supply cord to the mains. The thermostat lamp lights up, this means that warming up started. The light goes off when the warm-up is completed. Welding is ready for operation.

6.4. Welding

The elements to be welded must be cleaned of any dirt, humidity, and dust.

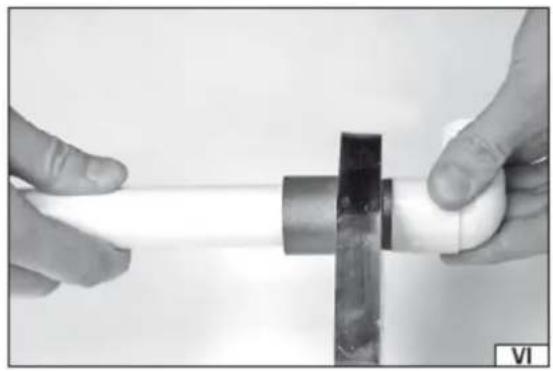

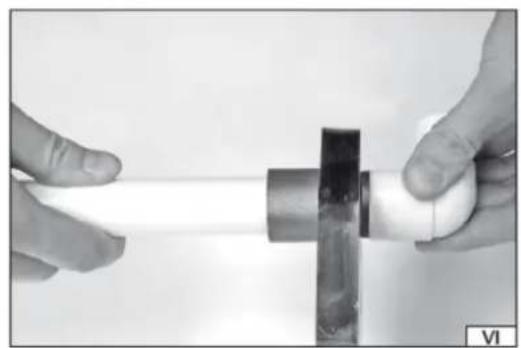

Once the heating process has concluded place a pipe or connecting element on the adapter (V). Place one part on the adapter and the other one in the adapter so that there is a slight difference of the diameter of the elements being welded.

Leave the elements on the adapter for the time indicated in the table. Then the welded elements must be removed from the adapters and connected by inserting them into each other. Do not insert the elements deeper than the limit of the heated area. Leave the connection to cool down, avoiding any deformation.

After completing work, turn off the welder and disconnect it from the mains. Place i support until it has fully cooled. Remove the pipe adapters and perform maintenance on the tool and adapters.

7. Disposal

Disposal of the packaging

Please keep all packaging material (cardboard, plastic strips and polystyrene foam) to ensure that the unit is protected during shipment, should it become necessary to send it to a service center!

Disposal of used devices

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual, and packaging. The plastics used to construct the device can be recycled following their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

8. Transport and storage

When transporting the unit, protect it from shocks and tipping over, and do not place it "upside down". Store the unit in a well-ventilated room where dry air is present and corrosive gases are not present.

9. Cleaning and maintenance

Repairs should be carried out only by authorized service centers using exclusively original spare parts. This ensures the safe and reliable operation of the product.

ATTENTION! Before performing any adjustments, servicing, or maintenance, ensure the product is unplugged. After completing these operations, assess the product's technical condition through an external inspection of key components, including the body and handle, power cord and plug, functionality of the power switch, cleanliness of ventilation slots, brush sparking, and the noise level of bearings and gears during operation. Also, check startup performance and smoothness.

During the warranty period, do not disassemble the product or replace any parts, as this will void the warranty. Any irregularities found during inspection or tool operation should be addressed by a professional repair service. After use, clean the casing, ventilation slots, switches, auxiliary handle, and guards with compressed air (maximum 0.3 MPa), a brush, or a cloth—avoiding chemical cleaners. Wipe down tools and handles with clean, dry cloth.
