Transport

Explanation of symbols

General hazard safety alert.

Read instruction manual.

Do not expose to rain.

WARNING: Disconnect battery before maintenance.

WARNING: Keep bystanders away.

Wear eye and head protection.

Wear slip-resistant footwear.

Wear hand protection.

12 | English

Keep hands away from blade.

Keep sufficient distance to electric power lines.

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence

of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power

tool repaired before use. Many accidents are caused by poorly maintained power tools.

▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety warnings for pruning shear

▶ Do not use the pruning shear in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
▶ Keep all power cords and cables away from cutting area. Power cords or cables may be hidden and can be accidentally cut by the blade.
▶ Hold the pruning shear by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the pruning shear "live" and could give the operator an electric shock.
▶ Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. A moment of inattention while operating the pruning shear may result in serious personal injury.
When clearing jammed material or servicing the pruning shear, make sure the power switch is off and the battery pack is removed or disconnected. Unexpected actuation of the pruning shear while clearing jammed material or servicing may result in serious personal injury.
Carry the pruning shear by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the pruning shear will decrease the risk of inadvertent starting and resultant personal injury from the blades.
When transporting or storing the pruning shear, always use the blade cover. Proper handling of the pruning shear will decrease the risk of personal injury from the blades.
To reduce the risk of electrocution, never use the extended-reach pruning shear near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.
▶ Always use two hands when operating the extended-reachpruning shear. Hold the extended-reach pruning shear with both hands to avoid loss of control.
▶ Always use head protection when operating the extended-reach pruning shear overhead. Falling debris can result in serious personal injury.

Additional Warnings

This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the tool.

▶ Minors should never be allowed to operate the tool; it should never be left unattended and when not in use should be stored in a locked place out of the reach of children.

14 | English

▶ Check the tree and bushes for foreign objects, e.g. wire fences and hidden wiring. Remove the foreign matter.
▶ Keep your free hand away from the cutting area. Never touch the blades. They are very sharp and you may cut yourself.
▶ Always wear protective gloves when using, adjusting or cleaning the tool and handling debris/cut material.
▶ Only use the tool for its intended use.
▶ Do not modify any components on the machine. Danger of injury.
▶ Do not wear open toe shoes whilst using the tool.
▶ Use only original Bosch accessories.

Safety Instructions and Recommendations for Optimal Handling of the Battery

▶ Ensure the product is switched off before inserting the battery. Inserting the battery into a product that has the switch on can cause accidents.
▶ Use only Bosch batteries intended specifically for this product. Use of any other batteries may create a risk of injury and fire.
▶ Do not open the battery. There is a risk of short-circuiting.

Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explosion.

▶ When not using the machine detach the battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause bridging of the terminals. Shorting the battery terminals together may cause burns or a fire.
In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Do not short-circuit the battery. There is a risk of explosion.
▶ Protect the battery against moisture and water.
▶ Store the product and battery only within a temperature range between -20^ and 50^ . As an example, do not leave the battery in the car in summer.
▶ Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

Symbols

The following symbols are important for reading and understanding the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.

Symbol Meaning

	Only use the battery charger indoors, in dry conditions.
	Movement direction
	Reaction direction
	Switching on
	Switching off
	Permitted action
	Prohibited action
CLICK	Audible noise
	Lock
	Unlock
	Weight

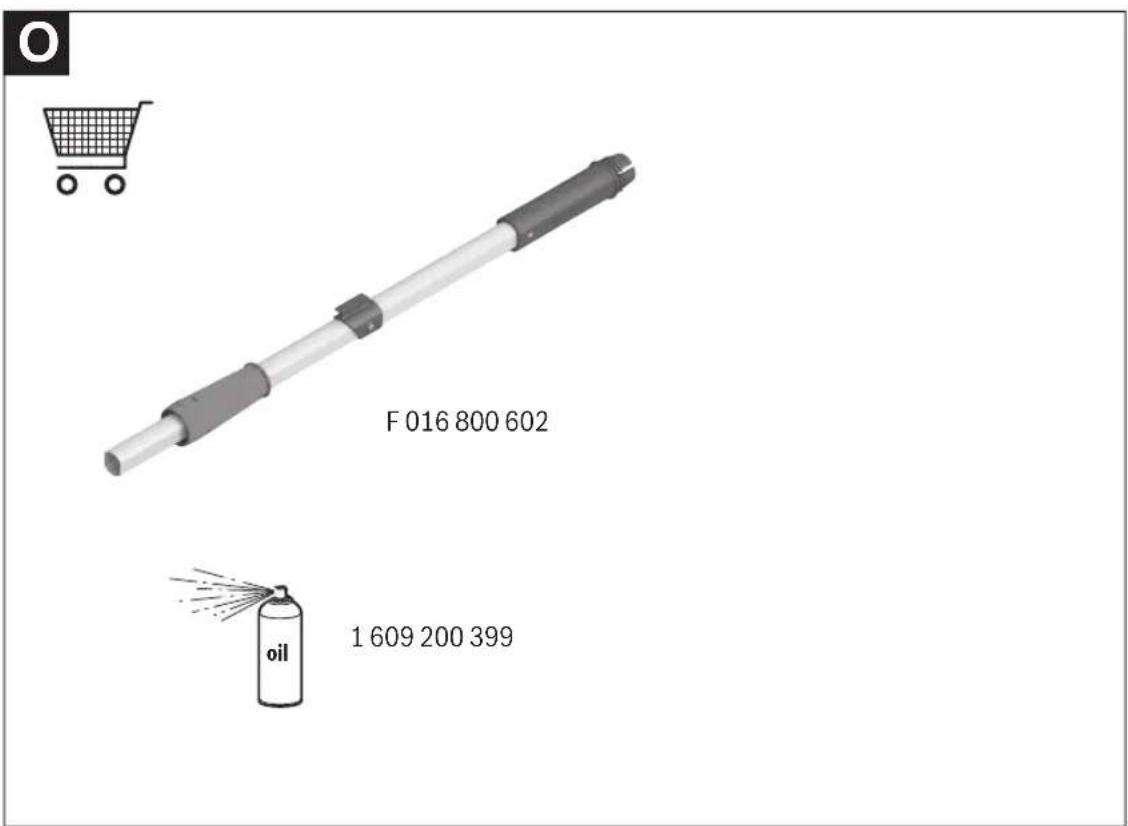

	Accessories/Spare parts

Product description and specifications

Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the end of this operating manual.

Intended Use

This tool is intended for domestic use pruning branches and plants with a thickness up to 45 mm (35 mm in hardwood). Only allowed to use one extension pole.

Product Features (see figure A)

(1) Blade
(2) Hook
(3) Cutting head
(4) Twist lock

English | 15

(5) Secondary grip
(6) 360° trigger
(7) Battery status indicator
(8) Extension pole (1 x)
(9) Blade cover

(10) Battery release button
(11) Battery ^a)
(12) Charger ^a)

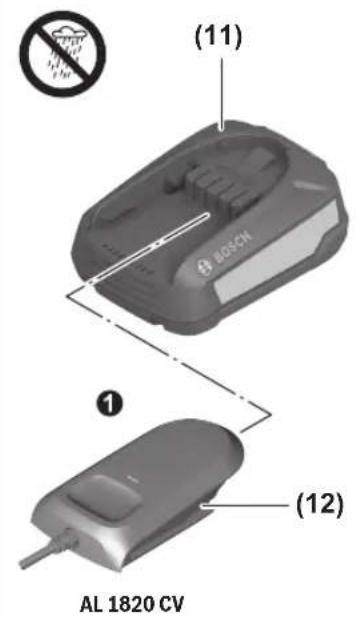

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Pruning shear AdvancedPrune 18V-45
Article number	3 600 HC5 ...
Rated voltage V 18
Max. cutting capacity mm 45 (soft wood)
mm 35 (hard wood)
Product length without extension m 1.2
Product length with extension m 1.8
Weight according to EPTA-Procedure 01:2014
– with extension pole ^A)(B) kg 2.3 (1.5 Ah) – 2.8 (6.0 Ah)
Serial number See serial number (type plate) on the machine
Recommended ambient temperature during charging°C 0... +35
Permitted ambient temperature during storage °C -20... +50
Permitted ambient temperature during operation ^C) °C 0... +40
Battery type PBA 18V...W-.
	1.5 Ah, 2.0 Ah, 2.5 Ah, 3.0 Ah, 4.0 Ah, 5.0 Ah, 6.0 Ah

A) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.
B) Depends on battery in use
C) Limited performance at temperatures < 0 °C

Noise/Vibration Information

		3 600 HC5 ...
Noise emission values determined according to EN 62841-1
Typically the A-weighted noise levels of the product are:
– Sound pressure level	dB(A)	70
– Uncertainty K dB		3
– Sound power level	dB(A)	78
– Uncertainty K dB		3
Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 62841-1
– Vibration emission value ah	m/s^2	0.5
– Uncertainty K	m/s^2	1.5

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.

The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different ac-

cessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.

16 | English

Assembly

▶ Hold the twist lock when pulling off the tube/cutting head.
▶ Put on the blade cover during all assembly work.
▶ Perform a full cutting cycle before starting work to check that the linkage is fully connected.

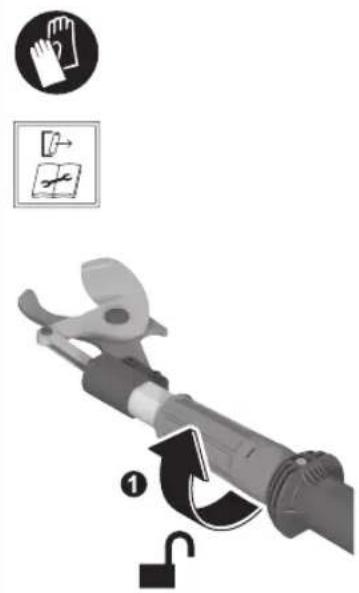

Mounting/Dismounting the cutting head (see figures B - C)

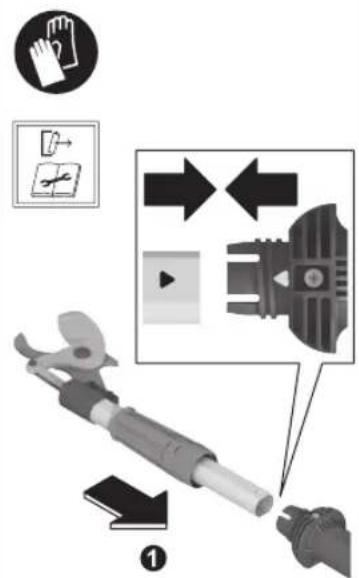

As shown in figure B, slide the cutting head (3) into the machine, lining up the arrows.

Push the cutting head (3) firmly into the machine.

Screw the twist lock (4) firmly to the right to lock the cutting head (3).

To remove the cutting head (3) unscrew the twist lock (4) gripping the red twist lock (4) to pull off the cutting head (3).

Reverse the assembly procedure for disassembly.

Note: When removing the cutting head, hold and pull with the twist lock (4).

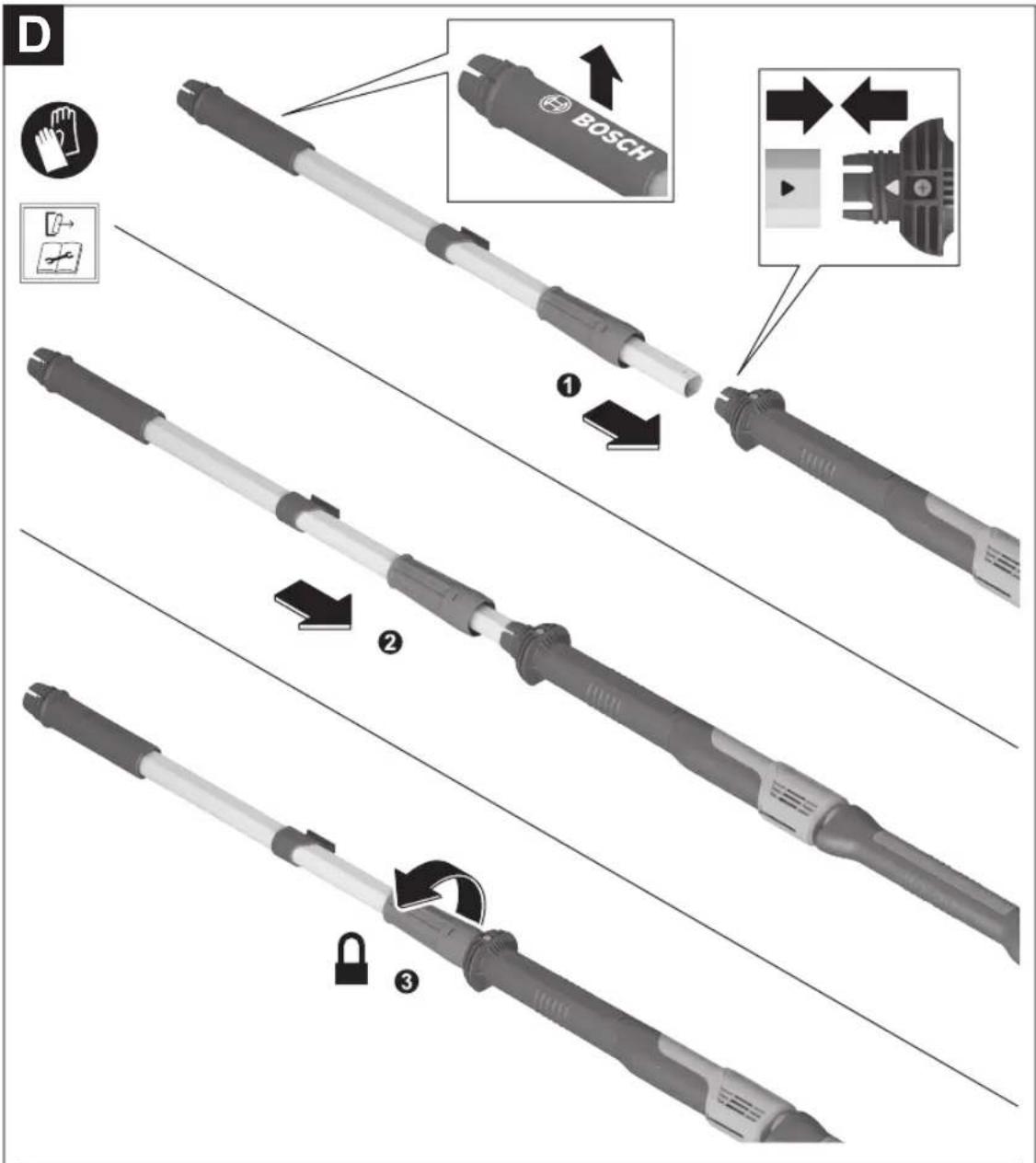

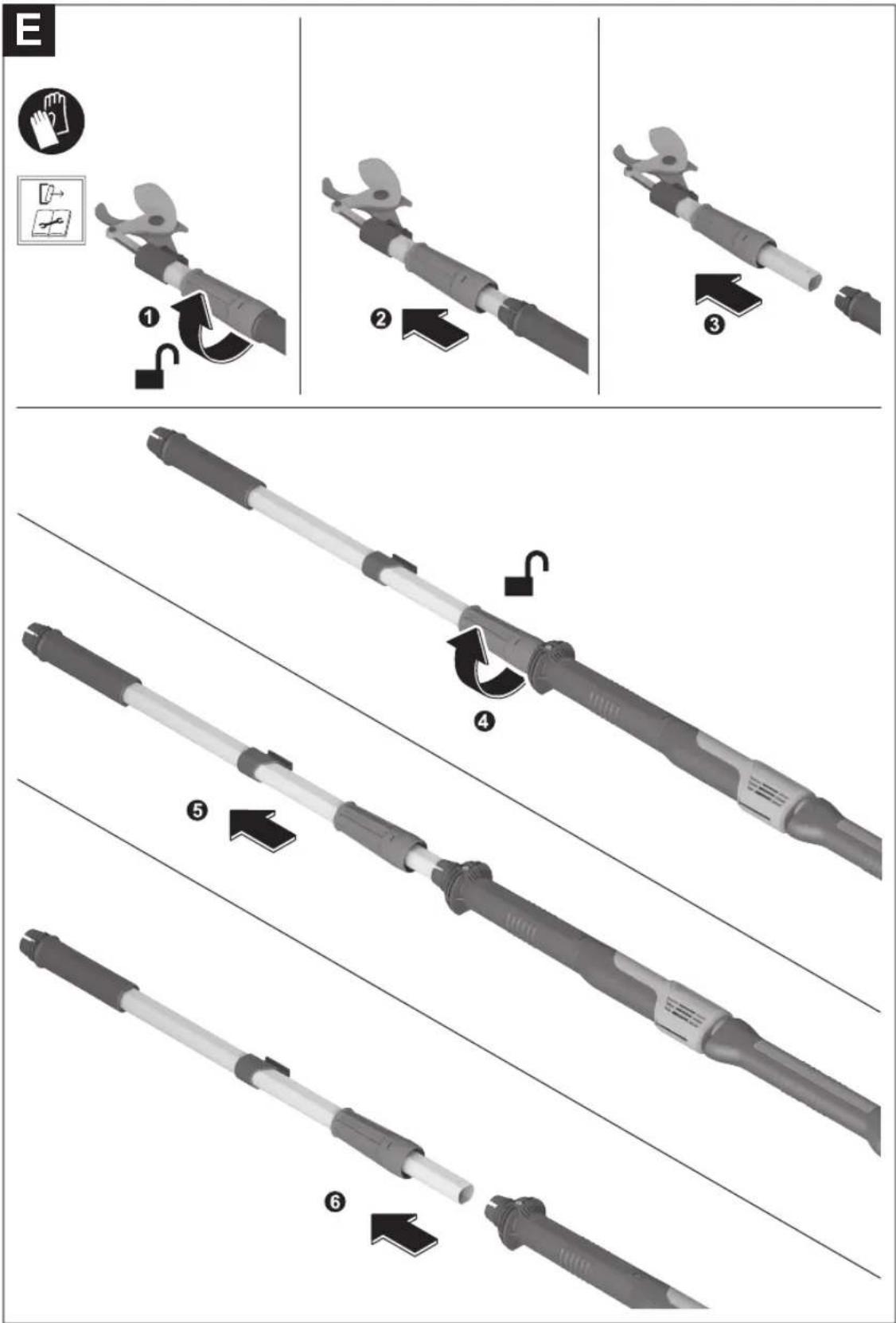

Mounting/Dismounting the extension pole (see figures D - E)

▶ Always use only one extension pole with the tool.

Remove the cutting head.

Slide the extension pole (8) into the machine.

Push the extension pole (8) firmly into the machine.

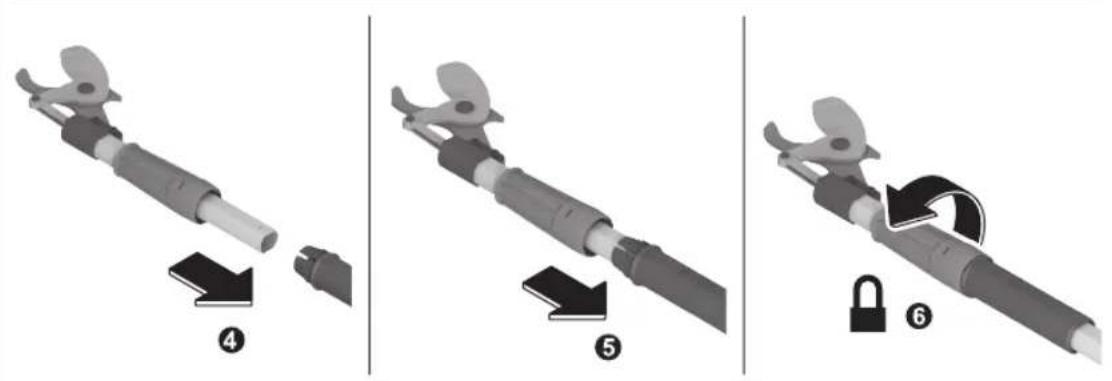

Screw the twist lock (4) to the right to lock the extension pole (8).

Slide the cutting head (3) onto the extension pole (8).

Push the cutting head (3) firmly into the extension pole (8).

Screw the twist lock (4) to the right to lock the cutting head (3) to the extension pole (8).

Reverse the assembly procedure for disassembly.

Note: When removing the extension pole, hold and pull with the twist lock (4).

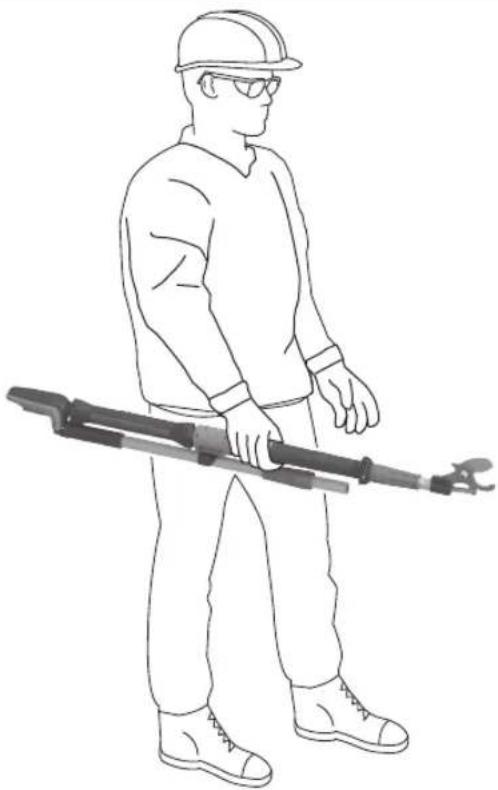

Carrying the machine (see fig. F)

Do not carry the machine with the extension pole inserted (8). Hold the machine by the secondary grip (5).

Starting Operation

▶ Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage or the event of a
fault. There is risk of injury from unintentionally pressing the on/off switch.

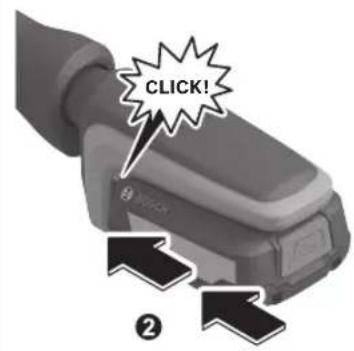

Inserting/removing the battery (see figure G)

Note: Using unsuitable batteries can lead to malfunctions of or cause damage to the power tool.

Insert the charged battery (11). Make sure that the battery is fully fitted.

To remove the battery (11) from the machine, press the battery unlocking button (10) and pull the battery out.

Battery status indicator (see figure H)

The battery status indicator (7) indicates the remaining battery capacity or an overload when the power tool is switched on.

LED Capacity

5 seconds continuous lighting 3 x green >60 %

5 seconds continuous lighting 2 x green 30 - 60 %

5 seconds continuous lighting 1 x green 10 - 30 %

Slow flashing 1 x green <10 %

3 LEDs flash Overload / Over-heated / Fault

Operation

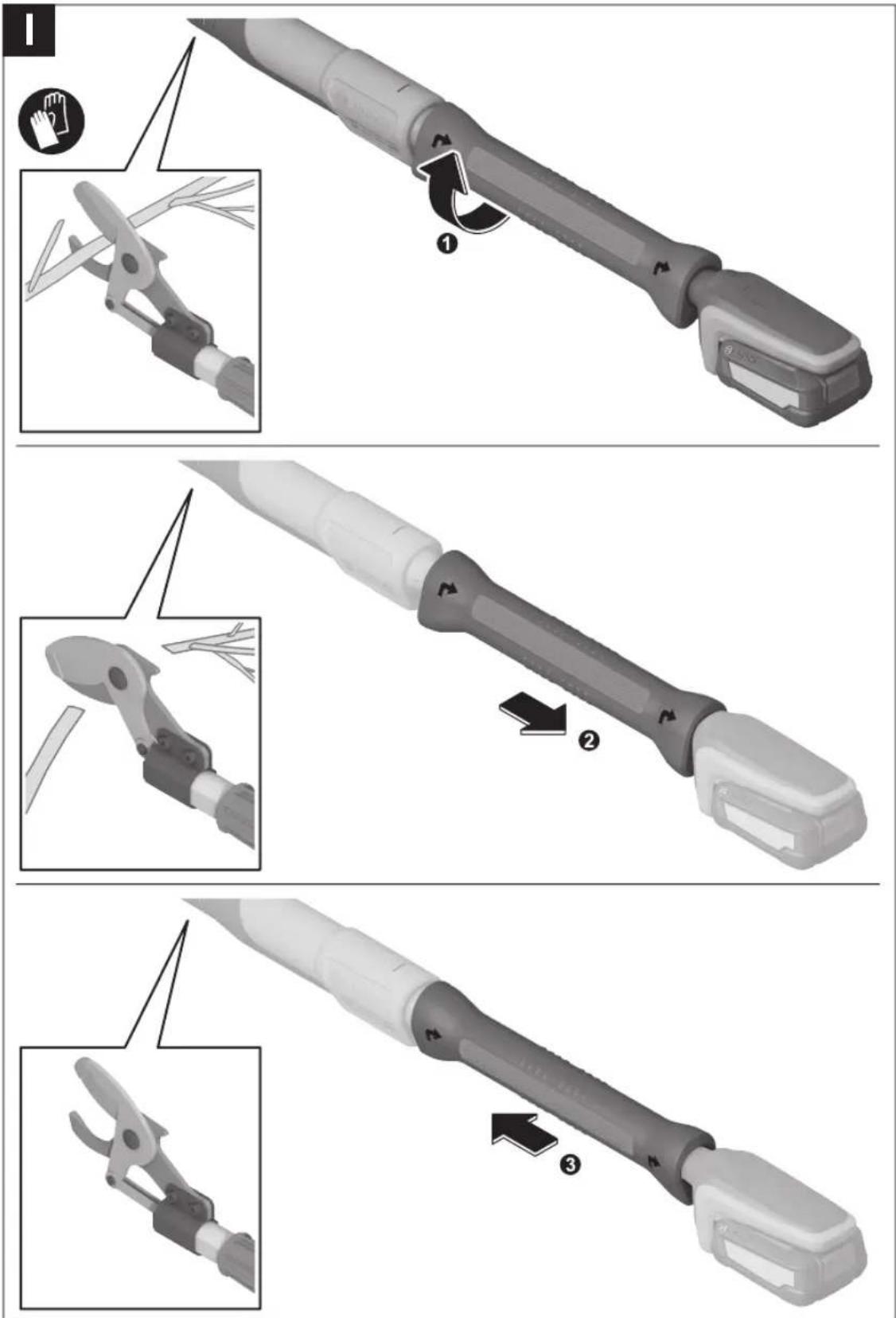

Operation the 360° trigger (see fig. I)

Activate the 360^ trigger (6) by rotating it clockwise and then gently pull the 360^ trigger (6) backwards to operate the blades and make the cut.

When you release the 360^ trigger (6) forward, the blades (1) are opened and ready for the next cut.

Working Advice

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage or the event of a fault. There is risk of injury from unintentionally pressing the on/off switch.

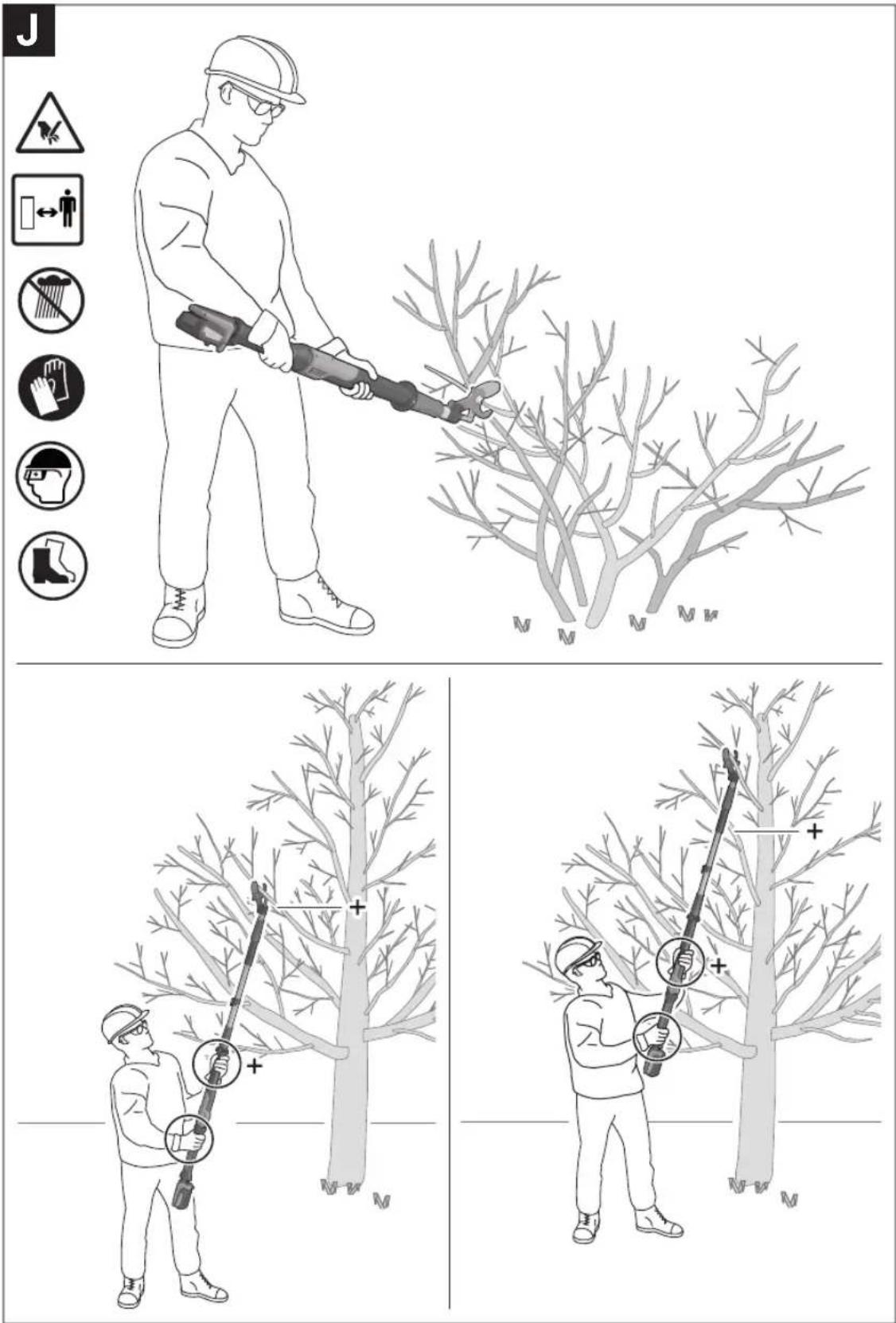

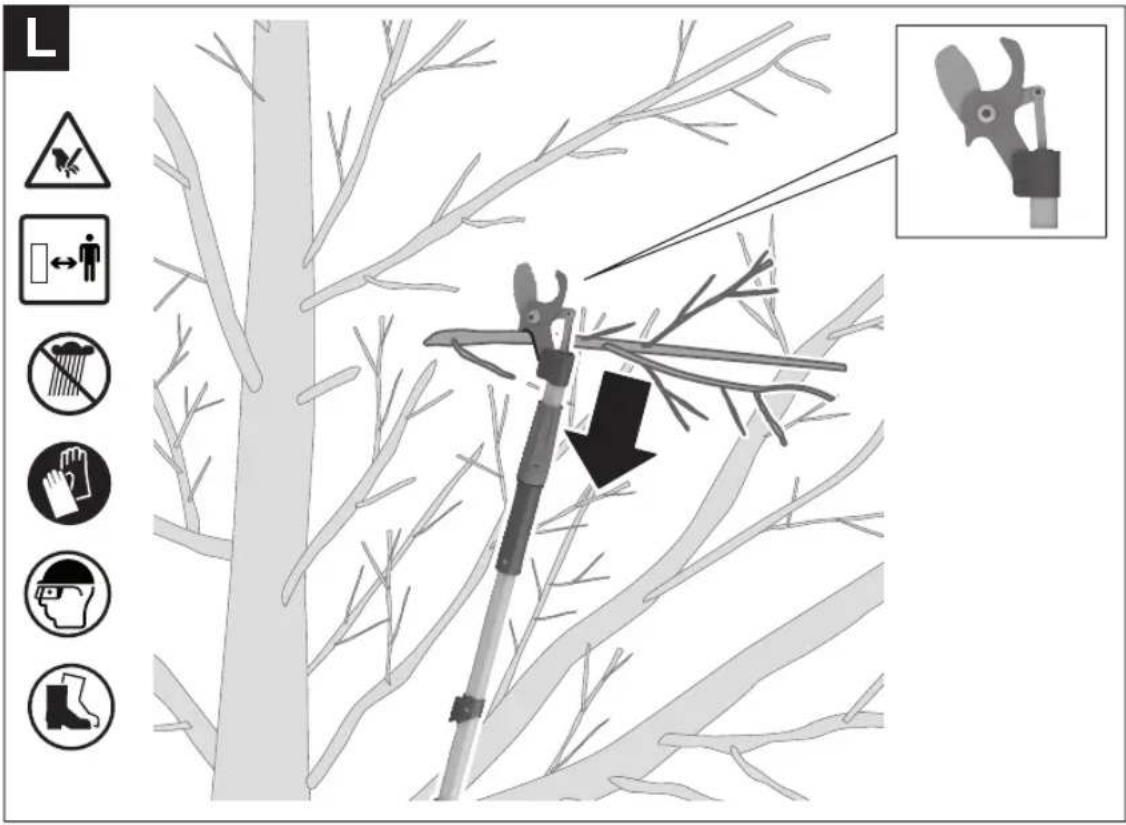

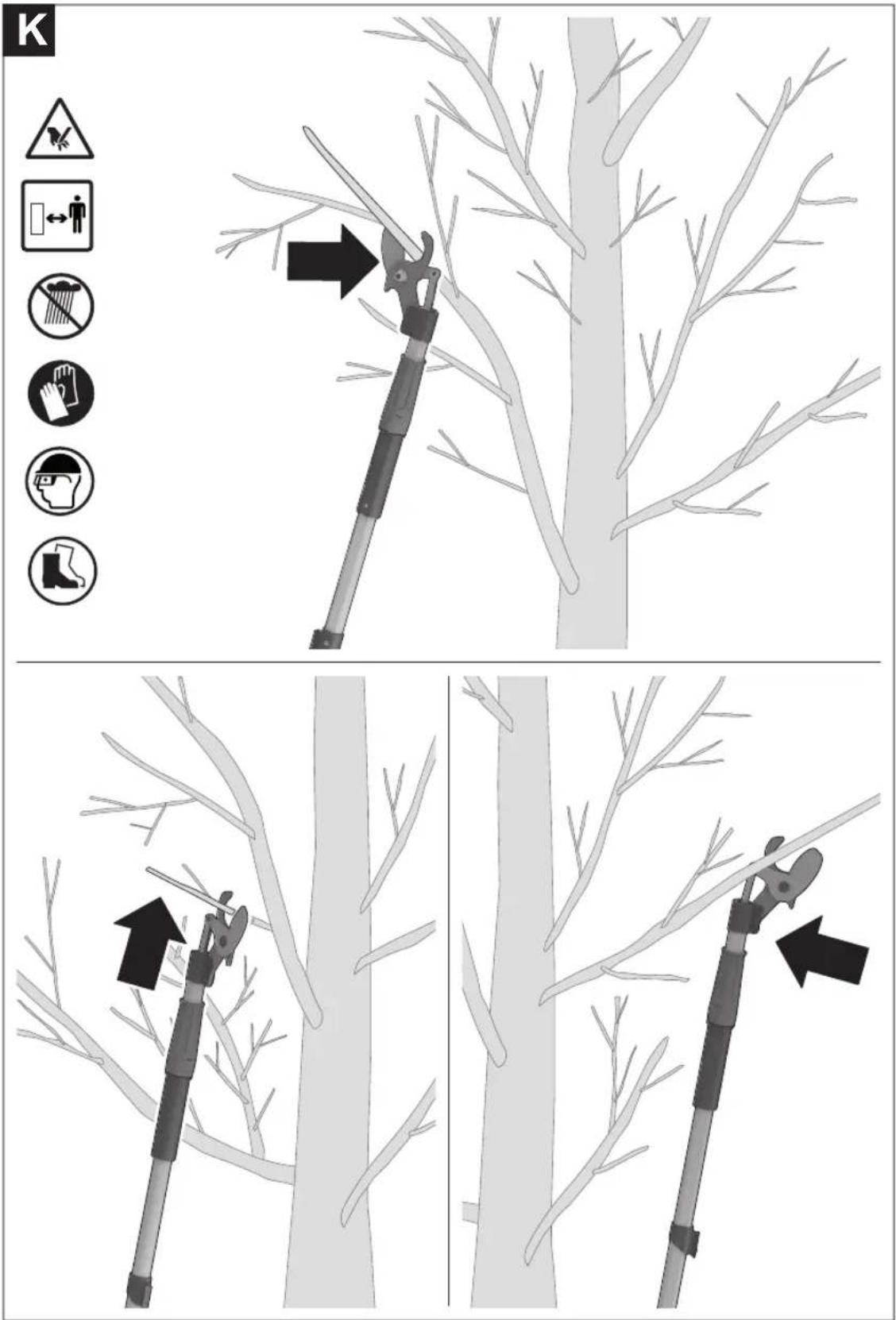

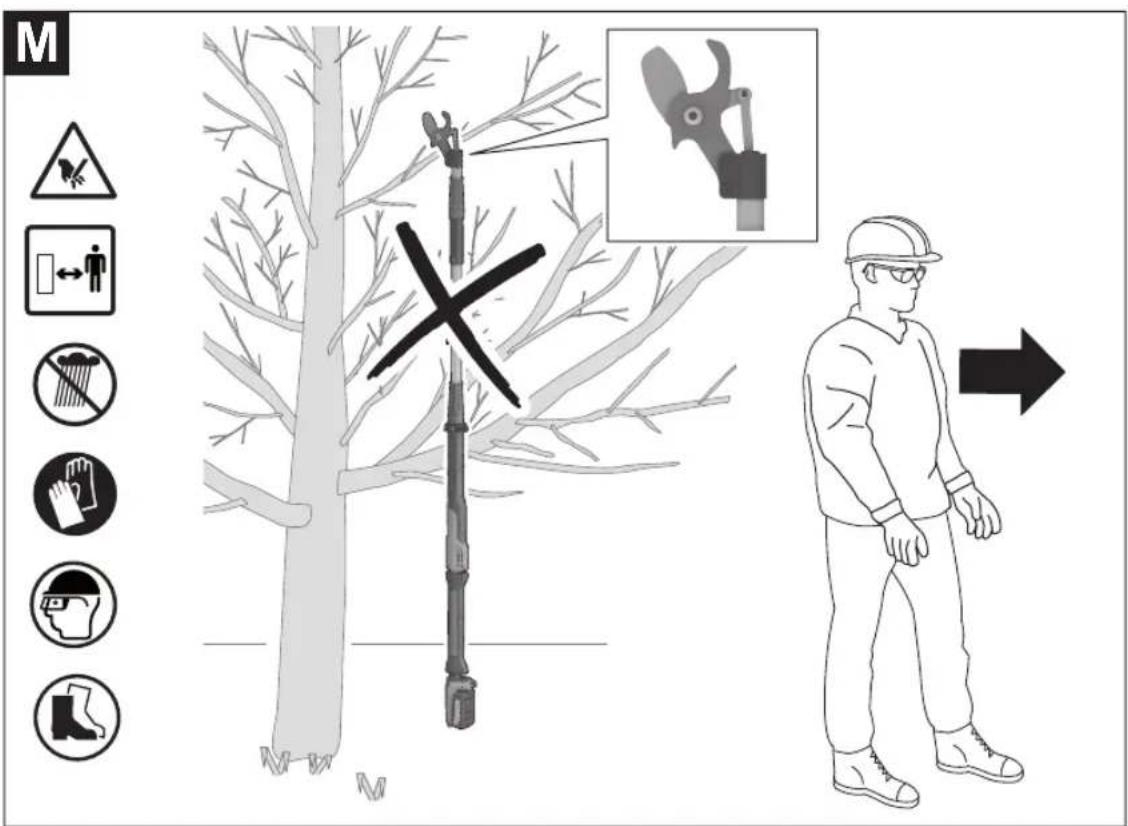

Cutting tips (see fig. J - L)

Never operate the tool in an awkward posture. This may cause serious injury without gloves or whilst the battery is inserted..

Always keep both hands on the machine when using it. Never touch the blades without gloves or whilst the battery is inserted.

The tool is intended to be used by the operator at ground level and not on ladders or any other unstable support.

You can use the 360^ trigger (6) to hold the machine in different working positions.

The 360° trigger (6) allows you to fully rotate the tool to adapt the cutting head to the respective task.

Use the hook (2) to pull already cut entangled branches towards you.

If the blade gets stuck in a branch, slightly pivot the tool back and forth in the cutting direction.

Always wear recommended personal protective equipment while pruning.

Never cut too close to the trunk to ensure healthy regrowth. If you remove an entire stem, cut back to the point where it branched.

Cut branches one by one.

Remove thin or weak growth.

Always remove dead, damaged and diseased branches.

Troubleshooting

The following table provides common troubleshooting information. The battery-charge indicator provides additional information that can be used to identify a malfunction or problem.

Problem Possible Cause Corrective Measure

LED's are flashing Branch is too hard to cut Try cutting in a thinner area of the branch
	Battery or machine is overheated Allow battery and machine to cool down
	Other faults Contact Service Agent.
Cutting head is not working or will not close	Internal drive linkage is not fully engaged Manually push the blades together
	Cutting head/extension pole is incorrectly mounted	Mount the cutting head/extension pole correctly (see "Mounting/Dismounting the cutting head (see figures B - C)", page 16) and (see "Mounting/Dismounting the extension pole (see figures D - E)", page 16)
	Debris built up Remove debris from blade
Machine stops while cutting	Branch is too hard to cut Try cutting in a thinner area of the branch
	Battery charge is too low Recharge battery
	Machine is overheated Allow machine to cool down
	Blunt or hard blades Replace blades/cutting head
	Internal drive linkage damaged Contact Service Agent
Reduced cutting performance	Blunt or damaged blades Replace blades/cutting head
	Battery defective Replace battery
	Loose blade bolt Contact Service Agent
	Machine is defective	Contact Service Agent
The extension pole or the cutting head cannot be mounted.	Incorrect alignment of the parts	Mount the cutting head/extension pole correctly (see "Mounting/Dismounting the cutting head (see figures B - C)", page 16) and (see "Mounting/Dismounting the extension pole (see figures D - E)", page 16)
	Blades are not fully opening	Refit and perform cutting cycle
	Failure of the connection Contact Service Agent
The extension pole or the cutting head cannot be removed	Internal linkage not disengaged	Ensure the Twist lock (4) is pulled up during removal
Excessive heat from the motor	Excessive usage	Allow machine to cool down
	Clogged ventilation slots Remove the dirt
	Lubrication required	Apply recommended lubricant spray
Excessive noise/vibration	Machine is defective	Contact Service Agent
360° trigger cannot be turned or pushed/pulled	Defective 360° trigger	Contact Service Agent
Machine works intermittently	Battery not fully connected	Remove the battery and reinsert it
	Machine is defective	Contact Service Agent

18 | English

Problem Possible Cause Corrective Measure

Machine does not work Battery charge is too low Recharge battery

Battery not fully connected Remove the battery and reinsert it

Machine/battery is defective Contact Service Agent

Maintenance and Service

Maintenance, Cleaning and Storage

Before any work on the garden product itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when unintentionally actuating the trigger.
▶ For safe and proper working, always keep the product clean.

Use a damp cloth to clean the blade after use.

To ensure safe and efficient operation, always keep the product and the ventilation slots clean.

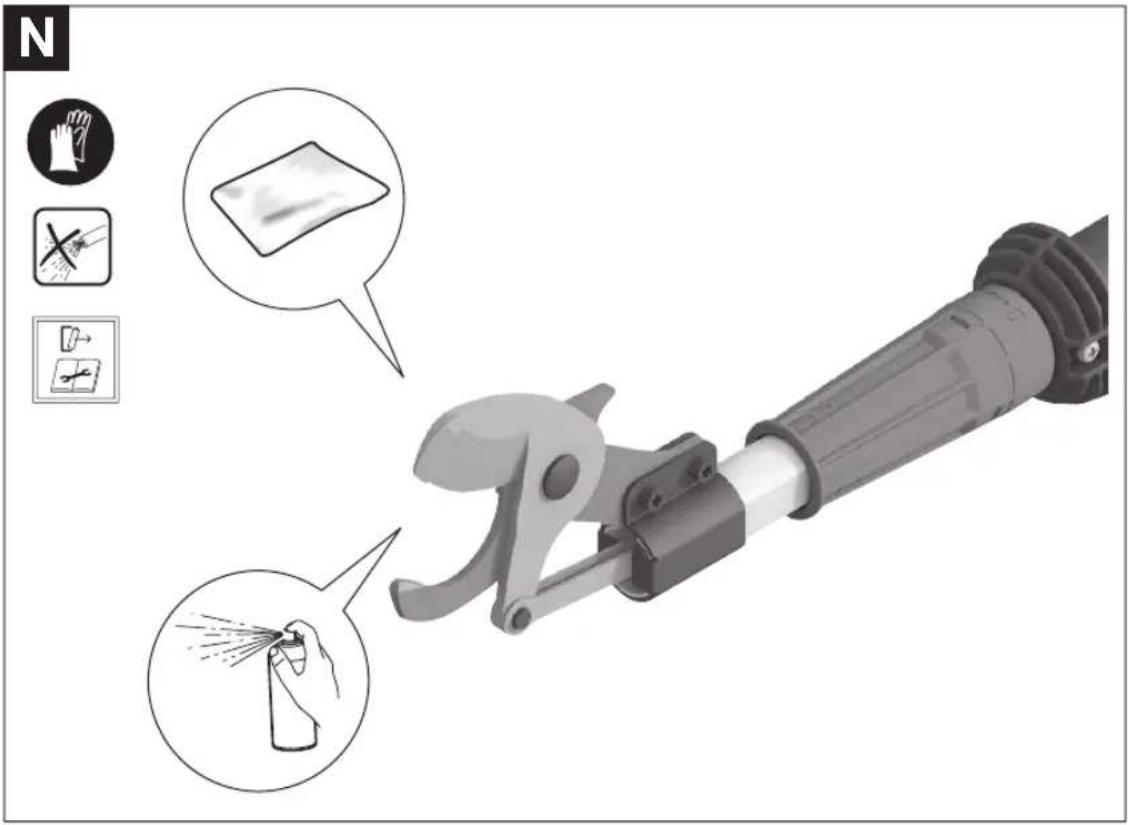

It is recommended to apply lubricant spray before and after use. Do not inhale aerosols from lubricant spray. Apply in a well ventilated area.

Never spray the product with water.

Never immerse the product in water.

Store the product in a secure, dry place, out of the reach of children.

Keep all nuts, bolts and screws tight to ensure safe working with the product.

Inspect the product and replace worn or damaged parts for safety.

Ensure replacement parts fitted are Bosch-approved.

Battery Maintenance

Use the following procedures to enable optimum usage of the battery:

• Protect the battery against moisture and water.
• The battery must not be stored within the product but stored separately.
• Do not leave the battery in the product in direct sunlight.
• The ideal storage condition for the battery is 5^ .
• Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

A significantly reduced working period after charging indicates that the battery is deteriorated must be replaced.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

Products, rechargeable batteries, accessories and packaging are to be recycled in an environmentally friendly manner.

Do not dispose of rechargeable batteries/batteries into household waste!

Only for EU countries:

According to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed must be collected separately and be disposed of in an environmentally friendly manner. According to European Directive 2006/66/EG rechargeable batteries that are defect or no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Rechargeable batteries/batteries:

Li-Ion:

Please refer to the notice in section Transport (see "Transport", page 18).

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transporte

www.bosch-pt.com/serviceaddresses

Vervoer

1,5 Ah, 2,0 Ah, 2,5 Ah, 3,0 Ah, 4,0 Ah, 5,0 Ah, 6,0 Ah

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Kuljetus

www.bosch-pt.com/serviceaddresses

Μεταφορά

www.bosch-pt.com/serviceaddresses

Nakliye

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Přeprava

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Szállítás

www.bosch-pt.com/serviceaddresses

4,0 A·год., 5,0 A·год., 6,0 A·год.

www.bosch-pt.com/serviceaddresses

Транспортування

www.bosch-pt.com/serviceaddresses

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Transport

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Транспортиране

www.bosch-pt.com/serviceaddresses

Транспорт

www.bosch-pt.com/serviceaddresses

Transport

Preporučeni litijum-jonski akumulatori podležu zahtevima propisa o opasnim materijama. Korisnik može bez dodatnih uslova transportovati akumulatore na drumu.

Kod slanja preko trećih lica (na primer vazdušnih transportom ili špedicijom) mora se obratiti pažnja na posebne zahteve u pogledu pakovanja i označavanja. Tada se kod pripreme paketa za slanje mora pozvati stručnjak za opasne materije.

Akumulatorske baterije šaljite samo ako kućište nije oštećeno. Odlepite otvorene kontakte i upakujte akumulatorsku bateriju tako, da se ne pokreće u paketu.

Molimo da obratite pažnju na eventualne dalje nationalne propise.

Uklanjanje dubreta

Proizvode, akumulatore, pribor i pakovanja treba odvesti na ekološki savesno recikliranje.

Proizvode i akumulatore/baterije ne bacajte u kućni otpad!

Samo za EU-zemlje:

Prema Evropskoj direktivi 2012/19/EU proizvodi koji nisu više upotrebljivi, a prema Evropskoj direktivi 2006/66/EZ akumulatori/baterije koje su neispravne ili istrošene moraju da se odvojeno sakupe i podvrgnu ekološkoj daljnjoj obradi. Ukoliko se elektronski i električni uređaji otklone u otpad na neispravan način, moguće opasne materije mogu da imaju štetno dejstvo na životnu sredinu i zdravlje ljudi.

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transportēšana

www.bosch-pt.com/serviceaddresses

Transportavimas

www.bosch-pt.com/serviceaddresses

النقل

◀jā meaning (ajī) meaning (aī)

www.bosch-pt.com/serviceaddresses

CALL DSTKAT

(11) (10) (12)

AL 1820 CV

258

B

Diagram illustrating a robotic tool interacting with a device, showing action buttons and directional arrows.

Mechanical tool with a curved handle and base, showing a black arrow pointing to a component (no text or symbols visible)

Illustration of a manual tool with an open lock and curved arrow indicating rotation (no text or symbols)

C

Instructional diagram showing a hand holding a tool with a lock and lock mechanism, accompanied by icons for gloves, tools, and a lock icon.

Mechanical tool with a lever and handle, labeled with number 2 (no text or symbols on the tool itself)

Mechanical tool with a numbered arrow pointing to it, no visible text or symbols

D BOSCH ① ② ③

Diagram illustrating three-step mechanical assembly steps: pinning, locking mechanism, and lock mechanism with labeled arrows.

260

E ① ② ③ ④ ⑤ ⑥

F

Line drawing of a worker in safety gear holding a long tool (no text or symbols)

262

G

(11) BOSCH ① (12) AL 1820 CV

CLICK! ②

(10) (11) ④ ③

H

Close-up of a mechanical device component with labeled parts (7), no readable text or symbols beyond the label

5 sec 5 sec

30% - 60%

5 sec

10% - 30% < 10% > 60%

Simple line drawing of a battery with no text or symbols

Instructional diagram showing three-step tool manipulation steps with labeled parts and hand icons

264

Illustration showing a worker using a manual tool to cut tree branches, with safety symbols and magnified views of the process.

F 016 L94 007 | (21.11.2023) Bosch Power Tools

Diagram illustrating tree pruning techniques with labeled icons and arrows indicating removal or disassembly steps

Bosch Power Tools F 016 L94 007 | (21.11.2023)

266

Diagram illustrating tree pruning techniques with safety symbols and a labeled tool, showing manual and manual methods.

M ×

N 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

F 016 800 602 oil 1 609 200 399

Licenses

Copyright © 2012-2020 STMicroelectronics

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of STMicroelectronics nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Apache 2.0 License

Copyright © 2009-2020 Arm Limited. All rights reserved.

Version 2.0, January 2004

http://www.apache.org/licenses/

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.

"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.

"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.

"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License.

"Source" form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files.

"Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types.

"Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below).

"Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof.

"Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contribution."

"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.

1. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
2. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.
3. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

- You must give any other recipients of the Work or Derivative Works a copy of this License; and

- You must cause any modified files to carry prominent notices stating that You changed the files; and

• You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and
• If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License.

You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.

1. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions.
2. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.
3. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License.
4. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.
5. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS
