DE	Produktname	Gasfritteuse mit Schrank
EN	Product name	Gas fryer with cabinet
PL	Nazwa produktu	Frytkownica gazowa z szafką
CZ	Název výrobku	Plynová fritéza se skříňkou
FR	Nom du produit	Friteuse à gaz avec meuble
IT	Nome del prodotto	Friggitrice a gas con mobiletto
ES	Nombre del producto	Freidora a gas con mueble
HU	Termék neve	Gázsütő szekrénnyel
DA	Produktnavn	Gasfryser med kabinet
FI	Tuotteen nimi	Kaasukeitin kaapilla
NL	Productnaam	Gasfriteuse met kast
NO	Produktnavn	Gassfrityrkoker med skap
SE	Produktnamn	Gasfritös med skåp
PT	Nome do produto	Fritadeira a gás com armário
SK	Názov produktu	Plynová fritéza so skrinkou
BG	Име на продукта	Газов фритюрник с шкаф
EL	Όνομα προϊόντος	Фритеζα υγραερίου με ντουλάπι
HR	Naziv proizvoda	Plinska friteza s ormarićem
LT	Produkto pavadinimas	Dujinė gruzdintuvė su spintele
RO	Numele produsului	Friteuza pe gaz cu dulap
SL	Ime izdelka	Plinski cvrtnik z omarico
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtėlo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCGF-80/700C20DBRCGF-40/700C20SG
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference.

Technical data

Parameter description	Parameter value
Product name	Gas fryer with cabinet
Model	RCGF-80/700C20DB
Type of appliance	A_1
Appliance category	|3+(28-30)/37	|3B/P(30)	|3B/P (50)	|2H (20)
Gas and supply pressure [mbar]	G30 Butane 28~30; G31 propane 37	G30 butane and G31 propane 30	G30 butane and G31 propane 50	G20 methane 20
Country code	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, PT, SI TR	BG, CY, CZ, DK, EE, FI, GR, HR, HU, IT, LT, NL, NO, RO, SE, SI, PL	AT, DE, CH	AT, CH, CZ, DK, EE, ES, FI, GB, GR, HR, IE, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR
Burner injector size [mm]	6 x ∅1.10	6 x ∅1.10	6 x ∅0.95	6 x ∅1.65
Pilot nozzle size [mm]	2 x ∅0.30	2 x ∅0.30	2 x ∅0.25	2 x ∅0.35
Burner [kW]	6x5
Total heat input power [kW]	30
Gas consumption [kg/h] / [m3/h]	G30: 2.366; G31:2.331 / G20: 3.175
Dimensions (Width x Length x Height) [mm]	800x730x930
Weight [kg]	93

Parameter description	Parameter value
Product name	Gas fryer with cabinet
Model	RCGF-40/700C20SG
Type of appliance	A_1
Appliance category	|3+(28-30)/37	|3B/P(30)	|3B/P (50)	|2H (20)
Gas and supply pressure [mbar]	G30 Butane 28~30; G31 propane 37	G30 butane and G31 propane 30	G30 butane and G31 propane 50	G20 methane 20
Country code	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, PT, SI TR	BG, CY, CZ, DK, EE, FI, GR, HR, HU, IT, LT, NL, NO, RO, SE, SI, PL	AT, DE, CH	AT, CH, CZ, DK, EE, ES, FI, GB, GR, HR, IE, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR
Burner injector size [mm]	3 x ∅1.10	3 x ∅1.10	3 x ∅0.95	3 x ∅1.65
Pilot nozzle size [mm]	1 x ∅0.30	1 x ∅0.30	1 x ∅0.25	1 x ∅0.35
Burner [kW] 3x5
Total heat input power [kW]	15
Gas consumption [kg/h] / [m3/h]	G30: 1.183; G31: 1.165 / G20: 1.587
Dimensions (Width x Length x Height) [mm]	400x870x930
Weight [kg]	52

Purpose

The product is used to provide a commercial or industrial cooking appliance designed for deep frying food using gas as the heating source, while also offering integrated storage or utility space in the cabinet beneath the fryer.

Usage

Gas installation

• Ensure that all valves are closed before beginning the installation process.
  • If using LPG as the gas supply, the connection to the machine must be secure and reliable.
  • Do not use a high-pressure valve with this machine.

Operation

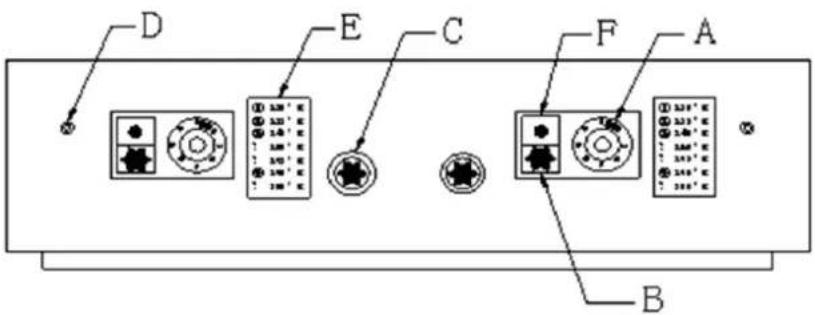

Sketch of control panel

D E C F A B

A- Temperature control knob
B- Ignition switch
C- Strike fire
D- Temperature limiter
E- Temperature table
F- Flameout switch

Ignition

1. Turn the temperature knob to 0.

2. Press and hold the ignition switch B.

3. Press the ignition switch C until the pilot light ignites.
4. Release the ignition switch B.
5. Adjust the temperature control knob A to the desired temperature according to the reference table.

Temperature Control

1. When the temperature reaches the set point, the main burner will shut off automatically, cutting off the gas supply and maintaining the temperature.
2. When the temperature drops by 10^ C, the main burner will automatically reignite and start heating again.

Flameout

1. Press switch F to extinguish the flame.
2. Shut off the gas supply.

Maintenance

• This machine is designed specifically for frying food with oil or high-fat content and is not suitable for other types of frying.
• Do not use the machine if the food does not contain oil or fat.
  • Before using the machine, clean the entire fat content as follows:

a) Add water and a cleanser to the tank and heat to 40-50°C, then clean with a cloth.

b) Do not use abrasive materials to clean the surface.

• Do not use water to clean the machine's body directly, and never use corrosive substances for cleaning.
  • If using oil with a high melting point, please melt the oil before pouring it into the tank.
• Remove any fat residue from the tank after frying.
  • After the machine cools to a normal temperature, you may clean the tank and discard the used oil.
• Ensure the oil level remains at or above the minimum required level.
  • If the machine will not be used for an extended period, please follow these steps:

a) Shut off the gas supply.

b) Use a cloth with petrol to clean the stainless steel surface.

c) Store the machine in a well-ventilated area.

WARNING!

• The frying oil or fat should be replaced regularly, as impurities can lower its flash point.
- Avoid overloading the fryer with food, as it may cause hot oil to splash.
- If the oil catches fire, immediately cut off the gas supply and cover the fryer to extinguish the flames.

Troubleshooting (Reasons Analysis)

The pilot flame does not ignite:

• Incorrect installation or connection of the pilot nozzle.
• Damaged plugs or wiring of the pilot nozzle.
  • Insufficient gas pressure in the gas pipe.
• Nozzle clogging.
• Improper connection of the thermocouple or disconnected temperature controller wiring.
• Damaged thermocouple.
  • Malfunction of the gas temperature control valve.

The pilot flame ignites, but the main burner does not:

• Insufficient gas pressure in the gas pipe.
- Nozzle clogging.
- Malfunction of the gas switch.
- Malfunction of the temperature controller.
• Poor contact between the thermocouple and the valve.
• Damaged thermocouple.

Transportation & Storage

During transportation, handle this product with care to avoid strong vibrations. Generally, the packed product should not be stored outdoors for long periods. It should be kept in a well-ventilated warehouse free from corrosive air. Do not store the product upside down. If outdoor storage is necessary, take appropriate measures to protect it from rain.
